USER MANUAL ac 240 SCHEPPACH

Black diesel air compressor with 'scheppach ac 240' branding, no visible text or symbols on the device itself.

D

Kompressor

Original-Anleitung

GB

Compressor

Translation from the original instruction manual

FR

Compresseur

Labeled diagram of an air compressor with numbered parts for identification

Fig. 4

Close-up of a mechanical component with metallic parts and mounting holes (no visible text or symbols)

Fig. 5

Close-up of a hand adjusting a small mechanical component with a plastic clip (no visible text or symbols)

Close-up of a metallic vehicle's side panel with visible mechanical components (no text or symbols)

Close-up of a wheeled cart with visible tire and handle, no text or symbols present

Fig. 7

Close-up of a black metal panel with a circular vent and ventilation slots (no text or symbols visible)

Fig. 3

Close-up of a black mechanical component with a cutaway view (no visible text or symbols)

Fig. 8

Close-up of a hand holding a black mechanical component with no visible text or symbols

Fig. 9

EIN AUS

Fig. 10

Close-up of a gloved hand using a tool to apply material onto a small object (no visible text or symbols)

Fig. 11

Close-up of a hand adjusting a mechanical valve component (no visible text or symbols)

Fig. 12

Close-up of a hand holding a small metal key inserted into a mechanical component (no visible text or symbols)

Fig. 13

Close-up of a hand holding a metallic mechanical component (no visible text or symbols)

Lieferumfang

Kompressor ac 240

5m Gewebeschlauch

2 Laufräder

1 Luftfilter

1 Beipackbeutel

Bedienungsanweisung

Technische Daten

The image is too blurry to recognize any text content.

Included in shipment

Compressor ac 240

5m woven hose

2 wheels

2 air filter

1 accessory bag

Operating instructions

Technical data

Maximum operating pressure, bars 10

Maximum working pressure bars....10

Oil quantity, litres 0,32

Actual air discharge (FAD) l/min 205

Suction capacity (PD) l/min....260

Weight kg 26

Motor V/Hz 230/50

Input W 1700

Speed 1/min 2850

Noise level dB (A) 94

Technical changes reserved!

General notes

In accordance with valid product liability laws, the manufacturer of this device shall not be responsible for damage to and from this device which results from:

• Improper care.
  • Non-compliance with the Operating Instructions.
  • Repairs made by unauthorized persons.
• The installation and use of any parts which are not original replacement parts.
• Improper use and application.
• Failure of the electrical system as a result of non-compliance with the legal and applicable electrical directives and VDE regulations 0100, DIN 57113 / VDE 0113.

Read the Operating Instructions:

Carefully read the Operating Instructions before setting up the compressor or putting it into operation, or before doing any adjustment or maintenance work.

Dangerous electrical voltage

Attention: Before doing any adjustment, maintenance or cleaning work on the compressor, switch off the power supply.

Danger emanating from hot surfaces

Attention: The compressor contains some parts that can get very hot.

Danger through sudden start

Attention: After failure of electric power, the compressor can suddenly restart.

Warning:

Before putting the compressor into operation for the first time, fill in oil and replace the oil plug. The pressure control has been set in the works for maximum operating safety. Do not change the given setting.

Before assembly and putting into operation, read the entire Operating Instructions.

These Operating Instructions are to assist you in getting to know your machine and utilize its proper applications.

The Operating Instructions contain important notes on how you work with the machine safely, expertly, and economically, and how you can avoid hazards, save repair costs, reduce downtime, and increase the reliability and service life of the machine.

In addition to the safety requirements contained in these Operating Instructions, you must be careful to observe your country's applicable regulations.

The Operating Instructions must always be near the machine. Put them in a plastic folder to protect them from dirt and humidity. They must be read by every operator before beginning work and observed conscientiously. Only persons who have been trained in the use of the machine and have been informed of the various dangers may work with the machine. The required minimum age must be observed.

In addition to the safety requirements contained in these Operating Instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

• After unpacking, check all parts for any transport damage. Inform the supplier immediately of any faults. Later complaints cannot be considered.
• Make sure the delivery is complete
- Before putting into operation, familiarize yourself with the machine by carefully reading these instructions.
- Use only original accessories, wearing or replacement parts. You can find replacement parts at your scheppach dealer.
- When ordering, include our item number and the type and year of construction of the machine.

Legend, Fig.1

Get to know your machine
1 Handle
2 Pressure switch cover
3 ON/OFF switch
4 Working pressure manometer

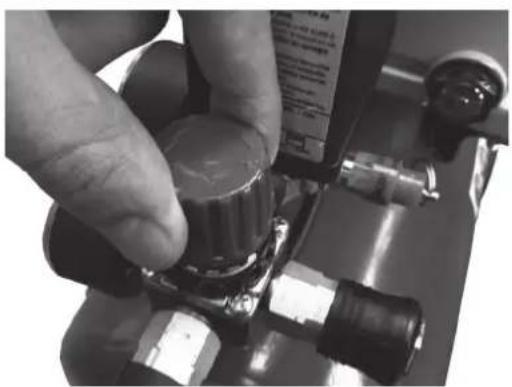

5 Pressure reducer
6 Quick coupling for adjustable pressure
7 Boiler pressure manometer
8 Excess pressure valve
9 Discharge screw
10 Boiler
11 Wheel (2x)
12 Sealing plug
13 Air filter unit
14 Oil level display

1

Description of symbols

The model plate on your machine may show symbols. They contain important information regarding the product or its use:

1 Wear ear protection / Wear goggles
2 Warning! Automatic start.
3 Warning! Hot Surface.

Meets the valid standards regarding electro-magnetic compatibility.

⚠️ General safety notes

Preserve these Operating Instructions well and have them carefully read by every person working with the compressor.

Important information

Attentively read these Operating Instructions. Most of the accidents when working with the

compressor occur through neglect of the basic safety rules. Recognizing potential dangers in time and conscientious observance of the safety instructions can avoid accidents. Only use the compressor following the recommendations of the manufacturer.

⚠️ Safety notes

• Do not touch moving machine parts
• Do not use the compressor with the guards removed.
  • Always wear goggles or another adequate eye protection. Never point the compressed air current towards a part of your body or towards another person.
• Protection from electric shocks. Avoid inadvertent contact with the cables, the tank, or earthed metal parts of the compressor. Never use the compressor close to water or in a humid environment.
• Pull the power supply plug before starting repair, inspection, maintenance, or cleaning work, or before replacing any parts.
• Inadvertent starting. Do not transport the compressor while it is connected to the electric power. Make sure the switch is in OFF position before you plug in the electric cable.
• Store the compressor correctly. When the compressor is not used, it must be stored in a dry place protected from weather conditions.
• Working area. Make sure the work place is clean and well aerated. Put away any tools that are not needed. Do not use the compressor together with inflammable liquids or gases – risk of electric shock. Protect the compressor from rain and do not use it in humid or wet conditions. Since sparks can emanate from the compressor during work, it must be kept away from lacquers, gasoline, chemicals, glues, and other inflammable or explosive materials.
• Keep children away. Children, third persons or animals may not get in touch with the compressor. Unauthorized persons must observe a safety distance from the working zone.
• Working clothes. Wear close fitting clothes. Take off jewels as they could get caught in moving machine parts. Protect long hair by a net or cap.
• Do not misuse the electric cable. Do not remove the plug from the socket by pulling the cable. Keep the cable away from heat, oil and surfaces with sharp edges. Do not step on the cable, and do not squeeze it by putting heavy weights on it.
• Carefully service the compressor.

Regularly check the electric cable. In case of a defect, have it repaired or replaced by an authorized service station. Carefully inspect the compressor from outside and have any defects repaired by a service station.

• Attention. Keep your mind at what you are doing. Use your common sense. Never work with the compressor when you are tired, or under influence of alcohol, drugs, or medicines causing drowsiness.
• Check the compressor for any defective parts or loss of air. Before you use the compressor again, check the correct position of the moving parts, cables, manometer, compressed air connections and all other parts important for the correct operation. Defective components must be

repaired or replaced by an authorized service station, observing the instructions given in this manual. The compressor may not be used with the pressure control valve defective.

• The compressor may only be used for the purposes specified in this operating manual. Do not allow children or inexperienced persons work with the compressor. The compressor is a machine generating compressed air. Use it according to the instructions given in this manual. Any other use exceeds authorization. The manufacturer is not responsible for any damages resulting from unauthorized use; risk is the sole responsibility of the operator.
• Keep the venting grids clean, especially when working in dirty conditions.
• Use the compressor at the rated voltage indicated on the model plate with the electrical data. The admissible tolerance range is +/- 5 %.
• Never use a defective compressor. If, during operation, you note a strange noise, excessive vibrations or any defects, switch it off immediately, check its good working order or contact your authorized service station.
• Only use original spare parts. The use of non-original spare parts renders the warranty invalid, and it can cause a malfunction of the compressor. Do not make any arbitrary modification on the compressor. Have repairs done by an authorized service station.
• Put the switch to OFF position when the compressor is not used. Put the switch to „0“ (OFF) to interrupt the power supply.
• Do not touch the hot parts of the compressor.
• Do not switch off the compressor by pulling the electric cable.
• Compressed air circuit. Use compressed air hoses and tools made for a higher (or identical pressure) than the maximum operating pressure of the compressor.

Additional safety notes for air compressors

Warning: Before connecting the compressor to the electric power (main switch on machine, socket, etc.), make sure the power supply corresponds with the data on the model plate. A higher mains voltage can cause serious injuries and damage the machine. Do not connect the machine in case of doubt. If the mains voltage is too low, the motor can get damaged.

Always pull the power supply plug before doing any maintenance or adjustment work, including changing the oil.

1 Never try to remove a part from the compressor while it is pressurized.
2 Never try to remove an electrical part while the compressor is connected to the mains supply. Switch the machine off and pull the power supply plug.
3 Do not adjust the safety valve.

4 Do not use an electrical extension cable.
5 If the drain plug underneath the switch cover (2) does not work while the ON/OFF switch is depressed, switch the power supply off and try to find the cause for the defect.
6 Make sure the lubrication oil is clean and the oil level remains in the centre of the red circle on the oil sight glass (16).
7 Be careful when you vent the tank (from the safety valve, the drain plug, or the air escape). Compressed air can be extremely dangerous. Make sure the air current does not whirl up any dust, stones or other foreign bodies. Be also sure that the air does escape in a safe way.
- In order to reduce the risk of fire or explosions, never spray inflammable fluids in an enclosed room. It is normal that sparks escape from the motor during operation. When these sparks get in touch with gasoline vapours or inflammable liquids, they can ignite and cause fire or explosions.
- Always operate the compressor in a well vented room. Do not smoke during spraying. Do not spray in the presence of sparks or flames. Keep the compressor as far as possible away from the spraying place. The liquids trichlorethane and methylenchloride can cause a chemical reaction with aluminium that is used in some paint spray cartridges and can cause an explosion. If these liquids are used, make sure the spraying is only done with spraying bins made of stainless steel. The compressor is not impaired by these liquids.
- Never inhale directly the compressed air produced by the compressor. Do not use the compressed air for filling breathing tanks.
- Do not use any welding equipment near the compressor. Do not weld anything to the air tank of the compressor: This could dangerously weaken the tank and would render the warranty invalid.
- Do not work with the compressor in the open air while it is raining, or on a wet base. Any of these situations could cause an electric shock.
- Always switch off the compressor after use and before doing any maintenance work. Press the ON/OFF button and wait until the compressed air has escaped from the tank via the drain valve. Then pull the power supply plug.
- Check the maximum admissible pressure of all devices used with the compressor. The output pressure on the compressor must be set in such a way that it never exceeds the prescribed pressure of devices or accessories.
- In order to reduce the risk of injury from moving parts, never operate the compressor without the guard fitted. Let hot components cool down before touching them.
- Read all labels and notes on the paint tank or on other spray materials. Carefully

observe all safety instructions. Wear a breathing mask when there is a risk of inhaling spray materials. Carefully check the function of the breathing mask before putting it on.

• Always wear goggles when handling the compressor. Never direct the nozzle of an accessory towards your body or towards another person.
- Do not try to adjust the pressure switch or the drain valve underneath the pressure switch cover.
- Remove daily the liquid from the tank in order to avoid corrosion.
- Pull the ring on the safety valve to make sure it works well.
- Keep the compressor at least 300 mm away from the wall in order to ensure sufficient venting for the cooling.
- Before you transport the compressor, drain the compressed air from the tank and secure the machine safely.
- Protect the air hose and the cable set from damage. Regularly examine the components for weak and worn spots, and replace them in case of need.
- Do not use an extension cable for this pro-

duct. Use instead an additional air hose in order to avoid a drop in power and a possible motor damage. The use of an extension cable makes the warranty invalid.

• After a long period of work, the outer metal parts can get hot.
- Press the ON/OFF switch to switch off the compressor. Only then cut the mains supply or pull the power supply plug.
- Before working with the compressor, check the oil level. It must be near the red circle as shown on the display. Attention: Oil must be filled in before the initial putting into operation.
- After using the compressor, press the ON/OFF switch, cut off the mains supply, and open the drain valve in order to reduce the pressure.
- Do not try to remove a part from the machine while it is pressurized.
- Make sure the lubrication oil is clean and always available in sufficient quantity. Change the oil according to the instructions given in the chapter „Maintenance“ of this manual.
- Wear safety gears including goggles or a screen, ear protection, breathing mask

and protective clothing.

• After connection to the mains and switching on, the machine starts automatically.
• Air escaping from the compressor may not be inhaled.
- Check the pressure control valve daily before starting work.
- Drain humidity from the tank. Avoid tank corrosion.
- Cut off the mains supply, remove the power supply plug, and relieve the pressure before starting maintenance work.

Wear goggles.

Wear ear protection.

Wear a breathing mask.

Never direct the output air from the compressor towards a part of the body or a person. Never try to block the air escape with your finger or a part of your body.

⚠️ Use as authorized

The machine meets all valid EC machine guidelines.

• The machine must only be used in technically perfect condition and conscious of the risks, in accordance with its designated use and the instructions set out in the operating manual.
• Any functional disorders, especially those affecting the safety of the machine, must be rectified immediately.
• The safety, working and maintenance instructions of the manufacturer as well as

the dimensions given in the chapter „Technical data“ must be adhered to.

• The relevant accident prevention regulations and other, generally recognized safety-technical rules must also be adhered to.
• The machine may only be used, maintained, and operated by persons familiar with it and instructed in its operation and procedures.

• Arbitrary alterations to the machine release the manufacturer from all responsibility for any resulting damages.

• The machine may only be used with original accessories and original tools supplied by the manufacturer. Any other use exceeds authorization. The manufacturer is not responsible for any damages resulting from unauthorized use; risk is the sole responsibility of the operator.

• Only use indoors. Prohibited to use outdoors.

⚠️ Remaining hazards

The machine has been built using modern technology in accordance with recognized safety rules. Some remaining hazards, however, may still exist.

• Noise can be a health hazard. If the permitted noise level is exceeded when working, be sure to wear ear protection.
• The use of incorrect or damaged mains cables can lead to injuries caused by electricity.
• Even when all safety measures are taken, some remaining hazards which are not yet evident may still exist.
• Remaining hazards can be minimized by following the instructions given in the chapters „Safety notes“ and „Use as authorized“ as well as in the entire operating manual.

Even when all safety measures are taken, it is not possible to exclude all remaining hazards. Due to the construction of the machine, the following risks can occur:

• Injury of the lung when no breathing mask is worn.
• Injury of the ear when no ear protection is worn.
• Injury of the eyes when no efficient goggles (or protective screen) are worn.

Warning:

If an air hose is broken off or damaged, the air input on the compressor must be switched off. A broken air hose that is not supported, is extremely dangerous and can quickly start to rotate, hitting people or blowing foreign bodies

in the air.

Do not try to catch the hose. Instead, immediately remove all spectators from the dangerous area, cut off the air input, and switch the machine off by pressing the ON/OFF switch. Then remove the hose from the compressor.

Unpacking

Due to modern series production it is improbable that your compressor has any defects or that a part is missing. Should you note a fault, however, do not switch the machine on before the parts are replaced or the fault has been remedied. Not observing this instruction can lead to serious injuries.

Assembly

Wheels, Fig. 2

1 To mount the wheels (11), insert a pivot pin through the wheel first. Then insert the spacer plate at the bottom side of the wheel.
2 Mount the wheel unit through the hole in the lug under the tank.
3 Mount the flat shim disk, the lock washer and the nut. Pull the nut from the bottom side of the wheel and place the wheel cover.
4 Repeat the operation for the second wheel.

Rubber Bumper, Fig.3

Fix the rubber leg on the lug under the front side of the tank by using the bolts, shim disks and nuts.

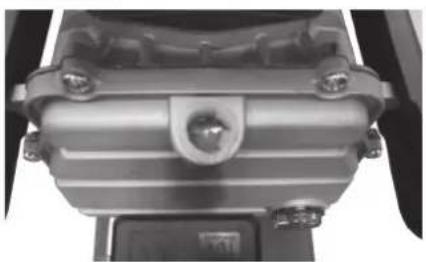

Oil, Fig. 4-6

Warning: Check oil level without fail before the first use.

1 Operation without oil leads to irreparable damage to the machine and renders the warranty null and void.
2 Remove the plastic transport lock at the top on the crank case of the compressor housing.
3 Check the oil level with the help of the sight glass. The oil level should be within the red circle.

4 Apply the sealing plug, which is included in the package, and fix it tightly.

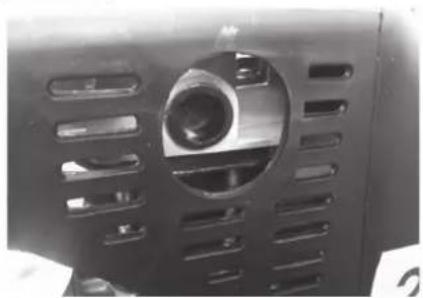

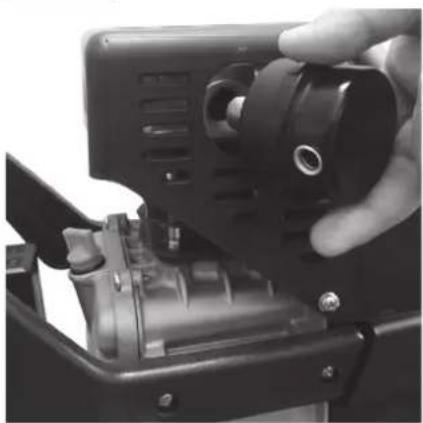

Air filter, Fig. 7-8

Warning: The air filter must be installed before the first use. Operation without the air filter damages the compressor and renders the warranty null and void.

1 Remove the plastic transport plug from the compressor head.

2 Mount the air filter in the opening provided for the purpos e.

Putting into operation

Warning:

It is absolutely necessary to check the oil fill level before the first use!

1 Make sure the place of setting up is clean, dry, and well vented.

2 Make sure that the oil level is correct and that the air filters are installed.

3 Start the compressor as described in the chapter „Switching on and off the compressor“. At switching on for the first time, let the compressor run for ten minutes at no load with the drain valve open, so that all the parts get well lubricated.

Warning: As compressed air comes off the output, the output may not be directed towards the operator or people in the vicinity. The air coming off the exit may not be inhaled. Daily check the pressure control valve.

Switching on and off the compressor

Fig.9-10

1 Check the model plate on the compressor: 230 - 240 V (or 110 - 120 V).

2 Plug the compressor cable into a standard socket (240 V or 120 V) and switch the compressor on.

3 For switching the compressor on, lift the ON/OFF switch (3) on the pressure switch cover (2).

4 For switching the compressor off, depress the ON/OFF switch.

Operation

Fig. 11

1. The pressure in the tank is regulated with the pressure switch under the pressure switch cover (2). The pressure switch is activated and the motor is switched off when the set maximum pressure is reached. The pressure comes down as the air is consumed by the connected tool, until the set minimum pressure is reached. The pressure switch then activates the motor again. The operator at the compressor must pay attention that the motor is switched on and off under the influence of the increasing and decreasing pressure in the tank. The motor starts without any pre-warning.

2 The maximum and minimum pressures are set in the factory. These settings are not to be altered.

3 All the accessory parts are connected to an adjustable discharge valve (6).

4 The pressure of the adjustable outlet can, as is evident from the work pressure mano meter (4), be changed by turning the pressure reducer (5).

Note: To be able to read the correct output at the output measuring unit, the air must flow through the outlet.

The adjustable valve must be set and the measuring unit must be read from the open valve while the air flows from the adjustable outlet through the accessories.

To increase the air pressure, turn the valve in the clockwise direction. To decrease the air pressure, turn the valve in the counter-clockwise direction.

Note: If you do not allow any air to flow during the settings, you will get a wrong display. Air must flow for a correct display.

After completing your work, or if you leave the compressor without any supervision, please switch the machine off as follows

• Hold the ON/OFF switch (3) down.
• Wait till the compressed air is released via the discharge valve under the switch cover (2).

Note: On holding the button down, you should hear a short air discharge (approx. for half-a-second).

Fig. 12

• Switch the machine off and disconnect the power plug.
• Pull the ring on the over-pressure valve (8), to ensure that the compressed air has been released from the tank, or open the discharge cock of the tank to release the pressure.

Maintenance

Warning: For any and all maintenance and cleaning, please shut the engine off and unplug the device.

Fig. 13

1. After the first ten hours of operation, drain the oil in the crank casing and refill with clean oil. To do this, remove the oil plug on the crank casing (at the bottom left of the crank casing). Note: SAE 30 or L-DAB 100 above 10 °C SAE 10 or L-DAB 68 below 10 °C

2. Always discharge the oil after 500 hours of operation and refill oil in the crank casing with clean oil.

3 After every day of machine operation, loosen the discharge screw (9) at the bottom of the tank to release the condensate.

4 Check the air filter cartridge in the air filter unit (12) regularly and replace the cartridge if necessary.

5 Check the function of the safety valve every day. During the check, the pressure in the tank should approximate the maximum pressure.

To check the valve, put the tank under pressure and pull the ring on the safety valve in the outward direction.

Air should be discharged by the valve.

Release the ring on the safety valve and the air discharge should stop.

Warnings

A pair of protective glasses must be worn while performing this test.

Do not hold your face near the safety valve during this test, because air is released there at high pressure.

If the safety valve is not working properly, as described above, switch the compressor off immediately and ask your dealer to check the valve.

Do not work with the compressor if the safety valve is not working properly, as described above.

Cleaning

1. Always keep the air inlets and outlets clear and clean.

2. Remove dust and dirt regularly with a soft brush or a soft cloth.

3 Lubricate all moveable parts at regular intervals.

4 If the compressor body must be cleaned, wipe it with a soft wet cloth. A mild washing agent may be used, but no alcohol, petrol or other cleaners.

1. Never use corrosive substances to clean the plastic parts.

Caution: The machine should never come in contact with water..

General inspection

1. Check regularly whether all fastening bolts are screwed tightly.
2. Check the electrical cable regularly at short intervals for damages. To avoid risks, a damaged cable must be replaced with a new one by an electrician.

Electric connection

Maintenance of the electric cable

The cable set may only be repaired or replaced by a specialized workshop. In case of damage, contact your dealer.

Trouble-shooting

Failure Possible cause Remedy
Motor does not start, runs too slowly, or gets extremely hot.	Fault in electric current or mains voltage too low. Check mains voltage.
	Electric cable too long or too thin. Get a new cable from your dealer.
	Faulty pressure switch. Have it repaired or replaced by your dealer.
	Faulty motor. Have it repaired or replaced by your dealer.
	Main compressor does not run smoothly, got stuck. Have it repaired or defective parts replaced by your dealer.
Main compressor does not run smoothly, got stuck.	Moving parts damaged by heat due to insufficient lubrication.	Crank shaft, bearing, connecting rod, piston rings etc. to be checked by your dealer and replaced, if needed.
	Moving parts damaged or blocked by foreign bodies.
Vibrations or strange noise.	Loose parts. Have checked by your dealer and repaired, if needed.
	Foreign body in compressor. Have checked by your dealer and repaired, if needed.
	Piston rod with valve seat. Have the gasket enlarged by your dealer.
	Moving parts too hot.	Have repaired by your dealer or replaced.
Insufficient pressure or drop in output capacity.	Motor runs too slowly.	Have checked by your dealer and repaired, if needed.
	Dirty filter cartridge.	Clean or replace filter cartridge.
	Leakage in safety valve.	Have switch repaired or replaced by your dealer.
	Leakage in tube.	Have checked by your dealer and repaired, if needed.
	Gasket damaged.	Have checked by your dealer and repaired, if needed.
	Valve seat damaged or covered with carbon layer.	Have checked by your dealer and repaired, if needed.
	Piston ring or cylinder damaged.	Have checked by your dealer and repaired, if needed.
Oil consumption too high.	Oil level too high. Keep oil at correct level.
	Hole in oil inlet plug (14) blocked.	Check and clean it.
	Piston ring and/or cylinder worn or damaged.	Have checked by your dealer and repaired, if needed.

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for engineering or manufacturing purposes.

×	2006/42/EC
×	2006/95/EC
×	2004/108/EC
×	2009/105/EC

	2000/14/EC_2005/88/EC L_WA dB(A)
	2004/26/EC

EN 1012-1, EN 60204-1, EN 60335-1, EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11

The technical documentation is kept by our

authorizedrepresentative

Great Britain

Only for EU countries.
Do not dispose of electric tools together with household waste material! In observance of european directive 2002/96/EC on wasted electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrica-

tion within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
