USER MANUAL UHE-CMTF14 HOMEDICS

text_image please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

2-year limited warranty

UHE-CMTF14 | L-03796, Rev 1

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS BEFORE USING.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

  • Always place humidifier on a firm, flat surface. A waterproof mat or pad is recommended for use under the humidifier. NEVER place it on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture.
  • Always unplug the unit from the electrical outlet immediately after using and before cleaning.
  • DO NOT reach for a unit that has fallen into water. Unplug it immediately.
  • DO NOT place or store the unit where it can fall or be pulled into a tub or sink.
  • DO NOT place or drop into water or other liquids.
    • DO NOT use water above 86°F.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS:

  • Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by Homedics; specifically, any attachments not provided with this unit.
  • NEVER drop or insert any object into any opening.
  • NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a Homedics Service Center for examination and repair.
  • Always unplug the unit when filling or moving the unit.
  • Ensure that your hands are dry when operating the controls or removing the plug.
  • DO NOT place the humidifier near heat sources, such as a stove, and do not expose the humidifier to direct sunlight.
  • DO NOT carry this unit by the power cord or use the power cord as a handle.
  • To disconnect, turn all controls to the off position, then remove the plug from the outlet.
  • DO NOT use any other AC Adapter than what is supplied with the product. Use of any other AC adapter may damage the product and may increase risk of harm to user or property. Only AC Adapter bearing the Part #: PPUHECMTF14WTAD should be used.

CAUTION: All servicing of this humidifier must be performed by authorized Homedics service personnel only.

SAVE THESE INSTRUCTIONS

CAUTION

- PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE

OPERATING.

  • This product is intended for household use only.
  • NEVER cover the unit while it is operating.
  • Place the product and connected cord so that the product is not likely to be upset.
  • Always keep the cord away from high temperatures and fire.
  • Perform regular maintenance on the ultrasonic membrane.
  • NEVER use detergent to clean the ultrasonic membrane.
  • NEVER clean the ultrasonic membrane by scraping with a hard object.
  • DO NOT attempt to adjust or repair the unit. Servicing must be performed by professional or qualified personnel.
  • Stop using this unit if there is an unusual noise or smell.
  • Unplug this unit when not in use for a long period of time.
  • DO NOT touch the water or any parts of the unit that are covered by water while the unit is on or plugged in.
  • NEVER operate without water in the tank.
  • DO NOT wash, adjust, or move this unit without first unplugging it from the electrical wall outlet.
  • Only use water in the tank.
  • DO NOT overfill.
  • NEVER use any additive in the water.
  • Keep this unit out of reach of children. Do not allow children to use this unit without supervision.
  • DO NOT use outdoors. For indoor use only.

CAUTION: DO NOT place humidifier on furniture.

CAUTION: ALWAYS use a waterproof mat or pad on wood floors.

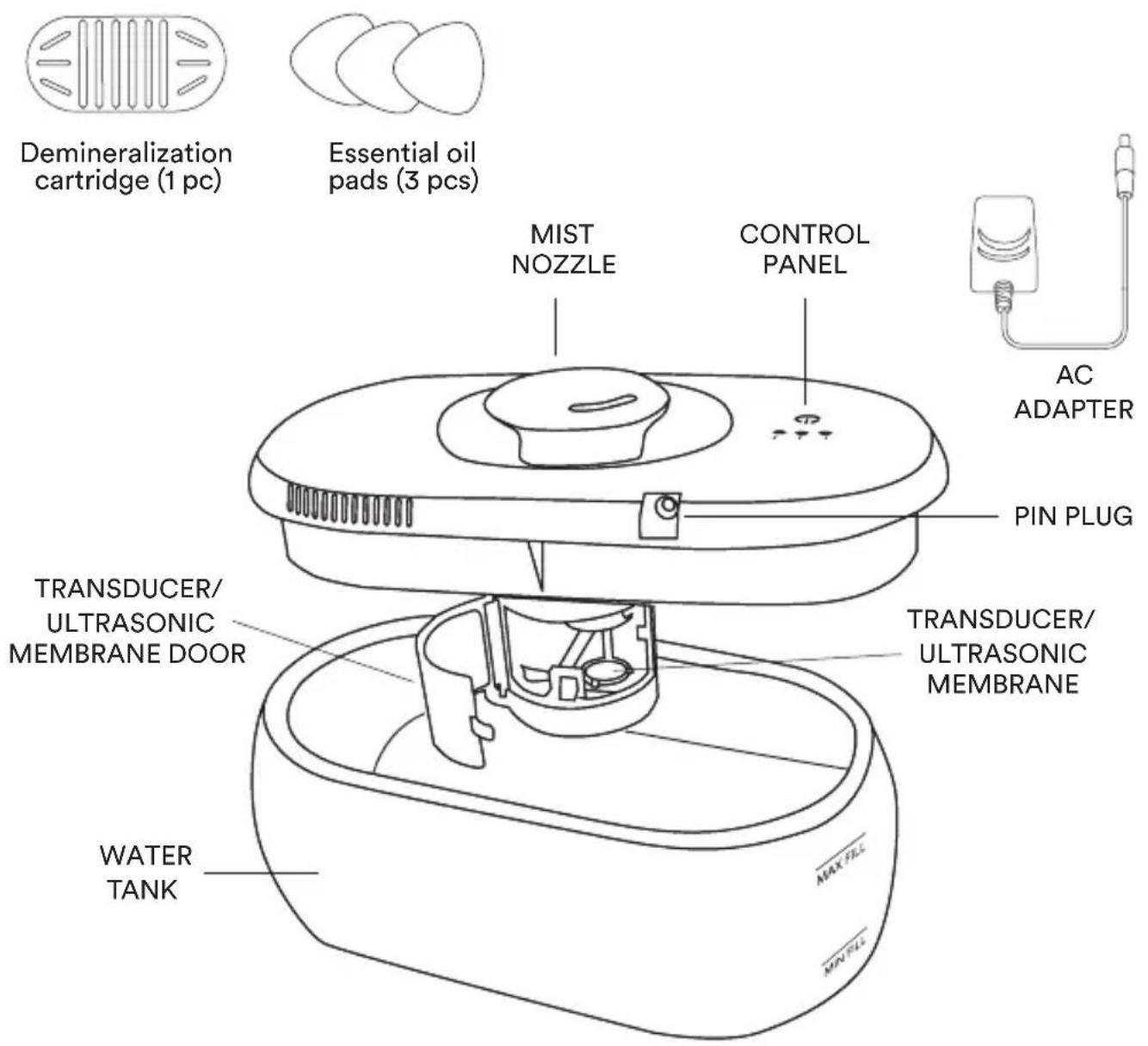

GETTING TO KNOW YOUR ULTRASONIC HUMIDIFIER
HOMEDICS UHE-CMTF14 - OPERATING. - 1

text_image Demineralization cartridge (1 pc) Essential oil pads (3 pcs) MIST NOZZLE CONTROL PANEL AC ADAPTER PIN PLUG TRANSDUCER/ ULTRASONIC MEMBRANE DOOR TRANSDUCER/ ULTRASONIC MEMBRANE WATER TANK MAX FEC MAX FEC

CONTROL PANEL

HOMEDICS UHE-CMTF14 - CONTROL PANEL - 1

MIST OUTPUT SETTINGS

POWER/MIST OUTPUT LIGHTS ON/OFF

HOMEDICS UHE-CMTF14 - CONTROL PANEL - 2

HOW TO FILL

CAUTION: Before filling the tank with water, turn the power off and unplug the humidifier from the outlet.

NOTE: Always use 2 hands to carry the water tank. The convenient top-fill tank can be filled with a pitcher or at the faucet.

HOW AND WHY TO USE DEMINERALIZATION CARTRIDGES

The Homedics demineralization cartridge will help reduce the potential for white dust, a deposit of minerals left behind from using hard water in your humidifier. The cartridge should be replaced every 30–40 fillings. The cartridge may need to be replaced more often if you are using very hard water.

TO FILL WITH A PITCHER

HOMEDICS UHE-CMTF14 - TO FILL WITH A PITCHER - 1

natural_image Close-up of a dark, ribbed insect-like object resting on a light surface (no text or symbols visible)
  1. Before filling with water for the first time, remove 1 demineralization cartridge from the packaging and soak in water for 10 minutes.

HOMEDICS UHE-CMTF14 - TO FILL WITH A PITCHER - 2

natural_image Hand holding a small white object with a circular top, possibly a container or device (no visible text or symbols)
  1. Remove the top cover. Rinse tank with water before filling. Fill with clean, cool water or distilled water (if in area with hard water) until the water level reaches the MAX fill line. DO NOT fill with warm or hot water. CAUTION: Never add essential oils or other additives to the water tank or water reservoir.

HOMEDICS UHE-CMTF14 - TO FILL WITH A PITCHER - 3

natural_image Close-up of a hand using a white plastic container to lift or spread material (no visible text or symbols)

HOMEDICS UHE-CMTF14 - TO FILL WITH A PITCHER - 4

natural_image Close-up of a hand holding a small threaded object against a blurred outdoor background (no text or symbols visible)
  1. Add the soaked demineralization cartridge.

HOMEDICS UHE-CMTF14 - TO FILL WITH A PITCHER - 5

natural_image Close-up of a hand pressing a small cylindrical object on a white surface (no text or symbols visible)
  1. Replace the top cover.

TO FILL AT THE FAUCET

HOMEDICS UHE-CMTF14 - TO FILL AT THE FAUCET - 1

natural_image Close-up of a dark, ribbed insect-like object resting on a light surface (no text or symbols visible)
  1. Before filling with water for the first time, remove 1 demineralization cartridge from the packaging and soak in water for 10 minutes.

HOMEDICS UHE-CMTF14 - TO FILL AT THE FAUCET - 2

natural_image Hand holding a white plastic water dispenser with a circular lid (no visible text or symbols)
  1. Use 2 hands to carry the water tank. Rinse tank with water before filling. Fill with clean, cool water or distilled water (if in area with hard water) until the water level reaches the MAX fill line. DO NOT fill with warm or hot water. CAUTION: Never add essential oils or other additives to the water tank or water reservoir.

HOMEDICS UHE-CMTF14 - TO FILL AT THE FAUCET - 3

natural_image Person pouring liquid into a plastic basin in a kitchen (no visible text or symbols)

HOMEDICS UHE-CMTF14 - TO FILL AT THE FAUCET - 4

natural_image Close-up of a hand holding a threaded screw against a blurred background (no text or symbols visible)
  1. Add the soaked demineralization cartridge.

HOMEDICS UHE-CMTF14 - TO FILL AT THE FAUCET - 5

natural_image Close-up of a hand pressing a button on a white electronic device (no visible text or symbols)
  1. Replace the top cover.

ABOUT WHITE DUST

Use of high mineral content hard water may cause a white mineral residue to accumulate on surfaces in the room near the humidifier. The mineral residue is commonly called “white dust.” The higher the mineral content (or the harder your water is), the greater the potential for white dust. The white dust is not caused by a defect in the humidifier. It is caused only by minerals suspended in the water.

HOW TO OPERATE

Insert single pin plug into the top of the humidifier, then plug the adapter into a 120-volt AC electrical outlet. When the humidifier is out of water, the power/out of water LED above mist output level 1 will glow red.

HOMEDICS UHE-CMTF14 - HOW TO OPERATE - 1

POWER BUTTON

  • Press to turn humidifier on and cycle through the 3 mist output settings and off.
  • Press and hold for 3 seconds to turn lights on/off.
  • Press and hold for 1 second to park lights on your favorite color or resume scrolling through the 7 colors.

HOW TO USE THE OIL TRAY

WARNING: Putting oil anywhere but the oil tray will damage the humidifier.

HOMEDICS UHE-CMTF14 - HOW TO USE THE OIL TRAY - 1

natural_image Close-up of a hand pressing down on a circular mechanical component (no visible text or symbols)
  1. The oil tray is located on the side of the humidifier.

HOMEDICS UHE-CMTF14 - HOW TO USE THE OIL TRAY - 2

natural_image Close-up of a hand holding a small object, possibly a container or tool, with no visible text or symbols.
  1. Push to open and remove the oil tray. Use the 1 pre installed essential oil pad in the oil tray (3 total included).

HOMEDICS UHE-CMTF14 - HOW TO USE THE OIL TRAY - 3

natural_image Close-up of a hand holding a white, irregularly shaped object (no text or symbols visible)

HOMEDICS UHE-CMTF14 - HOW TO USE THE OIL TRAY - 4

natural_image Close-up of a hand holding a small black object, possibly a lens or plug, with no visible text or symbols.
  1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. CAUTION: Only place essential oil on the pad and NOT directly into the tray.

HOMEDICS UHE-CMTF14 - HOW TO USE THE OIL TRAY - 5

natural_image Close-up of a hand adjusting a circular component with a label 'OAT' (no other text or symbols visible)
  1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the mist is turned on.

NOTE: For use with the included Homedics essential oil pads only.

NOTE: Do not leave a used essential oil pad in the oil tray if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around pets. Keep all essential oil and aromatherapy products (like diffusers) out of the reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

HOW TO CLEAN AND CARE

CAUTION: Before cleaning, turn off, and unplug the humidifier from the wall outlet and unplug the AC Adapter plug from the top of the humidifier. Clean over a waterproof surface near a faucet.

  • DO NOT place any parts of the humidifier in the dishwasher.
  • DO NOT submerge the humidifier top cover in water or any other liquid. Doing so will damage the humidifier.
  • DO NOT use abrasive pads or brushes, harsh chemicals, detergents, or liquid soaps to clean the humidifier. Clean with a soft cloth, cotton swab, or soft brush.

WEEKLY CLEANING

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 1

natural_image Hand holding a small white object with a circular top (no visible text or symbols)
  1. Remove the tank cover and pour out any water from the tank.

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 2

natural_image Close-up of a hand pouring liquid into a sink with a circular pipe (no text or symbols visible)

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 3

natural_image Close-up of a kitchen sink with a water pipe pouring into a bowl (no text or symbols visible)
  1. Rinse the water tank with room temperature water. Dry with a soft cloth and set aside.

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 4

natural_image Interior view of a mechanical or architectural component with internal compartments and structural elements (no visible text or symbols)
  1. Open the transducer/ ultrasonic membrane door and wipe the transducer/ ultrasonic membrane with a damp cotton swab and close the membrane door. Never touch the transducer/ ultrasonic membrane with your fingers; the natural oils in the skin can damage the surface.

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 5

natural_image Close-up of a hand holding a small electronic device (no visible text or symbols)
  1. Wipe the inside of the top cover and tube with a damp soft cloth.

HOMEDICS UHE-CMTF14 - WEEKLY CLEANING - 6

natural_image Close-up of a hand holding a textured surface with a ring on the wrist (no visible text or symbols)
  1. Dry thoroughly and reassemble.
    CAUTION: Never submerge the top in water or any other liquid.

SCALE REMOVAL

Perform before storage, or as needed. Failure to do so may cause reduced or no mist output. Prepare 4 cups / 950ml of a cleaning solution using a 50/50 mix of white vinegar and water.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 1

natural_image Hand holding a white plastic container with a small circular top (no text or symbols visible)
  1. Remove the tank cover and pour out any water from the tank.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 2

natural_image Close-up of a hand pouring liquid into a bowl (no visible text or symbols)

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 3

natural_image Close-up of a hand holding a small bowl filled with granular substance (no text or symbols visible)
  1. Fill the tank with 4 cups / 950ml of 50 /50 white vinegar and water. Place the top cover on the water tank. Swish the solution around the water tank and let soak for 15-20 minutes to loosen scale /water mineral build-up.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 4

natural_image Hand holding a white plastic container with a small lid (no visible text or symbols)
  1. Remove the top cover and pour out the solution from the water tank. Rinse the water tank with clean water until the vinegar smell is gone and wipe dry with a soft cloth.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 5

natural_image Close-up of a hand pouring liquid into a metal bowl (no visible text or symbols)

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 6

natural_image Close-up of hands cleaning a textured surface with a cloth (no text or symbols visible)
  1. Dry thoroughly and reassemble.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 7

natural_image Close-up of a hand holding a small object, possibly a device or tool, with no visible text or symbols.
  1. Wipe the inside of the top cover and tube with a damp soft cloth until the vinegar smell is gone.

HOMEDICS UHE-CMTF14 - SCALE REMOVAL - 8

natural_image Close-up of a mechanical component with internal cavity and mounting holes (no visible text or symbols)
  1. Open the transducer/ultrasonic membrane door and wipe the transducer/ultrasonic membrane with a damp cotton swab and close the membrane door. Never touch the transducer/ultrasonic membrane with your fingers; the natural oils in the skin can damage the surface. CAUTION: Never submerge the top in water or any other liquid.

CLEANING THE OIL TRAY

  1. Open the oil tray and remove the pad.
  2. Rinse the oil tray with water and wipe dry with a soft cloth. DO NOT clean with detergent or liquid cleaners.

NOTE: If continuing to use the same scent, set the oil pad aside for reuse.

DO NOT leave a used pad in the oil tray when storing.

STORAGE

Store in a cool, dry location.

Before storing

  1. Descale the humidifier following the Scale Removal instructions.
  2. Clean the oil tray following the Cleaning The Oil Tray instructions. DO NOT leave a used pad in the oil tray when storing.

After storing

  1. Rinse the tank with water prior to operating.

SPECIFICATIONS

ULTRASONIC TECHNOLOGY

This humidifier uses ultrasonic, high-frequency technology to convert water into a fine cool mist that is dispersed evenly into the air.

ELECTRICAL RATING

100-240 VAC, 50/60 Hz, 0.8 A

AUTO-SHUTOFF PROTECTION

When the tank is empty, the unit will shut off automatically. The power button will glow red.

CAPACITY

0.5 gallons – 1.8 liters

RUNTIME

Up to 23 hours. Runtime is based on setting the mist level on the low setting. Based on the natural humidity level in your home, the temperature of water you use, and the mist-level setting, you may experience longer or shorter runtimes.

ROOM SIZE

258 sq. feet / 23.9 sq. meters. Based on AHAM HU-1-2016 measurement as shown by independent laboratory testing.

QUIET OPERATION

27-30 dBA

REPLACEMENT PARTS

To purchase genuine Homedics Replacement parts, go to the retailer where you purchased your Homedics Ultrasonic Humidifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

HOMEDICS UHE-CMTF14 - REPLACEMENT PARTS - 1

HOMEDICS UHE-CMTF14 - REPLACEMENT PARTS - 2
WATER TANK

Model #: PP-UHECMTF14TNK

DEMINERALIZATION CARTRIDGE

Model #: UHE-HDC4

HOMEDICS UHE-CMTF14 - REPLACEMENT PARTS - 3
AROMA PADS

Model #: UHE-PAD1

HOMEDICS UHE-CMTF14 - REPLACEMENT PARTS - 4
AC ADAPTER

Model #: PPUHECMTF14WTAD

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
No power • Unit is not plugged inUnit is not turned onNo power at unitPlug unit inPress power button to turn humidifier onCheck circuits and fuses or try a different outlet
Reduced or no mist • Humidifier has not warmed upLow mist settingScale build-upToo little or too much water in the tankWater tank washed with detergentAllow humidifier to run 20 minutes to warm upTurn to a higher mist settingClean following the Scale Removal instructionsFill the water tank to the MAX FILL lineRinse thoroughly with clean water until there is no foam or smell from detergent
Humidifier does not turn on or turns off during operationOut of water • Fill with water
Peculiar odor • Unit is newIf unit is in use, the odor may be a dirty tankRemove the tank cover and let the tank air out in a cool, dry place for 12 hoursClean following the Weekly Cleaning instructions. If odor persists, clean following the Scale Removal instructions.
Excessive noise • Unit is not levelLow water levelPlace unit on a flat, even surfaceCheck the water level; refill the tank if the water is low
White dust accumulation • Hard water usedDemineralization cartridge needs to be replacedUse distilled water and a demineralization cartridgeReplace demineralization cartridge

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: ULTRASONIC HUMIDIFIER

Model Number: UHE-CMTF14

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This product has been tested and compiles with the requirements for Federal Communication Commission, Part 18. Although this product is tested and compiles with FCC, it may interfere with other devices. If this product is found to interfere with another device, separate the other device and this product. Conduct only the user maintenance found in this instruction manual. Other maintenance and servicing may cause harmful interference and can void the required FCC compliance.

CAN ICES-001(B)/NMB-001(B)

Homedics

2-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 2 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.homedics.com. For Canada, please visit www.homedics.ca.

FOR SERVICE IN THE USA

cservice@homedics.com

8:30am-7:00pm EST Monday-Friday

1-800-466-3342

FOR SERVICE IN CANADA

cservice@homedicsgroup.ca

8:30am-5:00pm EST Monday-Friday

1-888-225-7378

©2023 Homedics, LLC. All rights reserved. Homedics is a registered trademark of Homedics, LLC. Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-UHECMTF14

Made in China

Homedics®

UHE-CMTF14 | L-03796, Rev 1

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LORS DE L'UTILISATION DE PRODUITS ÉLECTRIQUES, IL EST IMPORTANT DE SUIVRE TOUJOURS LES PRÉCAUTIONS DE SÉCURITÉ DE BASE, NOTAMMENT LES SUIVANTES : LISEZ ET CONSERVEZ CES INSTRUCTIONS AVANT UTILISATION.

DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE :

natural_image Close-up of a dark, ribbed object resting on a light surface (no text or symbols visible)
natural_image Hand holding a white plastic container with a small knob (no text or symbols visible)
natural_image Close-up of a hand holding a plastic container over a white plastic cup (no visible text or symbols)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 1

natural_image Close-up of a hand holding a small threaded object (no visible text or symbols)
natural_image Close-up of a hand pressing a small circular component on a computer keyboard (no visible text or symbols)
natural_image Close-up of a dark, ribbed object resting on a light surface (no text or symbols visible)
natural_image Hand holding a white plastic container with a small lid (no visible text or symbols)
natural_image Person pouring liquid into a basin in a kitchen (no visible text or symbols)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 2

natural_image Close-up of a hand holding a small threaded object against a blurred background (no text or symbols visible)
natural_image Close-up of a hand pressing a small object on a white tray (no visible text or symbols)
natural_image Close-up of a hand holding a circular object with a label 'DLT' on it, no readable text or symbols present.
  1. The oil tray is located on the side of the humidifier.

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 3

natural_image Close-up of a hand holding a small object, possibly a container or tool, with no visible text or symbols.
  1. Push to open and remove the oil tray. Use the 1 pre installed essential oil pad in the oil tray (3 total included).

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 4

natural_image Close-up of a hand holding a piece of white paper or dough (no text or symbols visible)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 5

natural_image Close-up of a hand holding a small black object with a white circular patch, possibly a plastic or mechanical component (no visible text or symbols)
  1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. CAUTION: Only place essential oil on the pad and NOT directly into the tray.

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 6

natural_image Close-up of a hand pressing a circular component labeled 'CRT' (no other text or symbols visible)
  1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the mist is turned on.
natural_image Hand holding a white plastic container with a small side outlet (no text or symbols visible)
natural_image Close-up of a hand pouring liquid into a bowl (no visible text or symbols)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 7

natural_image Close-up of a hand pouring water into a small bowl in a stainless steel sink (no text or symbols visible)
natural_image Close-up of a mechanical component with internal cavities and a pointed tip (no visible text or symbols)
natural_image Close-up of a hand holding a small card on a device (no visible text or symbols)
natural_image Close-up of a hand holding a textured, cloth-like object with a ring on the surface (no visible text or symbols)
natural_image Hand holding a white plastic container with a small cylindrical object inside (no visible text or symbols)
natural_image Close-up of a hand pouring liquid into a sink with a pipe (no text or symbols visible)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 8

natural_image Close-up of a hand holding a white plastic container with a spoon (no visible text or symbols)
natural_image Hand holding a white plastic container with a small lid (no visible text or symbols)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 9

natural_image Close-up of a hand pouring liquid into a metal bowl (no visible text or symbols)
natural_image Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.
natural_image Close-up of a mechanical component with internal cavity and mounting holes (no visible text or symbols)
natural_image Close-up of hands cleaning a textured surface with a cloth (no text or symbols visible)

Adresse : 3000 N Pontiac Trail, Commerce Township, MI 48390

UHE-CMTF14 | L-03796, Rev 1

natural_image Close-up of a dark, threaded object resting on a light surface (no visible text or symbols)
natural_image Hand holding a white plastic container with a small knob (no text or symbols visible)
natural_image Close-up of a hand pouring liquid into a white plastic container (no text or symbols visible)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 10

natural_image Close-up of a hand holding a small screw or nut, no visible text or symbols
natural_image Close-up of a hand pressing a button on a white plastic tray (no text or symbols visible)
natural_image Close-up of a small, dark, textured object resting on a light surface (no visible text or symbols)
natural_image Hand holding a small white object with a circular top, possibly a container or pump (no visible text or symbols)
natural_image Close-up of a kitchen sink with a hand pouring liquid into a white basin (no text or symbols visible)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 11

natural_image Close-up of a hand holding a small threaded bolt (no visible text or symbols)
natural_image Close-up of a hand pressing down on a white electronic device with a circular button (no visible text or symbols)
natural_image Close-up of a hand holding a circular object with visible markings (no readable text or symbols)
natural_image Close-up of a hand holding a white plastic container with a small handle (no visible text or symbols)
natural_image Close-up of a hand holding a white, irregularly shaped object (no text or symbols visible)

HOMEDICS UHE-CMTF14 - DANGER - POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE : - 12

natural_image Close-up of a hand holding a small black object with a dark border, partially covered by a white circular area (no text or symbols visible)
natural_image Close-up of a hand holding a small circular object with a label, possibly part of a device or tool (no readable text or symbols)

CÓMO LIMPIAR Y CUIDAR

natural_image Hand holding a small white plastic pump dispenser (no visible text or symbols)
natural_image Close-up of a hand pouring liquid into a sink with a circular pipe (no text or symbols visible)

HOMEDICS UHE-CMTF14 - CÓMO LIMPIAR Y CUIDAR - 1

natural_image Close-up of a hand washing a sink with water being poured into it (no text or symbols visible)
natural_image Interior view of a mechanical or architectural component with internal compartments and structural elements (no visible text or symbols)
natural_image Close-up of a hand holding a small electronic device (no visible text or symbols)
natural_image Close-up of a hand holding a textured surface with a ring on the wrist (no visible text or symbols)
natural_image Hand holding a white plastic container with a small outlet (no text or symbols visible)
natural_image Close-up of a hand pouring liquid into a bowl (no visible text or symbols)

HOMEDICS UHE-CMTF14 - CÓMO LIMPIAR Y CUIDAR - 2

natural_image Close-up of a spoon holding a white bowl containing a granular substance (no text or symbols visible)
natural_image Hand holding a white plastic container with a small lid (no visible text or symbols)
natural_image Close-up of a hand pouring liquid into a metal bowl (no visible text or symbols)

HOMEDICS UHE-CMTF14 - CÓMO LIMPIAR Y CUIDAR - 3

natural_image Close-up of hands cleaning a textured surface with a sponge (no text or symbols visible)
natural_image Close-up of a hand holding a small electronic device (no visible text or symbols)
natural_image Close-up of a mechanical component with internal cavity and mounting holes (no visible text or symbols)

Empresa: Homedics, LLC.

Dirección: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30 a.m. - 7:00 p.m. EST de lunes a viernes 1-800-466-3342

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HOMEDICS

Model : UHE-CMTF14

Category : Humidifier
