USER MANUAL PICM7000 Pierre

1.1 Safety warnings and instructions 6
1.2 Intended use and anticipated unintended use 8

2.PRODUCT FEATURES 9

2.1 Technical data 9
2.2 Main components and standard attachments 9
2.3 Control panel 10
2.4 Warranty 10

3. INSTALLATION 11

3.1 Requirements on the location of installation 11
3.2 Unpacking the appliance 11
3.3 Preparing the appliance for use 11

3.3.1 Setting the appliance to the highest position 11
3.3.2 Remove stirrer and jug 12
3.3.3 Stirrer and jug pre-rinse 13
3.3.4 Fit the stirrer 13
3.3.5 Freezing ingredients 13
3.3.6 Place jug 14

1. USE 15

4.1 Overview of the programmes 15
4.2 Making ice cream 15
4.3 Re-spin function 16
4.4 Turning off the appliance 16

5.CLEANING AND MAINTENANCE 17
5.1 Cleaning the appliance 17

1. FAULTS AND SOLUTIONS 18

6.1 Troubleshooting 18
7. TRANSPORT AND STORAGE 19

8.DISPOSAL 19

8.1 Disposing of packaging material 19
8.2 Disposal of the appliance 19

FOREWORD

ABOUT THIS DOCUMENT

• This manual contains all the information required for the correct, efficient and safe use of the device.
• This manual is intended for the end user and/or buyer of this device.
• Make sure you have read and understood the instructions in this manual completely before installing or using the device. Keep this document for future reference for as long as you use and/or own the device.
• Wisepick Productions B.V. cannot in any way be held liable for immaterial damage to you or to others, or material damage to the device, your property or property of others caused by not following or not correctly following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number at hand. That information can be found on the type plate or on the front of this manual.

SYMBOLS USED

SYMBOL DESCRIPTION
DANGER!	Indicates a fire hazard and/or flammable materials.
WARNING!	Indicates a dangerous situation which, if not avoided, can result in serious immaterial damage to you or others.
Caution!	Indicates a dangerous situation which, if not avoided, can result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online on www.coolblue.nl/en if you search by the article number.

COPYRIGHT

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

CONTACT DETAILS

Pierre is a registered brand of Wisepick Productions B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

WISEPICK PRODUCTIONS B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

1. SAFETY

Make sure you have read and understood the safety instructions fully before installing, using or maintaining the device. In this way you avoid possible material damage and immaterial damage to you or to others, the appliance, your other property or other people's property.

1.1 Safety warnings and instructions

WARNING!

• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Do not allow children to play with the appliance or its components. The appliance and components are not toys.
• Cleaning and user maintenance may not be carried out by children without supervision.
• Only use the product as described in this manual.
• Do not use the device if any of its components are damaged or faulty. Replace a damaged or faulty device immediately. Remove the plug from the earthed socket and contact customer service.

Suffocation hazard due to oxygen deficiency:

• Never let children play with the packaging material. Keep the packaging material out of reach of children.

Electrocution hazard due to short circuit:

• Never immerse the device in water or other liquids.
• Always remove the plug from the socket before cleaning the device.
• Do not make any adjustments to the appliance. Do not open or repair the appliance yourself. The appliance may only be repaired by an authorised service technician.

DANGER!

Fire hazard due to short circuit:

• Before using the device, check that the voltage on the type plate matches the voltage of the socket. Only connect the device to an earthed socket.
• Keep the power cable away from heat, oil, sharp edges or moving parts.
• Do not use this appliance with an extension lead or power strip.
• Make sure that the power cable is not trapped under the appliance.
• Do not twist or kink the power cable or roll the cable up. This can damage the cable's insulation.

Fire hazard due to overheating:

• Never leave the appliance unattended while in use. Turn off the appliance and remove the plug from the earthed socket when you leave the room.
• Never use a timer or a separate remote control that automatically turns the appliance on.
• If the appliance overheats during operation, it stops automatically. Wait for the appliance to finish resetting.
• Do not store explosive or highly flammable substances such as aerosols with a flammable propellant in the appliance.

CAUTION!

Risk of cuts from the sharp cutting edges of the blade:

Always place the appliance on a flat and stable surface.
- The cutting edges of the blade are extremely sharp. Handle the blade carefully. Always keep the blade out of the reach of children.
- Always unplug the power cable before inserting or removing the blade.
- Keep hands, hair and clothes away from the jug when the appliance is switched on.
- Never remove the lid when the blade is still rotating.

Risk of food poisoning:

• Before use, clean all food-contact parts with water and a mild detergent. Rinse thoroughly and dry carefully.

1 ATTENTION!

Risk of damage to the appliance:

• Never drop the appliance and avoid bumping it. Excessive vibrations can lead to loose connections and affect the proper functioning of the appliance. Do not use the appliance any more if it has been dropped.
• Only use the accessories supplied with the product.
• Do not use the appliance with an empty jug.
• This appliance is used for processing small quantities. Do not exceed the amount specified in the user manual.
• Do not use the appliance to blend ingredients that contain gluten.
• Never run more than six programmes in a row. Let the appliance cool down for at least 10 minutes after running six programmes.
• Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.
• Never clean the appliance with aggressive chemical cleaners that may damage the appliance.

1.2 Intended use and anticipated unintended use

• This appliance is intended for preparing different types of ice cream.
• This device is only intended for use indoors.
• This appliance is intended for domestic use.
• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• This device may not be used by children under 8 years of age.
• Any use of the device other than as described in this manual is considered to be unintended use and can result in material and immaterial damage to you or to others, the device, your other property or other people's property and the expiry of the warranty.

2.PRODUCT FEATURES

2.1 Technical data

Type of ice cream maker PICM7000
Dimensions (l × w × h)
In use	85 × 314 × 446 mm
In storage	85 × 314 × 337 mm
Power supply 220 - 240 V ~, 50 - 60 Hz
Maximum electrical power 500 W
Power consumption in off mode 0.28 W
Maximum duration of continuous use Six prøogrammes
Maximum content of jug 568 ml

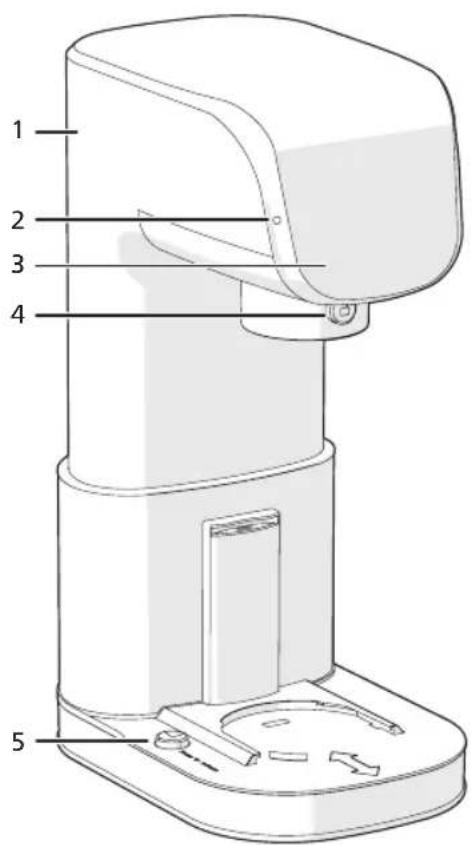

2.2 Main components and standard attachments

1. Machine head
2. Status indicator LED
3. Control panel
4. Stirrer lock button
5. Jug lock button
6. Lid lock button
7. Stirrer
8. Jug (3x)
9. Ice cream scoop

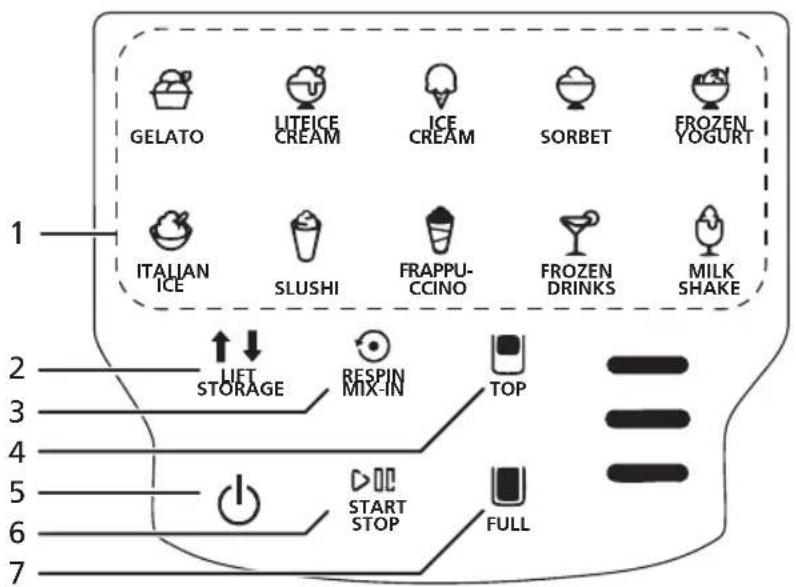

2.3 Control panel

1. Programme buttons
2. Up/Down button
3. Re-spin button
4. Half jug button
5. On/Off button
6. Start/Pause button
7. Full jug button

2.4 Warranty

This device comes with a warranty period of three years after purchase. For more information about the warranty conditions, please visit www.coolblue.nl/en/customer-service. In order to be able to make a claim against the warranty, you must have the proof of purchase that states the purchase and/or delivery date.

3. INSTALLATION

Before installing the device, carefully review the safety information in section 1.

3.1 Requirements on the location of installation

Place the appliance in a location that satisfies the following conditions:

• A flat, stable, heat-resistant and moisture-resistant surface.
• Not in direct sunlight.
• Not directly next to heat sources, such as heaters or stoves.

3.2 Unpacking the appliance

WARNING!

RISK OF SUFFOCATION. Never let children play with the packaging material. Keep the packaging material out of reach of children.

Check that all parts are present and that the appliance and accessories are not damaged. If parts are missing or damaged, please contact Coolblue: www.coolblue.nl/en/customer-service

3.3 Preparing the appliance for use

ATTENTION!

Before first use:

• Clean all the components of the ice cream maker before first use.

3.3.1 Setting the appliance to the highest position

1. Place the appliance on a flat and stable surface.
2. Insert the appliance's plug into the socket.
3. Turn the main switch to the 'On' position. On the control panel, the On/Off button flashes. The flashing On/Off button indicates that the appliance is in standby mode.
4. Press the On/Off button.
5. Press the Up/Down button. The machine head automatically moves to the highest position.

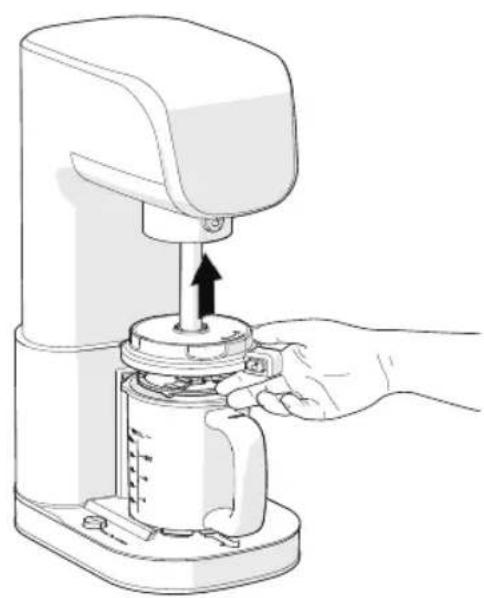

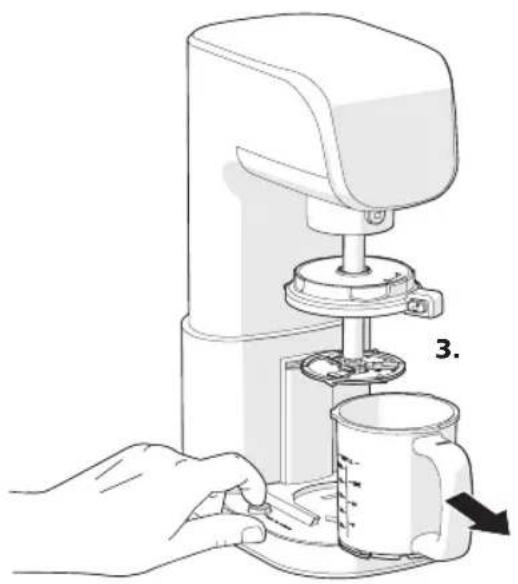

3.3.2 Remove stirrer and jug

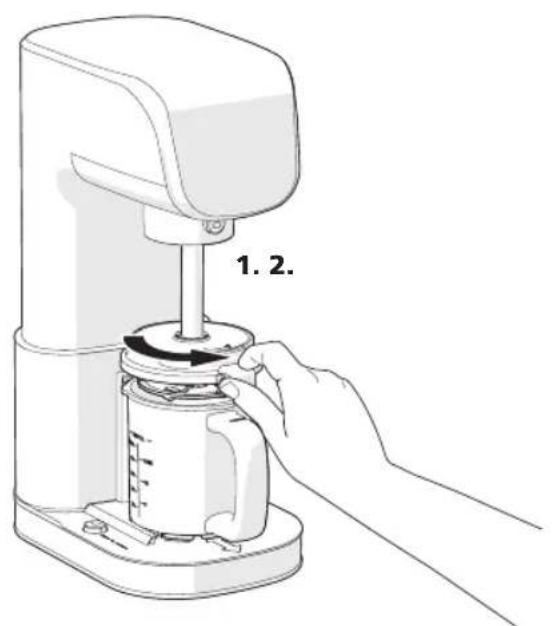

1. Hold down the lid lock button and turn the lid to the right.
2. Slide the lid up.
3. Holding the jug lock button with one hand, grasp the handle of the jug with the other and pull it towards you.

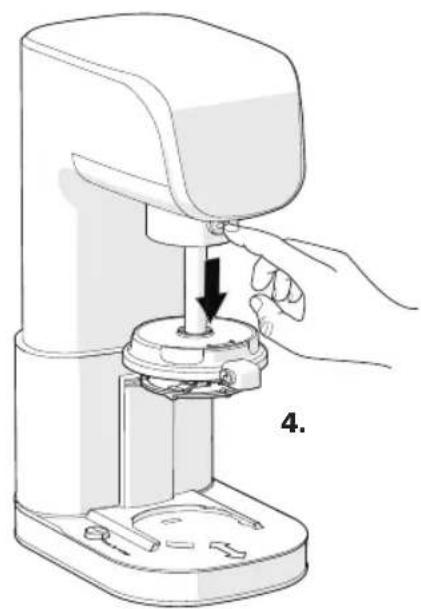

4. Press the stirrer lock button and pull the stirrer down.

3.3.3 Stirrer and jug pre-rinse

1. Remove the jug and stirrer from the appliance, see section 3.3.2.
2. Clean the jug and stirrer with hot water and a mild detergent, or put the jug and stirrer in the dishwasher.

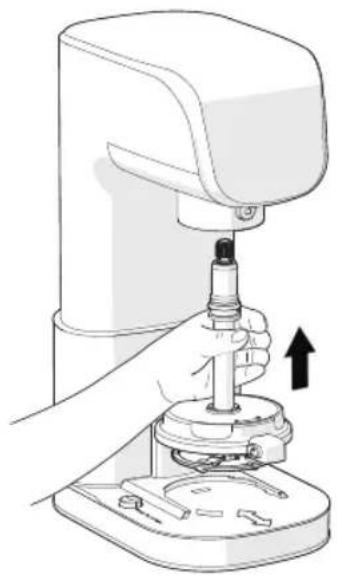

3.3.4 Fit the stirrer

1. Bring the appliance to the highest position, see section 3.3.1
2. Align the stirrer with the opening under the machine head, and push the stirrer up until you hear a distinct click.

3.3.5 Freezing ingredients

1. Choose ingredients based on the recipe and your personal taste preferences
2. Fill the jug with the chosen ingredients. Never fill above the MAX mark indicated in the jug.
3. Place the jug in the freezer. Leave the jug in the freezer for at least 24 hours until the contents are completely frozen.

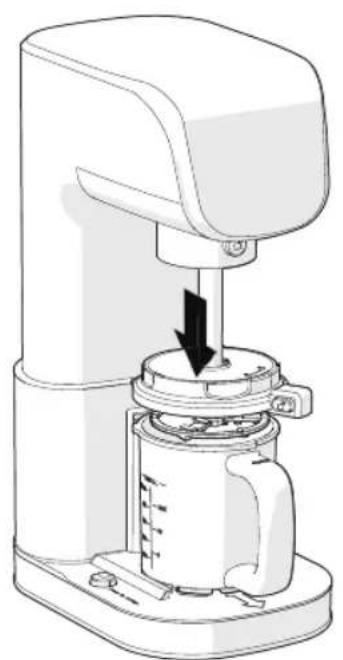

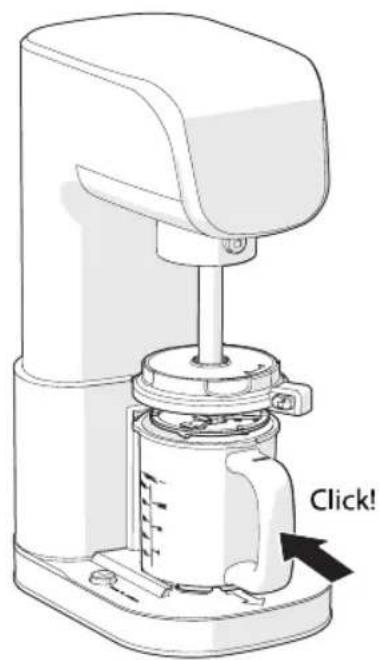

3.3.6 Place jug

1. Raise the machine head to the highest position, see section 3.3.1.
2. Fit the stirrer, see section 3.3.4.
3. Slide the jug straight into the openings of the jug holder until you hear a click.

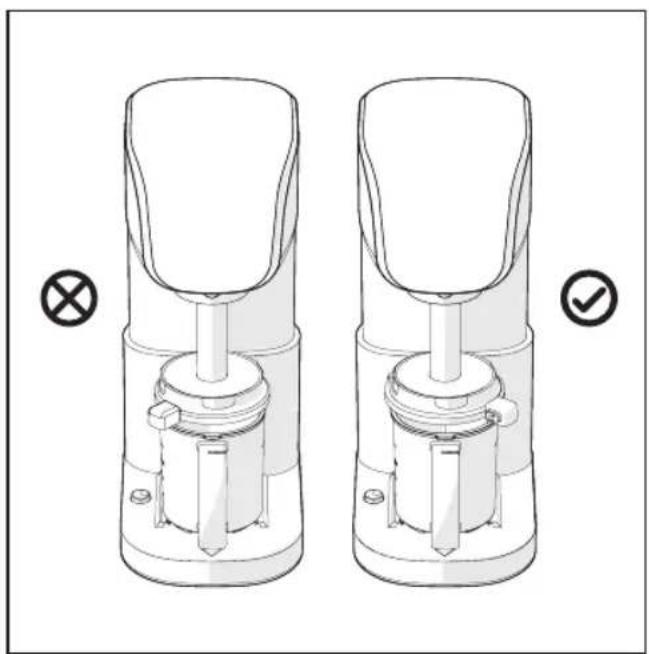

4. Turn the lid to the right so that the latch is positioned on the right hand side of the jug handle.
5. Push the lid of the jug down until it fully connects to the jug.

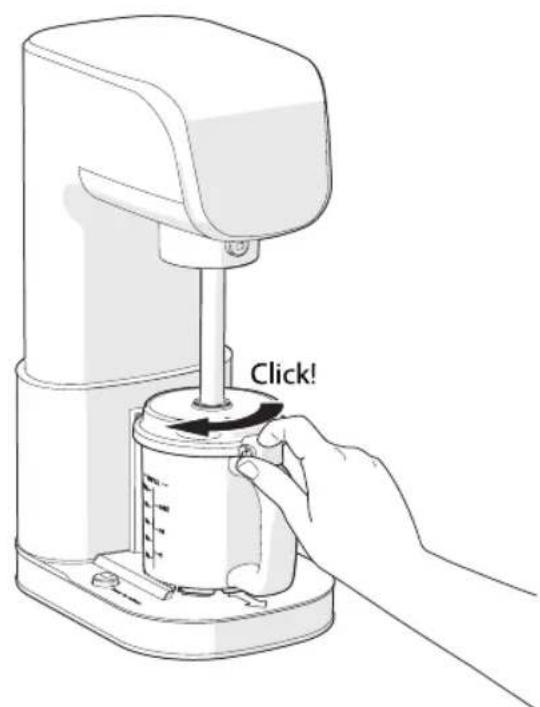

6. Turn the lid to the left until you hear a click.

4. USE

Before using the appliance, carefully review the safety information from section 1.

4.1 Overview of the programmes

	GELATO Italian ice cream with less air and a dense texture.
	LITE ICE CREAM Ice cream with reduced fat and sugar content.
	ICE CREAM Classic creamy ice cream with an airy texture.
	SORBET Fruit-based ice cream and water-based dairy-free ice preparation with a soft texture.
	FROZEN YOGHURT Yoghurt-based ice preparation with a fresh flavour.
	ITALIAN ICE Fruit-based ice cream and water-based dairy-free ice preparation with a chunky texture.
	SLUSHI Finely ground ice drink with syrup or juice.
	FRAPPU-CCINO Creamy iced coffee based on ice cream and cream.
	FROZEN DRINKS Fine y ground ice drink with syrup, juice and alcohol.
	MILKSHAKE Thick drink of ice cream and milk, possibly flavoured.

4.2 Making ice cream

1. Prepare the appliance for use according to section 3.3.
2. Press a programme button of your choice.

The selected programme icon flashes.

The full jug button flashes.

By default, the machine is set to make a full jug of ice cream. To make half a jug of ice cream:
3. Press the half jug button.

The half jug button flashes.

1. Press the start/pause button.

The selected programme lights up.

The machine head first moves downwards and then upwards.

1. To pause the programme, press the start/pause button.
2. Wait for the programme to finish.

The programme is finished when the blades stop rotating and all icons on the control panel light up.

1. Hold down the lid lock button and turn the lid to the right.
2. Grasp the lid with both hands and slide the lid upwards.
3. Holding the jug lock button with one hand, grasp the handle of the jug with the other and pull it towards you.

4.3 Re-spin function

Use the re-spin function after the programme to give your ice cream an even smoother texture or to add extra ingredients such as chocolate chips, nuts, or fruit.

1. Make ice cream of your choice, see section 4.2.
2. Place the jug in the appliance, see section 3.3.6. Add additional ingredients if necessary.
3. Press the re-spin button. The re-spin button flashes.

4. Press the start/pause button. The selected programme lights up. The machine head first moves downwards and then upwards.

5. To pause the programme, press the start/pause button.

6. Wait for the programme to finish.

The programme is finished when the blades stop rotating and all icons on the control panel light up.

1. Grasp the lid with both hands and slide the lid upwards.
2. Holding the jug lock button with one hand, grasp the handle of the jug with the other and pull it towards you.

4.4 Turning off the appliance

WARNING!

Never leave the appliance unattended while in use. Turn off the appliance and remove the plug from the earthed socket when you leave the room.

To switch off the appliance:

• Turn the main switch to the 'Off' position.

5. CLEANING AND MAINTENANCE

Before cleaning and maintaining the appliance, carefully review the safety information from section 1.

5.1 Cleaning the appliance

WARNING!

Never immerse the device in water or other liquids.

Always remove the plug from the socket before cleaning the device.

CAUTION!

Always allow the appliance to cool completely and remove the plug from the earthed socket before maintenance or cleaning.

ATTENTION!

Never clean the device with aggressive or abrasive cleaners or sharp objects.

Clean the appliance thoroughly after each use.

1. Remove the jug and stirrer, see section 3.3.2.
2. Clean the jug and stirrer with hot water and washing-up liquid or put it in the dishwasher.
3. The jug and stirrer are dishwasher-safe.
4. Turn the main switch to the 'Off' position.
5. Remove the plug from the socket.
6. Clean the outside of the device with a soft, damp cloth.
7. Dry all components with a soft cloth.

6. FAULTS AND SOLUTIONS

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: www. coolblue.nl/en/customer-service

6.1 Troubleshooting

This appliance uses the control panel and a red status indicator LED to indicate malfunctions.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
All buttons on the control panel flash.	The jug or lid is not locked properly.	Check that the jug, lid and stirrer are properly positioned.
Both the On/Off button and the Up/Down button flash. The machine head moves up and the display stops responding.	The motor overheated due to prolonged use.	1. Switch off the ice cream maker. 2. Let the ice cream maker cool for at least 10 minutes.
The Up/Down button flashes and the machine head moves up automatically.	The motor overheated due to too many ingredients in the jug.	1. Wait for the motor to reset automatically. 2. Reduce the amount of ingredients. 3. Never fill the jug above the MAX mark.
Status indicator LED flashes four times slowly	Too many ingredients in the jug.	1. Wait for the appliance to reset. 2. Remove some of the ingredients. 3. Never fill above the MAX mark.
LED flashes twice slowly The main voltage is too high.		1. Check that the voltage on the type plate matches the voltage of the socket. 2. Use a different socket if necessary.
LED flashes three times slowly	The mains voltage is too low.
LED flashes twice rapidly The system is performing a check.		1. Remove the plug from the socket. 2. Wait 10 seconds. 3. Plug in again. 4. Contact customer service if the problem persists.
LED flashes four times fast	The appliance consumes too much power in standby mode.
LED flashes five times slowly	The motor is blocked.
LED flashes five times fast	There is a malfunction in an internal component.
The On/Off button is illuminated.

7. TRANSPORT AND STORAGE

1. Clean the appliance, see section 5.1.
2. Place the appliance on a flat and stable surface.
3. Insert the plug of the power cable into a power socket.

4. Turn the main switch to the 'on' position.

5. The On/Off button appears on the screen. This indicates that the appliance is in standby mode.

6. Press the On/Off button on the appliance's control panel.

7. Attach a cup in the designated position. Note: the machine head can only be moved to the lowest position if a cup is properly attached.
8. Press the Up/Down button to move the machine head to the lowest position.
9. Turn the main switch to the 'Off' position.
10. Remove the plug from the socket.
11. Store the appliance in its original packaging in a dry and closed space.

8. DISPOSAL

8.1 Disposing of packaging material

The packaging material consists of various materials. When disposing of packaging material, follow national and local regulations regarding the environmentally friendly disposal of packaging material.

8.2 Disposal of the appliance

The materials used in this appliance and marked with this symbol are recyclable. The marking indicates that this product must not be disposed of via household waste throughout the EU.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By properly disposing of the device, you help prevent potential hazards to the environment and public health. Recycling materials contributes to the conservation of our natural resources. Therefore, do not dispose of discarded electronic devices along with household waste. When disposing of the device, follow national and local regulations regarding the environmentally friendly disposal of electronic devices. Or contact the shop where you bought the product.

CONTACT DETAILS PIERRE

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

GEBRUIKSHANDLEIDING

VOORWOORD 21

1. VEILIGHEID 23

WISEPICK PRODUCTIONS B.V.

WISE PICK PRODUCTIONS B.V.

Weena 664

3012 CN Rotterdam

Nederland

NOTICE D'UTILISATION

AVANT-PROPOS 38

1. SÉCURITÉ 40

2. CARACTERISTIQUES DU PRODUIT 43

WISEPICK PRODUCTIONS B.V.

Weena 664

3012 CN Rotterdam

Pays-Bas

1. SÉCURITÉ

2. CARACTERISTIQUES DU PRODUIT

Wisepick Productions B.V.

WISEPICK PRODUCTIONS B.V.

Weena 664

3012 CN Rotterdam

Pays-Bas

BENUTZERINFORMATION

VORWORT 55

1. SICHERHEIT 57

WISEPICK PRODUCTIONS B.V.

Weena 664

3012 CN Rotterdam

Niederlande

1. SICHERHEIT

Wisepick Productions B.V.

WISE PICK PRODUCTIONS B.V.

Weena 664 3012 CN Rotterdam

Niederlande

1

1

一

一

1

1

一

一

1

1

一

一

PIERRE

Pierre is a registered trademark of Wisepick Productions B.V.

Weena 664

3012CN, Rotterdam

The Netherlands
