USER MANUAL Junior Free JBL

Black silhouette illustration of a JBL brand earband headset (no text or symbols)

Stylized black-and-white graphic of a cartoon snake with a circular head, enclosed in a dashed border with the letters 'JBL' (no readable text or symbols beyond the label)

APP

Orange icon with a JBL-branded headset symbol, no text or numbers present

JBL HEADPHONES

GET IT ON Google Play

Download on the App Store

Get even more control and personalization of your listening experience with this free app.

QR code with central logo containing 'JBL' text and headphones icon

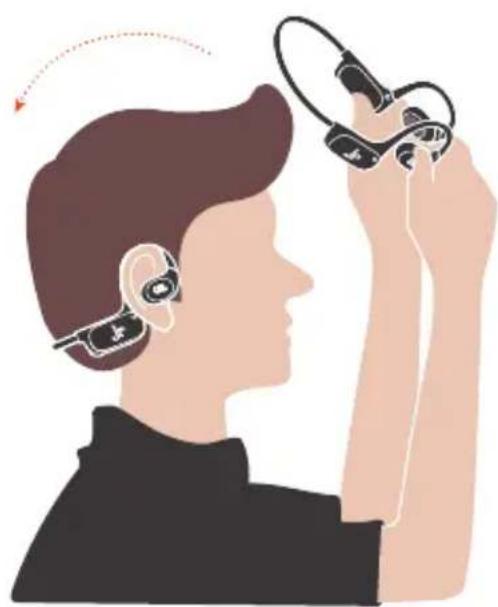

HOW TO WEAR

Illustration of a person using an earless sensor device to interact with a handheld device (no text or symbols present)

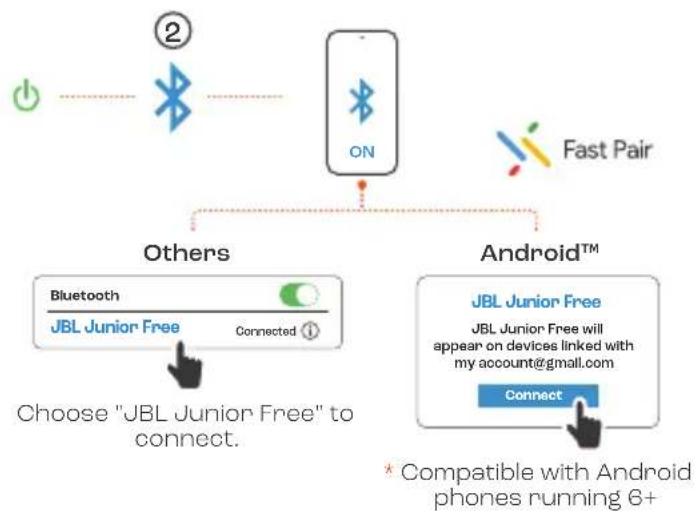

POWER ON & CONNECT

①

JBL Jr Hold (2s)

L

ON

Windows 10 v1803+

Bluetooth New JBL Junior Free Found If this is your device, connect to it. Connect Dismiss Microsoft Swift Pair

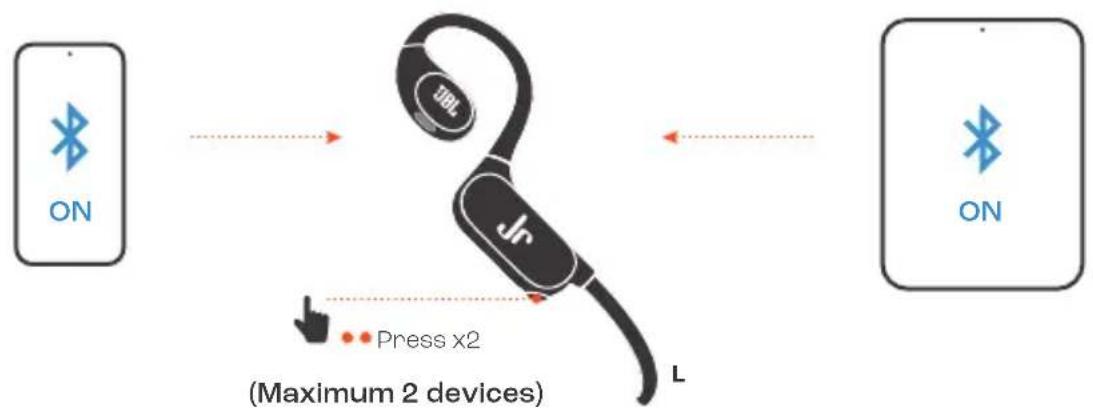

MULTI-POINT CONNECTION


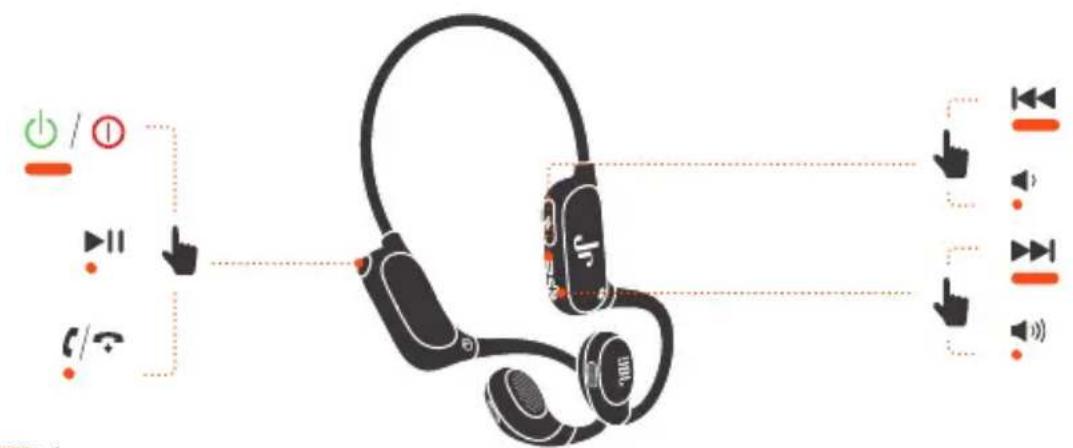

CONTROLS

Diagram illustrating audio recording device connections with labeled buttons and playback controls

• Press x 1 Hold (2s)
  * Enable advance controls by connecting your JBL JUNIOR FREE to JBL Headphones app

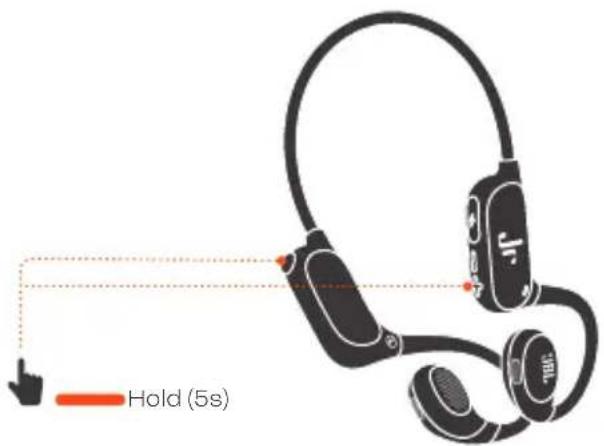

FACTORY RESET

Hold (5s)

DO MORE WITH THE APP

JBL Junior Free JBL Safe Sound Talang Activity Time 1. Current volume 0 m Equation

Bio Junior Tree Smart Audio & Video Radio Media Left / Right Sound Balance Voice Prompts Auto Power Off

Equalizer STUDIO EXTREME BASIS RASSL VOCAL CLUB JAZZ

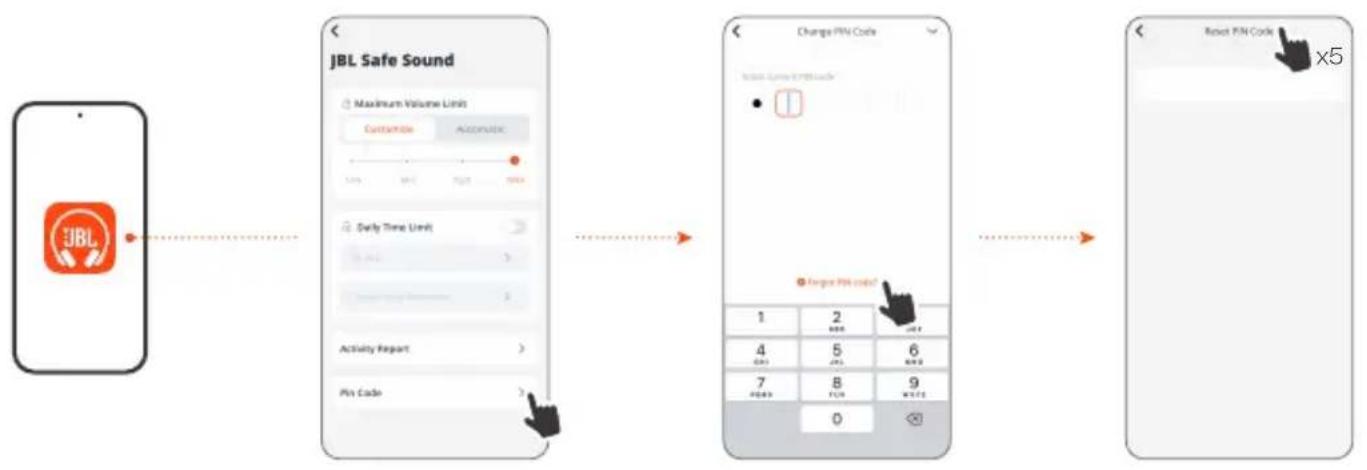

RESET PIN CODE


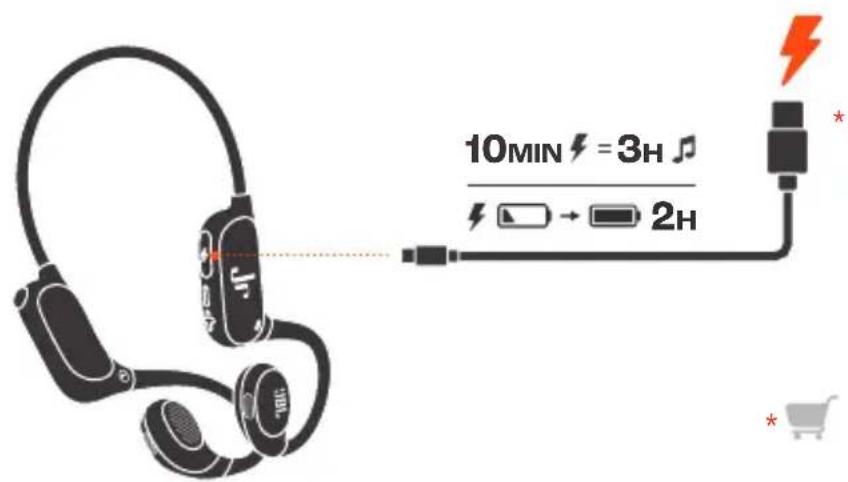

CHARGING

10MIN = 3H 2H

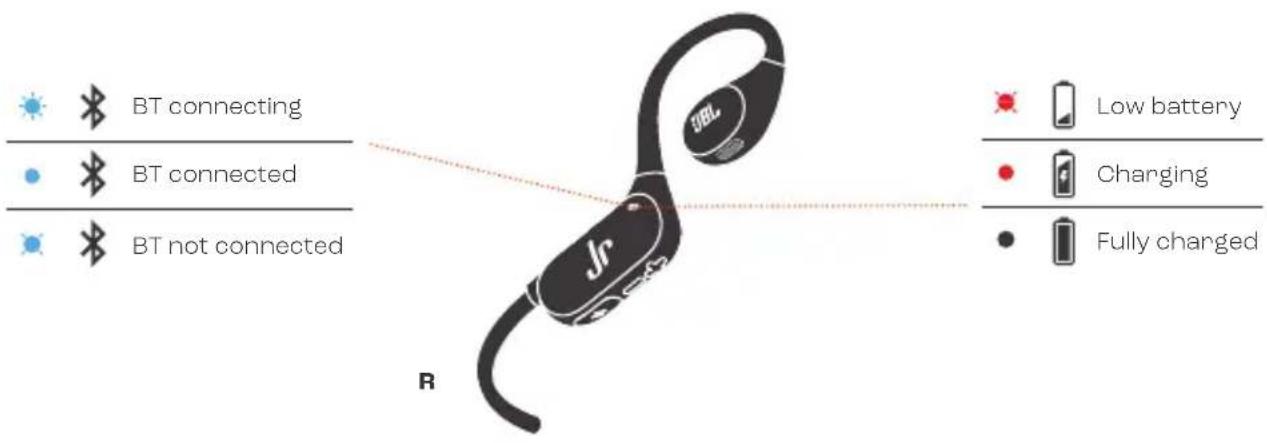

LED BEHAVIORS

BT connecting BT connected BT not connected Low battery Charging Fully charged

TECH SPEC

Model: JUNIOR FREE

Driver size: 18 mm x 11 mm Dynamic Driver

Power supply: 5 V 1A

Weight: 24.6 g / 0.054 lbs

Battery type: Lithium-ion battery (98 mAh / 3.85 V)

Charging time: 2 hrs from empty

Music playtime with BT on: Up to 10 hrs

Talk time: Up to 8 hrs

Frequency response: 20 Hz - 20 kHz

Impedance: 32 ohm

Sensitivity: 90 dB SPL@1 kHz

Maximum SPL: 82 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 6.1

Bluetooth profile version: A2DP V1.4, AVRCP V1.6.3, HFP V1.8

Bluetooth transmitter frequency

range:

2.4 GHz - 2.4835 GHz

Bluetooth transmitter power: < 10 dBm (EIRP)

Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK

Maximum operation temperature: 45 °C

Line drawing of a pair of earbuds (no text or symbols)

IPX4

FR

CONTENU DE LA BOÎTE

APPLICATION

A2DP V1.4, AVRCP V1.6.3,

HFP V1.8

HVAD ER DER I AESKEN

APPEN

Headphones App verbindest

RESET AUF DIE

WERKSEINSTELLUNGEN

LED-MERKKIVALON TOIMINNOT

A2DP V1.4, AVRCP V1.6.3,

HFP V1.8

Bluetooth-jeladó

TILBAKESTILL PIN-KODE

LADER

LED-ATFERD

BT koble til

BT tilkoblet

BT ikke tilkoblet

Lite batteri

Lader

Fulladet

18 mm x 11 mm dynamisk driver

Strømforsyning: 5V 1A

==

Vekt: 24,6 g / 0,054 pund

Batteritype: Lithium-ion-batteri

(98 mAh / 3,85 V)

FLERPUNKTSANSLUTNING

Tryck x 2

(Max 2 enheter)

KONTROLLER

Tryck x 1

Håll ned (2 s)

KEGUNAAN LAIN APLIKASI

ATUR ULANG KODE PIN

PENGISIAN DAYA

POLA LED

BT menyambungkan

BT tersambung

BT tidak tersambung

Daya baterai lemah

Mengisi daya

Daya terisi penuh

JUNIOR FREE

Ukuran driver: Driver Dinamis 18 mm x 11 mm

Catu daya: 5 V 1 A ===

Berat: 24,6 g/0,054 lbs

Tipe baterai: Baterai Litium-ion (98 mAh/3,85 V)

* JBL Headphones アプリにJBL

JUNIOR FREEを接続すれば、

さらに詳細な操作設定が可能です。

初期化

長押しする(5秒間)

アプリでさらに多くのことができます

PUNコードをリセットする

充電する

LEDの動作

BTに接続中

BT接続済み

BT未接続

バッテリー残量少

充電中

充電完了

技術仕様

モデル名:

ドライバーサイズ:

JUNIOR FREE

18mmx11mmダイナミックド

ライバー

電源：5V 1A

重量： 約24.6g

Bluetooth profile version: A2DP V1.4I AVRCP V1.6.3I HFP V1.8

Bluetooth transmitter

frequency range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter power: < 10 dBm (EIRP)

Bluetooth transmitter

modulation: GFSK1 π/4-DQPSK1 8DPSK

A2DP V1.4, AVRCP V1.6.3, HFP V1.8

.18L Headphones ب Minority FREE

ereادة ضبط المنع

(استمرار الخغط 5)

To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

FR pour protéger la vie de la batterie, chargez-la complètement au moins une fois tous les 3 mois. La durée de vie de la batterie varie en fonction des modes d'utilisation et des conditions environnementales.
DA For at optimere batteriets levetid skal du oplade fuldt ud mindst en gang i kvartalet. Batteriets levetid afhænger af brugsmønstre og omgivelser.
DE Lade zum Schutz des Akkus diesen mindestens einmal alle 3 Monate vollständig auf. Die Akkulebensdauer kann aufgrund von Nutzungsverhalten und Umgebungsbedingungen variieren.
EL Για να προστατεύσετε τη διάρκεια ζωής της μπαταρίας, φορτίστε την πλήρως τουλάχιστον μία φορά κάθε 3 μήνες. Η ζωής της μπαταρίας ποικίλλει ανάλογα με τη χρήση και τις περιβαλλοντικές συνθήκες.
ES Para proteger la duración de la batería, cárgala completamente al menos una vez cada 3 meses. La duración de la batería depende de los patrones de uso y las condiciones ambientales.
FI Akun käyttöiän turvaamiseksi, lataa täyteen ainakin kerran 3 kuukauden välein. Akun käyttöikä vaihtelee käyttötapojen ja ympäristöolosuhteiden mukaan.

HU Az akkumulátor élettartamának védelme érdekében teljesen töltse fel 3 havonta legalább egyszer. Az akkumulátor élettartama a használattól, és a környezeti feltételektől függ.
IT Per preservare la durata della batteria, effettuare una carica completa almeno una volta ogni 3 mesi. La durata della batteria varia a seconda del tipo di utilizzo e delle condizioni ambientali.
NL Voor een optimale levensduur de batterij minstens om de 3 maanden volledig opladen. De levensduur van de batterij is afhankelijk van gebruikspatronen en omgevingscondities.
NO For å beskytte batteriets levetid må det lades helt opp minst én gang hver 3. måned. Batteriets levetid vil variere etter bruksmønster og omgivelsesforhold.
PL Aby zachować czas eksploatacji akumulatora, należy go ładować co najmniej raz na trzy miesiące. Żywotność akumulatora zależy od sposobu jego użycia i warunków otoczenia.
PT-BR Para garantir a durabilidade da bateria, carregue-a totalmente pelo menos uma vez a cada três meses. A vida útil da bateria depende dos padrões de uso e das condições do ambiente.
SV För att förbättra batteriets livslängd ska det laddas det fullt minst en gång var tredje månad. Batteriets livslängd varierar beroende på användning och miljöförhållanden.
TR Pil ömrünü uzatmak için en az 3 ayda bir tam olarak şarj edin. Pil ömrü kullanım şekline ve çevresel şartlara bağlı olarak değişiklik gösterebilir.
RU Чтобы продлить срок службы аккумулятора, полностью заряжайте его по меньшей мере раз в 3 месяца. Срок службы аккумулятора зависит от способов использования и условий окружающей среды.

The power delivered by the charger must be between min 2.5 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed.

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Android and Google Play are trademarks of Google LLC

Bluetooth®

ANATEL

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Product specifications and app screens are subject to change without notice.
