USER MANUAL BRAS2IN1NR24 SABA

Black outdoor fire extinguisher with conical base and metal grille (no text or symbols visible)

CONFORAMA France

Warning sign with pictograms and symbols indicating hazard, absence, and correct/incorrect signs

A6 A12 x4 A14 x4 A13 x4 A5

2

A12 x3 A4

6

3

A7 A12 x4

FR

4

A9 A8 A12 x 8

5

A12 x3 A14 x3 A3

FR

6

A1 A2 A11 A10 A13 x2 A14 x2 A12 x2 A6

Warning sign with warning symbols and icons for different workplace or recreational activities

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Warning 2
Assembly of the product ....3
Use and function 8
Lighting procedure 8
Care and maintenance 9
Technical specification....9
Customer service 11
Purchase product at Conforama store: 11

Warning

This BBQ uses solid fuel.

Warning! Do not use alcohol, gasoline or other similar liquids to start or reactivate fire.

WARNING! This barbecue will become very hot, do not move it during operation.

Do not use indoors!

WARNING! Do not use spirit or petrol for lighting or re-lighting!

Use only fire lighters complying to EN1860-3!

WARNING! Keep children and pets away. Indeed, a large number of accidents are reported every year.

Burns are particularly serious with young children, because, due to their height, their faces are nearly always on the same level as the fire.

The barbecue has to be installed on a secure level base prior to use. The barbecue shall be heated up and the fuel kept red hot for at least 30min prior to the first cooking.

Warning sign with warning symbols and icons for different activities: a snake, a van, a house, a tent, and trees.

WARNING! Do not use the barbecue in a house, tent, caravan, vehicle or confined space.

This can cause carbon monoxide poisoning.

• Do not use indoors. Use the BBQ in a well-ventilated area.
• Do not use within 1 m of any flammable structure or under any combustible surface.
• Do not use the barbecue unless it's completely assembled and all parts are securely fastened and tightened.
• Do not touch metal parts of barbecue until it has completely cooled to avoid burns, unless you are wearing protective gloves.
• If you have any queries regarding these instructions, contact your local dealer.
• Burning of solid fuels produces poisonous gases, which can kill! Therefore, never use this appliance indoors or bring indoors if not totally extinguish.
• For obvious safety reasons, we strongly advice you not to move your barbecue grill once it is working.
• Regarding the instructions for cleaning surfaces in contact, with food. Thanks to refer to the below paragraph of the manual.

Assembly of the product

PART NO.	IMAGE	QTY
A1		x 1
A2		x 1
A3		x 1
A4		x 1
A5		x 1
A6		x 3
A7		x 1
A8		x 1
A9		x 4
A10		x 1
A11		x 1

PART NO.	IMAGE			QTY
A12		M6 x 12mm	*	x 24
A13		M6 Nut	*	x 6
A14		∅6 x 16mm	*	x 9

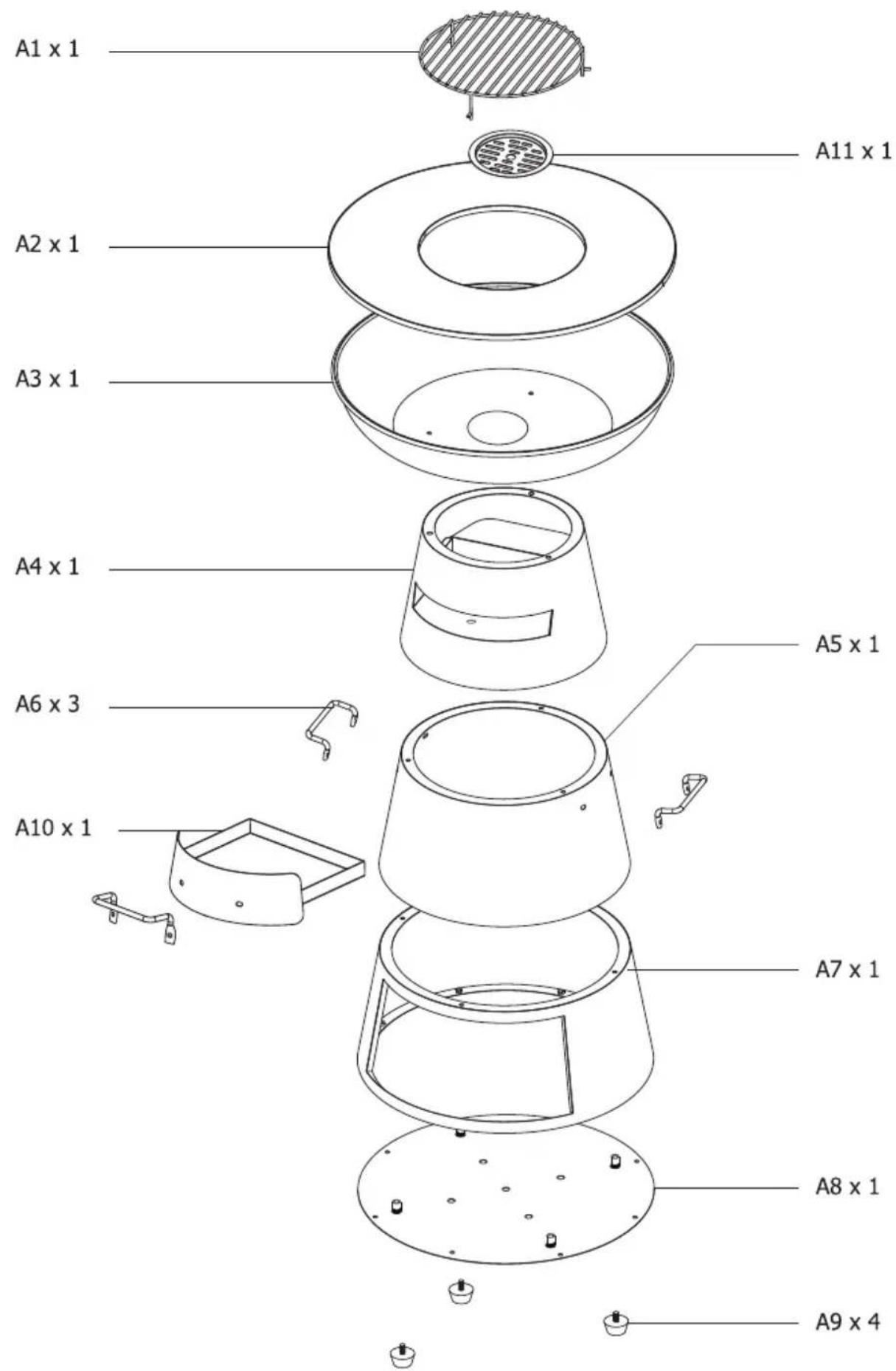

A1 x 1 A2 x 1 A3 x 1 A4 x 1 A6 x 3 A10 x 1 A7 x 1 A8 x 1 A9 x 4 A5 x 1 A11 x 1

1

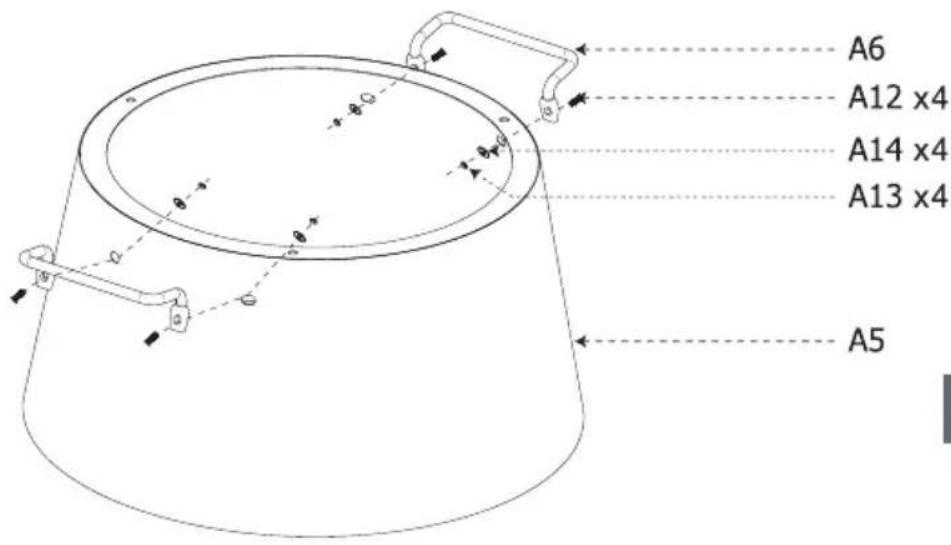

A6 A12 x4 A14 x4 A13 x4 A5

EN

2

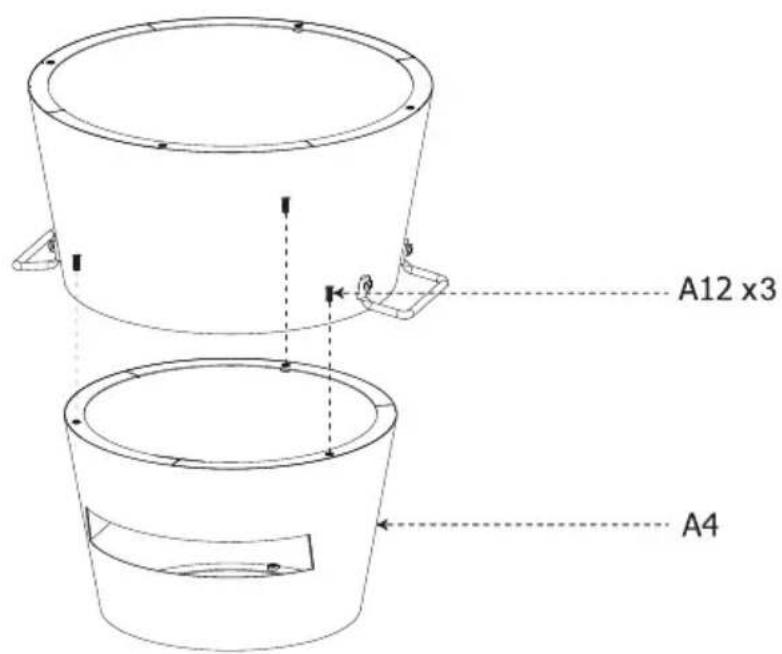

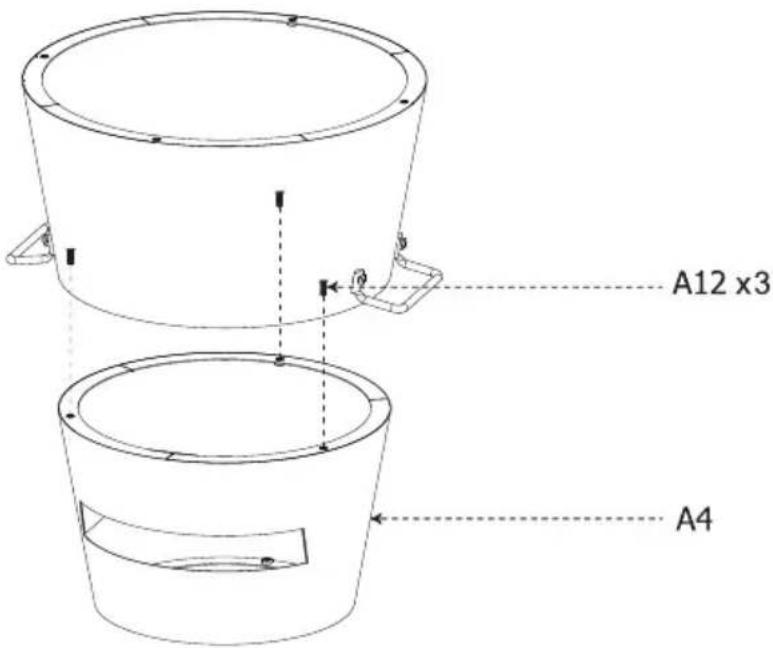

A12 x3 A4

3

EN

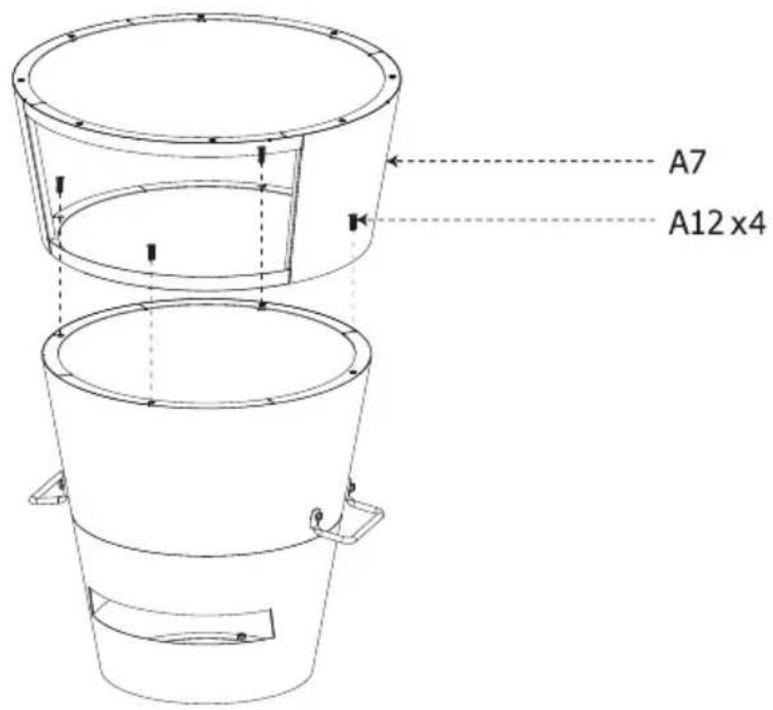

A7 A12 x4

4

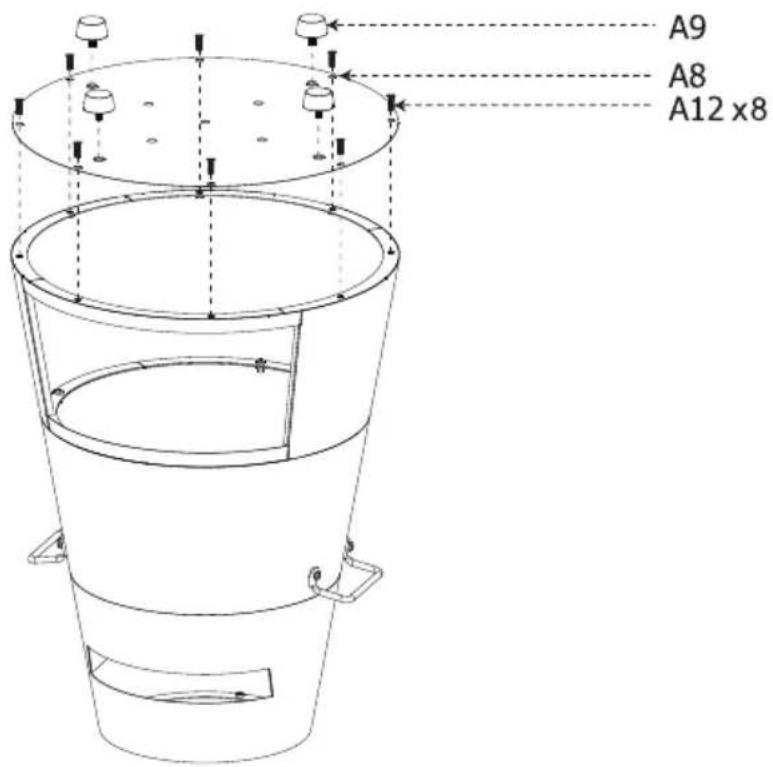

A9 A8 A12 x 8

5

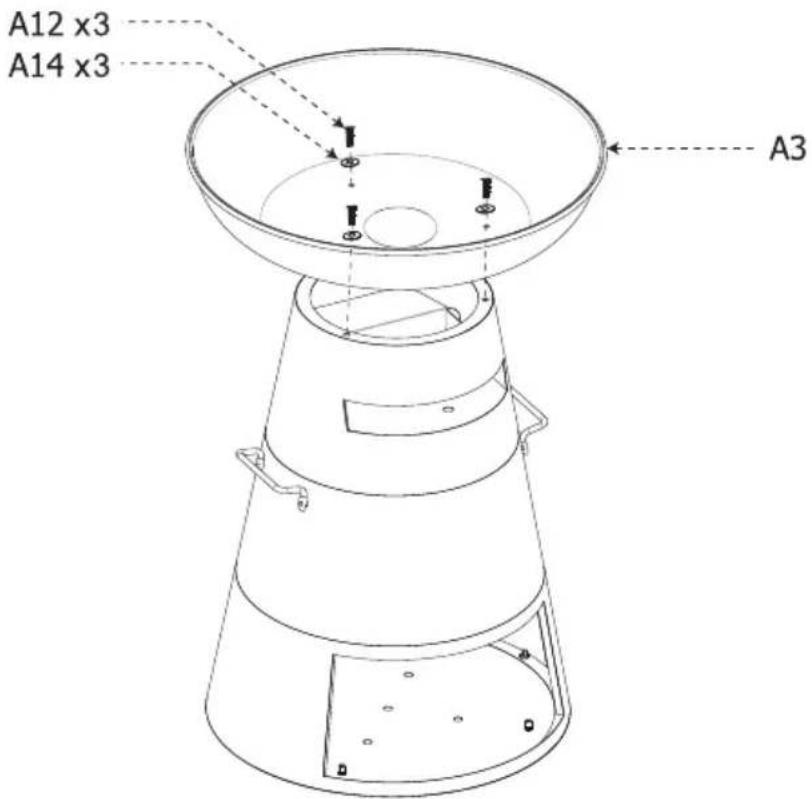

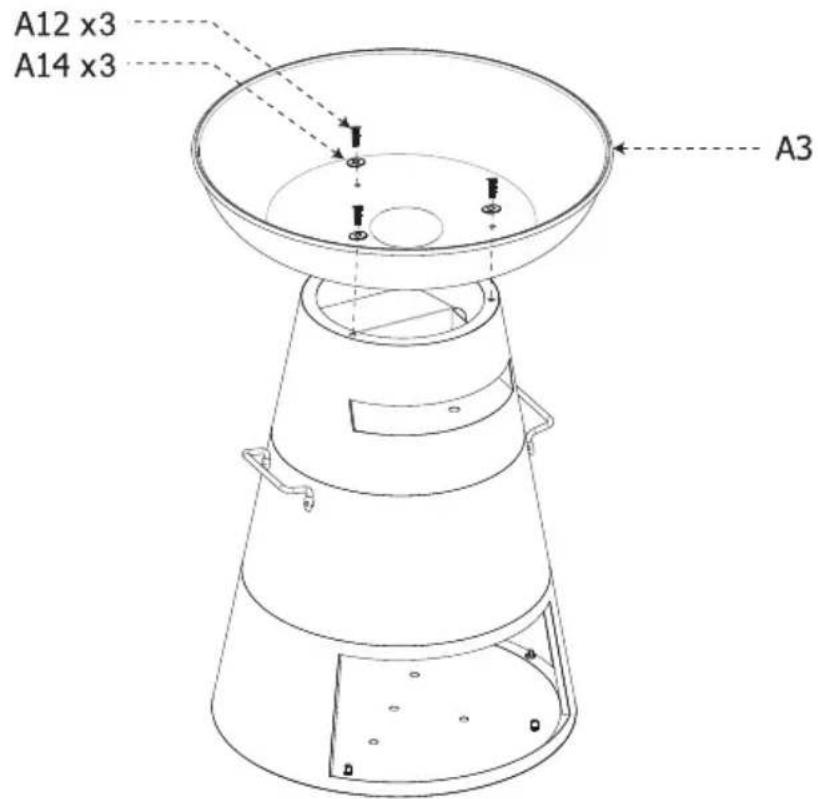

A12 x3 A14 x3 A3

EN

6

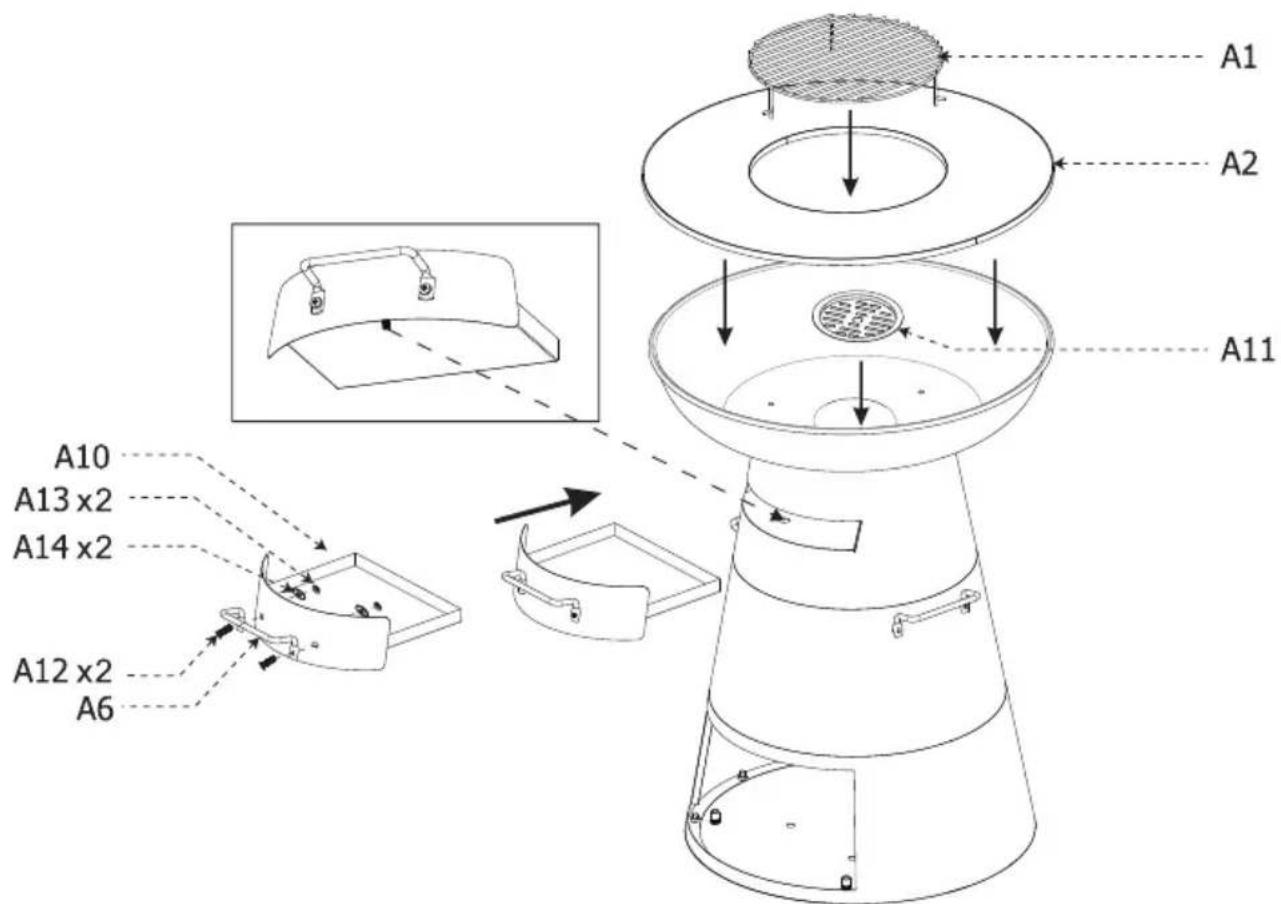

A1 A2 A11 A10 A13 x2 A14 x2 A12 x2 A6

Use and function

• Be careful of the environment, a day out in the open air should not be a cause of destruction or pollution.
• When used for the first time, heat your barbecue for 30 minutes. Doing so will stabilize the paint and this will give off an odour, but only when turned on this first time.
• Do not cook before the fuel has a coating of ash.
• On a windy day, turn your barbecue so that the wind cannot cause sparks.
  • To ensure safety, never sprinkle cold water near the cast iron hearth.
• The barbecue has to be installed on a secure level base prior to use.
• The barbecue shall be heated up and the fuel kept red hot for at least 30 minutes prior to the first cooking on the barbecue.
• Add your charcoal. Use the charcoal that complies with the current law. The charcoal must be placed 2cm under the grill when in its lowest position.
• The easiest method for lighting your charcoal is to use barbecue lighters that are easy to find in the shops.
  • We remind you once again not to pour flammable liquid onto the charcoal to light or relight the barbecue.

Lighting procedure

a) Set up the barbecue in a safe place.
b) Place enough charcoal into the fuel compartment according to the instruction manual.
c) Light the charcoal with a suitable fire starter or a long taper. The charcoal will then burn for a period with flames.
d) When burning is established, spread the fuel evenly.
e) Make sure that the cooking grid is fully located into the grill supports, then you can enjoy your barbecuing.
f) Do not cook before the fuel has a coating of ash.

Care and maintenance

To clean your barbecue, soak the cooking grill and tools in hot soapy water as soon as possible after use. Dry thoroughly and store in a dry place.

Protect the barbecue with a cover or store inside. Do not leave your barbecue outside unprotected.

Technical specification

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

Never put more than 1.0 kg of charcoal inside the grill.

Warning sign with warning symbols and icons for outdoor activities including a person, a van, a house, a tent, trees, and a campfire.

EN

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

Warning! Do not touch the metal parts of the barbecue until it has completely cooled, unless wearing protective gloves.

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Purchase product at Conforama store:

EN

This instruction book is also available on our website: www.conforama. fr If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

http://sav-client.conforama.fr/

or call :09 69 32 05 05 from Monday to Saturday, 08:30 to 19:00 price of a local call.

LE TRI + FACILE BAC DE TRI

SABA since 1923

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
