USER MANUAL B284 Ceado

Illustration of a blender with a black lid and control panel (no text or symbols)

Illustration of a blender with a lid and handle, no text or symbols present

Illustration of a blender with a black lid and control panel (no text or symbols)

FRULLATORE B180, B185, B280 e B284

BLENDER models B180, B185, B280 and B284

The B180/B185/B280/B284 are BLENDERS for the special needs of the barman.

Like all appliances, they should be used with particular care to avoid injury to the personnel and damage to the appliance.

It is therefore essential to read these instructions carefully before using the appliance and to follow the safety recommendations.

Do not use the appliance if you are not sufficiently familiar with the instructions!

GB

Page 14

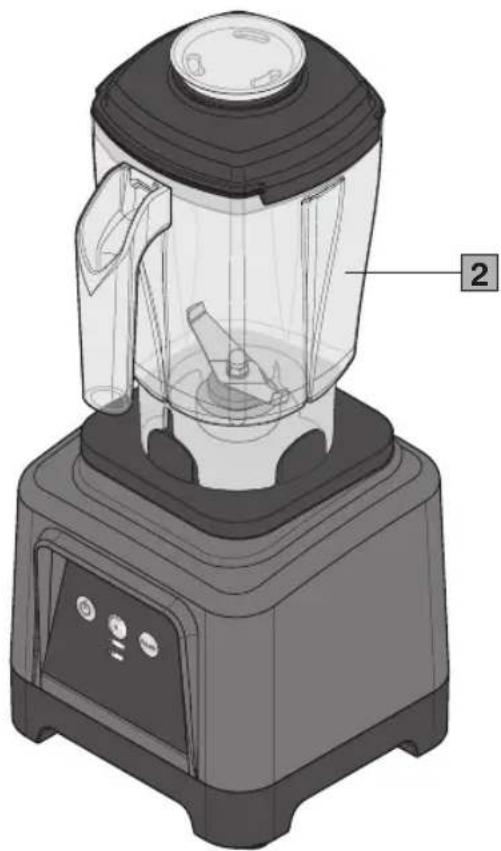

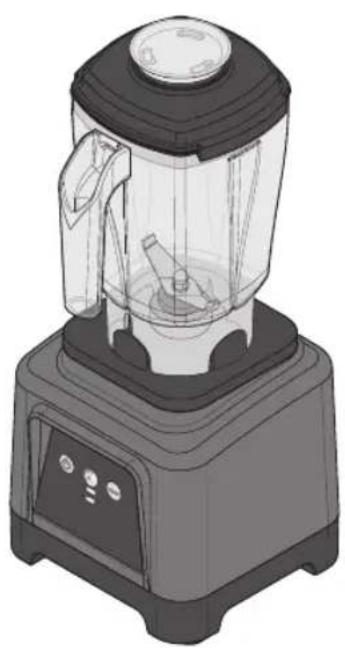

Labeled diagram of a blender with numbered parts for identification

Fig. 1

B284

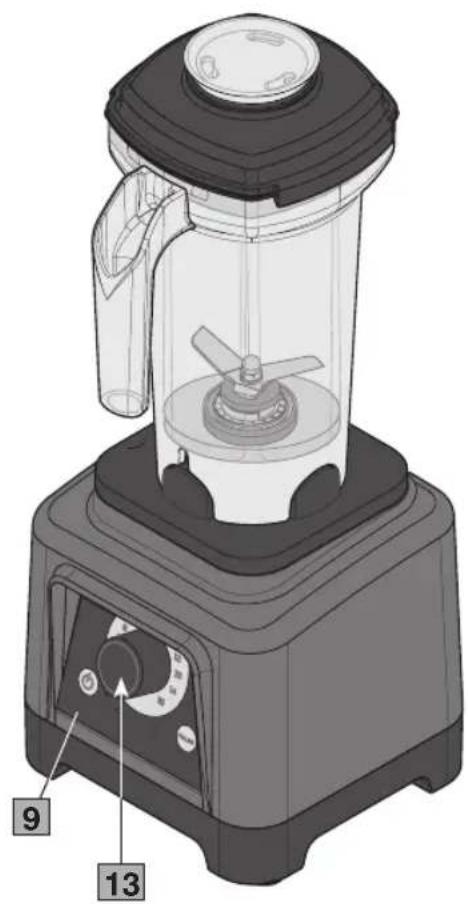

Technical diagram of a blender with labeled parts 9 and 13, showing internal components and control knob.

Fig. 1a

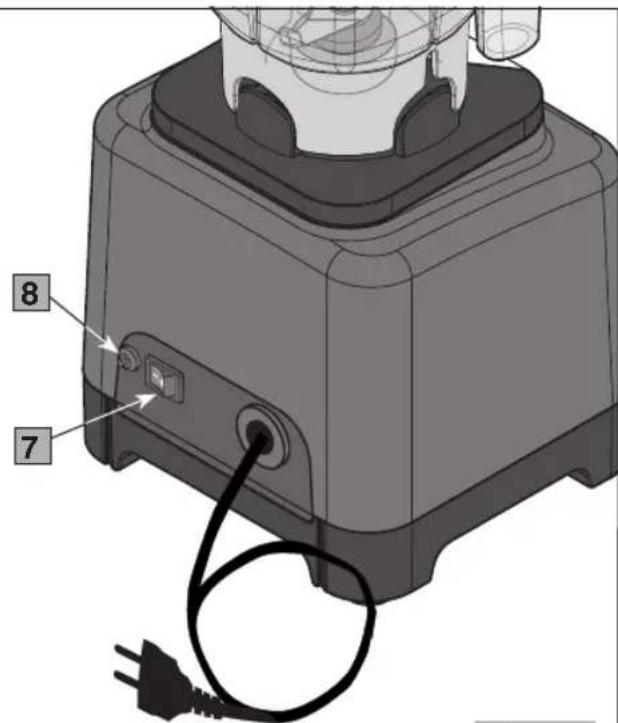

8 7

Fig. 2

B180 - B185 - B280

10 11 12 9 PULSE • HIGH • LOW

B280

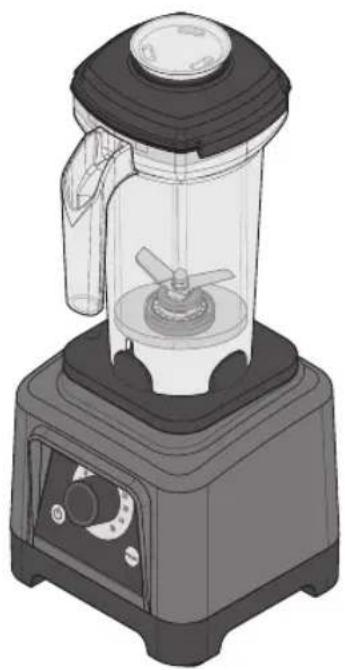

Illustration of a blender with labeled parts (no text or symbols on the device itself)

Fig. 3

B284

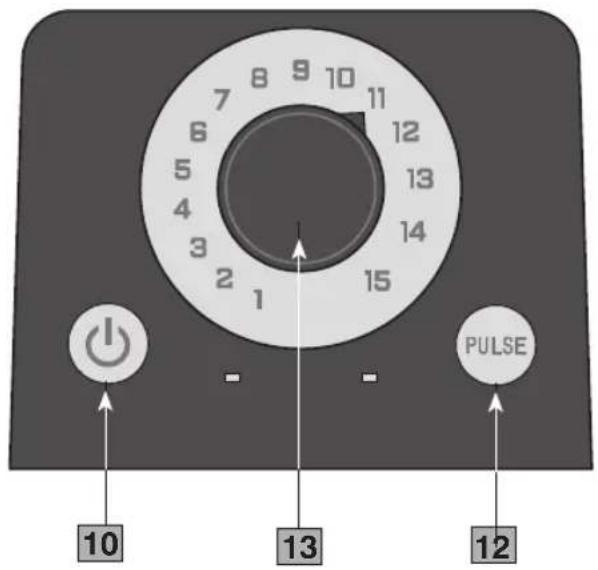

8 9 10 7 6 5 4 3 2 1 11 12 13 14 15 PULSE 10 13 12

9
Fig. 4

NORME DI SICUREZZA AVVERTENZE GENERALI

Illustration of a hand pressing down on a mechanical component (no text or symbols)

Prohibition sign for a trash bin crossed out, indicating no waste or discharge

Labeled diagram of a blender with numbered parts for identification

Fig. 1

B284

Technical diagram of a blender with labeled parts 9 and 13, showing internal components and control knob.

Fig. 1a

8 7

Fig. 2

B180 - B185 - B280

10 11 12 9 PULSE • HIGH • LOW

B280

Illustration of a blender with labeled parts (no text or symbols on the device itself)

Fig. 3

B284

8 9 10 7 6 5 4 3 2 1 11 12 13 14 15 PULSE 10 13 12

9
Fig. 4

SAFETY RECOMMENDATIONS GENERAL INSTRUCTIONS

1. Read the following instructions carefully before using the appliance.
2. This appliance is intended for internal use only.
3. The maximum and minimum room temperature for correct operation of the appliance are respectively 32^ C and 10^ C.
4. Installation and maintenance should be carried out by qualified personnel only who are authorized for such tasks.
5. Make sure that the mains voltage is as indicated on the rating label of the appliance and that the electrical system is grounded and equipped with a switch.
6. Plug the power cable into a socket protected by a suitably rated circuit breaker (MCB) or fuses.

Do not use an adaptor plug.

1. Place the appliance on a flat and stable surface where it cannot tip over. The highest resting surface (container) must be at a height of not less than 1,5 m.

2. This appliance is NOT intended for industrial food processing in mass production.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or without experience and knowledge, unless they have been instructed in the use of the appliance and are under the supervision of a person who is responsible for their safety.

CHILDREN SHOULD BE SUPERVISED SO AS TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

1. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

1. Never use this appliance for any operations other than blending foods. Any other use is prohibited. Do not operate without container and lid in place.
2. Never place the appliance in water!
3. Do not disassemble the appliance or attempt to perform any repairs inside it.
4. Always unplug the appliance before performing any maintenance or cleaning and when it is not in use.

If the power cable is damaged it must be replaced by the manufacturer or by the technical assistance service, or at any rate by a person with similar qualifications, so as to prevent all risks.

1. WARNING: Never place any utensils, metal or other hard materials, in the container. This is dangerous and could cause damage.

2. Never operate the appliance with the container empty and never run it for more than 15 seconds if there are no liquids in the container.

3. BE CAREFUL if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming!

4. Do not use the appliance if it is damaged or has loose parts. Immediately contact an authorized Service Center.

5. BE CAREFUL when handing the SHARP CUTTING BLADES, emptying the container and during its cleaning!

CAUTION: DO NOT OPERATE WITHOUT COVER IN PLACE!

1. Keep the original package for possible future use. It is the most suitable protection against damage during transport.

The appliance complies with European regulation CE 1935/2004 and subsequent updates.

SAVE THESE INSTRUCTIONS!

To consult these instructions on-line, visit the site www.ceado.com

CE

The EC declaration of conformity for this appliance is available in the Products section of our website www.ceado.com.

INSTALLATION

Comply with the safety recommendations indicated above and hereafter when installing the appliance.

1. Make sure that the mains voltage is as indicated on the rating label of the appliance and that the electric system is grounded and equipped with a differential switch.
2. Install the appliance in a DRY, PROTECTED place, far from water sprays or splashes, heat sources, open flames and inflammable substances.

Place the blender on a stable, horizontal surface where it cannot tip over.

1. Make sure the switch on the appliance is in the "OFF" position and plug it into a socket protected by a magneto thermal switch or fuses.

Do not use a multiple outlet plug.

1. Stretch the power cable out to full length. Do not let it pass over sharp edges or hot surfaces. Do not let oil spill on it. Do not let the power cable hang loose from the counter on which the blender stands.

USE

Before first use: rinse all of the parts that will have contact with food in running water i.e.: container, lid, filler cap, blade.

1 Place the ingredients in the container in this order: first liquids and fruit, then ice and other solid foods.

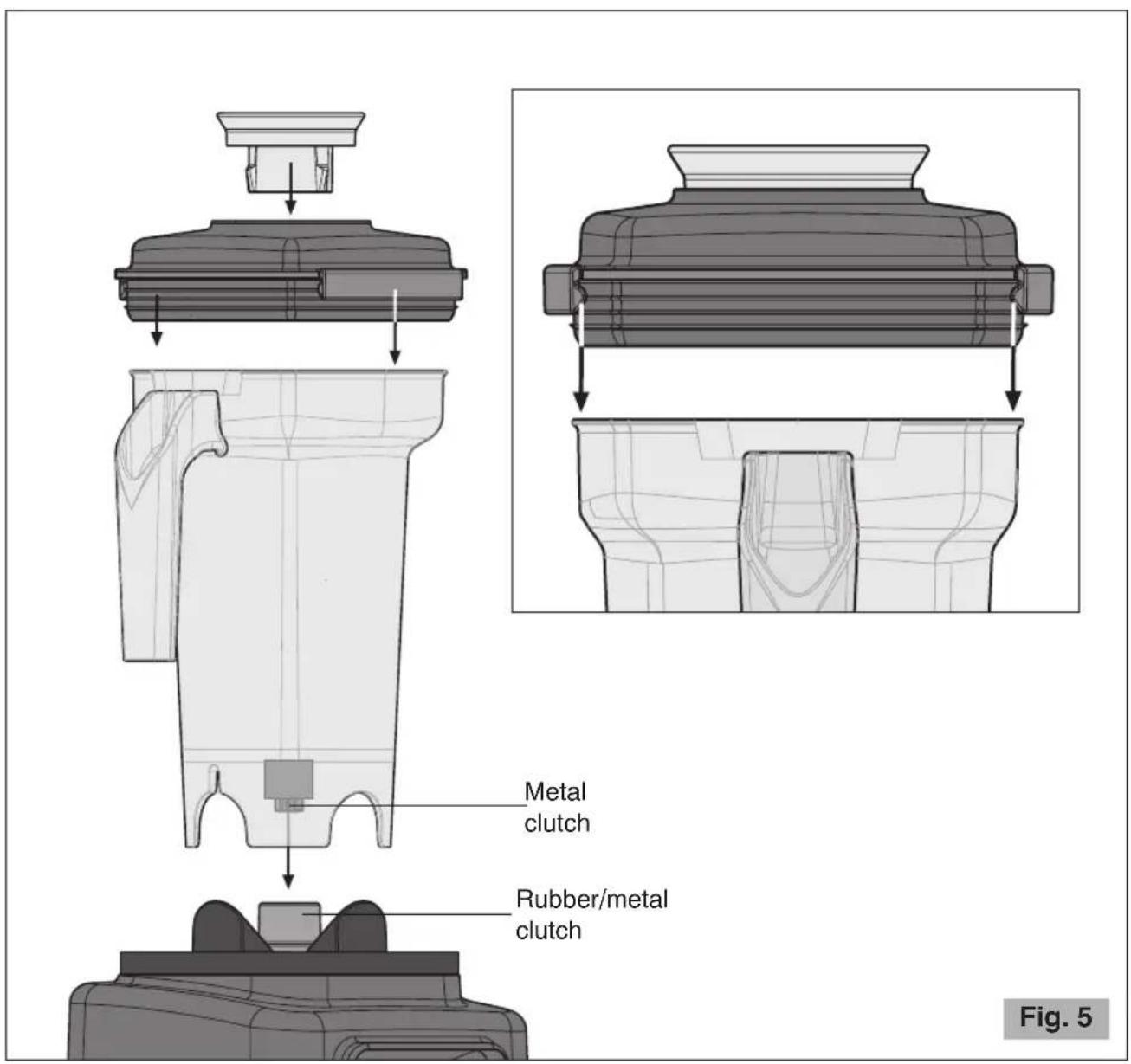

2 Stand the container on the base fitting it into its support as shown in figure 5.
3 Fit the lid on the container by pressing on the closing hooks (see Fig. 5).

Note: When new, the lid of blender may require extra force to apply and remove. After a few times it will fit perfectly.

4 Put the ON-OFF switch (7, Fig. 2) in position ON (I).

Metal clutch Rubber/metal clutch Fig. 5

5 Select the desired speed with the selector for models B180, B185 and B280 or with the knob (13 Fig.1a) for model B284 and, holding one hand on the lid, turn on the motor by pressing the button (Fig. 6).

Note: The numerical scale of the speed selection knob is indicative only and does not indicate the engine speed range.

6 Most drinks require blending at high speed. Position the selector selection knob (13 Fig. 1a) to low values only when preparing small quantities or when using the blender just to mix the ingredients.

7 The "PULSE" function can also be used, that is "momentary" operation at full speed, by pressing and holding down the button PULSE for the whole operating time desire.

Note: You can use the "PULSE" function when preparing thick drinks that tend to "float" or to break up nuts or other ingredients that are unable to circulate in the working zone of the blades.

WARNINGS AND SUGGESTIONS

1. The blender is also designed to crush ice and prepare FROZEN DRINKS from ice in cubes. Remember that if you place the ice in the container already crushed this will greatly extend the life of the appliance.
2. The blender is designed to ensure perfect preparation of the FROZEN DRINKS recipes contained in the international texts of the IBA associations. If you use the quantities indicated in those recipes you will always obtain the desired consistency.
3. Certain preparations may cause cavitation of the blender. This means the ratio of liquid to ice is not correct. If this occurs, switch the blender off, remove the lid, stir the mixture with a spoon and try again.
4. If you have to heat or chill a preparation made with the blender, do not place the container directly in the oven or freezer. This could damage it. Empty the container into a suitable vessel.

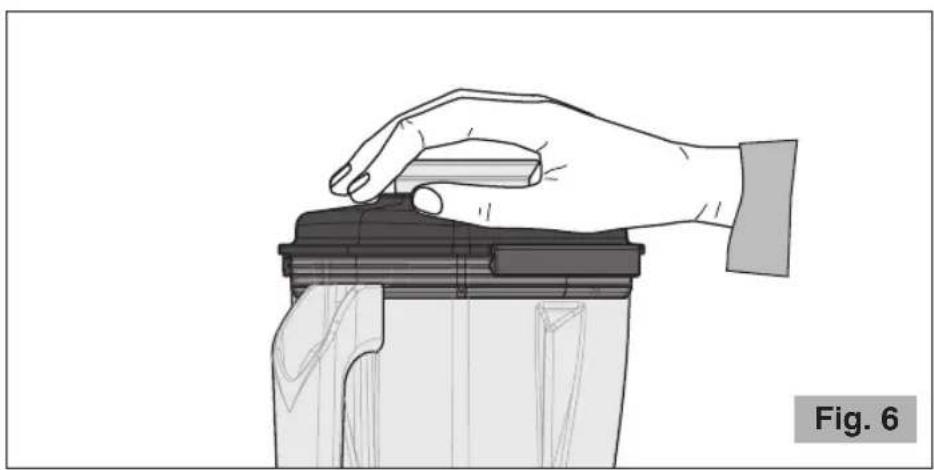

Illustration of a hand pressing down a cylindrical object into a container, labeled 'Fig. 6' (no text or symbols on the diagram itself)

CLEANING AND MAINTENANCE

It is important to keep the appliance clean and in good working order to ensure optimum quality of the products and long life of the appliance. Always rinse the container after use to prevent residues from drying in the container. This could damage the sealing elements and bearings, or cause the blades to seize.

Do not dry the container in the oven or microwave oven.

For longer life of the container we recommend not washing it in the dishwasher.

To clean the motor base, unplug the appliance and clean with a damp cloth or alcohol, or use a generic detergent spray.

Dry with a dry cloth.

Never wash the blender with jets of water or immerse the motor base.

To clean the container: after rinsing the container and lid under the tap, fill the container halfway with warm water and a spoonful of dishwashing detergent. Fit the container on the base, cover with the lid and run for 20 seconds. Remove the container and rinse with running water. Repeat the operation with 1 liter of warm water and 5 ml of household bleach. Remove the container, rinse and dry the container by turning it upside down on the drainboard. Wash the lid with warm water and dishwashing detergent.

TROUBLESHOOTING

(See Table on the next page)

In case of any malfunction, defect of the appliance or if you suspect any breakage after a fall, unplug the appliance immediately.

If you are unable to solve the problem referring to the table below, contact an Authorized Service center.

Only qualified experts should repair the appliance.

We are not liable for any damage caused by repairs not made correctly by unauthorized personnel. In these cases the warranty does not apply.

Problem Solution
The blender does not start.	Make sure it is plugged in.Make sure the safety circuit breaker is closed.Make sure the switch on the blender (7 Fig. 2) is turned to “ON”.If the problem occurs after a long period of intensive use the motor may have overheated. Wait at least 20 minutes and try again. If you put the blender in a cool place this will reduce the waiting time.If the problem occurs after an overload, the circuit breaker on the motor may have been tripped! Push the button on the back of the appliance (8 Fig. 2).Make sure the blades and motor revolve freely.
The blades do not turn with the motor on.	Check that the base/container coupling clutches are in good condition.Make sure the container is correctly fitted on the base.
Noise and vibration of container.	Make sure the blades and clutches are securely tightened.Check that the base/container coupling clutches are in good condition.

DISPOSAL

Correct disposal of this product (waste electrical and electronic equipment)

(Applicable in the European Union and other countries with separate collection systems in conformity with European Directive 2012/19/EU and subsequent updates)

This product has been made from high-quality parts and materials, which can be re-used and recycled.

Therefore, do not throw the product away with normal household waste at the end of its working life. Take it to a collection point for recycling electrical and electronic devices. This is indicated by this symbol on the product and in the operating manual.

Please contact your local government office for information about the exact location of the closer collection point.

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

WARRANTY

This product is guaranteed against faulty materials and workmanship.

The warranty period may vary according to local laws or commercial uses of the country where the product is marketed. Therefore, please contact the retailer from whom the product was purchased.

During the warranty period, this product can either be repaired or replaced, at the manufacturer's discretion, at no additional cost only if it has been used according to the instructions in this use and maintenance manual.

If the products needs maintenance or repairs during the warranty period, contact your retailer for shipping instructions. The product should be shipped in its original package or other suitable packing.

The warranty does not apply in case of neglect, misuse, abuse or unauthorized repairs. This warranty does not apply to parts subject to deterioration through normal use such as the container, blades, joints, etc.

The warranty is limited to the costs of repair or replacement of the product or its defective parts, or an amount equivalent to the price paid for its purchase. No additional requests of damages will be available to the purchaser.

The manufacturer will not accept any liability and the warranty will be invalidated if there is a failure to follow these instructions and the technical and/or safety standards in the country where the appliance is to be used.

In any case these instructions cannot cover every possible event and the user is recommended to use the appliance responsibly.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY ALTERATIONS TO THE APPLIANCE WITHOUT NOTICE
