INDEX

1 Safety instructions ....34
2 Description of the control unit ....36
3 Usage instructions .... 37
4 Cleaning and maintenance ....37
5 Technical specifications....39
6 Warranty / Disposal / Technical change 39

Thank you for purchasing a SONNENKÖNIG product. We take great care in the design, ergonomics and ease-of-use of our products. We hope you will like this product.

EN

1 Safety instructions

Please read the safety instructions carefully before use, and observe the safety instructions to prevent damage due to misuse, improper operation, and unsuitable environmental conditions. Keep this instruction booklet for later reference.

Check the device for damage after removing the packaging. Do not use the unit if you suspect it has been damaged, and consult a specialist. The recyclable packaging material must not be stored or disposed of where it can be accessed by young children, but must be disposed of properly.

This appliance must only be used for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and/or property resulting from improper or incorrect use.

Repairs to electrical appliances must only be carried out by trained personnel. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user, and the warranty will be void in such cases.

• Check the blanket carefully before each use.
• If you notice visible damage on the blanket, do not use and return to the manufacturer or dealer.
• If the supply cord of this appliance is damaged, it must only be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• The appliance must be returned to the manufacturer or his agent if the link has ruptured.
• Examine the blanket frequently to check that there are no signs of wear or damage. If there are such signs, if the appliance has been misused or does not work, return it to the supplier before switching it on again.
• The blanket can only be operated with detachable controller SS25.
• Before connecting the blanket to the power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• The blanket may not be operated while folded, creased, wrapped in a cover or placed around the mattress.
• Four fastening straps are located on the corner of the blanket. Use these straps to attach the blanket to the mattress using a suitable band or cord. Make sure that the blanket is firmly strapped to the mattress in both directions and that it will not crease while it is being used. Check if it is in the correct position before lying on it.
• The appliance should not be used on an adjustable bed. If the appliance is used on an adjus-

table bed, check that the blanket and cord do not become trapped or rucked, for example in hinges.

- Place the blanket on mattress with the mains lead at the pillow end. Ensure the controller emerges from the top side of the blanket and that heating elements do not emerge under the pillow area.

- Children under the age of three are not to use this appliance due to their inability to react to overheating. This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.

- The appliance can be used by children older than 3 years and younger than 8 years under supervision and with the control always set to minimum temperature value.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Neither pierce the blanket with, nor attach safety pins or other spiky or sharp objects to the pad.

- if the appliance is slept on with the controls set to a higher temperature the user may suffer skin burns or heat stroke. For prolonged use, it is recommended that the temperature be set to "1".

- People with pacemakers should consult their physicians or the manufacturer of the pacemaker before using the blanket, as the electronic and magnetic emission from this product can affect the pacemaker's function under certain circumstance.

- do not use if wet.

- This appliance is not intended for medical use in hospitals.

- The cable and control unit of the appliance can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall make sure that excess ties and electric cords shall be arranged in a safe way.

- Keep the mains cable away from hot surfaces.

• Not suitable for children under 3 years.

- Do not bleach - Do not tumble dry

- Do not iron - Do not dry-

- Do not use folded or crumpled - Do not insert pins

- Read the instructions

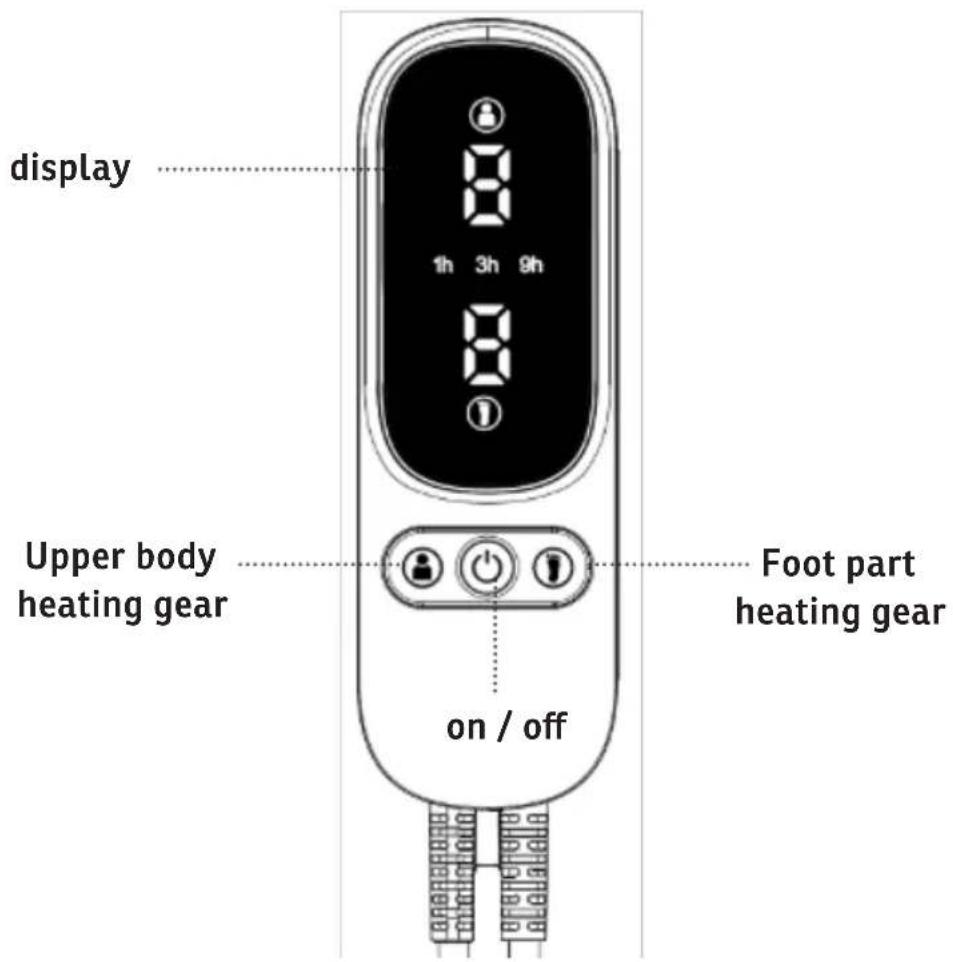

2 Description of the control unit

EN

display 1h 3h 9h Upper body heating gear on / off Foot part heating gear

3 Usage instructions

• Please plug in the power cord, all the LED display is fully on for 1 second for self-test, and then off, the heater does not heat, enter the standby mode.
• Please long press the on/off button to turn on the blanket, and enter the default mode. The default mode is to heat the upper and lower body in 3 gears for 1 hour. At this time, the upper digital tube shows 3, indicating that the current upper body heating gear is 3, the lower digital tube shows 3, indicating that the current lower body heating gear is 3; The timer 1h icon is lit.

Close-up of a white plastic light bulb with a circular lid, placed on a dark textured surface (no text or symbols visible)

EN

• You will feel the electric blanket starts heating up in a few minutes. If you need a higher heat feeling, please short press button or to adjust the temperature of upper body and foot part, and the temperature starts cycling from 3-4-5-6-5-4-3-2-1-0-1-2-3-4-5-6, it has 6 heat settings in total. And long-pressing the button or , you could rapid continuous adjustment the temperature.
• To adjust the time settings, short press the on/off button ⏻, the timer is cycled regularly by 1h-3h-9h-1h, and the timer is displayed as a countdown.
• To turn off the blanket, you still need long press the on/off button, and the screen turns blank to stop working.

4 Cleaning and maintenance

Follow the instructions below when you are not using the electric heated overblanket and before cleaning it:

• Before cleaning the blanket, unplug it from the mains outlet and let it cool down completely or for at least ten minutes.

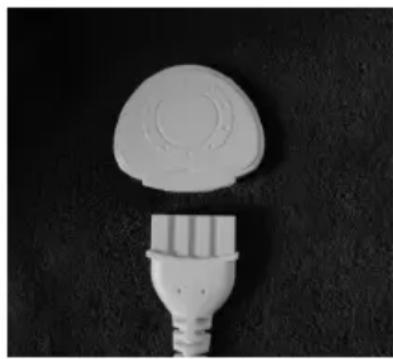

• The blanket is equipped with a detachable cable. Disconnect the plug and remove the cable from the blanket.
• You may wash the blanket gently by hand. The best way to do this is to put the blanket in a bath with lukewarm water and some mild detergent and then gently squeeze it out.
• Do not use hair dryer to dry this product, have to dry naturally, stretch the blanket out on a flat surface.
• Rinse the blanket several times to remove all the detergent.
• Store the blanket in a clean and dry place, laid out flat with nothing covering or resting on top of it.
• Only use the blanket once it is completely dry.
• You may also wash the blanket in a washing machine at a maximum temperature of 30^ C with low mechanical action and spin. It's advisable to wash it by hand in order to prolong the life of the product.

	Wash at 30°C Hand wash
	Do not bleach Do not dry (YTD5)
	Do not tumble dry	Air dry in the shade.Do not use clothes-pins
	Do not iron

- Remove the control(s) before cleaning the thermal underblanket.

Storage

• When not in use, store the blanket as follows:
• When storing the appliance, allow it to cool down before folding, then gently fold the blanket and place back into the packing bag it arrived in.
• do not crease the appliance by placing items on top of it during storage.
• Make sure the blanket is dry before folding and packing it away. The blanket should be hung in a ventilated location to dry naturally.
• Do not use mothproofing agents on the blanket.
• The blanket should be store in a cool dry place.

5 Technical specifications

Power....70 watts

Voltage 230 V

Frequency 50/60 Hz

Dimensions 190×90 cm

Weight 2 kg

Degree of Protection IPX0

The power consumption of the appliance in off-mode condition is 0.37W.

6 Warranty / Disposal / Technical change

Warranty

The product is checked just before delivery. If, despite that, your product is defective, please contact the seller. You will need to present your receipt, as this must be submitted for each warranty claim. The warranty period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be returned free of charge to the retailer for disposal.

Technical changes

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please retain the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021

LVD EN 60335-2-17:2013/A2:2021

EN 60335-1:2012/A16:2023

EN 62233:2008

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
