USER MANUAL H25D44W TCL

Hi! Let's Get Started.

Line drawing of a red industrial refrigerator with lid and wheels (no text or symbols)

DFL -Series Dehumidifier

English / Spanish / French

Table of Contents

English

Register and Protect Your Purchase 3

Important Safety Instructions....4

What's in the Box....7

Let's Get Started! 8

How to Control Your Dehumidifier....9

Troubleshooting 12

WiFi App Installation (WiFi Modules Only)....13

Warranty Information....16

Spanish

Registre y proteja su compra....16

Register and protect your purchase

TCL-DHM PHOTOREGISTERM

Register easily with your smartphone

Scan or text a photo of the camera icon to 71403

Or register online at register.tcl.com

Need help? Visit photoregister.com/help or text HELP to 71403

Add a TCL Protection Plan when you register your product and be covered from life's mishaps

Thank you for choosing TCL. We want your ownership experience to bring you as much joy as the product you purchased does, so we're offering you a special price on TCL Protection Plans when you purchase during registration. Add a TCL Protection Plan within your first 30 days of ownership to receive the best value and we'll make sure nothing gets in the way of you enjoying your new product.

Benefits & Description
PROTECT PLUS

Extended Manufacturer CoverageExtended parts & labor coverage for manufacturer defects.	Up To 4 Years	Up To 4 Years
Priority ServiceFree shipping and rapid turn-around time.	3-5 Days	3-5 Days
Product ReplacementFree 1-time replacement if product cannot be fixed.	⊕	⊕
TCL Parts & ServiceGenuine TCL parts & factory certified service.	⊕	⊕
No Deductible$0 out of pocket expense.	⊕	⊕
Accidental Damage ProtectionCoverage for drops, breaks and spills starts after 30 days.		⊕

*Extended service plans (i.e., “Protect” and “Plus” plans) are only offered in the United States (US). All TCL products continue to offer a limited consumer warranty in both the US and Canada. Please refer to the warranty section in this guide for additional details on warranty information.

IMPORTANT SAFETY INSTRUCTIONS

Before installing and using your dehumidifier, please read this owner's manual carefully.

Store this manual in a safe place for future reference. Your safety and the safety of others is very important to us.

Please pay attention to all safety messages outlined in this owner's manual.

WARNING: To reduce the risk of fire, electrical shock or injury when using your dehumidifier, follow the following basic precautions:

ELECTRICAL REQUIREMENTS

The electrical ratings for your dehumidifier are listed on the model and serial number label located on the on the back side

(when facing the front)

REGISTER YOUR APPLIANCE

You can register your appliance online by going to register.tcl.com

Be sure to retain your original sales receipt. A valid proof of purchase is required for all warranty claims.

Document your model and serial numbers here:

Model #

Serial #

You can locate your 20 digit serial number underneath the bar code (on the back side)

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Specific electrical requirements are shown in the diagram below. Follow the requirements below for the type of plug on the power supply cord.

Wiring Requirements Power Supply Cord

PREFERRED

GROUNDING METHOD

60Hz, 115V AC outlet protected by a 15 amp time delay fuse or circuit breaker.

Ensure proper ground exist s before use.

RECOMMENDED GROUND METHOD

For your personal safety, this air conditioner must be grounded. This dehumidifer is equipped with a 3 prong power supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong outlet and grounded in accordance with all local codes and ordinances. If a 3 prong outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrician.

FCC CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help. The distance between user and device should be no less than 20cm.

DO NOT RETURN TO STORE

WE ARE

READY TO

HELP

contact us first with any questions

TCL SUPPORT:

support.tcl.com

1-800-825-6747

TAKE CARE WHEN REMOVING

INSTALLATION MANUAL---Important considerations

When compared with other refrigerants, R32 is more environmentally friendly. Please use this product as instructed. This refrigerant is flammable and may combust under certain conditions, however when this product is used as directed these risks are significantly reduced. Always consult with a trained professional when maintaining or repairing an air conditioner.

Warning

• Please read the manual before installing, using, or conducting maintenance.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• Be aware that refrigerants may not contain an odor.
• Do not pierce or burn the appliance.
• The appliance shall be stored in a room without continuously operating sources (for example: open flames, an operating ignition gas appliance or an operating electric heater).
• Please contact the nearest after-sale service center when maintenance is necessary. At the time of maintenance, the maintenance personnel must strictly comply with the Operation
• Manual provided by the corresponding manufacturer and any non-professional is prohibited to maintain the air conditioner.
• It is necessary to comply with the provisions of gas-related federal, state, and local laws and regulations.
• It is necessary to clear away the refrigerant in the system when maintaining or recycling an air conditioner by a trained professional.

Warning: flammable & Dangerous

Read the user manual Read the installation manual

Read the service manual

Important Considerations

• The air conditioner you buy must be installed by professional personnel and
  the "Installation manual" is used only for the professional installation personnel!
• The installation specifications should be subject to our after-sale service regulations.
• When filling the flammable refrigerant, please use caution to avoid serious injury.
• A leak test must be done after the installation is completed.
• It is a must to perform the safety inspection before maintaining or repairing an air conditioner using flammable refrigerant in order to ensure that the fire risk is reduced to a minimum.
• Requirements for the total weight of filled refrigerant and the area of a room to be equipped with an air conditioner (are shown as in the following Tables GG.1 and GG.2)

The maximum charge and the required minimum floor area

m1 = (4 m3) × LFL, m2 = (26 m3)) × LFL, m3 = (130 m3) × LFL

Where LFL is the lower flammable limit in kg/ m3,R290 LFL is 0.038 kg/ m3,R32 LFL is 0.038 kg/ m3.

For the appliances with a charge amount m1 < M = m2:

The maximum charge in a room shall be in accordance with the following: mm = 2.5 × (LFL)(5/4) × h0 × (A)1/2

The required minimum floor area Amin to install an appliance with refrigerant charge M (kg) shall be in accordance with following: Amin = (M/(2.5 × (LFL)(5/4) × h0)) 2

Where:

mmax is the allowable maximum charge in a room, in kg;

M is the refrigerant charge amount in appliance, in kg;

Amin is the required minimum room area, in m2;

A is the room area, in m2;

LFL is the lower flammable limit, in kg/m3;

h0 is the installation height of the appliance, in meters for calculating mmax or Amin, 1.8 m for wall mounted;

Table GG.1 - Maximum charge (kg)

Table GG.2 - Minimum room area (m2)

Category	LFL(kg/m2)	h 0(m)	Charge amount (M) (kg)Minimum room area (m2)
			1,224 kg	1,836 kg	2,448 kg	3,672 kg	4,896 kg	6,12 kg	7,956 kg
R32 0,306		0,6		29	51	116	206	321	543
		1		10	19	42	74	116	196
		1,8		3 6 13	23	36 60
		2,2		2	4	0	15	24	40

Installation Safety Principles

1. Site Safety

Open Flames Prohibited

Ventilation Necessary

2. Operation Safety

Mind Static Electricity

Open Flames Prohibited

Must wear protective clothing and anti-static gloves

Don't use mobile phone

3. Installation Safety

• Refrigerant Leak Detector

• Appropriate Installation Location

The left picture is the schematic diagram of a refrigerant leak detector.

Please note that:

1. The installation site should be in a well-ventilated area.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548°C which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static measures such as wear anti-static clothing and/or gloves.
4. Installation or maintenance location should not be surrounded by obstacles or close to any heat source, flammable, and/or explosive areas or objects.
5. If the product suers refrigerant leak during the installation, all personnel should go out till the refrigerant leaks completely for 15 minutes. If the product is damaged, a professional must carry such damages product back to the maintenance station. It is prohibited to weld the refrigerant pipe or conduct other operations on the contaminated site.
6. The air conditioner unit needs to sit on a flat even surface.
7. It is necessary to avoid the places where there are other electrical products, power switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables directly under the lines on two sides of the indoor unit.
8. Any ventilation openings of unit should be free from obstructions.

What's in the Box

Note: Some accessories are not in bucket, please find it in packaging.

NO. APPEARANCE PART NAME QUANTITY
1		Pump Drain Hose (about 5m, 16.4ft) (PUMP MODEL ONLY)	1 set

Diagram of a refrigerator with numbered parts labeled 1 through 6 for identification.

Diagram of a portable air conditioner unit with numbered labels pointing to ports and components

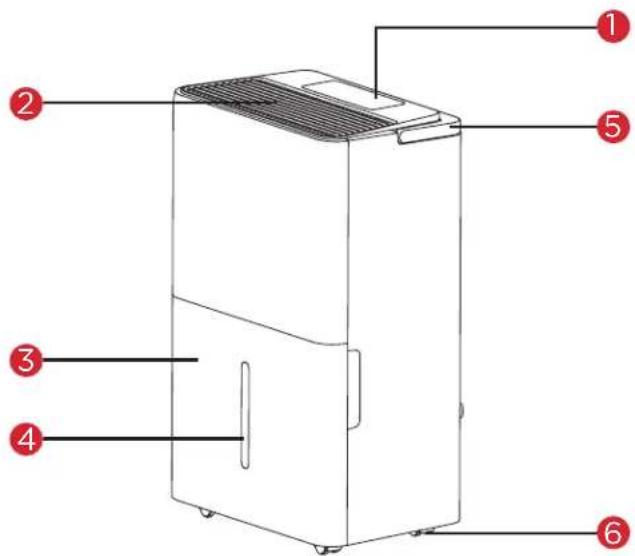

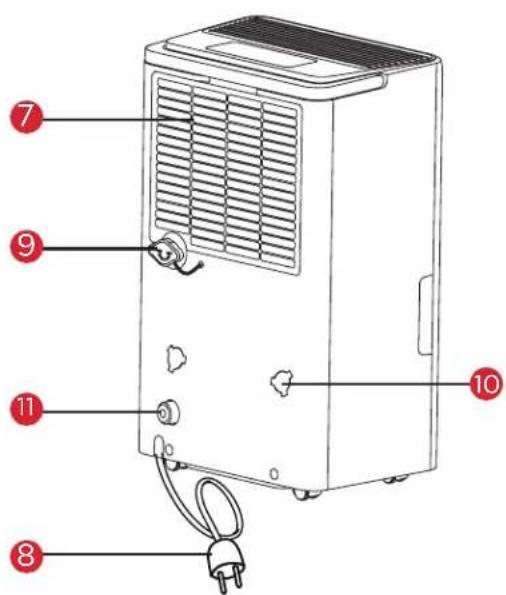

NO. COMPONENT DESCRIPTION

1	Control Panel
2	Air Outlet
3	Bucket
4	Water Level View Window
5	Handle
6	Castor
7	Air Intake Grill
8	Power Cord
9	Drain Port
10	Holes of Hooks
11	Pump Connector(Only on models with a pump)

Note: Illustrations in this manual are for explanatory purposes only. Product design and aesthetics may vary.

Let's Get Started!

Installation & Assembly Instructions

Step 1: Installation

Note: Do not place your dehumidifier in any location that features permanent, intermittent, or risk of standing water to prevent damage to the unit and/or any persons.

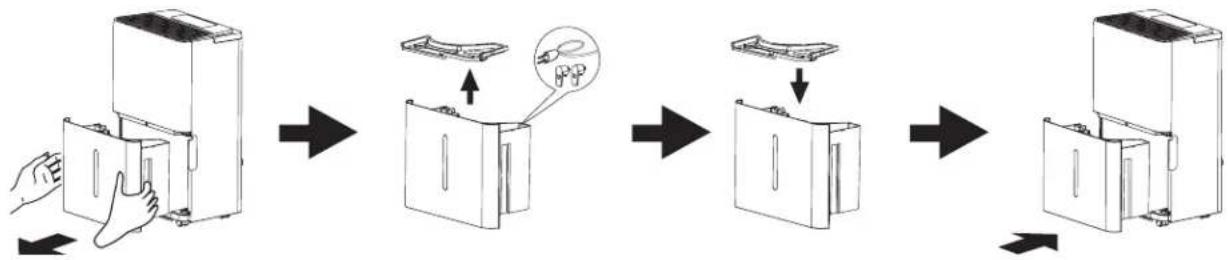

Preparation

1. Remove the budget from the unit.
2. Remove the bucket's tank cover and take out the included accessories.
3. Put the bucket's tank cover back on.
4. Install the bucket into the main unit.

Accessories Included

NO. APPEARANCE PART NAME QUANTITY
1		Drain Pipe(Pump Model Only)	x1
2		Hooks x2

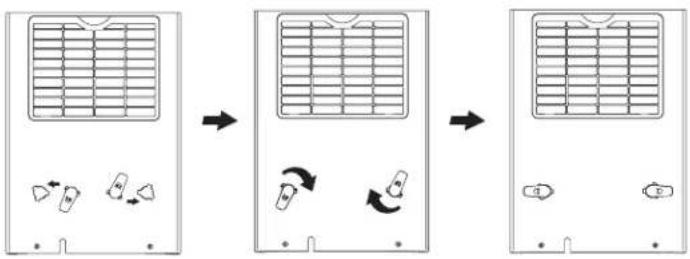

Hook Assembly

Insert the hooks as illustrated below and turn them clockwise approximately 45-degrees.

Step2: Testing

• Do not use outdoors.
• Place the unit on a smooth level surface.
• Allow at least 12 -18 inches of clearance on all sides of the unit.
• Place the unit in a space where the temperature will not fall below 41 degrees Fahrenheit.
• The dehumidifier must be operated in an enclosed area to be most effective, such as a basement.
• Close all doors, windows, and other outside openings to the room.

How to Control Your Dehumidifier

All the basics you need to know!

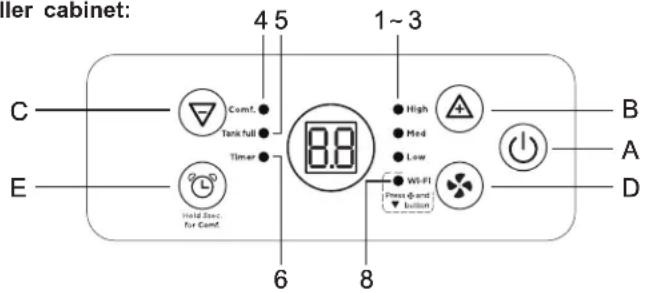

The smaller cabinet:

Outer cabinet: 4 5 1~3 C —— Comf. Tank full Timer 8.8 High Med Low B E —— Hold Disc. for Comf. 6 8 Wi-Fi Press (and Button) D A

A. On / Off button
B.Fan speed butto n
C.Decreas e button
D.Increas e button
E. Timer button

1. High speed symbol
2. Me d spee d symbol
3. Lo w spee d symbol
   4.Comfort symbol
4. Tank full symbol
5. Timer symbol
   7.Wi-F i symbol*

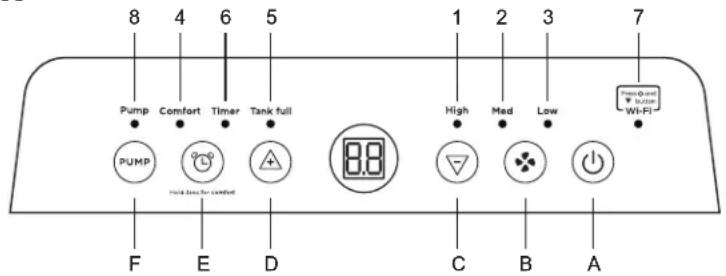

The bigger cabinet:

8 4 6 5 Pump Comfort Timer Tank full PUMP High Mad Low

# of

# of

F E D C B A

A. On / Off button
B.Fan speed butto n
C.Decreas e button
D. Increase e button
E. Timer button
F.Pump button

1. High speed symbol
2. Me d spee d symbol
3. Lo w spee d symbol
   4.Comfort symbol
4. Tank full symbol
5. Timer symbol
   7.Wi-F i symbol*
   8.Pump symbol**

Disclaimer: Pump and Wi-Fi features are only available on select models. It is normal for the letters "CF" to be displayed for several seconds on Wi-Fi models as the dehumidifier powers on.

It is recommended to run the dehumidifier in Contentious mode for 24 hours for the first time. This will stabilize the humidity and ensure that the compressor will function properly.

1. ⏻ Power On and Off - Press the ⏻ once to turn on the appliance, push again to power off.
2. Comfort Mode - Hold the Ⓜ for 3 seconds and the "Comfort" or "Comf." symbol will turn on. In this setting, the humidity level will automatically be set according to the ambient temperature and cannot be changed. Please note - the unit's fan speed will default to Low and cannot be adjusted.

To exit Comfort mode, press the ✝ or hold the Ⓤ for 3 seconds.

1. ⏻ Timer - The timer can be used to delay the appliance start-up or shutdown.

Start-up - With the appliance off, press the

to enable this feature.

Then press the ◀ or ▶ buttons to increase or decrease the timer in 30 minute increments.

After 5 seconds of inactivity, the Timer symbol will light up and this feature will be active.

Shutdown - With the appliance on, press the

to enable this feature.

Then press the ◀ or ▶ buttons to increase or decrease the timer in 30 minute increments.

After 5 seconds of inactivity, the Timer symbol will light up and this feature will be active

1. Filter - Remove the filter from the back of the unit by using your thumbs to press down on the filter tabs directly above the filter. Clean the filter with warm, soapy water. Dry thoroughly before replacing the filter. Once the filter is completely dry, place the filter back in the unit.

Avoid contacting metal parts of the appliance to avoid possible cuts or risk of personal injury.

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

1. Tank Full - When the water bucket is full, the Tank Full symbol will light up and the compressor will turn off. The fan may continue to run for a few more minutes. Remove the bucket with both hands and empty. Do not place the bucket on the floor when it is full because the bottom is not flat.

Cleaning the water tank - It is recommended to clean the bucket the with a mild detergent every week to prevent the growth of mold, mildew, and bacteria. Once clean, completely dry the bucket and, using two hands, place it back inside the appliance.

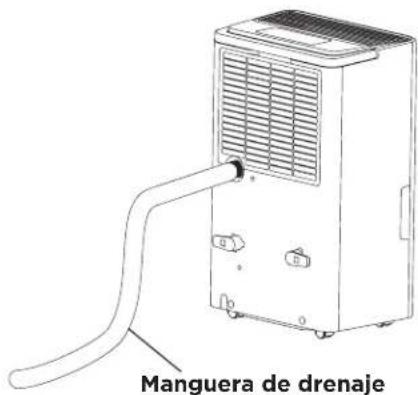

Continuous Drain -

A standard garden hose can be used for continuous gravity flow into a floor drain.

1. Unscrew the cap on the back of the unit.
2. Install a standard garden hose to the back of the unit, ensuring there are no kinks in the hose.
3. Ensure that the dehumidifier is level, even a slight tilt can cause the water to drip down into the drain bucket and not through the garden hose.

Illustration of a portable air conditioner unit with cooling fans and control buttons (no text or symbols)

Drain n Hose

For Model(s) with PUMP

1. PUMP - Enable this function for use with a drain hose. Connect the pump drain tube and adapter to the back of the unit. Press the PUMP button and verify the light next to the Pump symbol turns on.

Note: Water will still drain into the bucket but the pump will engage when the bucket is almost full.

Line drawings of two identical portable air purifiers with ventilation slots and connecting cables, labeled '10' (no text or symbols on the devices themselves)

Note: You must place the end of the drain hose down a drain or someplace where it can freely drain (bowls, buckets, etc. are not recommended as they can overflow).

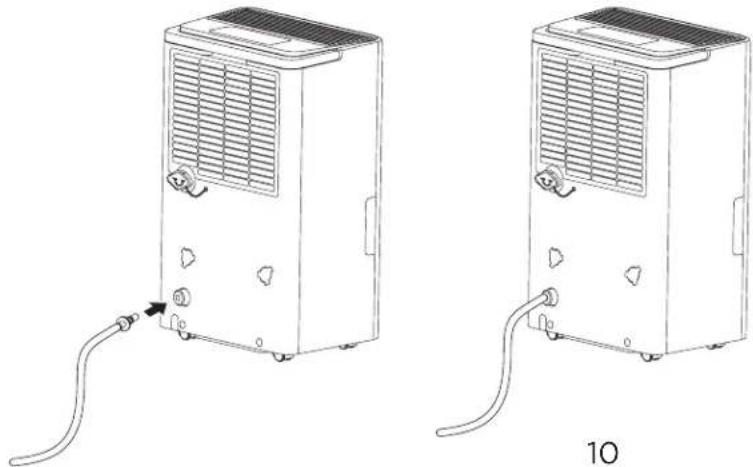

Attaching Pump Drain Tube -

1. Push in on the outer ring of the pump connector on the back of the dehumidifier (See photo).

2. Slide the drain adapter into the opening and then release the outer ring of the pump connect.

3. Gently pull the drain adapter to ensure it is locked into place.

4. To remove the drain hose push in on the outer ring of the pump connector and pull on the drain tube connector.

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

NOTE:

After the pump has been activated, the pump will not begin removing water until the internal bucket is almost full and will continue removing water after this point until the pump mode is turned off.

Makes sure there are not kinks or knots in the hose.

If there is a full tank alarm, please clean the tank first before activating the pump.

WARNING:

Before the ambient temperature drops to 32-degrees F (0-degrees C), condensate remaining in the appliance must be emptied to avoid damage to the machine.

Make sure to clean the condensate channel every month to avoid damage to the pump by unplugging the device, emptying the bucket and ensuring no blockage in the pump drain port.

Automatic Defrost - When frost builds up on the evaporator coils, the compressor will stop and the fan will continue to run until the frost disappears. When the coils are completely defrosted, the compressor will automatically restart and dehumidify will resume. If the frost does not completely melt on its own, unplug the appliance overnight. Be sure to confirm the filter is clean before running again.

Troubleshooting

Having trouble completing installation? Don't worry, it's usually an easy fix.

PROBLEM POSSIBLE	CAUSES SOLUTIONS
Dehumidifier does not start	The dehumidifier is unplugged.	· Make sure the dehumidifier plug is pushed completely into the outlet.
	The fuse is blown/circuit breaker is tripped	· Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
	Dehumidifier has reached its pre-set level or the bucket is full	· The dehumidifier automatically turns off when either condition occurs. Change to a lower setting or empty the water bucket. The bucket must be replaced properly for the dehumidifier to operate.
	Bucket is not in the proper position	· The bucket must be in place and securely inserted for the dehumidifier to operate.
	Power failure	· There is a protective time delay (up to 3 min.) to prevent tripping of the compressor overload. For this reason, the unit may not start normal dehumidification for 3 min. after it is powered back on.
Dehumidifier does not dry the air as it should	Not enough time allowed for unit to remove moisture	· When first installed, allow at least 24 hours to reach the desired dryness/humidity level.
	Airflow is restricted	· Make sure there are no curtains, blinds , or furniture blocking the front or back of the dehumidifier.
	Dirty filter	· Clean the filter. See the Cleaning and Care Section of the manual.
	The Humidity Control may not be set low enough	· For drier air, press the v button to lower the humidity setting percentage in the room set the dehumidifier to CO for maximum dehumidification.
	Doors and windows may not be closed tightly	· Check that all doors, windows, and other openings are securely closed.
	Clothes dryer may be blowing moist air into the room	· Install the dehumidifier away from the dryer. The dryer should be vented outside.
	Room temperature is too low	· Moisture removal is best at higher room temperatures. Lower room temperatures will reduce the moisture removal rate. This model is designed to operate at temperatures above 41° F (5°C).

WiFi App Installation

(for WiFi models only)

Step 1: Download and Install the TCL Home App

Using the camera function on your smartphone, please scan the QR code below to be directed to the TCL Home page. If your phone does not have a QR scanner, download one from the app store or manually type in the URL below in your smartphone's web browser. Then, download and launch the app.

Download on the App Store GET IT ON Google Play

https://tcl.link/homeplusapp

Note: The App only supports the 2.4 GHz WiFi channel (all routers have a 2.4 GHz band).

Please connect to the 2.4 GHz band before you begin the app setup process.

Step 2: Create an Account

Once you have opened the app, select "Create account." You will then be sent a verification code to your email. Input the code and continue.

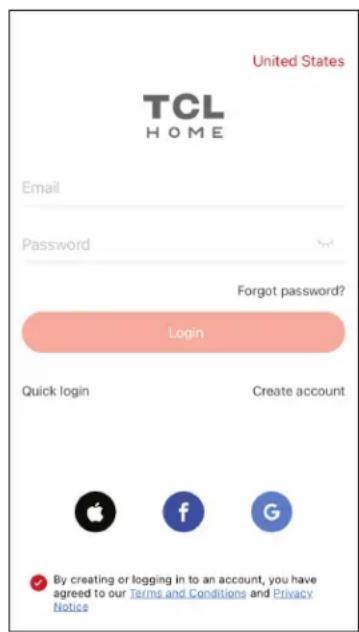

United States TCL HOME Email Password Forgot password? Login Quick login Create account By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

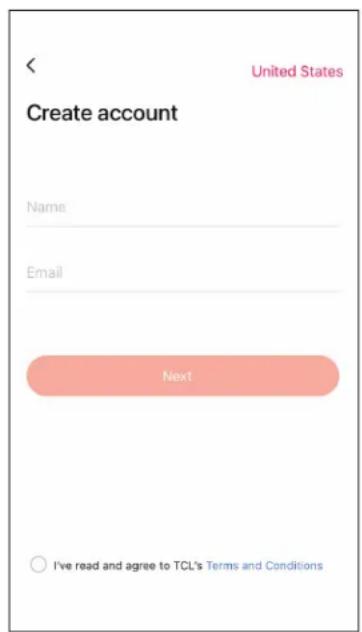

United States Create account Name Email Next I've read and agree to TCL's Terms and Conditions

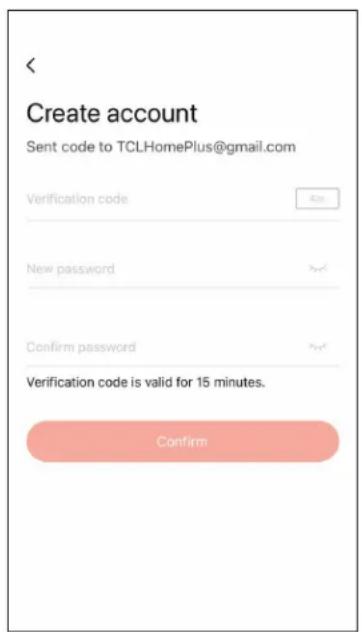

Create account Sent code to [e-mail] Verification code New password Confirm password Verification code is valid for 15 minutes. Confirm

Step 3: Add Your Device

Select the "Add Devices" button and follow the in-app instructions to complete the setup.

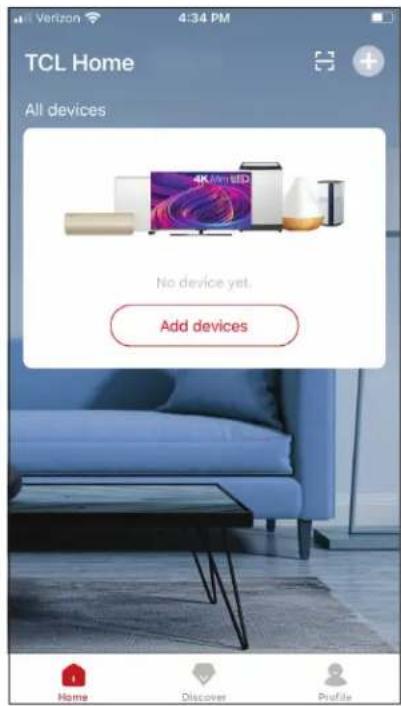

TCL Home All devices No device yet. Add devices Home Discover Profile

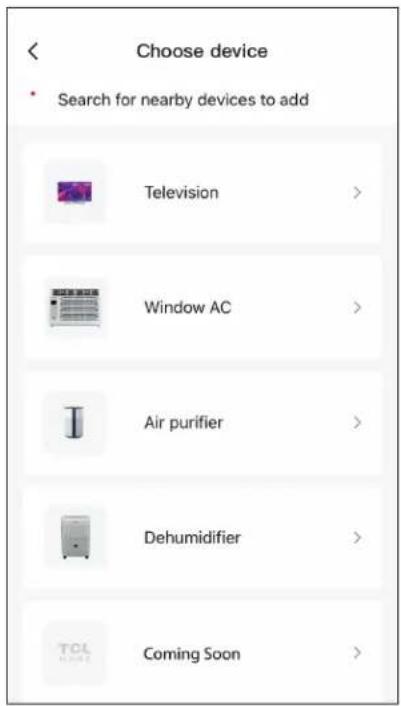

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

Troubleshooting

Having trouble completing installation? Don't worry, it's usually an easy fix.

PROBLEM POSSIBLE CAUSES SOLUTIONS
TCL Home App loses connectivity to AC during setup	Wireless router may be too far from AC	• Relocate wireless router closer to AC.
	Network error • Restart wireless router,	AC, and mobile device
TCL Home App cannot find AC	Network error • Restart wireless router,	AC, and mobile device
	App & AC are not on the same 2.4GHz channel	• Confirm your device is connected to the 2.4GHz channel.
	Router blocking TCL Home App	• Verify App is not being blocked by the router's firewall.
	Incorrect WiFi Password • Reinput and	verify WiFi password.
Unable to find or connect to Wireless Network	App may need permission to location	• Give TCL Home App permission to Location in phone settings.

TCL NORTH AMERICA

LIMITED PRODUCT WARRANTY

What your warranty covers: Defects in materials or workmanship to the original owner of this TCL product when purchased as new from an Authorized Dealer of TCL brand products and packaged with this warranty statement.

WARRANTY PERIOD (NON-COMMERCIAL USE):

Labor: Twelve (12) Months from the original date of purchase. Parts: Twelve (12) Months from the original date of purchase.

WARRANTY PERIOD (COMMERCIAL USE):

Labor: Six (6) Months from the original date of purchase. Parts: Six (6) Months from the original date of purchase.

Commercial Use Includes, but is not limited to, the use of this product in a commercial or business environment, the use of this product in an institution or for institutional purposes, or for other commercial purposes including rental purposes.

Should your TCL device prove to be defective in material or workmanship under normal use during the warranty period listed above, effective from the date of original consumer purchase of the product, TCL North America at its sole discretion will, (1) pay an Authorized TCL Service Center for both labor charges and parts to repair your device, or (2) replace your device with a new or refurbished/recertified equivalent product. If repaired at an Authorized TCL Service Center, TCL is not responsible for the transportation costs to the Authorized TCL Service Center. However, TCL will pay for the return shipping. TCL will provide instructions for the packaging and shipping of the unit. Units that are improperly packed and damaged during shipping are not covered under this limited product warranty. This limited product warranty is good only to the original purchaser of the product and effective only when used in North America. You must have your original purchase receipt or proof of purchase (bill of sale or received invoice) which states the condition of the unit (new, used), the unit's date of purchase, place of purchase, and model/serial number.

HOW SERVICE IS HANDLED: Call 1-800-825-6747 and choose the appropriate prompt. Please have product type, model number, serial number, and ZIP code ready. Troubleshooting and prior approval from a TCL representative MUST occur before sending in your product for repair.

Product Registration Information

You can find the model number and serial number on a label on the back or side of the product. Register your product online at register.tcl.com.

NO OTHER WARRANTY IS APPLICABLE TO THIS PRODUCT. THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SOME STATES AND/OR TERRITORIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON THE LENGTH OF TIME AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU, THE ORIGINAL PURCHASER, SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR TERRITORY TO TERRITORY. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT WWW.TCL.COM/US TO VIEW THE MOST CURRENT VERSION.

THIS LIMITED PRODUCT WARRANTY DOES NOT APPLY TO:

1. Service calls to your home for delivery or pick-up, installation, instruction, replacement of house fuses, connection of house wiring or plumbing, or to correct unauthorized repairs.
2. Failure of the product to perform due to wireless signal reception problems not caused by your unit, or due to power failures or interruptions or inadequate electrical service.
3. Damage caused by transportation or handling, including damage during shipment from a Retailer (please contact your Retailer for assistance).
4. Damage caused to the product by accident, vermin, lightning, wind(s), fire, flood(s), or act(s) of God.
5. Damage caused by operating the product in a corrosive or wet atmosphere.
6. Repairs when your TCL product is used in other-than-normal, single-family household use, or contrary to the instructions described in the product User's Guide.
7. Damage resulting from accident, alteration, misuse, abuse, neglect, insects, normal wear-and-tear, cosmetic damage, mishandling, power line

surges, improper or faulty installation, or improper repair or maintenance. Improper repair includes the use of parts not approved or specified by TCL.

1. Markings or images on the product's display panel.
2. Normal maintenance as described in the User's Guide (including but not limited to cleaning or replacing filters, cleaning coils, or other normal maintenance).
3. Use of accessories or components that are not compatible with this product.
4. Products with altered, missing, defaced, unreadable, or removed serial numbers.
5. Changes in the appearance of the product that do not affect product performance.
6. Increases in utility costs and/or additional utility expenses.
7. Products purchased from non-authorized TCL resellers.
8. Products sold in any condition other than new from the original manufacturer or sold outside of North America.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CONTACT INFORMATION:

TCL North America

1860 Compton Ave

Corona, California 92881

1-800-825-6747

www.tcl.com/us

TCL

¡Hola! Comencemos.

Line drawing of a red industrial refrigerator with lid and wheels (no text or symbols)

Deshumidificador - Serie DFL

Registre y proteja su compra

TCL-DHM PHOTOREGISTER™

Diagram of a refrigerant device with numbered parts labeled 1 through 6

Diagram of a portable air conditioner unit with numbered labels pointing to ports and components

Paso 2: Pruebas

Line drawing of a refrigerant air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and buttons (no text or symbols)

Line drawings of two identical air purifiers with ventilation grilles and connecting hoses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

Nota:

Download on the App Store GET IT ON Google Play

https://tcl.link/homeplusapp

United States TCL HOME Email Password Forgot password? Login Quick login Create account ② By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

Create account Name Email Next I've read and agree to TCL's Terms and Conditions

Create account Sent code to [e-mail] Verification code New password Confirm password Verification code is valid for 15 minutes. Confirm

TCL Home All devices No device get. Add devices

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

Line drawing of a red industrial refrigerator with lid and front panel (no text or symbols)

Text a photo of the camera icon to 71403

Or register online at register.tcl.com Need help? Visit photoregister.com/help or text HELP to 71403

Enjoy exclusive benefits with registration:

Expedited support and service Insider'ss on your appliance

Exclusive offers and promotions Verification of ownership

Diagram of a refrigerant device with numbered parts labeled 1 through 6

Diagram of a portable air conditioner unit with numbered labels pointing to ports and wiring

No. DESCRIPTION DU COMPOSANT

Accessoires inclus

NO. ASPECT NOM DE LA PIÈCE QUANTITÉ
1		Tuyau de vidange(Modèle de pompe uniquement)	x1
2		Crochets x2

Diagram of a refrigerant air conditioner unit with cooling fan and ventilation slots (no text or labels)

Line drawings of two identical air purifiers with ventilation grilles and connecting hoses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

Remarque :

Download on the App Store GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

https://tcl.link/homeplusapp

United States TCL HOME Email Password Forgot password? Login Quick login Create account By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

United States Create account Name Email Next I've read and agree to TCL's Terms and Conditions

Create account Sent code to [e-mail] Verification code New password Confirm password Verification code is valid for 15 minutes. Confirm

TCL Home All devices No devices yet. Add devices

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

GARANTIE LIMITÉE DU PRODUIT

CETTE GARANTIE LIMITÉE DU PRODUIT NE S'APPLIQUE PAS :

Three white industrial air purifiers with different sizes and ventilation systems, displayed against a plain background (no text or symbols visible)

TCL and the TCL Logo are owned by TCL Corporation and under license to TTE Technology, Inc.
