USER MANUAL Luv 700461000000090 Duravit
Installation instructions
Freestanding bathtub
Notice de montage
Baignoire autoportante
About these instructions
The installation instructions come as part of the Duravit product and must be read carefully prior to installation.
Target readership and qualifications
This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. The product must be installed by a licensed plumber.
Explanation of the key words and symbols
NOTICE
Is used to address
practices not related to physical injury.



Inspection (e.g. for scratches)
Inspect for leaks and ensure that all connections have a watertight seal
Indication of the length of time (e.g. 10 minutes)
Action required
Safety instructions
Product and/or property damage
The breach of local and country-specific regulations and standards can cause damage to the product and/or property damage.
Observe the local installation regulations and any country-specific standards at all times.
Careless handling can result in damage to the surface of lacquered bathtubs.
Protect the bathtub from dents and scratches during installation and transport.
Prior to the installation
Please read the specifications sheets prior to the installation. Specification sheets are available for download at www.pro.duravit.us.
• Uniform Plumbing Code (UPC ^® )
• National Plumbing Code of Canada


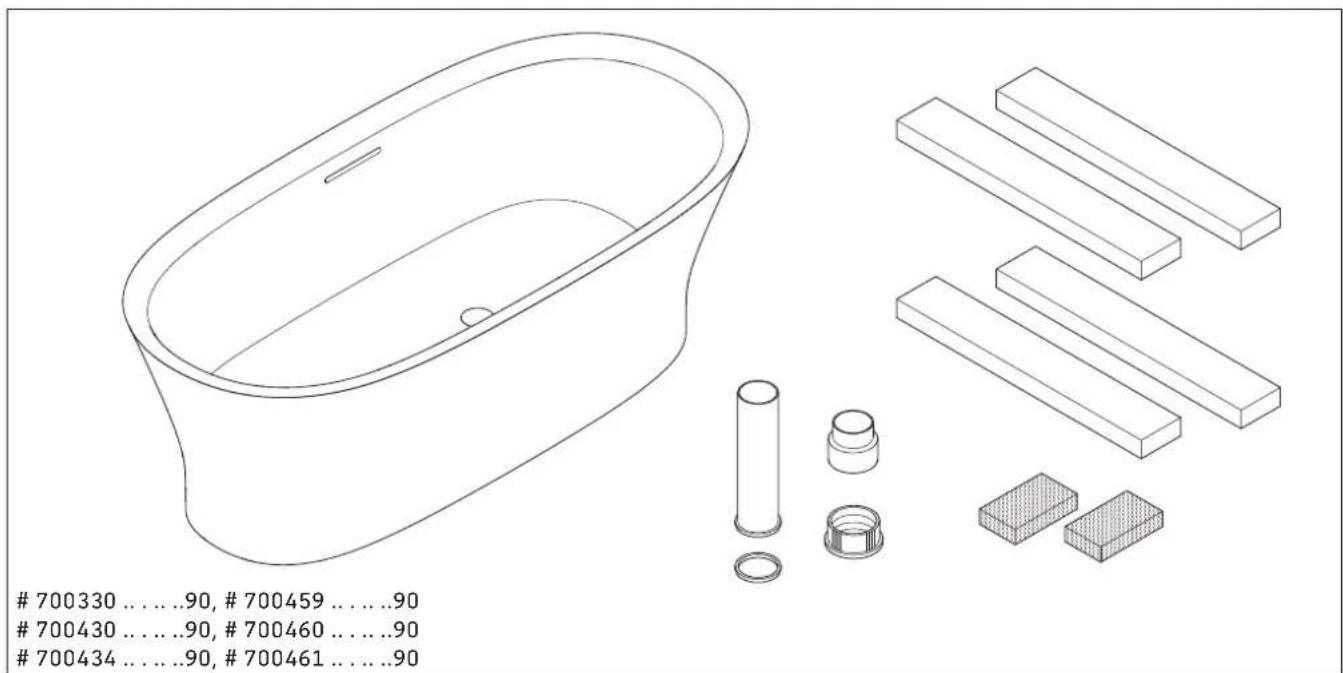

Delivery contents
700430 ....90, # 700460 ....90
700434 ....90, # 700461 ....90


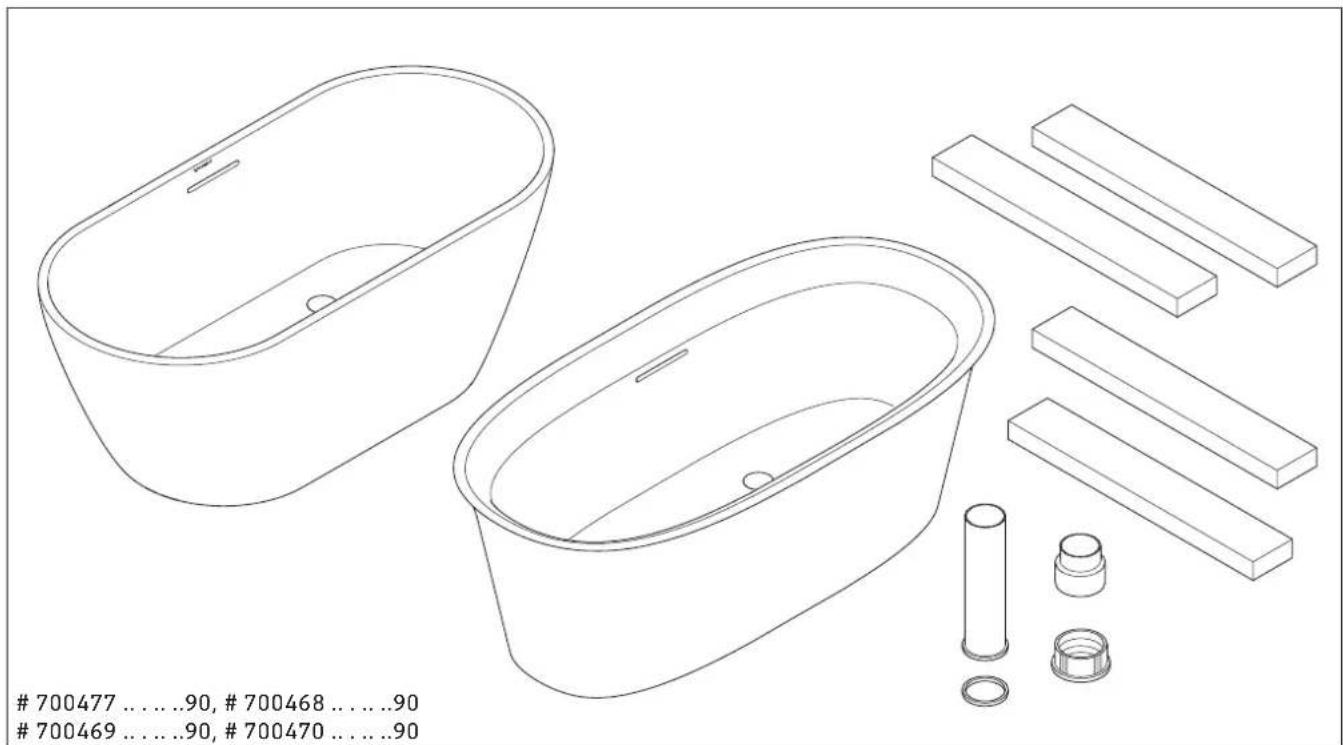

Technical line drawing of a bathtub with internal fixtures and plastic components (no text or symbols on the diagram itself)


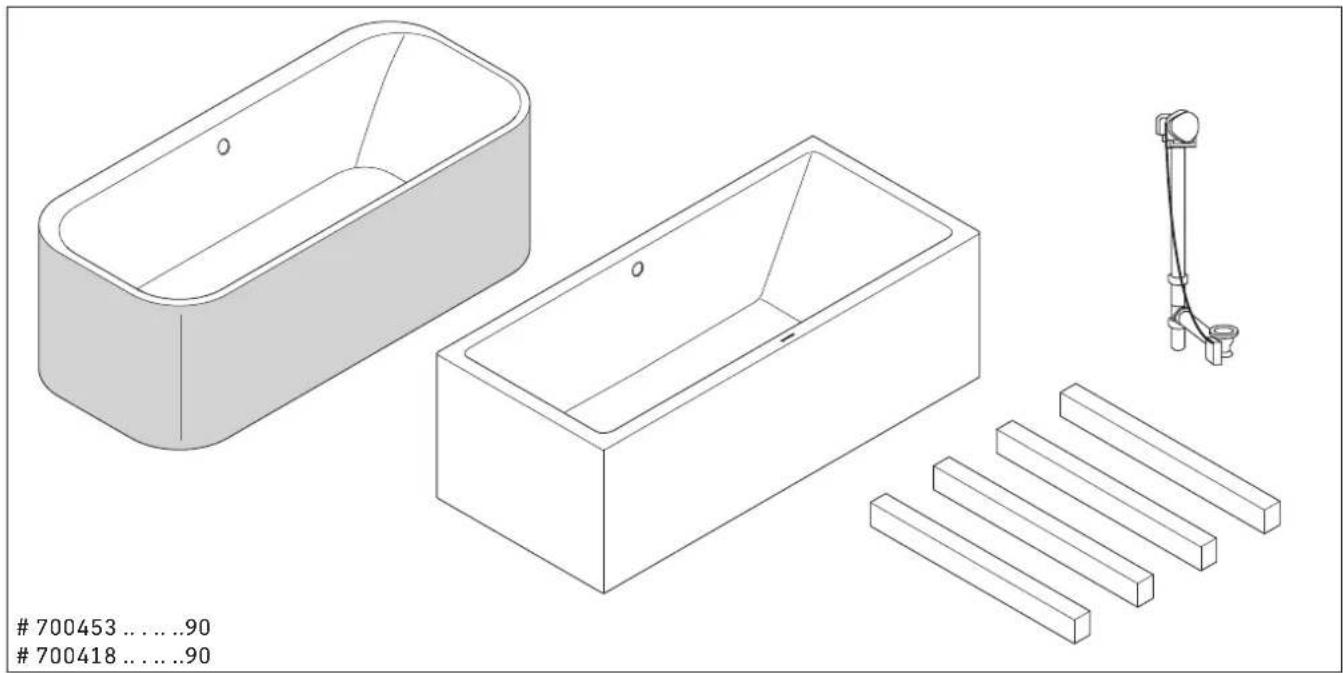

Technical line drawing of a bathtub and sink with supporting beams, no text or symbols present
Optional accessories (not included)
Freestanding in-floor bathtub drain
# 791282 (ABS)
1


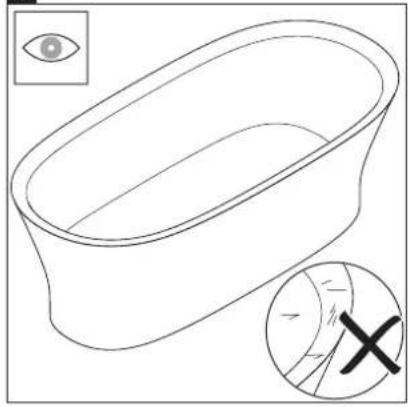

Line drawing of a bathtub with an eye icon and a cross symbol, no text or labels presentInspect bathtub for any potential damage that may have occurred during transport.
Do not install if any damage is visible.
2


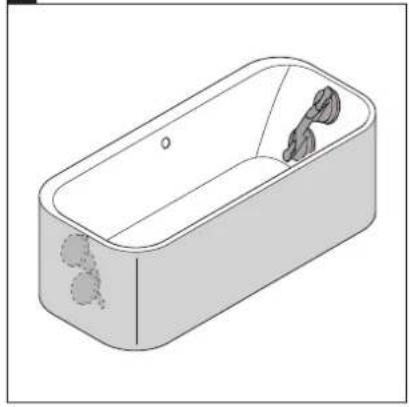

Suction lifters can cause damage to the surface of lacquered bathtubs.
Attach suction lifters to the inside of laquered bathtubs to avoid damage to laquered surface.
3


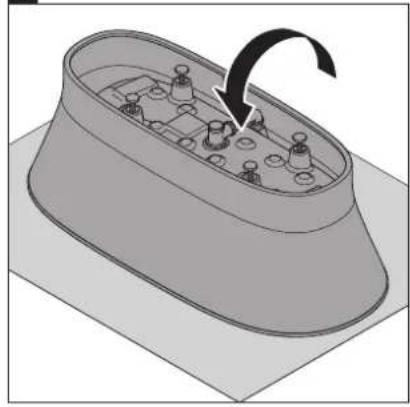

3D diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)NOTICE
Tilting the bathtub on its side can damage the bathtub.
Place cardboard/blanket on the floor.
Turn bathtub over.
4


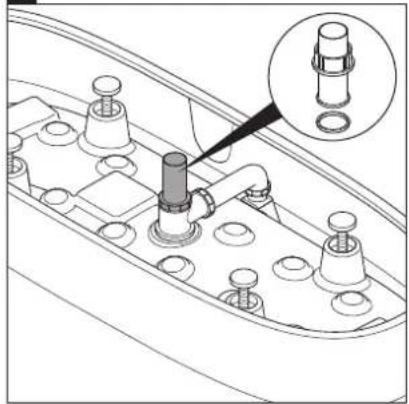

Technical line drawing of a mechanical component with a magnified inset showing a cylindrical feature (no text or symbols)Connect tailpiece to the bathtub drain.
5
6


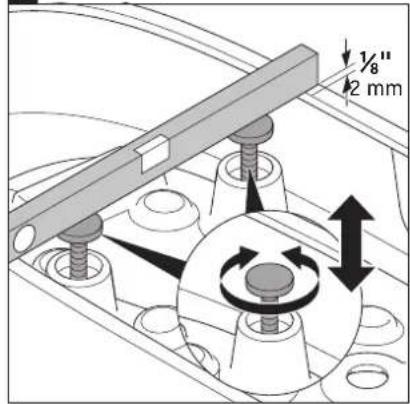

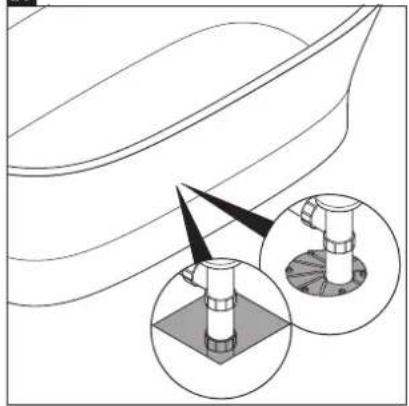

1/8" 2 mmLevel the feet before setting the bathtub.
7
Compensate irregularities by adjusting tub feet.
8


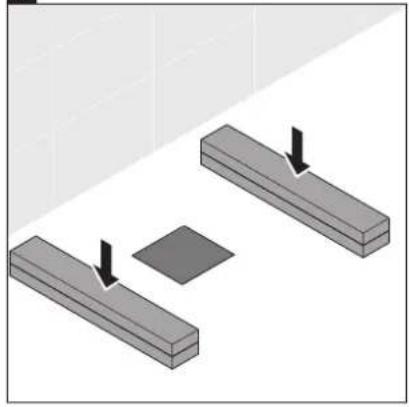

Isometric diagram showing two rectangular blocks with downward arrows and a small square on the ground (no text or symbols)Observe the dimensions for the positioning of the drain (see Chapter "Measurements").
Position the installation aids accordingly.
9
10


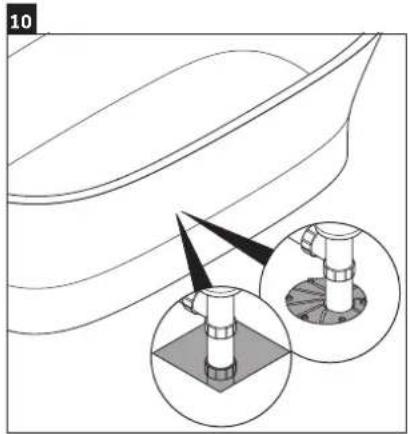

Technical diagram showing a boat hull with two circular insets highlighting a mechanical component (no text or symbols present)Remove installation aids.
Connect bathtub to drain system.
11


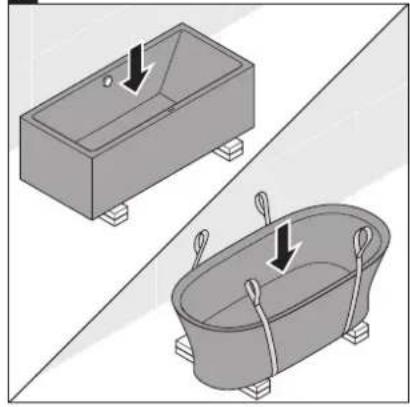

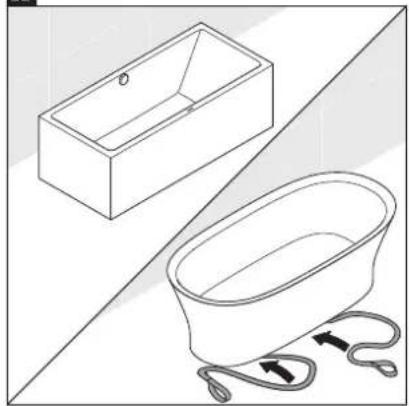

Line drawing of a bathtub and sink with directional arrows indicating movement (no text or symbols)Slide straps under the bathtub.
12


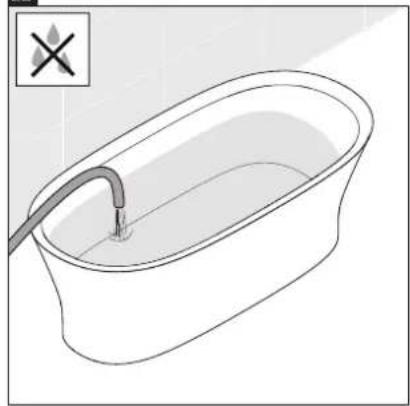

Line drawing of a bathtub with a pipe inserted, no text or symbols presentFill the bathtub with water.
Inspect for potential leaks.
Make sure to water test fittings.


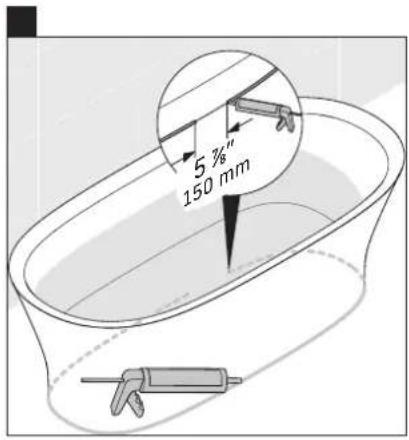

Apply silicone recommended for acrylic/mineral cast bathtubs only.
Apply 100% silicone sealant around the base of the bathtub.
Leave a small area open.


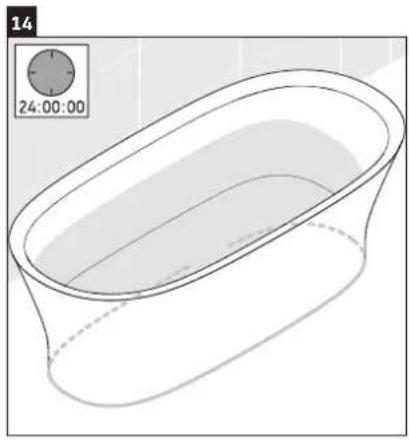

Line drawing of a bathtub with a side view showing time and timestamp (no text or symbols on the basin itself)Let it sit for 24 h before draining.
Technical line drawing of a bathtub with internal fixtures and plastic components (no text or symbols on the diagram itself)
# 791282 (ABS)
1
Line drawing of a rectangular basin with two small objects on one side (no text or symbols)ATTENTION
Technical line drawing of a mechanical assembly with no visible text or symbolstext_image
1/8" 2 mmnatural_image
Two identical 3D-rendered mechanical parts placed on a tiled floor, no text or symbols visiblenatural_image
Two rectangular blocks with downward arrows placed on a surface, one larger and one smaller, against a tiled wall (no text or symbols)natural_image
Two 3D illustrations of a bathtub with handles and legs, shown from different angles (no text or symbols)natural_image
Technical diagram showing a boat hull with two views of a mechanical component (no text or symbols)natural_image
Line drawing of a bathtub and its side view showing internal components (no text or symbols)natural_image
Line drawing of a bathtub with a pipe inserted, no text or symbols presentnatural_image
Line drawing of a bathtub with a circular inset showing a clock face and time (24:00:00), no text or symbols present.natural_image
Pure icons representing different types of tools and objects (no text or symbols)natural_image
Technical line drawing of a bathtub with internal fixtures and plastic components (no text or symbols on the diagram itself)
# 791282 (ABS)
1
Line drawing of a rectangular basin with two small objects on one side (no text or symbols)AVISO
Technical line drawing of a mechanical assembly with no visible text or symbolsPara Vero Air/Happy D.2 Plus:
Two identical 3D-rendered mechanical components placed on a tiled floor, no text or symbols visiblenatural_image
Diagram showing two rectangular blocks with downward arrows placed on a surface, one larger and one smaller, with no visible text or symbols.natural_image
Two 3D illustrations of a bathtub with handles, one showing a handle and arrow, the other showing a handle and lever (no text or symbols)Colocar la bañera.
Line drawing of a bathtub and an oval basin with coiled tubing, no text or symbols presentnatural_image
Line drawing of a bathtub with a pipe inserted, no text or symbols presentnatural_image
Line drawing of a bathtub with a side view showing time and timestamp (no text or symbols on the diagram itself)Cape Cod # 700459 .....90


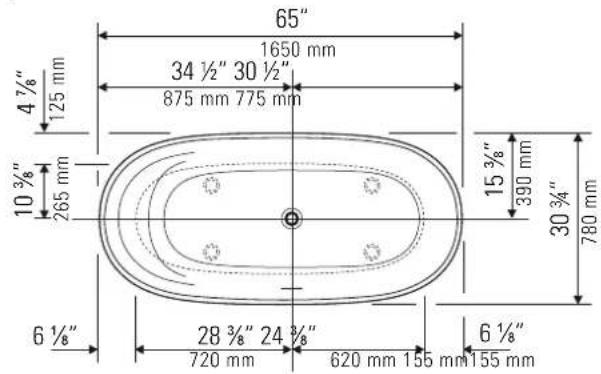

65" 1650 mm 34 ½" 30 ½" 875 mm 775 mm 4 7/8" 125 mm 10 ¾" 265 mm 15 ¾" 390 mm 30 ¾" 780 mm 6 ½" 28 ¾" 24 ¾" 720 mm 620 mm 155 mm 155 mm 6 ½"DuraSquare # 700430 .....90 DuraSquare # 700460 .....90


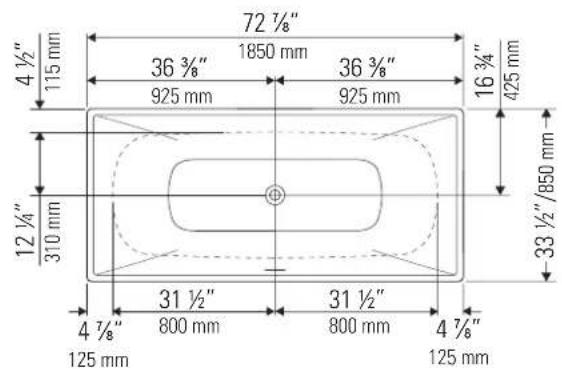

72 1/8" 1850 mm 36 3/8" 925 mm 36 3/8" 925 mm 16 3/4" 425 mm 4 1/2" 115 mm 12 1/4" 310 mm 33 1/2"/850 mm 31 1/2" 800 mm 31 1/2" 800 mm 4 7/8" 125 mm 4 7/8" 125 mm


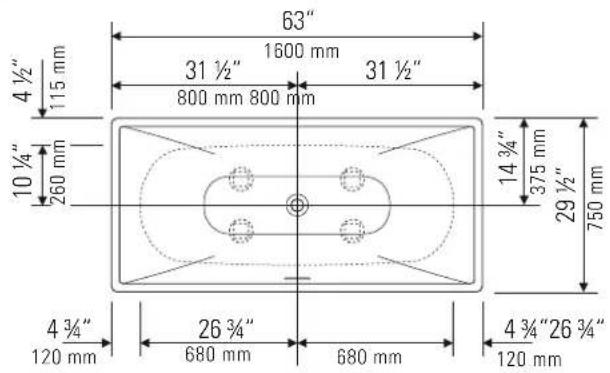

63" 1600 mm 31 ½" 31 ½" 800 mm 800 mm 4 ½" 115 mm 10 ¼" 260 mm 14 ¾" 375 mm 29 ½" 750 mm 4 ¾" 120 mm 26 ¾" 680 mm 680 mm 4 ¾"26 ¾" 120 mmD-Neo #700477...90


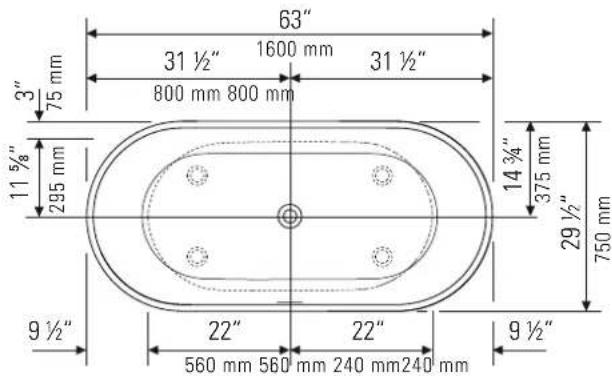

63" 31 ½" 1600 mm 31 ½" 800 mm 800 mm 3" 75 mm 11 Ⅴ/8" 295 mm 14 ¾" 375 mm 29 ½" 750 mm 9 ½" 22" 22" 9 ½" 560 mm 560 mm 240 mm 240 mmHappy D.2 Plus # 700453 .....90


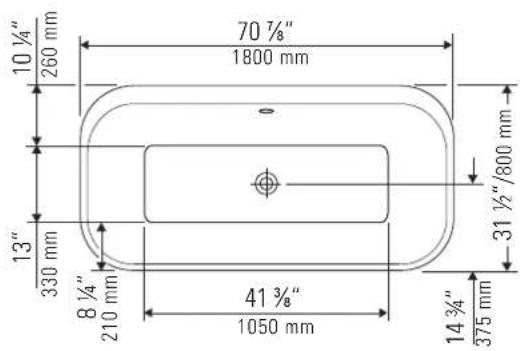

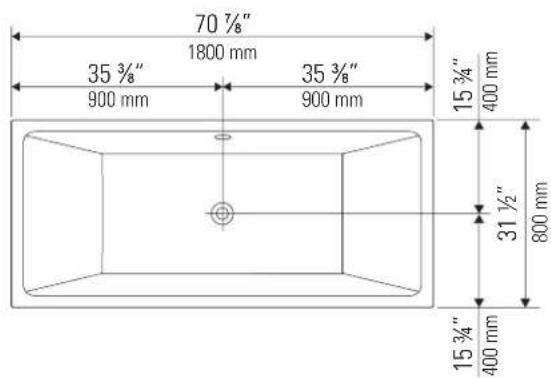

70 1/8" 1800 mm 10 1/4" 260 mm 330 mm 13" 330 mm 8 1/4" 210 mm 41 3/8" 1050 mm 14 3/4" 375 mm 31 1/2"/800 mmLuv # 700434 .....90 Luv # 700461 .....90


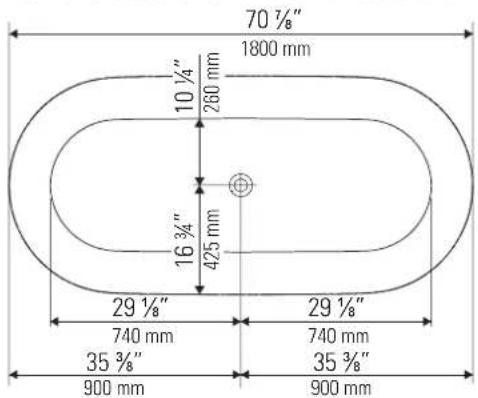

70 1/8" 1800 mm 10 1/4" 260 mm 16 3/4" 425 mm 29 1/8" 740 mm 29 1/8" 740 mm 35 3/8" 35 3/8" 900 mm 900 mm


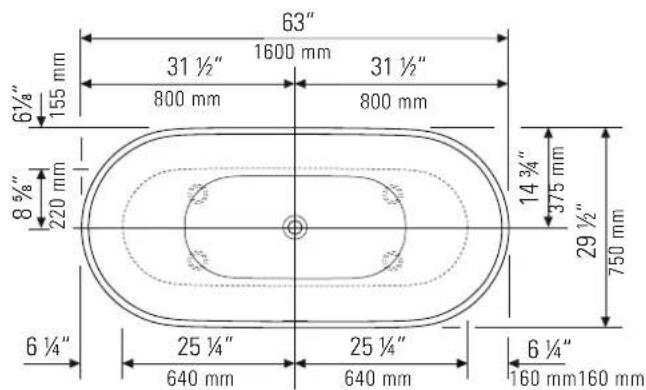

63" 1600 mm 31 ½" 800 mm 31 ½" 800 mm 61/8" 155 mm 8 Ⅴ/8" 220 mm 14 ¾" 375 mm 29 ½" 750 mm 6 ¼" 25 ¼" 640 mm 25 ¼" 6 ¼" 160 mm 160 mmVero Air # 700418 .....90


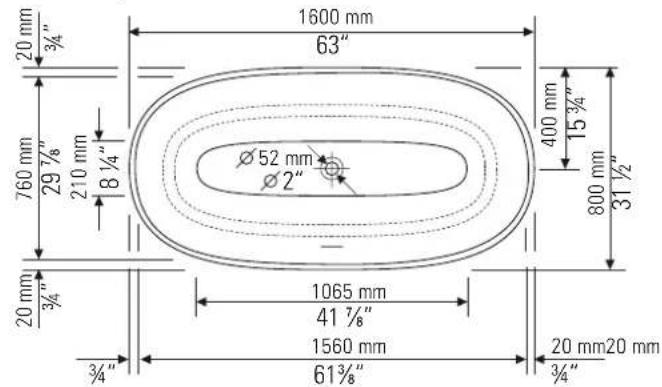

20 mm 3/4" 1600 mm 63" 760 mm 29 7/8" 210 mm 8 1/4" Ø52 mm Ø2" 400 mm 15 3/4" 800 mm 31 1/2" 20 mm 3/4" 1065 mm 41 7/8" 1560 mm 3/4" 61 3/8" 20 mm 20 mm 3/4"White Tulip # 700469 .....90


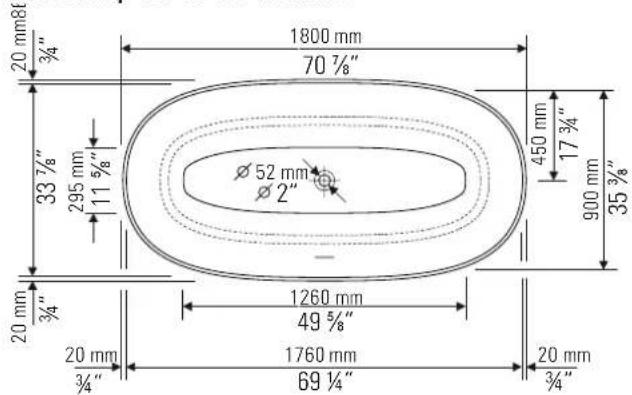

20 mm 8" 3/4" 1800 mm 70 7/8" 33 7/8" 295 mm 11 5/8" Ø 52 mm Ø 2" 450 mm 17 3/4" 900 mm 35 3/8" 20 mm 3/4" 1260 mm 49 5/8" 20 mm 3/4" 1760 mm 69 1/4" 20 mm 3/4"White Tulip # 700470 .....90


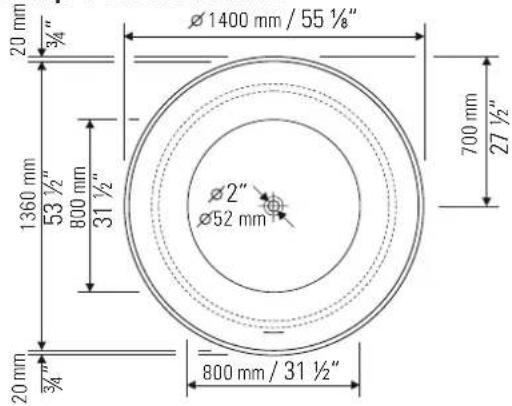

20 mm 3/4" Ø 1400 mm / 55 1/8" 1360 mm 53 1/2" 800 mm 31 1/2" Ø 2" Ø 52 mm 700 mm 27 1/2" 20 mm 3/4" 800 mm / 31 1/2"DURAVIT USA, INC.
2635 North Berkeley Lake Rd., Ste. 100
Duluth, GA 30096
Toll Free 888-DURAVIT
Phone 770-931-3575
Fax 770-931-8454
info@us.duravit.com
www.duravit.us
