USER MANUAL Hektor Brilliant Edition Klarstein

HEKTOR BRILLIANT EDITION

Dunstabzugshaube

Range Hood

Campana extractora

Hotte aspirante

Cappa aspirante

10035186 10035187

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical line drawing of a 3D cabinet with an open top and internal compartments, showing directional arrows (no text or symbols)

Technical line drawing of a mechanical enclosure with internal components and directional arrows (no text or symbols)

35

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical assembly components (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 20

Installation 22

Operation 23

Cleaning and Care 24

Filter Cleaning 25

Troubleshooting 28

Notes on Environmental Protection 29

Product Data Sheet 30

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number 10035186 10035187
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

1	2

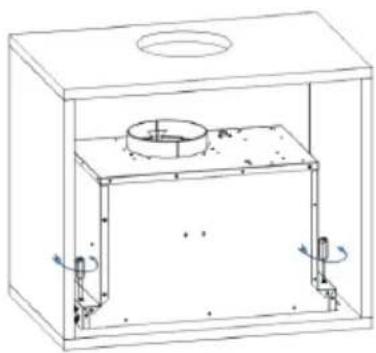

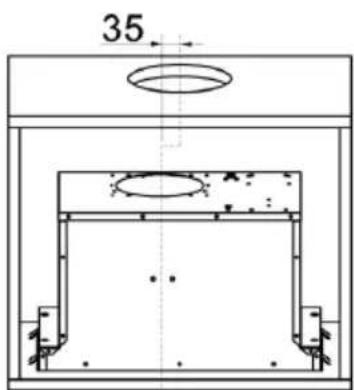

The cooker hood should be placed 65-75 cm (26-30 inches) above the cooking surface for optimum effect.	Saw a 500*275 mm hole in the underside of the wall cabinet. Make sure that the edge of the hole is at least 35 mm from the edge of the cabinet.

Technical line drawing of a cabinet or enclosure with an open lid and internal components, showing upward arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical enclosure with internal components and rotational arrows (no text or symbols)

35

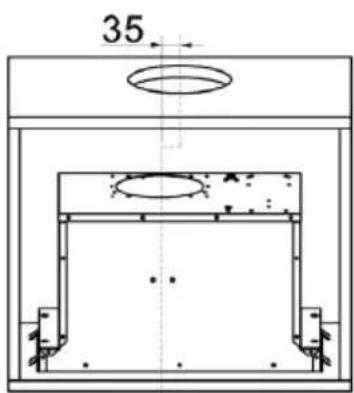

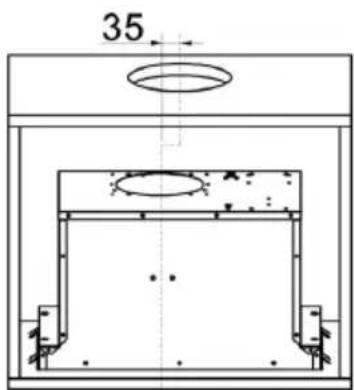

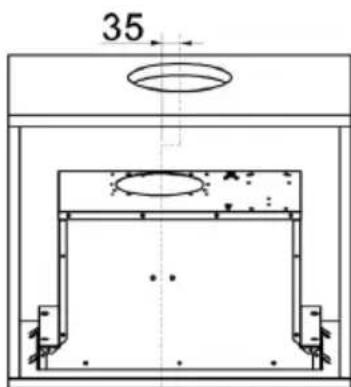

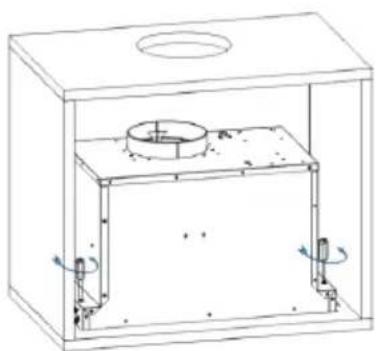

Slide the cooker hood into the cabinet housing. Tighten the screws from the top. Note for the outlet hole in the cabinet: The air outlet at the top of the cooker hood is offset by 35 mm, measured from the centre of the hood.

WARNING

Risk of electric shock! Only use fixing or mounting screws of the recommended size. Failure to install screws or mounting devices according to these instructions may cause electrical hazards.

OPERATION

Timer Light Display Speed Power

(1) Power on

Press the POWER button to switch the cooker hood on and off.

(2) Turn the light on

Press the LIGHT button, the light is on. Press the button again, the light will be off. Please note the Lamp is not under control of the on/off button. The light cannot be switched on and off with the POWER button

(3) Speed selection

Turn on the hood and press the SPEED button to adjust the speed. There are 3 speed settings: low > medium > high. The display shows the selected speed (1 > 2 > 3).

• Press the LIGHT button once, the motor starts to work at low speed and the LED display will display [1].
• Press LIGHT button again base on the low speed, the motor works at mid speed and the LED display will display [2].
• Press LIGHT button again base on the mid speed, the motor works at high speed and the LED display will display [3].
• Go on pressing the LIGHT button, the hood works at low speed again and it repeats: low > mid > high > low...

(4) Timer settings

The TIMER button works when the motor is working only. Press, the cooker hood enters into timer setting mode. The max delay time is 9 min., and the LED display will display "9". When the timer is set, the LED display will display "9", "8", "7"... decreasing by every minute, when it displays "1", the motor will start counting down from 1 min., and will stop working.

• Press the TIMER button once, the cooker hood will enter into timer setting mode, press the TIMER button once again, the cooker hood will exit the timer setting mode.
• Press the TIMER button once when the cooker hood is working at timer setting, the cooker hood will exit the timer setting mode automatically.

CLEANING AND CARE

CAUTION

Before maintenance or cleaning, the cooker hood should be disconnected from the mains supply. Make sure that the cooker hood is switched off and the plug is unplugged from the power outlet.

The surfaces of the cooker hood are susceptible to scratches and abrasions. Follow all cleaning instructions to avoid damaging the appliance.

General

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

Stainless steel

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

Note: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

Control panel surface

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Note: Use neutral detergents and avoid the use of harsh cleaning chemicals, strong household detergents, or products containing abrasives, as these can affect the appearance of the appliance.

FILTER CLEANING

Note: Always switch off the appliance before cleaning. Do not detach the filter from the frame, otherwise it may be damaged. If connections or cables are damaged, contact a specialist company for repair.

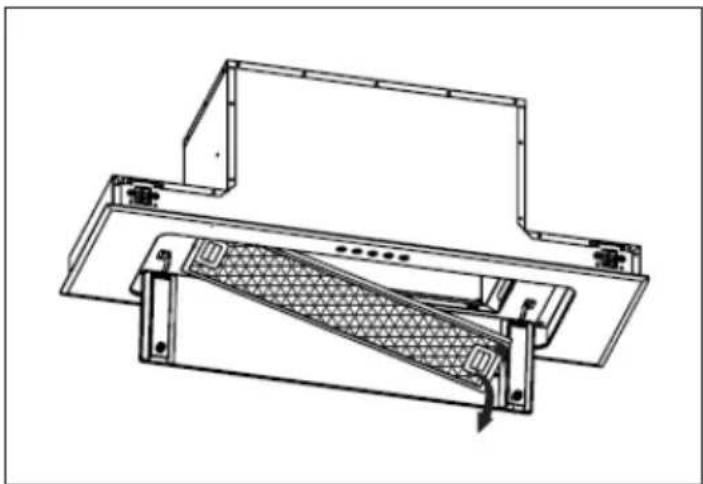

Cleaning the grease mesh filter

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. Leave the mesh filter to dry naturally, out of direct sun light. Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

Technical line drawing of a mechanical assembly with no visible text or symbols

Installing the grease mesh filter

• Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

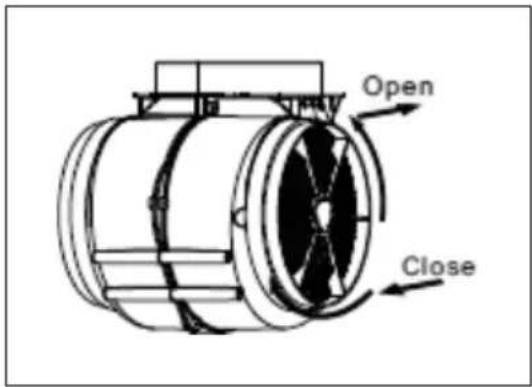

Installation of an activated carbon filter (not supplied)

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, turn off the appliance and unplug the power cord from the wall outlet.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise to remove it. Replace the carbon filters with the new carbon filters.
4. Replace the mesh filter.
5. Insert the plug of the appliance into the power outlet.

Open Close

Note: Make sure the filter is securely locked. Otherwise, it would loosen and cause a danger. When activated carbon filter attached, the suction power will be lowered.

Lamp Replacement

• The lamp must be replaced by the manufacturer, costumer service or a similarly qualified person.
  • Always switch off the appliance and unplug the power cord from the wall outlet before carrying out any work on the appliance.
• When handling lamp, make sure it is completely cool down before any direct contact to hands.
• Do not touch the lamp with bare hands, but use a cloth or gloves to ensure that the lamp does not come into contact with sweat, as this may shorten the life of the lamp.
• Protect yourself from danger when replacing the lamp, e.g. by wearing gloves.

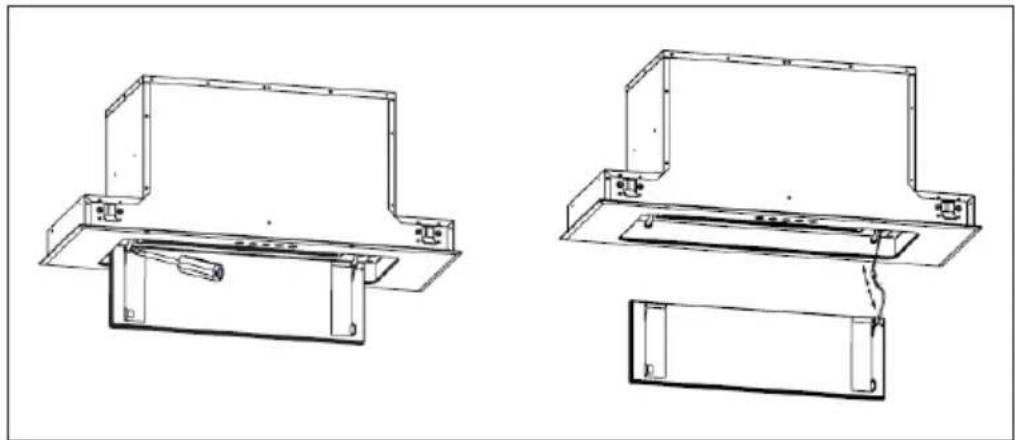

Proceed as follows:

1. Slide on the front part of the cooker hood.
2. Remove the grease filter. Press the lock and pull it downward.
3. Use a screwdriver to, loosen 2 screws and remove the clamp of the lamp connecting wire. Remove the lamp plate and replace the lamp.

Technical line drawings of two mechanical assembly components (no text or symbols)

Technical data of the lamp
ILCOS D code	DSS-15/65-S-340/160
Max wattage	15 W
Voltage range	DC 12 V
Dimensions	340 × 160 mm

Energy saving tips

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process):

1 Install the cooker hood in a proper place where there is efficient ventilation.
2 Clean the cooker hood regularly so as not to block the airway.
3 Remember to switch off the cooker hood light after cooking.
4 Remember to switch off the cooker hood after cooking..

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off. Select	a fan switch position.
	Fan switch failed Contact co	stumer service.
	Motor failed. Replace motor.
Light does not work, motor does not work.	House fuses blown. Reset/Re	replace fuses.
	Power cord loose or disconnected.	Refit cord to power outlet.
Light is not working Lamp is	damaged. Have the lamp replaced.
Oil leakage One way valve	andthe outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Insufficient suction The distance between the range hood and the gas top is too far.		Refit the range hood to the correct distance.
The range hood inclines. The fixing screws are not tight enough.		Tighten the hanging screws and align the range hood horizontal.

Note: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact costumer service if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10035186, 10035187
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	74,1 kWh/Year
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	20,2
Fluid Dynamic Efficiency class C
Lighting Efficiency LE	hood	90,4 Lux/W
Lighting Efficiency class		C
Grease Filtering Efficiency	GFBhood	70,1	%
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		338,1 / 506,3	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		63 / 71	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0,46 W
power consumption in standby mode	Ps	66,2 W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10035186, 10035187
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	74,1 kWh/Year
Time increase factor f 1,3
Fluid Dynamic Efficiency FDE	hood	20,2
Energy Efficiency Index EEI	hood	76,6
Measured air flow rate at best efficiency point	Q_BEP	277,6 m^3/h
Measured air pressure at best efficiency point	PBEP	349	Pa
Maximum air flow Q	max	506,3	m^3/h
Measured electric power input at best efficiency point	WBEP	133	W
Nominal power of the lighting system	W_L	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	271	Lux
Measured power consumption in standby mode	P_o	-	W
Measured power consumption off mode	P_s	0,35	W
Sound power level	L_WA	71	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical line drawing of a 3D cabinet with mounting base and side panel, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical enclosure with internal components and rotation arrows (no text or symbols)

35

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical assembly components (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical line drawing of a 3D printer or enclosure with an open lid and internal structure, showing no text or symbols.

Technical line drawing of a mechanical enclosure with internal components and directional arrows (no text or symbols)

35

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical assembly components (no text or symbols)

Fiche technique de la lampe
ILCOS D-Code DSS-1	5/65-S-340/160
Puissance maximale	5 W
Tension DC 12 V
Dimensions 340 × 16	0 mm

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Technical line drawing of a 3D cabinet or enclosure with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical enclosure with internal components and directional arrows (no text or symbols)

35

Technical line drawing of a mechanical assembly with no visible text or symbols

Aprire Chiu-dere

Technical line drawings of two mechanical assembly components with mounting brackets and a handle (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
