USER MANUAL Colette Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a hand holding a tool and two separate parts (no text or symbols)

Technical line drawing of a structural frame with vertical supports and a central circular opening (no text or symbols)

Diagram showing four vertical structures with labeled components and directional arrows, possibly illustrating a physical or engineering concept.

Diagram of a mechanical device with a spring-loaded housing and a house, showing internal components and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a container with an inverted container and a downward arrow inside, no text or symbols present.

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with internal structure and rotation arrow (no text or symbols)

Simple line drawing of a boat hull with two wheels and a curved roof (no text or symbols)

Diagram showing a device with a droplet labeled with numbered components, likely illustrating a mechanical or electrical setup.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 22

Installation 24

Installing the activated carbon filter 27

Control panel and key functions 28

Cleaning and Maintenance 31

Replacing the lighting 31

Troubleshooting 33

Product data sheet 34

Notes on environmental protection 35

Dismantling and disposal of the hood 35

Disposal Considerations 36

Manufacturer & importer (UK) 36

TECHNICAL DATA

Article number 10045304
Power supply 220-240 V ~ 50/60 Hz
Note: You can also purchase an activated carbon filter for this cooker hood under item number 10032844.

SAFETY INSTRUCTIONS

• Read all instructions carefully before use and keep this user manual in a safe place for future reference.
• The installation work may only be carried out by an electrician or a qualified person. Before using the cooker hood, make sure that the voltage (V) and frequency (Hz) indicated on the cooker hood correspond to the voltage and frequency of the power supply in your household.
• We accept no liability for damage caused by improper use or installation.
  • Children under 8 years of age must not use the cooker hood.
• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• Clean the appliance and the filter regularly to keep the appliance working efficiently.
  • Always disconnect the power plug from the socket before cleaning.
• Clean the appliance exactly as indicated in the operating instructions.
• Do not use an open fire under the extractor hood.
• If the unit is not functioning normally, contact the manufacturer or a specialist company.
  • Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• If the cooker hood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.
• Do not flambé under the extractor hood.
• Caution: The surface of the unit may become hot during operation.

Important instructions for installation

• The air must not be discharged into a flue used for extracting flue gases from gas or other fuels (does not apply to appliances that only return the air to the room).
• Observe all regional regulations for the installation of ventilation systems.

Important notes on exhaust air operation

WARNING

Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent fi replace and sufficient air circulation is not guaranteed.

Room air-dependent fi replaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without sufficient supply air, negative pressure is created. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that sufficient fresh air supply is guaranteed and that the air can circulate.
• A supply air/exhaust air wall box is not sufficient to ensure compliance with the limit value.

Safe operation is only possible if the negative pressure at the location of the fi replace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can flow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a master chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation.

If the cooker hood is used exclusively in recirculation mode, operation is possible without restriction.

Important note on dismantling the unit

• Disassembly is the same as installation/assembly in reverse order.
• Have a second person help you during disassembly to avoid injury.

INSTALLATION

Preparation

If you have an extractor to the outside, you can install the extractor hood as shown in the picture on the right. The flue should have a diameter of at least 150 mm and be made of enamel, aluminium or a flexible, heat-resistant tube.

• Switch off the device before installation and pull the power plug out.
• The extractor hood should be placed at a height of 65-75 cm above the hob.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Installation with exhaust air

Note: Observe the safety instructions for operating the unit when the air is discharged to the outside. If the cooker hood is in operation at the same time as an appliance that draws its energy from a source other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Installation with convection function

If you do not have an outside vent, install an activated carbon filter before using the unit.

Important notes for the installation of exhaust air pipes

The following rules must be strictly observed to guarantee optimum air extraction: Failure to follow these instructions will reduce the performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust pipe and do not constrict it.
• When using flexible pipes, the pipe must always be installed tightly in order to minimise pressure loss.
• All installation work must only be carried out by a qualified electrician or a qualified person.

• Do not connect the hood's exhaust pipe to an existing ventilation system that is being used for another device, such as a fireplace.

• The angle of the bend of the exhaust air pipe should not be less than 120°. Align the pipe horizontally. Alternatively, the pipe should go up from the starting point and be led to an outer wall.
  • After installation, make sure that the cooker hood is horizontal in order to prevent grease from collecting on one side.

• Make sure that the exhaust duct selected for installation complies with the relevant standards and is fire resistant.

Installation of the island hood

Note: Before installation, check the ceiling for its load-bearing capacity: it must be able to support a weight of at least 120 kg and be at least 30 mm thick.

• Check the routing of electrical and other cables on and in the wall or ceiling so that they are not drilled into.
  • Install the unit with at least two people!

Technical line drawing of a mechanical component with a hand holding a tool and two separate parts (no text or symbols)

Position the suspension plate on the ceiling. If you have an exhaust vent in the ceiling, place the round cutout at the exhaust vent. Then mark the position of the screw holes and drill the holes according to the mounting screws. These depend on the type of ceiling (see next step).

Technical line drawing of a structural support frame with vertical columns and a central circular hole (no text or symbols)

Diagram showing three vertical strips with labeled points and directional arrows, likely illustrating a physical or mathematical concept.

Fasten the suspension plate to the ceiling with 7 M5 screws or to a concrete ceiling with 4 dowel screws. Then connect the suspension plate to the angle bars using 8 M5 screws.

Diagram of a large industrial container with side supports and a mechanical assembly, alongside a small house icon (no text or labels)

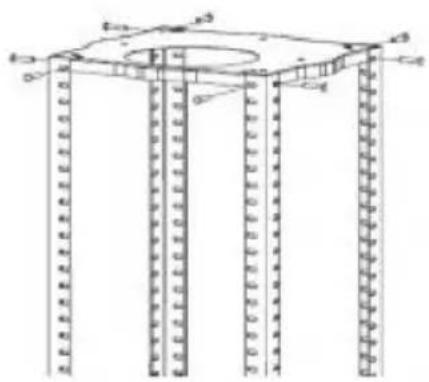

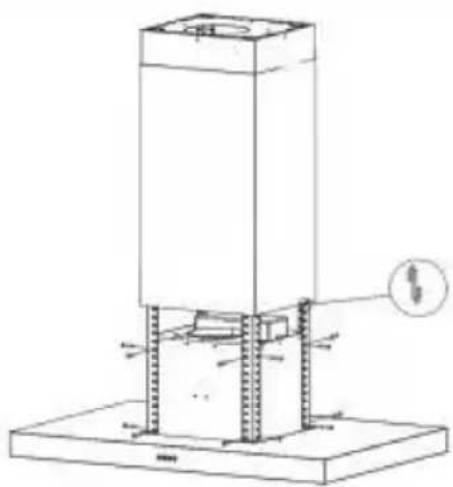

• Extend the angle bars to the desired height and fasten them with 16 M5 bolts and nuts.
• Important: The overlap length must be at least 100 mm.

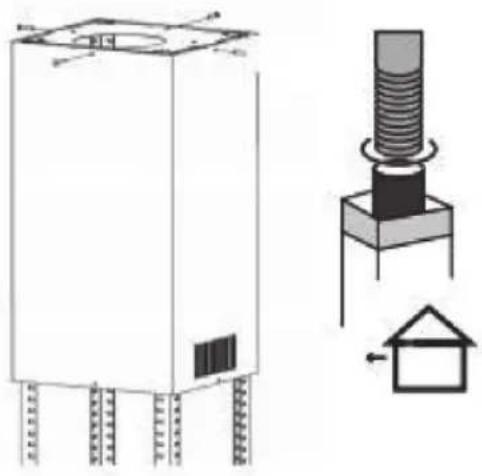

• If your exhaust hood is to be used in exhaust air mode, guide the exhaust air hose through the round recess in the suspension plate and direct it into the exhaust air pipe.
• Fasten the inner part of the chimney to the suspension plate using 4 M4 fastening screws.

Technical line drawing of a mechanical assembly with a vertical column and base platform (no text or symbols)

• Slide the outer part of the chimney onto the inner part. Use the S-shaped hook to hold the chimney for further assembly.
• Lift the exhaust hood with at least 2 people and fasten it to the angle bars with 8 M5 screws.
• If present, pull down the exhaust hose and connect it to the air outlet of the exhaust hood. Make sure that the connection is tight.

Simple line drawing of a mechanical setup with a container and shaft, no text or symbols present.

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

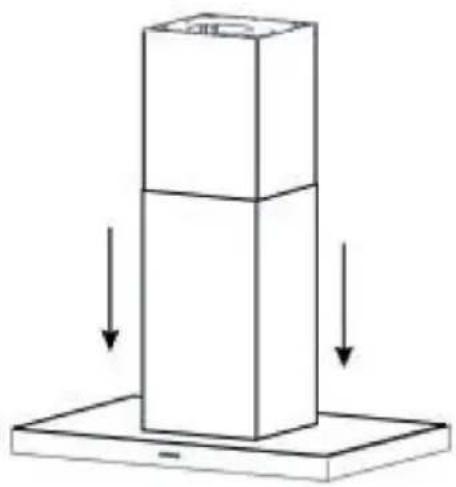

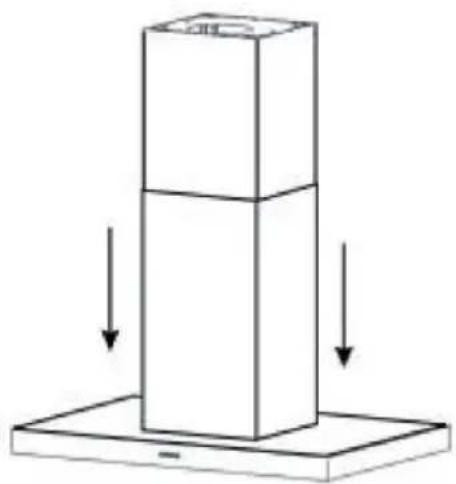

Remove the S-hook and pull the outer chimney part down onto the hood.

INSTALLING THE ACTIVATED CARBON FILTER

Note: An activated carbon filter is only required for recirculation mode. If you are using the hood in extraction mode, remove the activated carbon filter.

Pure electrical circuit lines without any symbols

Technical line drawing of a cylindrical mechanical component with internal structure and rotation arrow (no text or symbols)

Simple line drawing of a curved container with two circular components inside, no text or symbols present.

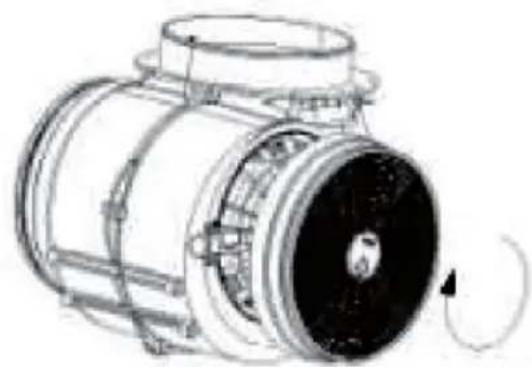

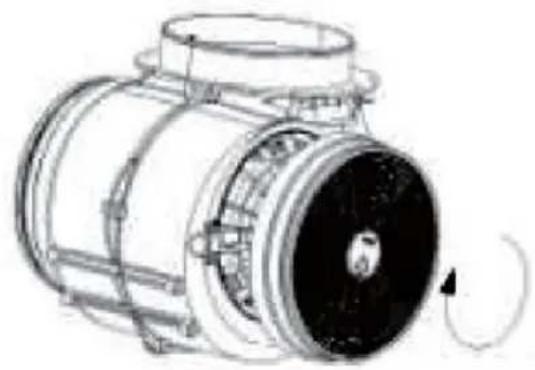

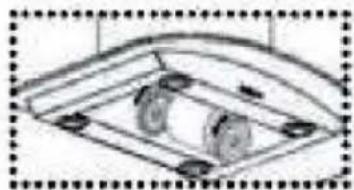

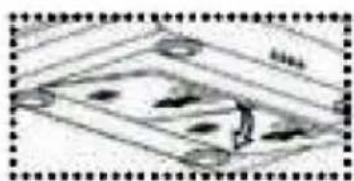

Remove the metal grease filter. The activated carbon filter is divided into two and is mounted on the right and left of the motor. Check that the teeth correspond with the direction of rotation of the respective side. Turn the activated carbon filter onto the motor housing (normally clockwise). Replace the metal grease filter.

CONTROL PANEL AND KEY FUNCTIONS

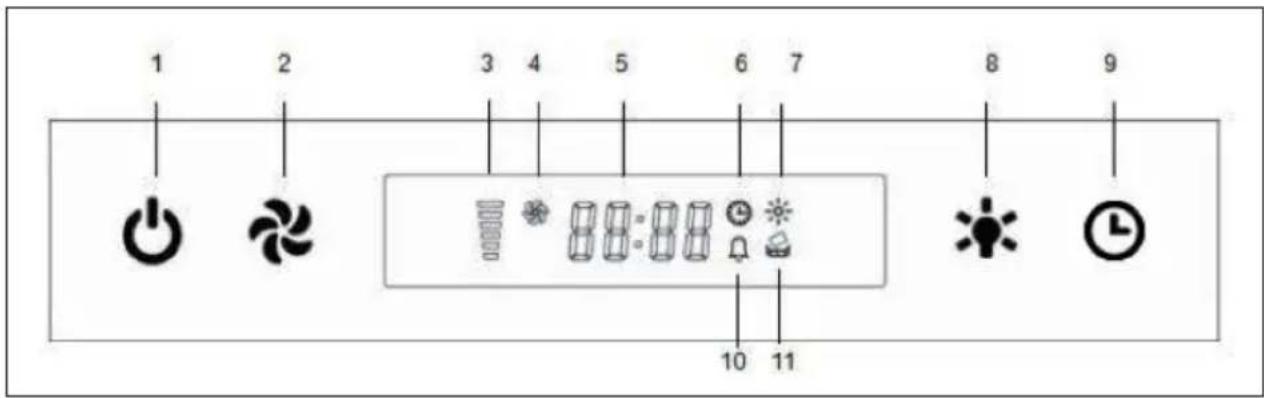

1 2 3 4 5 6 7 8 9 10 11

1 On/Off button 7 Light indicator
2 Button for setting the fan speed 8 Lamp on/off
3 Indicator bar for fan operation 9 Timer button
4 Fan operation indicator 10 Alarm display
5 Time display 11		Cleaning reminder (see Cleaning section)
6 Timer display

Buttons and indicators

	Switch the device on/off.
	Switch the light on/off.
	Select the speed that suits the cooking conditions by pressing the key to select a low, medium or high speed.
	When you have selected a speed, this symbol lights up to indicate that the motor is running.
	Low speed for light frying/cooking.
	Medium speed for frying, wok cooking and intensive cooking.
	High speed for grilling, intensive frying and wok cooking.

OPERATION

Standby mode

After connecting, the symbol ⏻ flashes slowly and the device is in standby mode.

Setting the time

• In standby mode, simultaneously press ⏻ and ⚡ and hold the and keys for 1 second. The [88:88] flashes. Now you can start setting the clock.
• Press ⏻ and the hour segment flashes. Use ⚙️ and to decrease and decrease the number of hours.
• Press ⏻ and the minute segment flashes. With ⚙ and you can increase and decrease the minutes.
• Wait for 5 seconds without pressing a key, then the setting is accepted.

Switching the fan on and off

• Press the key ⏻ in standby mode. The display and all keys will light up and the device will be in working mode. Now you can set the fan speed.
• If you press its status. ⏻ once, the motor will stop working, but the light will not change
• If you want to turn everything off, press and hold the button ⏻ for 3 seconds. The motor and the light will turn off and the device will return to standby mode.

Setting the timer

Touch the ⏻ key to start the timer function.

Memory function

The next time you turn on the hood, it remembers the speed it was running at the last time you used it.

Display and indicators

1	Fan symbol, lights up when the fan is in operation	5 Fan speed
2 Time display 6 Alarm symbol
3 Timer 7			Cleaning symbol, appears when total operating time is up to 14 hours
4 Light

CLEANING AND MAINTENANCE

Switch off the extractor hood and pull the plug out of the socket before cleaning and maintenance. The outer surfaces are susceptible to scratches and stains. Therefore, do not use scouring agents for cleaning and wipe away residues of alkaline or acidic substances (lemon juice, vinegar) immediately after cleaning.

Stainless steel surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner for this purpose. Always wipe along the grain of the stainless steel to prevent criss-crossing scratch marks.

Control panel interface

The control panel can be cleaned with a damp cloth and mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung out. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly cleaning of the grease filters

Clean the filter every month to avoid a fire hazard. The filter collects grease, smoke and dust and thus influences the efficiency of the cooker hood. If the filter is not cleaned, grease residues will collect there. Clean the filter with water and a little washing-up liquid and let it air dry afterwards.

REPLACING THE LIGHTING

Please note:

• The lighting may only be replaced by a qualified electrician.
• Before opening the device, unplug all power connections.
  • Always allow the lighting to cool down before replacing it.
  • Always use gloves or a cloth to avoid direct contact with your hands.
• Direct contact can shorten the life of the lighting.

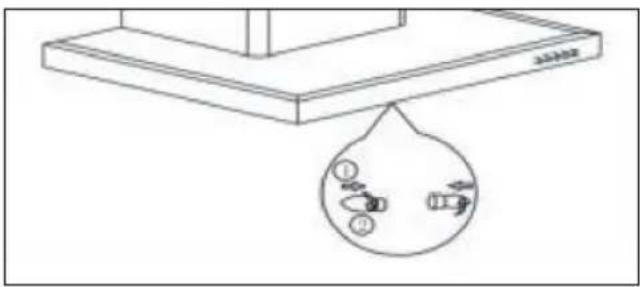

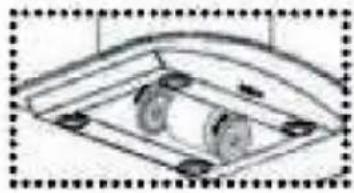

Replacing E14 bulb

Diagram showing a device with a droplet labeled with parts ① and ②, and an inset illustrating the droplet's internal structure.

Switch off the device immediately and pull the power plug out. Remove the light cover by unscrewing the 2 screws. Unscrew the light bulb. Replace with a bulb of the same type and wattage.

Replacing the LED light

• Switch off the device immediately and pull the power plug out.
• Locate the location of the lamp brackets.
• On some models you need to remove the grease filters to find the lamp holders. On some other models, the lamp holders are covered by a light screen. Unscrew the light screen before replacing.
• Remove the screws on the LED board and brackets, separate and carefully insert the new light.

For round LED lights For LED lights with light screen

Note: Remember to reassemble everything after replacing the new lamp and fix all screws in the same position. Always replace the light with the same type and amperage.

TROUBLESHOOTING

Problem Potential cause	Solution
The light turns on but the motor does not run.	The ventilation is blocked.	Remove the blockage.
	The capacitor is broken. Have the capacitor replaced.
	The motor is broken. Have the motor replaced.
	The motor smells strange.	Have the motor replaced.
The light is off and the motor does not run.	The light is broken. Have the light replaced.
	The plug is loose. Plug the power plug securely into the wall socket.
The housing vibrates. The	rotor blade of the fan is damaged.	Replace the blade.
	The motor is not firmly seated.	Fasten the motor.
	The casing is loosely hanging.	Fasten the housing.
The air is not being properly extracted.	The distance between the cooker and the extractor hood is too far.	Reduce the distance.
	Too much air circulation through open windows and doors.	Make sure that there is no draught.

PRODUCT DATA SHEET

Information according to Regulation (EU) No 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Article number 10045304
Designation Symbol Value Unit
Annual energy consumption AEC	hood	12,7 kWh/year
Energy efficiency class A++
Fluid-dynamic efficiency FDE	hood	33,6
Fluid dynamic efficiency class A
Lighting efficiency LE	hood	56 Lux/W
Lighting efficiency class A
Grease separation efficiency GFE	hood	68,4 %
Class for grease separation efficiency		D
Air flow at minimum and at maximum speed in normal operation, excluding operation on the intensive or fast speed setting		327,2/ 523,2 m3/h
Air flow when operating on the intensive or fast speed setting		601,0
A-rated airborne noise emissions at minimum and maximum available speed during normal operation		51/62 dB
A-rated airborne noise emissions during operation at the intensive or high-speed stage		63 dB
Power consumption in off-mode P	o	-	W
Power consumption in standby mode	Ps	0,93 W
Contact details Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

NOTES ON ENVIRONMENTAL PROTECTION

• Make sure there is sufficient air supply during cooking so that the cooker hood can work efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced while cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced when cooking, select a higher fan speed in time. If the cooking steam has already spread throughout the kitchen, the cooker hood must be operated for longer.
• Switch off the cooker hood when it is no longer needed.
• Switch off the lighting when it is no longer needed.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISMANTLING AND DISPOSAL OF THE HOOD

• Make sure that the exhaust hood is completely switched off.
• Pull the plug out of the socket.
• Remove the hood from the wall or cabinet.
• Remove the filter. Dispose of the filters at a collection point for the recycling of waste electrical and electronic equipment.
• Remove the motor. Dispose of the motor at a collection point for the recycling of waste electrical and electronic equipment.
• Dispose of the rest of the exhaust hood at your local recycling centre.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a screwdriver next to a square component with a circular hole, alongside two separate screw-like components (no text or symbols)

Technical line drawing of a structural frame with vertical supports and a central circular component (no text or symbols)

Diagram showing three vertical strips with labeled points and directional arrows, likely illustrating a physical or mathematical concept.

Diagram of a mechanical device with a spring-loaded housing and a separate schematic showing its components (no text or labels)

Technical line drawing of a mechanical assembly with a vertical column and base platform (no text or symbols)

Simple line drawing of a container with an inverted container and a downward arrow inside (no text or symbols)

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a cylindrical mechanical component with internal structure and rotation arrow (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Diagram showing a device with a droplet labeled with parts ① and ②, and an inset illustrating the droplet's internal structure.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a hand holding a screwdriver and two separate parts (no text or symbols)

Technical diagram of a structural frame with labeled dimensions and support points

Diagram showing three vertical strips with labeled points and arrows, likely illustrating a physical or mathematical concept.

Diagram of a mechanical device with a spring-loaded housing and a house, showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical setup with a container and shaft, no text or symbols present.

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical diagram of a mechanical component with no text or symbols

Diagram showing a device with a droplet labeled with parts ① and ②, and an inset illustrating the droplet's internal structure.

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a screwdriver next to a square component with a circular hole, alongside two separate screw-like components (no text or symbols)

Technical line drawing of a structural frame with vertical supports and a central circular component (no text or symbols)

Diagram showing three vertical structures with labeled points and directional arrows, possibly illustrating a physical or mathematical concept.

Diagram of a mechanical device with a spring-loaded housing and a separate schematic showing its components (no text or labels)

Technical line drawing of a mechanical assembly with a vertical column and base platform (no text or symbols)

Simple line drawing of a mechanical setup with a container and shaft, no text or symbols present.

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Diagram showing a device with a droplet labeled with numbered components, likely illustrating a mechanical or electrical setup.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
