USER MANUAL TWM-352 NightStick

NIGHTSTICK® Life Depends on Light™

Instruction Manual TWM-352

Please read these instructions before using your Nightstick TWM-352. They include important assembly and operating instructions.

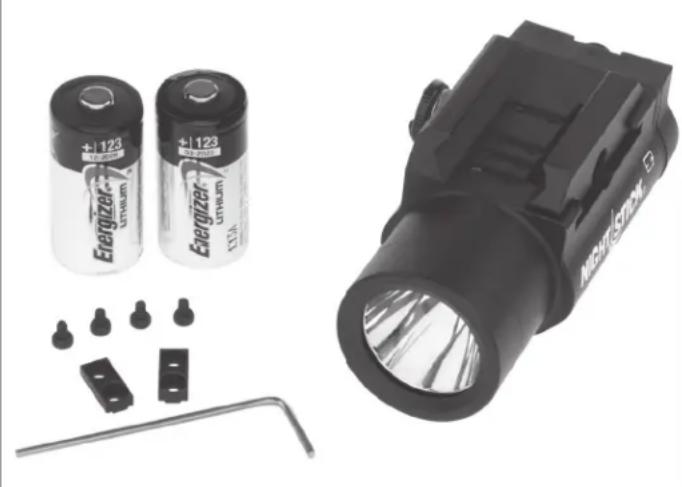

PACKAGE CONTENTS

Product photo of a nightlight with two thermos, a flashlight, and small accessories (no visible text or symbols)

• 1 - Weapon Mounted Light – Long Gun Single Switch
• 2 - CR-123 Lithium Batteries
• 1 - Set of Cross Rail Inserts (pre-installed)
• 4 - Cross Rail Mounting Cap Head Screws (pre-installed)
• 1 - Allen Wrench

WEAPON SAFETY

PLEASE BE SURE TO READ, UNDERSTAND AND FOLLOW THESE SAFETY AND OPERATING INSTRUCTIONS WHEN HANDLING A FIREARM OR THE NIGHTSTICK TWM WHEN MOUNTED ON A FIREARM. FAILURE TO DO SO CAN BE DANGEROUS AND COULD RESULT IN SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH.

Use of a fi rearm under any circumstance is inherently dangerous. SERIOUS INJURY OR EVEN DEATH may result without proper training in the safe handling of fi rearms. Proper training should be obtained from an accredited fi rearms safety program conducted by a qualified instructor.

Read, understand and follow all of the safety instructions that came with your fi rearm before attaching your new TWM.

• Always assume every firearm is loaded and treat that firearm as such.
- Never point a firearm at anything that you are not willing to destroy.
- Never service your firearm or your TWM when mounted on a firearm without first activating the weapon's safety (if applicable), removing the magazine, opening the action and physically and visually inspecting to make sure that no ammunition is installed in the fi rearm.

BEFORE ATTACHING, INSPECTING OR SERVICING THE TWM

• Engage the safety on the firearm (if applicable).
• Remove the magazine from the fi rearm (if applicable).
• Open the action and visually and physically inspect the chamber to be sure it is empty.
• Keep the barrel pointed in a safe direction at all times and never place your hand in front of the muzzle.

WARNING: IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING A FIREARM.

WATCH COMPLETE INSTALLATION VIDEO AT: http://bit.ly/2oN4VXC

INSTALL BATTERIES

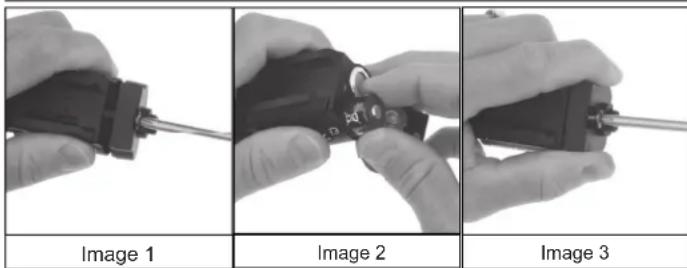

Image 1 Image 2 Image 3

• Open the Battery Door Screw using a Phillips head screwdriver. (Image 1)
• Insert the included CR-123 Batteries using the battery orientation markings on the side of the light. (Image 2)
  • Re-install the Battery Door Screw until fully tightened. (Image 3)

INSTALL THE TWM ON TO YOUR FIREARM

Your TWM comes with both cross rail inserts pre-installed in cross rail slots 1 & 4.

• If the location of one or both of these is not correct for your specific installation, remove either or both of the inserts and then proceed to step 1.
• If the location of the pre-installed inserts is correct for your firearm, proceed to step 3.

WARNING: DO NOT INSTALL THE TWM ONTO A FIREARM WITHOUT USING THE CROSS RAIL INSERT. FAILURE TO USE A CROSS RAIL INSERT COULD RESULT IN THE TWM COMING LOOSE FROM THE FIREARM UNDER EVEN NORMAL RECOIL.

STEP 1: DETERMINE WHICH CROSS RAIL INSERT SLOT TO USE

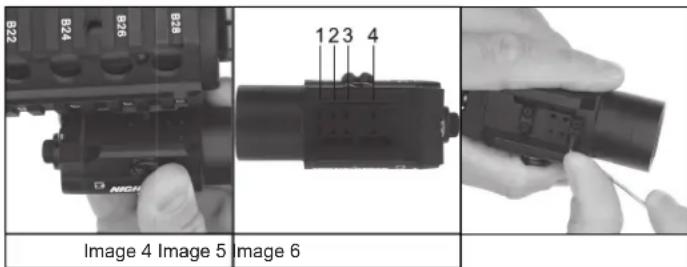

822 824 826 828 123 4 Image 4 Image 5 image 6

• Hold the TWM alongside the Picatinny rail on your firearm and determine which of the 4 Cross Rail Insert Slots milled into the top of the TWM is best suited for your firearm. (Image 4)
• A single Cross Rail Insert can be installed in any of the 4 Cross Rail Insert Slots milled into the top of the TWM.
• Slots 1, 3 & 4 (Image 5) are set up at a standard 1913 spacing, meaning that all 3 will line up with a Mil-STD-1913 Picatinny Rail. If the desired installation location on your fi rearm will allow it, both of the 2 included Cross Rail Inserts may be installed in any combination of slots 1, 3 or 4. Using both of the Cross Rail Inserts will increase the retention of the TWM onto the Picatinny rail.

STEP 2: INSTALL THE CROSS RAIL INSERT INTO THE TWM

• Line up the Insert into the correct slot and make sure it is fully seated into the slot.
• Using the 2 Cross Rail Insert Cap Head Screws and the supplied Allen Wrench, begin installing the Cap Head Screws.
• If installing a second insert, repeat the first two steps using the additional insert.
• Fully tighten all Cap Head Screws using the long side of the Allen Wrench. (Image 6)

NOTE: The Allen Wrench should fl ex a very small amount when the Cap Head Screws have been tightened correctly.

WARNING: NIGHTSTICK STRONGLY RECOMMENDS PERIODICALLY CHECKING TO INSURE THAT THE CROSS RAIL INSERT SCREWS REMAIN TIGHTENED. FAILURE TO KEEP THESE SCREWS TIGHT CAN RESULT IN DAMAGE TO THE TWM AND/OR THE CROSS RAIL INSERTS UNDER RECOIL.

STEP 3: INSTALL THE LIGHT ONTO YOUR FIREARM

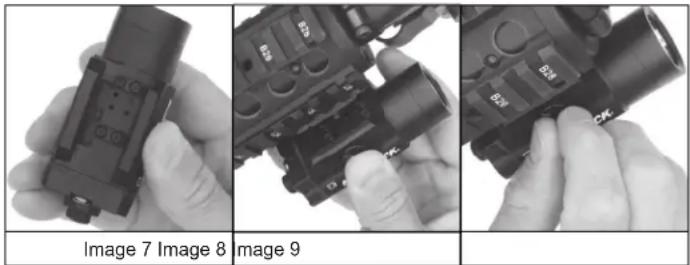

Image 7 Image 8 Image 9

• Push inward on the head of the Rail Clamp Tension Thumbscrew to fully open the Adjustable Portion of the Rail Clamp. (Image 7)
• Place the moveable portion of the Rail Clamp into the groove of the Picatinny rail and align the Cross Rail Insert(s) with the desired slot(s). (Image 8).
• Rotate the TWM onto the Picatinny rail and then release the pressure on the Rail Clamp Tension Thumbscrew making sure that the TWM is gripping both sides of the Picatinny and verify that the Cross Rail Insert(s) is fully seated into the slot(s).
• Then use a large coin (a quarter works well) to fully tighten the light's rail clamp tension thumbscrew.

WARNING: NIGHTSTICK STRONGLY RECOMMENDS PERIODICALLY CHECKING TO INSURE THAT THE TWM IS STILL FULLY TIGHTENED ONTO THE PICATINNY RAIL OF THE FIREARM. FAILURE TO KEEP THE TWM TIGHTENED CAN RESULT IN DAMAGE TO THE TWM AND/OR THE CROSS RAIL INSERTS UNDER RECOIL.

OPERATION

• The TWM-352/852 uses Single Push Button Switch.

MOMENTARY-ON MODE

Partially pressing in and holding the switch will activate the momentary-on mode. Releasing the switch will turn the light off.

CONSTANT-ON MODE

Pressing the switch until it clicks will activate the Constant-on mode. Pressing the switch until it clicks again will turn the light off.

WARRANTY

LIMITED LIFETIME WARRANTY

Bayco Products, Inc. warrants this product to be free from defects in workmanship and materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and included accessories are warranted for a period of two years with proof of purchase. Normal wear and failures which are caused by accidents, misuse, abuse, faulty installation and lightning damage are excluded.

We will repair or replace this product should we determine it to be defective. This is the only warranty, expressed or implied, including any warranty of merchantability or fitness for a particular purpose.

For a complete copy of the warranty, go to www.nightstick.com/nightstick-product-support/warranties. Retain your receipt for proof of purchase.

Close-up of a black tactical optical device with textured grip and lens (no visible text or symbols)

STEP 1 – INSTALL THE BATTERIES

1. Open the Battery Door Screw using a Phillips head screwdriver.
2. Insert the included CR-123 Batteries using the battery orientation markings on the side of the light.
3. Re-install the Battery Door Screw until fully tightened.

STEP 2 – INSTALL THE TWM ONTO YOUR FIREARM

NOTICE: Your TWM comes with both cross rail inserts pre-installed in cross rail slots 1 & 4. If the location of one or both of these is not correct for your specific installation, please go to our website for full instructions to set up the TWM onto your firearm.

If the location of the pre-installed inserts is correct for your firearm, proceed to the next step.

1. Push inward on the Rail Clamp Tension Thumbscrew fully spreading the moveable Rail Clamp.
2. Place the moveable portion of the Rail Clamp into the groove of the Picatinny rail and align the Cross Rail Inserts with the desired slots.
3. Rotate the TWM onto the Picatinny rail and then release the pressure on the Rail Clamp Tension Thumbscrew making sure that the TWM is gripping both sides of the rail and verify that the Cross Rail Inserts are fully seated into the slots.
4. While holding the TWM tightly to the rail, tighten the Rail Clamp Tension Thumbscrew by hand.
5. Use a quarter to fully tighten the Rail Clamp Tension Thumbscrew.

CAUTION: PERIODICALLY CHECK THE CROSS RAIL INSERT SCREWS AND THE RAIL CLAMP TENSION THUMBSCREW FOR TIGHTNESS.

OPERATION

• The TWM-352/852XL uses Single Push Button Switch.

MOMENTARY-ON MODE

- Partially pressing in and holding the switch will activate the momentary-on mode. Releasing the switch will turn the light off.

CONSTANT-ON MODE

- Pressing the switch until it clicks will activate the Constant-on mode. Pressing the switch until it clicks again will turn the light off.

WEAPON SAFETY

PLEASE BE SURE TO READ, UNDERSTAND AND FOLLOW THESE SAFETY AND OPERATING INSTRUCTIONS WHEN HANDLING A FIREARM OR THE NIGHTSTICK TWM WHEN MOUNTED ON A FIREARM. FAILURE TO DO SO CAN BE DANGEROUS AND COULD RESULT IN SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH.

• Use of a firearm under any circumstance is inherently dangerous. SERIOUS INJURY OR EVEN DEATH may result without proper training in the safe handling of firearms.
  Proper training should be obtained from an accredited firearms safety program conducted by a qualified instructor.
• Read, understand and follow all of the safety instructions that came with your firearm before attaching your new TWM.
  • Always assume every firearm is loaded and treat that firearm as such.
• Never point a firearm at anything that you are not willing to destroy.
• Never service your firearm or your TWM when mounted on a firearm without first activating the weapon's safety (if applicable), removing the magazine, opening the action and physically and visually inspecting to make sure that no ammunition is installed in the firearm.
• Thoroughly practice (employing safe training conditions) with the TWM and an unloaded firearm before using the weapon.

BEFORE ATTACHING, INSPECTING OR SERVICING THE TWM

• Engage the safety on the firearm (if applicable).
• Remove the magazine from the firearm (if applicable).
• Open the action and visually and physically inspect the chamber to be sure it is empty.
• Keep the barrel pointed in a safe direction at all times and never place your hand in front of the muzzle.

WARNING: FAILURE TO DO SO COULD RESULT IN AN ACCIDENTAL DISCHARGE AND SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH.

WARRANTY

LIMITED LIFETIME WARRANTY

Bayco Products, Inc. warrants this product to be free from defects in workmanship and materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and included accessories are warranted for a period of two years with proof of purchase. Normal wear and failures which are caused by accidents, misuse, abuse, faulty installation and lightning damage are excluded.

We will repair or replace this product should we determine it to be defective. This is the only warranty, expressed or implied, including any warranty of merchantability or fitness for a particular purpose.

For a complete copy of the warranty, go to www.nightstick.com/nightstick-product-support/warranties. Retain your receipt for proof of purchase.

SCAN TO WATCH INSTALLATION VIDEO

or visit: http://bit.ly/2oN4VXC
