USER MANUAL M18 Fuel 3006-22 MILWAUKEE

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)

Cat. No. / No de Cat.

3006-20

M18 FUEL™ DUAL BATTERY STRING TRIMMER TAILLE-BORDURES À DOUBLE BATTERIE M18 FUEL™ DESBROZADORA DE BATERÍA DOBLE M18 FUEL™

WARNING To reduce the risk of injury, user must read and understand operator's manual.

WARNING Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free firm oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130°C) may cause explosion.

- Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR STRING TRIMMERS

- Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

- Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.

- Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires bones, and other foreign objects. Thrown objects can cause personal injury.

- Before using the machine, always visually inspect to see that the cutter or blade and the cutter or blade assembly are not damaged. Damaged parts increase the risk of injury.

- Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached.

- Wear eye, ear, head, and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.

- While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving cutters or lines.

- While operating the machine, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects. - Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.

• Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control.

- Hold the machine by insulted gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock.

• Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.

- Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

- When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping, and falling, which may result in personal injury.

- Keep all parts of the body away from the cutter, line, or blade when the machine is operating. Before you start the machine, make sure the cutter, line, or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others.

- Do not operate the machine above waist height. This helps prevent unintended cutter contact and enables better control of the machine in unexpected situations.

- When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood fibers is released the brush or sapling may strike the operator and/or throw the machine out of control.

- Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance.

- Maintain control of the machine and do not touch cutters, lines, or blades and other hazardous moving parts while there are still in motion. This reduces the risk of injury from moving parts.

- When clearing jammed material or servicing the machine, make sure the switch is off and the battery pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

- Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.

- Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.

- Before use, read this manual, and all manuals and labels of this tool. Failure to follow the warnings and instructions may result in serious injury. Use tool only as described in this manual. Use only attachments recommended by MILWAUKEE.

• Always wear eye and hearing protection, and protective clothing and footwear, according to the operation being performed. Wear heavy, long pants, long sleeves, boots, and gloves. Contain long hair. Do not wear loose clothing or jewelry. Do not wear short pants, sandals, or go barefoot. Other Safety Rules

• AWARNING Do not operate near electric power lines. The unit has not been designed to provide protection from electric shock in the event of contact with electric power lines. Consult local regulations for safe distances from electric power lines and ensure that the operating position is safe and secure before use.

- When using this machine with larger-capacity battery packs, use the shoulder strap to reduce user fatigue and help in maintaining control of the tool during use.

- Do not use the tool near anything that is burning smoking such as cigarettes, matches, or hot ashes.

- To reduce the risk of health hazards from vapors or dust, do not use tool near toxic, carcinogenic or other hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangering materials.

- Use care when using around decorative plants and other obstacles. Accessories will cut/damage many materials.

- When replacing the line, use only 0.080", 0.095", or 0.105" spiral (2 mm, 2.4 mm, or 2.7 mm) diameter line. Any other size can degrade performance or cause damage to the tool.

- Do not use metal blades, brush cutting wheels, grass knife, saw, edger, shredder blades, or accessories, or attachment other than those recommended by MILWAUKEE. Serious injury or product damage may occur.

- Do not operate the tool without the guard in place. The guard must be attached properly during use. Operating the tool without the guard will cause serious injury.

• NOTICE Inspect the machine for damage after striking a hard object or if there appears to be excess vibration.

- Do not use tool with a damaged trimmer head. Cracked or broken pieces can be thrown.

- Do not operate the tool without the front handle in place. The front handle must be attached properly during use. Use both hands when operating the tool, according to the attachment instructions. Maintain a firm grip. Using one hand could cause loss of control and result in serious injury.

- Do not use the tool with multiple shoulder harnesses and make sure no wearables interfere with the removal of the harness.

- Do not use tool as an edger. Do not tilt tool to create a right angle to the ground. Keep trimmer head and line parallel to the ground. Guard cannot protect against flying debris in this orientation.

- Keep face, hands and feet clear of moving parts at all times. Moving parts can cause severe lacerations.

- Brace for unexpected movement when contact is made with a hard object. Loss of control could result in serious injury.

- Thrown objects may ricochet off of hard surfaces, such as walls, trees, and rocks and cause injury. When possible, do trimming by hand in closed in areas.

- Carry the tool by the front handle to avoid accidental starting. Proper handling of the tool will prevent injury.

• Always turn off the tool when transporting from one location to another. Do not carry tool with finger on the trigger. Accidental starting can cause serious personal injury.

- Do not immerse in water or spray with a hose. Do not clean with a pressure washer. Water entering a power tool will increase the risk of electric shock. Store tool indoors.

- Do not store the power tool on or near to fertilizers or chemicals.

• Always turn off the tool and then remove battery pack before changing or removing accessories.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

- Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

READ AND SAVE ALL INSTRUCTIONS FOR FUTURE USE

SPECIFICATIONS

Cat. No....3006-20

Volts.... 36 DC

Battery Type ......M18™

Charger Type......M18™

RPM ......High 0 - 6200 Low 0 - 4900

Cutting Line 25' x 0.080" spiral

20' x 0.095" spiral

15' x 0.105" spiral

Replacement Line ......MILWAUKÉE 49-16-2712

or MILWAUKEE 49-16-2713

Recommended Ambient

Operating Temperature 0°F to 125°F

Direct Current

n_0 XXXX min ^-1 No Load Revolutions per Minute (RPM)

Safety Alert Symbol

Read Operator's Manual

Wear eye, ear, and head protection.

Wear slip-resistant footwear.

Wear hand protection.

Beware of thrown objects.

Keep bystanders 50' away during use.

Do not use brush cutter blades or metal blades.

CAUTION

Surface is hot. Avoid contact.

Two M18™ Battery Packs Required

for Canada and U.S.

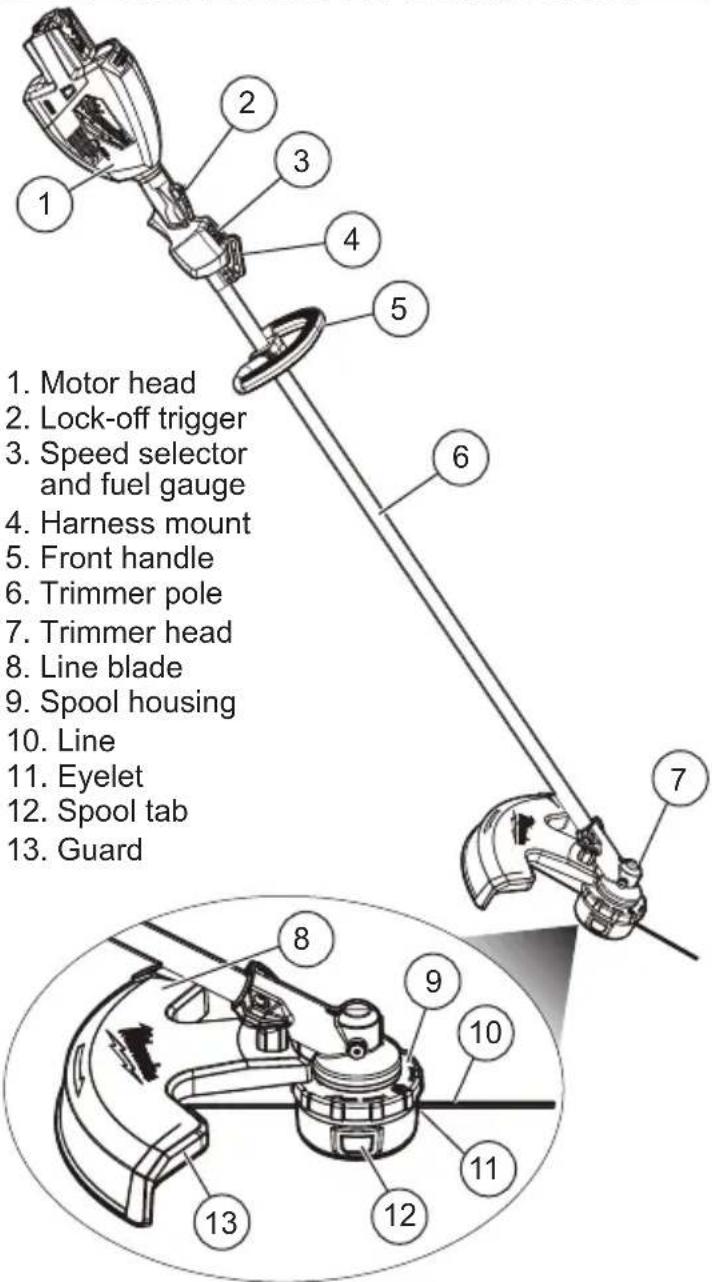

1. Motor head 2. Lock-off trigger 3. Speed selector and fuel gauge 4. Harness mount 5. Front handle 6. Trimmer pole 7. Trimmer head 8. Line blade 9. Spool housing 10. Line 11. Eyelet 12. Spool tab 13. Guard

ASSEMBLY

WARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery. Do not operate the tool without the guard in place. The guard must be attached properly during use. Operating the tool without the guard will cause serious injury.

Removing/Inserting the Batteries

To remove the batteries, push in the release buttons and pull the battery packs away from the tool.

⚠ WARNING Always remove the battery packs any time the tool is not in use.

To insert the batteries, slide the packs into the body of the tool. Make sure they latch securely into place.

⚠ WARNING Only use accessories specifically recommended for this tool. Others may be hazardous.

Installing the Guard

The guard is shipped uninstalled and must be installed before use. Use caution to keep hands away from the line blade.

Line up the guard bracket with the holes in the guard

1. WARNING! Remove battery packs to avoid starting the tool.

2. Insert four screws into the bracket.

3. Tighten the screws securely using the included key.

Technical line drawing of a mechanical assembly with no visible text or symbols

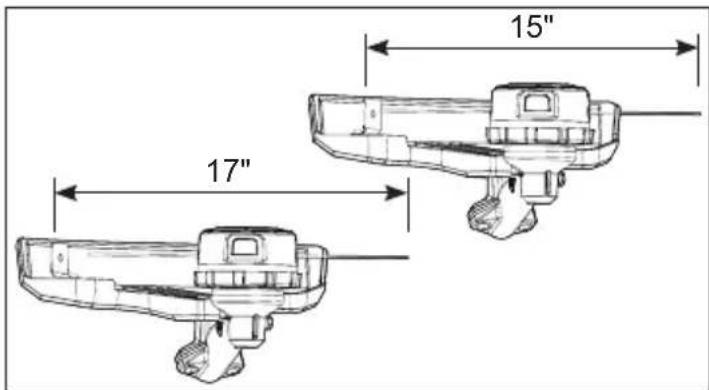

Adjusting the Cutting Diameter

15" 17"

To change the cutting diameter from 15" to 17":

1. WARNING! Remove battery packs to avoid starting the tool.
2. Remove the two screws holding the line cut-off blade.
3. Rotate the blade 180^ and reinstall the screws. Tighten securely.

⚠ WARNING Do not use blades, brush cutting wheels, accessories, or attachment other than those recommended by MILWAUKEE. Serious injury or product damage may occur.

Replacing the Cutting Line

Use only MILWAUKEE trimmer line (see Specifications). Replace the cutting line with either 20' of 0.095" line, 25' of 0.080" line, or 15' of 0.105". Note, when used near abrasive surfaces or in dense growth, the cutting line will wear faster.

1. WARNING! Remove battery packs to avoid starting the tool.
2. Under normal operation, the remaining string should be thrown from the spinning head during use. If any string remains in the head, or to remove a length of string to replace with a different type,

turn the trimmer head over and press the release tabs. Pull the cover away from the head (7). Discard any short line remnants. Snap the cover back onto the trimmer head.

1. Clean any grass or debris from the trimmer head and guard.
2. Measure out 20' of 0.095" line, 25' of 0.080", or 15' of 0.105" line.

NOTICE: When replacing the line, use only 0.080", 0.095", or 0.105" spiral (2 mm, 2.4 mm, or 2.7 mm) diameter line. Any other size can degrade performance or cause damage to the tool.

1. Rotate the cap to align the red indicators on the cap with the red indicators above the eyelets.
2. Insert the line through either eyelet and push through the head so an

equal amount of line extends from each eyelet.

1. Begin winding the line by rotating the cap in the direction of the arrows. Continue twisting until 4" to 6" of line extends from the eyelets.
2. Check that the exposed line extends no further than the line blade. If the exposed line is too long, continue winding the cap

MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAWAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILKAVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILEVAR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR MILELVMIR

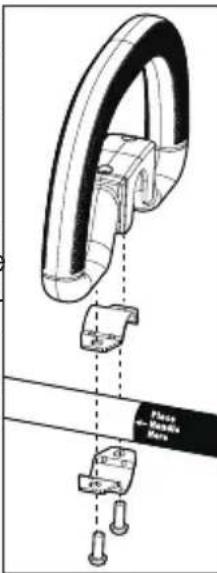

Installing the Front Handle

The front handle is shipped uninstalled and must be installed before use.

1. WARNING! Remove battery packs to avoid starting the tool.
2. Insert one bracket into the handle.
3. Align the front handle with the top of the warning sticker, just above the "Place Handle Here" marking.
4. Wrap the other bracket around the back of the trimmer pole.
5. Insert the two screws through the lower bracket and into the front handle.

Place — Handle Bare

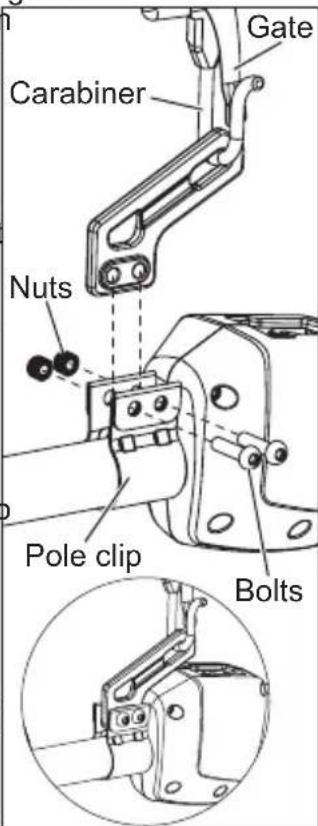

Attaching the Shoulder Strap

When using this tool with larger-capacity battery packs, use the shoulder strap to reduce user fatigue and help in maintaining control of the tool during use. To install the strap:

1. WARNING! Remove battery packs to avoid starting the tool.
2. Fit the pole clip around the power head pole between the front handle and rear handle in a location comfortable during use.
3. Adjust the pole clip location forward or back along the pole until the tool is balanced appropriately with the batteries installed.
4. Insert the bolts through the pole clip and strap bevel. Thread the nut onto the bolt and tighten securely.
5. Clip the strap carabiner to the bevel.

To wear the strap:

1. Put your respective arm and head through the strap.
2. Adjust the strap clips to change the strap length to fit comfortably.
3. Slide the neck pad to the appropriate position.

To unclip the strap:

1. Hold the tool by the front handle with your respective hand.
2. Grip the carabiner with the other hand and unclip by pushing in the gate an

Gate Carabiner Nuts Pole clip Bolts

Gate Carabiner Nuts Pole clip Bolts

Gate Carabiner Nuts Pole clip Bolts

Gate Carabiner Nuts Pole clip Bolts

OPERATION

WARNING

To reduce the risk of injury, always wear proper eye protection marked with ANSI Z87.1.

Do not operate the tool without the front handle in place. The front handle must be attached properly for use. Using one hand could cause loss of control and result in serious injury.

Do not operate the tool without the guard in place. The guard must be attached properly during use. Operating the tool without the guard will cause serious injury.

Use both hands when operating the tool. Maintain a firm grip. Using one hand could cause loss of control and result in serious injury.

Inspect the area before using the tool. Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury or damage during operation.

Selecting the Speed

Use the speed control button to select Low or High speeds. Use low speed for larger jobs where extended battery life is needed. Use high speed for dense growth applications.

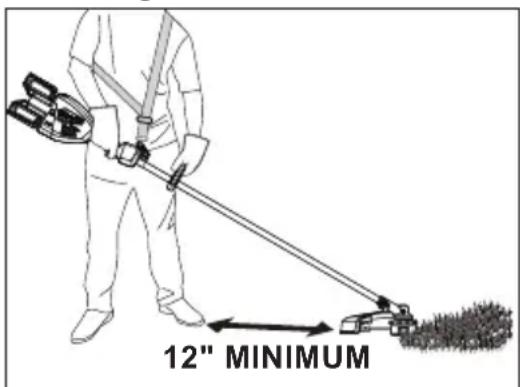

Trimming

1. Grasp the trigger handle with your right hand and the front handle with your left hand to properly align yourself behind the guard and away from the direction of cut.
2. To start the tool, toggle the lock-off lever with your thumb and pull the trigger.
3. To vary the speed, increase or decrease the pressure on the trigger. The further the trigger is pulled, the greater the speed up to the maximum set by the speed control button.
4. Allow the tool to angle down, keeping at least 12" between the trimmer head and any body part. Hold the tool just above the ground and swing the head side to side.
   NOTE: The trimmer will cut best when moved across the ground in the direction of the arrow on the guard.

12" MINIMUM

Illustration of a person using a broom to clean grass, with no text or symbols present.

1. WARNING! Do not use tool as an edger. Do not tilt tool to create a right angle to the ground. Keep trimmer head and line parallel to the ground Guard cannot protect against flying debris in this orientation.
2. To feed out the line, bump it against the ground gently while running a normal speed.

NOTE: When used near abrasive surfaces or in dense growth, the cutting line will wear faster and require "bumping" more often.

1. To stop the tool, release the trigger. Make sure the tool comes to a complete stop before laying the tool down.

Cutting Tips

• Allow the ends of the line to do the cutting.
• Contact between the line and solid objects will cause extra line wear and breakage.
• Do not drag the spool cover along the ground or bump it too hard. Only bump spool on the ground.
  Do not bump against rocks, driveways, etc.
• Make multiple passes in long growth.
• Avoid ornamental trees, shrubs, and plantings. Avoid contact with siding, fence posts, etc. They can all be damaged by the tool.

Transporting Tool

WARNING

Carry the tool by the trimmer pole to avoid accidental starting. Prop-f the tool will prevent injury.

Always turn off the tool when transporting from one location to another. Do not carry tool with finger on the trigger. Accidental starting can cause serious personal injury.

Before transporting, always remove battery packs to avoid starting the tool.

MAINTENANCE

WARNING

To reduce the risk of injury, always unplug the charger and remove the

battery packs from the charger or tool before performing any maintenance. Never disassemble the battery pack, charger, or tool, except as provided in these instructions. Contact a MILWAUKEE service facility for all other repairs.

Maintaining Tool

Keep your tool, battery packs and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

Gearcase Lubrication

After about 50 hrs of use, the gearcase should be lubricated to increase performance and extend the life of the tool. Place the trimmer head on its side and remove the hex head screw. Add up to 0.4 oz Type Y grease (Cat. No. 49-08-5270) to the cavity. Do not overfill. Replace the hex head screw and tighten securely.

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Maintaining Line

Store extra line in a sealed plastic bag with a tablespoon of water to avoid drying or cracking. Periodically sharpen the line cutter to ensure the line does not extend too long from the spool, which can cause motor overload.

AWARNING To reduce the risk of personal injury and damage, never immerse your tool, battery packs or charger in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Storage

Always perform the standard cleaning maintenance steps before storing. Always empty the oil tank when storing to prevent leakage.

Repairs

For repairs, return the tool, battery pack and charger to the nearest authorized service center.

ACCESSORIES

WARNING Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.877.948.2360

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE Outdoor Power Equipment Product* (see exceptions below) is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an outdoor power equipment product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of three (3) years** after the date of purchase unless otherwise noted. Return of the outdoor power equipment to a MILWAUKEE factory Service Center location or participating MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. Normal Wear: Many outdoor power equipment products need pe-

riodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to mower blades, trimmer head, trimmer head spool, cutting lines, blades, chains, blower tubes, brushes, o-rings, and seals.

*This warranty does not cover Cordless Battery Packs or Reconditioned Product. There are separate and distinct warranties available for these products.

**The warranty period for SWITCH TANK™ tank assemblies, hoses, handles, and wands are one (1) year from the date of purchase. MILWAUKEE does not cover freight or labor charges associated with the inspection and testing of outdoor power equipment products which are found by MILWAUKEE not to be a valid warranty claim. A valid warranty claim must be substantiated by the discovery of defective material or workmanship by MILWAUKEE.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE electric power tool.

RÈGLES DE SÉCURITÉ GÉNÉ- RALES RÉLATIVES AUX OUTILS ÉLECTRIQUES

....ou MILWAUKEE 49-16-2713

Technical line drawing of a mechanical assembly with no visible text or symbols

Motive In Poleste 10

Illustration of a person using a manual sweep to lift grass, with no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

e Cat. 49-08-5270) Réinstaller la vis ent.

Entretien du fil

Milwaukee Tool (Canada) Ltd 1.877.948.2360

Monday-Friday, 7:00 AM - 4:30 PM CST

www.milwaukeetool.ca

GARANTIE LIMITÉE - AUX ÉTATS-UNIS ET AU CANADA

Technical line drawing of a mechanical assembly with no visible text or symbols

ALABAT RUMBING POTATO MINTUO MINTUO MINTUO

Illustration of a person using a manual push tool to lift grass, with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Lunes a Viernes (9am a 6pm)
