USER MANUAL 48-11-2330 MILWAUKEE

Cat. No./No de Cat. 48-11-2330

HEATED GEAR POWER SOURCE W/ APP CONTROL SOURCE D'ALIMENTATION POUR VÉTÉMENTS CHAUFFANTS AVEC COMMANDE PAR D'APPLICATION FUENTE DE PODER DE PRENDAS CALEFACTADAS CON CONTROL DE APLICACION

IMPORTANT SAFETY

INSTRUCTIONS

- SAVE THESE INSTRUCTIONS -

WARNING

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to

follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for the MILWAUKEE Heated Gear Power Source.
2. Only connect MILWAUKEE heated gear to the heated gear connector ports on the Heated Gear Power Source. Do not use counterfeit, aftermarket, or "knockoff" products or heated gear. Other battery types could explode. Do not wire a battery to a power supply plug or car cigarette lighter.
3. Keep batteries out of the reach of children.
4. Before using the Heated Gear Power Source, read all manuals and labels for the Heated Gear Power Source, heated gear, or device.
5. Use only with Listed/Certified Power Supply.
6. Avoid dangerous environments. Do not expose to or charge in rain, moisture, snow, damp, or wet locations. Do not use battery or charger in the presence of explosive atmospheres (gaseous fumes, dust, or flammable materials). Sparks may be generated when inserting or removing battery, possibly causing fire.
7. Only charge in a well ventilated area and within the Recommended Ambient Charging Temperature range. Do not block vents; keep them clear for proper ventilation. Do not allow smoking or open flames near a charging battery. Vented gases may explode.
8. Maintain charger cord. Pull plug rather than cord to unplug. Never carry charger by its cord. Keep cord from heat, oil and sharp edges. Ensure cord will not be stepped on, tripped over, damaged, or stressed. Do not use charger with damaged cord or plug. Replace damaged cords immediately.
9. Use only recommended attachments.
10. Unplug when not in use, and before cleaning or maintenance. Do not allow water to flow into AC/DC plug. Use a Ground Fault Circuit Interru-. rputer (GFCI) to reduce shock hazards.
11. Do not burn, incinerate, or expose batteries to fire or excessive temperatures above 265^ (130^) . Batteries may explode. Toxic fumes and materials are created when batteries are burned.
12. Do not crush, drop, shred, modify, or damage battery. Always securely contain batteries during transport. Do not use a battery that has received a sharp blow, been dropped, run over, or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on, in a vehicle accident). Do not use or charge batteries that appear damaged or swollen, or are not functioning properly. Damaged or modified batteries may exhibit unpredictable behavior.

13. Do not disassemble or attempt to repair batteries or chargers. No internal serviceable parts. Take batteries/chargers that have been damaged, broken, or need repair to a MILWAUKEE service facility to ensure the safety of the product i maintained.

14. Battery chemicals cause serious burns. Never allow contact with skin, eyes, or mouth. If a damaged battery leaks battery chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to battery fluids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention.

15. Do not short circuit. A short-circuited battery pack may cause fire, personal injury, and product damage. A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit (e.g., coins, keys, nails, or small metal objects in a pocket, toolbox, or drawer).
16. Do not allow fluids to flow into battery pack. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit. Do not use battery packs that have been exposed to these types of fluids.
17. Disconnect the Heated Gear Power Source from devices or heated gear before storing. Such preventive safety measures reduce the risk of starting the devices accidentally.
18. Before washing heated gear, always disconnect and remove Heated Gear Power Source.
19. Store the battery pack in a cool, dry place. Do not store where temperatures may exceed 120^ (50^) such as in direct sunlight, a vehicle, or metal building during the summer.
20. Always ship Li-ion batteries in accordance with the current regulations governing the chosen mode of transport (e.g. ground, air, sea). When in doubt, contact MILWAUKEE, the carrier or other trained Dangerous Goods professional to determine applicable regulations.
21. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a replacement.

Federal Communications Commission

Pursuant to part 15.21 of the FCC Rules, you

are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the product.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules and ISED-Canada's license exempt RSS standards. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

FCC& IC Radiation Exposure Statement:

This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

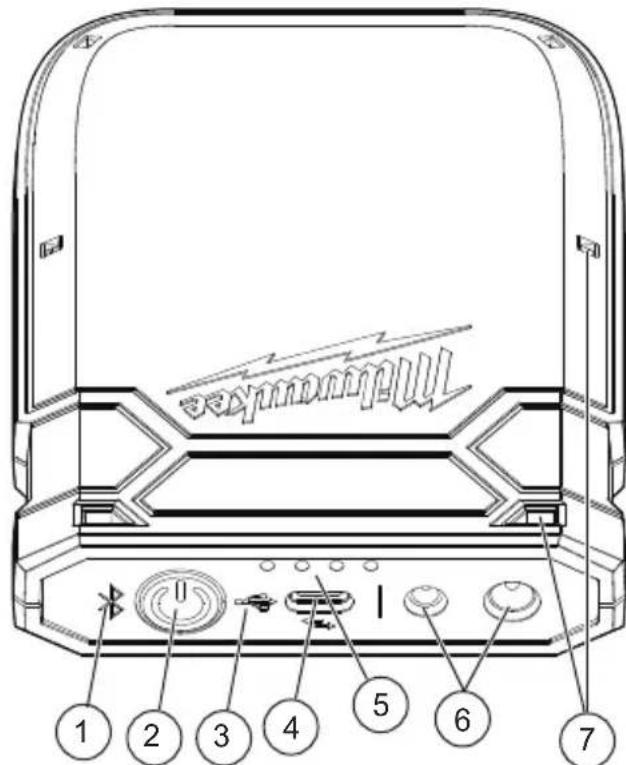

FUNCTIONAL DESCRIPTION

1. Bluetooth indicator
2. Power button
3. USB-C indicator
4. USB-C input/output port
5. Fuel gauge
6. Heated gear connector ports
7. Vents

SYMBOLOLOGY

Direct Current

ly Recycle Batteries

ting for Canada and U.S.

SPECIFICATIONS

Cat. No. 48-11-2330

Volts. 12 VDC

Battery Type Li-Ion

Output. 12 VDC, 2.4 A

USB-C Input .5 VDC, 3 A

9 VDC, 3 A

12 VDC, 3 A

15 VDC, 2.4 A

USB-C Output. 5 VDC,3 A

FCCID P36-2330

IC 25187-2330

USB-C to C Charging Cable Cat. No...42-44-1211

Recommended Ambient

Charging Temperature. 40^ to 104^

(5°C to 40°C)

ASSEMBLY

WARNING Only connect MILWAUKEE heated gear to the heated gear connector

ports on the Heated Gear Power Source. Plugging other devices into the heated gear connector ports could cause a hazard.

Before washing heated gear, always disconnect and remove Heated Gear Power Source.

Using with Heated Gear

Insert the power cable (from inside the heated gear's battery holder pocket) into the appropriate heated gear connector port on the Heated Gear Power Source.

Place the Heated Gear Power Source into the pocket and close it.

To remove the battery, open the pocket and unplug the battery.

Pairing with Bluetooth

To pair, press and hold the power button for two seconds. The bluetooth indicator will flash. Once successfully paired to a device the bluetooth indicator will illuminate solid and turns off. If pairing is unsuccessful the bluetooth indicator will flash and turns off. To unpair, use paired device to disconnect or press and hold the power button for four seconds. The bluetooth indicator will flash and turn off.

Using the USB-C Port

When the power button is on, the USB-C port is used for powering a device. When the power button is off, the USB-C port is used for charging the battery.

The USB-C port can be used to power any USB-C device that uses less than or equal to 5V, 3A of DC electrical current.

To turn on/off the USB-C port, press the power button. The USB-C indicator will illuminate. NOTE: The heated gear can remain on while the USB-C port is powering a device.

The Heated Gear Power Source will power off after 90 seconds of not in use.

Fuel Gauge

Press the power button to display the battery pack's remaining power.

LED 1 Flashing 0-9%
LED 1 Solid 10-25%
LED 1-2 Solid 26-50%
LED 1-3 Solid 51-75%
LED 1-4 Solid 76-100%

MILWAUKEE Heated Gear App

To download the MILWAUKEE Heated Gear app, visit the App Store or Google PlayTM from your smart device.

OPERATION

When to Charge the Heated Gear Power Source

MILWAUKEE batteries do not develop a "memory" when charged after only a partial discharge. It not necessary to run down the Heated Gear Power Source before charging.

• Use the fuel gauge to determine when to charge.
• You can "Top-Off" the Heated Gear Power Source charge before use.
  The only time it is necessary to charge the Heated Gear Power Source is when it has reached the end of its charge. Charge as needed.

Charging the Heated Gear Power Source

When the power button is on, the USB-C port is used for powering a device. When the power button is off, the USB-C port is used for charging the battery.

1. Plug the USB-C cable into a power source such as an AC wall adaptor, computer, or car port.
2. Insert the other USB-C end of the cable into the USB-C port in the Heated Gear Power Source.
3. The fuel gauge light will display the charging status:

LED 1 Flashing 0-18%
LED 1 Solid, LED 2 Flashing 19-45%
LED 1-2 Solid, LED 3 Flashing 46-66%
LED 1-3 Solid, LED 4 Flashing 67-99%
LED 1-4 Solid 100%

• Charge time depends on capacity of battery pack. Heavily cycled batteries may take longer to charge completely.
• If the light indicators do not illuminate or Lights 1&3/2&4 flashing alternatingly indicates a fault. Check that the charging cable is securely plugged in. If the light indicators still do not illuminate, unplug the charging cable for at least 2 minutes. After 2 minutes plug the charging cable back in. If the issue persists, the Heated Gear Power Source can be reset by holding the power button for 10 seconds. If after these attempts the light indicator still does not illuminate or shows fault, contact a MILWAUKEE service facility.

Transport

Personal transport of Li-1on battery packs is allowed when done in accordance with these warnings and instructions. The proper classification, packaging, labeling, marking, and documentation requirements for shipping Li-1on batteries is dependent upon whether the particular batteries are rated greater than or less than 100 Wh. Generally, Li-1on batteries rated 100 Wh or less are "excepted" from certain Class 9 DG requirements. Always check compliance of Li-1on battery consignments against the current regulations governing the chosen mode of transport. When in doubt, contact the carrier or other trained Dangerous Goods professional to confirm acceptability. Li-1on packs are shipped under classification UN 3480 (battery only) or UN 3481 (batteries contained in or packed with equipment).

MAINTENANCE

AWARNING To reduce the risk of fire, personal injury, and product damage do not allow fluids to flow into battery pack. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit. Do not use battery packs that have been exposed to these types of fluids.

Always unplug the Heated Gear Power Source when not in use and before performing any cleaning or maintenance. Do not disassemble or attempt to repair the Heated Gear Power Source. Contact a MILWAUKEE service facility for ALL repairs.

Maintenance and Storage

Do not expose the Heated Gear Power Source, tool, or heated gear to water, rain, moisture, or allow them to get wet. This could damage the Heated Gear Power Source, tool, and heated gear. Do not use oil or solvents to clean or lubricate battery pack. The plastic casing will become brittle and crack, causing a risk of injury.

Store your Heated Gear Power Source in a cool, dry place. Disconnect the Heated Gear Power Source from devices and heated gear before storing. Remove from heated gear when not in use. Store battery packs at room temperature away from moisture. Store batteries flat. Do not store in damp locations where corrosion of terminals may occur. As with other battery pack types, permanent capacity loss can result if the pack is stored for long periods of time at high temperatures (over 120^ / 50^ ). MILWAUKEE Li-lon battery packs maintain their charge during storage longer than other battery pack types. After about a year of storage, charge the pack as normal.

Repairs

The Heated Gear Power Source has no internal or serviceable parts. For repairs, return the Heated Gear Power Source to the nearest authorized service center.

WARNING To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are created.

Disposing of MILWAUKEE Li-Ion Battery Packs

MILWAUKEE Li-Ion battery packs are more environmentally friendly than some other types of power tool battery packs. Always dispose of your battery pack according to federal, state and local regulations. Contact a recycling agency in your area for recycling locations.

Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a fire or explosion.

RBRC Battery Recycling Seals

The RBRC™ Battery Recycling Seals (see "Symbology") on your tool batteries indicate that MILWAUKEE has arranged for the recycling of that battery pack with the Rechargeable Battery Recycling Corporation (RBRC). At the end of your battery pack's useful life, return the battery pack to a MILWAUKEE Branch Office/Service Center or the participating retailer nearest you. For more information, visit the RBRC web site at www.rbrc.org.

ACCESSIONS

AWARNING Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.877.948.2360

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE Battery Pack (sold with cordless product and/or as a replacement battery pack) is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace a battery pack which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for the stated warranty period from date of purchase. Return of the battery pack to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. For the proper shipping procedure of battery packs, contact 1.800.SAWDUST (1.800.729.3878), or go to www.milwaukeetool.com. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Battery Pack Cat. No. Chemistry	Warranty Period (from date of purchase)
48-11-1812, 48-11-1813, 48-11-1828(Serial number prefix"B41E" and later),48-11-1840, 48-11-1850,48-11-1850R, 48-11-1860,48-11-1861, 48-11-1865,48-11-1880, 48-11-1881,48-11-1890, 48-11-2402,48-11-2440, 48-11-2450,48-11-2460,48-11-2830(Serial number prefix "C71")	LITHIUM-ION Threec(3)Years
48-11-0490, 48-11-1815,48-11-1820, 48-11-1835,48-11-2001, 48-11-2330,48-11-2401, 48-11-2420,48-11-2425, 48-11-2430	LITHIUM-ION Two(2)Years
48-11-1828(Serial number prefix "B41D"and earlier),48-11-1830(Serial number prefix "A95"),48-11-2830(Serial number prefix "A71")	LITHIUM-ION Two(2)Years -plus,Three(3)YearsoPro-Rata(prorated)*
48-11-0100, 48-11-1024,48-11-1830(Serial number prefix "E95"),48-11-1970, 48-11-2230	Nickel-Cadmium(Ni-Cd),Nickel-Metal-Hydride (Ni-MH),LITHIUM-IONOne(1)Year

*The warranty period for MILWAUKEE M18™ 48-11-1828 (with the serial number prefix "B41D" and earlier), V18™ 48-11-1830 (with the serial number prefix "A95"), and V28™ 48-11-2830 (with the serial number prefix "A71") is five (5) years / 2000 charges from the date of purchase, whichever first occurs. The first 1000 charges or 2 years of the warranty, whichever first occurs, are covered through free replacement of the defective battery. This means that for the earlier of the first 1000 charges or two (2) years from the date of purchase/first charge, a replacement battery will be provided to the customer for any defective battery free of charge. Thereafter, the remaining charges up to a total of 2000 or the remainder of the five (5) year period from the date of purchase, whichever first occurs, will be covered on a pro rata basis. This means that every customer gets an additional 1000 charges or three (3) years of pro rata warranty on the these battery packs, depending upon the amount of use. MILWAUKEE M18™ 48-11-1828 (with the serial number prefix "B41E" and later), V18™ 48-11-1830 (with the serial number prefix "E95"), and M28™ 48-11-2830 (with the serial number prefix "C71") have different warranty periods, as listed. Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE battery pack. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTYES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTYES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH WARRANTYER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTYES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTYY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800. SAWDUST (1,800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE Battery Pack.
