Brand	Bosch
Model	Series 2 BGS05BU2GB
Product type	Bagless vacuum cleaner
Intended use	Private household, enclosed rooms, up to 2000 m altitude
Power supply	Alternating current, grounded mains socket
Filters	Motor protection filter, exhaust air filter, dust container filter
Dust container	Emptyable, with internal filter
Included accessories	Adjustable floor brush, telescopic tube, hose, handle, hose holder
Power cord	With automatic retraction button
Suction power regulator	Yes, integrated into the handle
Cleaning and maintenance	Soft cloth and plastic cleaner; do not use steam or high-pressure cleaner
Safety instructions	Do not vacuum people, animals, harmful substances, liquids, ashes, toner dust, construction debris
Use with children	Supervision required for children aged 8 and above; cleaning and maintenance by user not allowed for children without supervision
Repairs	Reserved for qualified personnel; use only original parts
Disposal	Used appliance: environmentally friendly disposal; recyclable packaging

Frequently Asked Questions - Serie 2 BGS05BU2GB BOSCH

How to empty the dust container?

To empty the dust container, turn off the appliance and unplug it. Press the dust container release button (mark 6) and remove the container. Empty it into a trash bin. For thorough cleaning, you can also clean the container filter as described in the manual.

How to clean the dust container filter?

The dust container filter is cleaned by removing it from the empty container. Tap it gently to remove dust. If necessary, wash it with warm water (no detergent) and let it dry completely before reinserting. Never use the appliance without the filter.

What to do if suction power is reduced?

First check if the brush, telescopic tube or hose are blocked. Then check the fill level of the dust container and empty it if necessary. If the problem persists, clean the filters (container filter and exhaust air filter).

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for vacuuming dry substances. Vacuuming liquids or damp substances can damage the appliance and void the warranty.

How to use the suction power regulator?

The suction power regulator is located on the handle. It allows you to adjust the power according to the surface type (carpet, hard floor, etc.). Turn the slider to increase or decrease suction.

How to store the hose after use?

The hose can be stored by winding it around the hose holder on the appliance. Follow the steps illustrated in the manual (fig. 15-18) for proper storage without damaging the hose.

Can I use non-original accessories?

It is recommended to use only Bosch original parts and accessories. Using third-party products may cause damage and void the warranty.

How to clean the exhaust air filter?

The exhaust air filter is usually located at the back of the appliance. Remove it and clean it with warm water. Let it dry completely before reinstalling. Never operate the appliance without this filter.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a similarly qualified person. Do not use the appliance and contact after-sales service.

Where to find after-sales service for this Bosch vacuum cleaner?

Contact details for after-sales service are available by scanning the QR code on the document included with the appliance, or on the Bosch website. You can also consult your retailer.

USER MANUAL Serie 2 BGS05BU2GB BOSCH

Register your new appliance now at MyBosch and enjoy benefits free of charge: bosch-home.com/ welcome

Bagless vacuum cleaner

BGS05... BGC05...

[en] Information for Use Bagless vacuum cleaner 14

https://ium-pim.bsh-digital.com/8001278398

[de] Weitere Informationen und Erklärungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en] You can find additional information and explanations online. Scan the QR code on the title page.
[fr] Vous pouvez trouver d'autres informations et explications en ligne. Scannez le code QR sur la page de titre.
[it] Puoi trovare ulteriori info e spiegazioni online. Scansiona il codice QR sul frontespizio.
[nl] U kunt online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[da] Der findes yderligere oplysninger og forklaringer online. Skan QR-koden på forsiden.
[no] Du kan finne mer informasjon og forklaringer på Internett. Skann QR-koden på tittelsiden.
[sv] Det finns mer information och förklaringar online. Scanna QR-koden på omslaget.
[fi] Löydät lisätietoja ja selityksiä verkosta. Skannaa QR-koodn sivun otsikosta.
[es] Se puede encontrar información y explicaciones adicionales online. Escanear el código QR en la página de título.
[pt] Pode encontrar informações e explicações adicionais online. Leia o código QR que figura na página de título.
[pl] Dodatkowe informacje i objaśnienia są dostępne online. Zeskanuj kod QR na stronie tytułowej.
[ru] Дополнительную информацию и объяснения можно найти в сети Интернет. Сканируйте QR-код на титульной странице.
[ro] Informații și explicații suplimentare pot fi găsite online. Scanați codul QR de pe pagina de pornire.
[kk] Косымша акпарат пен түсініктемелерді интернеттен таба аласыз. Титулдық беттегі QR кодын сканерлеңіз.
[uk] Додаткову інформацію і пояснення можна знайти онлайн. Зіскануйте QR-код на титульній сторінці.

1

2

3

Illustration of a medical device being inserted into a cylindrical tube, showing the process (no text or symbols)

4

Illustration of a robotic arm with a blue vertical bar and black downward arrow indicating force or movement (no text or symbols)

5

6

Illustration of a hand using a blue tool to adjust or install a mechanical component, with no visible text or symbols.

7

Illustration of a hand using a pressure pump tool to press a blue component (no text or symbols visible)

8

9

Illustration of a hand holding a medical device with a blue cap, showing a black arrow indicating force or movement (no text or symbols present)

10

Illustration of a hand using a vacuum cleaner to lift a smartphone, with arrows indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue vacuum cleaner with a black arrow indicating the process (no text or symbols present)

12

Illustration of a hand using a vacuum cleaner to adjust or install a component, with no visible text or symbols.

The image is too blurry to recognize any text content.

14

Illustration of a vacuum cleaner with blue adjustment arrows indicating mechanical change (no text or symbols)

The image is too blurry to recognize any text content.

Diagram of a vacuum cleaner with blue hoses and mesh insulation (no text or symbols)

16

Diagram of a blue and white robotic vacuum cleaner with coiled tubing and a device attached (no text or symbols)

The image is too blurry to recognize any text content.

18

Diagram showing a robotic arm with a curved tool and directional arrows indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue handheld device with black arrows indicating motion or rotation (no text or symbols)

20

The image is too blurry to recognize any text content.

22

The image is too blurry to recognize any text content.

24

The image is too blurry to recognize any text content.

26

Illustration of a hand using a tool to lift a blue mechanical component into a circular tank (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a blue oval object with internal patterns and an arrow pointing to a circular cross-section (no text or symbols)

28

Illustration of a hand using a tool to spread a blue granular substance from a container (no text or symbols)

The image is too blurry to recognize any text content.

Two illustrations showing a showerhead spraying water into a container with particles, no text or symbols present.

30

Diagram showing a blue oval object interacting with a circular mechanical component, with an arrow pointing to internal structure (no text or symbols)

The image is too blurry to recognize any text content.

32
33

34

Diagram of a mechanical device with arrows indicating upward motion or force, showing internal components and flow direction (no text or symbols)

The image is too blurry to recognize any text content.

36

Illustration of a showerhead spraying water onto a plastic cup and a circular sink (no text or symbols)

37

38

Diagram of a mechanical device with a downward arrow indicating force or movement, showing internal components (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a car wheel assembly with a blue mesh component being inserted (no text or symbols)

40

The image is too blurry to recognize any text content.

42

Diagram of a blue showerhead spraying water into a grid-patterned air conditioner unit (no text or symbols)

The image is too blurry to recognize any text content.

44

The image is too blurry to recognize any text content.

4 Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Call customer services.→Page 17
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.
- Do not apply flammable substances or substances containing alcohol to the filter.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
- Keep packaging material away from children.

▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

Overview

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→Fig. 1

1	Adjustable floor tool ^1
2	Hose
3	Telescopic tube with sliding switch ^1
4	Handle
5	Hose holder ^1
6	Dust container release button
7	Handle
8	Rear flap
9	Power cord
10	Cable rewind button
11	Suction power control switch ^1
12	Storage aid
13	On/off switch
14	Dust container ^1

Operation

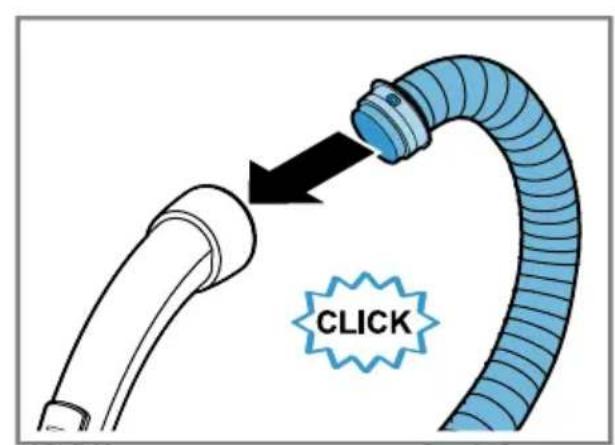

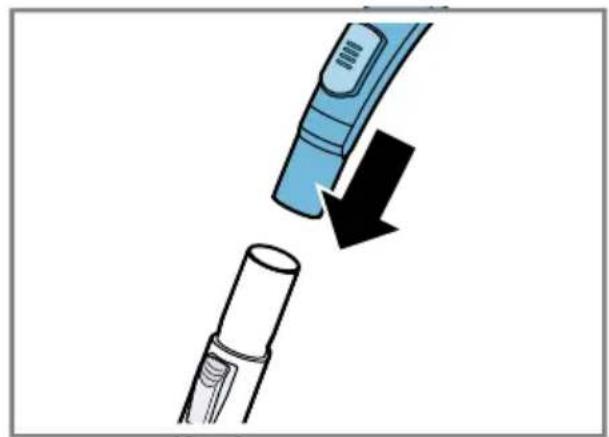

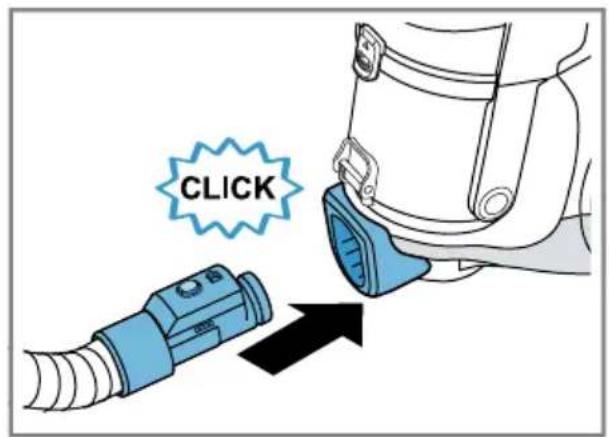

Installing the appliance

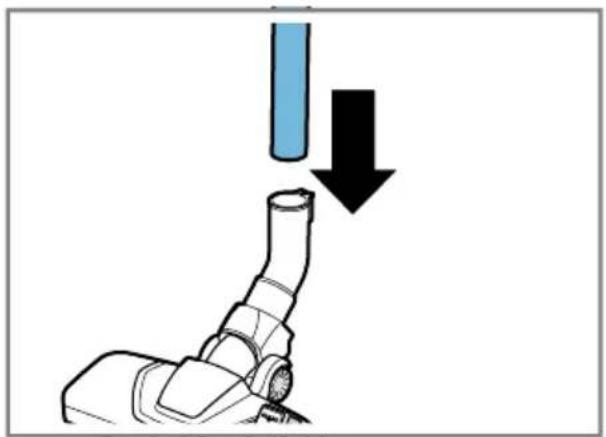

→Fig. 2 - 5

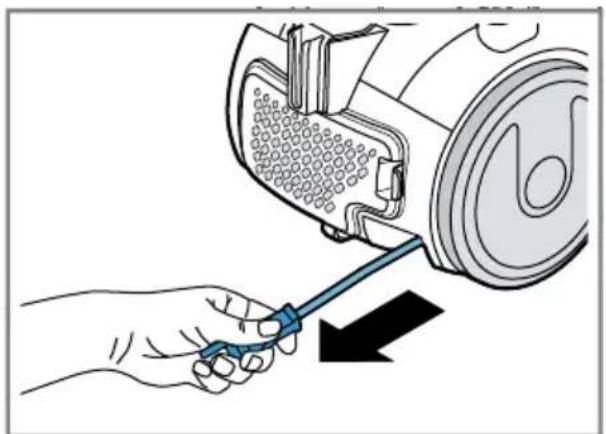

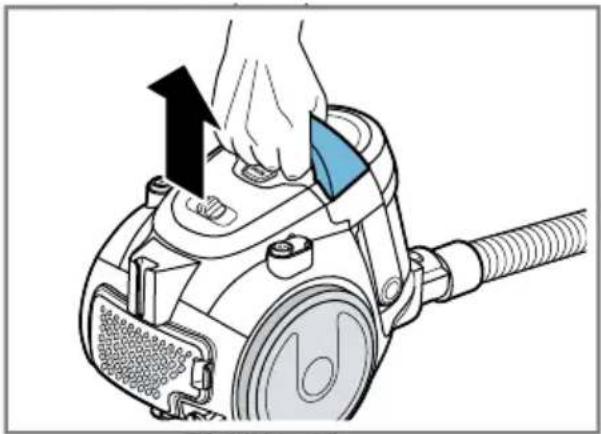

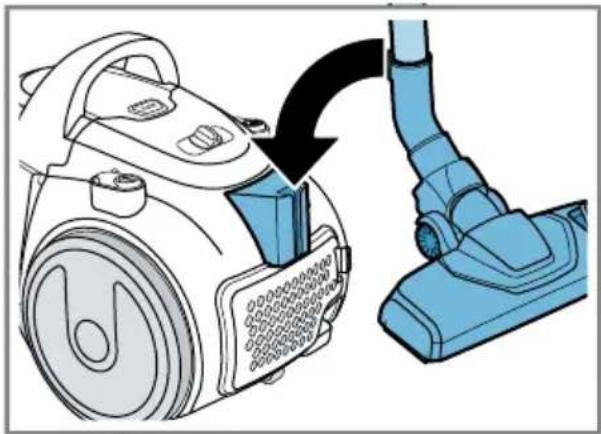

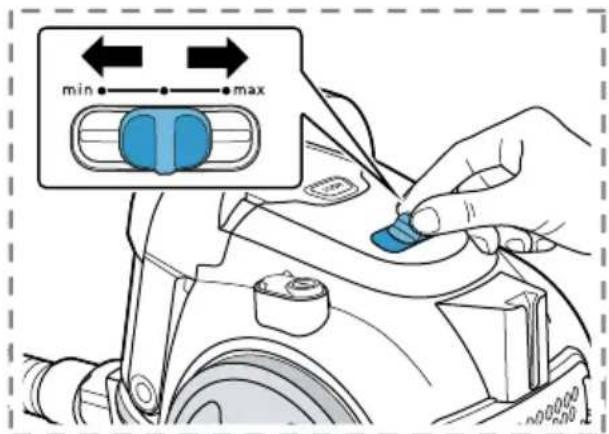

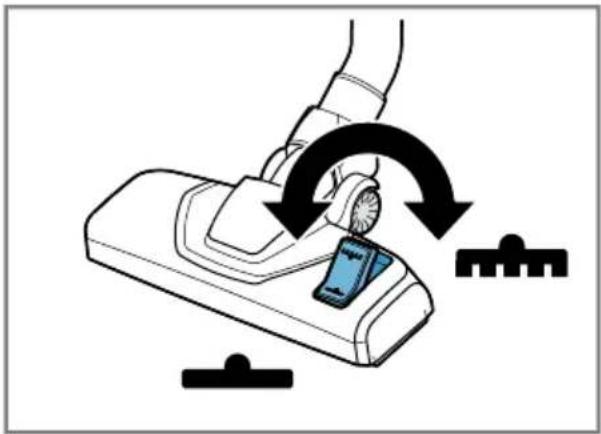

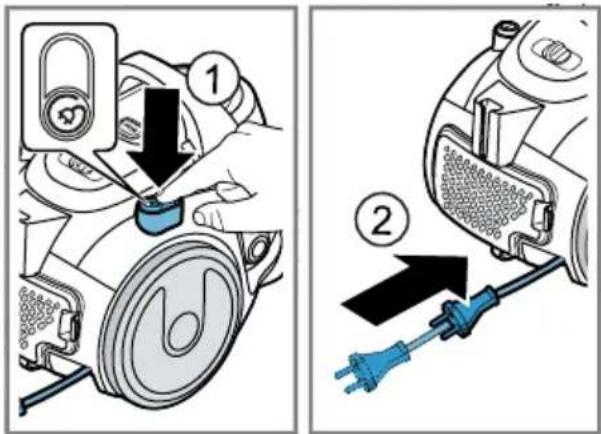

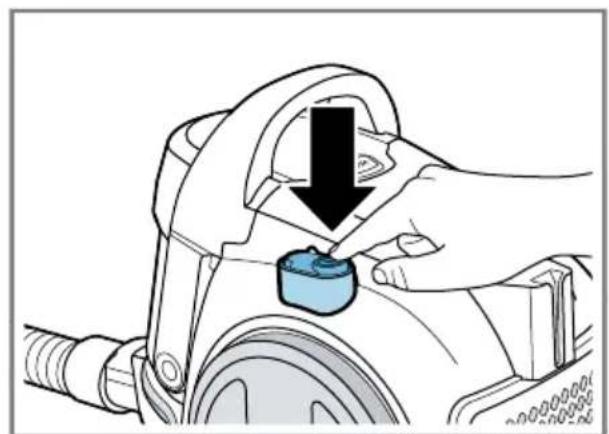

Operating the appliance

Note: A dashed frame indicates optional appliance equipment.

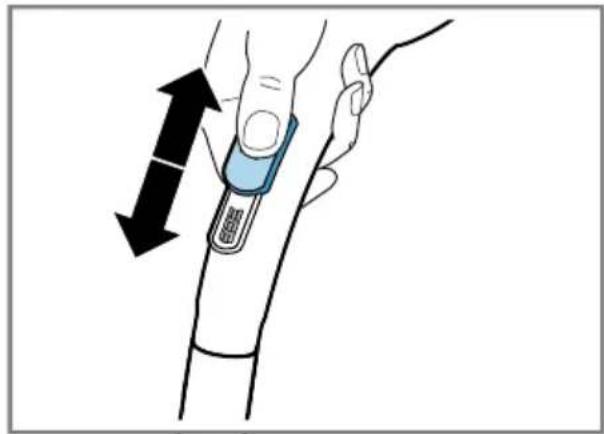

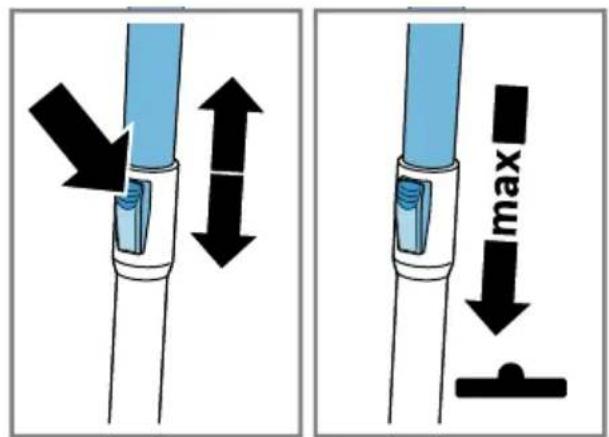

→Fig. 6 - 14

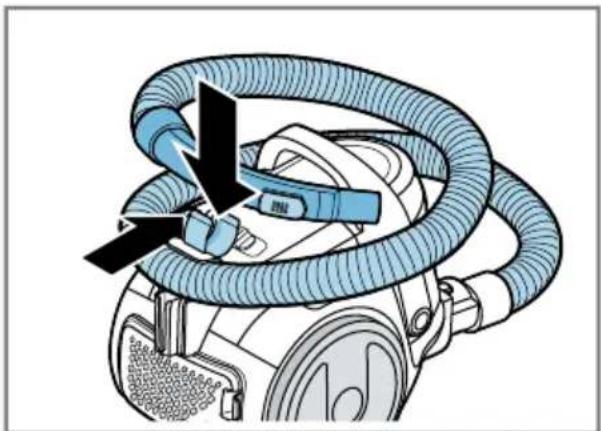

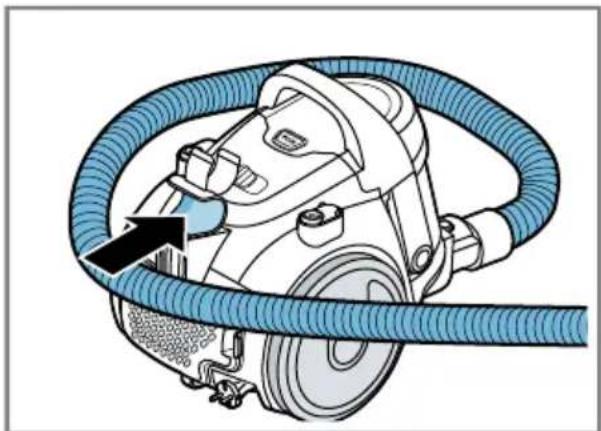

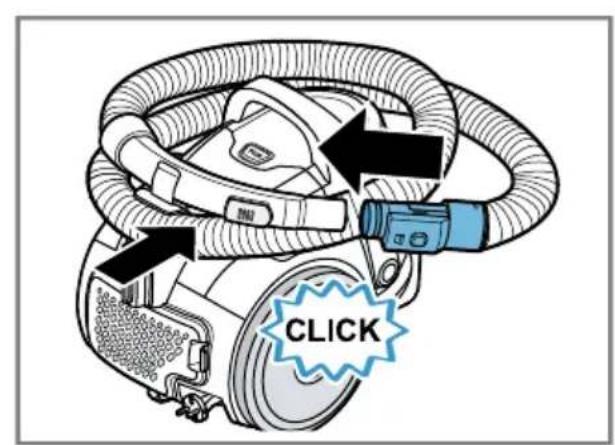

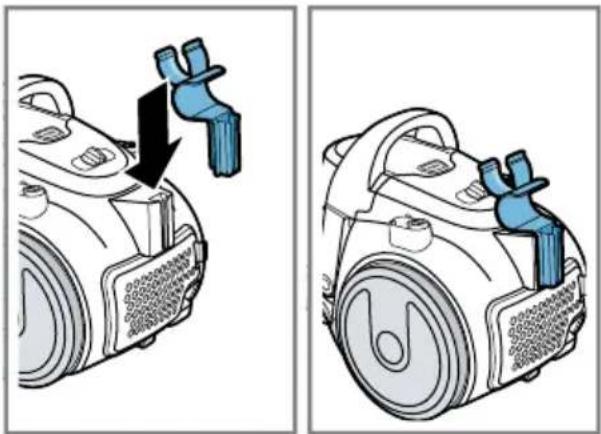

Storing the hose ^1

→Fig. 15 - 18

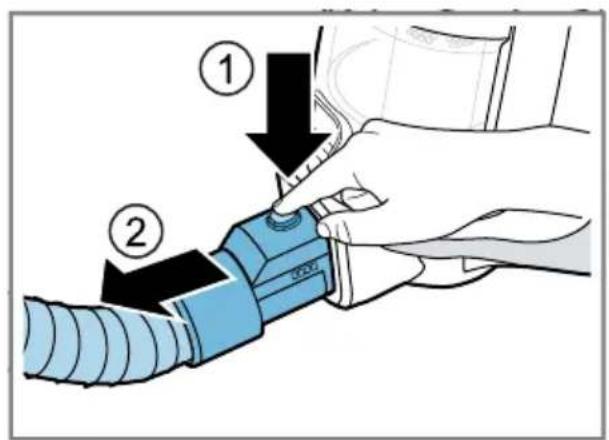

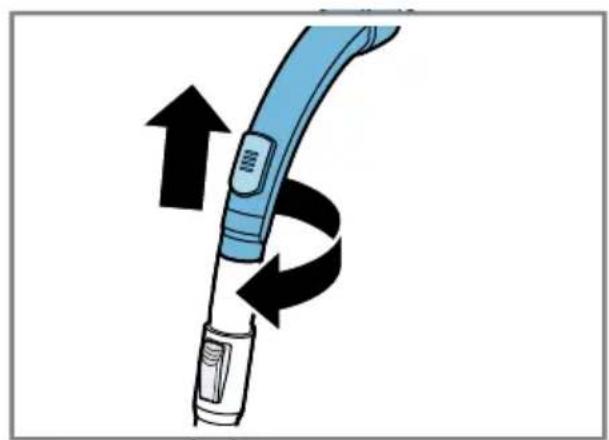

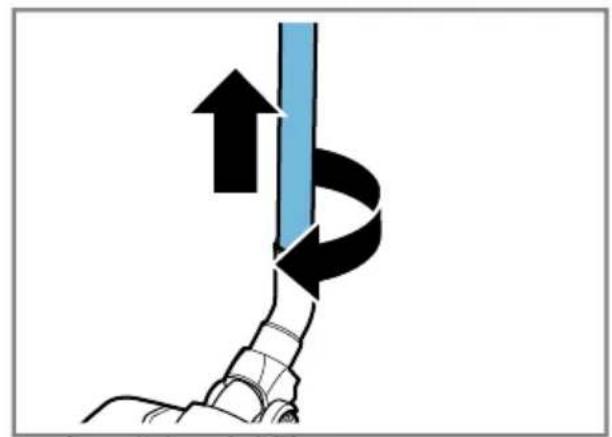

Removing the appliance

→Fig. 19 - 21

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

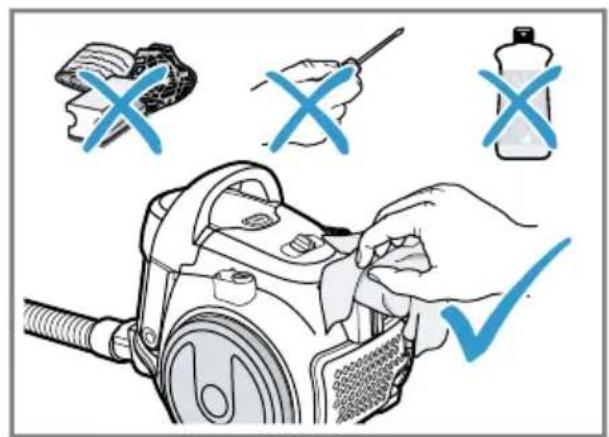

Cleaning the appliance

Requirement: The appliance is switched off.

- Clean the appliance and the accessory using a soft cloth and a commercially available plastic cleaner.

→Fig. 22

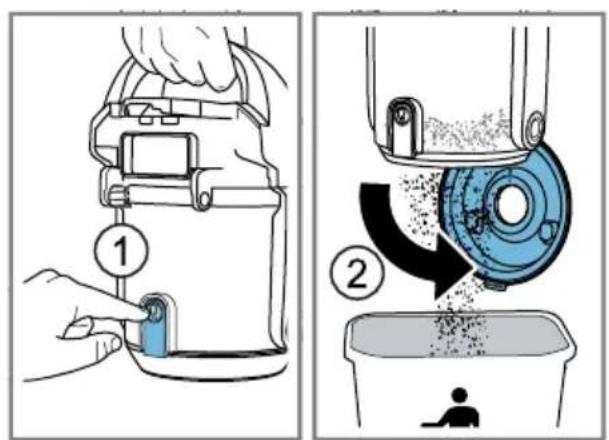

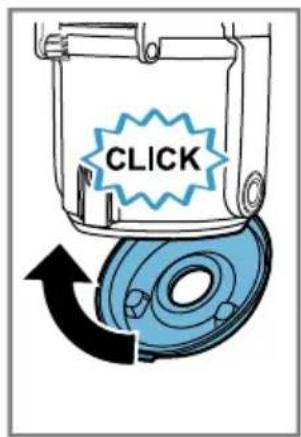

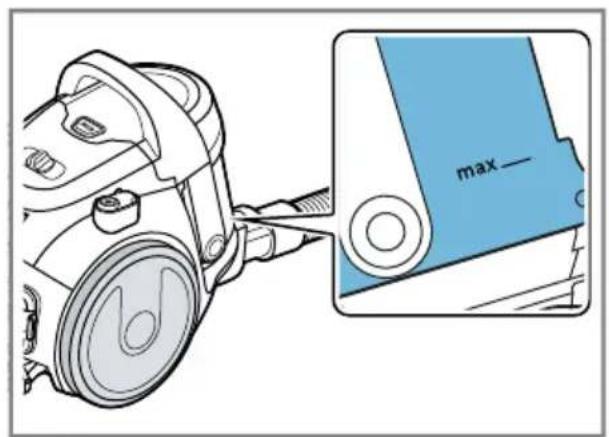

Emptying the dust container

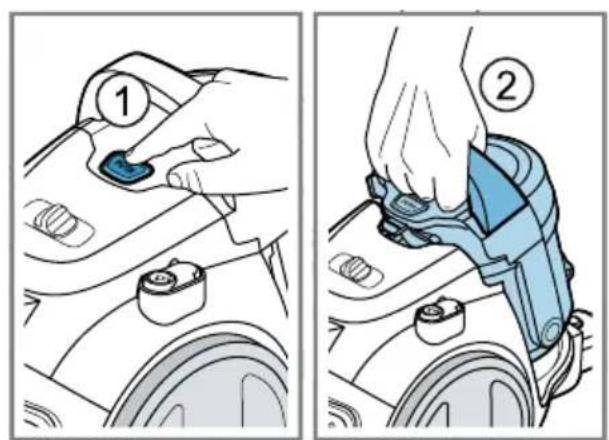

→Fig. 23 - 26

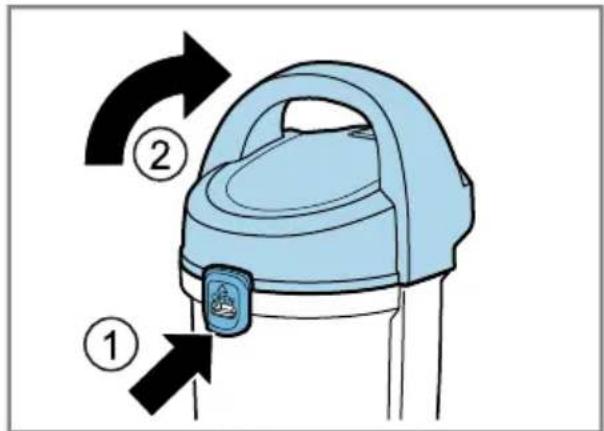

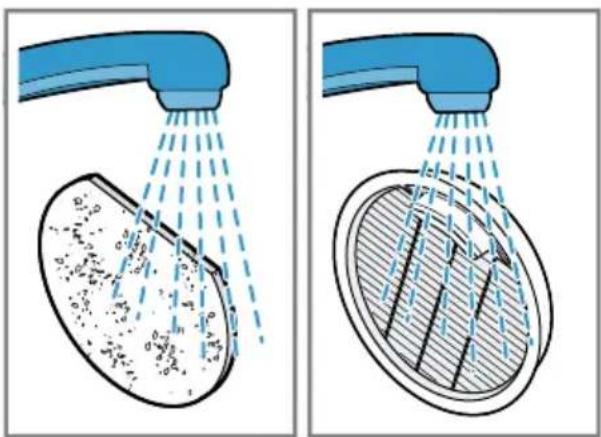

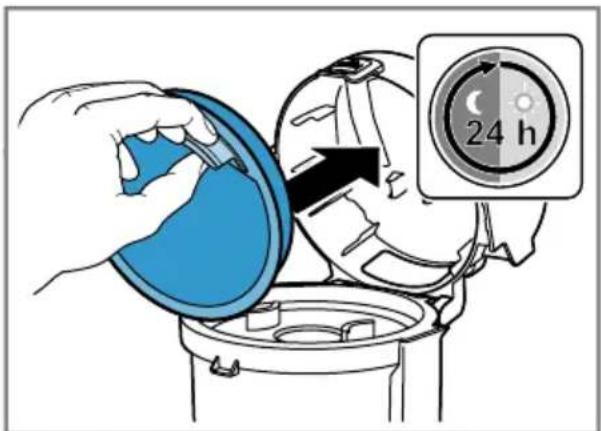

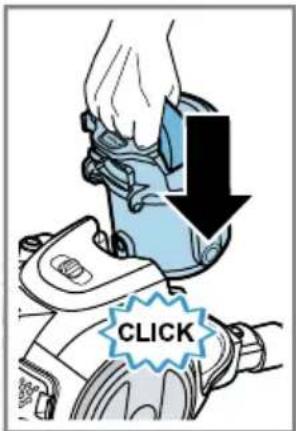

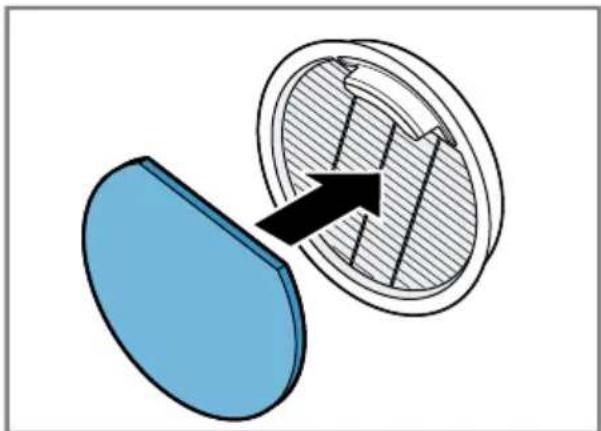

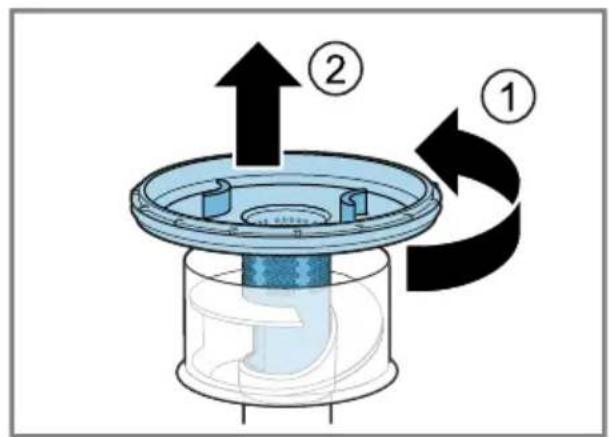

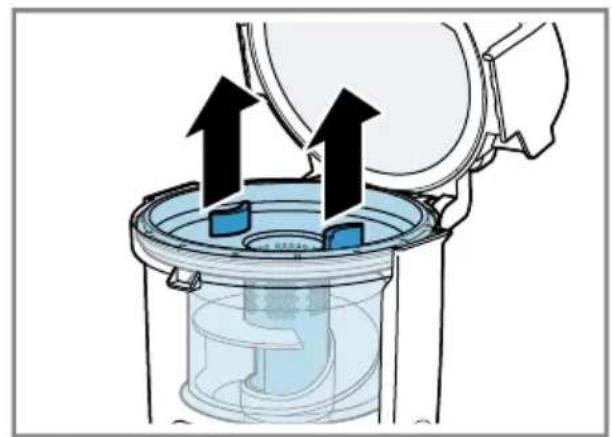

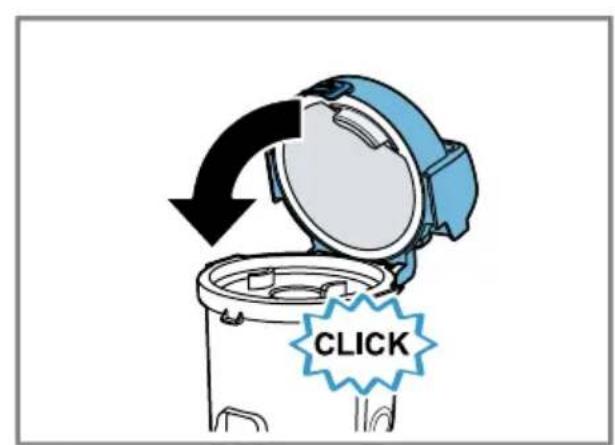

Cleaning the filter in the dust container

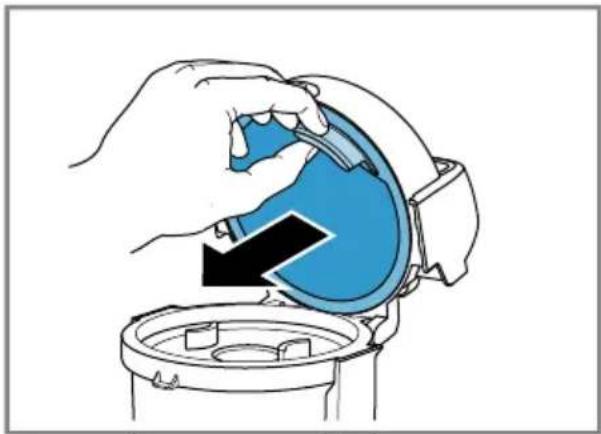

→Fig. 27 - 34

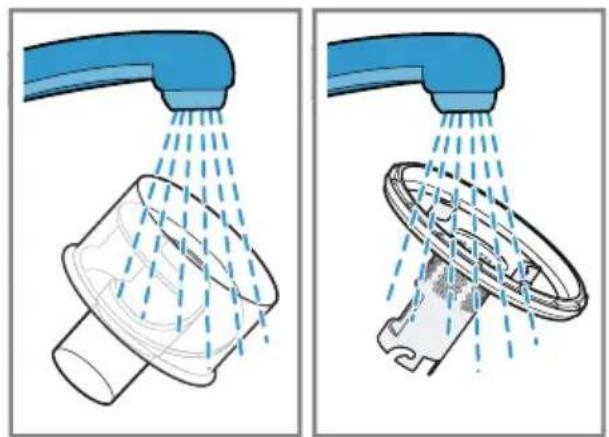

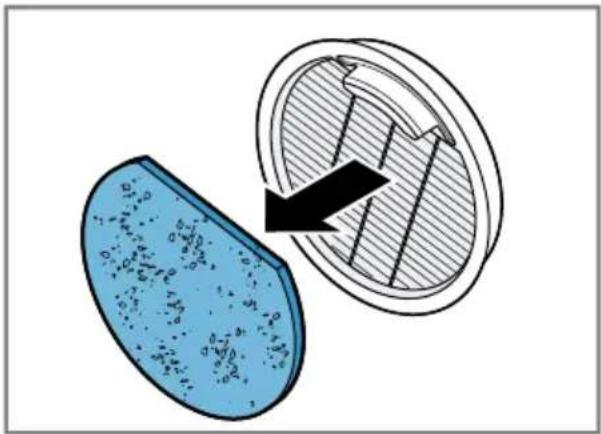

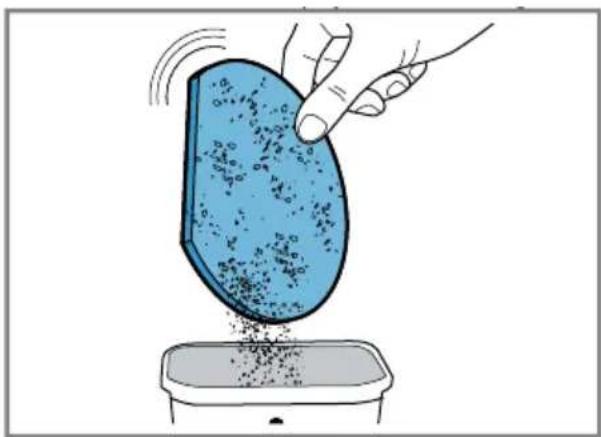

Cleaning the fluff filter

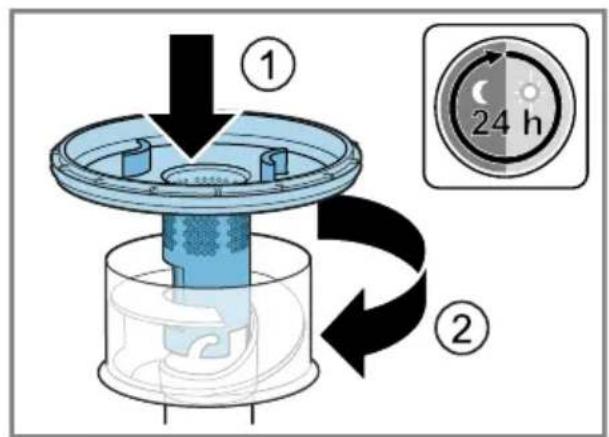

→Fig. 35 - 39

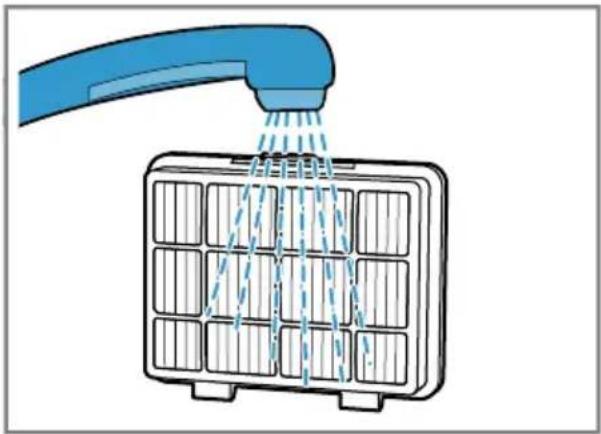

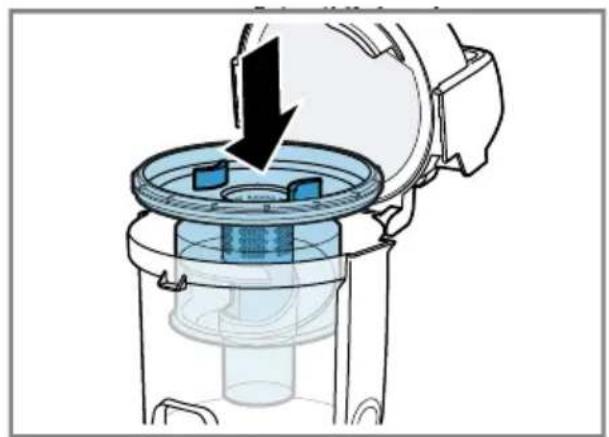

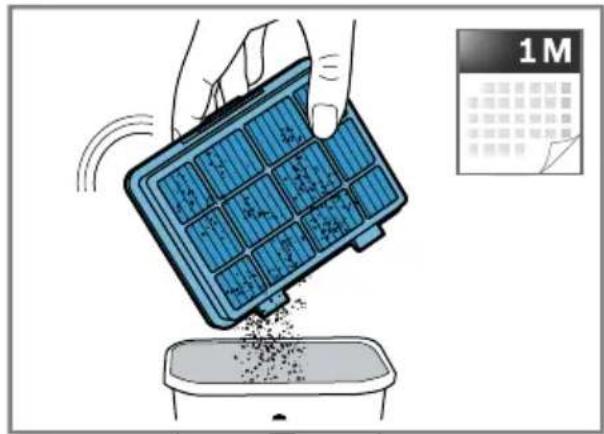

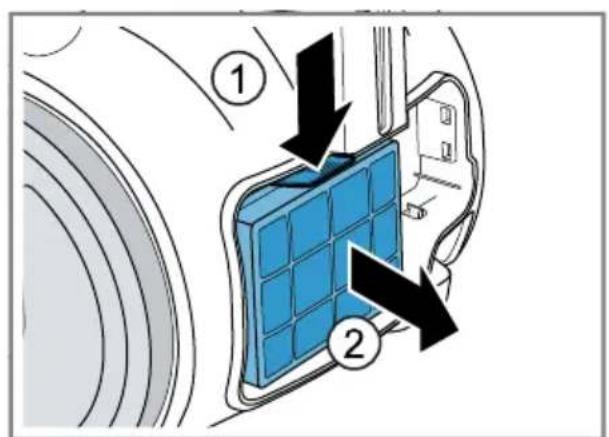

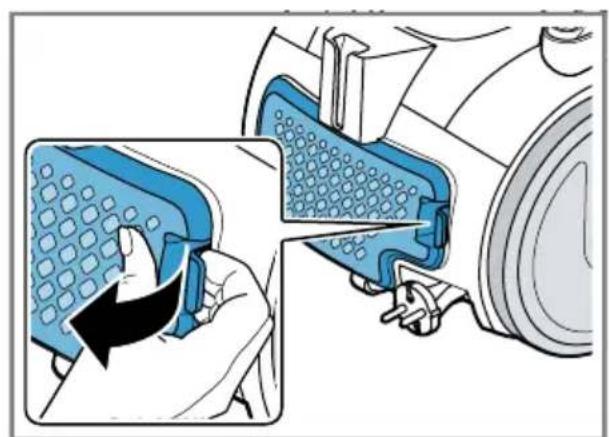

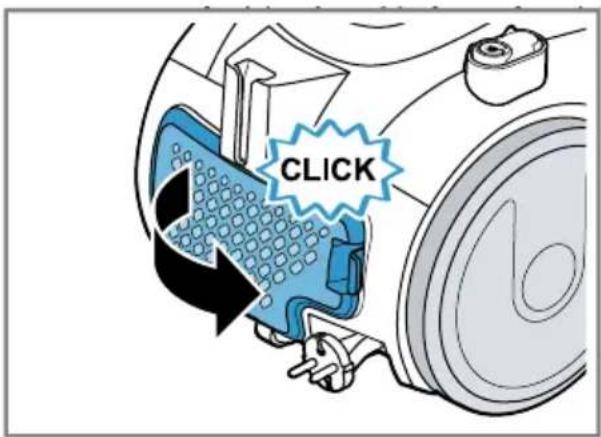

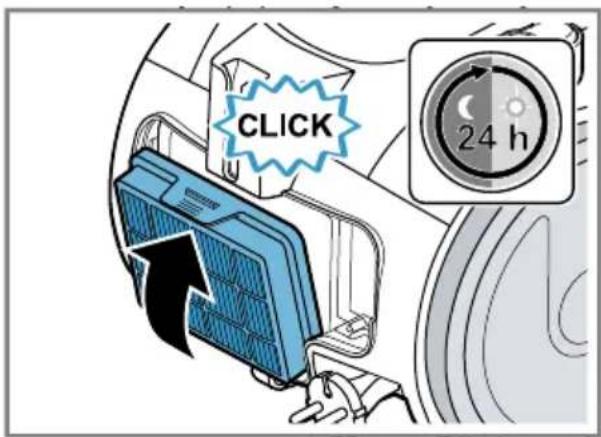

Cleaning the exhaust filter

→Fig. 40 - 45

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Suction is reduced. Nozzle, telescopic tube or hose are blocked.

1. Dismantle the appliance.

2. Remove the blockage.

Dust container is full

1. Check the fill level of the dust container.

2. Empty the dust container as needed.

Filter in the dust container is soiled.

1. Switch off the appliance.

2. Clean the filter in the dust container.

Exhaust filter is dirty.

▸ Clean the exhaust filter.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

Information on the Ecodesign Regulation

This vacuum cleaner is a household vacuum cleaner classed as a general purpose vacuum cleaner.

Use the interchangeable universal nozzle for cleaning carpets.

For cleaning hard floors, use the hard floor nozzle designed for cleaning hard floors and test crevices, if supplied.

The performance data for this appliance is based on the measurement and calculation methods specified in Regulation (EU)

No 666/2013 and the standards

EN 60312-1, EN 60704-2-1, EN 60335-2-2.

Sécurité

niques usagés (waste electrical and electronic equipment - WEEE).

▶ Ring service.→Sid. 42

e-mail: [e-mail]

Many thanks for choosing a Bosch home appliance!

Register your new appliance now on MyBosch and benefit directly from:

• Expert advice and tips to make the most of your appliance
• Options for warranty extension
  • Discounts on spare parts and accessories
• Digital information for use and all appliance data to hand
• Easy access to Bosch Home Appliance Service

Simple to register, free of charge – including on mobile devices: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Need some help? You can find it here.

Expert advice on your Bosch home appliances, help with problems or repairs by professionals from Bosch.

Discover all the different ways Bosch can assist you:

www.bosch-home.com/service

The contact details of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346320 (060224)

de, en, fr, it, nl, da, no, sv, fi, es, pt, pl, ru, ro, kk, uk
