Importante

in Spagna https://universal.bertazzoni.com/more/care-service

in Olanda https://nl.bertazzoni.com/zorg-en-service

in Svezia https://se.bertazzoni.com/more/care-service

in Danimarca https://dk.bertazzoni.com/more/care-service

Image containing three circular icons with symbols: a stylized eye, a black square with 'SAR' and a triangle, and a hand pointing to it.

Diagram showing three circular icons with symbols: a heart-shaped logo, a square with a heart symbol, and a finger pointing to it.

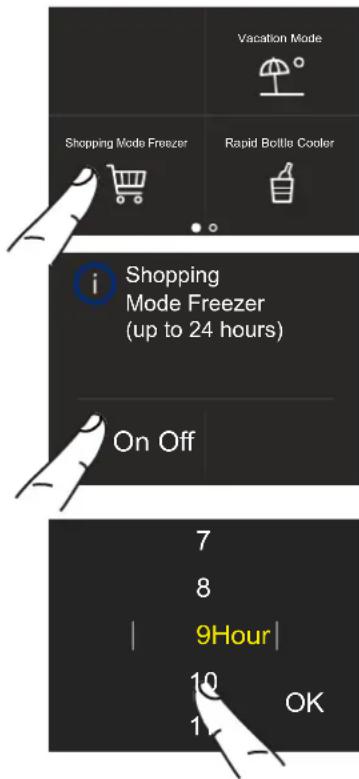

Vacanza Shopping Freezer Bottle Cooler i Shopping Freezer? On Off 7 8 90ra 10 1 OK

Vacanza Shopping Freezer Bottle Cooler

Vacanza Shopping Freezer Bottle Cooler

i Bottle Cooler? On Off

Dimensional cubetti Super Ice

Ice Maker On/Off Dimesione Cubetti Super Ice

Super Ice

7 8 Ora | 9 | 10 1 OK

Illustration of a hand holding a metal rod or lever against a vertical support (no text or symbols)

Diagram of a hand holding a metal shelf with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a pipe into a rack inside a cabinet (no text or symbols)

1.1 For your safety.... 2
1.2 Important information when using the appliance.... 2
1.3 Caring for the environment.... 4
1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present).... 4
1.5 Information for control bodies.... 5
1.6 To save energy.... 5

2 INSTALLATION 6

2.1 Installation.... 6
2.2 Connection to the water system.... 6
2.3 Connection to the electrical power supply.... 6
2.4 Refrigerant.... 6

3 BEFORE STARTING 7

3.1 Know your appliance.... 7
3.2 Main components 8
3.3 Electric Control.... 9
3.4 Main control panel.... 9

4 APPLIANCE SWITCHING ON AND OFF 10

4.1 Turning the appliance on and off.... 10
4.2 How to adjust the temperature for different requirements.... 11
4.3 Information signals of warning messages on the display.... 12

5 CUSTOMIZE FUNCTIONS AND SETTINGS 13

5.1 Functions.... 13
5.2 Settings.... 18

6 INTERNAL LAYOUT 24

6.1 Internal layout (positioning, adjustment, removal) 24

7 ACTIVATION AND USE OF THE ICE MAKER 25

7.1 Activation and use of the Ice Maker 25

7.2 Water filter for freezer column Ice Maker 25

8 LIGHTING 27

8.1 Lighting 27

9 FOOD STORAGE 27

9.1 General directions...... 27
9.2 How to best preserve food quality.... 29
9.3 Conservation Tips.... 29

10 CARE AND CLEANING 31

10.1 Care and Cleaning.... 31
10.2 Internal Cleaning.... 31
10.3 Cleaning of the toe kick cover and condenser.... 31

11 TROUBLESHOOTING GUIDE 32

11.1 Troubleshooting Guide.... 32
11.2 Error messages appearing on the display.... 34

12 WARRANTY AND SERVICE 35

1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.
The appliance is not designed to operate with external timers or with remote-control systems.
This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
This appliance is for refrigeration and conservation of fresh and frozen foods in the home. Every other use is considered inappropriate.
The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.
When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces.
Do not use any type of electrical equipment inside of the food conservation compartments.
When positioning the shelves, do not place fingers in the shelf slide guides.
Never attempt to extinguish a flame/fire with water: turn off the appliance and cover the flame with a fireproof blanket.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.
The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified Bertazzoni Service technician.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Plug into a grounded 2-prong Schuko outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.
Do not modify this appliance.
Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
Do not touch (especially with wet hands) frozen products or put them in your mouth directly.
Do not store inflammable, explosive or volatile substances.
Do not keep explosive substances, such as spray bottles with flammable propellants in the appliance.
Bottles containing strong alcoholic drinks must be tightly closed and stored vertically.
Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods.
Turn off the appliance and unplug it from the mains before cleaning or maintenance.
Do not pull the cable to unplug the appliance.

1.2 Important information when using the appliance

Cleaning and maintenance that should be performed by the user must not be carried out by unsupervised children.
Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Take care that no objects are stuck in the doors.

Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Explosion hazard!

Do not stand on or lean heavily against base of appliance, drawers or doors, etc.

Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.

Store high-percentage alcohol tightly closed and standing up.

Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.

Never cover or block the ventilation openings of the appliance.

According to current regulations, children between 3 and 8 years of age can take or load food from the appliance, but it is highly discouraged to allow children under 8 years of age to perform these operations and in general to use the appliance.

Keep children under the age of eight at a safe distance unless they are constantly supervised and make sure that they do not play with the appliance.

Do not use mechanical, electrical, chemical devices other than those recommended by the manufacturer to speed up the defrosting process.

Do not damage the cooling circuit (if it can be accessed).

Do not use electrical appliances inside food storage compartments unless these are of the type recommended by the manufacturer.

In the event of damage to the cooling circuit, avoid the use of naked flames and ventilate the area properly.

Do not use the appliance or parts of it in ways other than those specified in this manual.

Opening the door for long periods can cause the temperature in the appliance compartments to rise considerably.

Clean surfaces that may come into contact with food and accessible drainage systems regularly.

Store raw meat and fish in suitable containers in the freezer, so that it does not come into contact with other food or drip on it.

If the appliance is left empty for long periods of time, switch it off, thaw it, clean it, dry it and leave the door open to prevent the development of mould inside.

Never rest sharp metal objects such as knives, forks, spoons and lids on the appliance during use.

Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.

Do not sit on the appliance.

Do not sit or lean on the door or any open drawers.
Do not prize the door or handle to move the appliance.
Do not use electrical appliances (e.g. hair dryers) or sprays for defrosting, the plastic parts could be damaged.
Do not use the appliance to cool rooms for any reason.
Always unplug the appliance in the event of a fault or when performing cleaning or maintenance.
Do not keep liquids in tins or glass containers in the freezer.
Do not place heavy objects on the top of the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the appliance

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

This appliance conforms to the WEEE European directive (2012/19/EU) and must be disposed of separately from other waste at the end of its service life.
The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.
Pay special attention to correct disposal procedure for all the packaging materials.

Power voltage Danger of electrocution

Disconnect the mains power supply. Unplug the appliance.

The appliance must not be disposed of with urban waste. Contact local waste disposal centres for how to dispose of recyclable waste.

Prior to disposal, cut the power supply cord and make it impossible to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.
Our appliances are packaged in non-polluting and recyclable materials.
Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

Do not leave the packaging or any part of it unattended.

Do not let children play with the plastic bags.

1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)

Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the water dispensed.

When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" and discard the ice produced in the first 24 hours.
If the water dispenser has not been used for more than 4/5 days, it is advisable to clean the circuit and run off the first litre of water.
Reposition the removable water dispenser (if present), ensuring your hands are hygienically clean.
Clean the ice bucket or drawer regularly by using only drinking water.
The filter must be changed when indicated on the control panel or when the ice/water dispenser has not been used for more than 30 days.
With each filter replacement, sanitise the ice and/or water distribution system using a food grade disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials. Rinse with at least 2 litres of water before use.
Only original spare parts supplied by the manufacturer should be used when replacing components in the ice and water dispenser.
Any work on the appliance must be carried out by a qualified technician or the After-sales Service.

Warning

To avoid contamination of food, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.5 Information for control bodies

For EcoDesign checks, the installation and preparation of the appliance must comply with EN 62552 standard.
Ventilation requirements, dimensions and minimum space from the rear wall are indicated in the "Installation" chapter of this manual.
Contact the manufacturer for more information.

1.6 To save energy

Correct use of the appliance, correct packaging of foodstuffs, a constant temperature and food hygiene have effects on the quality of storage.
Reduce the number of times that the doors are opened and the length of time they remain open to prevent the compartments from heating up excessively.
Clean the condenser (if it can be accessed) at the rear of the appliance periodically to prevent the appliance from losing efficiency.
Defrost frozen food in the refrigerator compartment in order to make use of the cold stored in the frozen foods.

2.1 Installation

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.

Warning

Always connect the water before the power.

2.2 Connection to the water system

Technical illustration of a mechanical component with a coiled cable and flanged end (no text or symbols)

The models provided with Ice Maker require a connection to the domestic water supply system. This can be executed only through the provided new water hose with 1/4" threading.

The system pressure must be between 0.05 MPa and 0.5 MPa (between 0.5 bar and 5 bar).

Differences pressures can cause malfunctions or leaks in the water system. The appliance should be supplied only with drinkable water.

Warning

The appliance should be supplied only with drinkable water.

Warning

Make sure that installation is performed correctly, according to all of the directions in the specific installation manual provided with the appliance.

Warning

Do not attempt to use a locally sourced garden hose threaded adapter or braided supply line. It will strip the threads on the appliance water connection solenoid.

2.3 Connection to the electrical power supply

The appliance is equipped with a Schuko type 16A plug and must be connected to the electrical power supply through a corresponding Schuko socket.

Do not use extension cords and/or multiple adapters for the power supply connection.

Hand inserting a plug into an electrical socket (no text or symbols visible)

Important

Do not use extension cords and/or multiple adapters for the power supply connection.

Warning

If energy is supplied through an alternative energy power source (solar, geothermal, etc.) or if home automation systems are installed, it is necessary to install the Alternative Energy Kit to integrate the unit into the power grid.

2.4 Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged: - avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.

7010 W021

Caution:

risk of fire / flammable materials.

Important

Carry out transportation, installation and/or clearing with extra care so that no damage occurs to the refrigeration circuit.

3.1 Know your appliance

Congratulations for having purchased your new appliance: from now on you can use our innovative conservation system, which will allow you to keep any kind of beverage in the best way possible.

This manual will answer most of your questions about the product's features. Should you require further information or technical assistance, please refer to your dealer or visit our website:

in the UK https://uk.bertazzoni.com/more/care-service

in France https://fr.bertazzoni.com/customer-care

in Spain https://universal.bertazzoni.com/more/care-service

in the Netherlands https://nl.bertazzoni.com/zorg-en-service

in Sweden https://se.bertazzoni.com/more/care-service

in Denmark https://dk.bertazzoni.com/more/care-service

Before calling, write down the model type and serial number which are available on the rating plate, and any messages which may have appeared on the display.

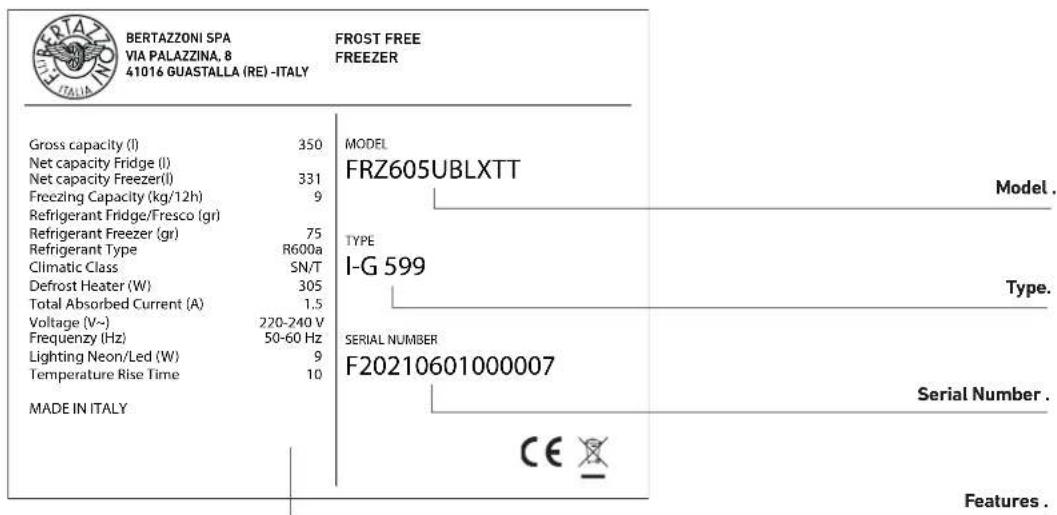

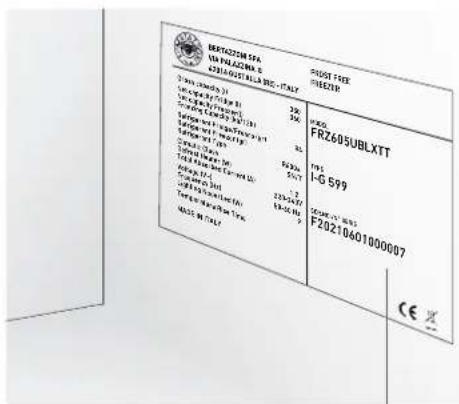

The rating plate is located into the appliance, on side cabinet, close to the shelves.

Before calling, please make sure to have the following information ready:

- Date of Purchase;

- Name of dealer where product was purchased.

BERTAZON SPA 100 PRAZONA 5 42300000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 S. 256, 128, 279 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 S. 256, 128, 279 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 mm x 1.5 S. 256, 128, 279 1.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 S. 256, 128, 279 1.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 mm x 2.5 S. 256, 128, 279 1.5 mm x 2.5 mm x 2.5 mm x 2,333,477 S. 256, 128, 279 1.5 mm x 2.5 mm x 2.5 mm x 2,333,477 S. 256, 128, 279 S. 256, 128, 279 S. 256, 128, 279 S. 256, 128, 279 S. 256, 128, 279 S. 256, 128, 279 S. 256, 128, 379 S. 256, 128, 379 S. 256, 128, 379 S. 256, 128, 379 S. 256, 128, 379 S. 256, 128, 379 S. 256, 128, S. 256, 128, S. 256, 128, S. 256, 128, S. 256, 128, S. 256, 128, S. 256, 128, S. 256, 128, S. 256, FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ371B4FZQ3

Position of the serial number inside the compartment.

BERTAZZONI SPA VIA PALAZZINA, 8 41016 GUASTALLA (RE) -ITALY FROST FREE FREEZER Gross capacity (l) 350 Net capacity Fridge (l) Net capacity Freezer(l) 331 Freezing Capacity (kg/12h) 9 Refrigerant Fridge/Fresco (gr) Refrigerant Freezer (gr) 75 Refrigerant Type R600a Climatic Class SN/T Defrost Heater (W) 305 Total Absorbed Current (A) 1.5 Voltage (V-) 220-240 V Frequency (Hz) 50-60 Hz Lighting Neon/Led (W) 9 Temperature Rise Time 10 MADE IN ITALY MODEL FRZ605UBLXTT TYPE I-G 599 SERIAL NUMBER F20210601000007 Serial Number . CE X Model . Type . Serial Number . Features .

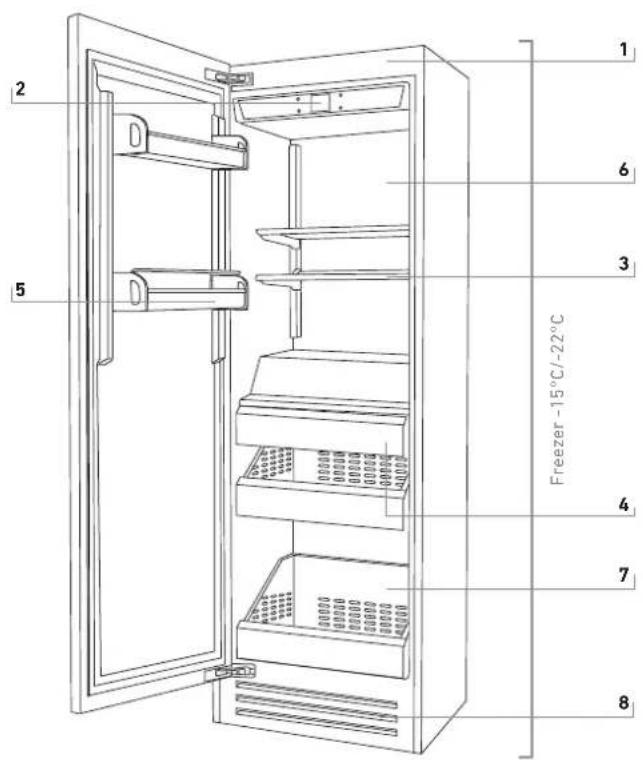

3.2 Main components

1 2 3 4 5 Freezer-15°C/-22°C 6 7 8

Freezer

1) Prepainted white aluminium structure.
2) Interactive control panel.
3) Adjustable height shelf.
4) Ice maker container.
5) Door bins.
6) LED illuminations.
7) Drawers in painted galvanized steel.
8) Removable toe kick.

3.3 Eletronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature in the entire compartment and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.4 Main control panel

⊕
△

△
←

On/Off

Touch the icon to turn the unit on or off.

Home

Touch the Home icon for going back to the main display screen.

Alarm

Touch the icon to view the alarm tone functions and to deactivate them.

Back

Touch the arrow icon for going back to the previous display screen.

4.1 Turning the appliance on and off

First time starting the unit

Touch the button Ⓞ. The display shows the following launch screens:

BERTAZZO ITALIA

1) Bertazzoni Logo.

Initial test... Functions Settings

2) Initial test (lasts 3 minutes).

3) The display shows the main screen with the environment temperature measured from the freezer inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures.

-18 °C Functions Settings

4) Home screen. - Freezer compartment -18°C (0°F)

When the appliance is first switched on it is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During such period deactivate any error message by pressing the Alarm button.

Shutdown

Image containing three circular icons with symbols: a white circular logo with 'TALIA' and a black square with 'WALA' and a triangle symbol, alongside a diagonal line and an arrow.

1) touch the bottom ☑ off.

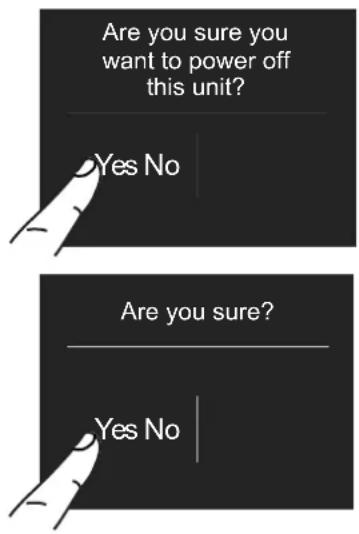

Are you sure you want to power off this unit? Yes No Are you sure? Yes No

2) Touch the icon Yes to switch off.

3) Confirm shutdown by touching the Yes icon.

When the freezer is off there are no warning signs that prove that the freezer is plugged to a socket.

Switching off for longer periods

During long absence periods it is recommended to switch off the freezer by pressing the Unit button ⏻ for three seconds and disconnecting the electrical plug or the breaker controlling the socket.

Completely empty the freezer, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

If at the first startup the Standby message does not appear, but another message appears, it means that the appliance has already started the cooling process.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.

4.2 How to adjust the temperature for different requirements

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings.

How it looks to the home screen:

Freezer compartment - 18 °C Preset temperature

Modify the temperatures compartment

How to modify the freezer compartment temperature.

- 18 °C Functions Settings

1) Home screen. Touch the icon ☐ of freezer compartement.

- 18 - 17 - 16 °C | - 15 - 14 OK

2) Scroll up/down to select the desided temperature

freezer from -15^ C to -22^ C (from 5^ F to -7^ F)

- 18 - 17 - 16 °C | - 15 - 14 OK

3) Touch the Ok icon to confirm the desired temperature.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.

6 to 12 hours are necessary to reach the selected temperature.

Padlock icon

The padlock icon shows up when the temperatures are set up.

The padlock open/close shows that the compartment's temperatures can or can not be modified by the user.

Usually a yellow padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm.

- 18 - 17 - 16 °C | - 15 - 14 OK

Whereas a closed padlock will be seen if the user has activated a function that modifies the settings of the freezer and prevents the user from changing the temperature of the compartment.

- 18 - 17 * | - 16 °C | - 15 - 14 OK

If the icon function is touched and a specific function is set (for example holiday, ect...), the yellow padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

4.3 Information signals of warning messages on the display

An integrated control system will give information through messages you will see on the display.

There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button ▲ on the main control panel.

You can find the list of the error messages at the end of this manual.

Image showing three circular icons with symbols: a white circle with 'BRYAN' text, two black circular icons with 'FROVATION' and 'WALO', and a hand pointing to a triangle symbol.

INFORMATION FOR THE USE OF THE DISPLAY

It is possible to personalize the operation of your Bertazzoni unit in order to adapt it to the different ways you might want to use it.

5.1 Functions

After touching the icon Functions 📄 on the home screen, the icons for the following functions will be shown.

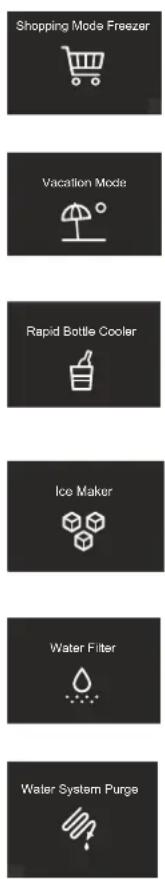

1) Shopping Mode Freezer

The function works at the maximum power level, without any break, from a minimum of 1 to a maximum of 12 hours, depending on time set, permitting more rapid freezing of food that has just been placed in the freezer. Once the time set is expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function.

After a prolonged interruption of power supply, it is necessary to reactivate the function.

1) Shopping Mode Freezer.
2) Vacation Mode.
3) Rapid Bottle Cooler.
4) Ice Maker.
5) Water filter.
6) Circuit cleaning.

- 18 °C Functions Settings

A) Home screen. Touch the Functions icon.

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler i Shopping Mode Freezer (up to 24 hours) On Off 7 8 9Hour 10 1 OK

B) Touch the icon Shopping Mode freezer.
c) Touch the On icon to activate the function.
D) Scroll up / down to setting the desired time and then press Ok.

2) Vacation Mode

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the freezer compartment temperature to -18^ C ( -0^ F)

It is possible to program the duration, or it can be manually deactivated upon return after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

It is possible to program a period from 1 to 90 days.

3) Rapid Bottle Cooler

This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment.

It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached.

After removing the beverages, deactivate the sound signal by pressing the Alarm button △.

-18 °C Functions Settings

A) Home screen. Touch the Functions icon.

- 18 °C Functions Settings

A) Home screen. Touch the Functions icon.

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

B) Touch the Vacation Mode icon.

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

B) Touch the Rapid Bottle Cooler icon.

i Vacation Mode On Off

C) Touch the button On to activate the function.

i Rapid Bottle Cooler On Off

c) Touch the button On to activate the function.

Day | 7 8 9 10 11 OK

D) Scroll up / down to set the desired time (in days) and then press Ok.
It is possible to program a period from 1 to 90 days.

35 36 37Min 38 39 OK

D) Scroll up / down to set the desired time (in minutes) and then press Ok.

4) Ice Maker activation

A pre-rinse of the water circuit should be performed before activating the Ice Maker for the first time. After a few minutes the Ice Maker can be activated.

Important

Do not activate the Ice Maker unless the appliance is connected to the water line.

4a) Set Ice cube Size - SuperIce

The IceMaker function permits selecting the size of the ice cubes, by choosing between Large (base setting) or Medium, and activation of the SuperIce function, which increases the quantity of produced ice.

The SuperIce function deactivates automatically after 24 hours.

-18 °C Functions Settings

A) Home screen. Touch the Functions icon.

- 18 °C Functions Settings

A) Home screen. Touch the Functions icon.

Ice Maker Water Filter Water System Purge

B) Scroll twice right and then touch the icon Ice Maker.

Ice Maker Water Filter Water System Purge

B) Scroll twice right and then touch the Ice Maker icon.

Set Cube Size Superice

C) Touch the Set Cube Size icon. The default cube size is "medium".

Ice Maker Yes No

C) Touch the button Yes to activate the ice maker.

Set Cube Size Medium Large

D) Touch the Medium/Large icon to choose the desired Set Cube Size.

Ice Maker On/Off Set Cube Size Superice

E) If you would like to increase the production of ice, touch the Superice icon, this will enable the freezer to produce more ice, up to 1,3kg a day.

Superice

F) Confirm the function or not by touching the On or Off button.

5) Water Filter Activation

The water filter is essential for the purification of the water used for making ice, for cleaning the circuit or for supplying water for the freezer compartment. The display permits visualizing the time left before the filter needs to be replaced. The water filter Remider has to be activated by the user.

5a) Water Filter Deactivation

To deactivate an active filter reminder follow these steps:

- 18 °C Functions Settings

A) Home screen. Touch the Functions icon.

-18 °C Functions Settings

A) Home screen. Touch the Functions icon.

Ice Maker Water Filter Water System Purge

B) Scroll once right and then touch the Water filter icon.

Ice Maker Water Filter Water System Purge

B) Scroll once right and then touch the Water filter icon.

Water Filter Are you sure? On

C) Confirm the function by touching the On button.

Water Filter Next Reminder... Left Xxx Days Off Reset

c) Push Off to deactivate Water Filter Reminder.

Water Filter Enable reminder countdown timer? Yes No

D) Confirm the function by touching the Yes button.

Water Filter Disable reminder? Yes No

D) Confirm the function by touching the Yes button.

Water Filter Status Next reminder... Left 365 days

E) Indicates the remaining days before the replacement due date of the filter.

Touch the home button △.

5b) Reset Filter

The Reset Filter function sets to zero the time left before the filter needs to be replaced. It is necessary to set the reminder function to zero each time the cartridge is replaced.

6) Manual Clean, Water Filter

If ice production has been disabled or unused for a long period it is recommended to perform a Manual Clean function.

Before proceeding it is important to turn off the ice maker.

- 18 °C Functions Settings

A) Home screen. Touch the Functions icon.

-18 °C Functions Settings

A) Home screen. Touch the Functions icon.

Ice Maker Water Filter Water System Purge

B) Scroll once right and then touch the Water Filter icon.

Ice Maker Water Filter Water System Purge

B) Touch the Water System Purge icon.

Water Filter Next Reminder... Left Xxx Days Off Reset

c) Touch the Reset button.

Manual Clean Yes No

C) Touch the Yes icon to activate the manual cleaning.

Water Filter Reset reminder countdown? Yes No

D) Touch the Yes button to proceed.

Manual Clean Please wait...

D) Please wait...

Water Filter Status Next reminder... Left 365 days

E) The countdown to the next water filter cartridge replacement will be indicated.

Manual Clean Start Cleaning Enter

E) Touch the Enter icon to start the cleaning.

Push Home button △ to go back to the main screen or push "Yes" to deactivate filter reminder.

Manual Clean Cleaning running

F) Cleaning running...

Cleaning completed Empty water from ice bin. Replace ice bin and press OK.

G) At the end of the cleaning, press Ok and empty water from ice bin.

Cleaning completed Please wait...

H) Wait a few seconds for the main menu screen to appear.

Repeat the cleaning steps until the water in the freezer tray is clean.

Place a water container or vessel under the ice tray to capture any water then close the drawer.

Bypass filter

The included filtration system can be bypassed when excellent water quality is available from the home water system. You can simply remove the water filter from the adapter and the system will automatically bypass the cartridge.

5.2 Settings

It is possible to personalize the settings of your Bertazzoni freezer for adapting it to the different ways you might want to use it.

1) Date.

2) Time.

3) Celsius or Fahrenheit.

4) Language.

5) Sabbath.

6) Reset.

7) Demo Mode.

8) Maintenance.

9) Service.

10) Info System.

1) Date

The display will show the date in the format (day:month:year).

By touching the display you can modify the settings.

2) Time

The display shows the hours and minutes in the format hh:mm.

This function selects the display at 12 or 24 h.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Date Time 1 'c / 'l Language

C) Scroll up or down until the desired year appears and press Ok.

7 8 9Month 10 11 OK

D) Scroll up or down until the desired month appears and press Ok.

7 8 Day | 9 | 10 1 OK

E) Scroll up or down until the desires date appears and press Ok.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Date Time 1 °C / °T Language

C) Touch the desired method which you want the time to display: 12 hour or 24 hours.

7 8 Hour | 9 | 10 1 OK

D) Scroll up / down to set the hour and then press Ok.

35 36 37Min 38 3 OK

E) Scroll up / down to set the minutes and then press Ok.

3) Set °C/°F

This function allows the temperature to be displayed in Centigrade or Fahrenheit. The factory setting is in Centigrade.

4) Language

To set the language of the freezer, simply touch the settings button on the display.

-18 °C Functions Settings

A) Home screen. Touch the Settings icon.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Date Time 1 °0 / °1 Language

B) Touch the icon °C/°F.

Date Time 1 "c / 'f Language

B) Touch the Language icon.

°C °F OK

C) Scroll up / down to select either Centigrade or Fahrenheit degrees and press Ok.

Italiano English Français Español Du OK

C) Scroll up / down to select the desired language and press Ok.

5) Sabbath Mode

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be affected by the opening or closing of the doors. The thermostatic control, inner lighting and ice maker are deactivated.

6) Reset

It gives the possibility to restore the base settings that were set in the factory, cancelling all the changes that has been made from there onward.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Sabbath ResetDemo

B) Scroll right twice and touch the Sabbath icon.

Sabbath ResetDemo

B) Scroll right twice and touch Reset icon.

i Confirm Sabbath Mode Yes No

C) Touch the Yes button to activate the function.

i Confirm resetting to factory default settings? Yes No

C) Touch the Yes button to confirm the selection of the resetting of factory default settings.

Sabbath Mode Yes No

D) Touch the Yes button to activate the function.

Reset YesNo

E) The freezer will work accordingly to this configuration.

Reset Reset complete

E) The reset has been performed. The freezer's factory settings have been restored.

7) Demo Mode

It is possible to simulate the functioning of the freezer, for showroom display or for trade shows.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Sabbath ResetDemo

B) Scroll right twice and touch Demo icon.

i Turn Demo Mode On? (no cooling) Passcode required Yes No

c) Touch Yes.

Demo Mode 1 2 3 4

D) Insert the password for the activation.

Default password 1-2-3-4

Demo Mode Yes No

8) Maintenance (through alarm sign)

For the entire unit to function as designed, it is important to periodically clean the access toe-kick cover and the condenser.

The default setting of the unit is "Warning disabled".

The required cleaning every 6 months is denoted by an audible and visual message on the display.

For details see following pages.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Maintenance Service Info System

B) Scroll to the right three times and touch the Maintenance icon.

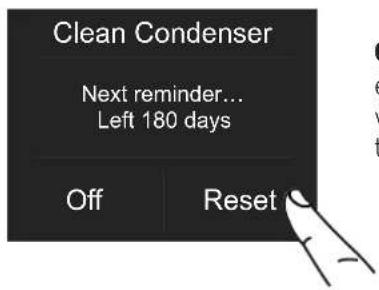

Clean Condenser Next reminder... Left 180 days Off Reset

C) If you want to enable the warning touch the icon reset.

Clean Condenser Enable reminder countdown timer? Yes No

D) To enable it, touch the Yes icon.

If you want to disable the reminder, at step C touch Off, then touch Yes as below

Clean Condenser Disable reminder? Yes No

E) To disable the warning, touch the yes button.

10) Info System

The Info System function shows the product data, for example the software code, serial number and the factory code of the freezer.

- 18 °C Functions Settings

A) Home screen. Touch the Settings icon.

Maintenance Service Info System

B) Touch the Info System icon.

Sk Power HW: 0504 SW: 0518 Sk User HW: 1002 SW: 1069 - G1011

C) The display will show the data specific to the appliance.

9) Service

The service function is reserved for the authorized Bertazzoni after sales service technician.

6.1 Internal Layout (positioning, adjustment, removal)

Ice Tray

Located in the upper drawer of the freezer compartment.

after removal, make sure to reposition it correctly.

Warning

Do not place hands or fingers near the Icemaker when in function.

Shelves

The shelves are sliding and can be easily re-positioned by the user as follows:

hold the shelf at the sides and push it upwards to detach from the side rails, then pull it outwards.

lift or lower the shelf to the desired position.

Line drawing of a hand holding a tool interacting with a vertical rod (no text or symbols)

to remove a shelf it is necessary to slide it up to the top.

Line drawing of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Door bins

The door bins can be easily removed for cleaning

Hold the door bin at the sides and push it upwards to detach from the side rails, then pull it outwards.

Reverse the procedure to reinstall.

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

7.1 Activation and use of the Ice Maker

Note

If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days.

It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller.

The Icemaker automatically deactivates if the Vacation function is activated.

When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice.

If the equipment has been switched off for a month or more, it is recommended to perform a water and filter cleaning cycle.

Warning

The ice maker will continue to operate even when the ice bin is not in position

To activate the Ice Maker after installation of the appliance touch the function icon and then and then the ice maker icon from the functions.

Please note that 12 to 24 hours are necessary before ice production may begin.

The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.

The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening.

If the appliance is operating without being connected to the water system, make sure that the Icemaker is deactivated by toch the icon.

The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.

With the SuperIce function, it is possible to increase the quantity of ice produced within 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

Do the ice cubes have an unusual odour?

Ice is a porous material which can absorb odours from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odours, stick together and slowly become smaller.

We recommend that old ice cubes not be used. Other means of preventing odors:

The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.
Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.
The water filter may have to be replaced in some models.
In some cases the quality of the water connection in the house should be checked.

Operating noises

Quite normal noises

Grumbling: the appliance unit is running. Fan in the recirculating air system is running.
Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.

Warning

Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

7.2 Water filter for freezer column Ice Maker

Freezer columns equipped with automatic ice-makers include an externally mounted water filter kit.

The water filter manifold and waterline connections must be installed in conjunction with the freezer as the waterline connecting the back of the appliance to the filter kit must be in place before installing the unit.

The filter kit should be installed in an accessible location (such as an adjacent cabinet) to allow for the water filter cartridge to be changed annually. If you choose not to use the water filter (such as connecting the appliance to an already filtered water source) then it is suggested to also set the function Water Filter through the icon ,touch the icon reset and disable the warning to avoid receiving reminders to change the filter (that you are not using).

8.1 Lighting

Pure electrical circuit lines without any symbols

To provide optimum interior lighting, LED strips illuminate the freezer compartment from the side and sets of LED lights directly illuminate different areas of the compartment.

In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Bertazzoni Service technician.

9.1 General directions

Your appliance is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent appliance. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect state of preservation. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.

When in doubt, throw the food away.

Freezer from -15°C to -22°C (from 5°F to -7°F)

9.2 How to best preserve food quality

When buying groceries

Always take the following precautions:

Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.

When placing foods in

To keep food in the freezer is a good idea to use freezer containers.
Label and date the packages.
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

Warning

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button will continue to blink.

Press the Alarm button ⚙️ to display the highest recorded temperatures.

9.3 Conservation Tips

Temperatures

The appliance working temperatures are set at the recommended degrees of -18^ for the freezer.

Freezer compartment

The type of food, quantity and date of freezing should be marked on the container/packaging.

Use small containers, if possible already cold.
The quantity of fresh foods which can be frozen at the same time is listed on the nameplate inside the freezer compartment.
Use suitable freezer bags, tinfoil, cling-film for use with food, and freezer containers.
Do not use paper bags, cellophane for nonfood use, shopping bags or pre-used freezer bags.
Avoid frozen food coming into contact with fresh food to be frozen.
Keep bagged frozen vegetables, ice, ice cream etc.

FROZEN FOODS PRESERVATION AREA TIME

Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months

Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months

Ground beef Freezer Compartment 1-2 months

Pork Freezer Compartment (Without bones) 4-6 months

Pork Freezer Compartment (With bones) 2-3 months

Ground pork Freezer Compartment 1-2 months

Meat leftovers Freezer Compartment 2-3 months

FROZEN FOODS PRESERVATION AREA TIME

Whole chicken and turkey Freezer Compartment 8-12 months

Goose, duck and pheasant Freezer Compartment 4-8 months

Fish Freezer Compartment 1-2 months

Shellfish Freezer Compartment 2-3 months

Cooked food Freezer Compartment 1-2 months

Vegetables Freezer Compartment 8-12 months

Fruit Freezer Compartment 6-12 months

Desserts and cakes Freezer Compartment 2-3 months

10.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Carefully follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Warning

Do not use chlorine-based detergents or cleaning agents.

10.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Warning

Do not use water on the electrical parts, lights and control panel.

Warning

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the appliance in a dishwashing machine since this could damage or irreparably deform the parts.

10.3 Cleaning of the toe kick cover, filter and condenser

It is recommended to perform the following cleaning steps very 6 months. An audio and visual message on the display will serve as a reminder.

It is possible to disable the warning signal and see the time left before the next cleaning has to be done.

Behind the frontal toe kick cover there is the condenser.

To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter.

On the maintenance settings,

after the

installation of the unit and after it has been turned on, you can set the condenser cleaning warning.

In the case the warning sign is enabled, there will be an audible signal every 6 months, alerting that it is time to clean the condenser.

After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months.

If you do not want the cleaning signal alert for the condenser, touch the Off icon.

Lower condenser.

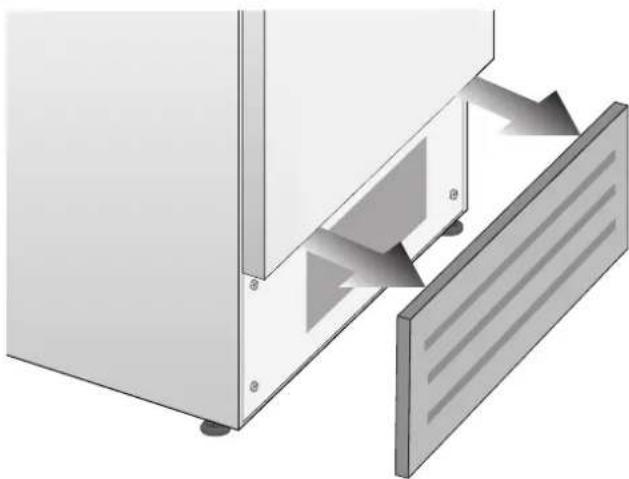

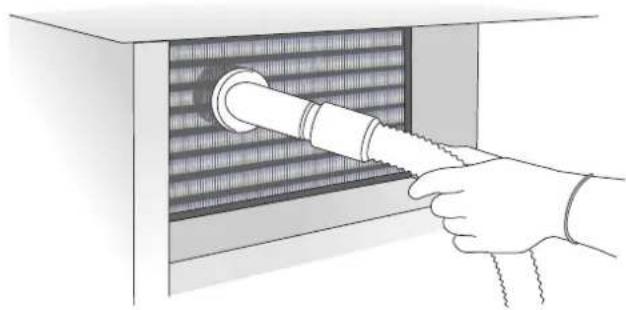

For cleaning the condenser follow the instructions:

Switch off the appliance by pressing the Unit button ⏻ on the main control panel for approx 3 seconds.
Wait approx 30 minutes, until the finned condenser cools down to room temperature.
Remove the removable grille under the door.

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it.

Illustration of a hand inserting a cylindrical tube into a rack inside a cabinet (no text or symbols)

Restart the unit again, pressing on the unit button ⏻ for three second.

Warning

The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

11.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Display message and audible alarms.

A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours.

The freezer does not work.

Is the appliance connected to the electrical power supply? Is electrical power available at the electricity socket? Is the Unit button ● activated? Is the unit in 'Demo' Mode?

The freezer is warmer than usual.

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted? Is the unit in 'Demo' Mode?

The appliance remains in function for a long time period.

Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.
Is one or more compartments in Shopping Mode?

If you hear unusual noises.

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more noticed depending on the position of the appliance and the surrounding environment.

Condensation inside and outside of the freezer.

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always completely closed.

Ice or frost build up inside the freezer.

Did you leave the doors open for a long period of time?

Do the doors close completely?

If the doors do not close completely, contact your installer.

The doors are difficult to open.

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working.

Check to see if the appliance was accidentally placed into Sabbath Mode

The Ice Maker does not work.

Make sure that the Ice Maker is on (icon 📁).

To switch on the Ice Maker press the button.

Make sure that the appliance is connected to the water supply.

The Ice Maker does not produce sufficient amounts of ice.

On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours.

The ice cubes freeze into one block.

If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again.

The ice has an unusual flavour or colour.

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.

If the freezer was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.

Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply.

If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your point of purchase for assistance with disabling this feature.

11.2 Error messages appearing on the display

Display message Malfunction description

Power Failure!!	Prolonged interruption of electrical powerthe appliance resumes work automatically, the display shows the warmest temperatures achieved
Door Unit OPEN	Unit door openthe message appears after few minutes from the door opening
Replace filter	Replace filter cartridgemessage appears when only 30% of filter capacity is left
Error Code...	Functional problemscall Customer Care who may help you to solve the problem or put you in contact with the nearest Service Agent may help you solve the problem
Check condenser	Check CondenserEvery 6 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser.

In case of errors, touch the button Alarm ▲ and the display will show the error message with its error number code.

The message will be shown for 3 seconds, then it will go back to the home screen.

For blocking the message on the screen, press on the display, the button info (i). The message will be on the screen for 30 seconds, then it will go back to the home screen.

In the case there is more than one error message, the display will show in time sequence the different error messages.

E. BERTAZZO ITALIA

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at:

https://uk.bertazzoni.com/more/care-service

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.

1 NOTES IMPORTANTES POUR LA SÉCURITÉ ET L'ENVIRONNEMENT 2

Technical illustration of a mechanical connector assembly (no text or symbols)

Hand inserting a plug into a wall socket (no text or symbols visible)

Important

REFRZ023M SPC SPLRILIZZEN 6 43816301914 2nd class 31 for the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: 31 the following: FRZ605UBLXTT 1999 I-G 599 F20210601000007 CE

Image containing three circular icons with symbols: a circular seal, a diagonal line with '1' at the bottom-left, and a black circular seal with 'SUNION' on top-right.

Image showing a circular logo with 'BRA' and a square containing a heart symbol, alongside a hand gesture with arrows indicating movement.

INFORMATIONS POUR L'UTILISATION DE L'ÉCRAN

i Congélateur Shopping QuiNon

Heure? 12 24

Illustration of a hand using a tool to lift a curved surface, no text or symbols present

Illustration of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with numbered components (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Diagram of a door mechanism with arrows indicating movement or force, showing no text or symbols present.

Illustration of a hand inserting a cylindrical tube into a rack inside a cabinet (no text or symbols)

Technical illustration of a mechanical component with two parts, one showing a flanged end and the other a bolted joint (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Importante

Image containing three circular icons with partial text and symbols: a circular seal, a diagonal line with 'a' at the bottom-left, and a black circular seal with 'A' and a triangle symbol on the right.

Image showing a hand gesture with icons and symbols, including a circular emblem, a heart symbol, and a triangle pointing to it.

Line drawing of a hand holding a tool interacting with a vertical rod (no text or symbols)

Illustration of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Diagram of a door frame with an open door and slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a cylindrical tube into a wall-mounted air vent (no text or symbols)

https://universal.bertazzoni.com/more/care-service

11 GIDS VOOR PROBLEEMOPLOSSING 32

Technical illustration of a mechanical connector assembly (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Belangrijk

in Spanje https://universal.bertazzoni.com/more/care-service

in Zweden https://se.bertazzoni.com/more/care-service

in Denemarken https://dk.bertazzoni.com/more/care-service

Image containing a logo, stylized 'SMA' seal, a triangular ruler, and a circular emblem with text and symbols.

Image showing three circular icons with symbols: a heart-shaped logo, a stylized 'SUNA' logo, and a hand gesture pointing to it.

INFORMATIE VOOR HET GEBRUIK VAN HET DISPLAY

- 18 °C Functions Settings

i Rapid Bottle Cooler On Off

Line drawing of a hand holding a tool interacting with a vertical panel (no text or symbols)

Illustration of a hand holding a metal object with arrows indicating motion or force direction (no text or symbols)

Deurvakken

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Vriescompartiment (steaks) 6-12 maanden

Diagram of a door frame assembly with mounting holes and a slatted panel (no text or symbols)

Illustration of a hand inserting a cylindrical tube into a rack-mounted air vent (no text or symbols)

Technical illustration of a mechanical connector assembly (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Viktigt

Initial test... Functions Settings

2) Starttest (tar tre minuter).

-18 °C Functions Settings

4) Startsidan. - Frysfack - 18 °C (0 °F)

Image containing three circular icons with partial text and symbols: a circular seal with 'SIA' and a diagonal line, a black circular seal with 'SIA' and a triangle, and an arrow pointing left.

Are you sure you want to power off this unit? Yes No

Are you sure? Yes No

- 18 °C Functions Settings

Diagram showing three symbols: a circular seal with 'BRAZUK' and two circular icons with arrows pointing to a finger.

INFORMATION FÖR ANVÄNDNING AV SKÄRMEN

Shopping Mode Freezer Vacation Mode Rapid Bottle Cooler Ice Maker Water Filter Water System Purge

1) Frysens shoppingläge.
2) Semesterläge.
3) Snabb flaskkylare.
4) Ismaskin.
5) Vattenfilter.
6) Rengöring av kretsen.

- 18 °C Functions Settings

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler i Shopping Mode Freezer (up to 24 hours) On Off 7 8 9Hour 10 1 OK

- 18 °C Functions Settings

-18 °C Functions Settings

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

i Rapid Bottle Cooler On Off

7 8 Day | 9 | 10 1 OK

- 18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Yes No

-18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Set Cube Size Superice

Set Cube Size Medium Large

Ice Maker On/Off Set Cube Size Superice

- 18 °C Functions Settings

- 18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Water Filter Water System Purge

Water Filter Are you sure? On

Water Filter Next Reminder... Left Xxx Days Off Reset

Water Filter Enable reminder countdown timer? Yes No

Water Filter Status Next reminder... Left 365 days

- 18 °C Functions Settings

-18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Water Filter Water System Purge

Water Filter Next Reminder... Left Xxx Days Off Reset

Water Filter Reset reminder countdown? Yes No

Manual Clean Please wait...

Water Filter Status Next reminder... Left 365 days

Manual Clean Start Cleaning Enter

Manual Clean Cleaning running

Cleaning completed Empty water from ice bin. Replace ice bin and press OK.

Cleaning completed Please wait...

- 18 °C Functions Settings

- 18 °C Functions Settings

7 8 Hour | 9 | 10 1 OK

7 8 Day | 9 | 10 1 OK

-18 °C Functions Settings

- 18 °C Functions Settings

- 18 °C Functions Settings

-18 °C Functions Settings

Confirm resetting to factory default settings? Yes No

- 18 °C Functions Settings

i Turn Demo Mode On? (no cooling) Passcode required Yes No

c) Rör Ja.

- 18 °C Functions Settings

Maintenance Service Info System

Clean Condenser Enable reminder countdown timer? Yes No

- 18 °C Functions Settings

Maintenance Service Info System

B) Rör symbolen Systeminformation.

Sk Power HW: 0504 SW: 0518 Sk User HW: 1002 SW: 1069 - G1011

Illustration of a hand holding a tool interacting with a vertical panel (no text or symbols visible)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Dörrhyllor

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Freezer from -15°C to -22°C (from 5°F to -7°F)

Diagram of a door frame with an open door and slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a cylindrical tube into a rack-mounted panel (no text or symbols)

https://SE.bertazzoni.com/more/care-service

4 TÆNDING OG SLUKNING AF APPARATET 10

Technical illustration of a mechanical connector assembly (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Vigtigt

i UK https://uk.bertazzoni.com/more/care-service

i Frankrig https://fr.bertazzoni.com/customer-care

i Spanien https://universal.bertazzoni.com/more/care-service

i Holland https://nl.bertazzoni.com/zorg-en-service

i Sverige https://se.bertazzoni.com/more/care-service
i Danmark https://dk.bertazzoni.com/more/care-service

Initial test... Functions Settings

2) Initial test (varer 3 minutter).

- 18 °C Functions Settings

Image containing three circular icons with symbols: a circular seal, a diagonal line with 'a' at the bottom-left, and a black circular seal with 'A' and a triangle symbol on the right.

Are you sure you want to power off this unit? Yes No

Are you sure? Yes No

- 18 °C Functions Settings

Image showing a hand gesture with three circular icons and symbols, including a heart symbol and a triangle symbol.

INFORMATIONER FOR BRUGEN AF DISPLAYET

Shopping Mode Freezer Vacation Mode Rapid Bottle Cooler Ice Maker Water Filter Water System Purge

- 18 °C Functions Settings

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler Shopping Mode Freezer (up to 24 hours) On Off

- 18 °C Functions Settings

-18 °C Functions Settings

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

B) Tryk på ikonet Vacation Mode.

Vacation Mode Shopping Mode Freezer Rapid Bottle Cooler

i Rapid Bottle Cooler On Off

c) Tryk på knappen On, for at aktivere funktionen.

7 8 Day | 9 | 10 1 OK

- 18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Yes No

-18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Set Cube Size Superice

Set Cube Size Medium Large

Ice Maker On/Off Set Cube Size Superice

- 18 °C Functions Settings

- 18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Water Filter Water System Purge

Water Filter Are you sure? On

Water Filter Next Reminder... Left Xxx Days Off Reset

Water Filter Enable reminder countdown timer? Yes No

Water Filter Status Next reminder... Left 365 days

- 18 °C Functions Settings

-18 °C Functions Settings

Ice Maker Water Filter Water System Purge

Ice Maker Water Filter Water System Purge

Water Filter Next Reminder... Left Xxx Days Off Reset

Water Filter Reset reminder countdown? Yes No

Manual Clean Please wait...

D) Vent venligst...

Water Filter Status Next reminder... Left 365 days

Manual Clean Start Cleaning Enter

Manual Clean Cleaning running

Cleaning completed Empty water from ice bin. Replace ice bin and press OK.

Cleaning completed Please wait...

- 18 °C Functions Settings

- 18 °C Functions Settings

7 8 Month | 9 | 10 11 OK

7 8 Hour | 9 | 10 11 OK

7 8 Day | 9 | 10 1 OK

E) Rul op eller ned, indtil den ønskede dato vises, og tryk på Ok.

35 36 Min | 37 | 38 3 OK

E) Rul op/ned for at indstille minutter og tryk derefter på ok.

5. TILPASNING AF FUNKTIONER OG INDSTILLINGER

3) Set °C/°F

-18 °C Functions Settings

- 18 °C Functions Settings

- 18 °C Functions Settings

- 18 °C Functions Settings

i Confirm resetting to factory default settings? Yes No

- 18 °C Functions Settings

c) Tryk på Ja.

Demo Mode 1 | 2 3 | 4

D) Indtast adgangskoden for aktivering.

Standard adgangskode 1-2-3-4

Demo Mode Yes No

- 18 °C Functions Settings

Clean Condenser Enable reminder countdown timer? Yes No

D) For aktivering, tryk på ikonet Ja.

Hvis du vil deaktivere påmindelsen, skal du ved trin C trykke på Off og derefter trykke på Ja, som vist nedenfor.

Clean Condenser Disable reminder? Yes No

- 18 °C Functions Settings

Maintenance Service Info System

Illustration of a hand holding a tool interacting with a vertical rod (no text or symbols visible)

Illustration of a hand holding a metal bracket with arrows indicating force or movement (no text or symbols)

Dørbeholdere

Technical line drawing of a mechanical component with numbered callouts (1, 2) and directional arrows, no readable text or symbols.

Pure electrical circuit lines without any symbols

Freezer from -15°C to -22°C (from 5°F to -7°F)

Diagram of a door frame with an open door and a slatted panel, showing structural components without any text or symbols.

Illustration of a hand inserting a pipe into a ventilation duct (no text or symbols)

Genstart enheden igen, tryk på knappen enhed i tre sekunder.

Advarsel

https://DK.bertazzoni.com/more/care-service
