USER MANUAL Mondo Dual Blumfeldt
QR code image containing encoded data, no visible human-readable textDear Customer,
Congratulations on purchasing this product. Please read the following
instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Estimado cliente,
Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom
LIEFERUMFANG
Scope of delivery | Volumen de suministro | Contenu de la livraison | Dotazione di fornitura
| A | ![]() | 4 | P | ![]() | M6*75 | 16 |
| B | ![]() | 4 | Q | ![]() | M6*35 | 16 |
| C | ![]() | 8 | Q1 | ![]() | M6*25 | 8 |
| D | ![]() | 4 | R | ![]() | M6*16 | 12 |
| E | ![]() | 4 | S | M6 | M6 | 64 |
| F | ![]() | 4 | T | M6 | M6 | 60 |
| G | ![]() | 1 | U | M6 | M6 | 64 |
| H | ![]() | 4 | V | M6 | M6 | 1 |
| J | M6 | 16 | V1 | M6 | M6 | 1 |
| K | M6 | 4 | W | M6 | M6 | 4 |
| L | M6 | 4 | W1 | M6 | M6 | 4 |
| M | M6 | 32 | X | M6 | M8 | 8 |
| N | M6*60 | 8 | Y | M6 | M6 | 8 |
| O | M6*60 | 4 | Z | M6 | M6-M8 | 2 |
Assembly | Ensamblaje | Assemblée | Assemblaggio
1


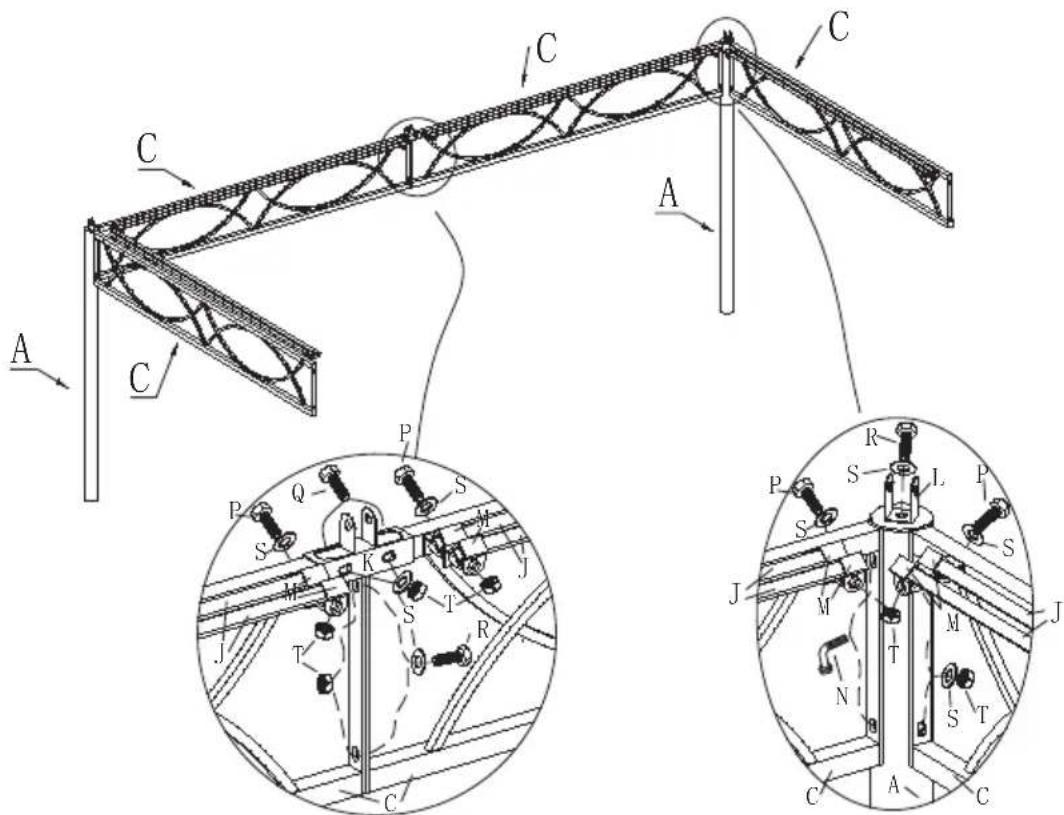

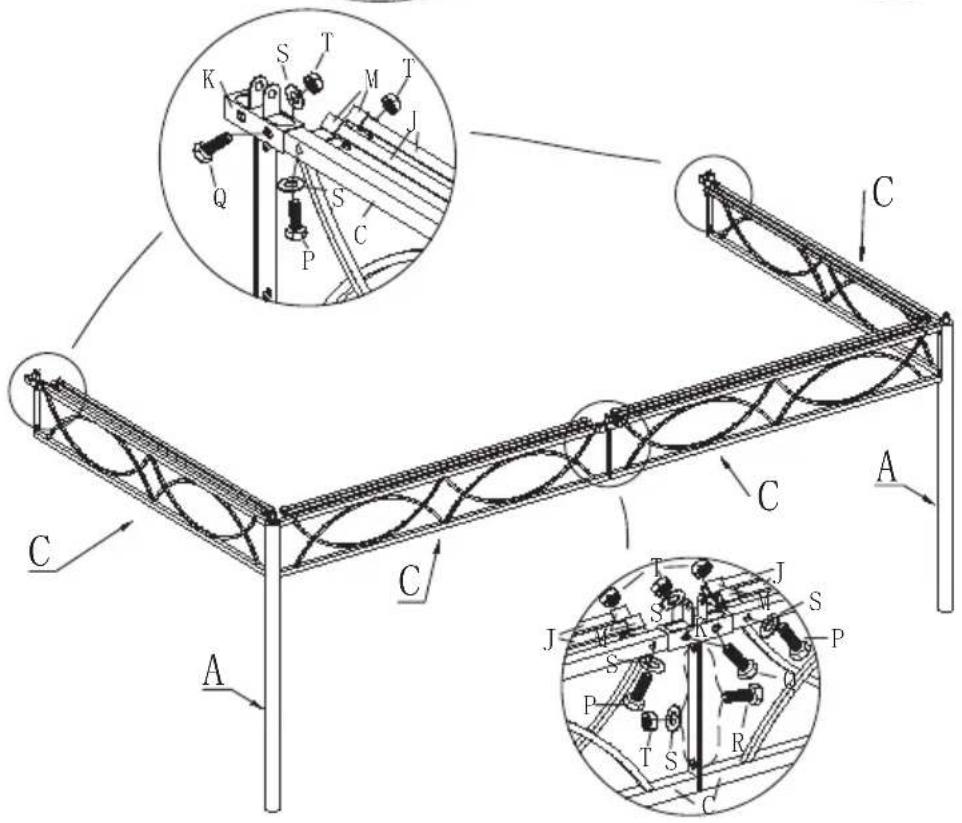

Technical diagram of a mechanical truss structure with labeled components and cross-sectional views2


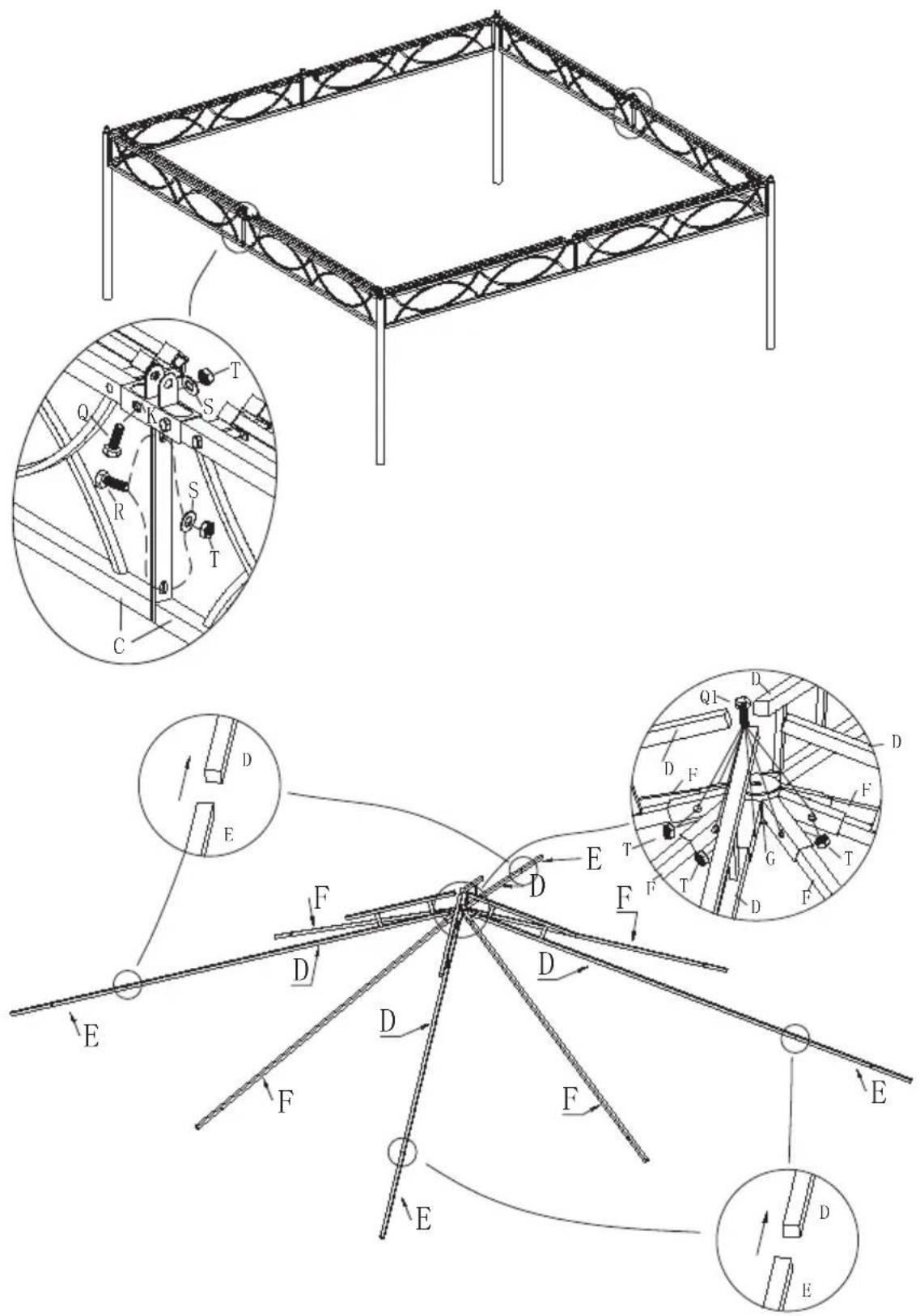

Technical diagram of a mechanical truss structure with labeled components and cross-sectional views3

4
5


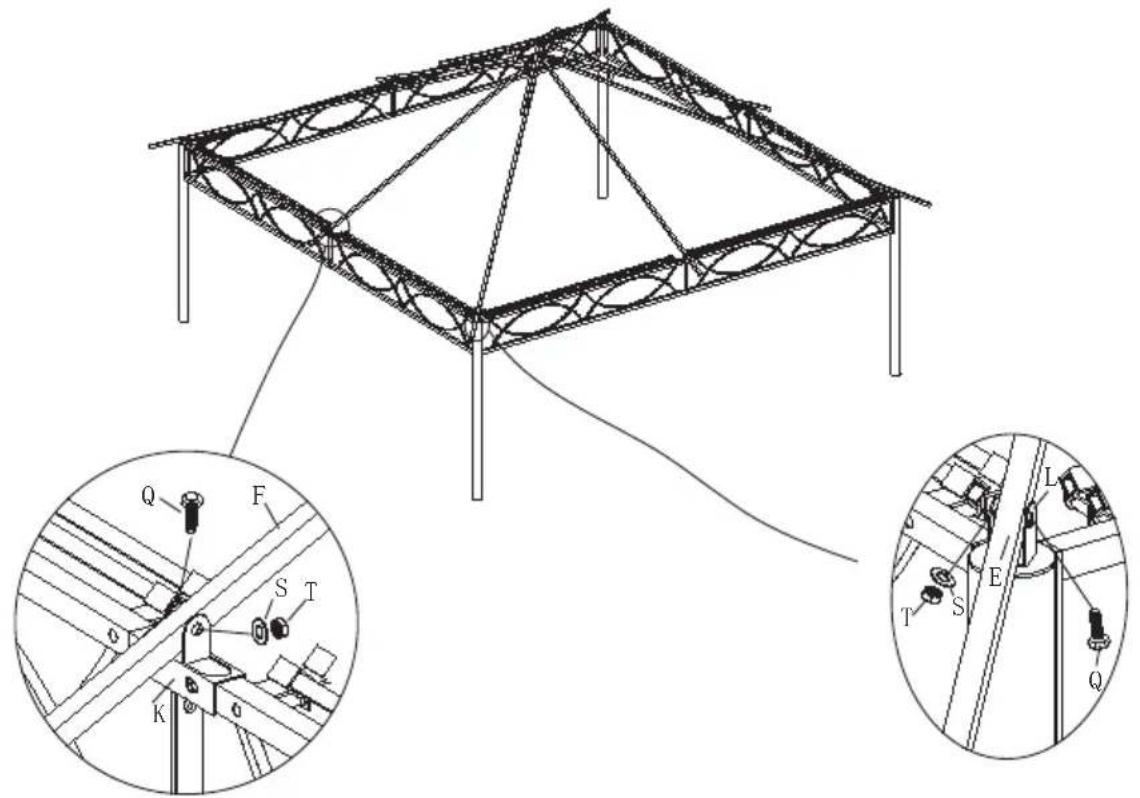

Technical diagram of a steel truss structure with labeled components and two inset views showing internal connections.6


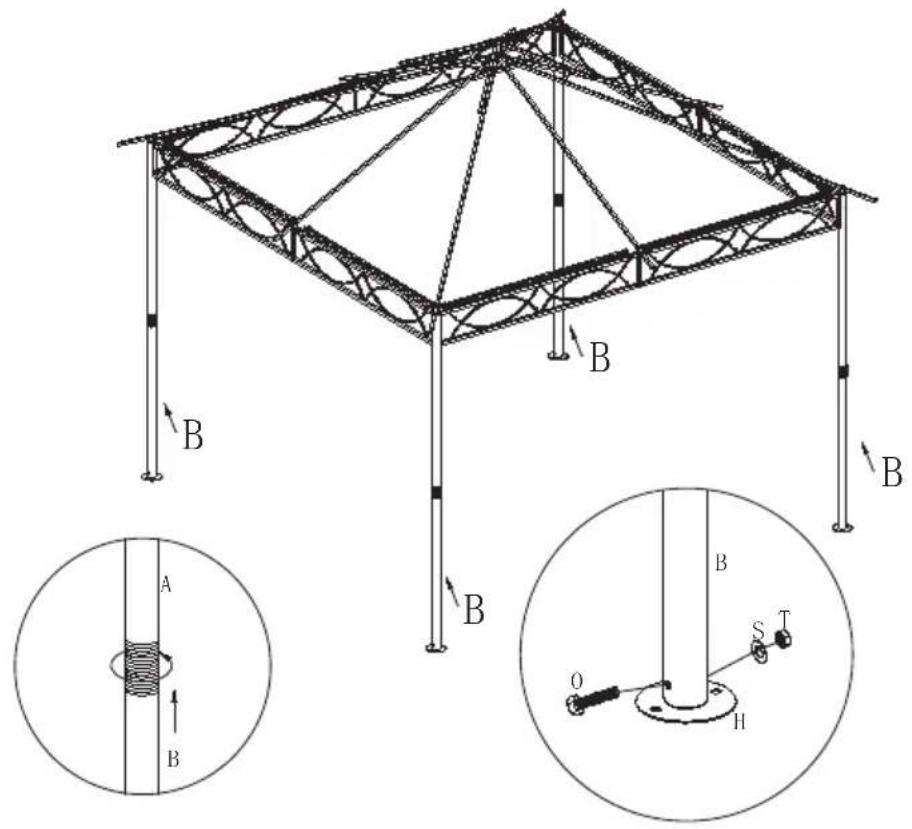

Technical diagram of a truss structure with labeled components and cross-sectional views7


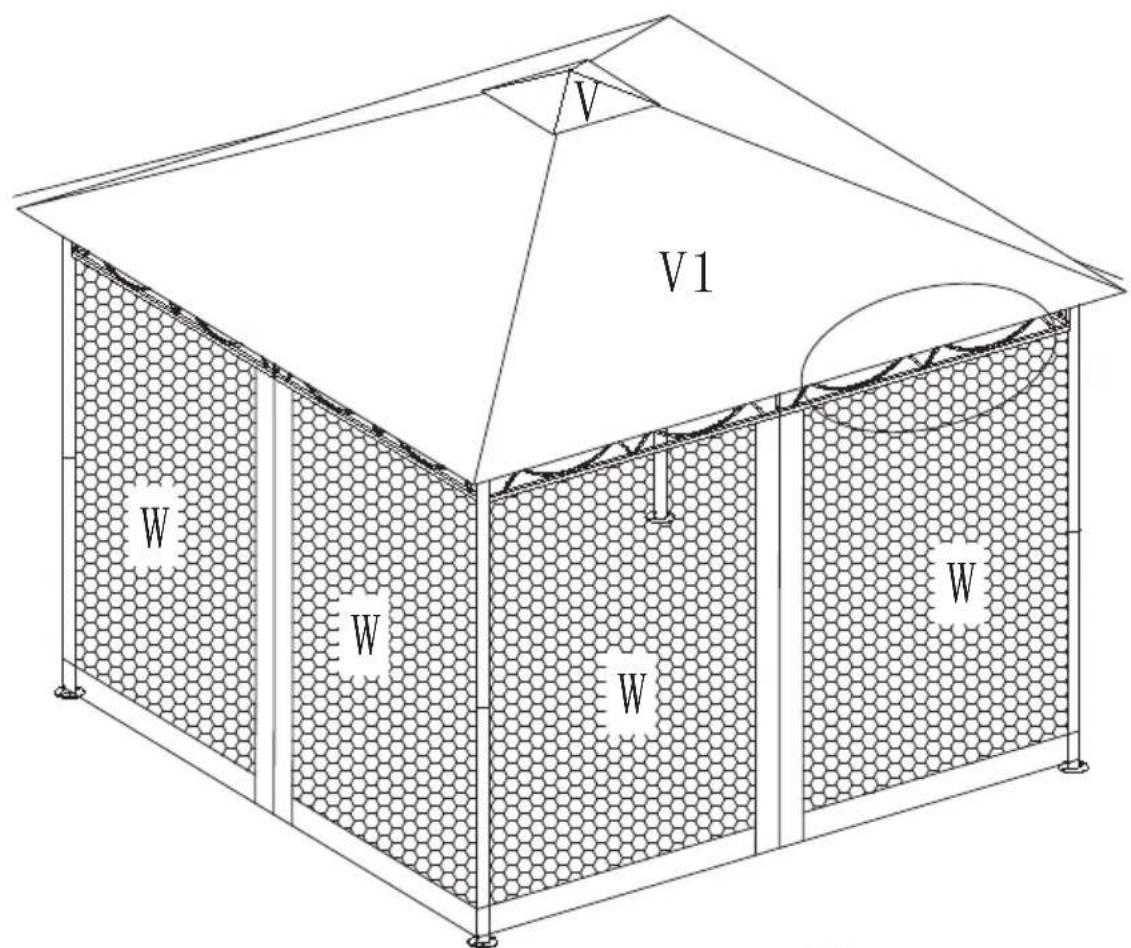

V V1 W W W W


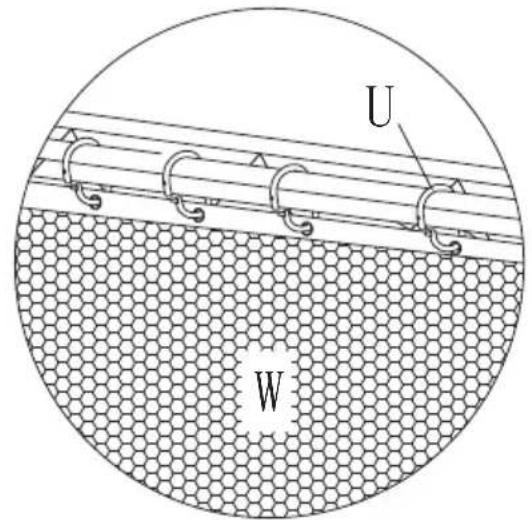

U W8


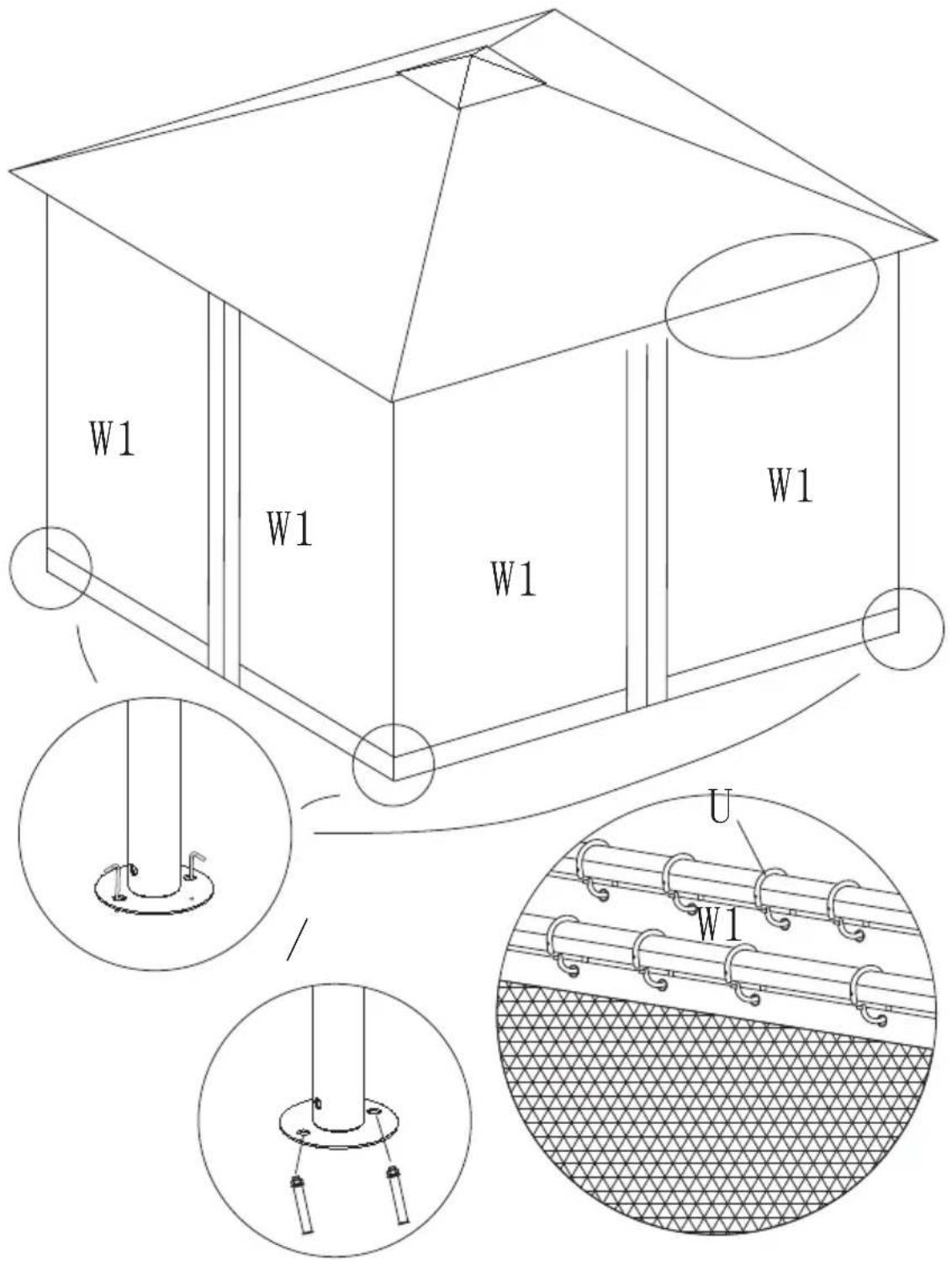

W1 W1 W1 W1 U W1
