USER MANUAL Bar Lerina Klarfit

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

English 9

Français 15

Español 21

Italiano 27

SICHERHEITSHINWEISE

Close-up of a finger pressing a metallic spring component onto a wooden cylindrical rod (no text or symbols visible)

Close-up of a cylindrical mechanical component with a metallic rim and textured brown surface (no text or symbols visible)

Close-up of a hand holding a small black-and-white package next to a white cylindrical device with a red arrow pointing to it (no text or symbols visible)

Close-up of a black cylindrical object with a white handle, resembling a stylized pen or pill (no text or symbols visible)

Single brown rod against white background (no text or symbols)

Close-up of a metallic tool with a brown handle and black valve, no text or symbols visible

Hand inserting a plug into a metallic cylindrical tool (no text or symbols visible)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

• Read the assembly instructions for this product completely.
• Check the packaging thoroughly and make sure that no parts are missing. Do not use this product if any parts are missing.
• Parts.
• Before using the product, make sure all screws are tight and the location is level.
• Before beginning any exercise program, consult with your physician. This is especially important if you are over 35 years of age, have never exercised before, are pregnant, or have a medical condition or back injury. Improper use of the equipment and failure to follow all instructions may result in physical injury.
• Keep children and pets away from the equipment.

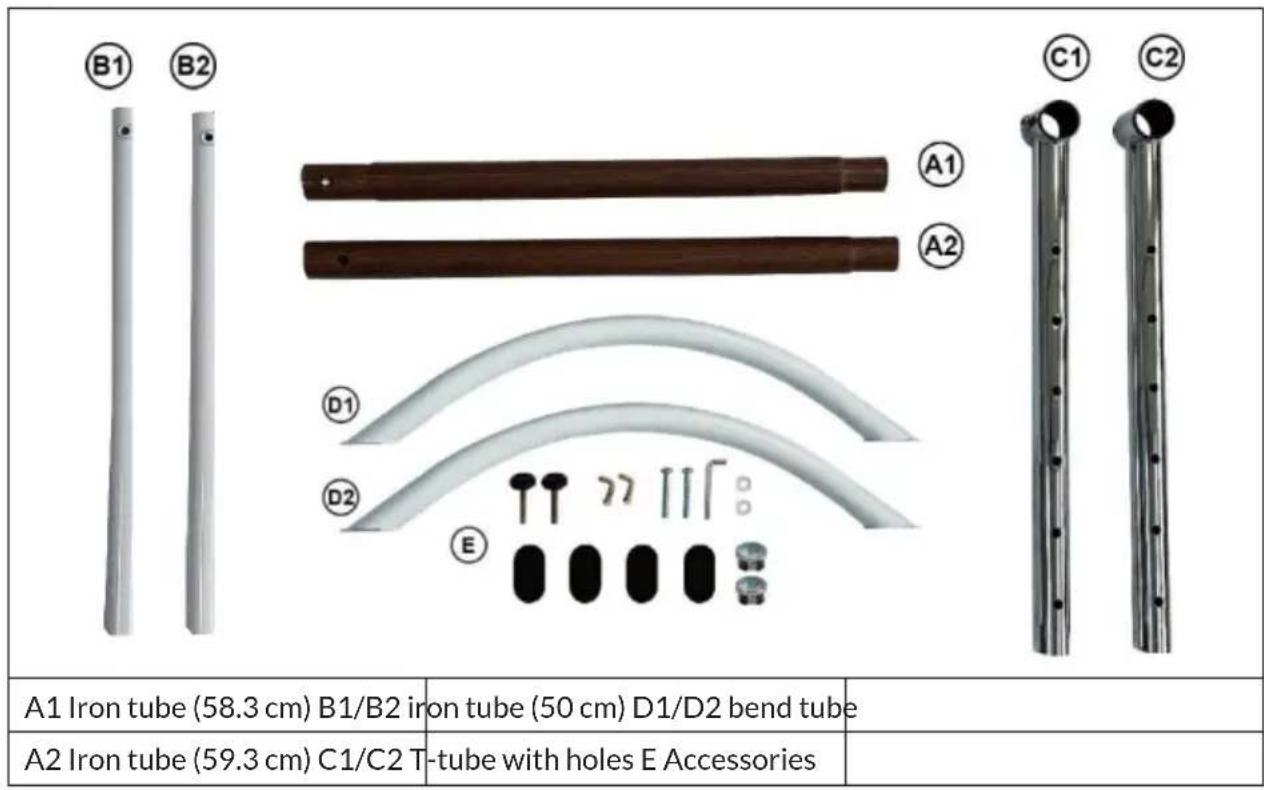

SCOPE OF DELIVERY

B1 B2 A1 A2 C1 C2 D1 D2 E A1 Iron tube (58.3 cm) B1/B2 iron tube (50 cm) D1/D2 bend tube A2 Iron tube (59.3 cm) C1/C2 T-tube with holes E Accessories

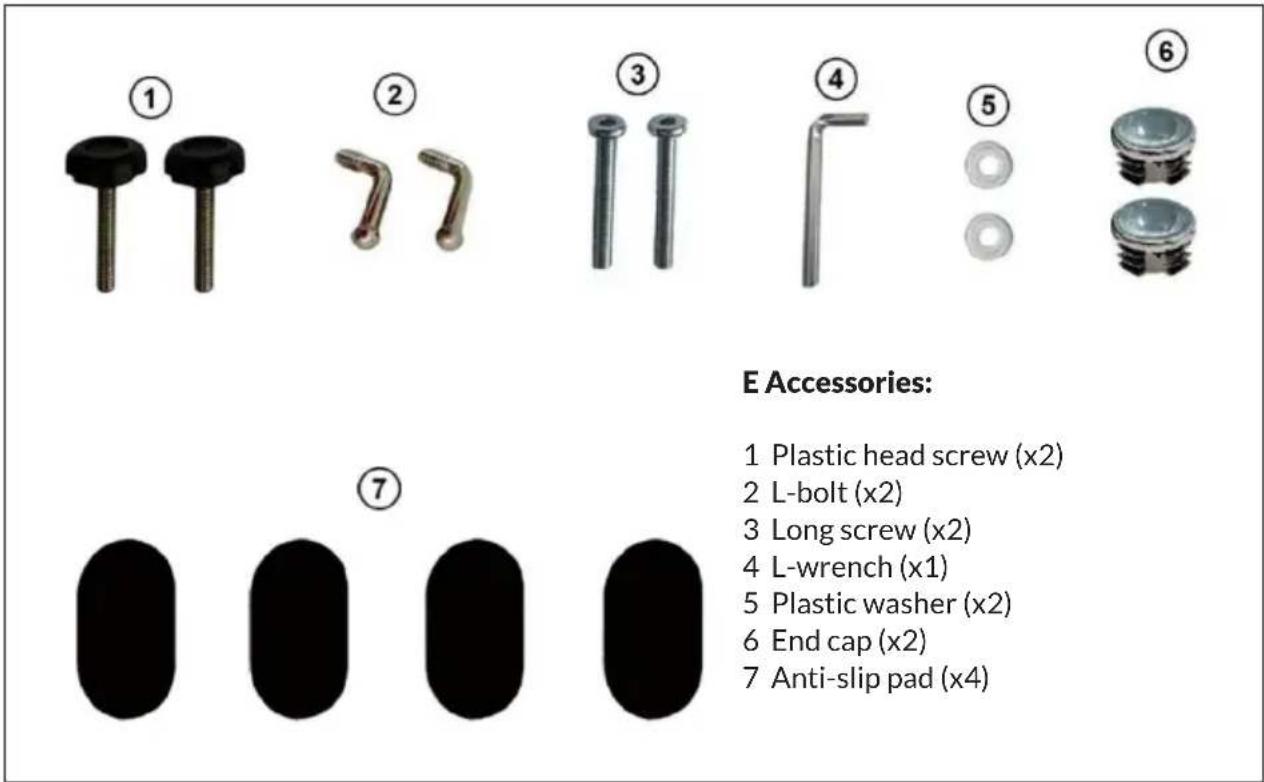

E Accessories: 1 Plastic head screw (x2) 2 L-bolt (x2) 3 Long screw (x2) 4 L-wrench (x1) 5 Plastic washer (x2) 6 End cap (x2) 7 Anti-slip pad (x4)

ASSEMBLY

Step 1

Close-up of a finger pressing a metallic spring attached to a wooden pipe (no text or symbols visible)

Close-up of a cylindrical brown object with a metallic rim, possibly a mechanical component or tool (no visible text or symbols)

Insert the end caps (6) into the ends of the two iron tubes (A1 & A2).

Step 2

Close-up of a hand holding a small cylindrical object with a red arrow pointing to it, next to a white cylindrical device (no text or symbols visible)

Close-up of a black cylindrical object with a white shaft, resembling a stylized pen or pill (no text or symbols visible)

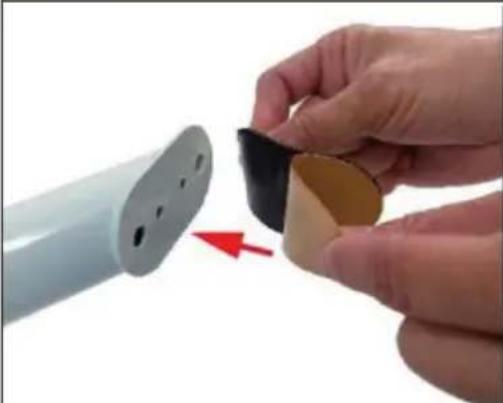

Glue the anti-slip pads to the ends of the bend tubes (D1 & D2).

Step 3
	Attach the iron tubes (B & D) with the long screws (3) and washers (5), then tighten them with the L-wrench (4).

Step 4
Insert the T-tube with holes (C) into the bend tube (D). Set the desired height and then tighten the plastic head screw (1).

Step 5

Repeat the steps just mentioned to install the second stand.

Step 6

A2 A1

Single brown cylindrical object with a diagonal line, isolated on white background (no text or symbols)

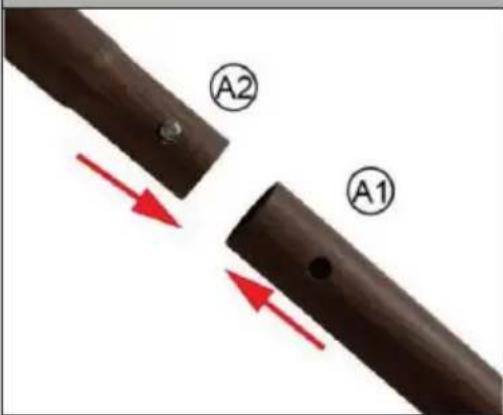

Press the spring button and connect the iron tubes (A1 & A2).

Step 7

Close-up of a metallic tool with a brown handle and black valve, no text or symbols visible

Hand inserting a plug into a metallic cylindrical tool (no text or symbols visible)

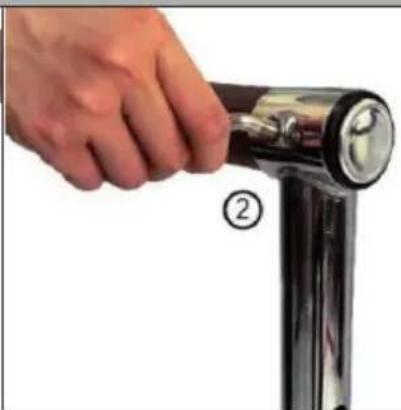

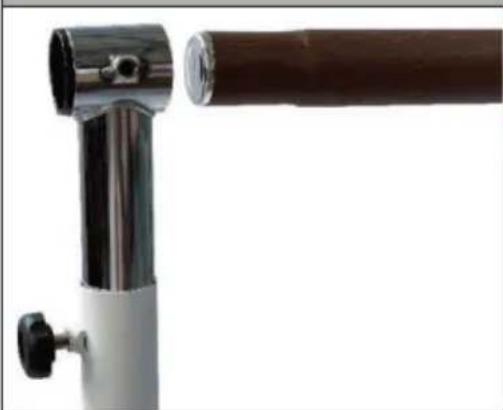

Insert the connected iron tubes (A1 & A2) into the T-tubes (C1 & C2) and tighten the iron tubes with the L-bolts (2).
