Barre Mur - Fitness Equipment Klarfit - Free user manual and instructions

Product Type	Wall-mounted Ballet Barre
Brand	Klarfit
Model	Barre Mur
Category	Fitness Equipment
Material	Metal bars, plastic rings, end caps, metal brackets
Recommended Installation Height	81 to 106 cm from floor
Bar Length	Adjustable via connection of two metal sections
Estimated Weight	Approximately 5 kg
Power Supply	None (mechanical product)
Main Functions	Balance support for dance, stretching, and fitness exercises
Care and Cleaning	Clean with a damp cloth; check the condition of fastenings before each use
Safety	Do not hang or swing; install on a solid wall (not drywall); use with a protective mat
Included Spare Parts	Brackets (2), metal bars (2), plastic rings (2), end caps (2), L-bolts (2), lag screws, wall plugs, washers
Repairability	Spare parts available (screws, rings, end caps); detachable assembly
Required Wall Type	Solid wall (concrete, brick, etc.); do not install on plasterboard
Tools Required for Installation	Drill, 5.5 mm drill bit, marker pen
Users	Dancers, people practicing stretching or fitness
Manual	36 pages, available in multiple languages (FR, DE, EN, ES, IT)

Frequently Asked Questions - Barre Mur Klarfit

What is the recommended installation height for the Klarfit wall barre?

The recommended height is 81 to 106 cm from the floor, depending on your height and needs.

On what type of wall can the barre be installed?

Install the barre on a solid wall (concrete, brick, etc.). Avoid drywall partitions as they would not support the weight.

What tools are needed for assembly?

You will need a drill and a 5.5 mm drill bit to drill holes 5 cm deep.

Can I use the barre for pull-ups or hanging?

No, the barre is designed only for balance support during dance and stretching exercises. Do not hang or swing from it, as this could cause serious injury.

What is the maximum weight supported by the barre?

The maximum weight is not specified by the manufacturer, but hanging is not recommended. Use it only for light support.

How to maintain the wall barre?

Clean it with a damp cloth and regularly check the tightness of screws and the condition of fastenings.

Can the barre be disassembled or adjusted in length?

Yes, the barre consists of two metal sections that connect via a push-button. You can disassemble it for transport or storage.

Are there risks of injury?

Yes, like any fitness equipment, improper use can cause injury. Follow safety instructions: use a mat, do not hang, and check stability before each use.

What to do if a part is missing or damaged?

Contact the manufacturer (Chal-Tec GmbH) or the dealer. Spare parts such as brackets, rings, and screws are usually available.

Is the manual available in French?

Yes, the manual is available in French and other languages (German, English, Spanish, Italian). You can download it for free in PDF format.

USER MANUAL Barre Mur Klarfit

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

Product assembly of wooden railings and wall-mounted fixtures including metal fittings, screws, and plastic components (no text or symbols visible)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Scope of Delivery 11

Installation 11

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

• Read all instructions thoroughly before using the device. Due to the nature of sports, there is a possibility of injury during gymnastic and sports activities.
• The equipment is intended for use only by properly trained and qualified participants under supervision. When using the equipment, you should know your limits and the limitations of your equipment.
• Keep your equipment in good condition by inspecting it for loose fittings or damage and testing it for stability before each use.
• Never mount the ballet barre on a drywall of plasterboard, as it can easily be pulled out. Check the wall and the fixing material for suitability before installation.
• As with any fitness or exercise equipment, this equipment should only be used by persons who are physically capable of using it in the manner intended. Appropriate safety equipment such as padded mats, shoes, clothing and the like should always be used.
• This equipment should not be used alone. In an emergency, someone should always be nearby.
• The user assumes responsibility for the proper installation, maintenance and use of this equipment.

CAUTION

Danger of injury! This device is designed to support balance during dance and stretching exercises. Do not hang or swing on this device! Otherwise serious injuries may occur.

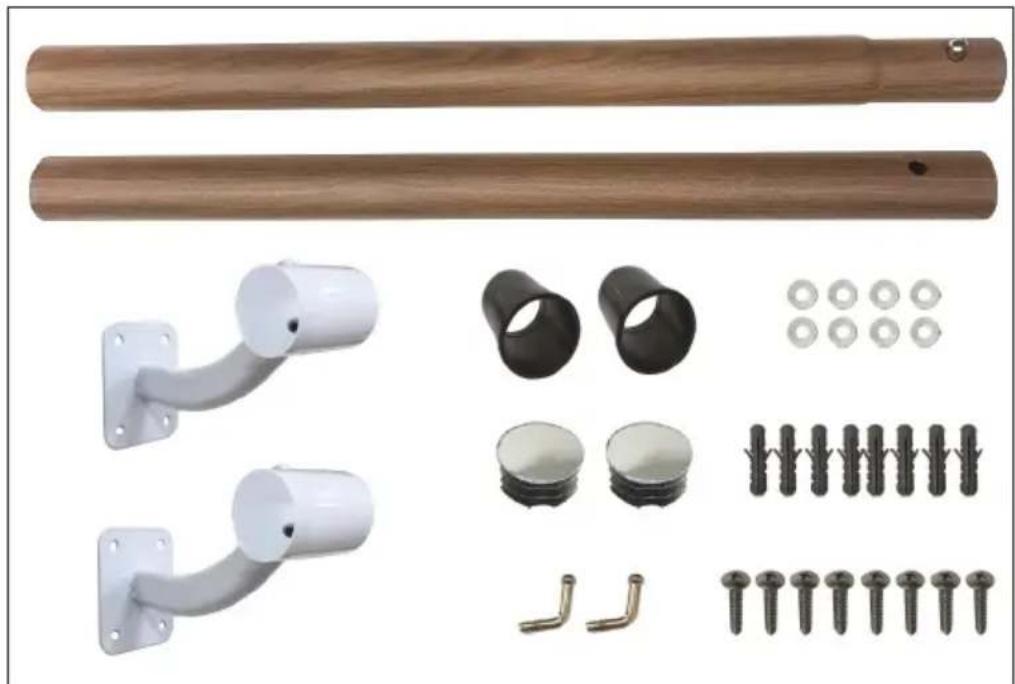

SCOPE OF DELIVERY

The following fixing material is included in the scope of delivery:

Product assembly of wooden railings and wall-mounted fixtures including metal fittings, bolts, and screws (no text or symbols visible)

• Brackets (2 pcs.)
  • Metal rods (2 pcs.)
• Plastic bushings (2 pcs.)
• End caps (2 pcs.)
• L-bolts (2 pcs.)
  • Hardware (lag screws, dowels, washers)

INSTALLATION

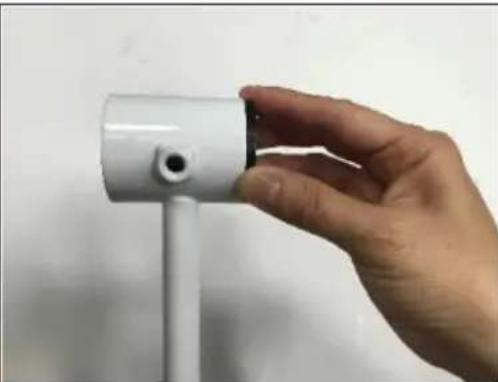

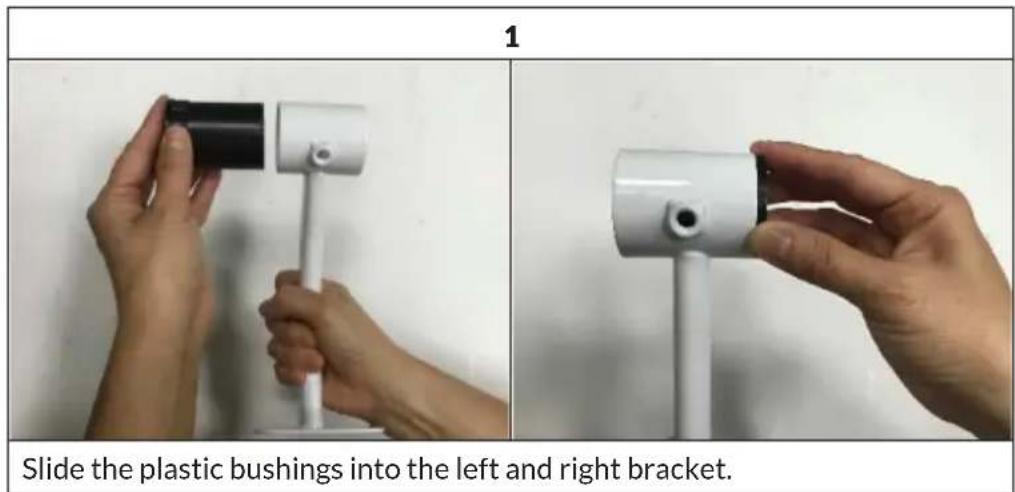

1 Slide the plastic bushings into the left and right bracket.

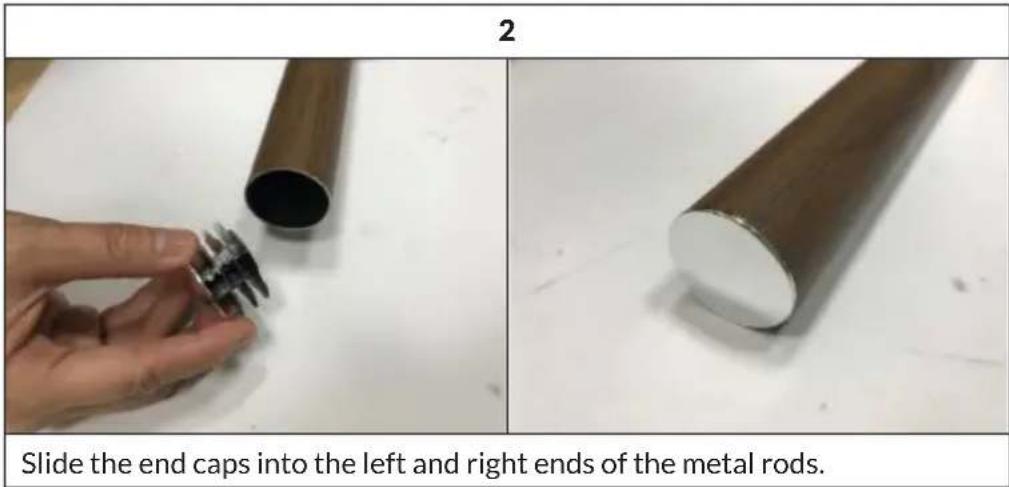

2 Slide the end caps into the left and right ends of the metal rods.

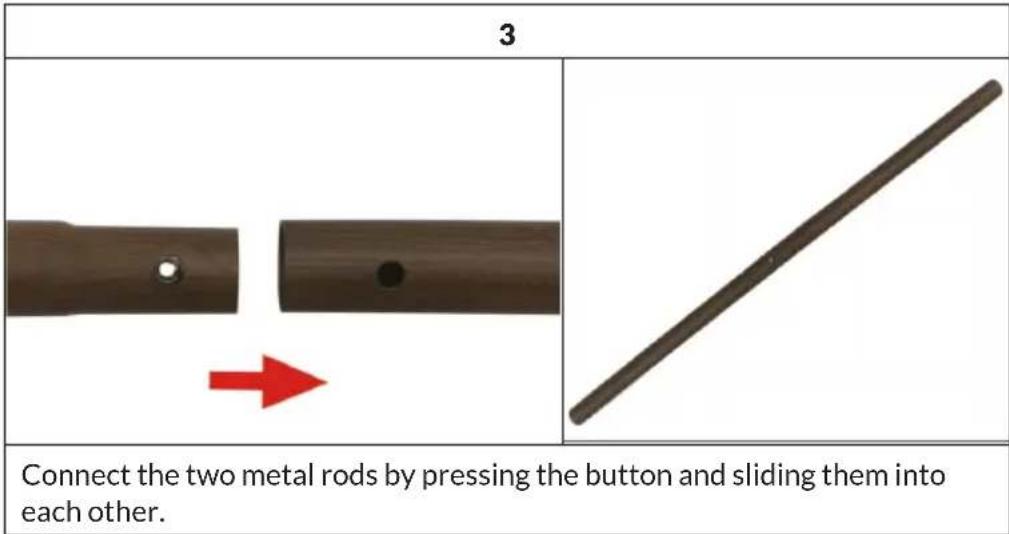

3 Connect the two metal rods by pressing the button and sliding them into each other.

4
The wall-mounted ballet bar allows users of all sizes to train at the height that suits them. We recommend that the top bar be placed at a height of approximately 81-106 cm above the floor.
First mark each hole with a pen.
5
Drill about 5 cm deep into the wall with a 5.5 mm drill bit and fix both brackets with the supplied lag screws, dowels and washers.
6
Slide the metal rod through the brackets. Then lock the L-screw in each screw hole. Be sure to tighten both L-screws to secure the ballet bar in the brackets.

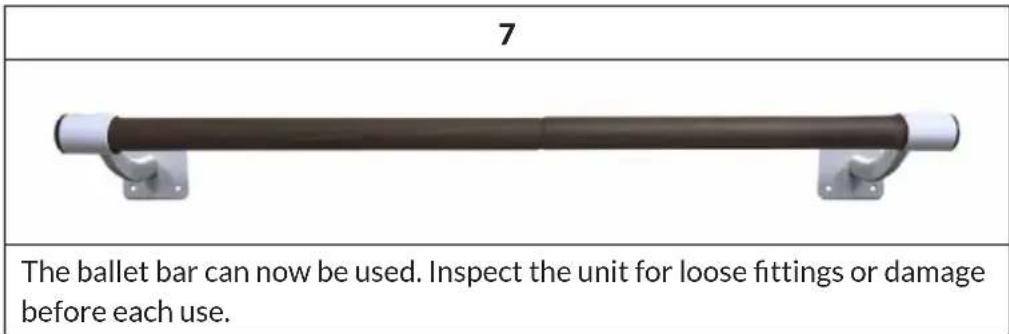

7 The ballet bar can now be used. Inspect the unit for loose fittings or damage before each use.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product assembly of wooden railings and wall-mounted fixtures including metal fittings, screws, and plastic components (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

CONSIGNES DE SÉCURITÉ

Product assembly of wooden railings and wall-mounted fixtures including metal fittings, bolts, and screws (no text or symbols visible)

Close-up of hands holding a black cylindrical object next to a white stand (no text or symbols visible)

Hand holding a white cylindrical device with a black hole, against a plain background (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

AVVERTENZE DI SICUREZZA

Product assembly of wooden railings and wall-mounted fixtures including metal fittings, bolts, and screws (no text or symbols visible)
