Heat Tower - Heating Blumfeldt - Free user manual and instructions

Product type	Outdoor tower heater (Heat Tower)
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W
Power setting	Touch switch (on/off 1500 W)
Main switch	Yes (on/off)
Integrated lamp	Yes, decorative
Installation	Floor fixing with 4 wedge bolts, drilling required
Use	Outdoor only
Safety distance	At least 1.5 m from flammable materials
Overheat protection	Yes, automatic shutdown (do not cover)
Do not point at ceiling	Yes, the heating element must be turned towards the surface to be heated
Maintenance	Clean exterior with a soft damp cloth; do not use solvents; do not immerse
Repairability	No user-serviceable parts; only by a qualified electrician
Housing material	Steel (estimated)
Approximate weight	5-7 kg
Dimensions (H x Ø)	Approximately 85 cm x 30 cm
Heater type	Radiant heater (torch)
Number of power levels	1 (1500 W)
Recommended extension cord	Avoid; if necessary, use an outdoor-rated extension cord with a circuit breaker

Frequently Asked Questions - Heat Tower Blumfeldt

Can the Heat Tower be used indoors?

No, the device is designed for outdoor use only. Do not use indoors, as this could cause fire or burns.

What safety distance should be maintained?

Place the device at least 1.5 meters away from flammable materials such as furniture, trees, leaves, dry grass, and shrubs.

How to clean the device?

Unplug the device and let it cool completely. Clean the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, and never immerse the device in water.

What to do if the device does not heat?

Check that the device is turned on via the main switch and that the touch switch is activated (press once for 1500W). Make sure the power outlet is working. If the problem persists, contact a professional.

How to install the heater on the floor?

Drill four holes in the floor, secure the heater with four wedge bolts, and tighten the screws with a wrench. The installation must be stable and secure.

Can the integrated lamp operate independently?

The lamp is integrated into the heater and probably turns on with the heating. The manual does not specify independent operation. For more details, refer to the complete user manual.

Can an extension cord be used?

Avoid as much as possible. If necessary, use an extension cord rated for outdoor use and preferably equipped with a circuit breaker to prevent overheating.

How to adjust the heating power?

Turn on the device with the on/off switch, then press the touch switch once to heat at 1500 W. Press a second time to turn off the heating.

What to do in case of burning smell on first use?

A temporary burning smell is normal during first use due to the burning off of manufacturing residues. Ventilate the area and if the smell persists, unplug the device and contact customer service.

Is it possible to repair the device yourself?

No, the device contains no user-serviceable parts. Any repairs must be carried out by a qualified electrician or the manufacturer.

USER MANUAL Heat Tower Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Heat Tower

Heizstrahler

Patio Heater

Radiador

Radiateur

Radiatore

Note: The device is only suitable for outdoor use.

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

10035348

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical line drawing of a cylindrical industrial device with heat exchanger and base mount (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 12

Installation and Overview 14

Operation 15

Cleaning and Care 15

Disposal Considerations 16

Manufacturer & Importer (UK) 16

TECHNICAL DATA

Item number	10035348
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1500 W

SAFETY INSTRUCTIONS

• Read all instructions before using this unit.
• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1.5 m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

- Do not replace or attempt to replace the element in this product.

- Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.

- This product must not be left outdoors exposed to the elements for long periods of time.

- Do not touch the plug with wet or damp hands.

- Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

- Do not wind the power cable around the unit.

- Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.

- To prevent a possible fire, do not block the air vents.

- A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

- Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.

- Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.

- Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

- This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.

- The use of attachments on the heater is not recommended.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

INSTALLATION AND OVERVIEW

Technical line drawing of a cylindrical industrial device with heat exchanger and base mount (no text or symbols)

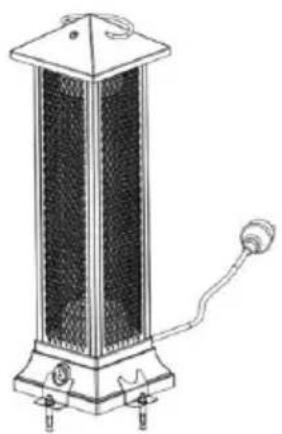

Drill four holes in the floor, fix the radiant heaters to the floor with four wedge bolts and tighten the bolts with a wrench.

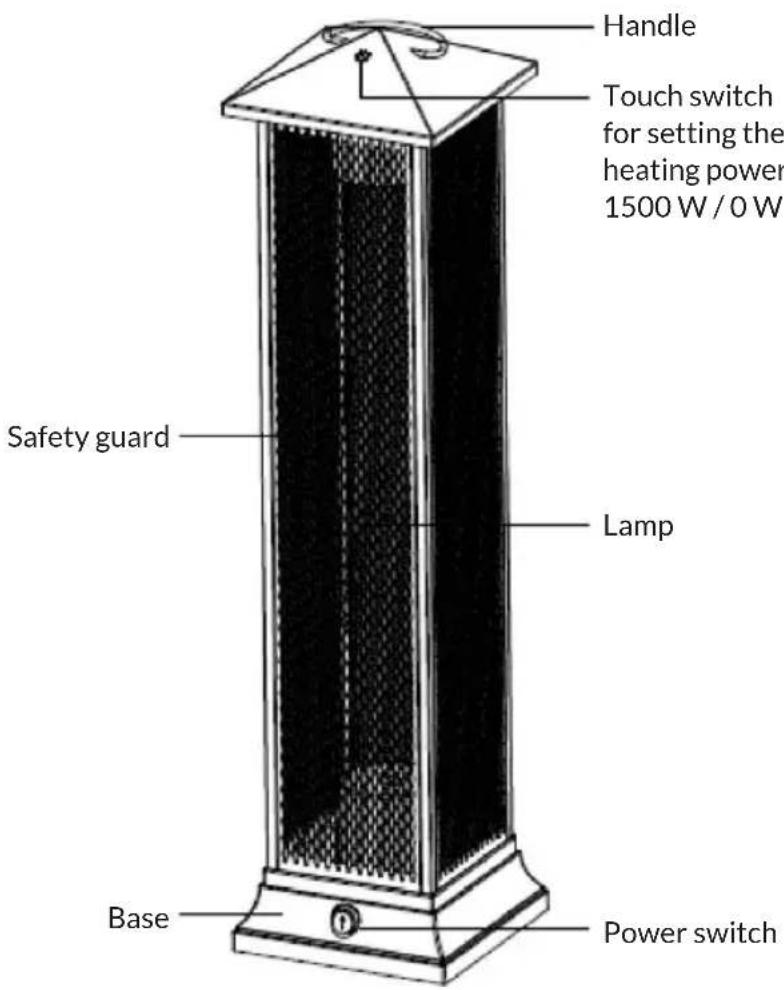

Handle Touch switch for setting the heating power 1500 W / 0 W Safety guard Lamp Base Power switch

OPERATION

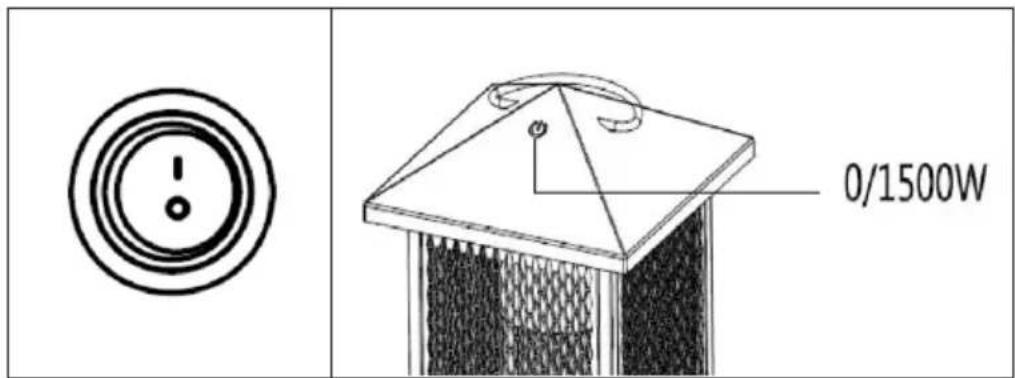

0/1500W

First switch the device on at the on/off switch (left picture). Then press the touch switch (right picture) once to operate the heater with 1500 W. Press the touch switch a second time to switch off the heater.

CLEANING AND CARE

• Before cleaning, remove the plug from the socket and allow the unit to cool completely.
• Do not use scouring agents or solvents for cleaning and never immerse the unit in water.
• Clean the outside with a soft, damp cloth.
• The device contains parts that are not accessible to the user. Repairs may only be carried out by qualified specialists.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
