USER MANUAL GWS13-50PD Professional BOSCH

IMPORTANT: Read Before Using

Silhouette of a person reading a book inside a circle (no text or symbols)

Operating/Safety Instructions Consignes d'utilisation/de sécurité Instrucciones de funcionamiento y seguridad

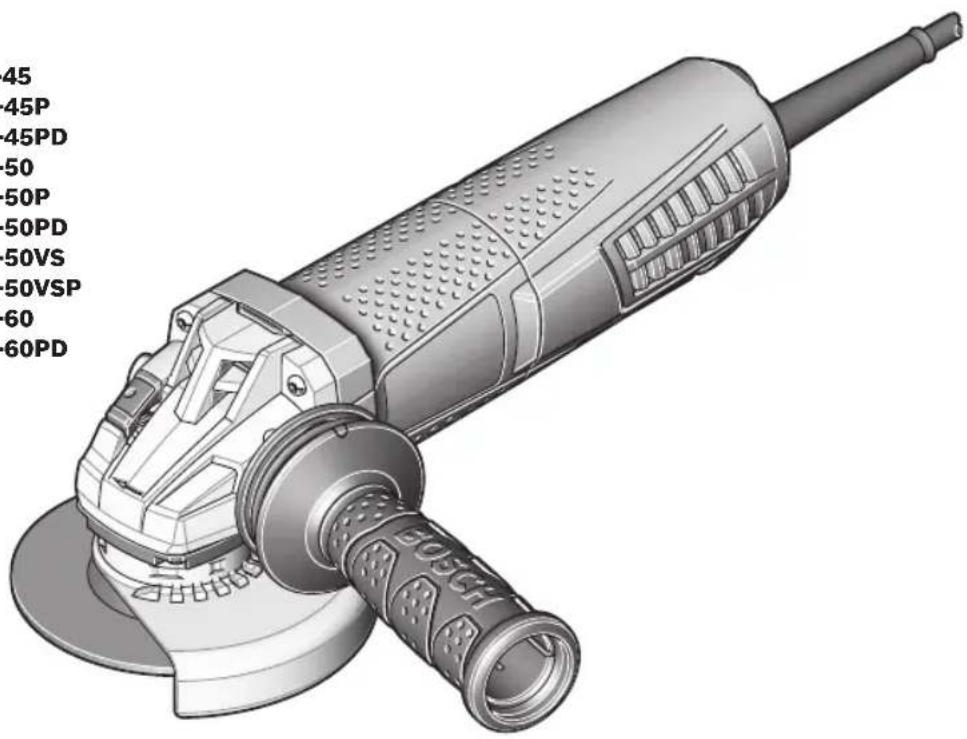

GWS10-45 GWS10-45P GWS10-45PD GWS13-50 GWS13-50P GWS13-50PD GWS13-50VS GWS13-50VSP GWS13-60 GWS13-60PD

45 45P 45PD 50 50P 50PD 50VS 50VSP 60 60PD

BOSCH

Call Toll Free for Consumer Information & Service Locations

For English Version See page 2

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while

you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source

and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings Common for Grinding, Sanding, Wire Brushing, and Abrasive Cutting-Off Operations:

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Operations such as polishing is not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their RATED SPEED can break and fly apart.

The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

Threaded mounting of accessories must match the GRINDER spindle thread. For accessories mounted by FLANGES, the arbour hole of the accessory must fit the locating diameter of the FLANGE.

Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

Do not operate the power tool near flammable materials. Sparks could ignite these materials.

Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kickout. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

Never place your hand near the rotating accessory. Accessory may kickback over your hand.

Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations:

Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

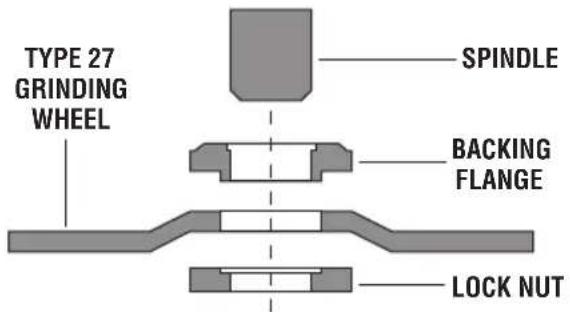

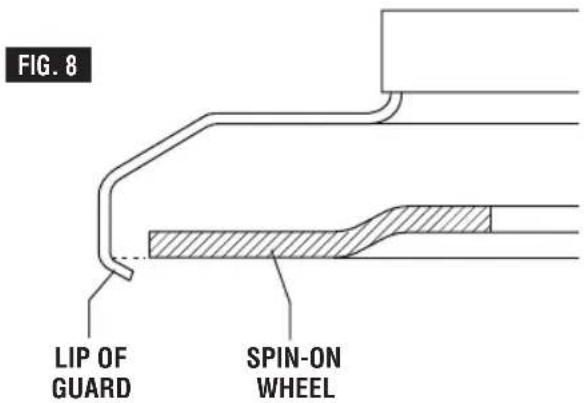

The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel.

Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:

Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Do not use type 1 abrasive wheels designed for straight grinding.

Do not attempt to cut large stock or sheets of metal as this machine is not designed to be a dedicated cut-off machine.

Safety Warnings Specific for Sanding Operations:

Do not use excessively oversized sanding disc paper. Follow manufacturer's recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Safety Warnings Specific for Wire Brushing Operations:

Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.

If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional Safety Warnings

Do not use AC only rated tools with a DC power supply. While the tool may appear to work, the electrical components of the AC rated tool are likely to fail and create a hazard to the operator.

Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the power tool.

Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Do not use vacuum or other dust collection system when cutting metal. Sparks from metal cutting can cause fire in the collector.

WARNING

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
V Volts (voltage)
A Amperes (current)
Hz Hertz (frequency, cycles per second)
W Watt (power)
kg Kilograms (weight)
min Minutes (time)
s Seconds (time)
∅	Diameter (size of drill bits, grinding wheels, etc.)
n_0	No load speed (rotational speed at no load)
n Rated speed (maximum attainable speed)
.../min	Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute)
0 Off position (zero speed, zero torque...)
1, 2, 3, ...I, II, III,	Selector settings (speed, torque or position settings. Higher number means greater speed)
0	Infinitely variable selector with off (speed is increasing from 0 setting)
→	Arrow (action in the direction of arrow)
~	Alternating current (type or a characteristic of current)
---	Direct current (type or a characteristic of current)
~	Alternating or direct current (type or a characteristic of current)
☐	Class II construction (designates double insulated construction tools)
⊕	Earthing terminal (grounding terminal)
	Warning symbol (alerts user to warning messages)

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
	Designates Li-ion battery recycling program
	Designates Ni-Cad battery recycling program
	Alerts user to read manual
	Alerts user to wear eye protection
	This symbol designates that this tool is listed by Underwriters Laboratories.
	This symbol designates that this component is recognized by Underwriters Laboratories.
	This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Canadian Standards Association.
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
Intertek	This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.
	This symbol designates that this tool complies to NOM Mexican Standards.

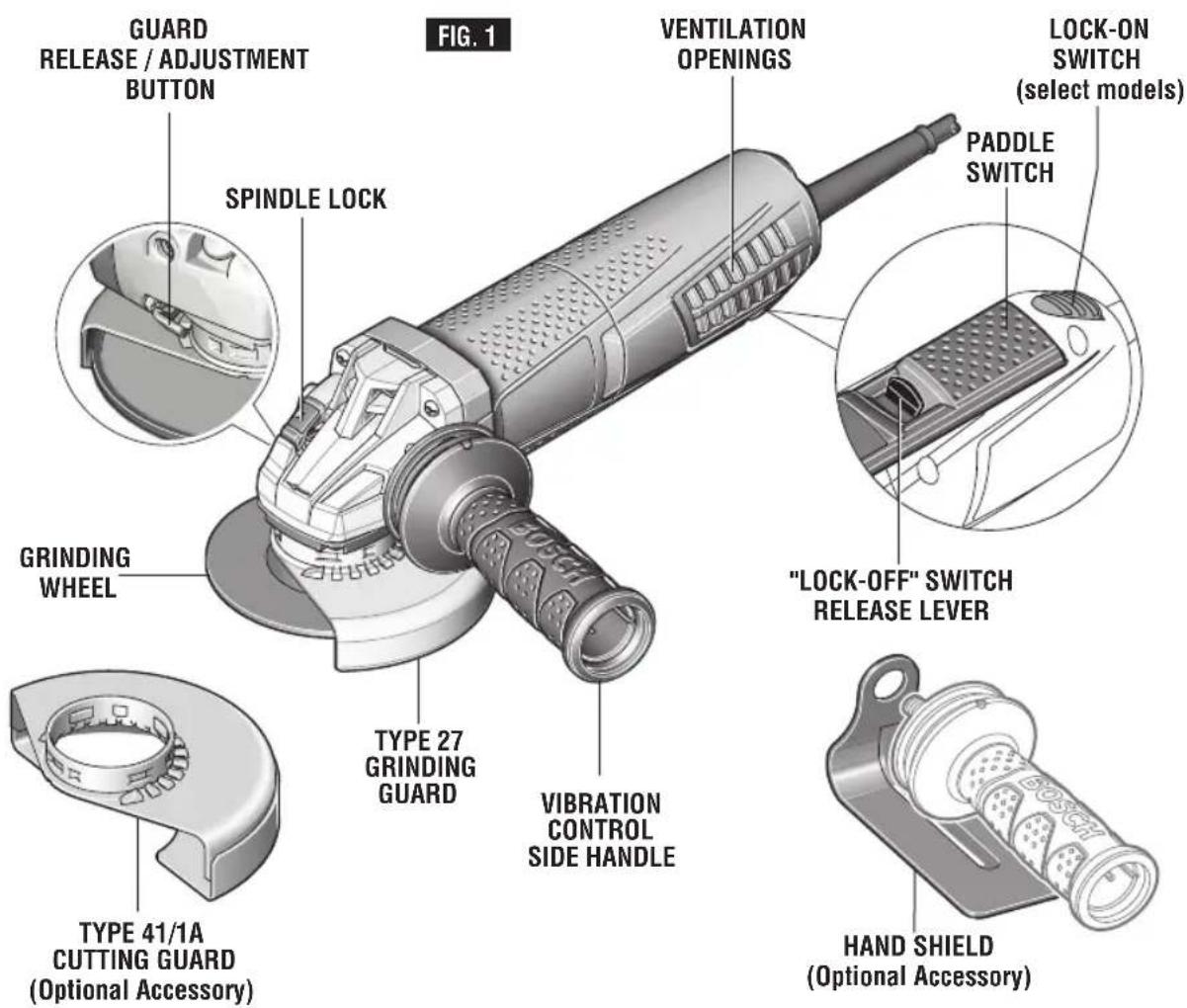

Angle Grinders with Paddle Switch

GUARD RELEASE / ADJUSTMENT BUTTON SPINDLE LOCK GRINDING WHEEL TYPE 27 GRINDING GUARD VIBRATION CONTROL SIDE HANDLE "LOCK-OFF" SWITCH RELEASE LEVER HAND SHIELD (Optional Accessory) PADDLE SWITCH LOCK-ON SWITCH (select models) VENTILATION OPENINGS

Model Number	GWS10-45P & GWS10-45PD	GWS13-50P & GWS13-50PD	GWS13-50VSP	GWS13-60PD
Amps 10 13 13 13
Volts AC 120 120 120 120
Rated Speed (RPM), /min 11500	11500 2800 - 11500	9300
Spindle Thread 5/8"-11 5/8"-11	5/8"-11	5/8"-11
Max. grinding wheel ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Grinding wheel thickness	1/4" (6 mm)	1/4" (6 mm)	1/4" (6 mm)	1/4" (6 mm)
Max. cutting wheel ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. sanding disc ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. flap disc ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. wire wheel ∅	4" (102mm)	4" (102mm)	4" (102mm)	4" (102mm)
Max. wire cup wheel ∅	3" (76mm)	3" (76mm)	3" (76mm)	3" (76mm)
Variable speed	-	-	●	-
Electronic clutch	-	●●	●
Constant response circuitry	-	●●	●
Restart protection	-	●●	●
Overload protection	-	●●	●
Soft start	-	●●	●

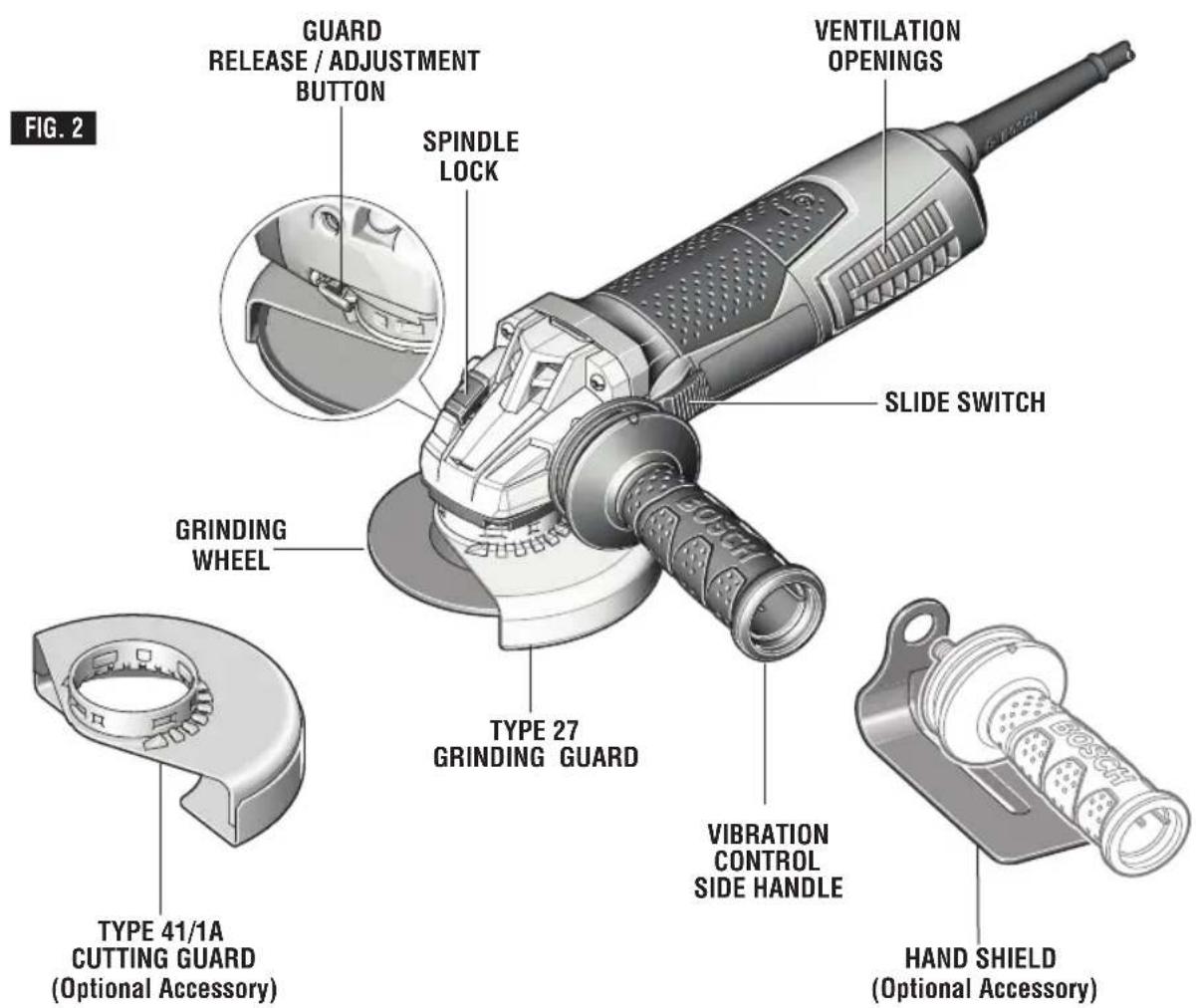

Angle Grinders with Slide Switch

GUARD RELEASE / ADJUSTMENT BUTTON SPINDLE LOCK VENTILATION OPENINGS SLIDE SWITCH GRINDING WHEEL TYPE 27 GRINDING GUARD VIBRATION CONTROL SIDE HANDLE TYPE 41/1A CUTTING GUARD (Optional Accessory) HAND SHIELD (Optional Accessory) FIG. 2

Model Number GWS10-45 GWS13-50 GW\$13-50VS GWS13-60

Amps 10 13 13 13
Volts AC 120 120 120 120
Rated Speed (RPM), /min 11500	11500 2800 - 11500	9300
Spindle Thread	5/8"-11	5/8"-11	5/8"-11	5/8"-11
Max. grinding wheel ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Grinding wheel thickness	1/4" (6 mm)	1/4" (6 mm)	1/4" (6 mm)	1/4" (6 mm)
Max. cutting wheel ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. sanding disc ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. flap disc ∅	4-1/2" (115mm)	5" (125mm)	5" (125mm)	6" (150mm)
Max. wire wheel ∅	4" (102mm)	4" (102mm)	4" (102mm)	4" (102mm)
Max. wire cup wheel ∅	3" (76mm)	3" (76mm)	3" (76mm)	3" (76mm)
Variable speed	-	-	●	-
Electronic clutch	-	●●●
Constant response circuitry	-	●●●
Restart protection	-	●●●
Overload protection	-	●●●
Soft start	-	●●●

Application

Model Number	GWS10-45	GWS13-50	GWS13-50VS	GWS13-60	GWS10-45P	GWS13-50P	GWS13-50PD	GWS13-50VSP	GWS13-60PD
Metal Grinding (Type 27)XXXX	XXXX
Metal Grinding (Type 11) N		NNN	NNNN
Metal Grinding (Type 1) N N N N N N N N
Metal Cutting (Type 41/1A) O		OOOOOO
Concrete Surfacing O O O O O O O O
Concrete/Masonry Cutting O		OOOOOO
Sanding O O O O O O O O
Wire Brushing (Wheel)	X	XXXX	XXXX
Wire Brushing (Cup)	OOOOOO

X = Tool is provided with attachments to perform this application.
O = Tool can use optional attachments to perform this application.
N = Tool is not capable of this application.

Accessory speed rating must be equal to or greater than the tool's speed rating. Do not exceed the recommended wheel diameter.

WARNING

Do not use Type 11 abrasive (cup) wheels with this tool. This tool is not designed for use with type 11 (cup) abrasive grinding wheels.

Functional Descriptions

Electronic Clutch:

The electronics in the power tool detects situations where the wheel or accessory may be at risk to bind. The electronics prevents further rotation of the drive spindle by switching the power tool off (it does not prevent kickback). To resume operation, turn on/off switch to the off position, then restart tool.

Constant Response Circuitry:

Helps maintain near constant RPMs between no-load and load conditions.

Soft Start:

Helps reduce stress on the motor that occurs from a high torque start. Helps bring accessory smoothly up to speed.

Automatic Restart Protection:

Helps prevent accidental startups after power has been interrupted, e.g. the tool was unplugged with the switch locked in the on position. To resume operation, turn on/off switch to the off position, then restart the tool. See the chart under Fig. 1 and Fig. 2 to find out which grinders are equipped with the Automatic Restart Protection.

Overload Protection:

Helps protect tool from excessive heat that may damage motor. If tool stops or slows during operation, allow motor to cool for 30 seconds by running no-load. If the overload protection stops the tool repeatedly, excessive force is causing the tool to overload. Stop excessive force and readjust work piece to reduce force applied.

Variable Speed:

Allows the grinders RPM to be adjusted for greater versatility to match needs of specific applications.

Assembly Instructions

Lock Nut & Backing Flange

Your tool is equipped with a threaded spindle for mounting non-threaded hub accessories. Always use the supplied backing flange with a lock nut. Inner flange is keyed to output shaft (Fig. 3). Always ensure that arbor diameter matches accessory diameter. Accessories that run eccentrically may burst.

Installing Side Handle

The side handle is used to control and balance the tool. Securely thread handle into either side of gear housing, depending on personal preference, comfort, operation being performed. The handle should always be installed onto the guard protected side of the tool (Fig. 4). Use the side handle for safe control and ease of operation.

Hand Shield

The hand shield is to be used with backing pads, sanding discs and wire brushes to keep fingers and hand away from work surface, sharp edges, burrs and debris. When using the hand shield accessory, insert side handle through hole in shield and then thread into housing (Fig. 4). Ensure that hand shield is positioned between hand and backing pad, sanding disc or wire brush.

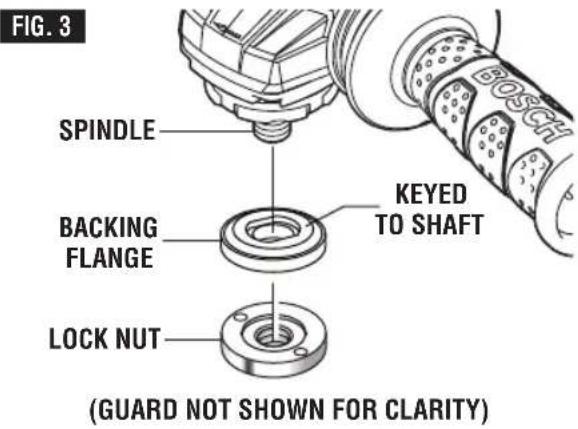

FIG. 3 SPINDLE BACKING FLANGE KEYED TO SHAFT LOCK NUT (GUARD NOT SHOWN FOR CLARITY)

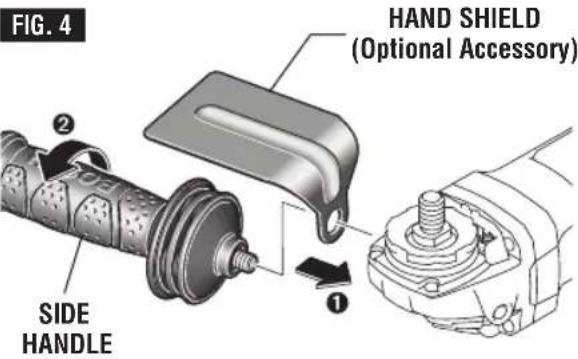

FIG. 4 HAND SHIELD (Optional Accessory) SIDE HANDLE ①

Installing Wheel Guards

(Type 27 and Type 41/1A Wheel Guards)

WARNING

A Type 27 guard must be used with all grinding wheels, bonded body sanding flap discs, wire brushes and wheels. The tool may be used without a guard only when sanding with conventional sanding discs.

To attach guard (Fig. 5):

1. Unplug tool from power source.
2. Position appropriate guard on spindle neck so arrows on guard and spindle neck align.
3. Rotate wheel guard clockwise 90° until guard clicks in place.
4. Adjust guard by depressing guard release button and rotate to desired position. Always position wheel guard between operator and work piece and direct sparks away from operator, Fig. 6.
5. Allow guard release button to click in place.

To remove wheel guard:

1. Depress guard release button and rotate guard until arrows on guard and spindle neck align.

2. Remove guard from spindle neck.

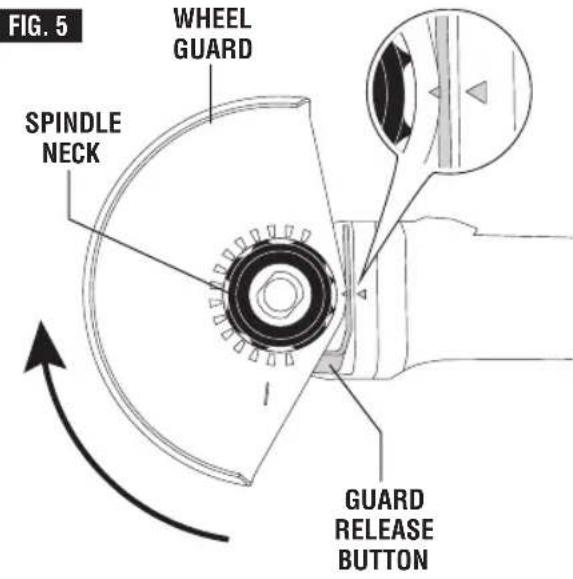

FIG. 5 WHEEL GUARD SPINDLE NECK GUARD RELEASE BUTTON

FIG. 6

Line drawing of a mechanical power tool with angular blades and central hub (no text or symbols)

OPERATING ZONE

Two identical line drawings of a mechanical tool with a central shaft and two side views (no text or symbols)

Abrasive Type 27 Grinding Wheel & Sanding Flap Disk Assembly

Your tool is equipped with a threaded spindle for mounting non-threaded hub accessories. Always use the supplied backing flange with a lock nut. Always ensure that arbor diameter matches accessory diameter.

To install grinding wheel or flap disk (Fig. 7):

1. Unplug tool from power source.
2. Install and adjust type 27 grinding guard to the proper position for grinding as shown in figure 5.
3. Place the backing flange on the spindle. Turn flange until it locks with the base of the spindle.
4. Place the grinding wheel onto the spindle and align the arbor hole of the grinding wheel with the shoulder of the backing flange.
5. Thread the lock nut onto the spindle with the lock nut relief facing the accessory.
6. Tighten lock nut with supplied lock nut wrench while holding spindle lock.

TO REMOVE: Reverse procedure.

When using spin-on wheels:

Follow steps 1 & 2, then thread wheel directly onto spindle without using the supplied flanges.

TO REMOVE: Reverse procedure.

All parts of a spin-on wheel must be within lip of grinding guard (Fig. 8). If spin-on wheel is past lip of guard, do not use that wheel as it does not fit on this grinder.

WARNING

Do not use accessories that run eccentrically. The

tool will vibrate excessively and may cause loss of control and the accessory may burst.

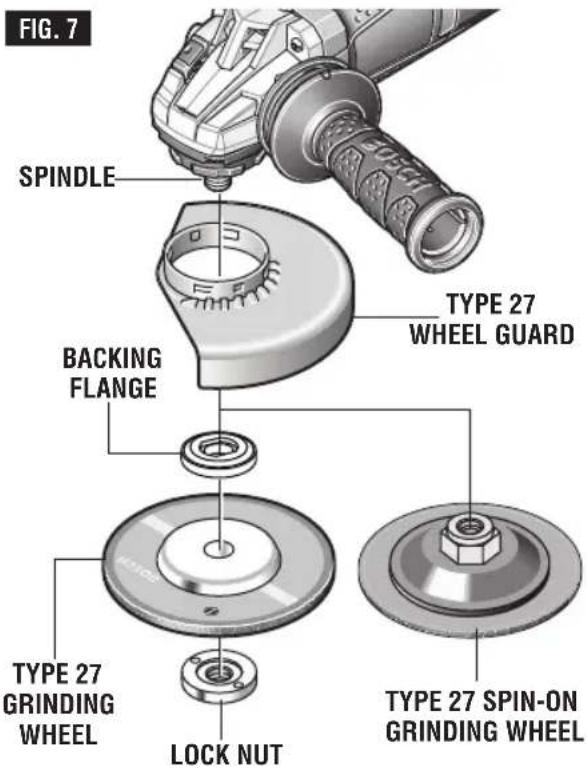

FIG. 7 SPINDLE BACKING FLANGE TYPE 27 WHEEL GUARD TYPE 27 GRINDING WHEEL LOCK NUT TYPE 27 SPIN-ON GRINDING WHEEL

TYPE 27 GRINDING WHEEL SPINDLE BACKING FLANGE LOCK NUT

FIG. 8 LIP OF GUARD SPIN-ON WHEEL

Abrasive Type 41/1A and 27 Cutting Wheel Assembly

WARNING

Always use Type 41/1A cutting guard for cutting

operations. Other guards or attachments may not protect operator in the event of a wheel burst.

WARNING

A type 27 wheel guard may not be used for all tool

operations. Do not discard guard when not in use. Always reinstall wheel guard when converting back to grinding operations.

To install cutting wheel (Fig. 9):

1. Unplug tool from power source.
2. Install and adjust Type 41/1A cutting guard to the proper position for cutting as shown in figure 5.
3. Place the backing flange on the spindle. Turn flange until it locks with the base of the spindle.
4. Place the cutting wheel onto the spindle and align the arbor hole of the cutting wheel with the shoulder of the backing flange.
5. Thread the lock nut onto the spindle with the lock nut relief facing the accessory.
6. Tighten lock nut with supplied lock nut wrench while holding spindle lock.
   TO REMOVE: Reverse procedure.

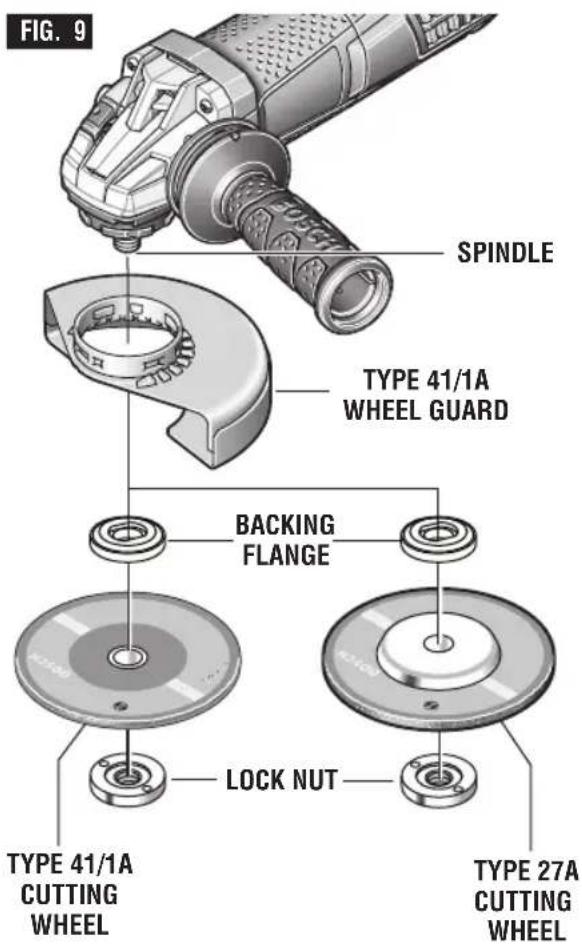

FIG. 9 SPINDLE TYPE 41/1A WHEEL GUARD BACKING FLANGE LOCK NUT TYPE 41/1A CUTTING WHEEL TYPE 27A CUTTING WHEEL

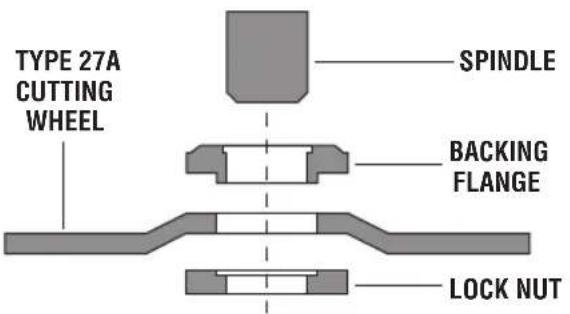

TYPE 27A CUTTING WHEEL SPINDLE BACKING FLANGE LOCK NUT

Concrete Dust Extraction Attachment for Surfacing Grinding Assembly

WARNING

A type 27 grinding wheel guard may not be used for all tool operations. Do not discard guard when not in use. Always reinstall wheel guard when converting back to grinding operations.

WARNING

Dust Extraction Attachment is not a guard, do not use with bonded abrasive wheels.

Dust extraction attachment may not protect operator in the event of a wheel burst.

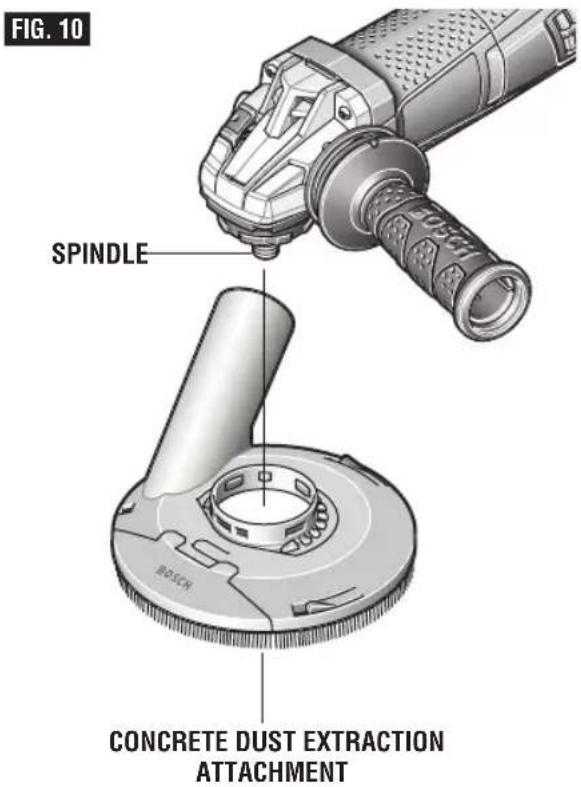

To install concrete dust extraction attachment (Fig. 10):

1. Unplug tool from power source.
2. Position appropriate attachment on spindle neck with dust port pointing away from tool body.
3. Rotate attachment clockwise 90° until guard clicks in place.

4. Adjust attachment by depressing guard release button and rotate to desired position.

5. Allow guard release button to click in place.

6. Place the backing flange on the spindle.

7. Place the diamond cup wheel onto the spindle and align with the flange.

8. Thread the lock nut onto the spindle with the lock nut relief facing the accessory.

9. Tighten lock nut with supplied lock nut wrench while holding spindle lock.

When using spin on wheels, follow steps 1 - 5, then thread wheel directly onto spindle without using the supplied flanges.

TO REMOVE: Reverse procedure.

FIG. 10 SPINDLE BOSCH CONCRETE DUST EXTRACTION ATTACHMENT

WHEEL GUARD SPINDLE NECK

Diagram of a circular mechanical component with internal blades and directional arrows indicating motion (no text or symbols)

Sanding Assembly

WARNING

A type 27 wheel guard may not be used for all tool operations. Do not discard guard when not in use. Always reinstall wheel guard when converting back to grinding operations.

The hand shield is to be used with backing pads, sanding discs and wire brushes to keep fingers and hand away from work surface, sharp edges, burs and debris. When using the hand shield accessory, insert side handle through hole in shield and then thread into housing (Fig 4). Ensure that hand shield is positioned between hand and backing pad, sanding disc or wire brush.

To install backing pad and sanding disc (Fig. 11):

1. Unplug tool from power source.
2. Attach hand shield.
3. Place the rubber backing pad onto the spindle shaft.
4. Center the sanding disc on top of the backing pad.
5. Insert the lock nut through the disc and thread onto spindle.

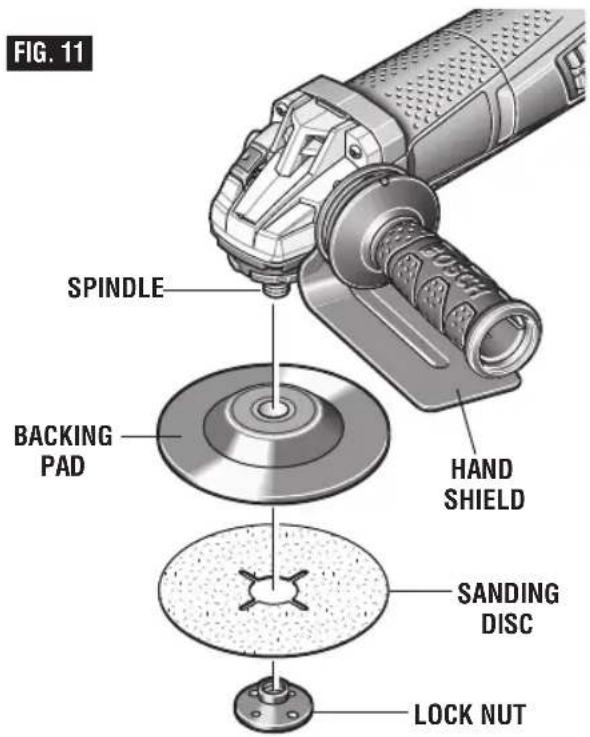

FIG. 11 SPINDLE BACKING PAD HAND SHIELD SANDING DISC LOCK NUT

1. Tighten lock nut with supplied lock nut wrench while holding spindle lock.

TO REMOVE: Reverse procedure.

Wire Cup Brush Assembly

WARNING

A type 27 wheel guard may not be used for all tool operations. Do not discard guard when not in use. Always reinstall wheel guard when converting back to grinding operations.

The hand shield is to be used with backing pads, sanding discs and wire brushes to keep fingers and hand away from work surface, sharp edges, burs and debris. When using the hand shield accessory, insert side handle through hole in shield and then thread into housing (Fig 4). Ensure that hand shield is positioned between hand and backing pad, sanding disc or wire brush.

Do not use a knotted wire cup brush with this tool. This tool does not have a guard for knotted wire cup brushes.

To install wire cup brush (Fig. 12):

1. Unplug tool from power source.
2. Attach hand shield.

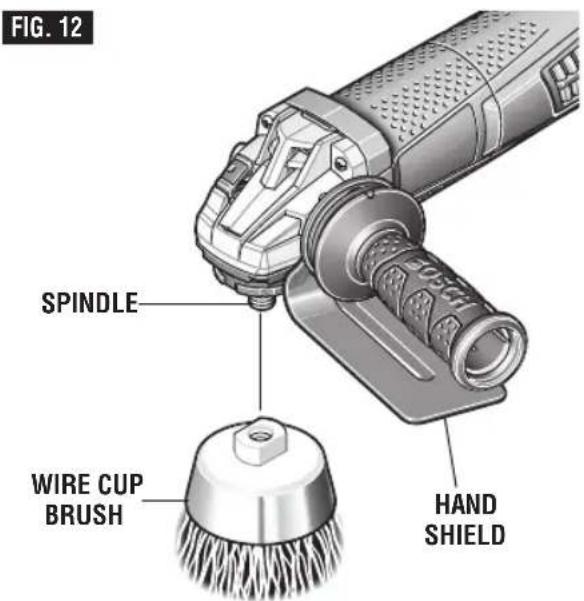

FIG. 12 SPINDLE WIRE CUP BRUSH HAND SHIELD

1. Thread wire cup brush onto spindle until secure. Be sure to seat cup brush against shoulder before turning tool "ON".

TO REMOVE: Reverse procedure.

Masonry Cutting Guard Assembly

WARNING

A type 27 grinding wheel guard may not be used for all tool operations. Do not discard guard when not in use. Always reinstall wheel guard when converting back to grinding operations.

To improve ergonomics of your grinder when cutting masonry, gearbox must be rotated relative to the position of the switch as the tool was assembled at the factory.

Rotate gearbox (Fig. 13):

1. Unplug tool from power source.

2. Completely unscrew the four screws between the gear housing and motor body.

3. Rotate gear housing to the proper orientation without removing motor from the housing.

a. For the slide switch models, rotate gear housing 180 degrees in the direction indicated in Fig 14a, so the switch is 90 degrees from the spindle.
b. For the paddle switch models, rotate gear housing 90 degrees in the direction indicated in Fig 14b, so the switch is facing the work piece.

1. Screw in and tighten the four screws you removed.

2. The screw holding the quick release lever is longer than the other screws, this long screw must stay with the quick release lever when re-attaching gear housing for the quick release button to operate properly.

3. Attach proper dust collection guard with foot and accessory.

Installing Masonry Type 1 Cutting Guard:

1. Use tool adjusted as show in figures 13 and 14a or 14b.
2. Unplug tool from power source.
3. Unscrew and remove side handle.
4. Slide dust extraction guard on spindle neck.
5. Rotate attachment until stability bracket and hole for side handled are aligned.

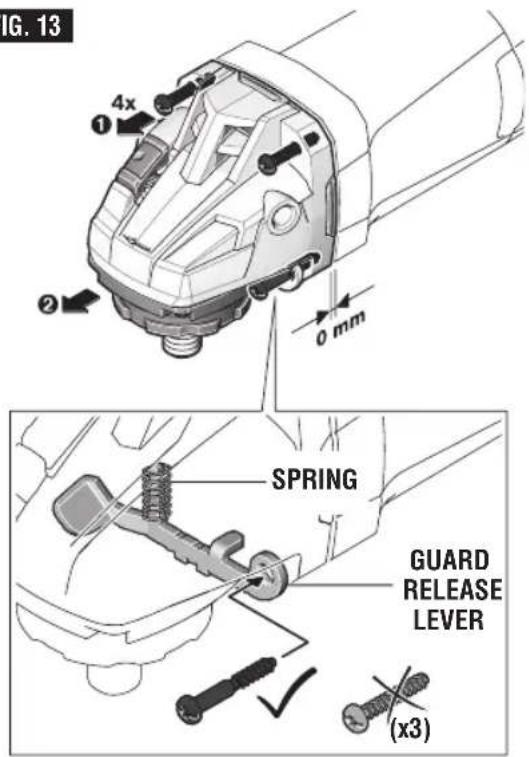

FIG. 13

FIG. 13 4x ① ② 0 mm SPRING GUARD RELEASE LEVER (x3)

FIG. 14a

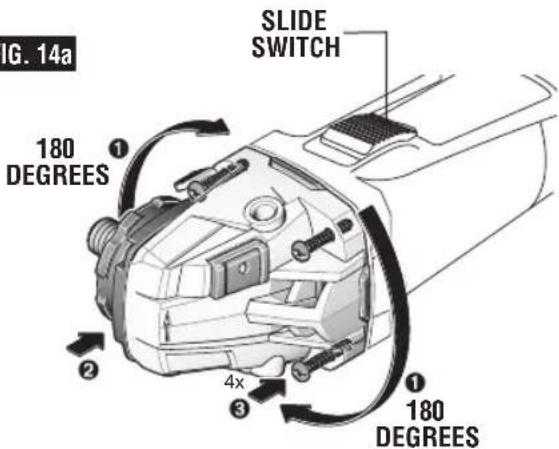

SLIDE SWITCH 180 DEGREES 4x 180 DEGREES ① ② ③

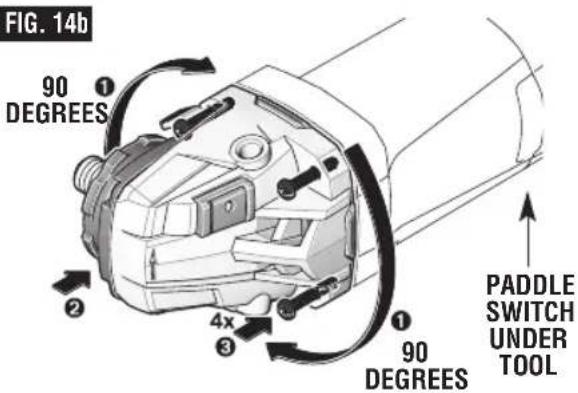

FIG. 14b 90 DEGREES 2 4x 3 1 90 DEGREES PADDLE SWITCH UNDER TOOL

1. Screw in side handle to secure stability bracket between the tool housing and handle.
2. Adjust guard to desired depth of cut.

TO REMOVE: Reverse procedure.

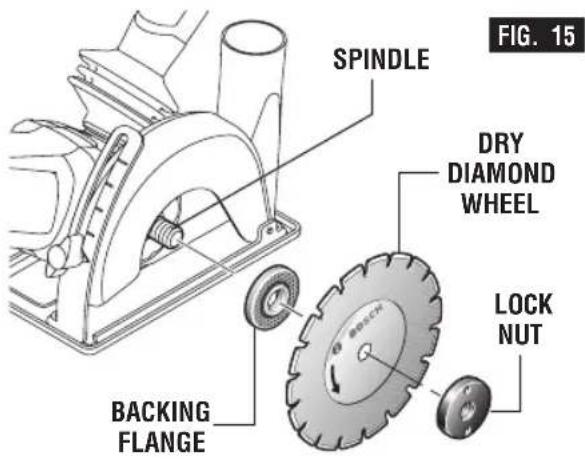

Installing dry diamond wheel (Fig. 15):

1. Place the backing flange on the spindle. Turn flange until it locks with the base of the spindle.
2. Place the dry diamond wheel onto the spindle and align the arbor hole of the grinding wheel with the shoulder of the backing flange.
3. Tighten lock nut with supplied lock nut wrench while holding spindle lock.

TO REMOVE: Reverse procedure.

SPINDLE DRY DIAMOND WHEEL LOCK NUT BACKING FLANGE FIG. 15

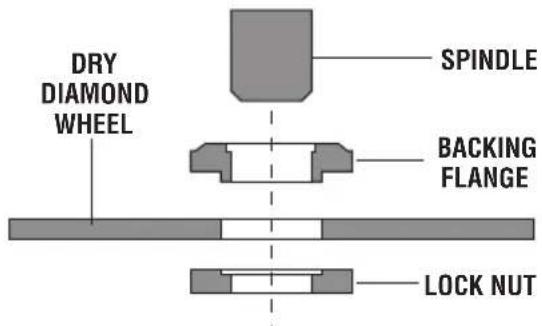

DRY DIAMOND WHEEL SPINDLE BACKING FLANGE LOCK NUT

Wire Wheel Assembly

To install wire wheel (Fig. 16):

1. Unplug tool from power source.
2. Install and adjust type 27 grinding guard to the proper position as shown in figure 5.
3. Thread wire wheel onto spindle until secure.

NOTE: Be sure to seat wire wheel against shoulder before turning tool "ON".

TO REMOVE: Reverse procedure.

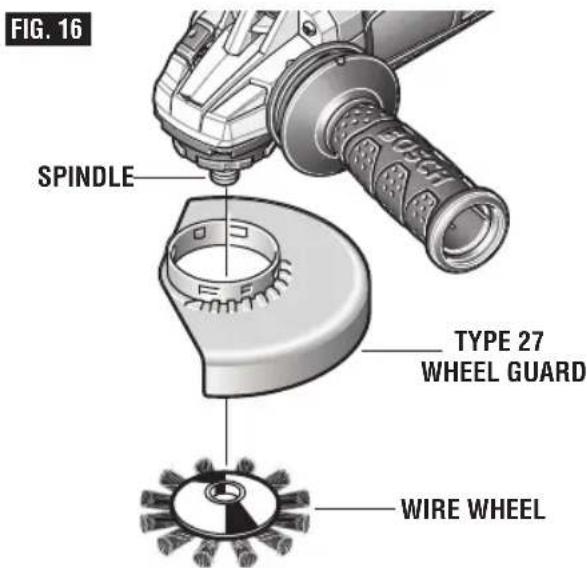

FIG. 16 SPINDLE TYPE 27 WHEEL GUARD WIRE WHEEL

Operating Instructions

If the "Lock-ON" button is continuously being trigger cannot be released.

Never leave the trigger locked "ON". Before plugging the tool in, check that the trigger lock is "OFF". Accidental start-ups could cause injury.

Be aware of the location and setting of the switch "Lock-ON" button. If the switch is locked "ON" during the use, be ready for emergency situations to switch it "OFF".

Do not use the switch "Lock-ON" feature in situations where kickback is likely, such as when working into a corner. When the wheel binds, the tool will kick-back in opposite direction of wheel rotation and the release of the trigger "Lock-ON" may be difficult.

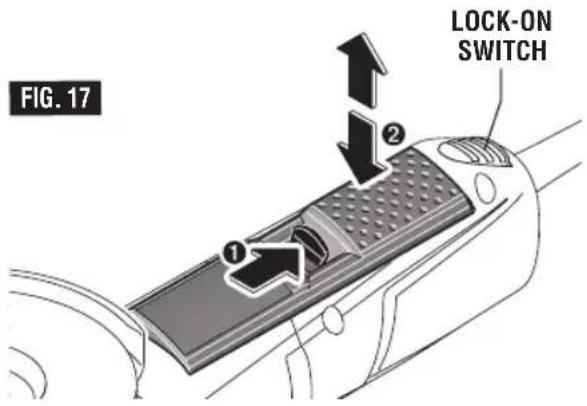

Paddle Switch (Fig. 17)

The paddle switch has a lock-off feature to help prevent accidental startups. TO TURN TOOL "ON", push lock-off switch backward to unlock the paddle switch, then squeeze paddle switch. TO TURN TOOL "OFF", release pressure on paddle switch. The switch is spring loaded and will return to the "OFF" position automatically.

If your tool has the LOCK-ON feature incorporated into the paddle switch for extended operation, there will be a red button on the bottom of the tool directly behind the paddle switch. TO LOCK SWITCH "ON" after paddle switch has been activated, push "LOCK-ON" button while simultaneously releasing pressure from the paddle switch. TO TURN TOOL "OFF", squeeze and release paddle switch.

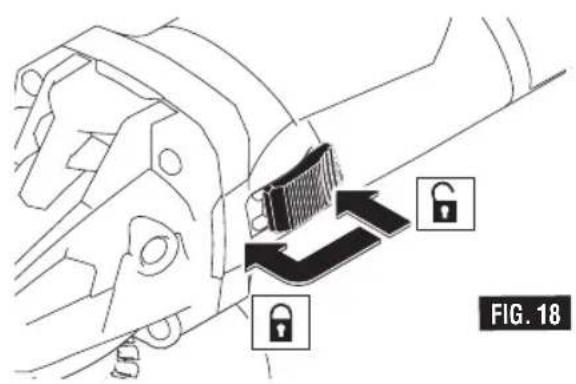

Slide Switch (Fig. 18)

TO TURN TOOL ON, press the back of the switch and slide forward towards the gear housing and into the ON position. TO "LOCK-ON", when the switch is slid into the "ON" position, roll the switch forward. TO TURN TOOL "OFF", press the rear portion of the switch. The switch is spring loaded and will return to the "OFF" position automatically.

FIG. 17 LOCK-ON SWITCH

FIG. 18

Metal Grinding

Grinding wheels should be carefully selected in order to use the grinder most efficiently. Wheels vary in type of abrasive, bond, hardness, grit size and structure. The correct wheel to use is determined by the job. Use disc grinding wheels for fast grinding of structural steel, heavy weld beads, steel casting, stainless steel and other ferrous metals.

1. Allow the tool to reach full speed before touching the tool to the work surface.
2. Apply minimum pressure to the work surface, allowing the tool to operate at high speed. Grinding rate is greatest when the tool operates at high speed.
3. Maintain a 10^ to 15^ angle between the tool and work surface, (Fig. 19).

FIG. 19 15°

1. Continuously move the tool at a moderate speed to avoid creating gouges in the work surface.
2. Remove the tool from work surface before turning tool off. Allow the tool to stop rotating before laying it down.

Tip: When grinding with a new wheel be certain to grind while pulling tool backwards until the wheel becomes rounded on its edge. New wheels have sharp edges which tend to "bite" or cut into the work piece when pushed forward.

Metal Cutting

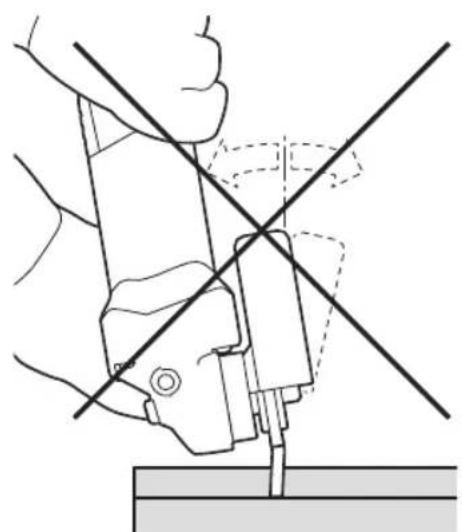

A Warning A Type 1 wheel guard may not be included with this tool but is required when using a cutting

wheel. Cutting with a type 27 wheel guard may not provide the operator sufficient protection in the event of a wheel burst.

With this grinder it is possible to perform cutting of limited small stock such as metal tubes, piping or rebar. When cutting, work with moderate feed, adapted to the material being cut. When cutting profiles and square bar, it is best to start at the smallest cross section.

Always follow precautions for kickback.

1. Allow the tool to reach full speed before touching the tool to the work surface.
2. The tool should always be used in such way that the sparks are directed away from user.
3. Apply minimum pressure to the work surface, allowing the tool to operate at high speed. Cutting rate is greatest when the tool operates at high speed.
4. Do not exert side pressure onto the cutting disc. Do not tilt or oscillate the tool as wheel may burst, (Fig. 20).
5. Remove the tool from the work surface before turning the tool off. Allow the tool to stop rotating before laying it down.

FIG. 20

Technical line drawing of a mechanical assembly with intersecting lines (no text or symbols)

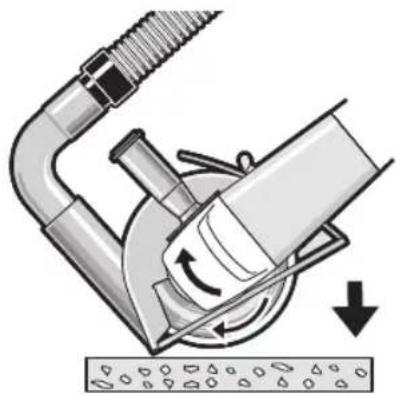

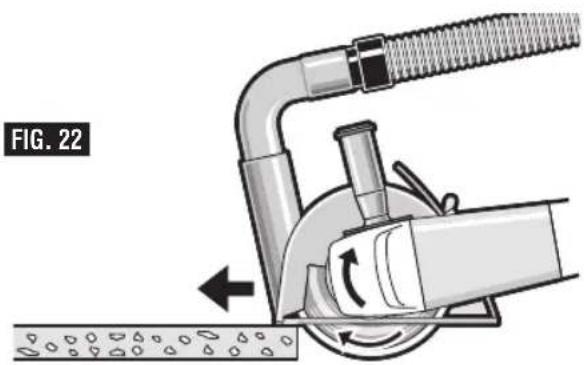

Masonry / Concrete Cutting

With this grinder it is possible to perform cutting of concrete and masonry materials. When cutting, work with moderate feed, adapted to the material being cut.

Always follow precautions for kickback.

Operate the tool with a dust extraction system and personal dust protection, e.g. respirator, dust mask, etc. The vacuum used for this application must be approved for the extraction of masonry and concrete dust. Bosch sells suitable vacuum cleaners.

WARNING

Never pull the tool backward since blade will climb out of the material and KICKBACK will occur.

1. Allow the tool to reach full speed before touching the tool to the work surface.

2. If plunge cutting:

a. Tilt tool forward with wheel lined up with the cut line and hold the tool by the grinder body and the auxiliary handle (Fig. 21).

b. Gradually lower the rear of tool using the front end of the foot as the hinge point.

c. When the foot rests flat on the surface being cut, proceed cutting in forward direction to end of cut.

1. Always maintain contact between the guard foot and work piece.

2. Slide the tool forward at a moderate speed adapted to the material being cut. Always cut towards the dust extraction port to maximize dust extraction and reduce likelihood of kickback (Fig. 22).

3. Apply minimum pressure to the work surface, allowing the tool to operate at high speed. Cutting rate is greatest when the tool operates at high speed.

4. When the cut is completed, remove tool from work piece before turning off. Allow wheel to stop rotating before setting tool down.

Tip: When performing deep cuts, it is best to cut in several shallow passes. Each pass should be only to the segment depth of the wheel. Masonry dust is abrasive and may wear and weaken the segment bond.

Mechanical diagram showing a valve mechanism with rotating components and directional arrows (no text or symbols)

FIG. 21

Diagram of a mechanical device with a hose and rotating component, showing fluid flow direction (no text or symbols)

When cutting especially hard material, e. g., concrete with high pebble content, the dry diamond wheel can overheat and become damaged. This is clearly indicated by circular sparking of the rotating dry diamond wheel. In this case, interrupt the cutting process and allow the dry diamond wheel to cool by running the tool for a short period of time at the maximum speed with no-load.

Noticeable decreasing work progress and circular sparking are indications of a dry diamond wheel that has become dull. Briefly cutting into abrasive materials (e. g. brick) can resharpen the wheel.

Concrete Surfacing

Operate the tool with a dust extraction system and personal dust protection, e.g. respirator, dust mask, etc. The vacuum used for this application must be approved for the extraction of masonry and concrete dust. Bosch sells suitable vacuum cleaners.

Diamond cup wheels should be carefully selected in order to use the grinder most efficiently. Wheels vary in type of material they are designed to remove and how aggressively they will remove material. The correct wheel to use is determined by the job.

1. Allow the tool to reach full speed before touching the tool to the work surface.

2. Hold the tool with two hands and keep diamond wheel flat on the work surface.

3. Apply minimum pressure, allowing the tool to operate at high speed. Removal rate is greatest when the tool operates at high speed.

4. Continuously move the tool at a moderate speed to avoid creating gouges in the work surface.
5. Remove the tool from work surface before turning tool off. Allow the tool to stop rotating before laying it down.

Tip: For optimal dust collection, all sides of the surfacing dust collection guard must stay in contact with the surface and the surfacing guard must be connected to a vacuum. A dull diamond wheel can be sharpened by briefly surfacing an abrasive material (eg. sand stone).

Sanding

Sanding discs range in grit from 16 (very course) to 180 (very fine). They also vary in size and spacing of grit.

OPEN COAT (type H) is used for soft materials and on paint and varnish, CLOSED COAT (type K) is used for metal, hardwood, stone, marble and other materials. To obtain best results, select sanding discs carefully. Many jobs require the use of several grit sizes and at times both open coat and closed coat discs are required to complete the job. See chart for application examples.

1. Allow the tool to reach full speed before touching the tool to the work surface.
2. Apply minimum pressure to the work surface, allowing the tool to operate at high speed. Sanding rate is greatest when the tool operates at high speed.

3. Maintain a 10^ to 15^ angle between the tool and work surface, (Fig. 23).

4. Remove the tool from work surface before turning tool off. Allow the tool to stop rotating before laying it down.

Tips: Guide the disc with crisscross strokes. Do not use a circular motion as this makes swirl marks.

Operation: Refinishing painted wood or metal surfaces.
REMARKS GRIT
To remove paint and to smooth surface irregularities.	Coarse16-24-30
To smooth the rough sanding.	Medium36-50-80
To remove scratches left by previous discs.	Fine100-120
To smooth surfaces for painting, polishing or waxing.	Very Fine150-180

FIG. 23

15°

1. Continuously move the tool at a moderate speed to avoid creating gouges in the work surface.

Wire Brush (Wheels and Cups)

Wire brushes are intended to "clean" structural steel, castings, sheet metal, stone, and concrete. They are used to remove rust, scale, and paint.

1. Allow the tool to reach full speed before touching the tool to the work surface.
2. Apply minimum pressure to the work surface, allowing the tool to operate at high speed.
3. Continuously move the tool at a moderate speed to avoid creating gouges in the work surface.
4. Remove the tool from work surface before turning tool off. Allow the tool to stop rotating before laying it down.

Tip: The tips of the brush do the work. Operate wire brushes with the lightest pressure so only the tips of the wire come in contact with the work piece. If heavier pressures are used, the wires will be overstressed, resulting in a wiping action and a shortened brush life due to wire fatigue. Applying the side or edge of the brush to the work piece will result in wire breakage and shortened brush life. (Fig. 24)

FIG. 24

WIRE WHEEL BRUSH

CORRECT: Wire tips doing the work.

Diagram showing a circular object with radial lines and an arrow pointing to it, no text or symbols present.

INCORRECT:

Excessive pressure can cause wire breakage.

Diagram of a circular object with radial lines and a rectangular block, no text or symbols present

WIRE CUP BRUSH

CORRECT: Wire tips doing the work.

15°

INCORRECT:

Excessive pressure can cause wire breakage.

Simple line drawing of a mechanical component or tool with no text or symbols

Maintenance

Service

WARNING

Preventive maintenance performed by unauthorized per so n nel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station.

GFCI and personal protection devices like electrician's rubber gloves and footwear will further enhance your personal safety.

TOOL LUBRICATION

Your Bosch tool has been properly lubricated and is ready to use. It is recommended that tools with gears be regreased with a special gear lubricant at every brush change.

CARBON BRUSHES

The brushes and commutator in your tool have been engineered for many hours of dependable service. To maintain peak

efficiency of the motor, we recommend every two to six months the brush es be examined. Only genuine Bosch replace ment brushes specially designed for your tool should be used.

WARNING

To avoid accidents always dis connect the tool from

the power supply before cleaning or performing any main tenance. The tool may be cleaned most effectively with compressed dry air. Always wear safety gog gles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not at tempt to clean by inserting pointed objects through openings.

WARNING

Certain cleaning agents and sol vents damage

plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and house hold detergents that contain ammonia.

Extension Cords

WARNING

If an extension cord is necessary, a cord with adequate size conductors that is capable of carrying the current necessary for your tool must be used. This will prevent excessive voltage drop, loss of power or overheating. Grounded tools must use 3-wire extension cords that have 3-prong plugs and receptacles.

NOTE: The smaller the gauge number, the heavier the cord.

RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT ALTERNATING CURRENT TOOLS

Tool's Ampere Rating	Cord Size in A.W.G.				Wire Sizes in mm 2
	Cord Length in Feet				Cord Length in Meters
	25	50	100	150	15 30	60	120
3-6	18	16	16	14	0.75	0.75	1.5	2.5
6-8	18	16	14	12	0.75	1.0	2.5	4.0
8-10	18	16	14	12	0.75	1.0	2.5	4.0
10-12	16	16	14	12	1.0	2.5	4.0	-
12-16	14	12	-	-	-	-	-	-

Accessories

WARNING

The use of accessories not specified for use with the tool described in this manual may create a hazard.

* Type 27 wheel guard
** Type 41/1A wheel guard
* Lock nut
* Backing flange
* Side handle
* Lock nut wrench
** Surfacing guard

** Type 41/1A masonry cutting guard
** Concrete dust extraction attachment
** Grinding wheel
** Backing pad
** Hand shield
(^* = standard equipment)
(**= optional accessories)

WARNING

Do not use Type 11 abrasive (cup) wheels with this tool. This tool is not designed for use with type 11 (cup) abrasive grinding wheels.

Line drawing of a mechanical power tool with a circular base and radial blades (no text or symbols)

ZONE DE FONCTIONNEMENT

Two identical line drawings of a power tool with a circular head and lever, shown from different angles (no text or symbols)

Diagram of a circular mechanical component with internal blades and directional arrows, no text or symbols present.

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Mechanical diagram showing a pipe connection with rotating components and directional arrows (no text or symbols)

FIG. 21

Diagram of a mechanical device with a tool and rotating components, labeled FIG. 22 (no text or symbols on the diagram itself)

Diagram showing a circular object with radial lines and an arrow pointing to it, no text or symbols present.

Circular object with radial lines and a separate rectangular block, no visible text or symbols

BROSSE MÉTALLIQUE (TYPE COUPELLE)

Pure technical line drawing of a mechanical component or assembly (no text or symbols)

Maintenance

Réparations

AVERTISSEMENT

Line drawing of a mechanical power tool with a circular head and blades (no text or symbols)

ZONA DE OPERACIÓN

Line drawing of a power tool with a circular head and radial blade (no text or symbols)

Line drawing of a mechanical power tool with a circular head and radial blade (no text or symbols)

Diagram of a circular mechanical component with internal blades and directional arrows, no text or symbols present.

Ensamblaje para lijar

ADVERTENCIA

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Mechanical diagram showing a valve mechanism with rotating components and directional arrows (no text or symbols)

FIG. 21

Diagram of a mechanical device with rotating arm and base, showing fluid flow direction (no text or symbols)

Diagram showing a circular object with radial lines and an arrow pointing to it, no text or symbols present.

INCORRECTO:

Diagram of a circular object with radial lines and an arrow pointing to its edge (no text or symbols)

CEPILLO ACOPADO DE ALAMBRE

CORRECTO:

Pure technical line drawing of a mechanical component or assembly (no text or symbols)

Mantenimiento

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all BOSCH portable and benchtop power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete portable or benchtop power tool product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Station. For Authorized BOSCH Power Tool Service Stations, please refer to your phone directory.

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE AND BENCHTOP ELECTRIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.

GARANTIE LIMITÉE DES OUTILS ÉLECTRIQUES PORTATIFS ET D'ÉTABLI BOSCH

© Robert Bosch Tool Corporation 1800 W. Central Road Mt. Prospect, IL 60056-2230

Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056-2230, E.U.A.
