USER MANUAL FMOD3053WLB1 BERTAZZONI

BERTAZZO ITALIA

EN	INSTALLATION MANUALUSER AND MAINTENANCE MANUALBUILT-IN MICROWAVE	3
IT	MANUALE D'INSTALLAZIONEMANUALE D'USO E MANUTENZIONEFORNO A MICROONDE DA INCASSO	25
FR	MANUEL D'INSTALLATIONMANUEL D'UTILISATION ET D'ENTRETIENMICRO-ONDES ENCASTRÉS	49
NL	INSTALLATIEHANDLEIDINGGEBRUIKS- EN ONDERHOUDSHANDLEIDINGINBOUW MAGNETRONOVEN	71
SV	INSTALLATIONSHANDBOKBRUKS- OCH UNDERHÄLLSHANDBOKINBYGGD MIKROVÄGSUGN	93

FROM THE DESK OF OUR PRESIDENT

Dear new owner of a Bertazzoni appliance,

I want to thank you for choosing one of our beautiful products for your home.

My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food.

Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners.

By making beautiful products we respond to our customers' flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure.

This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.

Enjoy!

Paolo Bertazzoni

President

Pedro Sectorzom

USER MANUAL VALIDITY

The following manual is valid only for FMOD3053WLB1 product code.

INTRODUCTION AND WARNINGS 7

READING THE MANUAL 7

APPLIANCE IDENTIFICATION 7

GENERAL SAFETY INSTRUCTIONS 7

APPLIANCE WARNINGS 8

INSTALLATION AND CONNECTION 9

UTENSILS 9

ENVIRONMENTALLY-FRIENDLY DISPOSAL 11

INSTALLATION MANUAL 12

INSTALLING THE OVEN 12

BUILDING IN 13

ELECTRICAL CONNECTION 13

IMPORTANT INFORMATION WITH PLUG 13

IMPORTANT INFORMATION WITHOUT PLUG 14

USING THE APPLIANCE 15

MICROWAVE PARTS AND ACCESSORIES 15

TECHNICAL INFORMATION 16

CONTROL PANEL 16

TURNTABLE INSTALLATION 17

COOKING MODES 18

SETTING THE CLOCK 18

KITCHEN TIMER 18

MICROWAVE 18

GRILL 18

COMBINATION 18

DEFROST BY WEIGHT 18

DEFROST BY TIME 18

SPEED COOKING 18

LOCK FUNCTION FOR CHILDREN 19

INQUIRE FUNCTION 19

AUTO MENU 19

CLEANING THE APPLIANCE 21

TROUBLESHOOTING 22

WARRANTY AND SERVICE 23

READING THE MANUAL

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not contain or support.

The images and illustrations in this document refer to various models and may differ slightly from the product purchased.

The manufacturer does not accept any responsibility for personal injury or damage to property arising from incorrect installation or misuse of the appliance.

The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force.

In the event of complaints, please contact the customer service.

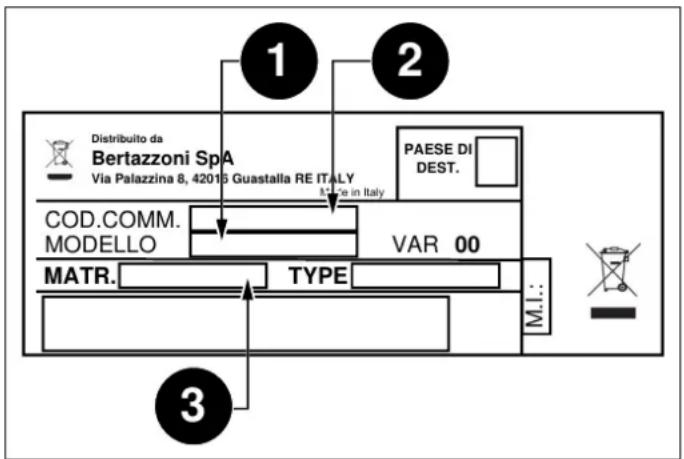

APPLIANCE IDENTIFICATION

Fig. 1

The dataplate contains the following information:

You are advised to make a note of the appliance's data and serial numbers so they are immediately available if required.

NOTE

State the information provided on the dataplate to improve the efficiency of the after-sales and parts services.

GENERAL SAFETY INSTRUCTIONS

1) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
2) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

APPLIANCE WARNINGS

To reduce the risk of fire, electric shock, injury to persons exposure to excessive microwave oven energy when using your appliance, follow basic precautions:

1) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
2) Keep the appliance and its cord out of reach of children less than 8 years.
3) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING

Liquids and foods must not be heated in sealed containers since they are liable to explode.

4) When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
5) Only use utensils that are suitable for use in microwave
6) If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
7) Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
8) The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
9) Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
10) Details for cleaning door seals, cavities and adjacent parts.
11) The oven should be cleaned regularly and any food deposits removed.

12) Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
13) Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
14) The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
(15)This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential type environments;

• farm houses;
  • bed and breakfast type environments.

16) The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
17) Metallic containers for food and beverages are not allowed during microwave cooking.
18) The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
19) The microwave oven is intended to be used built-in.
20) The appliance must be operated with any cupboard door open.
21) Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900 mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

22) Surface of a storage drawer can get hot.

WARNING

The appliance and its accessible parts become hot during use. Care should be taken to avoid become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

23) During and after use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING

Accessible parts may become hot during and after use. Young children should be kept away.

WARNING

When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2) If a long cord set or extension cord is used:

a. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
b. The extension cord must be a grounding-type 3-wire cord.
c. The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

INSTALLATION AND CONNECTION

1) This appliance is only intended for domestic use.
2) This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cabinet.
3) Please observe the special installation instructions.
4) The appliance can be installed in a 60cm wide wall-mounted cupboard.
5) The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6) The mains voltage must correspond to the voltage specified on the rating plate.
7) The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3 mm.
8) Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.
9) Don't use under the work surface and that it must not be subject to spillage from containers onto surfaces under which the appliance is installed.

WARNING

The accessible surface may be hot during and after operation.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See Table 1 MATERIALS YOU CAN USE IN MICROWAVE OVEN and Table 2 MATERIALS TO BE AVOIDED IN MICROWAVE OVEN. There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

^1 UTENSIL TEST

1) Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2) Cook on maximum power for 1 minute.
3) Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4) Do not exceed 1 minute cooking time.

Table 1 MATERIALS YOU CAN USE IN MICROWAVE OVEN

UTENSILS REMARKS
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16" (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Table 2 MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

UTENSILS REMARKS
Aluminium tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Dispose of packaging in an environmentally-friendly manner.

This appliance complies with European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). The directive gives a framework for the collection and recycling of old appliances, which is valid across the EU.

INSTALLING THE OVEN

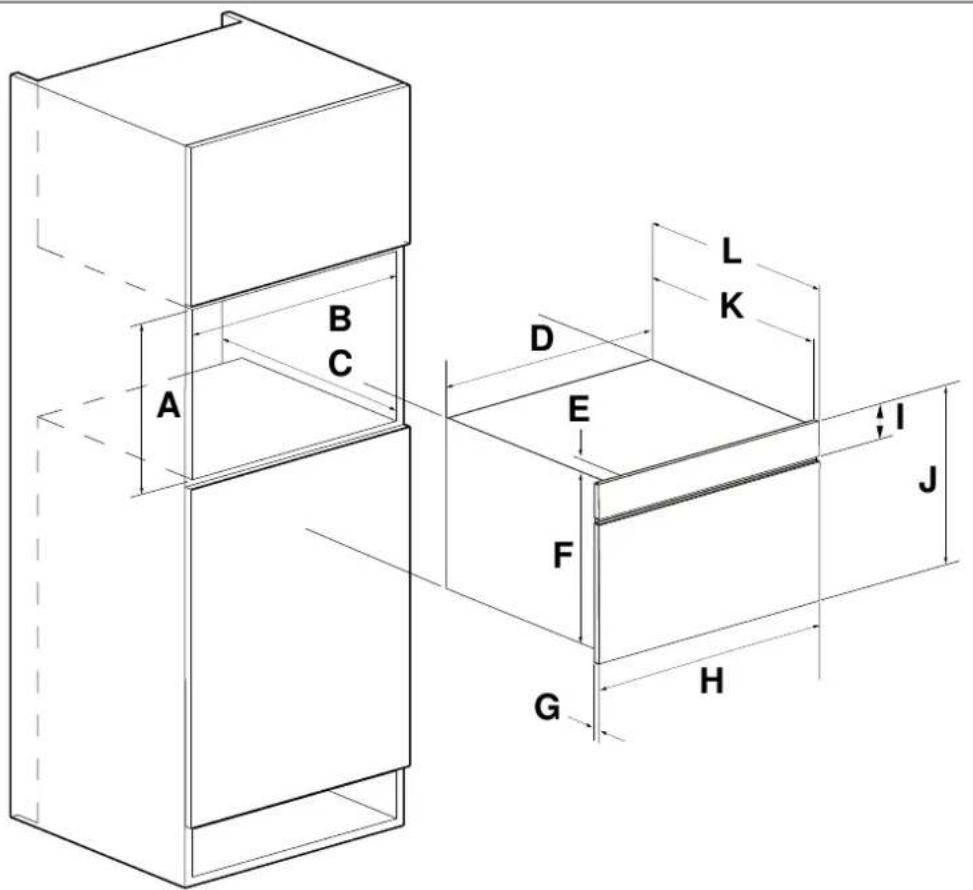

The dimensions attached are in mm.

The units into which the appliance is fitted must be heat resistant up 95°C. The minimum installation height is 850 mm.

A B C D E F G H I J K L

Fig. 2

Do not hold or carry the appliance by the door handle. Door handle cannot hold the weight of the appliance and may break off.

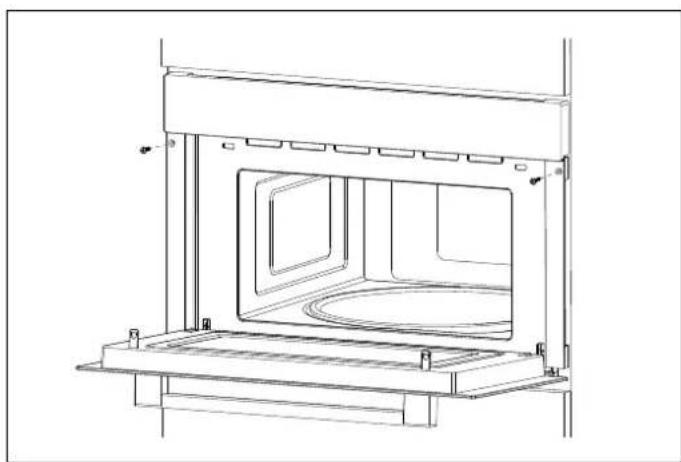

1) Carefully push the microwave into the box, making su that it is in the centre.

2) Open the door and fasten the microwave with the screws that were supplied.

Technical line drawing of a cabinet or enclosure with internal compartments and mounting base (no text or symbols)

Fig. 3

ELECTRICAL CONNECTION

IMPORTANT INFORMATION WITH PLUG

The oven is fitted with a plug and must only be connected to properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.

Contact protection must be ensured by the installation. For fuse protection see instructions for use-technical data.

NOTE

Do not cover ventilation slots and suction holes.

NOTE

Do not trap or bend the power cable

NOTE

Fully insert the appliance and centre it.

NOTE

Do not kink the connecting cable.

NOTE

Screw the appliance into place.

IMPORTANT INFORMATION WITHOUT PLUG

The appliance is designed to be permanently installed with a three-pin power cord and may only be connected by a licensed expert in accordance with the connection diagram.

Only a qualified electrician who takes the relevant regulations into account may replace the power cord.

Do not use multiple plugs, power strips or extensions. Overloading causes a risk of fire.

If the connection is no longer accessible following installation, an all-pin isolating switch with a contact gap of at least 3 mm must be provided.

COLOUR WIRES

Green and yellow Earth wire (E)

Blue

Netral wire (N)

Brown

Live (L)

CAUTION

Grean Britain and Australia:

Do not connect the appliance using a 13 A plug or project it with a 13 A fuse. The appliance must be protected using a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all installation work. When the appliance is installed, protection must be provided against accidental contact in the future.

Use this section to familiarise with your new appliance.

The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the accessories.

WARNING

It is forbidden to run the unit without any food inside.

MICROWAVE PARTS AND ACCESSORIES

^a (In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity.

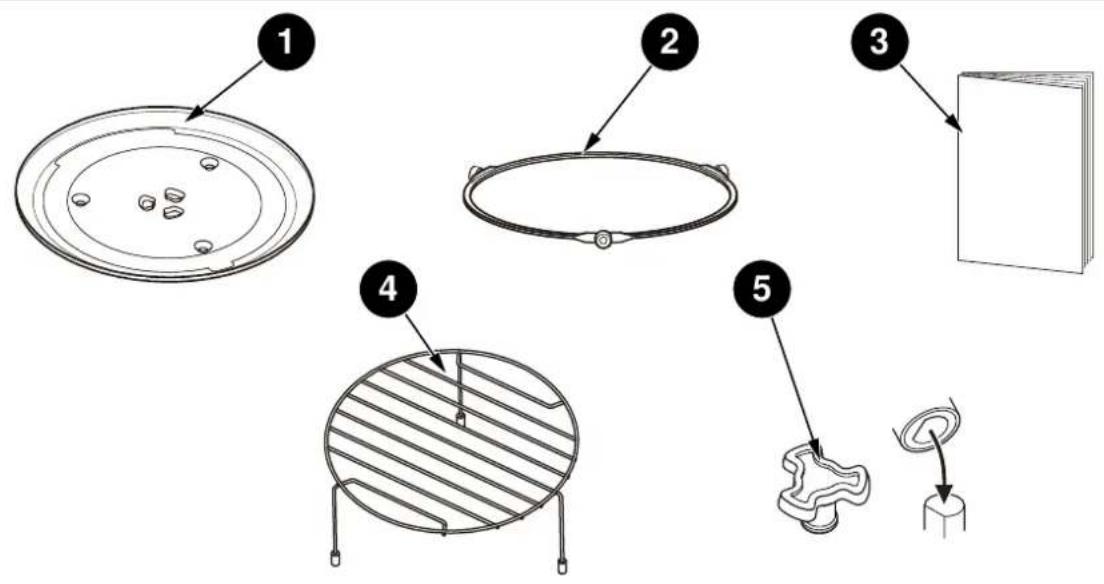

Your oven comes with the following accessories:

Diagram showing five labeled steps of a mechanical or electrical component assembly, including a circular plate, oval plate, grating, and a cylindrical device.

Fig. 4

ITEM
1	Glass Tray
2	Turntable Ring Assembly
3 Instruction Manual
4	Higher Wire Rack (For grilling, e.g. steaks, sausages and for toasting bread.As a support for shallow dishes.)
5	Turntable Shaft

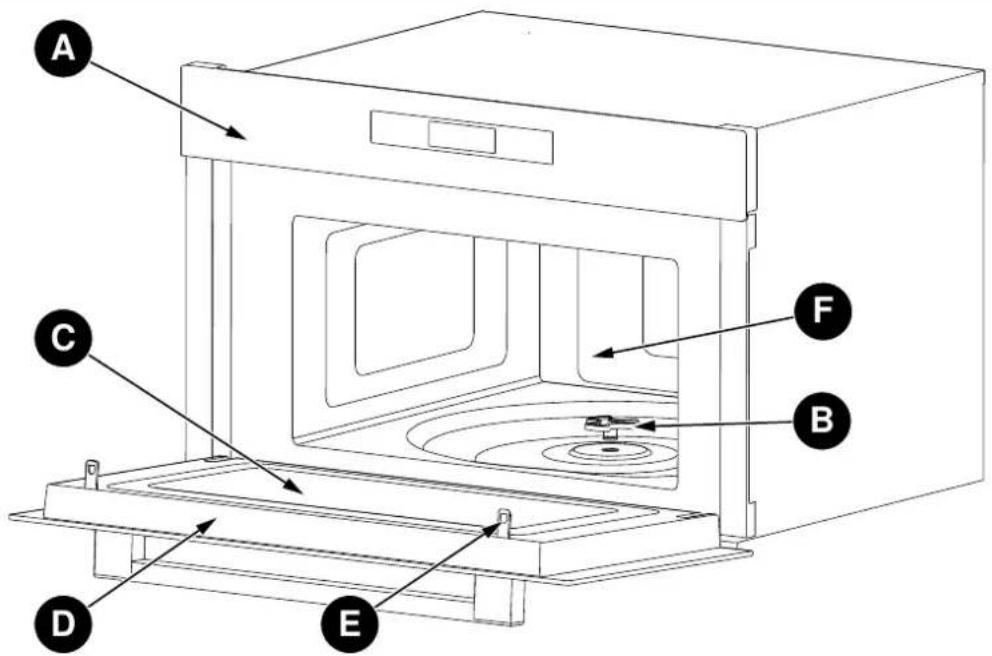

A C D E B F

Fig. 5

ITEM
A	Control panel
B Turntable shaft
C Observation window
D	Door assembly
E	Safety interlock system
F	Oven cavity

TECHNICAL INFORMATION

TECHNICAL DATA
Model	FMOD3053WLB1
Rated Voltage 230 V~ 50 Hz
Microwave Input 1450 W
Microwave Output	900 W
Grill	1100 W

CONTROL PANEL

SYMBOL FUNCTION
≈	Microwave
F	Function
	Clock / Kitchen Timer
	Auto Menu
	Lock / Cancel
	Start / +30 Sec / Confirm
- +	Parameter adjustment
	Slider control bar

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

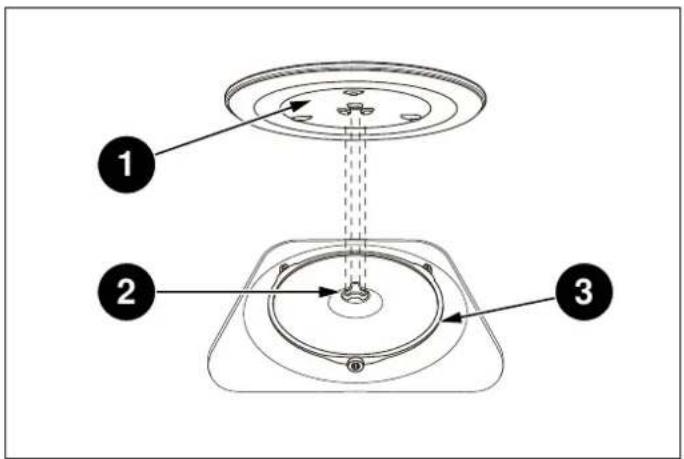

1 2 3

Fig. 6

How to put the turntable in place:

1) Place the turntable ring assembly ③ into the recess in the cooking compartment.
2) Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

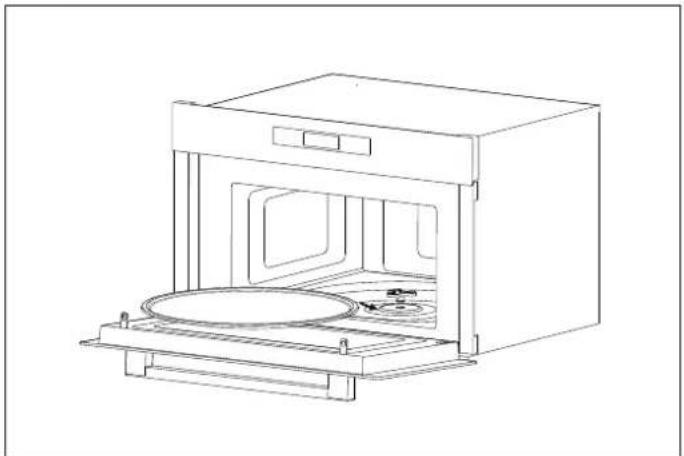

Line drawing of a microwave oven with open door and side panel (no text or symbols)

Fig. 7

NOTE

Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.

NOTE

Never place the glass tray upside down. The glass tray should never be restricted

NOTE

Both glass tray and turntable ring assembly must always be used during cooking.

NOTE

Some food and containers of food are always placed on the glass tray for cooking.

NOTE

Never restrict the movement of the turntable.

NOTE

If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COOKING MODES

SETTING THE CLOCK

1) Press once and then 00:00 will display.
2) Move the slider or press "+" or "-" to set the hour figures. The time should be within 0-23.
3) Press to confirm.
4) Move the slider or press "+" or "-" to set the minute figures. The time should be within 0-59.
5) Press to confirm.

KITCHEN TIMER

1) Press once and then 00:00 will display.
2) Move the slider or press "+" or "-" to set the time. The maximum time is 95 min.
3) Press to confirm.

MICROWAVE

POWER LEVEL DISPLAY

100%	P10
80%	P8
50%	P5
30%	P3
10%	P1

1) In waiting state, press and then P10 will display.
2) Press ≈ repeatedly to adjust the power level, 5 power levels are available.
3) Move the slider or press "+" or "-" to set the cook time.
4) Press to start cooking.

GRILL

1) Press F once and then G-1 will display.
2) Move the slider or press "+" or "-" to set the cook time increase minutes.
3) Press to start cooking.

NOTE

When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

COMBINATION

Table 3 POWER CHART

	C-1	C-2
res.	Micro 55%	Grill 45%
	Micro 36%	Grill 64%

1) Press F once and then G-1 will display. Press F repeatedly to choose the combinative mode you want, and C-1, C-2 are available.
2) Move the slider or press “+” or “-” to set the cook time.
3) Press to start cooking.

DEFROST BY WEIGHT

1) To enter the weight defrost function, press repeatedly until 0.1kg displays.
2) Move the slider or press "+" or "-" to set the weight. The range of the weight is 100-2000 g.
3) Press to start defrosting.

DEFROST BY TIME

1) To enter the time defrost function, press repeatedly until 1:00 displays.
2) Move the slider or press “+” or “-” to set the time. The maximum defrosting time is 95 min.
3) Press to start defrosting.

NOTE

When buzzer sounds, turn the food over. If there is no operation, the oven will continue working

SPEED COOKING

In waiting state, press ▷ to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is 95 minutes.

NOTE

Speedy cooking cannot be set in defrost by weight, multi-stage and auto menu.

LOCK FUNCTION FOR CHILDREN

You can use this function to prevent children from accidentally turning the oven on.

• For activation, in waiting state, press and hold for three seconds. A long beep sounds and the locked will display.
• For deactivation, in locked state, press and holds for three seconds. A long beep sounds.

INQUIRE FUNCTION

If the clock has been set, the current time will display for three seconds by pressing in the cooking state.

AUTO MENU

1) In waiting state, press, the screen will display A-1.
2) Press repeatedly to choose the menu you need. 8 auto menus are available.
3) Move the slider or press "+" or "-" to set the weight of t food.
4) Press to start cooking.

Table 4 AUTO MENU CHART

MENU WEIGHT DISPLAY POWER
A-1POTATO	1 (about 230 g)	1	P100
	2 (about 460 g)	2
	3 (about 690 g)	3
A-2MEAT	150 g	150g	P80
	300 g	300g
	450 g	450g
	600 g	600g
A-3FISH	150 g	150g	P80
	250 g	250g
	350 g	350g
	450 g	450g
	650 g	650g
A-4VEGETABLE	150 g	150g	P100
	350 g	350g
	500 g	500g
A-5BEVERAGE	1 cup (240 g)	1	P100
	2 cup (480 g)	2
	3 cup (720 g)	3
A-6PASTA	50 g (cold water 450 g)	50g	P80
	100 g (cold water 800 g)	100g
	150 g (cold water 1200 g)	150g
A-7POPCORN	100 g	100g	P100
A-8PIZZA	200 g	200g	P100/G-1
	400 g	400g

CAUTION

The appliance shall not be cleaned with a steam cleaner.

CAUTION

Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

If the appliance is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

1) Clean the cavity of the oven after using with a slightly damp cloth.
2) Clean the accessories in the usual way in soapy water.
3) The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4) Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5) For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

Be sure to unplug the appliance from the power supply.

NORMAL

Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

Dim oven light In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.

Oven started accidentally with no food in It is forbidden to run the unit without any food inside. It is very dangerous.

TROUBLE POSSIBLE CAUSE REMEDY

	Power cord is not plugged in tightly	Unplug. Then plug again after 10 seconds.
Oven cannot be started	Fuse blowing or circuit breaker works	Replace fuse or reset circuit breaker (repaired by professional personnel.)
	Trouble with outlet	Test outlet with other electrical appliances.
Oven does not heat Door is not closed well Close door well.

E. BERTAZZO ITALIA

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at:

https://uk.bertazzoni.com/more/care-service

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.

DALLA SCRIVANIA DEL PRESIDENTE

Gentile Cliente,

A B C D E F G H I J K L

Fig. 2

Technical line drawing of a microwave oven or oven unit with mounting base and control panel (no text or symbols)

Fig. 3

INFORMAZIONI IMPORTANTI PER LA SPINA

Diagram showing five steps of a mechanical or electrical component assembly, labeled 1 to 5 with numbered components.

Fig. 4

Line drawing of a microwave oven with open door and side grilles (no text or symbols)

Fig. 7

NOTA

C-1	C-2
Micro 55%	Grill 45%
Micro 36%	Grill 64%

MANUEL D'INSTALLATION 59

INSTALLATION DU FOUR 59

ENCASTREMENT 60

RACCORDEMENT ÉLECTRIQUE 60

INFORMATION IMPORTANTE AVEC PRISE 60

INFORMATION IMPORTANTE SANS FICHE 61

UTILISATION DE L'APPAREIL 62

PIÈCES ET ACCESSOIRES POUR MICRO-ONDES 62

INFORMATIONS TECHNIQUES 63

PANNEAU DE COMMANDE 63

INSTALLATION DU PLATEAU TOURNANT 64

MODES DE CUISSON 65

RÉGLAGE DE L'HORLOGE 65

MINUTEUR DE CUISINE 65

FOUR MICRO-ONDE 65

GRIL 65

COMBINAISON 65

DÉCONGELER EN FONCTION DU POIDS 65

DÉCONGELER EN FONCTION DE LA DURÉE 65

VITESSE DE CUISSON 65

FONCTION DE VERROUILLAGE DE SÉCURITÉ DES ENFANTS 66

FONCTION DE DEMANDE 66

MENU AUTOMATIQUE 66

NETTOYAGE DE L'APPAREIL 68

RÉSOLUTION DE PROBLÈMES 69

GARANTIE ET SERVICE APRÈS-VENTE 70

LECTURE DU MANUEL

INSTRUCTIONS GÉNÉRALES DE SÉCURITÉ

INSTALLATION DU FOUR

A B C D E F G H I J K L

Fig. 2

Technical line drawing of a microwave oven or oven unit with mounting base and control panel (no text or symbols)

Fig. 3

Diagram showing five labeled steps of a mechanical or electrical component assembly, including a circular plate, ring, cover, and wire.

Fig. 4

ÉLÉMENT

Line drawing of a simple kitchen oven with a circular vent and side-mounted base (no text or symbols)

Fig. 7

NOTE

PROBLÈME
CAUSE POSSIBLE SOLUTION

INLEIDING EN WAARSCHUWINGEN 75

DE HANDLEIDING LEZEN 75

IDENTIFICATIE APPARAAT 75

ALGEMENE VEILIGHEIDSINSTRUCTIES 75

WAARSCHUWINGEN OVER HET APPARAAT 76

INSTALLATIE EN AANSLUITING 77

KEUKENGEREI 78

MILIEUVRIENDELIJKE AFVOER ALS AFVAL 80

INSTALLATIEHANDLEIDING 81

DE OVEN INSTALLEREN 81

INBOUWEN 82

HET APPARAAT SCHOONMAKEN 90

PROBLEMEN OPLOSSEN 91

GARANTIE EN SERVICE 92

DE HANDLEIDING LEZEN

WAARSCHUWINGEN OVER HET APPARAAT

3) If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WAARSCHUWING

A B C D E F G H I J K L

Fig. 2

Technical line drawing of a microwave oven with control panel and mounting bracket (no text or symbols)

Fig. 3

OPMERKING

Diagram showing five labeled steps of a mechanical or electrical component assembly, including a circular plate, ring, and gear mechanism.

Fig. 4

Line drawing of a simple kitchen oven with a circular vent and side-mounted base (no text or symbols)

Fig. 7

OPMERKING

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.

FRÅN CHEFENS SKRIVBORD

INSTALLATION OCH ANSLUTNING

A B C D E F G H I J K L

Fig. 2

Technical line drawing of a cabinet or enclosure with internal compartments and mounting base (no text or symbols)

Fig. 3

Diagram showing five labeled steps of a mechanical or electrical component assembly, including a circular plate, ring, and base.

Fig. 4

Line drawing of a microwave oven with open door and side grilles (no text or symbols)

Fig. 7

ANMÄRKNING

LÅSFUNKTION FÖR BARN

https://SE.bertazzoni.com/more/care-service
