WBDR1BW8NB - Dryer Wisberg - Free user manual and instructions

Brand	Wisberg
Model	WBDR1BW8NB
Product type	Heat pump tumble dryer, freestanding
Maximum load capacity	8 kg
Dimensions (W × H × D)	590 × 845 × 595 mm
Weight	45 kg
Power supply	220-240 V ~ 50 Hz
Rated power	750 W
Weighted annual energy consumption (AEC)	kWh/year (not specified)
Drying programs	15 programs: Cotton, ECO, Synthetics, Wool, Jeans, Bed linen, Sport, Delicates, Hot air, Cold air, Refresh, etc.
Additional functions	Delayed start (max 24 h), Anti-crease (30-120 min), Drying level (Very dry/Standard), Boost, UV-C disinfection, Child lock
Drying technology	Heat pump with condenser
Refrigerant	R290 (145 g)
Noise level	64 dB

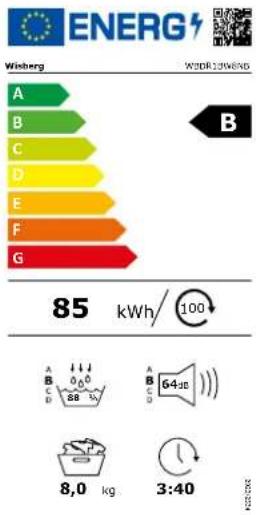

Energy efficiency class	B
Condensation efficiency class	B (88%)
Standard ECO program duration	155 min (full load), 135 min (half load)
Standard ECO program consumption	1.28 kWh (full load), 0.72 kWh (half load)
Condensation water drainage	Water tank (to be emptied manually) or direct drainage via hose (optional)
Maintenance	Clean door filter after each cycle; clean heat exchanger every 3 months
Warranty	2 years
Availability of spare parts	10 years after placing on the market
Operating temperature	2 °C to 35 °C
Protection rating	IPX4
Colour	White

Frequently Asked Questions - WBDR1BW8NB Wisberg

How to install the Wisberg WBDR1BW8NB tumble dryer?

Place the appliance on a flat, stable and heat-resistant surface. Leave a 2 cm gap all around. Plug into a grounded outlet (220-240 V). Drain condensation water via the tank or the optional drain hose. For optimal drying, level the appliance using the adjustable feet.

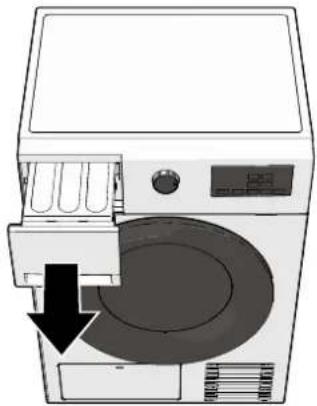

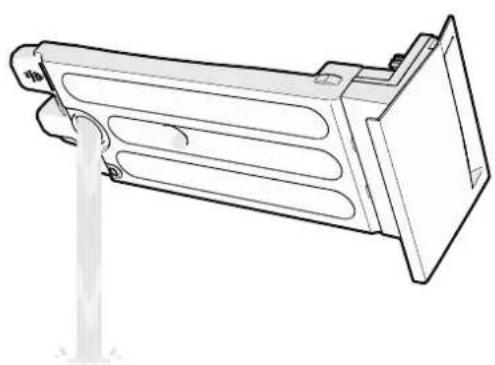

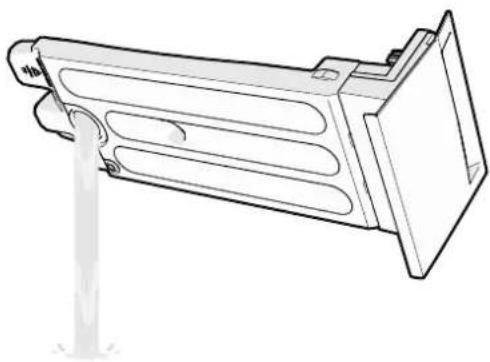

How to empty the water tank?

Pull the water tank out of the appliance, tilt it over a sink and empty it. Dry the outside and clean the opening with a brush. Replace it until it clicks. Empty it after each cycle to avoid an automatic pause.

What is the maximum load capacity?

The maximum capacity is 8 kg for Cotton and ECO programs. Respect the capacity indicated for each program (e.g., 3.5 kg for Synthetics, 1 kg for Wool) to optimise energy consumption and drying time.

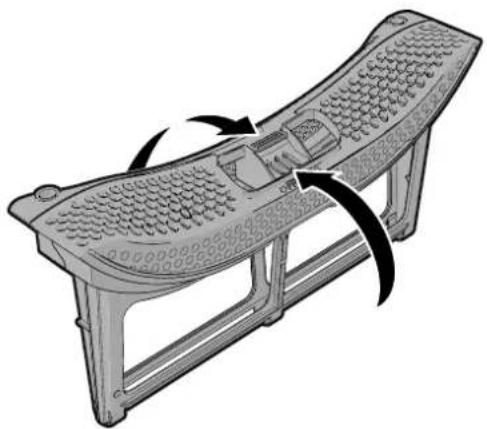

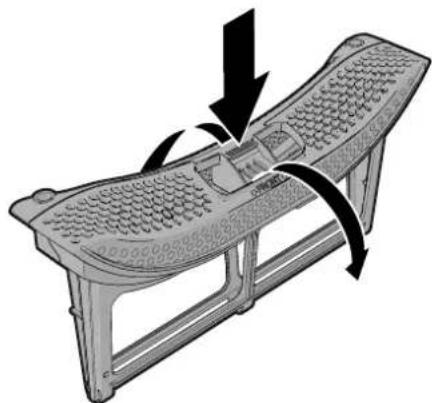

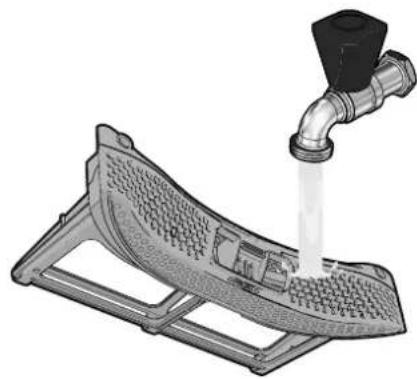

How to clean the door filter?

After each cycle, open the door, remove the filter upwards, open it by pressing the tab, remove lint. Rinse with cold water if necessary, dry completely, then replace by aligning the arrows. A clean filter reduces energy consumption.

What to do if the drying time is too long?

Check that the door filter is not clogged, the water tank is not full, the air inlet is clear, and the location meets the instructions. Use the program suitable for the laundry type and activate the Boost function to speed up drying.

How to activate child lock?

During a program, press the Anti-crease and Drying level buttons simultaneously for 3 seconds until you hear a beep. The child lock indicator lights up. To deactivate, repeat the operation.

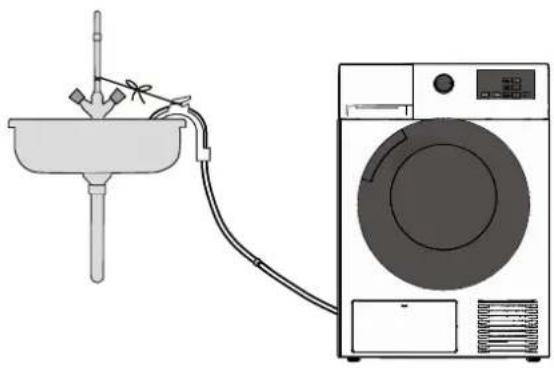

Can I use a drain hose for condensation water?

Yes, you can connect the optional drain hose to a sink or sewer outlet. Make sure the hose is not kinked and the end does not exceed 15 cm into the sewer outlet to avoid backflow.

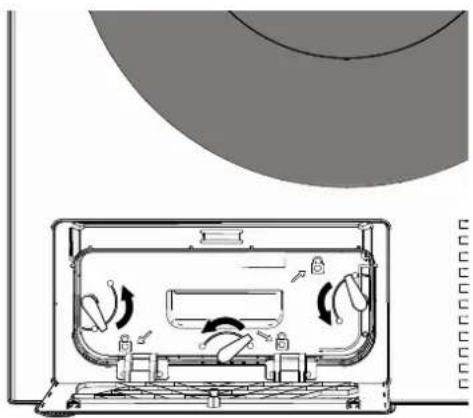

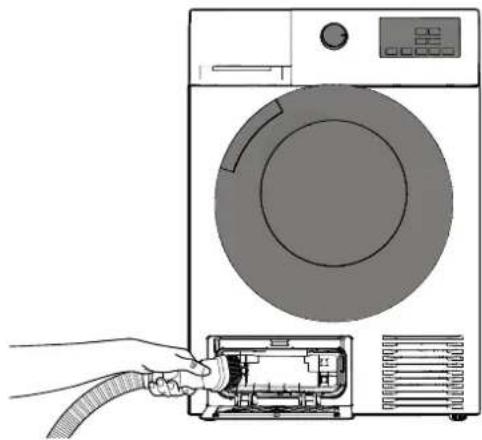

How to clean the heat exchanger?

Turn off the appliance, open the maintenance hatch, turn the latches to the open position, remove the protective cover. Use a vacuum cleaner with brush to remove dust and lint. Do not force the fins. Replace the cover and close the hatch. Do this every 3 months.

What does error code E33 mean?

The code E33 indicates a temperature sensor fault. It requires intervention by a qualified technician. Contact Coolblue customer service for repair.

Which program to use to dry jeans?

Use the Jeans program (capacity 4 kg). It is designed for jeans and casual clothes spun at high speed. For more thorough drying, you can activate the Drying level function.

USER MANUAL WBDR1BW8NB Wisberg

Rated capacity: 8.0kg

Power supply: 220-240V\~50Hz

Rated power: 750W

Refrigerant: R290

Quantity of refrigerant: 145g

Grade of waterproof: IPX4

Tonne[s] of CO2 equivalent: 0t

GWP value: 3

Contains fluorinated greenhouse gases

covered by the Kyoto Protocol.

Hermetically sealed.

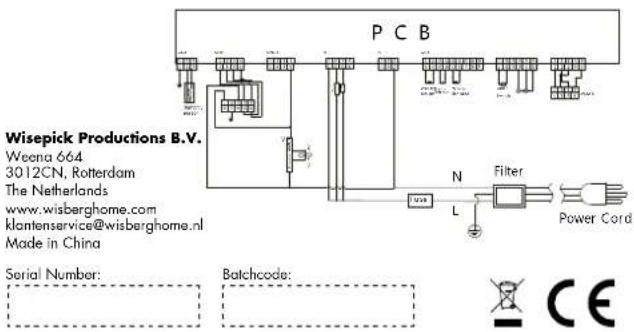

PCB Wisepick Productions B.V. Weena 664 3012CN, Rotterdam The Netherlands www.wisberghome.com [e-mail] Made in China Serial Number: Batchcode:

INHOUDSOPGAVE

Voorwoord

4

1. Veiligheid 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

1. VEILIGHEID

1.2. VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

2. INFORMATIE OVER HET APPARAAT

2.1. BESCHRIJVING VAN HET APPARAAT

Labeled diagram of a washing machine showing numbered components for identification

3.4. BENODIGDE GEREEDSCHAPPEN

Technical line drawing of a mechanical component with a pipe inserted (no text or symbols)

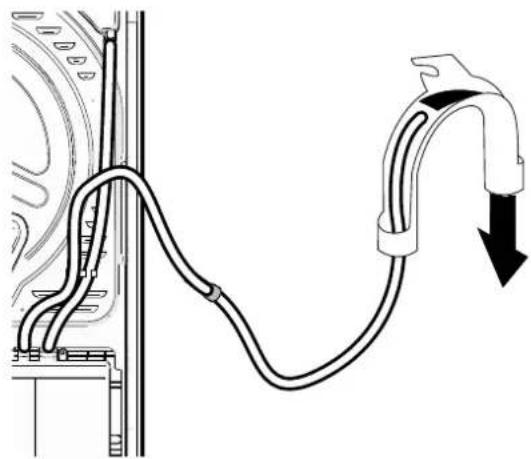

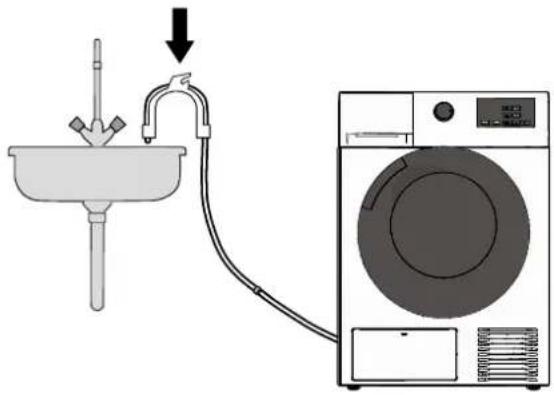

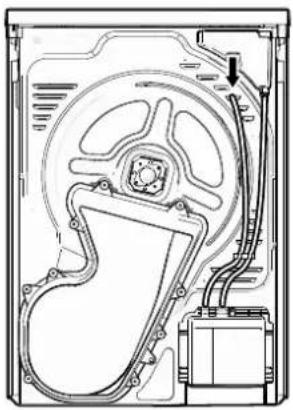

3.5.2. HET CONDENSWATER AFVOEREN IN EEN WASBAK

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

OPMERKING

Diagram of a cable or hose connection with a directional arrow indicating movement (no text or symbols present)

Diagram showing a sink connected to a washing machine with a piping bag (no text or symbols present)

OPMERKING

Diagram of a washing machine with a basin and connecting tubing, no text or symbols present

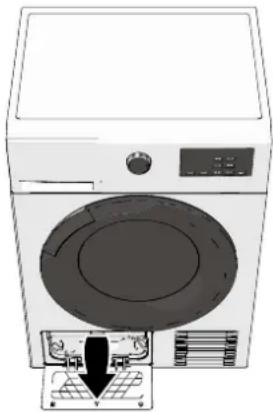

WAARSCHUWING!

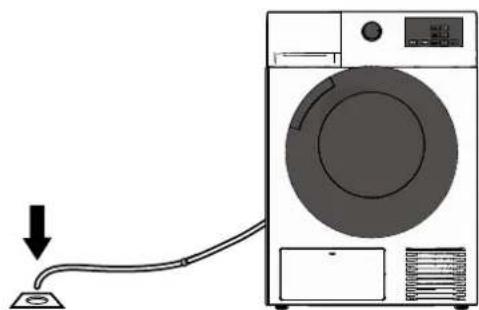

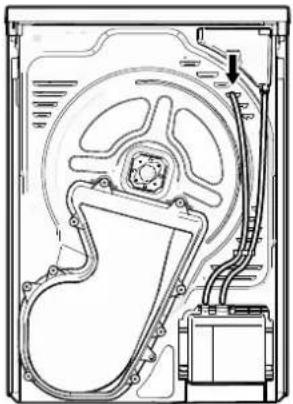

3.5.3. HET CONDENSWATER AFVOEREN IN EEN AFVOERPUT

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

OPMERKING

Diagram of a washing machine with a cable and outlet, showing no text or symbols

OPMERKING

Illustration of a washing machine with a close-up view showing the internal components (no text or symbols present)

OPMERKING

Diagram of a washing machine with a black arrow indicating airflow or movement, showing internal components and casing (no text or symbols)

Technical line drawing of a mechanical component with a vertical rod inserted (no text or symbols)

Line drawing of a washing machine with a handle and control panel (no text or symbols)

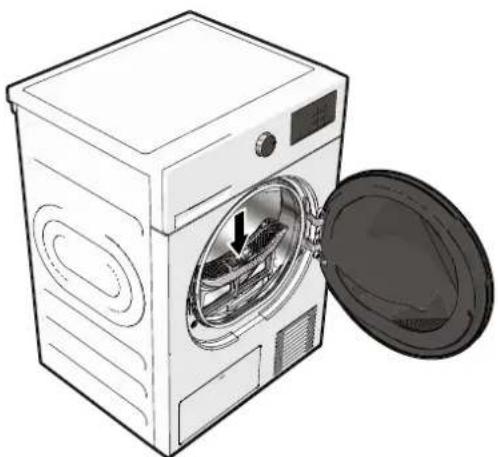

5.2. HET DEURFILTER REINIGEN

OPMERKING

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

Diagram of a two-legged table with a keyboard and mouse, showing directional arrows indicating movement (no text or symbols present)

OP!

Illustration of a faucet dispensing liquid into a perforated metal tray (no text or symbols)

Illustration of a portable table with mesh backrest and side supports, showing internal components and directional arrows (no text or symbols)

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

OP!

Diagram of a white front-loading washing machine with a door and internal circuit board (no text or labels)

Diagram of a refrigerator interior showing airflow direction and fan arrangement (no text or symbols)

Line drawing of a washing machine with a hand inserting a cable into the air gap (no text or symbols)

OP!

Technical line drawing of a washing machine with internal air purification system (no text or symbols)

OP!

8.1. VERPAKKINGSMATERIAAL AFVOEREN

8.2. HET APPARAAT AFVOEREN

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

EN-USERMANUAL

DRYER

WBDR1BW8NB

TABLE OF CONTENT

Foreword

35

1. Safety 36

1.1. Intended use and foreseeable unintended use 36
1.2. Safety warnings and regulations 36
1.3. Explanation of graphic symbols on the product and packaging 40

2. Information about the device 40

2.1. Description of the device 40
2.2. General specifications 41
2.3.Type plate 42
2.4. Spare parts 42
2.5. Guarantee 42

3. Installation 42

3.1. Requirements on the location of installation 42
3.2. Remove and check the packaging 43

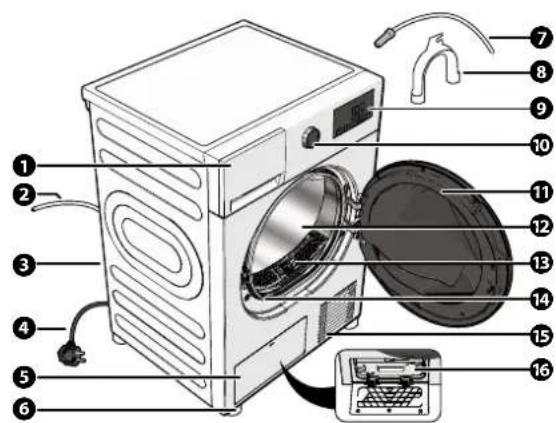

3.3.Main parts 43
3.4. Required tools 43
3.5. Drain condensation water 43

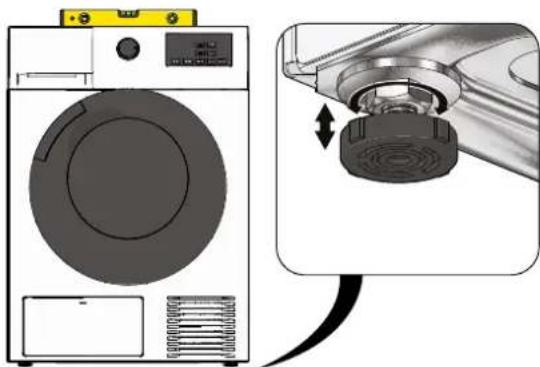

3.6. Level the appliance 46
3.7. Remove factory residue 47

4. Use 47

4.1. Use the appliance as effectively as possible 48

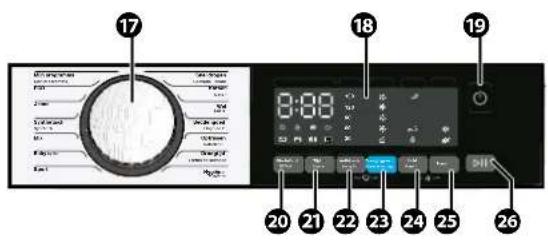

4.2. Operating panel 49
4.3. Preparing the clothes 50
4.4. Turning the appliance on and off 50
4.5. Drying programmes and energy consumption 50
4.6. Drying of clothing and textiles 51

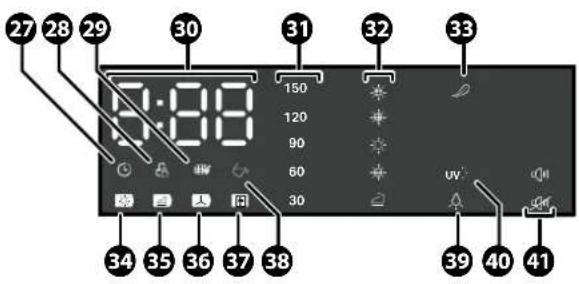

4.7. Use of the additional functions 52

5. Cleaning and maintenance 55

5.1. Emptying the water tank 55
5.2. Cleaning the door filter 56
5.3. Cleaning the appliance after each use 58
5.4. Cleaning the heat exchanger 58

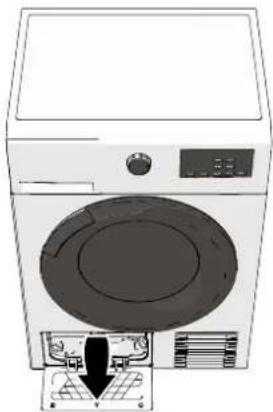

5.5. Removal of foreign objects 59

6. Troubleshooting 60

6.1. Problems with the appliance 60
6.2. Fault codes on the control panel 61

7. Taking out of service 62

8. Safe disposal 62

8.1. Disposing of packaging material 62
8.2. Disposing of the appliance 62
8.3. Contact details Coolblue 63

FOREWORD

About this document

• This user manual contains all information for correct, efficient and safe use of the device.
• This user manual is intended for the end user and/or buyer of this device.
- Please make sure that you have completely read and understood the instructions in this manual before you install or use the device. Keep this document for future use as long as you are using and/or are in possession of this device.
- Wisepick Productions B.V. cannot be held responsible in any way for immaterial damage to you or others, or material damage to the device, your property or the property of others caused by not or not correctly following the instructions in this manual.
• The warnings and safety regulations in this manual do not cover all possible circumstances and situations.
- If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This user manual was originally written in Dutch. All other languages are translated documents. In case of translation errors, the Dutch version shall prevail.

Used symbols

SYMBOL DESCRIPTION
DANGER!	Indicates fire hazard and/or flammable materials.
WARNING!	Indicates a hazardous situation which, if not avoided, could result in serious immaterial damage to you or others.
	Indicates a hazardous situation which, if not avoided, could result in light immaterial damage to you or others.
	Indicates a situation related to material damage.
	Indicates useful, additional information.

NOTE

You can also find the latest version of this manual online, at www.wisberghome.com if you search by item number.

Copyright

The data displayed in this manual, including text, photographs, graphic drawings, graphic brands, (trade) names and logos are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never permitted to reproduce, transfer, distribute, store, or make available to third parties for payment, the contents of this user manual in its entirety or partially without prior written permission from Wisepick Productions B.V. and/or the third party the data belongs to.

Compliance

WBDR1BW8NB

Wisepick Productions B.V. hereby declares that the appliance complies with Regulation (EU) 2019/2017. The full text of the EU declaration of conformity can be accessed at: www.wisberghome.com if you search for the article number.

Contact details Wisberg

Customer service can be reached at: www.wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

1. SAFETY

Please make sure that you have completely read and understood the safety instructions, before you install, use or perform maintenance on the device. This will prevent possible material damage and immaterial damage to you or others, the device, your other property or the property of others.

1.1. INTENDED USE AND FORESEEABLE UNINTENDED USE

WARNING!

- This device is intended for indoor use only.

• This appliance is intended to dry laundry that has been washed and centrifuged in a washing machine and no longer contains contaminants or detergents.
  • This appliance is only intended for domestic use and drying typical amounts of laundry from a typical household.
• This appliance is not intended for use as a built-in appliance.
• This appliance is not intended for commercial use or shared use (for example, use by different families in an apartment building).
• Any use of the device other than described in the user manual is considered unintended use and may result in property damage and non-material damage to you or others, the device, your other property or property of others, and may void the warranty.

1.2. SAFETY WARNINGS AND REGULATIONS

WARNING!

• This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.
• This appliance must not be used by children under 8 years of age.
• DANGER OF ENTRAPMENT DUE TO TILTING THE APPLIANCE. This appliance and its components are not toys, so children should not play with the appliance or its components.
• Children, legally incompetent persons and domestic animals must be supervised while using the appliance. The appliance contains small parts. Children must be supervised to ensure that they do not play with the appliance.
  • Children under three years of age should not come near the appliance unless they are under continuous supervision.
  • Cleaning and user maintenance must not be carried out by children without supervision.
  • RISK OF SUFFOCATION. Keep packaging materials out of reach of children. Packaging materials are not toys.
  • This appliance is only suitable for domestic use or similar environments.
• This appliance is only intended for use indoors.
• FIRE HAZARD. The appliance must be stored in a room free of naked flames, gas-powered appliances or electric heaters.
  • The appliance must be stored in such a way so as to prevent mechanical failure.
• Store the appliance out of reach of unauthorised persons and do not allow anyone unfamiliar with the appliance and these instructions to use it.

SAFETY INSTRUCTION: INSTALLATION

• Do not use the open door as a handle when lifting or moving the appliance.
• FIRE HAZARD DUE TO SHORT CIRCUIT. Install the appliance in accordance with the installation instructions. Incorrect installation can cause water leakage, electric shocks, fire and/or property damage.
• Use only the accessories provided for the installation.

• Only use the new hoses supplied with the appliance. Do not use old hoses.
- Do not extend the drain hoses or use your own hose. Drain hose lengths are specially adapted to the technique of this appliance. Adjustment of the drain hoses may adversely affect the functioning of the appliance.
- Ensure that the plug and earthed socket are clearly visible and accessible at all times.
- This appliance must not be connected to an external switching appliance, such as a timer, or be connected to a circuit that is regularly switched on and off by the energy supplier. This is because of the air temperature in the tumble dryer during drying of more than 55°C (55°C to 60°C).
- Ensure that the appliance is upright at all times, including during transport. If the appliance is still (partly) horizontal or tilted more than 35°, wait two hours before use. The compressor needs that time to be able to operate properly.
• Before installing the appliance, remove all obstacles on the route and at the installation site.
- Do not install the appliance in areas where there is a risk of frost. At temperatures around or below freezing, the appliance may work less well. Freezing of condensation water in the pump and hoses may result in irreparable damage to the appliance.
- RISK OF FIRE. Do not block the air vents at the bottom of the appliance. Do not install the appliance on (deep pile) carpet, elevations, etc., which reduce the ground clearance causing heat generation.
- Ensure that the ventilation openings in the appliance housing or in the built-in structure are free of blockages.
- Never remove the feet from the appliance.
- The appliance must not be installed behind a lockable door, a sliding door or a door with the hinge on the other side of the door of the appliance, in such a way that the door of the appliance cannot be fully opened.
- This appliance is not suitable for built-in installation and may only be installed as a stand-alone appliance or with a stacking kit on a washing machine.
- RISK OF SERIOUS INJURY. Not using a stacking kit can lead to dangerous situations because vibrations of the washing machine or the heat pump dryer can cause the heat pump dryer to slide and possibly fall.
• Installation of the appliance with a stacking kit may only be carried out by the manufacturer, an authorised service agent or equivalent qualified persons.
- Avoid kinks or sharp turns in the drain hoses. This causes condensation to build up and may lead to leakage, overheating or appliance shutdown.
- RISK OF INJURY FROM LIFTING HEAVY OBJECTS. The maximum permitted load that may be carried by one person is 25 kg. Therefore, always lift the appliance with two people.
- Use both hands when moving, lifting or turning the appliance.

SAFETY INSTRUCTION: USE

WARNING!

SAFETY OF PERSONS:

• Always be alert and act with caution. Do not use electrical appliances if you suffer from impaired concentration or lack of awareness, or if you are under the influence of drugs, alcohol or medication. Even the slightest distraction can lead to serious accidents and injuries when using electrical appliances.
• Always operate and use the appliance as described in these instructions for use. Assume that anything not specified here is also not possible.
• The closed cooling system of this appliance contains a quantity of the R290 refrigerant. R290 is a refrigerant that complies with European environmental regulations. Do not use any other refrigerants.

- Ensure sufficient ventilation in the room where the appliance is installed and never block the vents.

- Do not damage the refrigerant circuit.

- EXPLOSION HAZARD DUE TO FLAMMABLE SUBSTANCES. When the appliance is installed, used or stored in a non-ventilated room, the room must be designed in such a way as to prevent the accumulation of leaked refrigerant. This can lead to a risk of fire or an explosion due to the ignition of the refrigerant, caused by electric heaters, furnaces or other sources of ignition. Please note that refrigerant can be odourless.

SAFETY IN USE:

• Follow the cleaning and maintenance instructions in this manual for trouble-free use and long service life.
- RISK OF FIRE OR EXPLOSIONS. Do not place any highly flammable or explosive substances or fuels in or near the appliance.
- Never expose the appliance to a naked flame.
- Do not expose the appliance to direct sunlight to avoid discolouration of the housing.
- Do not use paint, cleaning spray, anti-insect spray, etc. on or near the appliance. This may cause deformation of the housing or electrical damage.
- Do not use in damp or wet environments, such as the bathroom and laundry area, or near a bath, shower or pool.
- Do not use the appliance close to a fire source, close to splashing oil, direct sunlight or splashing water.

• Do not spill water, oil or any liquid on or in the appliance.
• Do not pour water or other liquids over the appliance.

• Never lean or stand on the open door of the appliance.

• RISK OF INJURY OR BURNS. Only open the appliance door when the program is finished. The appliance may be hot and hot steam may escape if the door is opened before the program is finished.

• RISK OF INJURY. Do not touch the door window or the inside of the tumble dryer during or immediately after the appliance is finished with a program. The door and tumble dryer may be hot and may cause burns. Also, do not allow children to play around the dryer or touch the door window.
• RISK OF INJURY OR BURNS. Do not touch the back of the appliance during or immediately after drying. This surface can be hot and cause burns.
• RISK OF FIRE. Never turn off the appliance before the program is finished, unless the tumble dryer is emptied immediately and the laundry is spread to cool down.
• RISK OF INJURY. The condensation water is not drinkable and can result in damage to health if ingested by humans or animals. The condensation water can contain chemicals and other contaminants.

- Never use the appliance without a door filter.

• Always spin the laundry in the washing machine before placing it in the tumble dryer.
- Do not load more weight into the tumble dryer than the maximum capacity of the appliance.
- RISK OF FIRE OR EXPLOSION. Do not use the appliance to dry clothing or textiles that have been cleaned with industrial chemicals.
- RISK OF FIRE OR EXPLOSION. Do not use the appliance to dry clothing or textiles contaminated with substances such as vegetable oil, cooking oil, acetone, alcohol, petrol, kerosene, stain remover, turpentine, wax and washing remover, or a hair care product. In these cases, the clothes or textiles should first be washed in hot water with an additional amount of detergent before the clothes or textiles are dried in the appliance.
• RISK OF FIRE. Do not use the appliance to dry materials that:

• are made of foam (latex foam) or contain foam as a filling (such as cushions or clothes with filling);
• include a liner or back of rubber;
• are waterproof (such as shower caps or waterproof jackets).

- RISK OF FIRE. Do not store oil-contaminated laundry and do not stack it on top of each other or on other laundry or materials. Materials contaminated with oil may spontaneously ignite, especially when exposed to heat sources such as in a dryer. There may be an oxidation reaction that creates heat. If this heat cannot escape, materials can become hot enough to catch fire.

- Do not use the appliance to dry laundry that:

• is not washed;
• has not been centrifuged: wet and water-leaking laundry can cause damage to the appliance.
• Do not dry materials with heavy metal objects in them.
  • To prevent damage to the appliance or laundry:

- Remove all items from pockets and storage compartments, such as lighters, matches, coins, safety pins, nails, glass, shells, screws or stones before placing the garments in the tumble dryer.

• Closes zips, buttons and straps.
• Tie laces or other long pieces of textile.
• Do not dry any laundry with rubber parts or similar elastic material.
• Turn printed and black clothing inside out.

• If necessary, use a laundry net for small and light laundry, such as fabric belts, cords of an apron and bras that may fall apart or break during a program.

• Use fabric softeners and similar products in accordance with the manufacturer's instructions.

• Keep the area around the appliance clean and do not allow any lint or dust to accumulate around the appliance.
• Do not use the appliance near dangerous powders, such as coal powder, wheat flour, etc. At certain concentrations of dust in the air, this can lead to electric shocks, fire or an explosion.

• Always close the appliance door after use. This helps prevent:

• children from climbing into the appliance or hiding something in the appliance;
• pets and other (small) animals from climbing into the appliance.

- Do not operate the appliance if you notice damage to the appliance, the power cable or the plug, or if does not work properly, has fallen or otherwise malfunctions. Contact customer service for further information (see Contact details for contact details).

• Unplug the appliance from the earthed socket if you hear strange noises, smell an odour or see smoke.
• Empty the water tank before moving or using the appliance to prevent leaks.
- Do not insert fingers or objects such as pens through the grilles in the appliance and especially warn children of these dangers.
- RISK OF FIRE. Do not place objects on the appliance and never cover the appliance. Never block the grills for incoming and outgoing air, not even partially. This can cause fire!
- Do not climb, sit or stand on the appliance.

- If the appliance is not in use, or when cleaning it, carrying out maintenance or moving it, first switch it off and then remove the plug from the earthed socket.

• Do not look directly at the UV-C light.
• Do not touch the UV-C lamp.
• Do not remove the UV-C lamp from the appliance.
• Do not remove the UV-C protective glass.
• Do not use the appliance without the UV-C protective glass.

SAFETY INSTRUCTION: ELECTRICAL SAFETY

DANGER!

RISK OF FIRE / FLAMMABLE MATERIALS

• If there are any questions regarding the instructions for electrical safety, contact a qualified electrician.
- RISK OF FIRE. Before use, check that the earthed socket you want to use has no defects, that it has earthing and an earth leakage circuit breaker connected in accordance with the legal regulations. If this is not clear, contact a qualified electrician.
- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V AC \~ 50Hz). Damage caused by faulty voltage is not covered by the warranty.
- RISK OF ELECTRIC SHOCK. Only use the appliance's factory-fitted plug and never change it. The plug must match the type of earthed socket used to reduce the risk of electric shocks.
• RISK OF ELECTRIC SHOCK The plug has an earth connection.
- Do not remove the earth contacts from the plug. Improper use of the earthing can result in an electric shock.
- RISK OF FIRE. Only connect the appliance to a fixed, earthed socket. Do not use an extension cable, plug adapter, junction box or table socket etc.
- RISK OF ELECTRIC SHOCK Never pull the power cable to carry or move the appliance or to disconnect the plug from the earthed socket. Keep the power cable away from heat, oil, sharp edges and moving parts. Do not make any changes to the power cable or submerge it in water or other liquids. Do not twist or kink the power cable. Do not roll up the power cable too tightly after use and do not wind it up around the unit; this can damage the insulation layer! Damaged or tangled power cables increase the risk of electric shocks.
- RISK OF ELECTRIC SHOCK Do not touch the appliance, plug or power cable with wet or damp hands. Only use the appliance with clean, dry hands.
• RISK OF ELECTRIC SHOCK Do not use the appliance when on bare feet.
- Fully unroll the appliance's power cable before plugging it into the earthed socket. This is to prevent heat generation in the cable.
- Do not pass the power cable under a carpet or cover it with mats, runners and the like. This can lead to unforeseen heat generation.
- Regularly check the appliance for damage to the power cable and plug. If there is visible damage, a strong smell, or parts become excessively hot, stop using it immediately and remove the plug from the earthed socket.
- The appliance, plug and/or cable must be repaired and/or replaced by an electrician or an equivalent qualified person. Repairs by amateurs invalidate the guarantee and can cause dangerous situations!

SAFETY INSTRUCTION: REPAIRS

• It is not permitted to open, change or repair the appliance yourself. Do not drill holes into the appliance anywhere to avoid dangerous situations. The appliance, plug and/or cable must be repaired and/or replaced by an electrician or an equivalent qualified person. Repairs by amateurs invalidate the guarantee and can cause dangerous situations!
• Ensure that the appliance is upright at all times, including during transport. If the appliance is still (partly) horizontal or tilted more than 30°, wait two hours before using the appliance. The compressor needs that time to be able to operate properly.
• Repairs and maintenance to the closed cooling system and all other possible work on the appliance not described in this manual may not be carried out by the end user. Contact customer service for more information. See Foreword for the contact details.

1.3. EXPLANATION OF GRAPHIC SYMBOLS ON THE PRODUCT AND PACKAGING

SYMBOL MEANING
	The CE marking on this appliance indicates that Wisepick Productions B.V. declares that this appliance meets the requirements of the relevant European legislation relating to health, safety and environmental protection. The declaration of conformity is available on request from Wisepick Productions B.V. See Foreword for the contact details.
	Indicates that the instructions for use must be read carefully before continuing to use the appliance.
	The accessible surfaces can be hot during or after use.
	Warns of fire hazard due to flammable material.This appliance contains a flammable refrigerant. If the refrigerant leaks and is exposed to an external source of ignition, there is a risk of fire.
	This symbol indicates that the appliance must not be lifted by one person alone.
	This is a class I appliance. The metal parts of the appliance are connected to a protective earthing conductor, the so-called earth.
	This symbol on the appliance, accessories or packaging indicates that this appliance must not be disposed of with ordinary household waste but must be returned to a collection point.

2. INFORMATION ABOUT THE DEVICE

2.1. DESCRIPTION OF THE DEVICE

The Wisberg WBDR1BW8NB heat pump dryer is a type of dryer that uses a heat pump and UV-C light to efficiently and effectively remove moisture and bacteria from clothing. Unlike traditional ventilated dryers that expel hot air and moisture to the outside air, heat pump dryers recycle the hot air, making them more energy efficient.

The heat pump dryer draws in ambient air and heats it via the heat exchanger. The heated air is directed to the drum and takes moisture from the clothing. The warm, humid air is passed through a condenser and comes into contact with a cold surface, causing the moisture to condense into water. The condensed water is collected in the water tank (which must be emptied manually) or it can be pumped directly to a drain via the optional drain hose.

The built-in UV-C light in the drum kills and removes bacteria in clothing, them cleaner and safer.

Via the control panel, 15 different programs can be selected based on the type of laundry.

2.2. GENERAL SPECIFICATIONS

Article number WBDR1BW8NB
Colour White
Dimensions (w × h × d) 590 × 595 × 845 mm
Weight 45 kg
Automatic / not automatic Automatic
Appliance type Freestanding dryer
Capacity / filling weight 8 kg
Front loading diameter 375 mm
Weighted Annual Energy Consumption (AEc) * kWh / year
Energy consumption of the standard ECO programme 0.85 kWh
Weighted energy consumption of the standard ECO programme for partial and full loads	Full 1.28 kWh
	Partial 0.72 kWh
Duration of standard ECO programme	155 min.
Weighted average duration of the standard ECO programme for partial and full loads	Full 220 min.
	Partial 135 min.
Condensation efficiency class A (most effective) to G (least effective)	B
Average condensation efficiency of the standard ECO programme	88%
Weighted condensation efficiency of the standard ECO programme for partial and full loads	88%
Energy consumption in time delay mode	4 W
Power supply	220-240V~50Hz
Energy consumption per 100 drying cycles	kWh / year
Nominal power	750 W
Sound level	64 dB
Operating temperature	2 °C - 35 °C
Refrigerant	R290
Refrigerant weight	145 g
GWP	3
CO2 equivalent	0,00 t
IP value	IPX4
Energy label	B
Energy consumption in off mode	0,50 W

* The weighted annual energy consumption is based on 160 drying cycles with the ECO programme with full and partial loads and the use of the power-saving states. Actual energy consumption per cycle depends on how the appliance is used. The ECO programme at full and partial load is the standard programme to which the information on the label and the card relates. This programme is suitable for drying normal, wet cotton laundry and is the most energy efficient programme for cotton. Measured according to EN 61121, EU directive 2534/2023 and EU directive 2533/2023. Energy efficiency class on a scale from A (most effective) to G (least effective).

2.3. TYPE PLATE

The most important information of the device can also be found on the type plate.

The appliance's type plate can be found on page 2.

2.4. SPARE PARTS

Spare parts are available on the consumer market for up to 10 years after the introduction of the appliance. Please note that some spare parts are only available to professional repairers. To order spare parts or for more information, go to: www.coolblue.nl/en.

2.5. GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en. In any case, you must have the proof of purchase with purchase and/or delivery date in order to be able to claim the guarantee.

3. INSTALLATION

Before installing the appliance, carefully review the safety information in Section 1.

3.1. REQUIREMENTS ON THE LOCATION OF INSTALLATION

WARNING!

• FIRE HAZARD DUE TO SHORT CIRCUIT. Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50/60Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.
• FIRE HAZARD DUE TO SHORT CIRCUIT. Make sure you install the appliance in such a way that the power cable is always accessible.

CAUTION!

- RISK OF INJURY FROM LIFTING HEAVY OBJECTS. Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

NOTICE!

• RISK OF DAMAGE TO THE APPLIANCE. Make sure that the power cable is not trapped under the legs.

Place the appliance at a location that satisfies the following conditions:

• A flat, stable, heat-resistant and moisture-resistant surface.
  • In the case of a wooden floor, make sure the floor is solid and stable. If necessary, reinforce the floor.
• Ambient temperature between 2 – 35 °C.
• At least 2 cm of space on all sides.
• Not in direct sunlight
• Well ventilated
• Not directly next to heat sources, such as heaters or stoves
• An earthed socket within 150 cm.
• A sink siphon or drain pipe within 120 cm. If a separate drain pipe is chosen, it must have a minimum internal diameter of 4 cm and be present at a maximum height of 120 cm.

Are one or more of the above connections missing? If so, call on a qualified technician to install the required connections before installing the appliance.

3.2. REMOVE AND CHECK THE PACKAGING

WARNING!

- RISK OF SUFFOCATION. Never let children play with the packaging material. Keep the packaging material out of reach of children.

1. Remove the packaging material from the device.
2. Lift the appliance with two people and remove the packaging under the appliance.
3. Check that the styrofoam triangle underneath the appliance has also been removed. If not, place the appliance gently on its side and remove the styrofoam triangle.
4. Remove the water supply hose from the drum.
5. Check the contents of the packaging using the picture in section Main parts.

If parts are missing or damaged, please contact the Customer Service of Coolblue: www.coolblue.nl/en.

3.3. MAIN PARTS

① Water tank
② Discharge hose
3 Air outlet
4 Power cord
⑤ Maintenance hatch
6 Adjustable legs
⑦ Optional drain hose with connector
8 Hose holder
9 Operating panel
10 Control button
11 Door
12 Drum
13 Door filter
14 Door seal
15 Air inlet
16 Cover flap

Labeled diagram of a washing machine showing numbered components for identification

3.4. REQUIRED TOOLS

• Level
• Spanner 17 mm for the adjustable feet

3.5. DRAIN CONDENSATION WATER

Condensation water is collected in the water tank, but can also be drained directly via the drain hose supplied as an option.

Condensation water can be drained in three ways:

• with the water tank (see section Drain the condensation water with the water tank)
• in a sink (see section Drain condensation into a sink)
• in a drain (see section Drain condensation water into a drain)

3.5.1. DRAIN THE CONDENSATION WATER WITH THE WATER TANK

1. Pull the water tank out of the dryer.
2. Empty the water tank into a drain or sink.
3. Insert the water tank back into the dryer until it clicks into place.

Technical line drawing of a mechanical component with a water pipe inserted (no text or symbols)

3.5.2. DRAIN CONDENSATION INTO A SINK

The sink should have a maximum height of 120 cm. The sink should be no further than 200 cm from the dryer.

1. Disconnect the top of the drain hose.
2. Insert the connector of the optional drain hose into the drain hose.

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

• Make sure the connector is fully installed in the drain hose to prevent leaks.

1. Place the drain hose in the hose holder.

Diagram of a cable or hose assembly with directional arrows indicating movement (no text or symbols present)

1. Place the hose holder with drain hose over the edge of the sink so that the end of the hose hangs in the sink.

Diagram showing a sink connected to a washing machine with a downward arrow indicating flow (no text or symbols present)

NOTE

• Make sure there are no kinks in the drain hose.

• Make sure that the drain hose does not sag to prevent condensation water from being drained.

1. Attach the with, for example, a piece of string or chain to the tap or the sink in such a way that the drain hose cannot fall out of the sink. Use the attachment point for this.

2. Fully roll off the power cable of the appliance and lay the power cable so that it cannot touch hot parts of the appliance. Insert the plug into the earthed socket.

Diagram of a washing machine connected to a sink with a tool, showing internal components and wiring (no text or labels)

WARNING!

- RISK OF TRIPPING. Lay the power cable outside the walking route. Make sure that the power cable cannot be stepped on and that no furniture or other items are placed on it.

3.5.3. DRAIN CONDENSATION WATER INTO A DRAIN

The drain should be no further than 200 cm from the dryer.

1. Disconnect the top of the drain hose.

2. Insert the connector of the optional drain hose into the drain hose.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

NOTE

• Make sure the connector is fully installed in the drain hose to prevent leaks.

1. Insert the end of the drain hose into the drain.

2. Fully roll off the power cable of the appliance and lay the power cable so that it cannot touch hot parts of the appliance. Insert the plug into the earthed socket.

Diagram of a washing machine with a cable and outlet pipe, showing no text or symbols

NOTE

• Do not insert the discharge hose deeper than 15 cm into the drain to prevent the water from flowing back during pumping.

• Make sure there are no kinks in the drain hose.

• Make sure that the drain hose does not sag to prevent condensation water from being drained.

- If you want to connect the drain hose of the washing machine and a dryer to the same drain, first install a y-piece on the drain pipe.

- It is advisable to attach the discharge hose to the wall with a hose bracket to prevent kinks or blockages in the drain hose.

WARNING!

- RISK OF TRIPPING. Lay the power cable outside the walking route. Make sure that the power cable cannot be stepped on and that no furniture or other items are placed on it.

3.6. LEVEL THE APPLIANCE

1. Carefully slide the appliance into place.
2. Place a spirit level on top of the appliance to check that the appliance is level.
3. If the appliance is not level, adjust the adjusting feet to level the appliance:
4. Loosen the bolt of the adjustment foot with an 17 mm spanner.
5. Turn the adjusting foot in or out.
6. Tighten the bolt again.
   The maximum height of the adjusting feet is 5.

Diagram showing a washing machine next to a mechanical component with a rotating knob (no text or symbols present)

NOTE

- If you want to place the appliance on a washing machine, use a suitable stacking kit and follow the installation steps of the stacking kit for correct installation.

3.7. REMOVE FACTORY RESIDUE

Before using the appliance, it is recommended to run the refresh programme on the appliance once in order to remove possible manufacturing residues or odours:

1. Open the door of the appliance and put a number of dry cloths in the tumble dryer.
2. Insert the plug in an earthed socket.
3. Select the refresh programme with the selector dial.
4. Press the start/pause button to start the laundry programme.
   The program starts and the screen shows the remaining program time.
5. Check if there is any leakage at the drain hose.
6. Wait until the program is finished and the End screen is displayed.
7. Clean the door filter according to the instructions in 'Cleaning the door filter'.

NOTE

• The appliance will generate noise during operation, this is normal.
• Check for leaks during the first wash. If leakage occurs, check that the drain hose is connected correctly and completely. If there is no leak, the drain hose is connected correctly.
• Check the orientation of the door filter before replacing it.
• Do not flush fabric down a drain to avoid clogging and contamination.

4. USE

Before using the appliance, carefully review the safety information in Section 1.

During use, the compressor and condensation water make a noise. This is not a defect and is normal for this type of appliance.

After each programme, clean the door filter and empty the water tank to reduce drying time and keep energy consumption as low as possible.

WARNING!

• RISK OF INJURY OR BURNS. Only open the appliance door when the program is finished. The appliance may be hot and hot steam may escape if the door is opened before the program is finished.
• RISK OF FIRE. Never turn off the appliance before the program is finished, unless the tumble dryer is emptied immediately and the laundry is spread to cool down.

CAUTION!

• RISK OF DAMAGE TO THE APPLIANCE OR LAUNDRY. Do not use the appliance until installed as instructed!
- RISK OF DAMAGE TO THE APPLIANCE OR LAUNDRY. Dry with the appliance only clothing and textiles suitable for tumble dryers. Clothing dries faster due to heat, but can also shrink as a result. Please note the information on the clothing and textile label:

ICON DESCRIPTION
	Indicates that the garment:is safe to put in the tumble dryer.can generally be set to any heat setting.
	Indicates that the garment:is safe to put in the tumble dryer.may only be dried at a low heat setting. Higher heat settings can damage or shrink garments with this symbol.
	Indicates that the garment:is safe to put in the tumble dryer.may only be dried on a low or medium heat setting. Higher heat settings can damage or shrink garments with this symbol.
	Indicates that the garment should not be dried with a tumble dryer.

4.1. USE THE APPLIANCE AS EFFECTIVELY AS POSSIBLE

The energy consumption per cycle depends, among other things, on the program selected, the amount of laundry and the maintenance of the appliance.

The ECO programme at full and partial load is the standard programme on which the information on energy consumption is based. This programme is suitable for drying normal, wet cotton laundry and is the most energy efficient program for cotton. Factors that cause the appliance to heat less well include, for example:

• laundry that is still very wet when it enters the appliance;
• choosing the wrong program;
  • too much laundry in the tumble dryer;

• irregular maintenance:

• presence of a lot of lint in the door filter;

• presence of dust on the heat exchanger;
• low ambient temperature.

To use the appliance as effectively as possible:

• After each programme, clean the door filter (see 'Cleaning the door filter').
- Clean the heat exchanger (see 'Cleaning the heat exchanger').
- Ensure that the laundry is thoroughly centrifuged in the washing machine so that it contains as little water as possible. This reduces drying time and saves energy.
- Sort the laundry according to the material and select the appropriate program to dry.
- Leave coats and the long zip of coats open so that the material dries evenly.
- Avoid over-drying the laundry as this can lead to the formation of wrinkles.
- Close bedding and pillow covers to prevent smaller items of laundry from being rolled in during drying.
- Choose the Cotton cupboard dry programme for thick or multilayer materials that are more difficult to dry (for example for coats).
- If after drying uneven, thick or multilayer materials some parts are not yet dry, use the Cotton cupboard dry programme or dryness level function to dry them further.
• Dry with a full load of the selected programme. This contributes to energy saving.

- Do not place more than the recommended amount of laundry in the tumble dryer and pay attention to the maximum load capacity of the appliance. As a reference for the weight of individual pieces of laundry, the following table can be used (weights are guidelines and actual weights may differ):

TYPE OF CLOTHING	REFERENCE WEIGHT	TYPE OF CLOTHING	REFERENCE WEIGHT
Sweater (various materials) 800 g Jeans	800 g
Single bed sheet 600 g Pyjamas 200 g
T-shirts (cotton) 180 g Socks (various materials)	50 g
Jacket (cotton) 800 g Bath towel (cotton)	900 g
Work clothing	1120 g	Shirt (cotton)	300 g
Underwear (cotton)	70 g

4.2. OPERATING PANEL

17 Drying programme selection
18 Operating panel
19 Standby button
20 Start-delay button
21 Time button
22 Wrinkle prevent button
23 Dryness level button
24 Light button
25 Boost button
26 Start/Pause button

17 18 19 8:00 20 21 22 23 24 25 26

4.2.1. DISPLAY AND ADDITIONAL FUNCTIONS

27 Timer indicator: start delay
28 Child safety lock indicator
29 Clean filters warning
30 Numeric display
31 Anti-crease time indicator
32 Drying indicator
33 Wrinkle prevent indicator
34 Programme progress indicator - on drying
35 Programme progress indicator - laundry is iron-dry
36 Programme progress indicator - cooling down
37 Programme progress indicator - laundry is cupboard dry
38 Water tank indicator
39 Light indicator
40 Hygiene indicator
41 Signal indicators

After 15 minutes of inactivity, the control panel switches off automatically to save energy.

27 28 29 30 31 32 33 5:00 150 120 90 60 30 uv 34 35 36 37 38 39 40 41

4.3. PREPARING THE CLOTHES

1. Prepare the clothes:

A. Read the drying instructions on the labels.
B. Sort washed laundry by fabric and specific drying requirements.
C. Tie laces or other long pieces of textile.
D. Close belts, zips, and buttons.
E. Put small garments in a laundry net.
F. Turn garments inside out to prevent lint and fading.

1. Fill the appliance. Please refer to section Drying programmes and energy consumption for the filling weight per drying programme.
2. For optimum energy saving, always fill the appliance to the maximum capacity of the drying programme.
3. Close the door.

4.4. TURNING THE APPLIANCE ON AND OFF

1. Insert the plug in an earthed socket.
2. Turn the control knob to the desired drying programme. The control panel lights up and the appliance is switched on.
3. Turn the control knob to OFF. The appliance is turned off.

- The set programme and any set additional functions will be deleted when the appliance is switched off and on.

4.5. DRYING PROGRAMMES AND ENERGY CONSUMPTION

The following table lists the drying programmes and related information.

* Test programme according to delegated regulations 2533/2023 and 2534/2023 for eco design and energy labels, measured according to EN 61121. The ECO programme is suitable for drying normal wet cotton and is the most energy-efficient programme for cotton with the maximum load. Drying with a full load of the selected programme helps save energy.

PROGRAMME	FILLING WEIGHT	APPLICATION / PROPERTIES	TIME DELAY	DRYING TIME
Cotton	8 kg	To fully dry single-layer cotton laundry for immediate storage.	Yes	No
Cotton Cupboard dry	8 kg	To fully dry multi-layer cotton laundry for immediate storage.	Yes	No
Cotton Iron-dry	8 kg	To partially dry single-layer cotton laundry before ironing.	Yes	No
ECO	8 kg	To fully dry single-layer or multi-layer cotton laundry for immediate wearing.	Yes	No
Quick dry	2 kg To dry	small quantities of thin synthetic clothing with wrinkle prevent functionality (Easy care). Place this ‘Easy care’ clothing loosely in the tumble dryer and remove from the tumble dryer immediately after drying and hang on a clothes hanger.	Yes	No
Mix	3.5 kg	To dry a mix of synthetic and cotton textiles	Yes	No
Synthetic	3.5 kg	To dry thin, synthetic textiles that will not be ironed such as Easy care shirts, baby clothes and socks.	Yes	No
Synthetic Outdoor	3.5 kg	To dry thick, synthetic textiles that will not be ironed such as Easy care shirts, baby clothes and socks.	Yes	No
Synthetic Cupboard dry	3.5 kg	To dry thin, synthetic textiles such as Easy care shirts, baby clothes and socks before immediate storage.	Yes	No
Wool	1 kg	To give machine-washable woollen clothing an extra drying.	Yes	No
Jeans	4 kg To dry	jeans or casual clothing that is centrifuged at high speed in the washing machine.	Yes	No
Bed linen	4 kg	To dry bed sheets, duvet covers and other large items.	Yes	No
Sports 3 kg To dry sportswear	and thin textiles made of polyester, which are not ironed.		Yes No
Delicate laundry	1 kg To dry	delicate, small clothes and silk garments. Yes No
Warm air - To blow warm air into the tumble dryer. The time can be set from 10 min to 150 min.			Yes Yes
Cool air - To blow cold air into the tumble dryer. The time can be set from 10 min to 30 min.			Yes Yes
Refresh 1 kg To refresh clothing that has been in a closed space for a long time or to remove odours.			Yes Yes

4.5.1. ENERGY CONSUMPTION

PROGRAMME	FILLING WEIGHT	CENTRIFUGE SPEED / RESIDUAL MOISTURE	DRYING TIME	ENERGY CON-SUMPTION	RPM
ECO	8 kg	0%	3:35	1.28 kWh	1000 rpm
	4 kg	0%	2:10	0.72 kWh	1000 rpm
Cotton Cupboard dry	8 kg	0%	3:35	1.28 kWh	1000 rpm
	4 kg	0%	2:10	0.72 kWh	1000 rpm
Cotton Cupboard dry Extra	8 kg	-3%	4:00	2.70 kWh	1000 rpm
	4 kg	-3%	3:25	1.95 kWh	1000 rpm
Cotton Iron-dry	8 kg	12%	2:25	1.34 kWh	1000 rpm
	4 kg	12%	1:30	0.73 kWh	1000 rpm
Synthetic Cupboard dry	3.5 kg	2%	1:20	0.58 kWh	800 rpm
Synthetic Cupboard dry Extra	3.5 kg	0%	1:35	0.74 kWh	800 rpm
Synthetic iron-dry	3.5 kg	12%	1:10	0.55 kWh	800 rpm
Wool	1 kg	6%	3:00	1.89 kWh	n.a.

NOTE

- Thick or multi-layered clothes are not easy to dry. Select the programme Cotton Cupboard dry.

4.6. DRYING OF CLOTHING AND TEXTILES

1. Plug the appliance into an earthed socket.
2. Load the laundry in the tumble dryer.

3. Close the door.

4. Press the power button.

5. Select the desired drying programme using the selector dial.
6. If necessary, adapt the programme, see section Use of the additional functions for the possibilities.
7. Press the start/pause button to start the programme.
   The program starts and the screen shows the remaining program time.
8. To pause the program, press the start/pause button.

WARNING!

RISK OF FIRE. Never turn off the appliance before the program is finished, unless the tumble dryer is emptied immediately and the laundry is spread to cool down.

NOTE

• When Start Delay is set, the Start-delay indicator flashes and the screen shows the remaining time until the program starts.
• Wait until the program is finished and the End screen is displayed.

NOTE

- When the wrinkle prevent function is set, the tumble dryer will rotate regularly to prevent wrinkle formation.

1. When the tumble dryer has completely stopped turning, open the door and take the laundry out of the tumble dryer.

2. If necessary, empty the water tank (see Drain condensation water).

3. Clean the door filter (see Cleaning the door filter).

4. Switch off the appliance using the control knob and unplug it from the earthed socket.

4.7. USE OF THE ADDITIONAL FUNCTIONS

When describing the following functions, it is assumed that the laundry is loaded into the tumble dryer, the door is closed and the appliance is turned on with the start/pause button.

4.7.1. START DELAY

The start-delay function is intended to postpone the start of the set program for a certain amount of time. The maximum time that can be set is 24 hours, in one hour increments. After the set time has elapsed, the set program will start automatically.

To postpone the start of the set program:

1. Select a desired programme using the control knob.

Optionally, also set the wrinkle prevent function.

1. Press the Start-Delay button several times to set the delay time.

2. Press the start/pause button.

The start-delay indicator will flash and the screen will show the time until the start of the programme. The set program will start automatically when the time has elapsed.

To pause/continue the start-delay:

1. Press the start/pause button.
   The countdown to the start of the program stops.

2. Press the start/pause button again.

The countdown to the start of the program continues.

To delete the start delay:

1. Turn the appliance off and on using the control knob.

NOTE

• The set program and any additional functions set are erased when the appliance is turned off and on.

4.7.2. TIME

The time function is for setting the time duration on the Refresh, Cold, and Warm programmes in 10-minute increments.

PROGRAMME MINIMUM TIME SETTING MAXIMUM TIME SETTING
Refresh 10 min. 180	min.
Warm air 10 min. 150	min.
Cool air 10 min. 30	min.

To set the duration of programmes:

1. Select the desired programme using the control knob.
2. Press the Time button several times to set the duration of the program.
3. Press the start/pause button to start the programme.
   The program starts and the screen shows the remaining program time.

4.7.3. DRYNESS LEVEL

The dryness level function is for setting the dryness level for the laundry. This enables the appliance to dry the laundry to varying degrees.

- This function is not available on the programmes ECO, cotton cupboard dry, cotton iron dry, cool air, warm air, refresh and wool.

To set the dryness level for the laundry:

1. Select a desired programme using the control knob.
2. Press the Dryness level button several times to set the desired dryness:

ICON	EXPLANATION
	Ultra-dry (highest dryness level)
	Standard dry (cupboard dry)

1. Press the start/pause button to start the programme.
   The program starts and the screen shows the remaining program time.

4.7.4. WRINKLE PREVENT

The wrinkle prevent function is intended to allow the tumble dryer to rotate for a certain time after drying to prevent creasing. The time can be set in 30-minute steps.

- This function is not available with the Wool programme.

MINIMUM TIME SETTING	MAXIMUM TIME SETTING
30 min.	120 min.

To set the wrinkle prevent function:

1. Select a desired programme using the control knob.

2. Press the wrinkle prevent button several times to set the desired time.
   The wrinkle prevent indicator lights up and the wrinkle prevent time indicators indicate the set time.

3. Press the start/pause button to start the programme.

The program starts and the screen shows the remaining program time.

To remove the laundry from the tumble dryer when the wrinkle prevent function is active:

1. To pause the programme, press the start/pause button.
2. Wait until the tumble dryer has completely stopped rotating.
3. Open the door and remove the laundry.

4.7.5. BOOST

You can speed up the drying process by selecting the Boost function.

To set the Boost function:

1. Select a desired programme using the control knob.
2. Press the Boost button.
   The Boost indicator lights up and the time indicators show the set time.
3. Press the start/pause button to start the programme.
   The program starts and the screen shows the remaining program time.

4.7.6. UV HYGIENE

This appliance features a UV-C hygiene lamp in the tumble dryer. The UV-C light kills and removes bacteria in clothing, making them cleaner and safer. UV-C is light is effective against Escherichia coli and staphylococcus aureus.

NOTE

• This function is on by default on the jeans, bed linen, sports, cotton cupboard dry, delicate laundry, mix, synthetic outdoor, synthetic cupboard dry and shirts programmes.
  • Use the UV hygiene function carefully with light, thin or delicate laundry.

To turn on UV hygiene:

1. Select a desired programme using the control knob.
2. Press the UV hygiene button to turn the function on.
3. Press the UV hygiene button again to turn UV hygiene off.
4. Press the start/pause button to start the programme.
   The program starts and the screen shows the remaining program time.

WARNING!

Using the appliance when the protective glass is damaged can cause dangerous UV-C radiation. Never use the appliance if the UV-C lamp or the protective glass are damaged.

4.7.7. CHILD LOCK

This appliance is equipped with a child safety lock to prevent accidental buttons from being pressed.

To activate the child safety lock:

• When a programme is busy, simultaneously press the Wrinkle prevent button and the Dryness level button and hold for three seconds until you hear a beep.
  The child safety lock indicator lights up.

To turn off the child safety lock:

- Simultaneously press the Wrinkle prevent button and the Dryness level button and hold for three seconds until you hear a beep.

The child safety lock indicator is off.

5. CLEANING AND MAINTENANCE

WARNING!

• ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Always unplug the appliance before cleaning.
• ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Do not pour water over the appliance.

TICE!

• RISK OF DAMAGE TO THE APPLIANCE. Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• RISK OF DAMAGE TO THE APPLIANCE. Cleaning and user maintenance must not be carried out by children without supervision.
• RISK OF INJURY. The condensation water is not drinkable and can result in damage to health if ingested by humans or animals. The condensation water can contain chemicals and other contaminants.
• Never use the appliance without the water tank. This also applies when the optional drain hose is connected.

5.1. EMPTYING THE WATER TANK

The water tank must be emptied after each drying cycle. When the water tank is full during a programme and needs to be emptied, the programme pauses and the Empty water tank indicator turns on.

To empty the water tank:

1. Pull the water tank out of the appliance and hold it with two hands.

Diagram of a washing machine with a black arrow indicating a process or operation, showing internal components and casing (no text or symbols present)

1. Tilt the water tank above the sink to empty it.

2. Dry the water tank on the outside.

Technical line drawing of a mechanical component with a pipe inserted (no text or symbols)

1. Clean the opening for the water tank in the appliance with a brush.
2. Place the water tank in the appliance.
3. When the program is paused, press the start/pause button to continue the programme.

Line drawing of a washing machine with a handle and control panel (no text or symbols)

5.2. CLEANING THE DOOR FILTER

NOTE

- Do not flush the lint down the drain. Prevent the spread of microplastics in the wastewater system and dispose of the lint via household waste.

The door filter must be cleaned after each drying cycle. This prevents higher energy consumption and longer drying times.

To clean the door filter:

1. Open the door.
2. Pull the door filter up to remove it.

Line drawing of a washing machine with an open lid and internal air vent (no text or symbols)

1. Press the lip of the lock slightly down and open the door filter.
2. Remove all lint from the door filter and lint screen.

Diagram of a folding table with arrows indicating movement or force (no text or symbols)

NOTICE!

Do not push the lint screen of the door filter to prevent damaging the lint screen.

1. If necessary, clean the door filter with cold running water from the tap and completely dry the door filter.
2. Close the door filter. Make sure that the arrows on both parts and the locking mechanism in the middle are properly aligned.
3. Remove dust and lint from the seal.
4. Insert the door filter into the appliance.
5. Close the door.

Illustration of a faucet dispensing liquid into a perforated metal tray (no text or symbols)

Illustration of a portable table tennis paddle with decorative side panels and scroll wheel (no text or symbols)

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

NOTICE!

- Do not force the installation of the door filter; it only fits one way.

5.3. CLEANING THE APPLIANCE AFTER EACH USE

WARNING!

• RISK OF DAMAGE TO THE APPLIANCE. Never use aggressive or abrasive cleaners, gasoline, detergents, chemically impregnated wipes or other cleaning solutions. These can damage the housing and appliance.
  • ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Never spray the appliance and make sure no water gets into it.
• Do not use a steam cleaner to clean the appliance.
• Wear gloves when cleaning the appliance.

To clean the appliance after use:

1. Switch the appliance off with the power button and remove the plug from the socket.
2. Take a clean cloth and moisten it with water.

TICE!

- Do not use cleaning agents!

1. Clean the appliance with the damp clean cloth:

A. Clean the door and the inside of the door.
B. Clean the seal around the door opening.
C. Clean the humidity sensor.
D. Remove and clean the door filter (see Cleaning the door filter).
E. Clean the seal in the appliance.
F. Clean the air intake and air outlets.

1. Dry all parts with a soft, clean and dry cloth.
2. Put the door filter back in place.
3. Close the door.

5.4. CLEANING THE HEAT EXCHANGER

WARNING!

• RISK OF INJURY. Do not touch the heat exchanger. It may contain sharp parts and be hot.
- RISK OF DAMAGE TO THE APPLIANCE. Do not apply force or press the heat exchanger during cleaning. The appliance does not function or does not function properly when the blades of the heat exchanger are bent or damaged.

The heat exchanger is an important part of a heat pump dryer for energy-efficient drying. The heat exchanger should be cleaned at least every three months during normal use. Check and clean the heat exchanger more frequently during intensive use. To clean the heat exchanger:

1. Turn off the appliance using the control knob.
2. Tilt the maintenance panel forwards to open it.

Illustration of a white front-loading washing machine with a door and control panel, showing internal components (no text or symbols)

1. Turn the three locks anticlockwise on the product to the open position.
2. Remove the cover.

Diagram of a refrigerator interior showing airflow direction and fan arrangement (no text or symbols)

1. Use a vacuum cleaner with brush accessory and remove dust and lint from the heat exchanger.
2. Replace the cover onto the appliance.
3. Turn the locks clockwise to secure the cover.
4. Close the maintenance panel and make sure that the two tabs click into place.

Line drawing of a hand inserting a cable into a washing machine (no text or symbols)

TICE!

- Do not apply force and do not press the heat exchanger.

5.5. REMOVAL OF FOREIGN OBJECTS

If objects get under the door filter, remove them from the machine immediately.

To remove foreign objects:

1. Turn off the appliance using the control knob.
2. Tilt the maintenance panel forwards to open it.

Diagram of a front-loading washing machine with a door and internal circuit board (no text or labels)

1. Turn the three locks anticlockwise on the product to the open position.
2. Remove the cover.
3. Remove the foreign objects.
4. Replace the cover onto the appliance.
5. Turn the locks clockwise to secure the cover.
6. Close the maintenance panel and make sure that the two tabs click into place.

Diagram of a refrigerator interior showing airflow and ventilation system (no text or symbols)

TICE!

• Do not touch the heat exchanger, use force or exert pressure on the heat exchanger.

6. TROUBLESHOOTING

WARNING!

- ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Do not perform any repairs to the appliance that are not described in this manual. The appliance may only be repaired by an authorised service technician.

TE

• Some problems can be easily solved by yourself using the table below. If the descriptions below do not solve your problem, please contact our customer service team: www.coolblue.nl/en/customer-service
• Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

6.1. PROBLEMS WITH THE APPLIANCE

PROBLEM POSSIBLE CAUSE POTENTIAL SOLUTION
The screen is not on. Appliance is off. Switch off the appliance.
		The plug of the appliance is not in the earthed socket.
		The wrong programme is on.
Empty water tank warning is visible	The water tank is full.	Empty the water tank.
	The water tank is not full. Possible problem with the water pump or the water level sensor.	Turn the appliance on and off. Please contact Customer Service if the above steps do not resolve the issue. See Foreword for the contact details.
Clean filters warning is visible	The door filter must be cleaned.	Clean the door filter.
It is not possible to choose a program.	The screen or appliance is not on.	Switch off the appliance.
The appliance will not start. The plug is not in a socket. Plug the appliance into an earthed outlet.
		The appliance is off. Switch off the appliance.
		The door is not closed. Close the door and press the start/pause button.
		No program has been set. Select a programme.
		The appliance is on pause. Press the start/pause button.
The laundry is not as dry as set or the drying time is too long.	The door filter is full of lint. Clean the door filter.
	The water tank is full. Empty the water tank.
	The optional drain hose does not drain properly.	Check that the optional drain hose is installed correctly.
	The location of the appliance does not meet the requirements.	Check that the location of the appliance meets the requirements.
	The air inlet is not free. Check that the air inlet is not blocked and is clean.
	The program used is incorrect or the selected dryness level is too low.	Choose the correct program for the type of laundry or increase the dryness level.
The appliance makes a buzzing or humming sound.	This is normal and not a fault or defect. The compressor is in operation. These sounds are normal and do not indicate a defect.
The appliance goes off at the end of the programme.	This is normal and not a fault or defect. The appliance is automatically turned off at the end of the program to save energy.

6.2. FAULT CODES ON THE CONTROL PANEL

Below is an explanation of error codes that can appear on the display. These error codes can only be solved by qualified personnel. Please contact customer service to have the problem fixed.

ERROR CODE EXPLANATION		POSSIBLE CAUSE
	The water tank is full.	Empty the water tank.
	Water pump or sensor error.	Please contact customer service. See Foreword for the contact details.
E33	Temperature sensor error
E82	Circuit board communication error.

7. TAKING OUT OF SERVICE

1. Remove the power cable from the earthed socket.
2. Empty the water tank.
3. Disconnect the drain hose and replace it in its original position.
4. Clean the appliance.

CAUTION!

• DANGER OF ENTRAPMENT DUE TO TILTING THE APPLIANCE. Always wear protective gloves and closed shoes when moving the appliance.
• RISK OF INJURY FROM LIFTING HEAVY OBJECTS. Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

NOTICE!

- RISK OF DAMAGE TO THE DEVICE. Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.

1. Pack the appliance in its original packaging. If the original packaging is no longer present, pack the appliance in soft packaging material such as bubble plastic or a blanket to prevent damage.

NOTE

• If you need to transport the appliance over a large distance, use a hand truck.

8. SAFE DISPOSAL

WARNING!

- RISK OF FIRE / FLAMMABLE MATERIALS. The appliance contains flammable gas (R290). Please contact your local authority for information on the correct waste processing for the appliance.

8.1. DISPOSING OF PACKAGING MATERIAL

The packaging material consists of various materials. When disposing of packaging material, follow national and local regulations regarding the environmentally friendly disposal of packaging material.

8.2. DISPOSING OF THE APPLIANCE

The materials used in this appliance and marked with this symbol are recyclable. The marking indicates that this product should not be disposed of with household waste throughout the EU.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Coolblue B.V. when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

8.3. CONTACT DETAILS COOLBLUE

Customer service can be reached at: www.coolblue.nl/en

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

FR-NOTICED'UTILISATION

SÈCHE-LINGE

WBDR1BW8NB

TABLE DES MATIÈRES

Avant-propos

66

1. Sécurité 67

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Pays-Bas

1. SÉCURITÉ

Technical line drawing of a mechanical component with a water pipe inserted (no text or symbols)

3.5.2. ÉVACUER L'EAU DE CONDENSATION VIA UN ÉVIER

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

REMARQUE

Diagram of a cable or hose assembly with directional arrows indicating movement (no text or symbols present)

Diagram showing a sink with a pipe connected to a washing machine, no text or symbols present

REMARQUE

Diagram of a washing machine connected to a stainless steel basin (no text or symbols present)

AVERTISSEMENT!

Technical line drawing of a mechanical assembly with no visible text or symbols

REMARQUE

Line drawing of a washing machine with a cable and a hanging socket, no text or symbols present

REMARQUE

Diagram showing a washing machine with a circular vent and control panel, alongside a close-up of the mechanical component (no text or symbols present)

REMARQUE

Diagram of a washing machine with a black arrow indicating airflow or suction direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a washing machine with a handle and control panel (no text or symbols)

5.2. NETTOYAGE DU FILTRE DE HUBLOT

REMARQUE

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

Diagram of a portable table with mesh backrest and keyboard, showing directional arrows indicating movement (no text or symbols)

Illustration of a faucet dispensing liquid into a perforated metal tray (no text or symbols)

Illustration of a portable push-up device with curved legs and textured backrest, showing rotational motion arrows (no text or symbols)

Line drawing of a washing machine with an open door and lid, showing internal components (no text or symbols)

IS!

Diagram of a white front-loading washing machine with a door and internal circuit board (no text or symbols)

Diagram of a refrigerator interior showing airflow and ventilation system (no text or labels)

Line drawing of a hand inserting a cable into a washing machine (no text or symbols)

IS!

Diagram of a front-loading washing machine with a door and internal circuit board (no text or labels)

Diagram of a refrigerator interior showing airflow and ventilation system (no text or labels)

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Pays-Bas

Wisepick Productions B.V.

Weena 664

3012 CN, Rotterdam

The Netherlands

Made in China V1.0 - 06/2025
