USER MANUAL T6 Treadmill BOWFLEX

Important Safety Instructions

Thanks for choosing BowFlex T6 Treadmill as your fitness equipment. We are sincerely encourage you to read through this Owner's manual carefully before the assembling of your equipment started, especially of below WARNINGS! WARNINGS WILL REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS.

Before proceeding, find your treadmill's serial number located on a white barcode sticker near the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER:

MODEL NAME: BOWFLEX T6

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

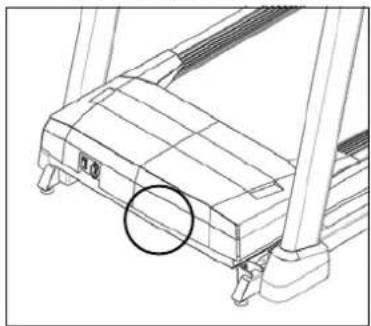

SERIAL NUMBER LOCATION

Technical line drawing of a mechanical device with a highlighted circular feature (no text or symbols)

WARNING

• FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
• Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death. If you feel paint stop exercising immediately.
• When exercising, always maintain a comfortable pace.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing. Incorrect or excessive exercise may damage your health.
• Do not wear clothes that might catch on any part of the treadmill
  • Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• While exercising, do not run near the edge of the belt to avoid the risk of injury.

- At no time should more than one person be on treadmill while in operation.

- This treadmill should not be used by persons weighing more than the weight showing in TECH SPEC section. Failure to comply will void the warranty.

- When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.

- Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.

- Connect this exercise product to a properly grounded outlet only.

- To disconnect, turn all controls to the off position, then remove plug from outlet.

- Disconnect all power before moving the equipment.

- Never operate product with a damaged cord or plug even if it is working properly. Never operate any product if it appears damaged, or has been immersed in water. Contact Customer Tech Support for replacement or repair in order to avoid a hazard.

- The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.

- At NO time should pets or children under the age of 13 be closer to the treadmill than 3 meter.

- At NO time should children under the age of 13 use the treadmill.

- Children over the age of 13 or the persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge should not use the treadmill, unless supervised or unless they have been given instruction concerning use of the treadmill by a person responsible for their safety.

- Do not remove the protected covers unless instructed by professional and your local dealer. Service should only be done by and authorized service technician.

- Disconnect the safety key to prevent uncontrolled usage of third parties.

- Treadmill equipped with side handrails and front handlebar for user support and emergency dismount, press emergency button to stop the machine for emergency dismount.

- The noise level of the treadmill is less than 70 dB when there is no user on it and more than 70 dB when it is in use. If the noise of treadmill bothers you, stop exercising and take a break. Noise emission under load is higher than without load.

• Make sure the treadmill comes to complete stop before folding. Do not operate the treadmill when it is folded.

- Please note that the plastic parts, such as end caps, are susceptible to wear.

- The treadmill's safety level can only be maintained if it is checked regularly for damage and wear.

- Make sure the edge of the belt is parallel with the lateral position of the side rail and does not move under the side rail. If the belt is not centered it must be adjusted before use.

- Use the treadmill only for its intended use as described in the treadmill guide and owner's manual.

- Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.

- Return the unit to a service center for examination and repair.

- Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.

- Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.

• To prevent electrical shock, never drop or insert any object into any opening.
- Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
- This treadmill is intended for in-home use only. Failure to comply will void the warranty.
- Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. If your treadmill has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first time use. Failure to comply will void the warranty.
- Treadmill is heavy; use care and additional help if necessary when moving. Do not attempt to move or transport treadmill unless it is in the upright, folded position with the lock latch secured. Failure to follow these instructions could result in injury.
- Do not move or lift treadmill from packaging until specified to do so in the assembly instructions. You may remove the plastic wrap from console masts.
- Never open box when it is positioned upside-down or on its side.
- Unpack and assemble the unit where it will be used.
- The enclosed treadmill is equipped with high-pressure springs which can cause the lower base frame to spring open if mishandled.
- Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service a technician.
- Have 2 people available for assembly, this will make the assembly process easier.

TECH SPECS

Assembled Dimensions (L x W x H)	194.1 x 89.8 x 179.5 cm / 76.4" x 35.4" x 70.7"
Product Weight 126 kg / 278 lbs.
Max User Weight 147 kg / 324 lbs.

From now on, you can assemble your equipment at your convenience. For detailed instructions on assembly, operation, programs, troubleshooting, and maintenance, please scan the QR code on the left side to access the complete manual.

If scanning the QR code fails, you can visit the website provided here: https://global.bowflex.com/en/manuals.html

For assembly video, please visit: https://global.bowflex.com/en/assembly-videos.html

WARRANTY

If your equipment requires warranty service, please contact local Customer Tech Support.

NEED HELP?

If you have any questions, need assistance with missing parts, or require technical support or maintenance for your equipment, please contact Customer Tech Support.

Manufacturer: Johnson Health Industry (Vietnam) Co., Ltd. | Manufacturer address: Lot CN-24, Thuan Thanh II Industrial Park, Mao Dien Ward, Bac Ninh Province, Vietnam

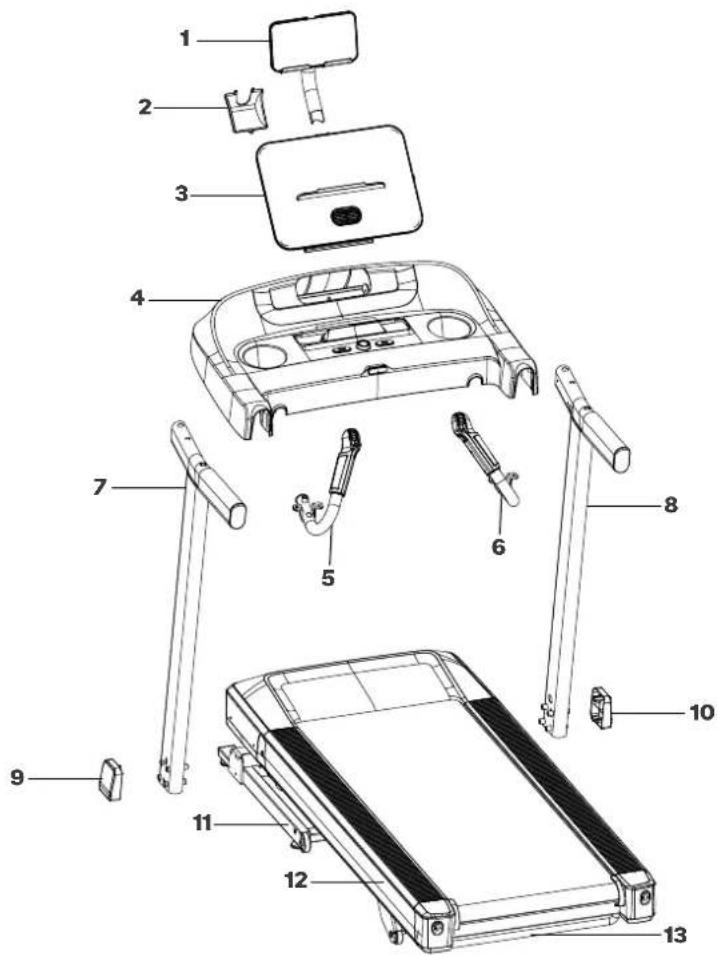

Item Qty Description

11 Tablet Holder
21 Tablet Holder Panel
31 Console
41 Console Base
51 Left Pulse Rate Grip
61 Right Pulse Rate Grip
71 Left Console Mast
81 Right Console Mast
91 Left Mast Cover
10 1 Right Mast Cover
111 Base Frame
121 Deck Frame
131 Roller Guard

Exploded view diagram of a treadmill with numbered parts for identification

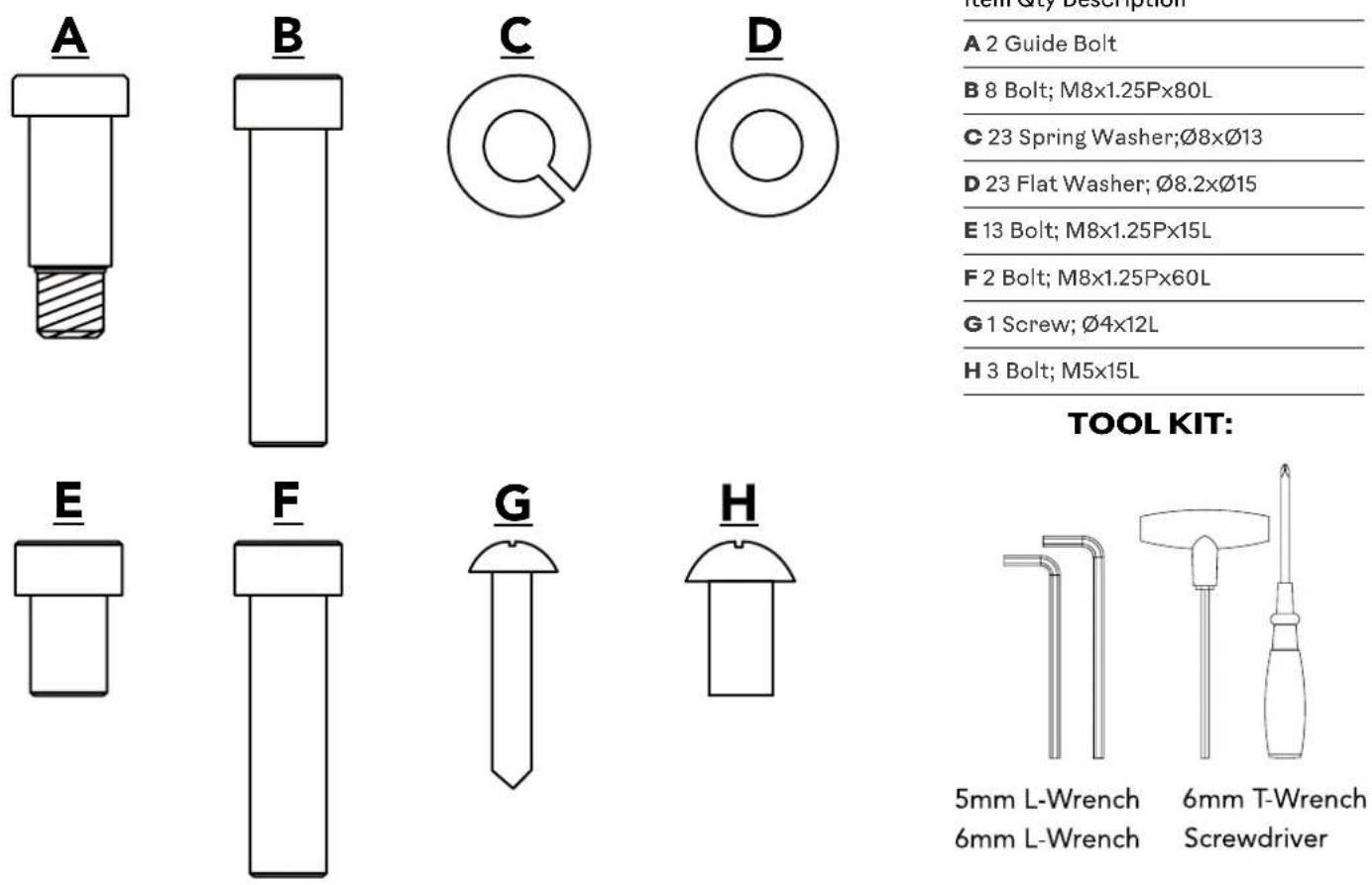

HARDWARE KIT:

Item Qty Description

A 2 Guide Bolt
B 8 Bolt; M8x1.25Px80L
C 23 Spring Washer;∅8x∅13
D 23 Flat Washer; ∅8.2x∅15
E 13 Bolt; M8x1.25Px15L
F 2 Bolt; M8x1.25Px60L
G1 Screw; ∅4×12L
H 3 Bolt; M5×15L

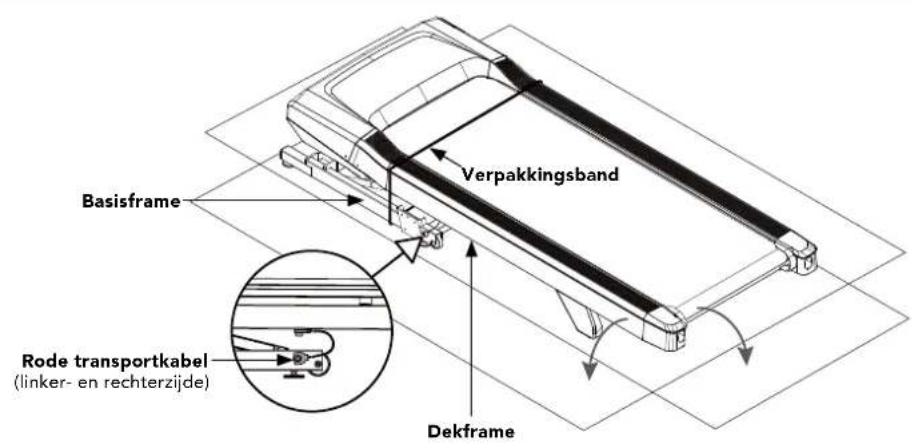

UNPACKING

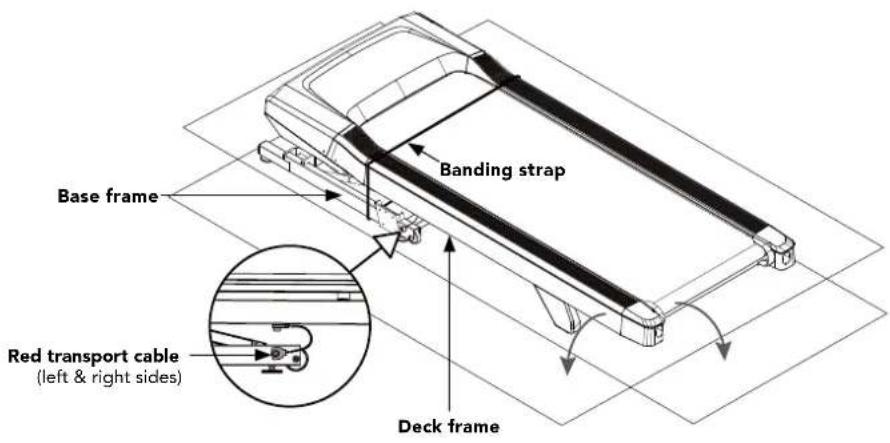

Base frame Banding strap Red transport cable (left & right sides) Deck frame

RED TRANSPORT CABLE

RED TRANSPORT CABLE

A Place the treadmill carton on a level flat surface with the bottom of the box on the ground.
B Cut banding straps on outside of box and remove box lid.
C DO NOT lift treadmill out of the box. Instead, tear down corners of bottom of treadmill box as shown. Treadmill should be assembled on flattened treadmill box as shown to protect floor surface.
D Cut the banding straps inside the box and remove everything but the treadmill frame.
E Partially lift the running deck upward from the rear to remove all contents from underneath the running deck. Red transport cables on either side of treadmill will prevent the treadmill deck from fully lifting.

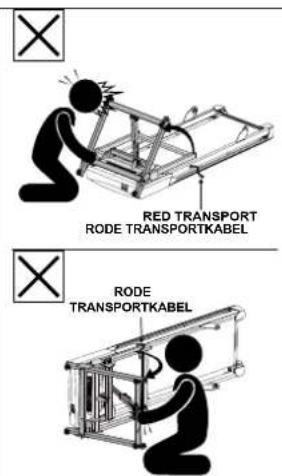

WARNING

NEVER tip treadmill upside-down or on its side. DO NOT use tools to remove the red transport cables until instructed to do so. If a component requires tools to remove, wait until the Assembly Instructions instructs you how to safely remove the component.

8 7 A B C D D C B

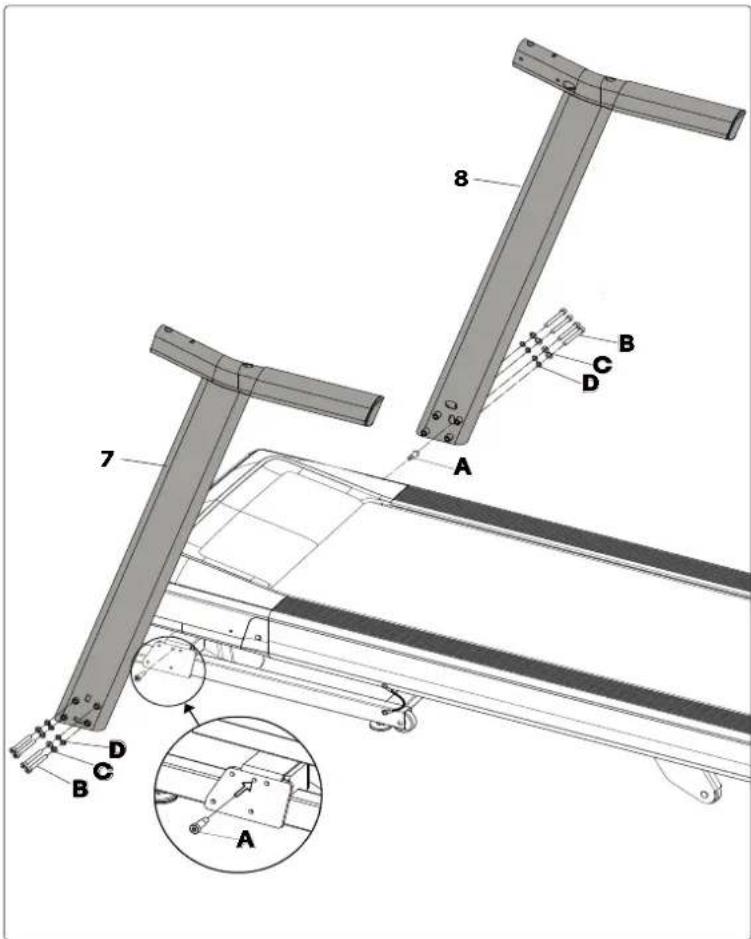

STEP 1

1.1 Open hardware for Step 1.
1.2 Insert both Upright Guide Bolts (A) into Base Frame using the 5mm L-Wrench. TIGHTEN FIRMLY.
1.3 Attach Right Console Mast (8) to Base Frame Using 4 Bolts (B), 4 Flat Washers (C), and 4 Spring Washers (D).

Note: DO NOT FULLY TIGHTEN bolts until instructed to do so.

1.4 Repeat step 1.3 on with Left Console Mast (7) side.

Technical diagram of a treadmill with labeled parts including frame 4, legs 7 and 8, and wheels 9 and 10

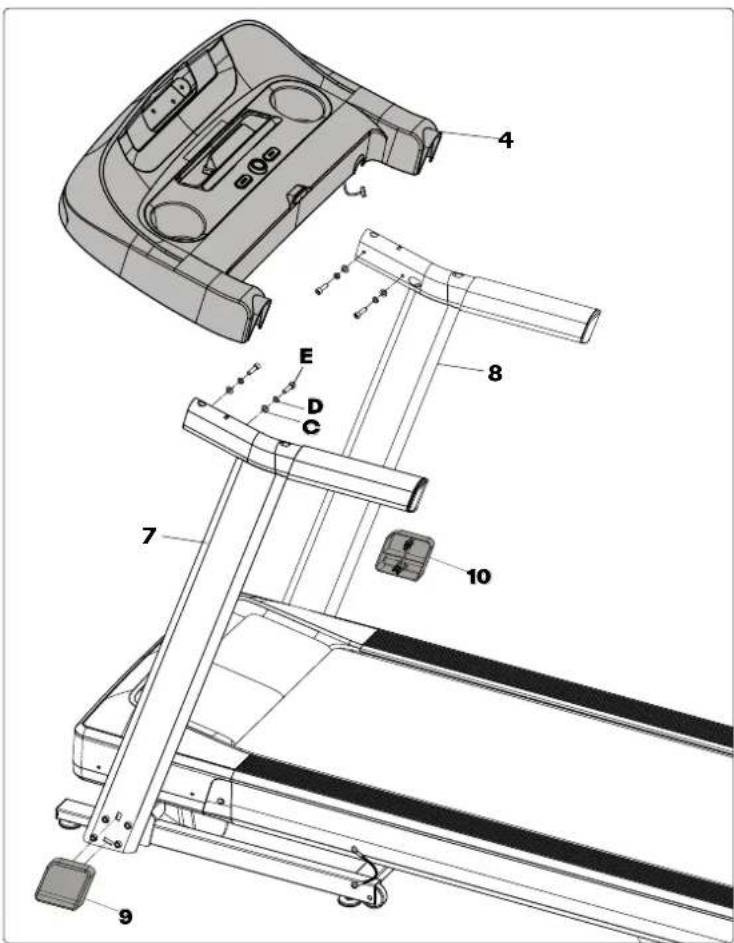

STEP 2

2.1 Open hardware for Step 2.
2.2 Gently place the Console Base(4) on top of the Console Masts(7,8). Attach Console Base(4) using 4 bolts(E), 4 Spring Washers(C) and 4 Flat Washers(D), DO NOT Fully tighten.
2.3 After all bolts are in place, fully tighten
2.4 FULLY TIGHTEN BOLTS FROM STEP 1
2.5 Attach Left Mast Cover (9) to Left Console Mast(7) then attach Right Mast Cover (10) to Right Console Mast(8).

Note: Be careful not to pinch any wires while assembling the console.

Technical diagram of a treadmill with labeled parts and component annotations

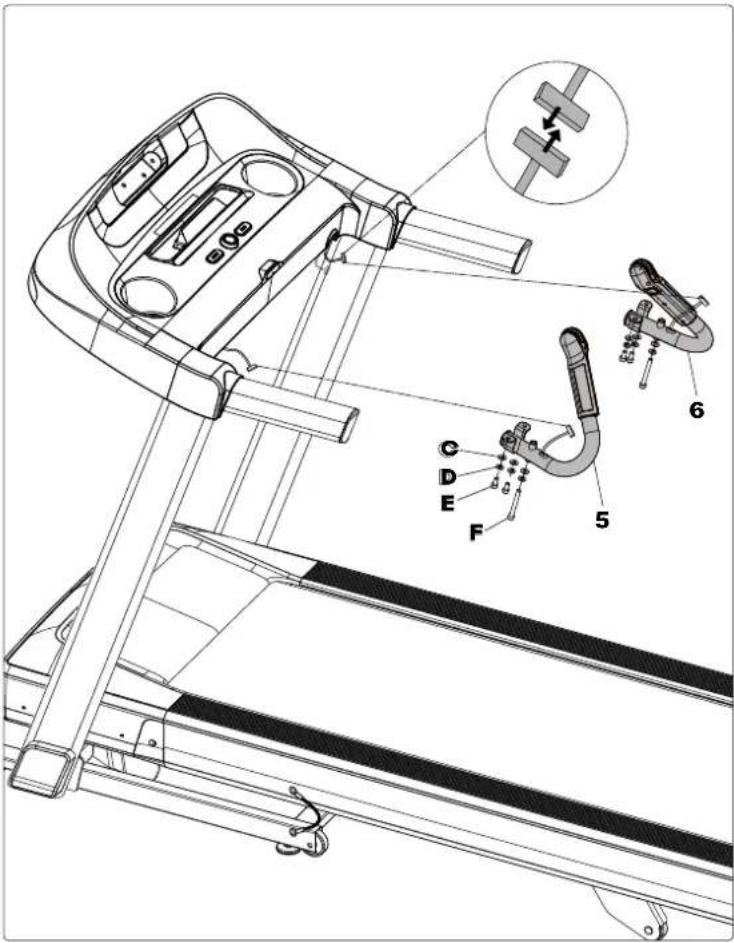

STEP 3

3.1 Open hardware for Step 3.
3.2 Attach Left Pulse Rate Grip (5) to the underside of the Console Base (12) using 3 Bolts (E & F), 3 Spring Washers (D), and 3 Flat Washers (C).
3.3 Connect the Left Grip Cables and carefully tuck wires to avoid damage.
3.4 Repeat step 3.2 on Right Pulse Rate Grip (6).
3.5 Connect the Right Grip Cables and carefully tuck wires to avoid damage.

NOTE: Be careful not to pinch any wires while assembling the pulse rate grips.

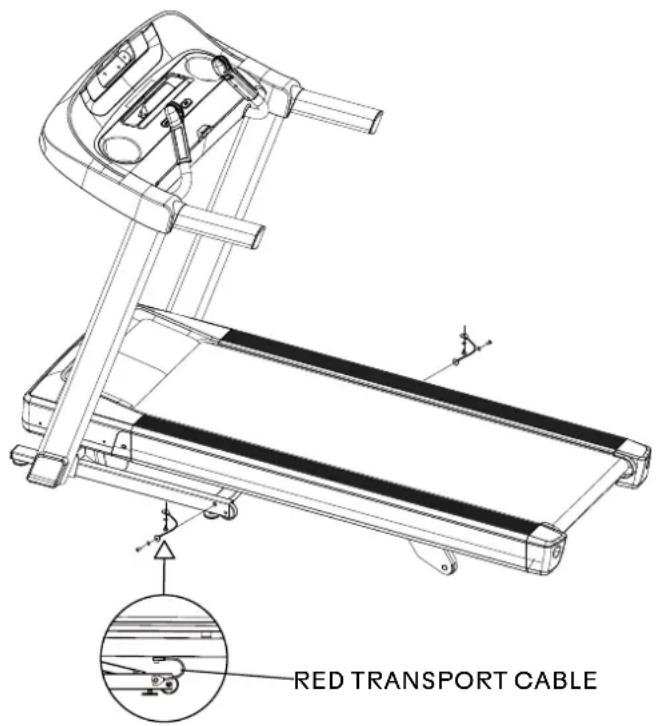

STEP 4 - REMOVAL OF RED TRANSPORT CABLES

RED TRANSPORT CABLE

! WARNING

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

Once the red transport cables have been detached from the treadmill, high pressure springs can cause the lower base frame to spring open. NEVER tip treadmill upside-down or on its side, and NEVER lift this unit if red transport cables are not connecting the upper deck frame to the lower base frame.

4.1 Ensure that treadmill is resting with all wheels supported by the floor.
4.2 On left side of treadmill, use the 5mm L-wrench (provided in box) to remove the two bolts connecting the red transport cable to the upper deck frame and the lower base frame.
4.3 Replace both bolts (one in the upper deck frame and one in the lower base frame) and fully tighten to lock in place. Note that to prevent the lower base frame from springing open during transport or disassembly of the treadmill in the future, the red transport cable can be reattached to the treadmill using these same bolts.
4.4 Perform same operation on right side of treadmill to remove the two bolts connecting the red transport cable to the upper deck frame and the lower base frame.
4.5 Replace both bolts and fully tighten to lock in place.
4.6 Save both red transport cables for future use by placing cables into clear poly bag alongside the owner's manual.
4.7 When red transport cables are not installed, transport unit ONLY on the ground, and ONLY after it is fully assembled and in the upright folded position with the lock latch secured.

Technical diagram of a device's internal components with labeled parts including a control panel, buttons, and adjustment knobs.

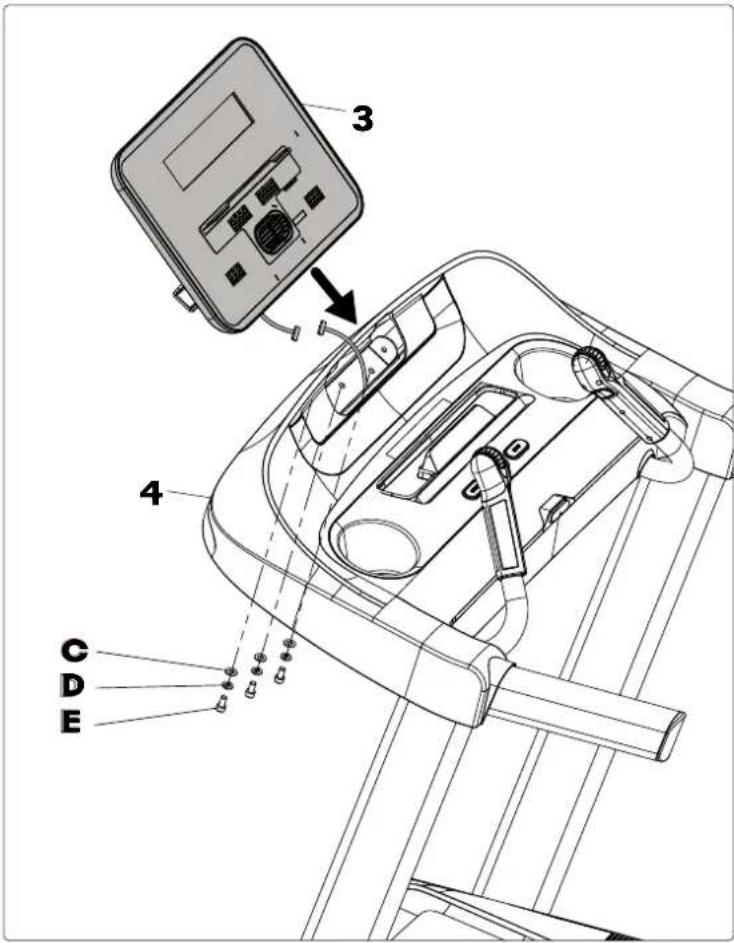

STEP 5

5.1 Open hardware for step 5.
5.2 Carefully connect the Console Cable and tuck extra cable into Console Base (4).
5.3 Attach Console (3) to the Console Base (4) using 3 Bolts (E), 3 Spring Washers (C) and 3 Flat Washers (D).

NOTE: Be careful not to pinch any wires while assembling the Console.

1 C D E 2 G

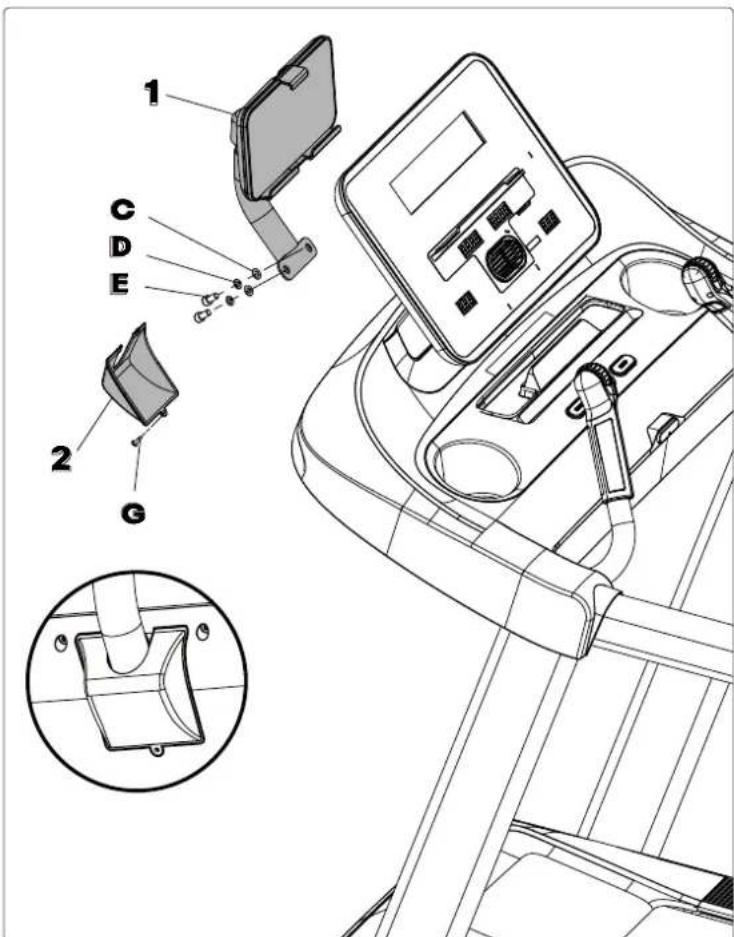

STEP 6

6.1 Open hardware for step 6.
6.2 Attach Tablet Holder (1) to back of Console (3) using 2 bolts (E), 2 washers (C) and 2 spring washers (D).
6.3 Attach rear Tablet Holder Panel (2) with 1 Screw (G).

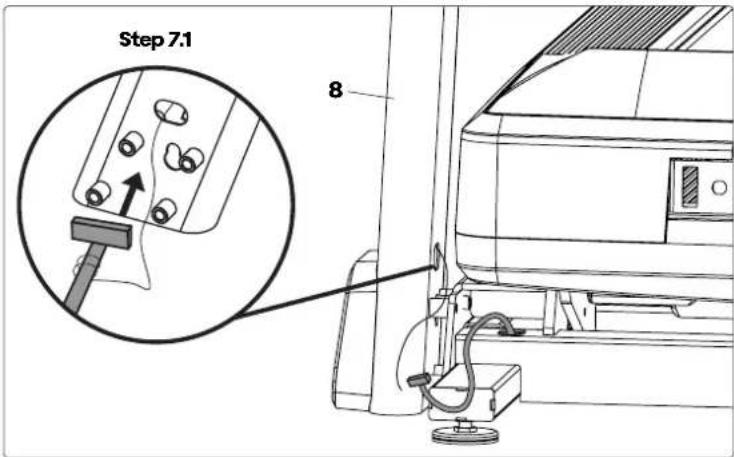

Step 7.1 8

STEP 7

7.1 Attach Lead Wire to end of Console Cable. Pull Lead Wire and Console Cable through bottom hole on Right Console Mast (8).
7.2 Pull the Lead Wire through the mast, the top of the Console Cable should be located at the top of the Right Console Mast (8).

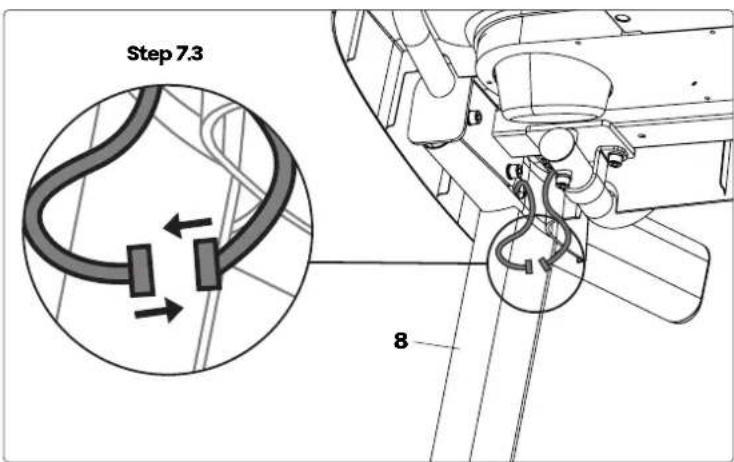

7.3 Attach Console Cable with Console Base Cable.
7.4 Tuck any extra wire gently back in the Right Console Mast (8).

Step 7.3 8

Note: Be careful not to pinch any wires while guiding cords through and tucking extra slack away in the mast.

13 13A H

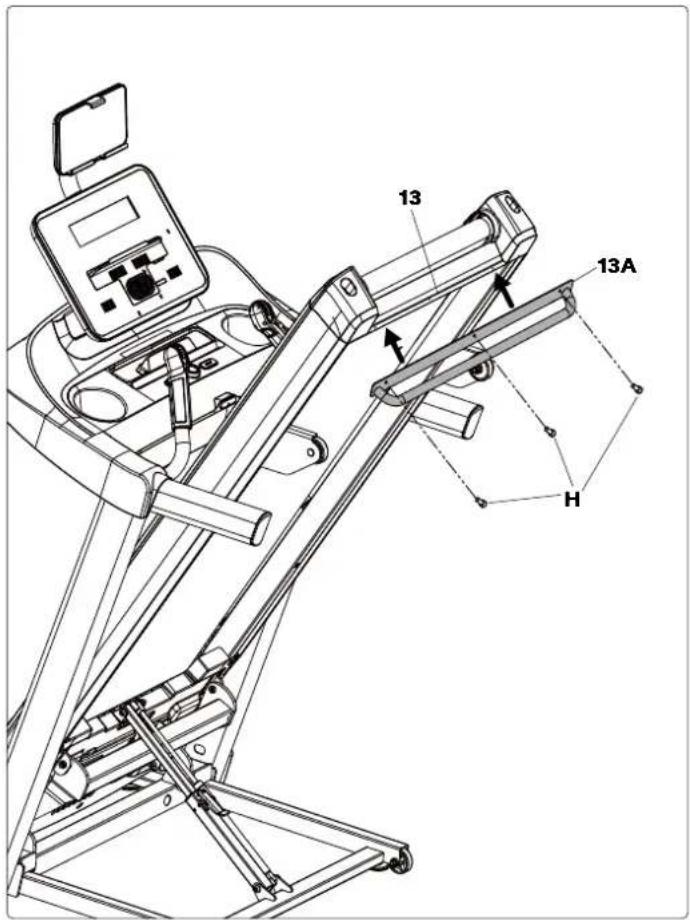

8.1 Fold Treadmill deck to its full upright position.
8.2 Adjust the screw holes on the Roller Guard (13A) to align with the holes underneath the Frame (13).
8.3 Use 3 Bolts (H) to fasten the handle bar to the Roller Guard (13A).

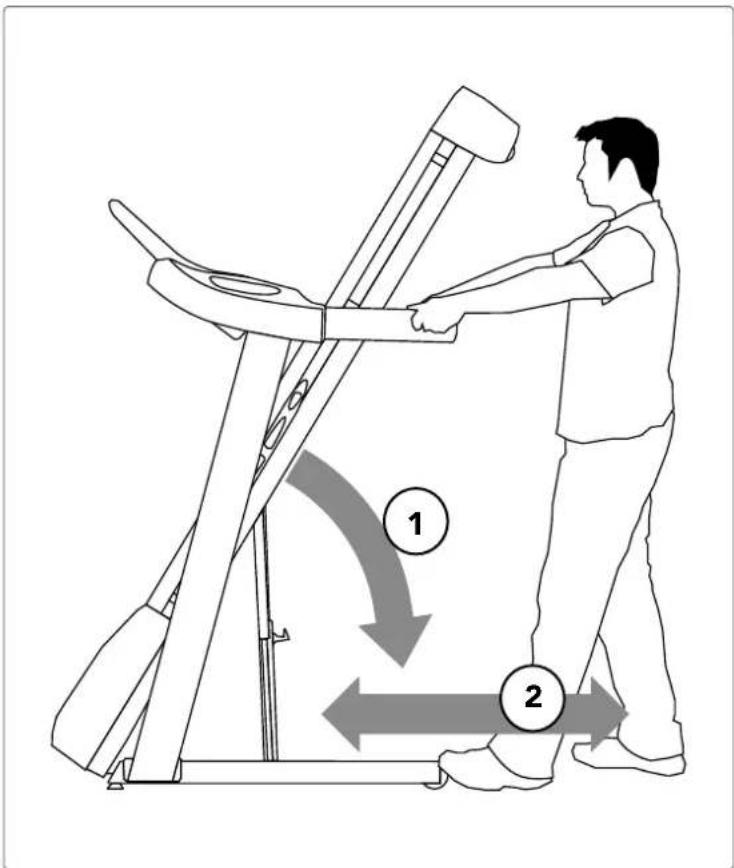

STEP 9 - MOVING TREADMILL

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or movement steps.

9.1 To move, make sure the treadmill is folded and securely latched. Then firmly grasp the handlebars, tilt the treadmill back (1) and roll (2).
9.2 Move treadmill off flattened box and into its final position, ready for use. Dispose of cardboard box.

NOTE: If treadmill must be disassembled or lifted in the future, use the 5mm L-wrench to re-attach red transport cables to the upper deck frame and lower base frame on both the left side and right side of the treadmill. Check to ensure that the lower base frame cannot spring open before lifting or disassembling treadmill.

ASSEMBLY COMPLETE!

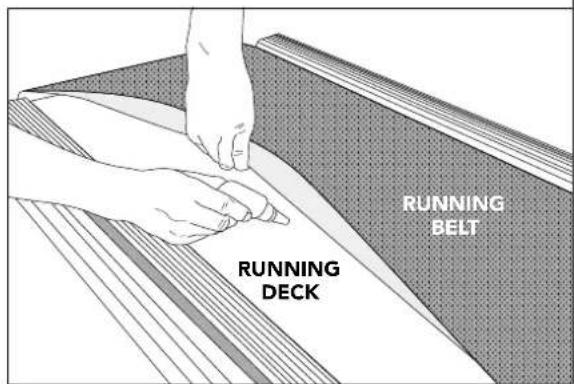

Before the first use, lubricate the treadmill deck by following the instructions in the maintenance section.

Treadmill Setup and Use

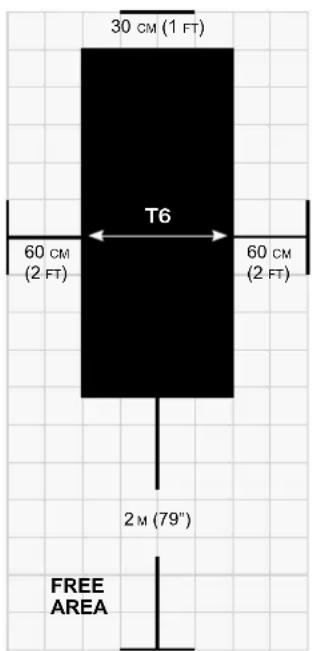

30 CM (1 FT) T6 60 CM (2 FT) 60 CM (2 FT) 2 M (79") FREE AREA

Place the treadmill on a level and stable surface. There should be 30cm of clearance in front of the treadmill for the power cord. Please leave a clear zone behind the treadmill that is at least the width of the treadmill and at least 2 meters long. This zone must be clear of any obstruction and provide the user a clear exit path from the machine. In case of an emergency, place both hands on the side arm rests to hold yourself up and place your feet onto the side rails.

For ease of access, there should be an accessible space preferentially on both sides of the treadmill equal to 0.6 meter to allow a user access to the treadmill from either side.

Do not place the treadmill in any area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio, near water or outdoors.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

DANGER!

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
• This product is for use on a nominal local voltage circuit and has a grounding plug. No adapter should be used with this product.
• This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and observe if any other devices lose power. If so, move devices to a different circuit.

Note: There are usually multiple outlets on one circuit.

FOLDING TREADMILLS

To fold, firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill deck into the upright position until the lock latch engages and securely locks the deck into position. Make sure the deck is securely latched before letting go.

UNFOLDING

Firmly grasp the back end of the treadmill. To unfold, gently press down on the foot lock latch with your foot until the lock latch disengages. Carefully lower the deck to the ground.

Diagram of a mechanical device with an inset showing foot positioning and movement (no text or symbols)

USING THE SAFETY KEY

Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation of the safety key every 2 weeks.

WARNING: Never use the treadmill without securing the safety key clip to your clothing. Pull on the safety key clip first to make sure it will not come off your clothing.

POWER

Your treadmill is powered by a power supply. Some treadmills have a power switch, located next to the power jack. Make sure it is in the on position. Unplug cord when not in use.

WARNING: Never operate product if it has a damaged cord or plug, if it is not working properly, if it has been damaged, or immersed in water. Please contact Customer Tech Support at the number listed on the back panel of the OWNER'S MANUAL.

LEVELING THE TREADMILL

Your treadmill should be level for optimum use. Once you have placed your treadmill where you intend to use it, raise or lower one or both of the adjustable levelers located on the bottom of the treadmill frame. A carpenter's level is recommended. If your treadmill is not level, the running belt may not track properly. Once you have leveled your treadmill, lock the levelers in place by tightening the nuts against the frame.

Diagram of a mechanical component with circular arrows indicating rotation or cycle (no text or symbols)

ADJUST HEIGHT LOCK ADJUSTMENT

Diagram of a mechanical component with two curved arrows indicating rotational motion (no text or symbols)

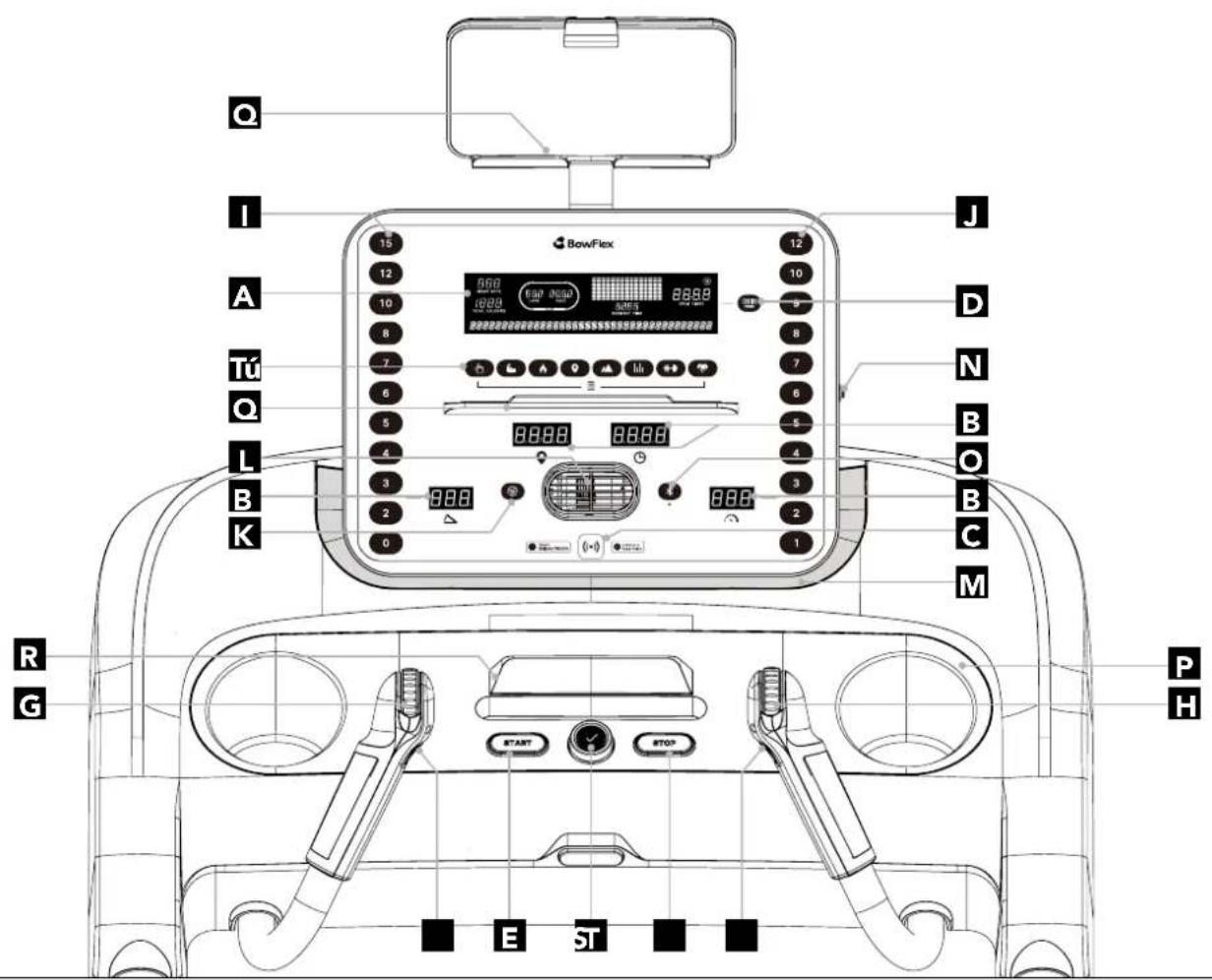

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E S T

26 ENGLISH

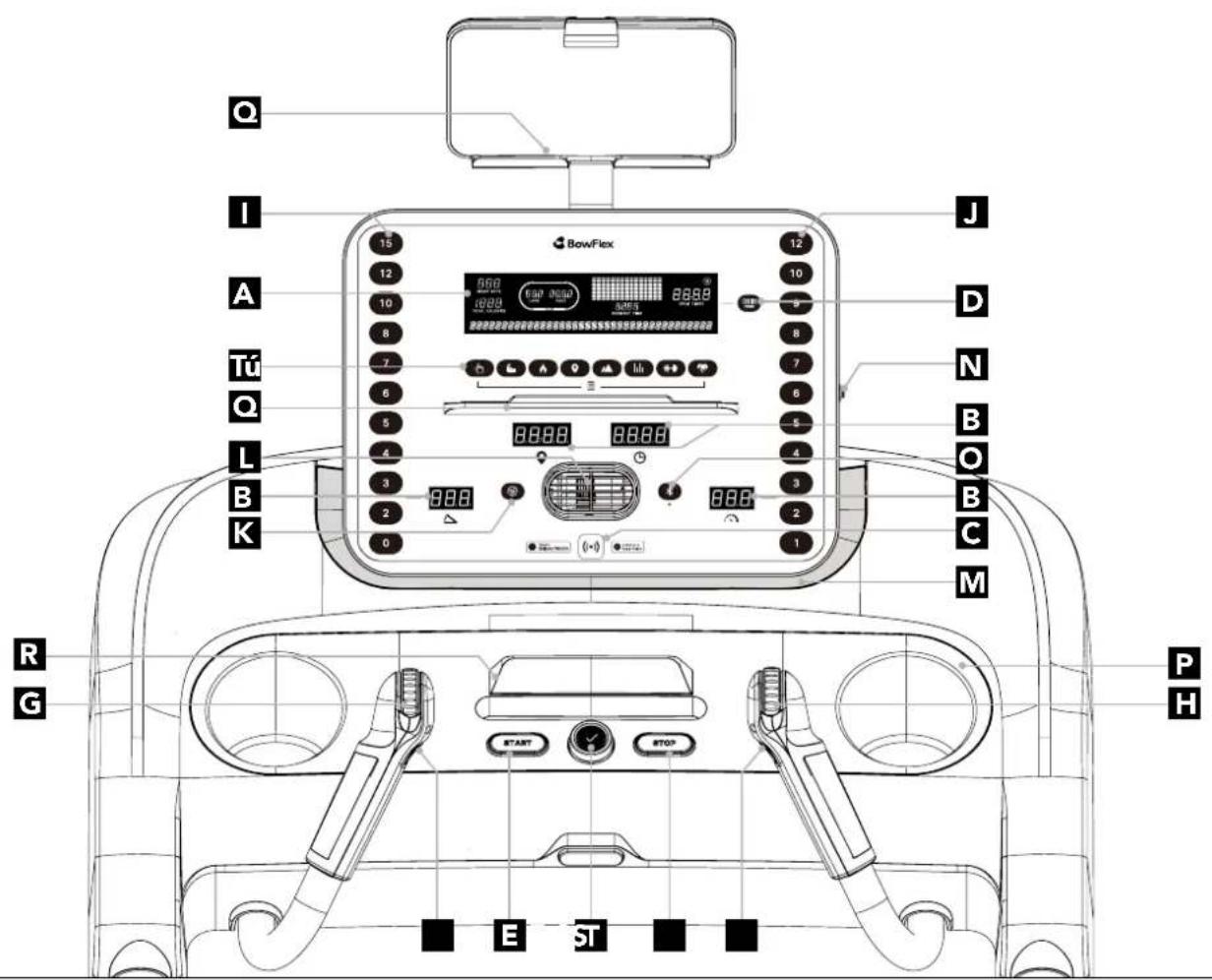

CONSOLE OPERATION

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

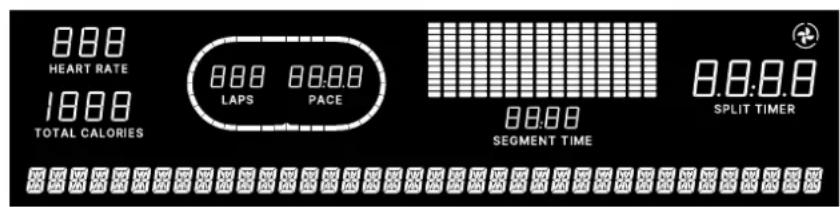

A) LCD DISPLAY: Heart Rate, Total Calories, Laps, Pace, Segment time, Split Timer and Fan Levels.
B) LED WINDOWS: Indicates what speed and incline is selected as well as distance and time of workout.
C) SMART WATCH READER: Tap Apple Watch or Samsung Galaxy Watch to sync workout with treadmill.
D) SPLIT KEY: Press to reset SPLIT TIME on the LCD.
E) START: Press to START workout.

F) STOP: Press to pause your workout. Hold for 3 seconds to end your workout and reset the console.

G) INCLINE QUICKDIAL: Used to adjust incline in small increments (.5%).

H) SPEED QUICKDIAL: Used to adjust speed in small increments (.1 MPH).

I) INCLINE QUICK KEYS: Used to reach desired incline more quickly.

J) SPEED QUICK KEYS: Used to reach desired speed more quickly.

K) FAN KEY: Press to change fan level.

L) FAN: Personal workout fans.

M) SPEAKERS: Music and audio feedback plays through the speakers.

N) USB PORT: Used to charge most devices up to 1.0 amps and to install software updates.

O) BLUETOOTH KEY: Used to connect / disconnect a bluetooth Heart Rate device. LED will illuminate when a bluetooth device is connected.

P) WATER BOTTLE POCKETS: Water bottle and other personal item storage.

Q) TABLET/READING RACKS: Holds tablet, phone or reading material.

R) PHONE HOLDER: Holds your phone

s) INTERVAL BUTTONS: These are programmable keys. When an user is selected, they can be programmed to a desired speed and incline setting.

T) WORKOUT KNOB: Used for workout selection and volume control (during workout).

U) PROGRAM BUTTONS: Select the desired preset program.

8.00 HEART RATE 18.00 TOTAL CALORIES 8.00 8.0:0.0 LAPS PACE 8.0:0.0 SEGMENT TIME 8.0:0.0 SPLIT TIMER

DISPLAY WINDOWS

• INCLINE: Shown as percent. Indicates the incline of your walking or running surface.
• DISTANCE: Shown as miles. Indicates distance traveled during your workout.
• TIME: Shows either the total time elapsed or remaining; depending on the workout selected.
- SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving.
• HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate. (displayed when contact is made with both pulse grips or connected with a heart rate monitor).
• TOTAL CALORIES: Total calories burned during your workout.
• LAPS: Graphic showing laps around a track. One lap is 400 meters or 1/4 mile.
- PACE: Indicates how many minutes it takes to complete a mile while running or walking at your current speed.
• GRAPH: Demonstrates the incline or speed based on a time period, calorie target or distance target.
• SEGMENT TIME: Counts down from 60 seconds and repeats for the Quick Start or a time period defined in other programs tables.
• SPLIT TIMER: Time elapsed since the SPLIT key was last pressed.

GETTING STARTED

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON. (The ON/OFF switch is next to the power cord.)
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:

A) Quick start up

Simply press the START key to begin working out.

Time, distance, and calories will all count up from zero. OR...

B) Select a workout OR TARGET

1) Select your USER by turning the workout knob and then pressing select when your desired USER is displayed.
2) Select your WEIGHT by turning the workout knob and then pressing select when your desired WEIGHT is displayed.
3) Select your PROGRAM by pressing your desired program button and then select when your chosen PROGRAM is displayed.
4) Adjust the SETTING by turning the workout knob and then pressing select when your desired SETTING is displayed.
5) Press START to begin.

C) Quick Access to Accumulative Distance/time

User can check the accumulative Distance and Time in HOME screen by holding Incline 0 and Speed 1 keys for 3-5s. The values will show at Distance and Time LEDs.

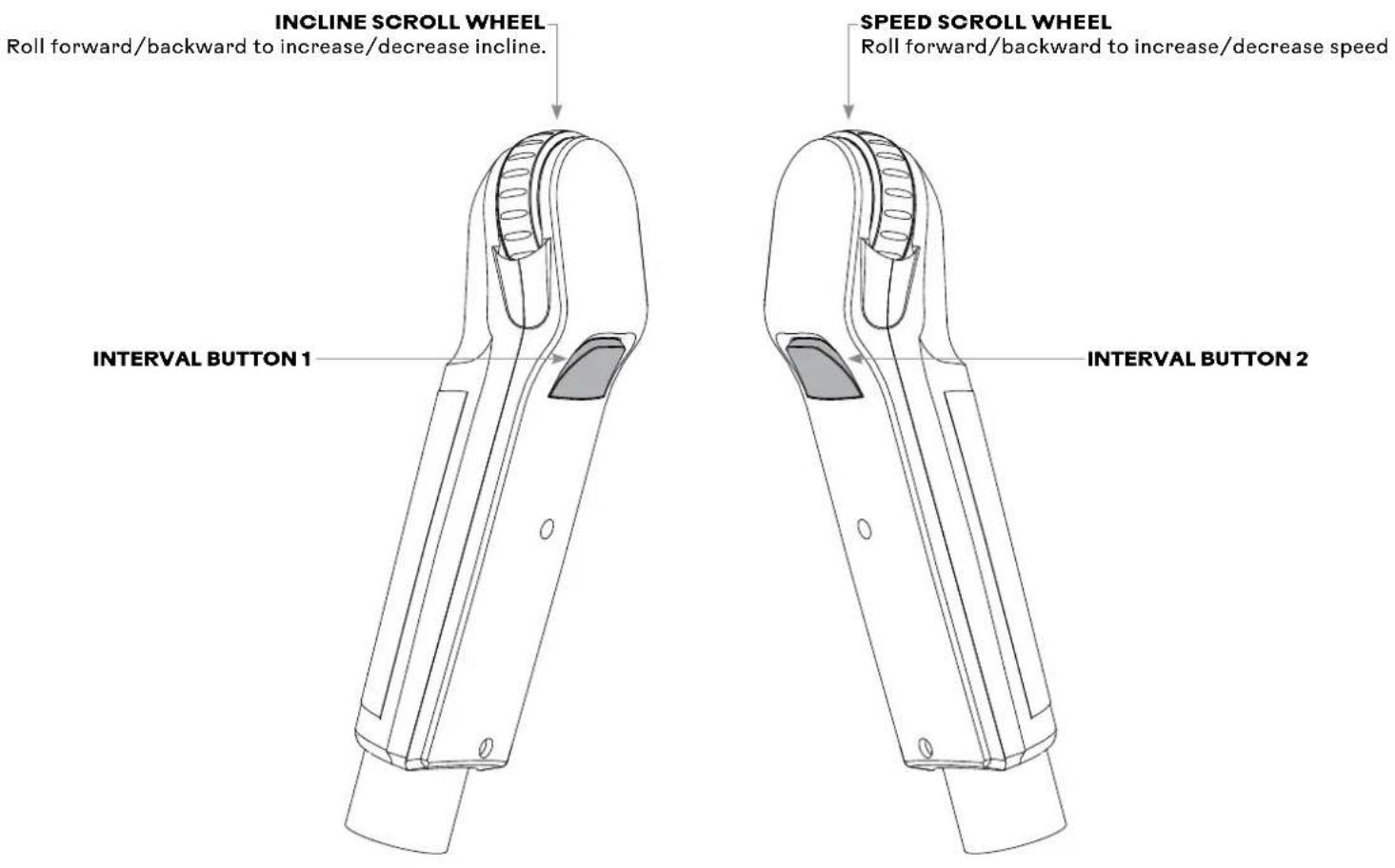

INCLINE SCROLL WHEEL Roll forward/backward to increase/decrease incline. SPEED SCROLL WHEEL Roll forward/backward to increase/decrease speed INTERVAL BUTTON 1 INTERVAL BUTTON 2

HOW TO PROGRAM AND USE CUSTOM INTERVAL BUTTONS

The programmable interval buttons located on the pulse rate grips are designed to help you customize this machine to match whatever workout you like to do the most.

The LEFT and RIGHT INTERVAL BUTTONS are programmable for speed and incline.

To program the INTERVAL button, you must select a user, start the machine, set the desired speed and incline, press and hold the desired INTERVAL button for three seconds until the treadmill beeps. Now the INTERVAL button is programmed to your settings. After programming the INTERVAL button, it will remember the setting for that user until reprogrammed.

Now when the INTERVAL button is pressed, the treadmill speed and incline will change to the settings you programmed for that button.

The most common type of workout these keys will help with is interval training. We suggest programming one of the INTERVAL buttons to your high intensity segments and the other to your recovery segments.

Another common use is to set one INTERVAL button to your warm up and cool down settings and the other to your desired workout settings.

These buttons should allow you to customize the settings of your treadmill to quickly fit the type of workout you enjoy most.

SPECIFICATION FOR PROGRAMS WITH MULTIPLE SEGMENTS

1. The user can increase speed and incline in a certain segment and it ONLY increases for that segment. For the following segments, the machine will follow the values in the provided table.
2. The user can decrease the speed and incline in any segment and it will decrease the same amount for the following segments.

WORKOUT PROFILES

Manual: Control everything about your workout – from start to finish. This program is a basic workout with no pre-defined settings, allowing you to manually adjust the machine at any time. It begins with an incline at 0 and speed at 0.5 mph.

Muscle Toner: Tones muscles by adjusting incline gradually while keeping you in your fat burning zone.

Segments change every 30 seconds. Time based goal with 10 difficulty levels to choose from.

Segment Time	Warm Up								Program Segments-Repeat									Cool Down
	4:00								Each Segment in 30 seconds									4:00
Level 1	0	0	0	1	1	1	2	2	1	1	2	2	1	1	2	2	1	0	0	0
Level 2	0	0	1	2	1	2	2	3	1	2	2	3	1	2	2	3	2	1	0	0
Level 3	0	1	1	2	2	2	3	3	2	2	3	3	2	2	3	3	2	1	1	0
Level 4	1	1	1	2	2	3	3	4	2	3	3	4	2	3	3	4	2	1	1	1
Level 5	2	2	2	2	3	3	4	4	3	3	4	4	3	3	4	4	2	2	2	2
Level 6	2	2	2	3	3	4	4	5	3	4	4	5	3	4	4	5	3	2	2	2
Level 7	3	3	3	3	5	5	6	6	5	5	6	6	5	5	6	6	3	3	3	3
Level 8	3	3	3	4	6	6	7	7	6	6	7	7	6	6	7	7	4	3	3	3
Level 9	3	3	4	4	7	7	8	9	7	7	8	10	7	7	10	10	4	4	3	3
Level 10	3	4	4	5	8	10	10	10	8	8	11	11	8	8	12	12	5	4	4	3

Calorie Goal: Set goals for burning calories from 20 to 980 calories in 20 calorie increments. You set your level to keep you in your fat burning zone.

Incline changes and all segments are 20 calories and repeat (warm up does not repeat)

Segment	Warm up		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Distance	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal	20 cal
Level 1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Level 2	0	0.5	1	3	2	3	2	3	2.5	3.5	2.5	3	2	3	2	3	1
Level 3	0.5	1	1.5	3.5	1.5	3.5	2.5	3.5	2.5	4	2.5	3.5	2.5	3.5	1.5	3.5	1.5
Level 4	0.5	1	1.5	3.5	2.5	3.5	2.5	3.5	3	4	3	3.5	2.5	3.5	2.5	3.5	1.5
Level 5	1	1.5	2	4	2	4	3	4	3	4.5	3	4	3	4	2	4	2
Level 6	1	1.5	2	4	3	4	3	4	3.5	4.5	3.5	4	3	4	3	4	2
Level 7	1.5	2	2.5	4.5	2.5	4.5	3.5	4.5	3.5	5	3.5	4.5	3.5	4.5	2.5	4.5	2.5
Level 8	1.5	2	2.5	4.5	3.5	4.5	3.5	4.5	4	5	4	4.5	3.5	4.5	3.5	4.5	2.5
Level 9	2	2.5	3	5	3	5	4	5	4	5.5	4	5	4	5	3	5	3
Level 10	2	2.5	3	5	4	5	4	5	4.5	5.5	4.5	5	4	5	4	5	3

Distance: Push yourself and go further during your workout with 13 distance workouts. Choose from 1 mile, 2 miles, 5k, 5 miles, 10k, 8 miles, 15k, 10 miles, 20k, half marathon, 15 miles, 20 miles, and marathon goals.

Segment	Warm up		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Distance	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi	0.1 mi
Level 1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Level 2	0	0.5	1	3	2	3	2	3	2.5	3.5	2.5	3	2	3	2	3	1
Level 3	0.5	1	1.5	3.5	1.5	3.5	2.5	3.5	2.5	4	2.5	3.5	2.5	3.5	1.5	3.5	1.5
Level 4	0.5	1	1.5	3.5	2.5	3.5	2.5	3.5	3	4	3	3.5	2.5	3.5	2.5	3.5	1.5
Level 5	1	1.5	2	4	2	4	3	4	3	4.5	3	4	3	4	2	4	2
Level 6	1	1.5	2	4	3	4	3	4	3.5	4.5	3.5	4	3	4	3	4	2
Level 7	1.5	2	2.5	4.5	2.5	4.5	3.5	4.5	3.5	5	3.5	4.5	3.5	4.5	2.5	4.5	2.5
Level 8	1.5	2	2.5	4.5	3.5	4.5	3.5	4.5	4	5	4	4.5	3.5	4.5	3.5	4.5	2.5
Level 9	2	2.5	3	5	3	5	4	5	4	5.5	4	5	4	5	3	5	3
Level 10	2	2.5	3	5	4	5	4	5	4.5	5.5	4.5	5	4	5	4	5	3

Rolling Hills: A level based workout that automatically adjusts the incline or resistance to simulate going up or down hills.

Segment Level	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
	INCLINE
1	0	0.5	0.5	1	1.5	0.5	0	0.5	1.5	2.5	3	2.5	1	0	1	1.5
2	0	0.5	1	1	1.5	1	0	0.5	2	3	3.5	2.5	1	0	1	1.5
3	0	0.5	1	1.5	2	1	0	0.5	2	3.5	4	3	1.5	0	1.5	2
4	0	0.5	1	1.5	2	1	0	0.5	2.5	4	4.5	3.5	1.5	0	1.5	2
5	0	0.5	1	1.5	2	1	0	0.5	3	4.5	5	4	1.5	0	1.5	2
6	0	0.5	1	2	2.5	1	0	0.5	3	5	5.5	4.5	2	0	2	2.5
7	0	0.5	1.5	2	2.5	1.5	0	0.5	3.5	5.5	6	4.5	2	0	2	2.5
8	0	0.5	1.5	2	3	1.5	0	0.5	3.5	6	6.5	5	2	0	2	3
9	0	1	1.5	2.5	3	1.5	0	1	4	6	7	5.5	2.5	0	2.5	3
10	0	1	2	2.5	3.5	2	0	1	4.5	7	8	6	2.5	0	2.5	3.5
11	0	1	2	3	4	2	0	1	5	8	9	7	3	0	3	4
12	0	1	2	3	4	2	0	1	5.5	8.5	9.5	7.5	3	0	3	4
13	0	1	2	3.5	4.5	2	0	1	5.5	9	10	8	3.5	0	3.5	4.5
14	0	1	2.5	3.5	4.5	2.5	0	1	6	9.5	10.5	8	3.5	0	3.5	4.5
15	0	1	2.5	3.5	5	2.5	0	1	6	10	11	8.5	3.5	0	3.5	5
16	0	1.5	2.5	4	5.5	2.5	0	1.5	6.5	10.5	12	9.5	4	0	4	5.5
17	0	1.5	3	4	5.5	3	0	1.5	7	11	12.5	9.5	4	0	4	5.5
18	0	1.5	3	4.5	6	3	0	1.5	7	11.5	13	10	4.5	0	4.5	6
19	0	1.5	3	4.5	6	3	0	1.5	8	12.5	14	11	4.5	0	4.5	6
20	0	1.5	3.5	5	6.5	3.5	0	1.5	8.5	13.5	15	11.5	5	0	5	6.5

Intervals: A level based workout that automatically adjusts the incline value at regular intervals.

Intervals (15%Incline)
Segment =workout time/16
Segment Level	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
								INCLINE
1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
2	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	1	1	1	1	1	1	1	1.5	1.5	1.5	1.5	1.5
3	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
4	1.5	2	2	2.5	3	3	3.5	3.5	4	4.5	5	5.5	5.5	6	6	6.5	7	7	8	8.5
5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
6	2.5	2.5	3	3.5	4	4.5	4.5	5	5.5	6	7	7.5	8	8	8.5	9.5	9.5	10	11	11.5
7	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
8	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
9	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
10	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
11	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
12	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
13	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
14	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
15	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
16	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15

Strength Builder: Time segments vary from 30 to 90 segments long to challenge your stamina and strength. Time based goal with 10 difficulty levels to choose from.

SegmentSeconds		Warm UP4:00 Min			130	260	390	460	590	645	760	845	990	1090	1130	1230	Cool Down4:00 min
Level 1	1	1	1	2	2	2	2	1	2	2	1	2	2	1	2	2	2	1	1
Level 2	1	1	1	2	3	2	3	2	2	3	2	2	3	2	2	3	2	1	1
Level 3	1	1	1	2	4	3	4	2	3	4	2	3	4	2	3	4	2	1	1
Level 4	1	1	1	2	5	4	5	3	4	5	3	4	5	3	4	5	2	1	1
Level 5	1	2	2	2	5	5	5	4	5	5	4	5	5	4	5	5	2	2	2
Level 6	1	2	2	3	6	5	6	5	5	6	5	5	6	5	5	6	3	2	2
Level 7	1	2	2	3	7	6	7	5	6	7	5	6	7	5	6	7	3	2	2
Level 8	1	1	1	2	9	8	9	8	8	9	8	8	9	8	8	9	2	1	1
Level 9	2	2	2	3	11	10	11	9	10	11	9	10	11	9	10	11	2	1	1
Level 10	2	3	4	5	12	12	12	11	12	12	11	12	12	11	12	12	3	2	2

Target Heart Rate: This program is designed for you to improve your overall cardiovascular fitness levels. You simply set your target heart rate. The program will then monitor and adjust the intensity level to maintain your heart rate within your targeted range while you exercise – a proven method to maximize your weight loss and fitness goals. A heart rate strap / monitor is required and must be worn during the duration of this program. See below for calculating your target heart rate.

Heart Rate Incline Function Incline Adjust

20+ under target	Increase every 10 seconds	0.50%
6-19 under target	Increase every 35 seconds	0.50%
+/- 5 of target	No change	0
6-10 over target	Decrease every 35 seconds	-0.50%
11-19 over target	Decrease every 10 seconds	-0.50%
20-24 over target	Decrease every 10 seconds	Half of current
25+ over target	Console reset	N/A reset

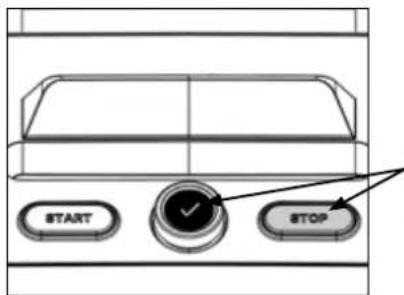

TO RESET THE CONSOLE

Hold stop key for 3 seconds.

When your workout is complete, the unit will beep. Your workout information will stay displayed on the console for 30 seconds and then reset.

BLUETOOTH HEART RATE MONITORING

This machine is equipped with multi-channel Bluetooth which enables you to wirelessly connect compatible Bluetooth heart rate monitoring devices. You will need to ensure that your wireless heart rate monitoring device is Bluetooth 4.0 compatible and is also "open" to sharing data. Non-"open" or "closed" devices typically only share data with their proprietary apps. This machine needs an "open" device to receive data from the device. You may need to consult with your device's owner's manual or the manufacturer to confirm if it is an "open" device.

To pair a heart rate monitor to the console, ensure the heart rate monitor is turned on, if required, then press and hold the Bluetooth button to enable the console to communicate with the heart rate monitor. The LED will illuminate when the heart rate monitor is connected. Heart rate may take up to 30 seconds to display in the HR window. To disconnect the heart rate monitor, press and hold the Bluetooth button until the LED turns off. Alternatively, turning the machine off or unplugging the machine will also disconnect the heart rate monitor. The heart rate monitor will need to be reconnected before each use.

Your machine comes equipped with Bluetooth speakers. Bluetooth compatible devices can stream music wirelessly from your device to the speakers.

CONNECTING VIA BLUETOOTH 4.0LE

1) Check to ensure that your music device is Bluetooth 4.0 compatible
2) Go into your music device's Bluetooth settings and scan for devices.
3) On your music device, locate the Bluetooth device list. Select your machine's model name that appears on this list.

Wait for your music device to finish pairing with the unit.

4) You will know when pairing is successful when your music device shows the machine's model name as now being a paired device.

CONNECT APPLE WATCH TO YOUR TREADMILL

1) Make sure your watch is set to detect gym equipment - open the Settings app on your Apple Watch, tap Workout, then turn on "Detect Gym Equipment."
2) Hold your Apple Watch on the (●) icon on the console for about 5 seconds. (NOTE: The watch face must be facing the (●) to connect). Wait for the beep and the bluetooth CONNECTED light to illuminate on the console. You may also feel a tap from your Apple Watch with haptic feedback.
3) Select one of the workout types on your Apple Watch.
4) Wait for your Apple Watch to read "Start Treadmill."
5) On the treadmill, select user and setup your program or simply press START.

RUN A FITNESS+ WORKOUT WITH APPLE WATCH AND YOUR TREADMILL

1) Open the Fitness+ app on your device and select a treadmill workout.
2) Select run or walk in the Fitness+ workout.
4) Select a walk or run on your Apple Watch.
5) Press START on the treadmill to begin your workout.

3) Hold your Apple Watch on the (●) for about 5 seconds. (NOTE: The watch face must be facing the (●) to connect. Wait for the beep and the bluetooth CONNECTED light to illuminate on the console. You may also feel a tap from your Apple Watch with haptic feedback.

CONNECT SAMSUNG GALAXY WATCH TO YOUR TREADMILL

1) Make sure your Samsung Galaxy Watch is set to detect gym - open the Settings app on your Galaxy Watch, tap Connections, tap NFC then tap NFC switch to turn on NFC.
2) Hold your Galaxy Watch on the (•) for about 5 seconds. (NOTE: The watch face must be facing the (•) to connect). Wait for the beep and the bluetooth CONNECTED light to illuminate on the console. You may also feel a tap from your Galaxy Watch with haptic feedback. "Time to get started!" will appear on your Galaxy Watch.
- You might first need to accept some terms and conditions on your Galaxy Watch before seeing "Time to get started!"
3) On the treadmill, select user and setup your program or simply press START.

CONNECT YOUR DEVICE WITH THE JRNY APP FOR MORE DYNAMIC WORKOUTS

If you have a JRNY membership*, it can be accessed through your device when synced to the console of this machine. With that JRNY membership, you receive guided workouts adapted.

QR code image containing encoded data, no visible human-readable text

* A JRNY membership is required for the JRNY experience – see global.bowflex.com/en/jrny.html for details. Where available (including the United States), you can obtain a JRNY membership by downloading the JRNY app onto your phone or tablet and signing up within the downloaded app. JRNY memberships may not be available in all countries.

Maintenance & Troubleshooting

MAINTENANCE

Preventative maintenance is the key to smooth operating equipment, as well as keeping the users' liability to a minimum. Equipment needs to be inspected at regular intervals. Defective components must be replaced immediately. Improperly working equipment must be kept out of use until it is repaired. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.

WARNING

To remove power from the treadmill, the power cord must be disconnected from the wall outlet.

MAINTENANCE SCHEDULE
ACTION FREQUENCY
Clean and inspect the treadmill:Turn off the treadmill with the ON/OFF switch, then unplug the power cord at the wall outlet.Wipe down the running belt, deck, motor cover and console casing with a damp cloth. Never use solvents, as they can cause damage to the treadmill.Inspect the power cord. If the power cord is damaged, please reference contact information on the back cover of the INFORMATION CARD for assistance.Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut during storage or use.Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other components on the treadmill by being misaligned.If any labels are damaged or illegible, please reference contact information on the back cover of the INFORMATION CARD for assistance.	DAILY
Clean underneath the treadmill:Turn off the treadmill with the ON/OFF switch, then unplug the power cord at the wall outlet.Fold the treadmill into the upright position, making sure that the lock latch is secure.Move the treadmill.Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.Return the treadmill to its previous position.	WEEKLY
IMPORTANT!Turn off the treadmill with the ON/OFF switch, then unplug the power cord at the wall outlet. Wait 60 seconds.Inspect all assembly bolts of the machine for proper tightness.Remove the motor cover. Wait until ALL display screens turn off.Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to do so may result in premature failure of key electrical components.Wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around the unit. These particles may accumulate from normal treadmill use.If your treadmill has air shocks under the deck for lift assistance, lubricate the silver air shock tube with Teflon-based spray found at your local hardware or bike store.	MONTHLY

MAINTENANCE SCHEDULE

LUBRICATING THE RUNNING BELT

EVERY 3 MONTHS OR 480 KM

It is necessary to lubricate your treadmill running deck every three months or 480 km to maintain optimal performance. Once the treadmill records 480 km it will display the message "LUBE" or "LUBE BELT." The treadmill will not operate while the message is showing. Your treadmill came with a bottle of 100% silicone lubricant, which can be used for two applications.

To purchase additional Silicone Lubricant: Please contact Customer Tech Support.

Tools Needed:

• T-wrench or Allen wrench
- 100% silicone oil

RUNNING BELT RUNNING DECK

PROCEDURE:

1. Turn off the treadmill with the on/off switch and unplug the power cord at the wall outlet.
2. Using the T-wrench or Allen wrench, loosen the rear roller bolts 10-15 counter-clockwise turns. This should give the belt enough slack for you to lift it.
3. Lift the belt as far as you can and squirt the silicone oil in a zigzag pattern across the entire running deck surface. Use 1/2 bottle of silicone lubricant. Do not apply the silicone oil on top of the running belt. Lay the running belt down and then tighten both rear roller bolts clockwise the same number of turns loosened.
4. After you have applied lubricant, plug in the power cord, and insert the safety key. Reset the Lube Belt message by first pressing and holding the √ button, then STOP button and hold BOTH buttons for 5-7 seconds.
5. Stay off of the machine and press START. Allow the belt to run at 3 mph for 3 minutes to begin spreading the silicone. Then walk on the machine at a comfortable speed for 3 minutes to complete spreading the silicone and to check the running belt for proper tension and alignment.
6. Once the belt is centered and tensioned, stop the belt. Wipe any excess oil from the sides with a damp cloth.

Press any key to suspend the lubrication warning message until after your next workout. Note: Some older models may require you to hold stop for 5 seconds to suspend message for 8 km of use.

If your treadmill has air shocks under the deck for lift assistance, lubricate the silver air shock tube with Teflon-based spray found at your local hardware or bike store.

Visit the Customer Support section of our website to view "how-to" maintenance videos. Please contact Customer Tech Support with questions about applying lubricant to your treadmill.

Line drawing of a hand using a tool to adjust a curved mechanical component (no text or symbols)

TENSIONING THE RUNNING BELT

If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened. In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and common adjustment. To eliminate this slipping, turn the treadmill off and tension both the rear roller bolts using the supplied Allen wrench, turning them 14 turn to the right (clockwise) as shown. Turn the treadmill on and check for slipping. Repeat if necessary, but never turn the roller bolts more than 14 turn at a time. Belt is properly tensioned when the slipping sensation is gone.

WARNING

Running belt should NOT be moving during tensioning. Over-tightening the running belt can cause excessive wear on the treadmill as well as its components. Never over-tighten the belt.

Line drawing of a hand using a hammer to press or install a mechanical component (no text or symbols)

Line drawing of a hand using a hammer to adjust or install a mechanical component (no text or symbols present)

BELT IS TOO FAR TO THE RIGHT SIDE

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

BELT IS TOO FAR TO THE LEFT SIDE

START STOP

CENTERING THE RUNNING BELT

If the running belt is too far to the right side: Using the supplied Allen wrench and with the treadmill running at 1 km/h turn the LEFT adjustment bolt counter-clockwise a 14 turn and wait for the belt to adjust itself. Use the motor cover marking or part line as a reference for alignment. Repeat if necessary, until the belt remains centered during use.

If the running belt is too far to the left side: Using the supplied Allen wrench and with the treadmill running at 1 km/h turn the LEFT adjustment bolt clockwise a 14 turn and wait for the belt to adjust itself. Use the motor cover marking or part line as a reference for alignment. Repeat if necessary, until the belt remains centered during use.

• If you find the belt is slipping because it is too loose, center it then tension as needed.
• For easier adjustment bolt access, remove the end caps.

CAUTION

Do not run belt faster than 1 km/h while centering. Keep fingers, hair and clothing away from belt at all times.

To reset the Lube belt warning

The treadmill will flash "LUBE BELT" reminder every 150 mi. After lubricating belt, reset warning by holding down STOP and √ buttons for 3-5 seconds.

TROUBLESHOOTING

COMMON PRODUCT QUESTIONS

ARE THE SOUNDS MY TREADMILL MAKES NORMAL?

All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new treadmills. This noise will diminish over time, although it may not totally go away. Over time, the belt will stretch, causing the belt to ride smoother over the rollers.

WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?

All fitness products seem quieter in a large store showroom because there is generally more background noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is placed close to a wall, there will be more reflected noise.

WHEN SHOULD I BE WORRIED ABOUT A NOISE?

As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is considered normal noise.

BASIC TROUBLESHOOTING

PROBLEM: The console does not light up.

SOLUTION: Verify the following:

Does the red light on the ON/OFF switch light up?

NOTE: Some treadmill models do not have a switch that lights up. If this is the case, please proceed with the yes and no solutions below.

If yes:

- Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED lights have gone off on the motor control board before proceeding. Next verify that none of the wires connecting to the lower board are loose or disconnected.

- Double-check that all connections are secure, especially the console cable. Unplug and reconnect the console cable to verify.

• Make sure the console cable is not pinched or damaged in any way.
- Plug the treadmill in, turn the power switch on and look for any lit LEDs on the motor control board.

If no:

- Verify that the outlet the machine is plugged into is functional. Double-check that the breaker has not tripped, it is on a dedicated 15-amp circuit, it is not on a GFCI-equipped outlet, and it is not plugged into a power strip/surge protector or extension cord.

- Verify that the power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.

- Verify that the power switch is turned to the ON position.

PROBLEM: The console reads SAFETY KEY OFF or only displays dashes.

SOLUTION: Verify the following:

• Verify the safety key is securely in place.
• If using a magnetic key, make sure the key is magnetized.

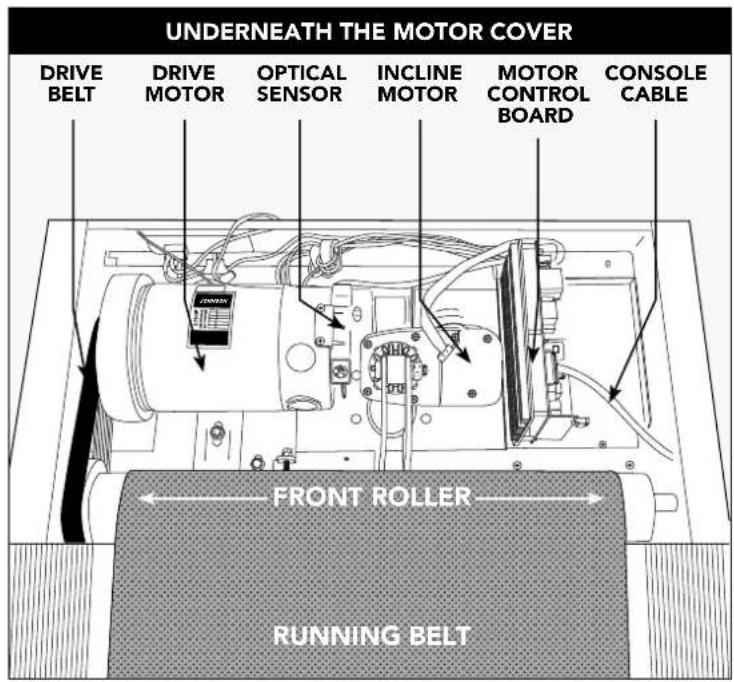

UNDERNEATH THE MOTOR COVER DRIVE BELT DRIVE MOTOR OPTICAL SENSOR INCLINE MOTOR MOTOR CONTROL BOARD CONSOLE CABLE FRONT ROLLER RUNNING BELT

TROUBLESHOOTING

BASIC TROUBLESHOOTING

PROBLEM: The belt does not move or moves briefly, but the console works.

SOLUTION: Verify the following:

• Make sure you are following the recommendations and power guidelines of GROUNDING INSTRUCTIONS & BASIC OPERATION in this owner's manual. The unit should be on a dedicated 15-amp circuit and not on a GFCI-equipped outlet. Do not plug the machine into a power strip/surge protector or extension cord.
• Check for any belt movement. If so, make note of how far or how long it moves before stopping.
• Try to move the belt by hand. If not, the drive belt may have come off or the motor bearings may have seized.
• Turn the treadmill off and unplug it from the outlet. Remove the plastic motor cover located in front of the machine by taking out the Phillips screws. Check the drive belt for proper alignment.
• With the cover still off, check over the wire and cable connections, as they may have become loose or disconnected during shipping or assembly. Make sure connections are secure and no wires are crimped, damaged, disconnected or burnt.

PROBLEM: The incline does not move, won't go down or does not seem to be at the right level.

SOLUTION: Verify the following:

• Make sure you are following the recommendations and power guidelines on pages 4 and 5 of this

UNDERNEATH THE MOTOR COVER DRIVE BELT DRIVE MOTOR OPTICAL SENSOR INCLINE MOTOR MOTOR CONTROL BOARD CONSOLE CABLE FRONT ROLLER RUNNING BELT

TREADMILL GUIDE. The unit should be on a dedicated 15-amp circuit and not on a GFCI-equipped outlet. Do not plug the machine into a power strip/surge protector or extension cord.

• Make sure the console shows a change on the display when the elevation buttons are pressed.
• Turn the treadmill off and unplug it from the outlet. Verify the console cable connections at the top of the mast are connected securely. Make sure all of the multicolored wires are fully inserted into the cable harness.
• Remove the plastic motor cover located in front of the machine by taking out the Phillips screws. Check over the wire and cable connections, as they may have become loose or disconnected during shipping or assembly. Make sure connections are secure and no wires are crimped, damaged, disconnected or burnt.

PROBLEM: No audio comes out of the speakers, but the headphones work.

SOLUTION: Verify the following:

• Turn the treadmill off and unplug it from the outlet. Remove the plastic motor cover located in front of the machine by taking out the Phillips screws.
• Check the wire and cable connections to the speaker board, near the motor control board.

PROBLEM: The treadmill circuit breaker trips during a workout.

SOLUTION: Verify the following:

• Make sure the treadmill is plugged into a dedicated 15-amp circuit.
• Verify that you do not have the machine on an extension cord or surge protector.

- Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI-equipped outlet on it.

PROBLEM: The running belt does not stay centered during a workout.

SOLUTION: Verify the following:

• Make sure the treadmill is on a level surface.
• Verify that the belt is properly tightened and centered (Refer to the TENSIONING and CENTERING THE RUNNING BELT sections for detailed directions).

PROBLEM: Operating speed appears inaccurate.

SOLUTION:

• Turn the treadmill off and unplug it from the wall.
• Remove the screws from the motor cover screws using a Phillips screwdriver.
• Verify that the optical sensor is plugged into the motor control board.
• Inspect the speed sensor cable/connection for any visible damage.

BASIC TROUBLESHOOTING

PROBLEM: At higher incline levels, a message reading "Speed Range Error – Ending Workout" appears.

SOLUTION:

• This is a safety feature that automatically cuts power to the drive motor when the speed is out of range due to the combination of the load on the belt and high degree of incline
• To prevent an automatic end to your workout, reduce the incline level percentage.

TROUBLESHOOTING HEART RATE (GRIP-PULSE ONLY)

Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home security systems or appliances containing large motors. These items may cause erratic heart rate readouts.

You may experience an erratic readout under the following conditions:

• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palm is especially thick.

NEED ASSISTANCE?

If this troubleshooting section does not remedy the problem, discontinue use and turn the power off.

Please contact Customer Tech Support.

The following information may be asked of you when you call. Please have these items readily available:

• Model Name
• Serial Number
  • Proof of Purchase

Some common troubleshooting questions that may be asked are:

• How long has this problem been occurring?
- Does this problem occur with every use? With every user?
- If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking, chirping etc.)?
- Has the machine been maintained per the MAINTENANCE schedule?

Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary to get you and your treadmill running again!

THE FOLLOWING INFORMATION ONLY CONCERNS CUSTOMERSIN GERMANY

1. Disposal of electrical and electronic equipment

The symbol of the “crossed-out dustbin” means that you are required by law to dispose of this equipment separately from unsorted municipal waste. Disposal via household waste, such as the residual waste garbage can or the yellow garbage can, is prohibited. Avoid misdirected waste by disposing of it correctly at special collection and return points.

2. Removal of batteries and lamps

If the products contain batteries and accumulators or lamps that can be removed from the old device without destroying it, these must be removed before disposal and disposed of separately as batteries or lamps. The following batteries or accumulators are contained in this electrical device: Lithium-ion accumulator.

3. Possibilities of the return of old devices

Owners of old appliances can return them free of charge within the framework of the possibilities for the return or collection of old appliances set up and available by public waste management authorities, so that the proper disposal of the old appliances is ensured. In addition, the return is also possible with distributors under certain conditions. The following link provides an online directory of collection and take-back points: https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen

For distributors: The return has to be free of charge with the purchase of a similar new device (1:1 return). Independently of this, there is the possibility to return the old equipment to the distributor free of charge. The prerequisite for this is that the external dimensions do not exceed 25 centimeters and the return is limited to three old devices per type of device (0:1 take-back).

Retail: Distributors with a sales area for electrical and electronic equipment of at least 400 square meters are obligated to take back WEEE. Also obliged to take back are food retailers who have a total sales area of at least 800 square meters and who also offer and make available on the market electrical and electronic equipment several times a calendar year or on a permanent basis.

Distance selling market: distributors who sell their products using distance communication means (e.g. online store) are obliged to take back WEEE if the storage and shipping areas for electrical and electronic equipment are at least 400 square meters.

4. Data protection

We would like to point out to all end users of WEEE that you are responsible for deleting personal data on the WEEE to be disposed of.

5. WEEE registration number

Under the registration number DE-49229072 we are registered with the stiftung elektro-altgeräte register, Nordostpark 72, 90411 Nuremberg, Germany, as a producer of electrical and/or electronic equipment.

Manufacturer/EU-importer: Johnson Health Tech. GmbH | Europaallee 51, 50226 Frechen, Germany

DEUTSCH

Technical line drawing of a mechanical device with a circled feature, no visible text or symbols

WARNUNG

Exploded view diagram of a smart air conditioner unit with numbered parts for identification

5 mm L-Schlüssel 6 mm L-Schlüssel 6 mm T-Griff-Schlüssel Schraubendreher

AUSPACKEN

Technical diagram of a treadmill with labeled parts including frame 4, legs 7 and 8, and wheels 9 and 10

SCHRITT 2

Technical diagram of a treadmill with labeled parts and component annotations

SCHRITT 3

Technical diagram of a device's internal components with labeled parts including a control panel, buttons, and adjustment knobs.

SCHRITT 5

1 C D E 2 G

SCHRITT 6

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or movement.

Diagram of a mechanical device with an inset showing a foot stepping on a rail (no text or symbols present)

Diagram of a mechanical component with circular arrows indicating rotation or cycle (no text or symbols)

Diagram of a rotating mechanical component with curved arrows indicating rotation direction (no text or symbols)

DER EINSTELLUNG

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E S T

76 DEUTSCH

KONSOLENBEDIENUNG

APPLE WATCH MIT DEM LAUFBAND VERBINDEN

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols)

Line drawing of a hand using a hammer to press or install a mechanical component (no text or symbols)

Line drawing of a hand using a hammer to measure a cylindrical object (no text or symbols)

BAND ZU WEIT RECHTS

Line drawing of a hand using a hammer to adjust a mechanical component (no text or symbols)

BAND ZU WEIT LINKS

START STOP

ZENTRIEREN DES LAUFBANDS

Manufacturer/EU-importer: Johnson Health Tech. GmbH | Europaallee 51, 50226 Frechen, Germany

MODELNAAM: BOWFLEX T6

Technical line drawing of a mechanical device with a circled feature, no visible text or symbols

WAARSCHUWING

Exploded view diagram of a smart air conditioner unit with numbered parts for identification

SET BEVESTIGINGSMIDDELEN:

Simple line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Simple line drawing of a cylindrical object with a labeled top face (B), no text or symbols present.

F

C 23 Veerring, ∅8x∅13

D 23 Platte Ring; ∅8,2x∅15

E 13 Bout; M8x1,25Px15L

F2 Bout; M8x1,25Px60L

G1 Schroef; ∅4×12L

H 3 Bout; M5x15L

GEREEDSCHAPSSET:

Technical line drawings of three mechanical tools: a bent pipe, a flat screwdriver, and a handle (no text or symbols)

5 mm L-sleutel

6 mm L-sleutel

6 mm T-sleutel

Schroevendraaier

UITPAKKEN

Basisframe Verpakkingsband Rode transportkabel (linker- en rechterzijde) Dekframe

RED TRANSPORT RODE TRANSPORTKABEL RODE TRANSPORTKABEL

Technical diagram of a treadmill assembly with numbered components for identification

STAP 2

Technical diagram of a treadmill with labeled parts and assembly instructions in Chinese

STAP 3

Technical diagram of a device with labeled parts including a control panel, buttons, and adjustment knobs

STAP 5

1 C D E 2 G

STAP 6

Stap 7.1 8

STAP 7

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or motion.

INKLAPBARE LOOPBANDEN

Diagram of a table tennis apparatus with foot positioning and foot movement arrows (no text or symbols)

Diagram of a mechanical component with circular arrows indicating rotation or cycle (no text or symbols)

HOOGTE VERSTELLEN

Diagram of a mechanical component with rotating arrows indicating rotation (no text or symbols)

VERGRENDELING AFSTELLING

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E S T

NEDERLANDS 127

CONSOLEBEDIENING

VERBIND JE APPLE WATCH MET JE LOOPBAND

VOER EEN FITNESS+ TRAINING UIT MET APPLE WATCH EN JE LOOPBAND

VERBIND JE SAMSUNG GALAXY WATCH MET JE LOOPBAND

VERBIND JE APPARAAT MET DE JRNY-APP VOOR DYNAMISCHERE WORKOUTS

QR code image containing encoded data, no visible human-readable text

LOOPBAND LOOPDEK

PROCEDURE:

Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols)

SPANT DE LINKERKANT VAN DE ROLLER AAN

Line drawing of a hand using a hammer to press or install a mechanical component (no text or symbols)

SPANT DE RECHTERKANT VAN DE ROLLER AAN

DE LOOPBAND AANSPANNEN

Line drawing of a hand using a hammer to adjust or install a mechanical component (no text or symbols)

BAND LIGT TE VER NAAR RECHTS

Line drawing of a hand using a hammer to adjust a mechanical component (no text or symbols)

BAND LIGT TE VER NAAR LINKS

START STOP

DE LOOPBAND CENTREREN

Technical line drawing of a mechanical device with a highlighted circular component (no text or symbols)

AVERTISSEMENT

Fabricant: Johnson Health Industry (Vietnam) Co., Ltd. | Adresse du fabricant: Lot CN-24, Thuan Thanh II Industrial Park, Mao Dien Ward, Bac Ninh Province, Vietnam

Article Qté Description

Exploded view diagram of a treadmill with numbered parts for identification

Simple line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Simple line drawing of a cylindrical object with a labeled top (B), no text or symbols present.

F

Article Qté Description

A 2 Boulon de guidage

B 8 Boulon; M8x1,25Px80L

Technical diagram of a treadmill assembly with numbered components and labeled parts

ÉTAPE 2

Technical diagram of a treadmill with labeled parts and assembly instructions in Chinese

ÉTAPE 3

Technical diagram of a device with labeled parts including a control panel, buttons, and adjustment knobs

ÉTAPE 5

1 C D E 2 G

ÉTAPE 6

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or movement paths.

Diagram of a mechanical device with an inset showing a foot stepping on a rail (no text or symbols present)

UTILISATION DE LA CLÉ DE SÛRETÉ

Mechanical component diagram showing a rotating shaft with two curved arrows indicating rotation (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating rotation (no text or symbols)

RÉGLAGE DU VERROU

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E S T

FRANÇAIS 177

FONCTIONNEMENT DE LA CONSOLE

Intervals (15%Incline)
Segment = workout time/16

Segment Level	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
	INCLINE
1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
2	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	1	1	1	1	1	1	1	1.5	1.5	1.5	1.5	1.5
3	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
4	1.5	2	2	2.5	3	3	3.5	3.5	4	4.5	5	5.5	5.5	6	6	6.5	7	7	8	8.5
5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
6	2.5	2.5	3	3.5	4	4.5	4.5	5	5.5	6	7	7.5	8	8	8.5	9.5	9.5	10	11	11.5
7	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
8	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
9	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
10	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
11	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
12	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
13	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
14	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
15	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
16	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15

20+ under target	Increase every 10 seconds	0.50%
6-19 under target	Increase every 35 seconds	0.50%
+/- 5 of target	No change	0
6-10 over target	Decrease every 35 seconds	-0.50%
11-19 over target	Decrease every 10 seconds	-0.50%
20-24 over target	Decrease every 10 seconds	Half of current
25+ over target	Console reset	N/A reset

POUR RÉINITIALISER LA CONSOLE

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand using a tool to adjust a curved mechanical component (no text or symbols)

RESSERRAGE DU CÔTÉ GAUCHE DU ROULEAU

Line drawing of a hand using a hammer to press or install a mechanical component (no text or symbols)

RESSERRAGE DU CÔTÉ DROIT DU ROULEAU

RÉGLAGE DE LA TENSION DE LA BANDE DE COURSE

Line drawing of a hand using a hammer to adjust a cylindrical component (no text or symbols)

LA BANDE DE COURSE EST TROP DÉCALÉE À DROITE

Line drawing of a hand using a hammer to adjust a mechanical part (no text or symbols)

LA BANDE DE COURSE EST TROP DÉCALÉE À GAUCHE

START STOP

CENTRAGE DE LA BANDE DE COURSE

QUESTIONS FRÉQUENTES RELATIVES AU PRODUIT

LES SONS QU'ÉMET MON TAPIS DE COURSE SONT-ILS NORMAUX ?

Technical line drawing of a mechanical device with a circled feature, no visible text or symbols

76,4" × 35,4" × 70,7"

Exploded view diagram of a treadmill with numbered parts for identification

KIT DE HARDWARE:

Technical diagram of a treadmill assembly with numbered components and labeled parts

PASO 2

Technical diagram of a treadmill with labeled parts and assembly instructions in Chinese

PASO 3

Technical diagram of a device with labeled parts including a control panel, buttons, and adjustment knobs

PASO 5

1 C D E 2 G

PASO 6

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or movement paths.

Diagram of a bicycle leg mechanism with an inset showing foot positioning and movement (no text or symbols)

Mechanical component diagram showing a rotating shaft with two curved arrows indicating rotational flow (no text or symbols)

AJUSTAR ALTURA BLOQUEAR

Diagram of a mechanical component with rotating arrows indicating rotation (no text or symbols)

MECANISMO DE AJUSTE

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E S T

ESPAÑOL 227

Intervals (15%Incline)
Segment = workout time/16

Segment Level	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
	INCLINE
1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
2	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	1	1	1	1	1	1	1	1.5	1.5	1.5	1.5	1.5
3	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
4	1.5	2	2	2.5	3	3	3.5	3.5	4	4.5	5	5.5	5.5	6	6	6.5	7	7	8	8.5
5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
6	2.5	2.5	3	3.5	4	4.5	4.5	5	5.5	6	7	7.5	8	8	8.5	9.5	9.5	10	11	11.5
7	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
8	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
9	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
10	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
11	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
12	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
13	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
14	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15
15	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
16	3	3.5	4	4.5	5	5.5	6	6.5	7	8	9	9.5	10	10.5	11	12	12.5	13	14	15

20+ under target	Increase every 10 seconds	0.50%
6-19 under target	Increase every 35 seconds	0.50%
+/- 5 of target	No change	0
6-10 over target	Decrease every 35 seconds	-0.50%
11-19 over target	Decrease every 10 seconds	-0.50%
20-24 over target	Decrease every 10 seconds	Half of current
25+ over target	Console reset	N/A reset

CONECTA EL APPLE WATCH A TU CAMINADORA

QR code image containing encoded data, no visible human-readable text

CÓMO LUBRICAR LA BANDA

CADA 3 MESES O 480 KM

Line drawing of a hand using a tool to adjust a curved mechanical component (no text or symbols)

TENSADO DE LA PARTE IZQUIERDA DEL RODILLO

Line drawing of a hand using a hammer to press or adjust a mechanical component (no text or symbols)

TENSADO DE LA PARTE DERECHA DEL RODILLO

TENSADO DE LA CINTA

Line drawing of a hand using a hammer to adjust or install a cylindrical component (no text or symbols)

LA BANDA ESTÁ DEMASIADO HACIA LA DERECHA

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

START STOP

CENTRADO DE LA CINTA

Technical line drawing of a mechanical device with a highlighted circular feature (no text or symbols)

警告

Exploded view diagram of a smart air conditioner unit with numbered parts for identification

硬體配件包：

Simple line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Simple line drawing of a cylindrical object with a labeled top face (B), no text or symbols present.

F

物品 數量 描述

A 2	引導螺栓
B 8	螺栓;M8x1.25Px80L
C 23	彈簧墊圈;∅8x∅13
D 23	平墊圈;∅8.2x∅15
E 13	螺栓;M8x1.25Px15L
F 2	螺栓;M8x1.25Px60L
G 1	螺絲;∅4x12L
H 3	螺栓;M5x15L

Technical line drawings of three mechanical tools: a bent pipe, a handle with a circular knob, and a screwdriver (no text or symbols)

Technical diagram of a treadmill assembly with numbered components for identification

步驟2

Technical diagram of a treadmill with labeled parts and component annotations

步驟 3

Technical diagram of a device with labeled parts including a control panel, buttons, and adjustment knobs

步驟 5

1 C D E 2 G

步驟 6

Diagram illustrating a person using a treadmill with two directional arrows labeled 1 and 2 indicating movement or movement.

Diagram of a treadmill with a foot highlighted in an inset showing the foot and seat (no text or symbols present)

使用安全開關

Diagram of a mechanical component with circular arrows indicating rotation or cycle (no text or symbols)

調整高度 栓鎖調整

Diagram of a mechanical component with two curved arrows indicating rotational motion (no text or symbols)

Q I A Tú Q L B K 15 12 10 8 7 6 5 4 3 2 0 12 10 9 8 7 6 5 4 3 2 1 BOWFlex 8888 8888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 888 J D N B O B C M R G P H E ST

276 繁體中文

控制台操作方法

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols)

調緊滾軸左側

調整跑帶

Line drawing of a hand using a hammer to press or install a mechanical component (no text or symbols)

調緊滾軸右側

Line drawing of a hand using a hammer to adjust or install a cylindrical component (no text or symbols)

跑带太偏右

Line drawing of a hand using a hammer to adjust a mechanical component (no text or symbols)

跑带太偏左

START STOP

跑带居中

RF Module Model RF Module Type Frequency Transmitter H-field requirements

MT7663BSN Wifi 2.4G + BT5.1 WiFi 2.4G/5G, BT & BLE 2.4G 13dBm

DE/UK REPRESENTATIVE CONTACT INFO

EU Web Contact UK Web Contact

Simplified Declaration of Conformity

Johnson Health Tech (including Johnson Health Tech Co. Ltd., Johnson Industries Shanghai, and Johnson Industries Viet Nam), having an Authorized Representative located in the below locations, declares under our sole responsibility that the product accompanied by this Simplified Declaration meets the essential requirements of the EU and UK directives, including the requirements of the RED Directive (2014/53/EU) and the Radio Equipment Regulations 2017 (UK).

The Authorised Representative for the EU is: Johnson Health Tech. GmbH Europaallee 51, D-50226 Frechen, Germany Telephone: [phone]

The Authorised Representative for the UK is: Johnson Health Tech. Digital UK Limited Unit 2, 40.40 Link, Mill End Road, High Wycombe, HP12 4AX, United Kingdom

T6-21 Rev. 1.1 B | 1000534497 © 2025 BowFlex
