USER MANUAL ED-7015 EDEN

Line drawing of a portable air conditioner unit with ventilation slots and wheels (no text or symbols)

EN | Instruction manual

Technical diagram of a portable air conditioner unit with numbered components and exploded view

SAFETY

• Please read this user's manual carefully to ensure proper use, maintenance and installation.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
  • The appliance is for indoor use only.
• Do not use the unit on a socket that is damaged or that has not been installed correctly.
• Do not use the unit:
• near a source of fire.
  – in an area where oil is likely to splash.
  – in an area exposed to direct sunlight.
  – in an area where water is likely to splash.
  – near a bath, a shower or a swimming pool.
• Never insert your fingers or objects into the air outlet. Take special care to warn children of these dangers.
• Keep the unit upright during transport and storage.
• Before cleaning the unit, always turn off or disconnect the power supply.

• Always turn off and disconnect the power supply before moving the unit.
- WARNING: To avoid the risk of fire, do not cover the unit.
- All the unit sockets must comply with the local electric safety requirements. If necessary please check.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the supply cord is damaged, it must be replaced by the manufacturer, service agent or qualified person(s) in order to avoid a hazard.
- This appliance can be used by children aged 8 years and above, persons with reduced physical, sensory, and mental capabilities or persons with a lack of experience and knowledge if they have been given correct supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

Instruction manual

• This appliance is only to be used for household purposes and only for the purpose it is made for.
• Notes:

– In the case of any damage, please disconnect the power supply and contact the dealer or a designated repair shop.
– In any case, the power cord shall be firmly grounded.
- To avoid the possibility of danger, if the power cord is damaged, please disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

Warning

• Please use the recommended defrosting and cleaning process from the manufacturer only. Do not accelerate the defrosting or cleaning process in any other way.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.

• Be aware that refrigerants may not contain an odor.

• The appliance should be installed, operated and stored in a room with a floor area larger than X m2. (X=4 for 5000Btu/h, 7000Btu/h, 8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/h, 10500Btu/h)

• Only contact an authorized service technician for repair or maintenance of this unit.
• Do not pull, deform or modify the power supply cord or immerse in water. Pulling or misuse of the power supply cord could result in damage to the unit and cause an electrical shock.
• Compliance with national gas regulations should be observed.
• Keep ventilation openings clear of obstructions.

• Any person who is involved with working on or opening a refrigerant circuit should hold a current valid certificate from an industry accredited assessment authority which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of a person(s) competent in the use of flammable refrigerants.

• Do not stop the unit by pulling out the power plug whilst in operation as this may cause an electric shock or fire due to heat generation unless strange sounds are heard or if strange smells or smoke appear from the unit.

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.
- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

• The appliance should not be stored in a room with continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not puncture and do not burn.
• Appliance shall be installed, operated and stored in a room with a floor area larger than X m2. (X=4 for 5000Btu/h, 7000Btu/h, 8000Btu/h; X=7.7 for 9000Btu/h. 10000Btu/h, 10500Btu/h)
• This appliance contains Y g (see rating label back of unit) of R290 refrigerant gas.
• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
• If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks that could result in a fire risk or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical failure.

Instruction manual

- Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry. - Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Batteries

• Do not expose the battery to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
• Keep batteries away from children. Batteries are not a toy!
• Do not open the batteries by force.

• Avoid contact with metallic objects.(Rings, nails, screws et cetera) there is a danger of short-circuiting!

• As a result of a short-circuit batteries may heat up consider-ably or even catch fire. this may result in burns.

• For your safety the battery poles should be covered with adhesive strips during transport.
• Do not touch a ruptured and/or leaking battery. If the liquid from the battery gets into your eyes, rinse your eyes as soon as possible with clean water, without rubbing your eyes. Immediately go to the hospital. If it is not treated properly, it can cause eye problems.

Refrigerant

(CE) N 842/2006: This unit contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your appliance does not have been refilled with refrigerant if used properly and has an undamaged coolant circuit. GWP: R290: 3

This product complies with conformity requirements of the applicable European regulations or directives.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

PARTS DESCRIPTION

1. Air inlet 8. Hose connector (window end)

2. Air filter 9. Hot-air exhaust hose

3. Control panel 10. Hose connector (Air conditioner end)

4. Power cord 11. Windows slider kit + fixing plugs

5. Air outlet 12. Remote control

6. Castor 13. Batteries

7. Drainage hole

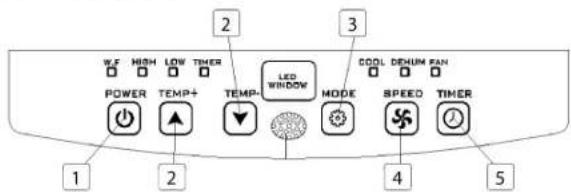

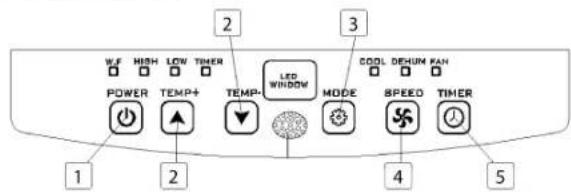

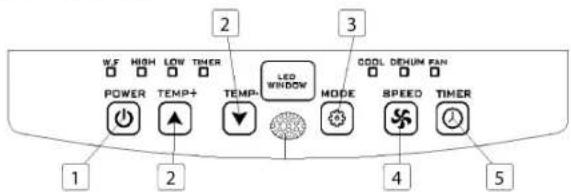

FUNCTION OF CONTROL PANEL

1. Power (on/off) button
2. Temperature buttons
3. Mode button
4. Fan speed adjustment button

Instruction manual

1. Timer (on/off) button

W.F HIGH LOW TIMER POWER TEMP+ TEMPA LED WINDOW MODE SPEED TIMER 1 2 3 4 5

REMOTE CONTROL

1. Temperature up button
2. Mode button
3. Fan speed adjustment button
4. Timer (on/off) button
5. Temperature down button
6. Power (on/off) button

1 2 3 SPEED TEMP+ MODE 4 TEMP- TIMER 6 POWER 5

BEFORE THE FIRST USE

Before starting operations in this section:

• Find a place where there is power supply nearby.
• Install the exhaust hose and adjust the window position well.
- The supplied small white clips must be mounted on the window kit.
- Insert the power cord into a grounded AC220-240V\~/50Hz socket.
- Press the power button to turn on the air-conditioner.

• Set the temperature range: 16^ - 31^ .
• Check whether the exhaust hose has been mounted properly.
• When using functions on cooling and dehumidifying, allow at least 3 minutes between powering off and powering on.

USE

Cooling operation

- Press the "Mode" button till the "Cool" icon appears.

- Press the or button to select a desired room temperature.

- Allow around 5 minutes for the cooling to start.

- Press the "fan speed" button to adjust airflow.

Dehumidifying operation

• Press the "Mode" button until the "dehumidify indicator lamp" blinks.
• The temperature will automatically be selected.
• The fan speed will automatically be selected.

Timer operation

Timer ON setting

• When the air-conditioner is OFF, press the "Timer" button and select a desired ON time and adjust using the temperature buttons.
• The ON time can be adjusted to anytime in 0-24 hours.

Timer OFF setting

• When the air-conditioner ON, press "Timer" button and select a desired OFF time through the temperature buttons.
• The OFF time can be adjusted to anytime in 0-24 hours.

Drainage

• After a lengthy operation and before storage, you will need to drain the water that has been collected. Please prepare a suitable location or tray to collect the water and remove the rubber stop from the drainage hole at the bottom of the unit. The water will then begin to drain. After this has stopped, you can insert the drain stop.

Internal Tank Water Full Alarm Function

- The inner water tank in the air-conditioner has one water level safety switch that controls the water level. When the water level reaches an anticipated height, the water full indicator lamp lights up. Follow above steps to drain the water.

INSTALLATION

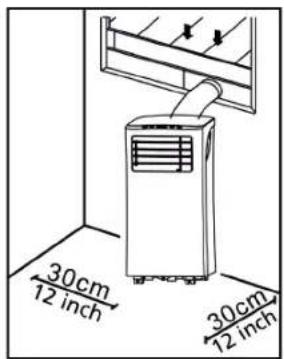

- The air-conditioner should be installed on a flat and stable surface. Do not block the air outlet and allow at least 30cm around the unit.

Instruction manual

30cm 12 inch 30cm 12 inch

- Socket wiring should be in accordance with the local electric safety requirements.

Exhaust Hose Installation

• Twist both ends of the hot-air exhaust hose(9) into the hose connector window end(8) and the hose connector air conditioner end(10).
• Insert the hose connector air conditioned end(10) into the openings at the back of the air conditioner.
• Fix the hose connector window end(8) to the nearest windowsill.

Technical diagram showing a cylindrical component with labeled parts and directional arrows, including section 10 and section 8.

Window Slider Kit Installation

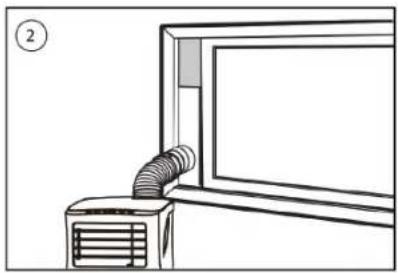

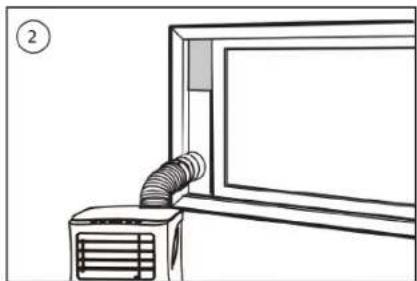

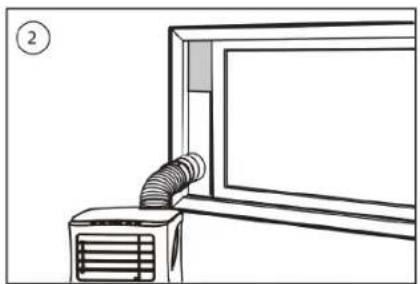

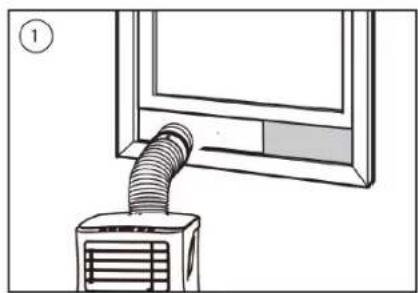

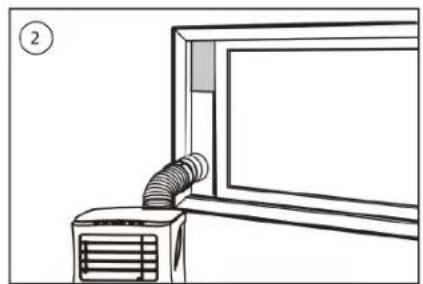

• Adjust the width (picture 1) or height (picture 2) of the windows slider(11) to fit the window opening and fixate the position of the windows slider(11) with the fixing plugs.
• Slide the window up to the slider.

Line drawing of a wall-mounted air conditioner unit with a coiled tube, no text or symbols present

Line drawing of a window with a coiled pipe and ventilation unit (no text or symbols)

CLEANING MAINTENANCE

• Before cleaning, disconnect the unit from any electric supply outlet.
• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
• Do not use gasoline or other chemicals to clean the unit.
• Do not wash the unit directly.

Air filter

• The air filter should be cleaned once every two weeks.
- Open the air inlet grille and take off air filter.
- Clean the air filter with neutral detergent in lukewarm 40°C water and allow to dry (not in direct sunlight).
• Re-install the air filter into the inlet grille.

TROUBLESHOOTING

Troubles	Possible Causes Suggested	Remedies
The unit does not start when pressing power button.	Water full indicator lamp blinks and water tank is full.Room temperature is higher than the setting temperature.(Electric heating mode)Room temperature is lower that the setting temperature.(Cooling mode)	Drain the water out of the water tank.Adjust the temperature.

Instruction manual

The unit doesn't cool enough.	The doors or windows are not closed.There are heat sources inside the room.Hot air exhaust hose is not connected or blocked.Temperature setting is too high.Air inlet in blocked.	Make sure all the windows and doors are closed.Remove the heat sources if possible.Connect or clean the hot air exhaust hose.Reset the temperature.Clean the air inlet.
Auto Power-Off in heating mode.	Heating protection, when the temperature at the air outlet exceeds 70 degrees, the unit will power off automatically.	Allow room temperature to cool before re-starting the unit.
Noisy. • The ground is not level or not flat enough.The sound comes from the flowing of the refrigerant inside the air conditioner.		Place unit on a flat, level ground if possible.
E0 Code. • Room temperature sensor failed.		Replace room temperature sensor.
E2 Code. • Water tank full • Please empty the water tank.

TABLE ED-7015

Information requirements for single and double duct air conditioners			P
Information to identify the model(s) to which the information relates to:
Description Symbol Value Unit
Rated capacity for cooling Prated 3.0 kW
Rated capacity for heating Prated N/A kW
Rated power input for cooling Peer 1.149 kW
Rated power input for heating Pcop	N/A kW
Standby mode power consumption	EERd	0.5	W
OFF mode power consumption	Poff	N/A	W
Crankcase heater mode power consumption	Pck	N/A	W
Information to identify the model(s) to which the information relates to:
Description Symbol Value Unit
Rated Energy efficiency ratio	EERrated	2.60
Rated Coefficient of performance	COPrated	N/A
Electricity consumption of single/ double duct appliances (indicate for cooling and heating separately)	Qsd SD: 1.149 (Cooling)		kWh/h
Electricity consumption of double ducts appliance	Qdd	N/A kWh/h
Sound power level Lwa 65 dB(A			)

THE PRODUCT OR EQUIPMENT CONTAINS FLUORINATED GREENHOUSE GAS.

Art.nr. ED-7015
Coolant: R290
Quantity in kg: 0,16
Global Warming Potential: 3

The European directive for batteries (2006/66/EC) states that it is not permitted to throw batteries away with the household waste. They may contain substances which are harmful to the environment. Empty batteries can be handed over to a local, public collection point or a local recycling centre. To avoid overheating as a result of a short circuit, lithium batteries must be removed from the product and the poles must be protected using insulation tape or some other means against short-circuiting.

You can find all available information and spare parts at www.tristar.eu!

ENVIRONMENT

This appliance should not be put into the domestic

garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

VEILIGHEID

Technical diagram of a refrigerant air conditioner unit with labeled components and parts

1. Timerknop (aan/uit)


W.F HIGH LOW TIMER POWER TEMP+ TEMP- LED WINDOW MODE SPEED TIMER 1 2 3 COOL DECHUN PAN 4 5

NL

AFSTANDSBEDIENING

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a pipe with labeled components and directional arrows, including parts 8 and 10.

Line drawing of a vacuum duct being inserted into a window (no text or symbols)

Line drawing of a window with a coiled pipe and ventilation unit (no text or symbols)

SCHOONMAAKONDERHOUD

Technical diagram of a refrigerant air conditioner unit with labeled components and exploded views

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a cylindrical pipe with internal structure and labeled parts, including numbered annotations 10 and 8.

Line drawing of a wall-mounted air conditioner unit with a coiled tube, no text or symbols present

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

NETTOYAGE ET ENTRETIEN

Two symbolic icons: a warning triangle with flame symbol and an open book with open pages (no text or labels)

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Two symbolic icons: a warning triangle with flame symbol and an open book, both without any text or labels.

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a cylindrical device with labeled parts and directional arrows, including numbered annotations 10 and 8.

Line drawing of a ventilation system with a coiled duct and fan (no text or symbols)

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Two symbolic icons: a triangular warning triangle with a flame symbol and an open book with blank pages (no text or labels)

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a cylindrical device with labeled parts and directional arrows, including numbered annotations 10 and 8.

Line drawing of a ventilation system with a coiled duct and fan (no text or symbols)

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

Two symbolic icons: a triangular warning triangle with a flame symbol and an open book with a blank cross (no text or labels)

Technical diagram of an air conditioning unit with numbered components and labeled parts

1. Tasto timer (on/off)

W.F HIGH LOW TIMER POWER TEMP+ TEMP- LED WINDOW MODE COOL DORM PAN SPEED TIMER 1 2 3 4 5

TELECOMANDO

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram illustrating the assembly of a flexible hose with numbered components and directional arrows indicating motion.

Line drawing of a window with a coiled hose and a base, no text or symbols present

Line drawing of a window with a coiled pipe and ventilation unit (no text or symbols)

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Technical diagram showing a cylindrical component with labeled parts and directional arrows, including numbered annotations 10 and 8.

Line drawing of a ventilation system with a coiled duct and fan (no text or symbols)

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

RENGÖRINGSUNDERHÅLL

Technical diagram of a device with numbered components and labeled parts

8 9 10 11 12 13

FUNKCJE PANELU STEROWANIA

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a cylindrical device with labeled parts and directional arrows, including numbered annotations 10 and 8.

Line drawing of a vacuum tube being inserted into a window (no text or symbols)

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

CZYSZCZENIE I KONSERWACJA

KLIMATYZATOR STOŁOWY

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a pipe with labeled components and directional arrows, including parts 8 and 10.

Line drawing of a heating unit with a coiled hose and fan, no text or symbols present

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

Technical diagram of a refrigerant unit with labeled components and internal layout

Line drawing of a window with a coiled air duct mounted on a fan (no text or symbols)

30cm 12 inch 30cm 12 inch

Diagram showing a cylindrical device with labeled parts and directional arrows, including numbered annotations 10 and 8.

Line drawing of a window with a coiled air tube inserted into a fan (no text or symbols)

Line drawing of a window with a coiled hose and ventilation unit (no text or symbols)

ČISTENIE A ÚDRŽBA

• Pred čistením odpojte jednotku od akéhokol'vek elektrického napájania.
• Najprv vyčistite povrch neutrálnym saponátom a vlhkou utierkou a potom utrite suchou utierkou.
• Na čistenie jednotky nepoužívajte gazolín alebo iné chemikálie.
• Jednotku priamo neumývajte.

Vzduchový filter
