USER MANUAL FR-9039 TRISTAR

Black TRISTAR air fryer with digital display and decorative fan base (no visible text or symbols on device body)

Airfryer with Viewing Window FR-9039

EN User manual 4
NL Gebruiksaanwijzing 11
FR Manuel de l'utilisateur 18
DE Benutzerhandbuch 26
PL Instrukcja obsługi 32
cs Uživatelská příručka 41

Black TRISTAR air fryer with digital display and control buttons (no text or symbols on device body)

A 1 200 15 7 3 6 5 4 TRISTAR

B 17 19 21 23 25 2 *** TRISTAR 200 15 min 16 15 9 81411101312

Airfryer with viewing window

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance.

Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
	Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
	Signal word used to address practices not related to physical injury.
	Indicates additional information or emphasis on an instruction.
	This product complies with conformity requirements of the applicable European regulations or directives.
	This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	Applicable in France: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations.
	Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice.

APPLIANCE DESCRIPTION

About this appliance

The FR-9039 Tristar is an air fryer for grilling, baking, and roasting food using hot air without the use of oil.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Airfryer with viewing window
Article number FR-9039
Power supply 220 – 240 V~ 50-60Hz
Power consumption in use 1700 W

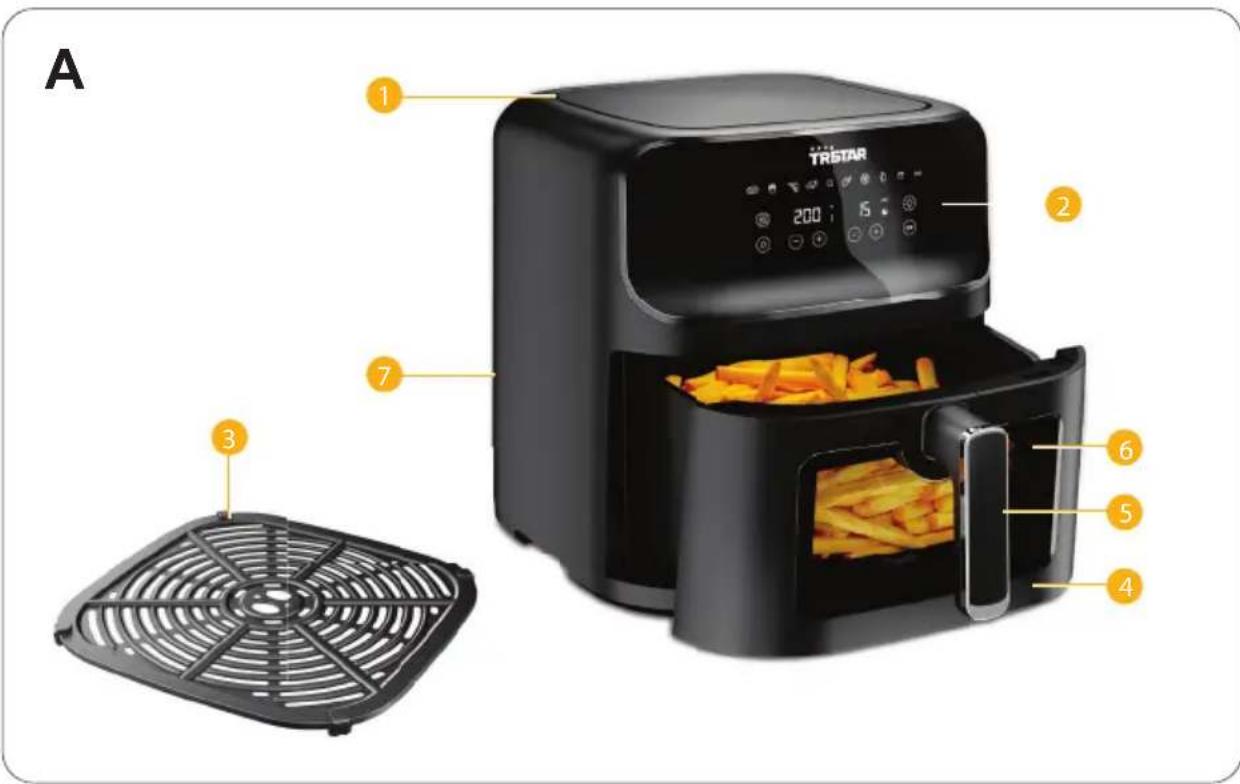

Main parts (see image A)

1 Air inlet

5 Basket handle

2 Display

6 Viewing window

3 Airfryer rack

7 Air outlet

4 Basket

Control panel (see image B)

8 On/off button
9 Preset button
10 Temperature +
11 Temperature -
12 Time +
13 Time -
14 Start/pause button

15 Temperature/time display
16 Display light on/off
17 Steak program
18 Fries program
19 Shellfish program
20 Fish program
21 Chicken program

22 Drumstick program
23 Pizza program
24 Vegetables program
25 Baking program
26 Manual program

SAFETY

Safety symbols

Symbol Description

Indication for a hot surface. Contact may cause burns. Do not touch.

Safety precautions

WARNING

Safety hazard due to unintended use:

• Only use the appliance as described in this user manual.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.
• Never make any adjustments to the appliance. Adjustments may affect safety, warranty and proper operation.

Electric shock hazard due to short-circuiting:

- Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.

• Always avoid spillage on the power cable.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.
- Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.

• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.
• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.
• Never insert any objects into the air vent openings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.

Fire hazard due to overheating:

• Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.
• Never use the appliance with a programmer, timer, separate remote control system or any other device that switches the appliance on automatically.
• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.
• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.
• Never place the appliance near a heat source.

Fire hazard due to short-circuiting:

• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.
• Never use the appliance with an extension cable.
• Never connect any other appliance with high power consumption to the same group.

Fire hazard due to burnt food:

- Always clean all parts that come into contact with food after use.

- Never exceed the maximum level indicated on the inside of the basket.

Burning hazard due to hot liquids:

• Never use the appliance on recreational vehicles or boats. Hot liquid may spill out of the appliance.
• Always ensure the basket is fully closed. Hot liquid may splatter out of the appliance.
• Never move the appliance during use. Hot liquid may spill out of the appliance.

Choking hazard due to plastic packaging:

- Never let children play with the packaging material. Always keep the packaging material out of the reach of children.

CAUTION

Burning hazard due to heat:

- Children should be supervised to ensure that they do not play with the appliance.

- Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance.

Tripping hazard due to loose cables:

- Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.

NOTICE

Risk of damaging the appliance:

• The appliance must be placed on a stable, level surface.
• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.
• Only use the appliance with the provided accessories or accessories recommended by Tristar.
• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.
• Never use metal utensils to remove food from the pan. Metal utensils may damage the non-stick coating.

BEFORE FIRST USE

1. Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
2. Wipe the inside and outside of the appliance with a moist cloth.
3. Place the Airfryer rack inside the Basket.
4. Place the removable grid in the basket properly.
5. Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-resistant surfaces.
6. When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.

Note: Do not use the device without Airfryer rack.

USE

Using the appliance

• Put the main plug in an earthed wall socket.
  • PullthebasketA 4 outoftheairfryer
• Put the ingredients in the basket.
• SlidethebasketA ④ intotheairfryer
• Presstheon/offbuttonA 8 to switch on the appliance.
• Do not touch the basket during and some time after use, as it gets very hot. Only hold the basket by the handle.
• Excess oil from the ingredients is collected on the bottom of the basket.
• Confirm the required time and temperature for cooking the ingredients, press the button on the control panel to adjust the time and temperature to the required temperature and time for cooking the ingredients.
  • After the set time has expired the device will power off.
• Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the basketA 4 out of the appliance by the handle5 A and shake it. Then slide the basket back into the air fryer.
• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the basket back into the appliance and set the timer to a few extra minutes.
  • Using the default setting
• The default setting is Temperature 200°C / Time 15 minutes.
• The temperature and remaining time will show in the display.
  • Using the manual setting
• Press the temperature + B10 or temperature -11 B icon to program to the desired cooking temperature. The temperature will increase or decrease in 5°C increments.
• The cooking temperature can be set between 80^ and 200^ .
• Press the time + 13 and time-B 13 icon to set the desired cooking time. The time will increase or decrease in 1-minute increments.
• The cooking time can be set between 1 and 60 minutes.
• When the desired time and temperature are set, press the start/pause button B ^14 to start the operation.
• Pressthedisplaylighton/offbuttonB 16 to turn the light on or off inside the appliance.
  • Preprogrammed programs
• Pressthepre-setbuttonB 9 until the icon of the desired pre-set program flashes.
• You can set a custom program. Press the manual mode button B ^26 and adjust the time and temperature. The function has a memory function. This means that it will remember the previously set time and temperature.

Tips

• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you've added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Place the baking tin in the basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.

CLEANING AND MAINTENANCE

Clean the appliance after each use.

1. Unplug the power cable from the power outlet.
2. Let the appliance cool down.
3. Remove all the accessories from the appliance.
4. Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.
5. Wash the fryer and airfryer rack with hot water, detergent and a non-abrasive sponge. You can use a degreaser to wash away any remaining dirt.
6. If dirt sticks to the rack, or the bottom of the fryer, add hot water to the fryer and some detergent. Place the grill in the fryer and let the fryer and grill soak for about 10 minutes.
7. Clean the heating element with a cleaning brush to sweep away food residue.
8. Clean the inside of the product with hot water and a non-abrasive sponge.
9. Dry all parts with a soft, dry cloth.

TROUBLESHOOTING

When the air fryer indicates an error message, first remove the plug from the socket, wait half an hour, and then plug it in again. If this does not solve the error message, please contact the after-sales service.

For spare parts and more information about the appliance, please visit www.tristar.eu

DISPOSAL

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.
