USER MANUAL SE 2110 Orbegozo

Silver hair dryer with black handle and cable, no visible text or symbols on body

SE 2110

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- Never connect the dryer to the wrong voltage. - Do not use the appliance with wet hands, in a humid environment, or on wet surfaces. Do not immerse the appliance in water or other liquids.

- Do not use this appliance near bathtubs or other containers containing water.

- Unplug the appliance from the power outlet when it is off, as its proximity to water could pose a hazard; take extra care when using it in the bathroom.

- If the appliance does not work properly, immediately unplug it from the power outlet and take it to an authorized service center.

- Keep the appliance and its power cord away from heat sources and heat-sensitive surfaces (plastic, vinyl, etc.).

- Do not hold or handle the appliance by the power cord.

- Do not wrap the power cord around the appliance, bend it, or twist it. This could impair its proper functioning and damage the hair dryer. Failure to follow the warnings and instructions above may result in a short circuit, irreparable damage to the hair dryer, and jeopardize the user's safety.

- Do not use accessories that have been modified or not approved by the manufacturer.

- Unplug the appliance from the wall outlet when not in use and allow it to cool before storing it in a safe place. To disconnect the appliance, unplug the power cord from the wall outlet.

- To clean the appliance, always unplug it from the power outlet and allow it to cool completely.

- This appliance should only be used for its intended purpose.

- For additional protection, the installation of a residual current device is recommended.

- Make sure there are no obstacles in the air outlet and grille when using the dryer.

- The dryer is protected against overheating. The dryer stops working when it overheats and restarts after a short cooling period. When the dryer stops automatically and you no longer need to use it, turn the switch to the off position and unplug it from the power outlet.

- Turn off the dryer when not in use during long breaks in the drying process and unplug it after use.

- Allow the appliance to cool before storing.

- Do not insert metal objects through the air intake grille to avoid electric shock.

- Do not place the air outlet too close to the hair.

- Do not use this appliance near water.

- Do not use this appliance near bathtubs, showers, sinks or other containers containing water.

- When using the hair dryer in a bathroom, unplug it after use, as the proximity of water poses a danger even when the hair dryer is turned off.

- For additional protection, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the bathroom electrical circuit. Consult your installer.

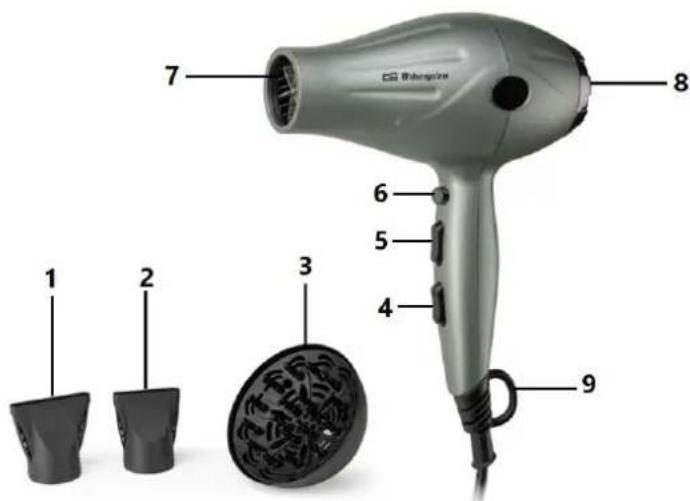

PARTS OF THE DRYER

1. Wide Hub
2. Narrow Hub
3. Diffuser
4. Temperature switch
5. Speed switch
6. Cold air button
7. Air outlet
8. Filter / air intake
9. Hanging ring

USING THE HAIR DRYER:

1. Always make sure the switch is in the OFF position before plugging in the unit.
2. Use the highest speed and temperature setting to dry your hair and the lowest setting to style it.
3. If the air dryer stops for any reason, turn it off and let it cool.

Bihangin 1 2 3 4 5 6 7 8 9

Speed switch	Temperature switch
0=Off	0=LOW: Cold temperature
1=Low: low speed	1=MEDIUM: temperate temperature
2=HIGH: high speed	2=HIGH: hot temperature

1. Air : Press the cold air operation button while the dryer is running, cool air will be released.
2. The dryer can be used with the concentrator nozzles or the diffuser. It can also be used without them. To attach the concentrator nozzles or the diffuser, you'll need to snap them onto the nozzle.
3. Use the wide concentrator for quick, all-over drying, and the narrow concentrator for precise styling, straightening, and shaping for a more polished, frizz-free finish.
4. It's recommended to use the diffuser with your hairdryer on low speed and low heat to protect your hair's natural hairline and prevent frizz. The most common technique is to "cradle" sections of hair inside the diffuser and bring it close to the scalp, gently moving it up and down without rubbing.
5. Turn off the hair dryer when you finish using it and unplug it from the power outlet.

MAINTENANCE:

IMPORTANT: Always make sure the hair dryer is disconnected from the power supply before cleaning.

Use a damp cloth to clean it and dry it with another dry cloth. This will help maintain your hair dryer's original appearance.

Abrasive cleaners should not be used.

WARNING: Never immerse the hair dryer in water and always ensure that the plug is kept dry.

After a period of use, it is recommended to remove the air inlet and clean it. To do this, turn the air inlet counterclockwise. After cleaning, turn it clockwise and secure it.

Clean the dryer frequently so that hair or lint does not accumulate in the inlet filter, as this can cause overheating.

TECHNICAL SPECIFICATIONS:

220-240V\~50HZ; 1700-2100W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES :

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

MODÈLE	SE 2110
ALIMENTATION	2100W
CONNEXION	220 - 240V ~ 50HZ
DIMENSIONS	9,7x23x19cm
POIDS	0,617 kg
MODE ARRÊT	<0,5W
