SEH 1850 - Hair Dryer Orbegozo - Free user manual and instructions

Product type	Hair dryer
Brand	Orbegozo
Model	SEH 1850
Power	2000 W
Power supply	220-240 V, 50/60 Hz
Dimensions (W x D x H)	20 x 10 x 28 cm
Weight	0.55 kg
Speeds	2 speeds (gentle and powerful)
Temperatures	3 levels (hot, warm, cold)
Cold air	Integrated cold air button
Included accessories	Concentrator nozzle and diffuser
Cord length	1.8 m
Removable filter	Yes, for easy cleaning
Overheat protection	Automatic shut-off in case of overheating
Material	Impact-resistant ABS plastic
Color	Black with silver accents
Noise level	82 dB
Warranty	2 years
Maintenance	Clean the filter regularly with a brush
Repairability	Open for cord or motor replacement (parts available)

Frequently Asked Questions - SEH 1850 Orbegozo

How to use the cold air function?

Press the button marked with a snowflake during drying for a cold air blast. This helps set the hairstyle.

Can I use this hair dryer with a travel adapter?

Yes, but check that the adapter supports 2000 W and the voltage is compatible (220-240 V).

How to clean the filter?

Unplug the device, remove the rear filter, and gently brush off dust with a soft brush or dry cloth.

What to do if the hair dryer suddenly stops?

The device has overheat protection. Let it cool down for 10 minutes before turning it on again.

Can I use the diffuser on curly hair?

Yes, the diffuser distributes air evenly to define curls without damaging them. Use at low speed and medium temperature.

Is the cord removable?

No, the cord is fixed. Do not pull on it to avoid damage.

What is the recommended power for daily use?

The 2000 W power is ideal for fast drying. Use the speed and temperature suitable for your hair type.

Is the hair dryer suitable for fine hair?

Yes, use the gentle speed and warm temperature to avoid damaging fine hair.

How to replace the filter if damaged?

The filter is removable. If necessary, contact Orbegozo customer service to order a spare part.

Can I use the device in the bathroom?

Yes, but never immerse it in water and do not use near a bathtub or shower to avoid risk of electrocution.

USER MANUAL SEH 1850 Orbegozo

Illustration of a white hair dryer connected to a power outlet with coiled tubing (no text or symbols)

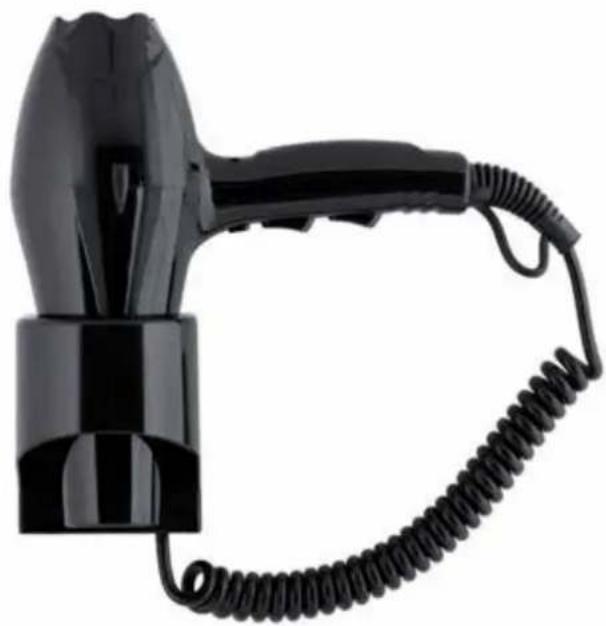

Black hair dryer with coiled cord and handle (no text or symbols visible)

SEH 1800/1850

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

White cylindrical device with a red button and black base, no visible text or symbols

Close-up of a black electronic device casing with a circular component labeled '1' and multiple screws (no readable text or symbols beyond the label)

Interior view of an electronic device showing exposed circuitry and wiring (no text or symbols visible)

Close-up of an electrical component with visible wiring and mounting holes (no text or symbols)

SECADO:

When using an electrical appliance, basic safety precautions should always be observed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- WARNING: Do not use this appliance near water.

- Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off.

- For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

- Check if the voltage indicated on the appliance corresponds to the local voltage before you connect the appliance.

• Never block the air grilles.

- If the appliance overheats, it will switch off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.

- Do not direct the airflow towards the eyes or other sensitive areas.

- Do not use the hair dryer for purposes other than drying and styling human hair.

- Do not pull the cord with unnecessary force. Do not wrap the cord around the unit. Check cord regularly for any sign of damage. Damaged cords can be dangerous.

• Always switch the appliance off before putting it down, even if it is only for a moment.

• Always unplug the appliance after use.

- Let the appliances get cold before store it.

- Do not introduce any metallic item in the airlet in order to avoid an electric discharge.

- Do not put the air outcome too close the hair.

- The dryer must be installed away from areas where people may be bathing or showering

- The appliance must be installed so that the portable part when fully extended, is out of reach of a person who is bathing or showering

DESCRIPTION

A. Stand
B. Switch ON/OFF
C. Speed knob
D. Temperature knob
E. Filter

INSTALLATION

To install the bracket, first unscrew the screw above the light, as can be seen in pic. Remove the back of the stand, you see two holes in the top and one in the bottom central side. Place this piece in the desired location for installation, it is recommended you a nearby plug, check it and mark the position of the screws with a pencil or marker through the holes in the rear piece.

Close-up of a white cylindrical object with a red circular highlight and black base (no visible text or symbols)

Drill holes in the wall with a drill, insert the wall plugs (they are included) into the hole. Place the bracket back on and screw these to the wall with the screws provided. Place the front of the bracket on the back and place the first screw.

Direct connection

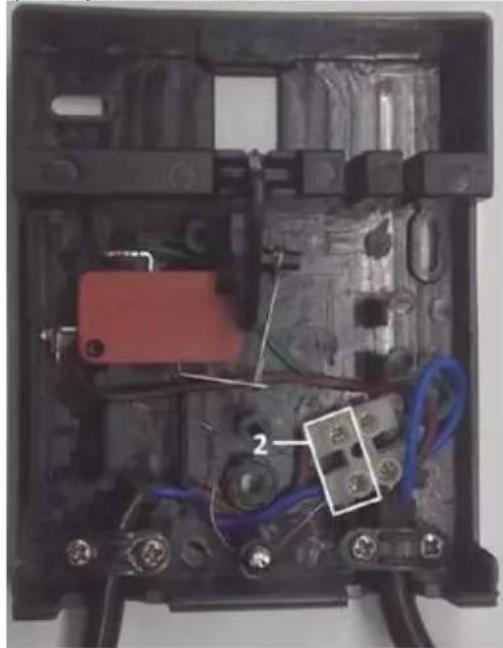

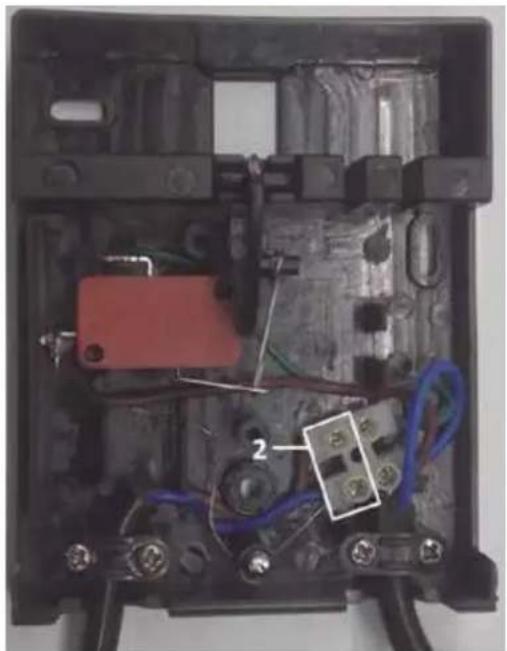

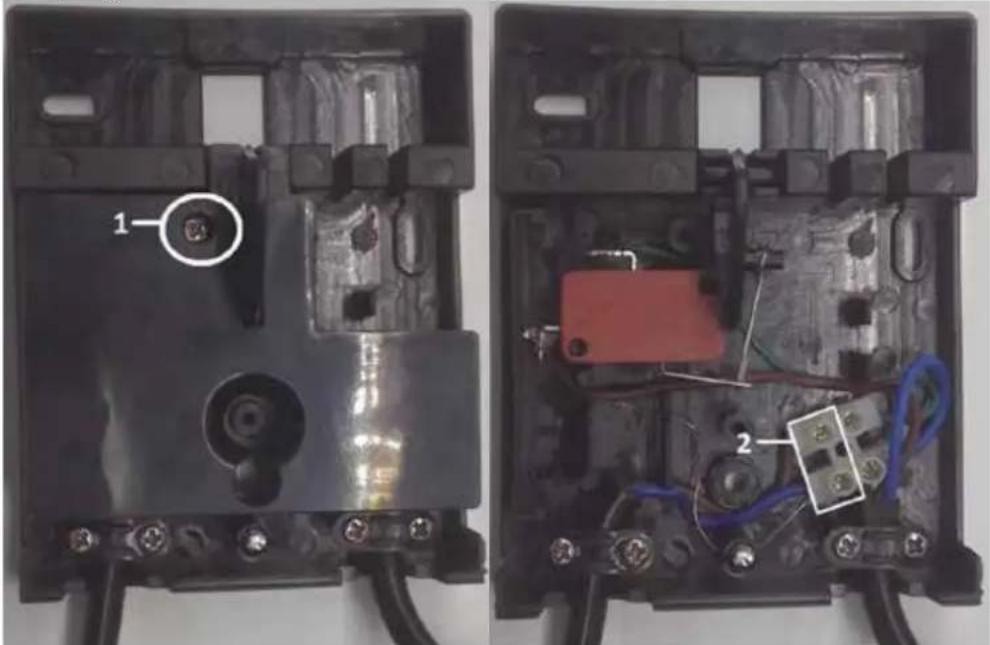

Once removed the first front cover, unscrew the screw placed near to switch (1) to remove next cover and show the cabling. Inside, you can find a power strip, where you have to disconnect the cord to main network (2) (to the plug).

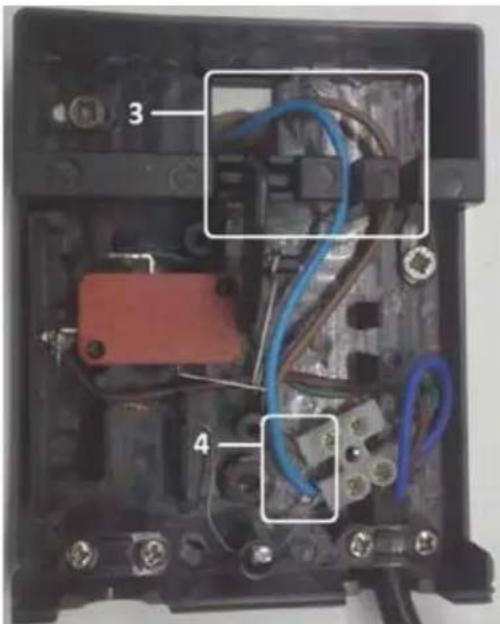

Place the support on the wall as it explains in last paragraph but concurring the cord outlet of installation with the upper hole of the support (3) (see the pic).

Then, pass the cords throw the openings and connect then in power script as the pictures shows (4).

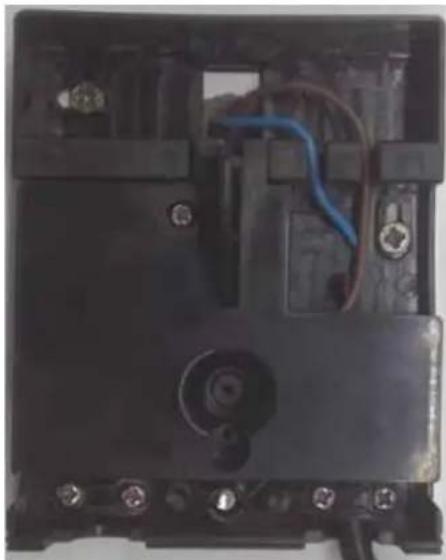

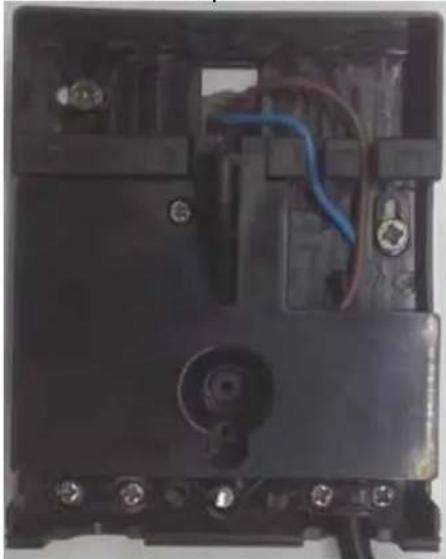

Reassemble the removed covers.

Close-up of an electronic device casing with visible wiring and mounting points (no text or symbols)

DRYING

1. Plug the appliance.
2. Take the hairdryer from the base (it doesn't work in the base)
3. Select the desired mode, you can adjust the air flow and temperature.
4. Push the B button to switch on the hairdryer (it only works while the button is pushed)
5. Dry your hair by making brushing movements while holding the dryer at small distance from your hair.

CLEANING

1. Turn this appliance off before cleaning
2. Remove the grill in order to eliminate the dust and hair.
3. The appliance can be cleaned with a dry cloth.
4. Never rinse the appliance with water.

STORAGE

When not in use "unplug it".

Leave the appliance on the base. Do not wrap the cord around the appliances, the cord may break or wears down prematurely. If the cord of this appliance is damaged, it must be replace by the technical service or a person qualified to do so.

Specification

230V\~50Hz / 1800 W.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

INSTRUCTIONS DE SECURITE IMPORTANTES

Close-up of a white cylindrical object with a red oval and black base, no visible text or symbols.

Close-up of a black electronic device casing with a circular component labeled '1' and multiple pins (no readable text or symbols beyond the label)

Interior view of an electronic device showing internal components and wiring (no readable text or symbols)

Interior view of an electronic device showing internal components and wiring (no visible text or symbols)

SÉCHAGE

Close-up of a white cylindrical object with a red circular highlight and black base (no text or symbols visible)

INSTALAÇÃO

Close-up of a black electronic device casing with a circular component labeled '1' and multiple screws (no readable text or symbols beyond the label)

Interior view of an electronic device showing internal components and wiring (no readable text or symbols)

Remonte as tampas removidas.

Interior view of an electronic device casing with visible wiring and mounting points (no text or symbols)

SECAGEM

Close-up of a white cylindrical device with a red circular button and black base (no visible text or symbols)

Close-up of a black electronic component with a circular annotation labeled '1' pointing to a central hole (no readable text or symbols beyond the label)

Interior view of an electronic device showing internal components and wiring (no readable text or symbols)

Close-up of an electrical component with visible wiring and mounting holes (no text or symbols)
