SE 1880 - Hair Dryers Orbegozo - Free user manual and instructions

USER MANUAL SE 1880 Orbegozo

HAIR DRYER- INSTRUCTION MANUAL

SÈCHE-CHEVEUX- MANUEL D'INSTRUCTIONS

SECADOR DE CabeLO - MANUAL DE INSTRUÇÕES

ASSECADOR DE PEL-MANUAL D'INSTRUCCIONS

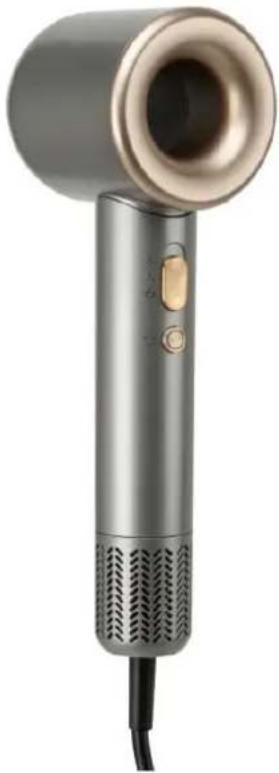

Modern hair dryer with metallic body and gold handle, no visible text or symbols

SE 1880

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Close-up of a white cylindrical device with perforated ventilation grille (no text or symbols visible)

IMPORTANT SAFETY MEASURES:

When using any type of electrical appliance, basic safety precautions should be followed, including the following:

1. This appliance can be used by children aged 8 years and over and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children should be supervised to ensure that they do not play with this appliance.

3. Keep the appliance and its cable out of the reach of children under 8 years of age.

4. CAUTION: For the safety of your children, do not leave packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.

5. If the power cord is damaged, it must be replaced by the manufacturer, service center, or other qualified personnel.

6. Never disconnect by pulling on the cable.

7. Do not operate if the cord or plug is damaged or if you notice that the appliance is not working properly.

8. Do not handle the appliance with wet hands.

9. Do not immerse the appliance in water or any other liquid.

10. Before cleaning, make sure the appliance is disconnected.

11. The appliance must be installed in accordance with national regulations for electrical installations.

12. This appliance is for domestic use only.

13. If you need a copy of the instruction manual, you can find it at www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- Never connect the dryer to the wrong voltage. - Do not use the appliance with wet hands, in a humid environment, or on wet surfaces. Do not immerse the appliance in water or other liquids.

- Do not use this appliance near bathtubs or other containers containing water.

- Unplug the appliance from the power outlet when it is off, as its proximity to water could pose a hazard; take extra care when using it in the bathroom.

- If the appliance does not work properly, immediately unplug it from the power outlet and take it to an authorized service center.

- Keep the appliance and its power cord away from heat sources and heat-sensitive surfaces (plastic, vinyl, etc.). - Do not hold or handle the appliance by the power cord.

- Do not wrap the power cord around the appliance, bend it, or twist it. This could impair its proper functioning and damage the hair dryer. Failure to follow the warnings and instructions above may result in a short circuit, irreparable damage to the hair dryer, and jeopardize the user's safety.

- Do not use accessories that have been modified or not approved by the manufacturer.

- Unplug the appliance from the wall outlet when not in use and allow it to cool before storing it in a safe place. To disconnect the appliance, unplug the power cord from the wall outlet.

- To clean the appliance, always unplug it from the power outlet and allow it to cool completely.

- This appliance should only be used for its intended purpose.

- For additional protection, the installation of a residual current device is recommended.

- Make sure there are no obstacles in the air outlet and grille when using the dryer.

- The dryer is protected against overheating. The dryer stops working when it overheats and restarts after a short cooling period. When the dryer stops automatically and you no longer need to use it, turn the switch to the off position and unplug it from the power outlet.

- Turn off the dryer when not in use during long breaks in the drying process and unplug it after use.

- Allow the appliance to cool before storing.

- Do not insert metal objects through the air intake grille to avoid electric shock.

- Do not place the air outlet too close to the hair.

- Do not use this appliance near water.

- Do not use this appliance near bathtubs, showers, sinks or other containers containing water.

- When using the hair dryer in a bathroom, unplug it after use, as the proximity of water poses a danger even when the hair dryer is turned off.

- For additional protection, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the bathroom electrical circuit. Consult your installer.

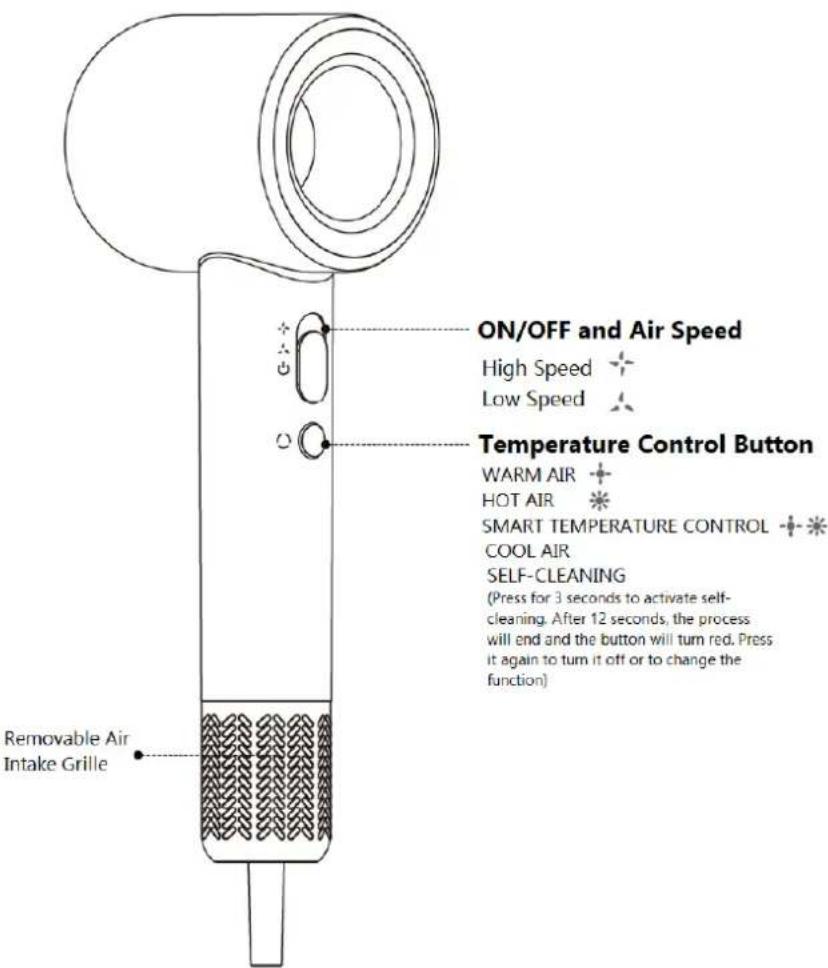

PARTS OF THE DRYER

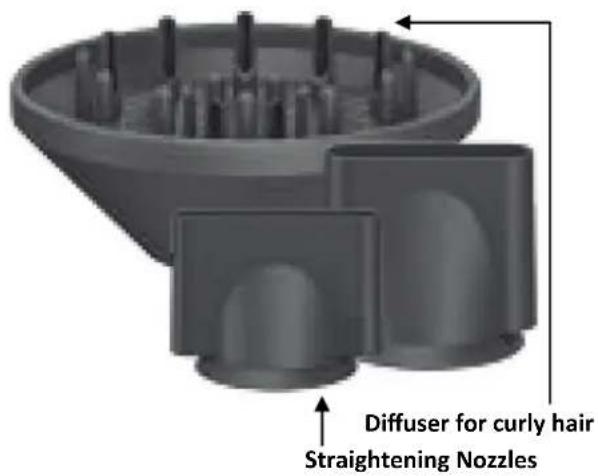

Diffuser for curly hair Straightening Nozzles

ON/OFF and Air Speed High Speed Low Speed Temperature Control Button WARM AIR HOT AIR SMART TEMPERATURE CONTROL COOL AIR SELF-CLEANING (Press for 3 seconds to activate self- cleaning. After 12 seconds, the process will end and the button will turn red. Press it again to turn it off or to change the function) Removable Air Intake Grille

Electrical Specifications

Connection: AC220V-240V 50/60Hz, Power: 1600-1800W.

Ultra High Speed Brushless DC Motor

Equipped with a 110,000 RPM motor, this device generates a powerful airflow of up to 55m/s.

The high-speed brushless motor ensures fast and efficient drying.

Negative Ion Function

It emits millions of negative ions to leave hair soft and shiny, creating a protective layer that seals out moisture and penetrates the hair structure, closing the cuticles.

Hair Drying Options

It has two speed levels:

Slow and Fast.

It offers three temperature settings:

Cold, Hot and Very Hot.

Smart Mode with Hot and Cold Air Cycle Switching

Its intelligent temperature control system adjusts airflow in real time to prevent overheating and hair damage. It features an innovative alternating hot and cold air mode, ideal for customizing your style.

Automatic Cleaning Mode

To activate automatic cleaning, press and hold the button for 3 seconds. After 12 seconds, the indicator light will turn red, indicating the process is complete. At this point, you can press the button again to select another function or turn off the appliance.

Follow these instructions:

1. Turn the external filter cover counterclockwise to carefully remove it.
2. With the dryer without accessories (nozzles or diffusers), press the button for 3 seconds to activate the automatic cleaning cycle. The device will expel air in reverse through the rear, helping to remove accumulated dirt from the filter. This self-cleaning process lasts 12 seconds and is designed for a thorough cleaning after prolonged use.
3. When finished, the indicator light will turn red, and you can press the button for other functions or to turn off the device.

During use, ensure that both the air inlet and outlet remain clear, unobstructed, and away from any surfaces or chemicals, such as lacquers.

Noise Reduction

With a noise level of less than 70 dB, this hair dryer offers comfortable use without disturbing the peace and quiet of your home.

The engine and air duct have been optimized with professional sound tuning to effectively mitigate vibrations and control perceived noise.

Compact and Lightweight Design

Weighing only 430g, it's ideal for taking with you both at home and on the go.

Multiple Security Measures

It incorporates several protections for your safety. Equipped with temperature sensors to prevent overheating and a fuse, as well as an integrated microprocessor, it allows for comprehensive control of temperature, voltage, and current.

MAIN FEATURES

1. On/Off Control and Airflow Speed

○ High speed
- Low speed

1. Temperature Control Button

o Cold air
- Hot air
o Very hot air
o Smart mode with cold/hot cycle switching
○ Self-cleaning mode*

*Auto-clean mode: Press and hold the button for 3 seconds to activate the auto-clean function. After 12 seconds, the indicator light will turn red. You can press the button again for another function or to turn off the appliance.

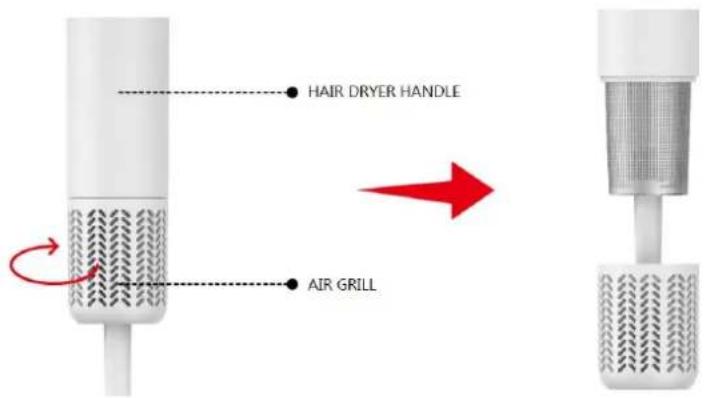

CARE AND CONSERVATION

STEP 1: Unplug the power cord first.

STEP 2: Hold the dryer handle. Turn the air inlet cover counterclockwise to remove it.

HAIR DRYER HANDLE AIR GRILL

STEP 3: Use a soft, lint-free cloth or soft brush to clean dust or lint from the filter. Do not wash it with water.

STEP 4: Once clean, align the air inlet cover with the corresponding slot on the dryer body and turn it clockwise to secure it.

Close-up of a white cylindrical device with a perforated ventilation grille (no text or symbols visible)

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

MESURES DE SÉCURITÉ IMPORTANTES :

Close-up of a white cylindrical device with a textured surface and a vertical rod (no visible text or symbols)

ENLEVEMENT DES APPAREILS MENAGERS USAGES

Close-up of a white cylindrical device with a textured grille and a vertical rod (no visible text or symbols)

RECOLHA DOS ELETRODOMÉSTICOS

Close-up of a white cylindrical device with a textured surface and a small protruding rod (no visible text or symbols)

ELIMINACIÓ DE L'ELECTRODOMÈSTIC VELL.

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

MODÈLE	SE 1880
ALIMENTATION	1800W
CONNEXION	220 - 240V ~ 50/60HZ
DIMENSIONS	7,5x24,9x9cm
POIDS	0,495 kg
MODE ARRÊT	<0,5W
