Product type	Hair dryer
Brand	Orbegozo
Model	SEH 1890
Power	2000 W
Supply voltage	220-240 V ~ 50/60 Hz
Dimensions (L x H x D)	7.9 x 22.5 x 12 cm
Weight	0.650 kg
Temperature modes	3 (cool, warm, very hot)
Control	Power button and temperature selector
Included accessories	Wall base, concentrator nozzle, screws, wall plugs, rubber pads
Safety shutdown function	Automatic shutdown in case of overheating
Filter type	Removable air intake grille
Intended use	Domestic, for drying and styling human hair
Safety precautions	Do not use near water, do not block air vents
Maintenance and cleaning	Unplug before cleaning, use a dry cloth, do not rinse with water
Wall installation	Wall bracket included, requires drilling and plugging

Frequently Asked Questions - SEH 1890 Orbegozo

How to use the Orbegozo SEH 1890 hair dryer?

Plug in the device, remove it from the base, select the desired temperature mode (0 = off, 1 = cool air, 2 = warm air, 3 = very hot air) and press the power button to start. Move the hair dryer close to your hair with regular movements.

What to do if the hair dryer shuts off automatically?

This is due to overheating. Unplug the device, let it cool down for a few minutes, then check that the air vents are not blocked by dust or hair. Before turning it on again, clean the filter if necessary.

How to clean the hair dryer filter?

First unplug the device. Remove the air filter grille located at the back and remove dust with a dry cloth or soft brush. Never rinse the filter with water.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Never use the device near a bathtub, shower, or sink containing water. Unplug it after use because water can be dangerous even when the device is off. It is recommended to install a residual current device (RCD) of 30 mA in the bathroom.

How to install the provided wall bracket?

Choose a location without electrical wires or hidden pipes. Drill holes suitable for the wall plugs, insert the wall plugs, then fix the plastic base with screws. Place the rubber pads in the designated holes and hang the hair dryer on the base.

Is the power cord detachable?

No, the cable is not detachable. Never wrap it around the device to avoid damage. If the cable is damaged, have it replaced by a qualified technician.

What is the power of the Orbegozo SEH 1890 hair dryer?

The power is 2000 W (1700-2000 W according to the manual). It operates at 220-240 V ~ 50/60 Hz.

What to do if the device does not turn on?

Check that the hair dryer is properly plugged in and that the temperature selector is not in position 0. If the problem persists, check the fuse or circuit breaker of your installation. If nothing works, contact technical support.

Is the hair dryer suitable for all hair types?

Yes, thanks to its 3 temperature modes, you can adapt the heat: cool air for fine or fragile hair, warm air for normal drying, and very hot air for quick drying on thick hair. Use the concentrator for precise styling.

How to store the hair dryer after use?

Unplug it, let it cool down, then place it on its wall base or store it in a dry place. Never wrap the cable around the device to avoid damage.

USER MANUAL SEH 1890 Orbegozo

Black hair dryer with coiled cord and handle (no visible text or symbols)

SEH 1890

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using an electrical appliance, basic safety precautions should always be observed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- WARNING: Do not use this appliance near water.

- Do not use this appliance near bathtubs, showers, sinks or other containers containing water.

- When using the hair dryer in a bathroom, unplug it after use, as the proximity of water poses a danger even when the hair dryer is turned off.

- For additional protection, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the bathroom electrical circuit. Consult your installer.

- Check that the voltage indicated on the appliance matches the voltage of your installation before connecting it.

- Never block the air vents.

- If the dryer overheats, it will automatically shut off. Unplug the appliance and let it cool for a few minutes. Before turning the appliance back on, check that the vents are not blocked by lint, hair, etc.

- Do not direct the airflow towards the eyes or sensitive areas.

- Use the dryer only to dry and style human hair.

- Do not pull the cable with excessive force. Do not wrap the cable around the appliance. Check the cable regularly for any signs of damage. Damaged cables can be dangerous.

• Always unplug the appliance before leaving it anywhere, even if just for a moment.

• Always unplug the appliance after use.

- Allow the appliance to cool before storing.

- Do not insert metal objects through the air intake grille as this may result in electric shock.

- Do not place the air outlet too close to the hair.

- This hair dryer should be stored out of reach of a person bathing or showering.

- The appliance must be fixed so that the portable part, when fully extended, is out of the reach of a person bathing or showering.

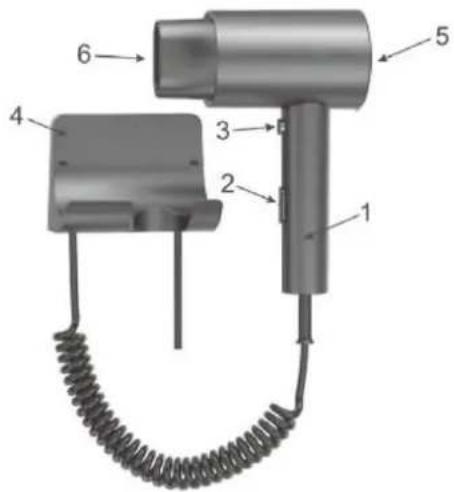

DESCRIPTION:

1. Mango
2. Temperature control
3. Power button
4. Wall mount
5. Filter
6. Concentrator

INSTALLATION INSTRUCTIONS

Before installing it on the wall, make sure there are no hidden electrical wires or pipes at the mounting location.

Necessary tools:

• Screwdriver.
  o Hammer.
• Electric drill.

Included with the product:

○ 1 base.
- 2 long screws.
- 2 wall plugs.
- 4 rubber stoppers.

Steps to follow:

1. Choose an installation location.
2. Drill holes appropriate to the size of the wall plugs.
3. Insert the wall plugs so that they are flush with the wall surface.
4. Insert the screws through the holes in the plastic base (4).
5. Align the base with the wall plugs and screw firmly until the base is securely fixed to the wall.
6. Insert the rubber pads into the corresponding holes in the base.
7. Hang the hair dryer on the mounted base.

DRYING:

1. Plug in the appliance.
2. Remove the hair dryer from the base
3. Select the desired mode:

$$ 0 = \text { Off } $$

$$ 1 = \text { Temperate air } $$

$$ 2 = \text { Hot air } $$

$$ 3 = \text { Very hot air } $$

1. Press the power button (3) to start the dryer.

2. Dry your hair by sweeping the hairdryer while holding it close to your hair.

IMPORTANTE

1. Unplug the appliance before cleaning.
2. Remove the air filter grill to remove dust.
3. You can clean the hair dryer and its base with a dry cloth.
4. Never rinse the appliance with water.

STORAGE:

If you are not using the dryer, unplug it.

Leave the appliance on its base. Never wrap the cord around the appliance, as this may cause it to break or wear out prematurely. If the cord on this appliance becomes damaged, it must be replaced by a qualified service technician or a qualified person.

Specification

Power: 1700-2000W

Connection: 220-240V 50/60Hz

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

INSTRUCTIONS DE SECURITE IMPORTANTES

INSTRUCTIONS D'INSTALLATION

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

MODÈLE	SEH 1890
ALIMENTATION	2000W
CONNEXION	220-240V~ 50-60HZ
DIMENSIONS	7,9x22,5x12cm
POIDS	0,650 kg
MODE ARRÊT	<0,5W
