USER MANUAL LR794HUD AEG

Simple line drawing of a washing machine with a circular button and wavy lines inside (no text or symbols)

LR794HUD

QR code with a document icon in the center, likely linking to a digital resource or webpage.

3. PRODUCTBESCHRIJVING

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating a washing machine operation with labeled parts and instructions for cleaning or recycling.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

LET OP!

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WAARSCHUWING!

Diagram showing a washing machine with mechanical components and directional arrows indicating motion or assembly.

Diagram illustrating washing machine operation with three circular insets showing hand positioning and cleaning steps

3/4" 3/4" A i A ✓ A ✓ ↓

WAARSCHUWING!

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

WOOLMARK WOOL CARE

WOOL HAND WASH SAFE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating a medical or diagnostic hazard.

LET OP!

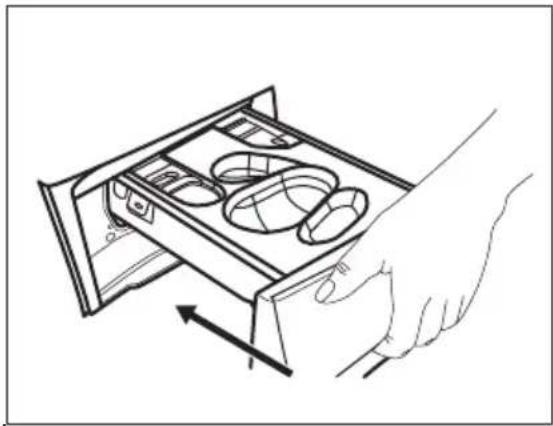

Line drawing of a hand holding a tray with multiple compartments and a directional arrow indicating motion (no text or symbols)

Line drawing of a refrigerator drawer with a magnifying glass highlighting the interior (no text or symbols)

Line drawing of a refrigerator interior with a hand pointing to the lid (no text or symbols)

Line drawing of an open refrigerator drawer with a magnified inset showing a drop (no text or symbols)

Line drawing of a hand holding a car seatbelt, no text or symbols present

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement or positioning.

Line drawing of a kitchen drawer with a bowl and utensils, no text or symbols present

Line drawing of hands assembling a mechanical component with an upward arrow indicating motion (no text or symbols)

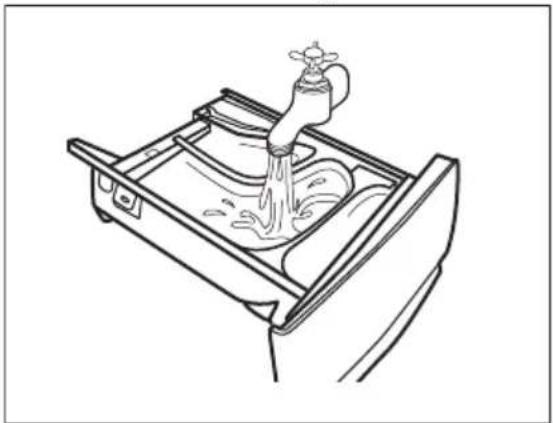

Line drawing of a faucet spraying water into a tray (no text or symbols)

Line drawing of a hand using a tool to insert or install a component, with no visible text or symbols.

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

Illustration of hands holding a device with an arrow indicating motion (no text or symbols)

LET OP!

Line drawing of a hand inserting a tray into an appliance with internal compartments (no text or symbols)

Line drawing of a hand inserting a component into a circular housing (no text or symbols)

2.

1.

180°

Diagram showing hand operating a switch mechanism with labeled parts 1 and 2

4.

Illustration of a medical procedure involving surgical tools and a circular dial, with no visible text or symbols.

5.

1.

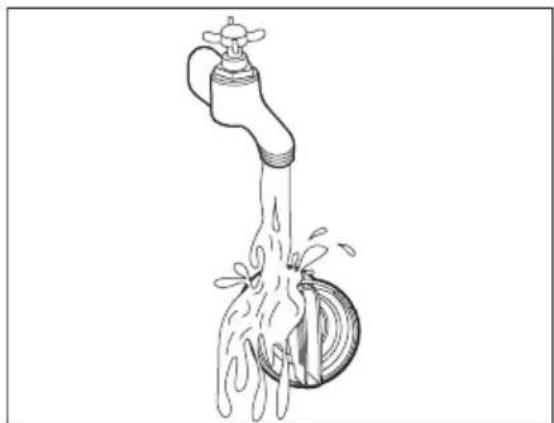

Line drawing of a faucet releasing water into a circular container (no text or symbols)

Diagram showing hand pressing a component with labeled parts and directional arrows

1.

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including parts numbered 1 and 2.

8.

WAARSCHUWING!

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

1.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean the interior (no text or symbols present)

1.

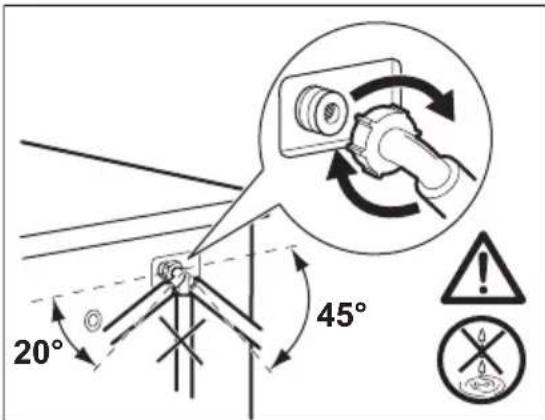

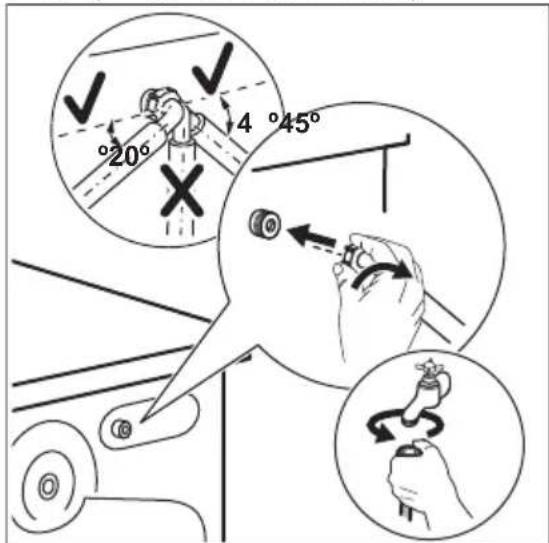

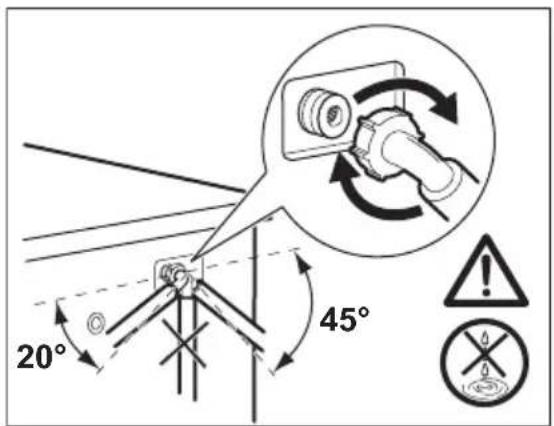

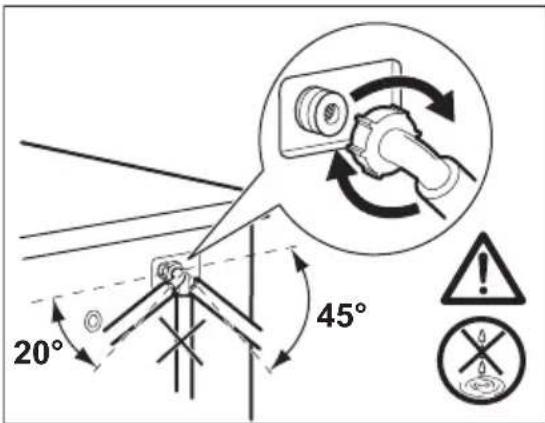

20° 45°

11.11 Noodafvoer

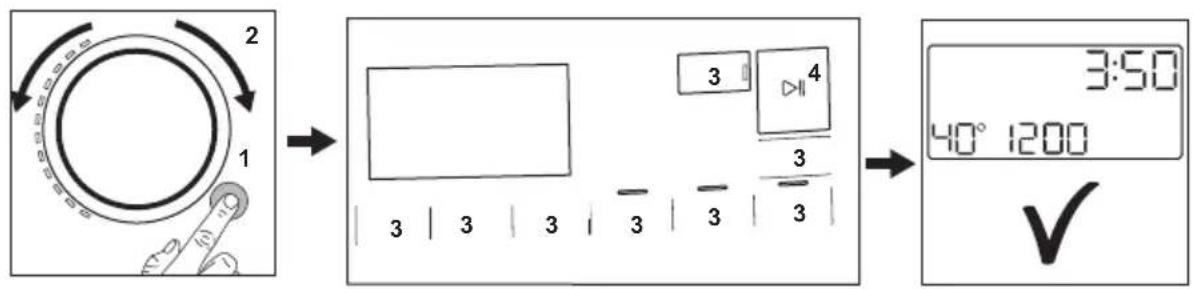


Line drawing of a hand holding a tool near a car wheel (no text or symbols)

13.3 Programma's

Welcome to AEG! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at aeg.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at aeg.com/support

Buy accessories, consumables, and original spare parts for your appliance at aeg.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......41
2. SAFETY INSTRUCTIONS.... 43
3. PRODUCT DESCRIPTION 45
4. TECHNICAL INFORMATION ...... 46
5. INSTALLATION 46
6. CONTROL PANEL .... 50
7. DIAL AND BUTTONS ....52
8. PROGRAMMES 54
9. SETTINGS 60
10. DAILY USE 61
11. CARE AND CLEANING 64
12. CONSUMPTION VALUES 70
13. QUICK GUIDE ...... 71
14. ALARM CODES AND POSSIBLE FAILURES.... 75
15. ENVIRONMENTAL CONCERNS....76

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this appliance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 9 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If a tumble dryer is stacked on the top of the washing machine, make sure to use the correct stacking kit approved by AEG (see more details in chapter "Accessories - Stacking kit").

2. SAFETY INSTRUCTIONS

2.1 Installation

i

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the

appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.
• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the

appliance with the use of water in the factory.

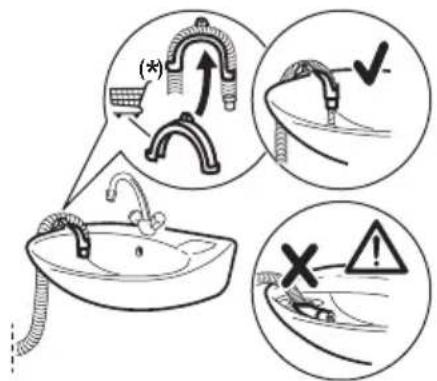

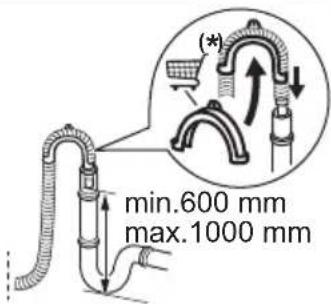

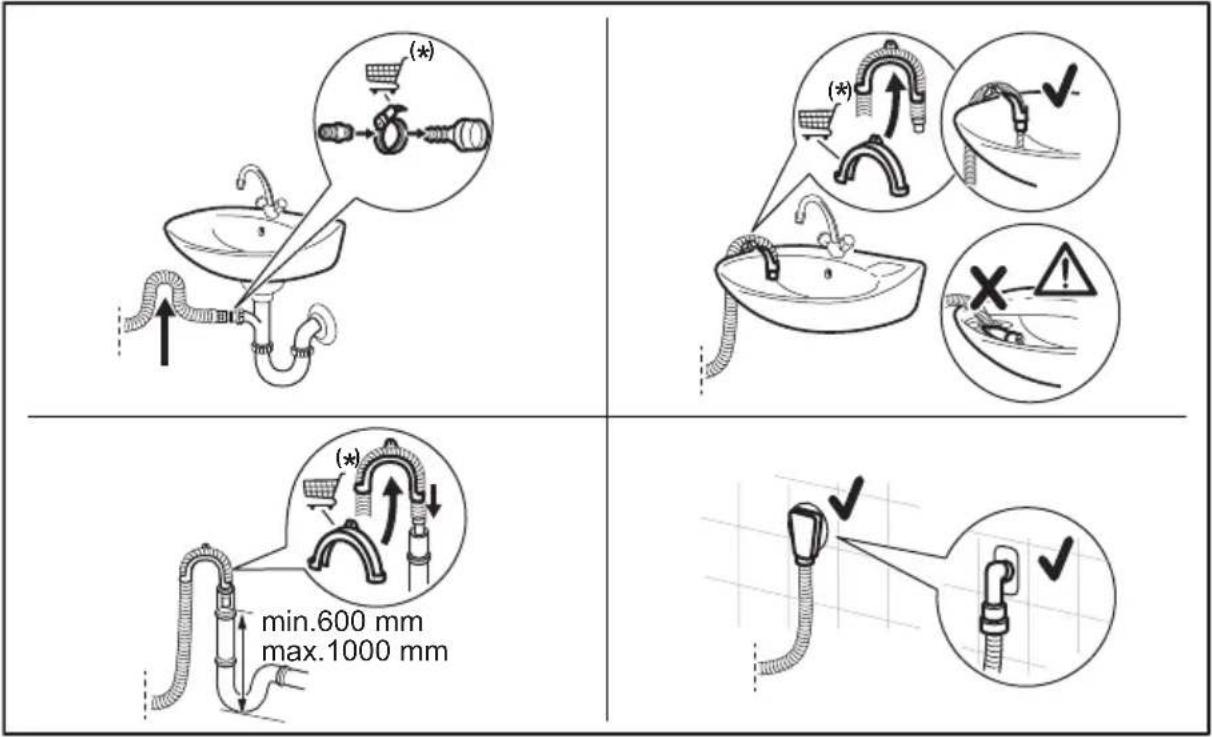

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed

circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.

• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not

intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Appliance overview

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle

5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance
8 Drain hose

9 Inlet hose connection
10 Mains cable
11 Transit bolts

12 Hose support

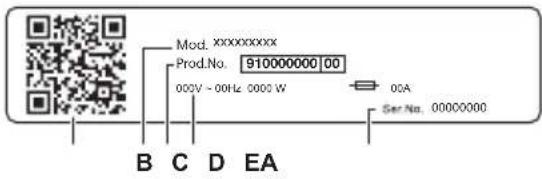

Mod. xxxxxxxxxxx Prod.No. 910000000 00 000V ~ 00Hz 000W → 0CA Ser No. 00000000 B C D EA

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at aeg.com/manuals)
  • Get usage advice, troubleshooting, service and repair information (also available at aeg.com/support)
  • Buy accessories, Consumable and Original Spare parts for your appliance (also available at aeg.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59,6 cm /84,7 cm /60,2 cm
Electrical connection Voltage		230 V
	Overall power	1900 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 9 kg

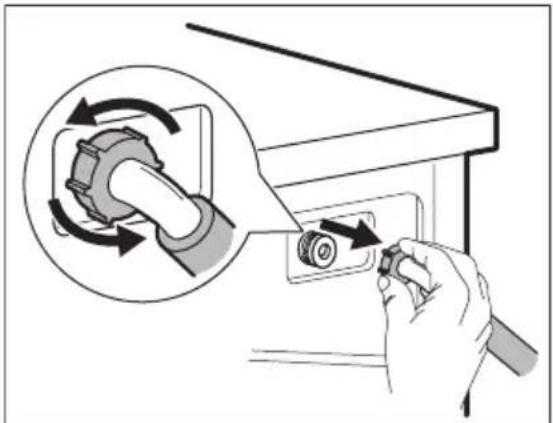

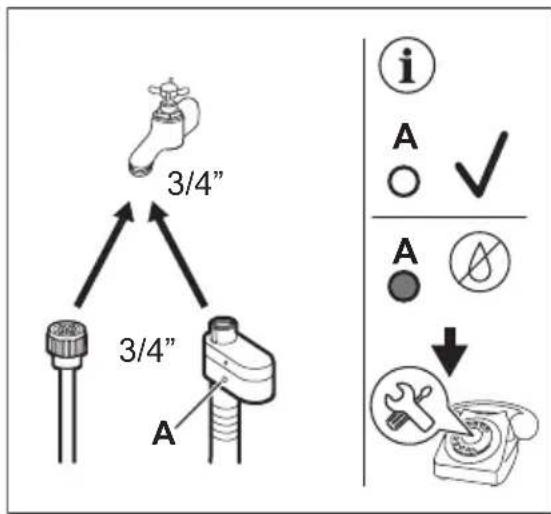

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

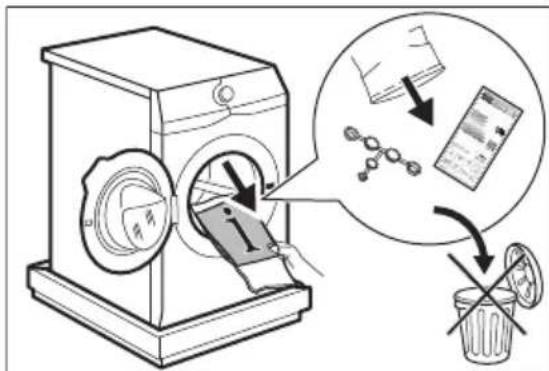

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Accessories delivered with the appliance may vary depending on the model.

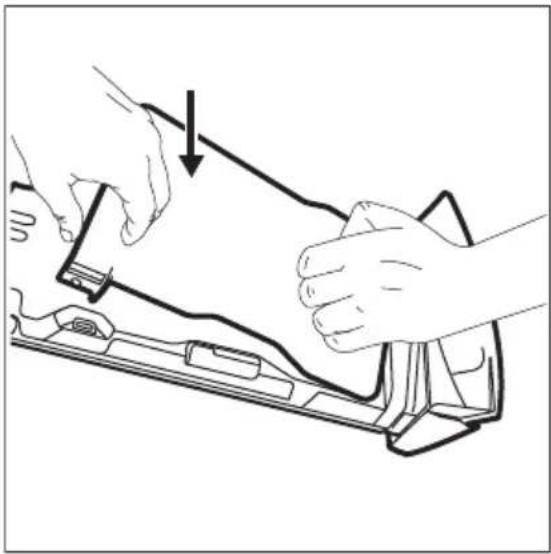

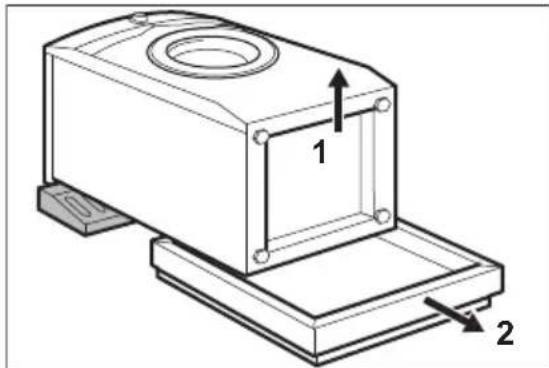

1. Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

1 2

!

CAUTION!

Do not lay washing machine on its front.

1. Put the appliance back into an upright position. Remove the power supply cable and the drain hose from the hose holders.

Illustration of a washing machine being adjusted for a bolt, with magnified view showing the component (no text or symbols present)

WARNING!

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

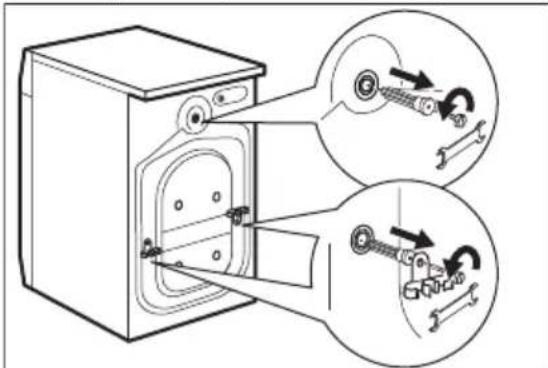

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing washing machine operation with close-ups of screw and wrench components, illustrating mechanical assembly steps.

i

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

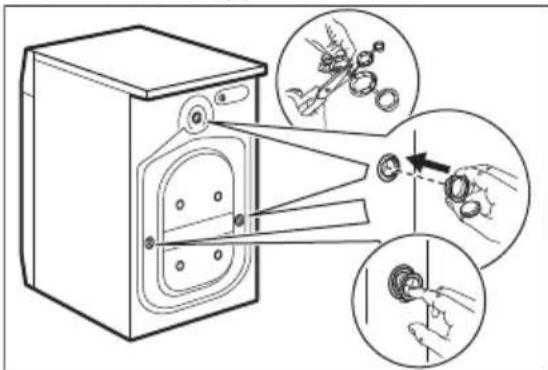

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating the process of hairpin cutting, showing steps from washing machine to disassembly with magnified views.

5.2 Information for installation

Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.
2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

The inlet hose

CAUTION!

Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

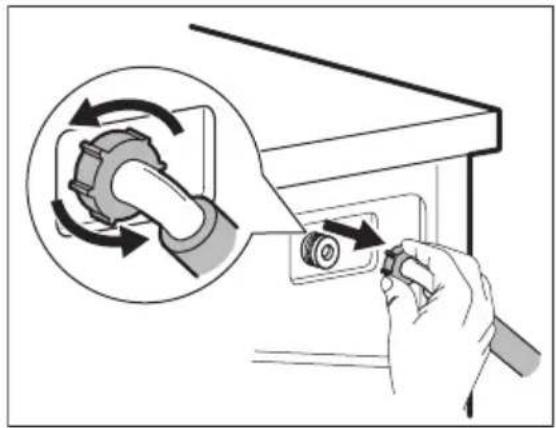

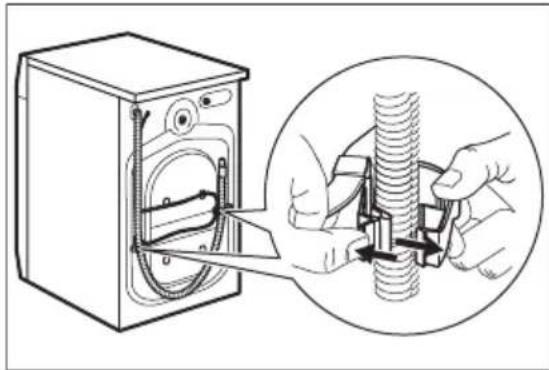

1. Connect the water inlet hose to the back of the appliance if needs. Usually, it is already installed at the factory.

20° 4° 45°

1. Position it toward left or right depending on the position of the water tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loosen the ring nut to set it in the correct position.
3. Connect the water inlet hose to the cold water tap with 3/4" thread.
4. Some models can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service centre for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓

WARNING!

The inlet water shall not exceed 25^ C.

Water drainage

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Connect the drain hose to the spigot and tighten it with a clamp. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp.

The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance. Buy accessories from authorised supplier.

To a stand pipe with vent hole - Insert the drain hose directly into a drain pipe or stand pipe

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

It is possible to connect the drain hose in different ways:

(*) (*) (*) ✓ × ⚠ min.600 mm max.1000 mm

(*) Subject to change without notice.

5.3 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through

failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

1 2 3 4 5 6 12 9 80

1 Push button Aan/Uit - Marche/Arrêt
2 Programme dial
3 Display
4 Touch button Klaar over - Fin programmée
5 Touch button Start/Pauze - Départ/Pause ▷||
6 Touch button PODS®
7 Touch button Plus Steam

8 Touch button Extra spoelen - Rinçage Plus
9 Touch button Tijd besparen - Gain de Temps
10 Touch button Vlekken/Voorw. - Taches/Prélav. and Child Lock option 3s
11 Touch button Centrifugeren - Essorage
12 Touch button Temp.

ProSense 8:00 8:18 kg MAX 88° 1888 dB * *

	Door locked indicator.
	Washing phase indicator. It flashes during pre-wash and wash phase.
	Rinsing phase indicator. It flashes during rinse phase.
	Spinning and draining phase indicator. It flashes during spin and drain phase.
	Steam phase indicator.
	Anti-crease phase indicator.
	Leaf Icon turns on to indicate when the cycles and options selected have a low energy consumption profile.
	Add garments indicator: it lights on when the programme starts and the user can still pause the appliance and add more laundry.
ProSense	ProSense indicator. The icon lights up on the display if the programme supports it.
	Klaar over - Fin programmée indicator.

The digital indicator can show:

• Programme duration (e. g.). 2:40

The time shown when the programme is set could not correspond to effective duration and change after ProSteam phase.

- Maximum load.

- Finish in time (e. g.

- Cycle end ().

- Warning code (e.g.).E20

- The led beside the digit area is on when the PODS is active (0:00').

- Indication of total operating hours of the appliance. Refer to the "Operating hours counter" section in the "Settings" paragraph for more details.

Maximum load indicator. The value is shown for three seconds after programme selection, alternated with cycle duration.

Maximum laundry indicator. It blinks if the laundry amount exceeds the declared load.

This indicator reminds to run a cleaning cycle.

Child safety lock indicator.

The Temperature area: Temperature indicator Cold water indicator

The spin area: Spin speed indicator No Spin indicator. Spin phase is off.

Extra Silent indicator.

Rinse hold indicator.

Pre-wash indicator.

Stain indicator.

7. DIAL AND BUTTONS

Pressing this button for a few seconds allows to activate or deactivate the appliance. As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again

The default selected programme, at machine switch on, is always the Eco 40-60 programme, also after wake up from standby.

7.2 Introduction

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

By rotating the programme dial it is possible to select the desired programme.

Set this option as last after programme and other options selection, otherwise it can be cancelled if you change some setting.

This option allows to choose the time within a programme should terminate. The programme end can be postponed by one 1 hour every button touch until 24 hours maximum.

The display alternates between the normal programme duration and the set programme end time in hours. The minimum selectable time is the next whole hour above the programme's maximum duration; for example, if the cycle lasts 3:15 hours, the minimum selectable time is 4 hours.

7.6 Plus Steam

The Plus Steam option adds a steam phase followed by a short anti-crease phase at the end of the washing programme. This steam phase reduces fabric creasing and makes ironing easier. For optimal results, the maximum load with this option is 2 kg (about 8-10 shirts) because steam penetrates better with more space. When the Plus Steam option is set, the display indicates a maximum load of 2 kg, and the programme time adjusts accordingly. During the steam phase, the corresponding indicator blinks. When the programme ends the display shows a zero, the indicator remains steady. The anti-crease phase then begins, the indicator is blinking, and the Start/Pauze -

Départ/Pause lights up. The drum performs gentle movements for about 30 minutes to maintain steam benefits.

To interrupt the anti-crease phase, you can:

• Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate/deactivate the appliance.
• Turning the programme dial in another position.

i

-This option can affect the programme duration.
-For the best results, it's advised to use a small laundry load.

7.7 Extra spoelen - Rinçage Plus

This option allows to add extra rinse. It is recommended for those allergic to detergents or in areas with soft water. The button indicator will light up when activated.

i

This option increases the programme duration.

7.8 PODS®

Touch this button to activate or deactivate the PODS® option, the relevant indicator is on/off.

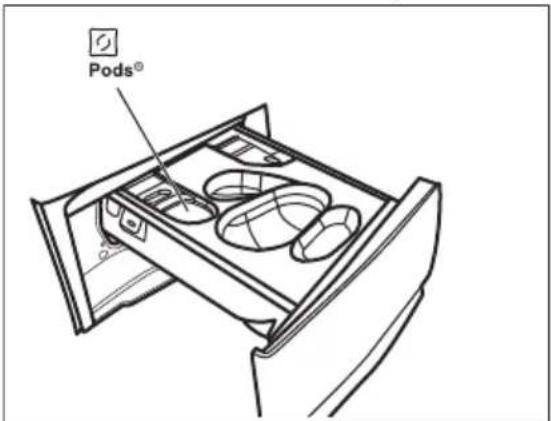

Put maximum two tablets or single-dose detergents in the PODS® compartment in the detergent dispenser drawer. Always follow the PODS® manufacturer's dosage and storage recommendations.

i

The option remains active also for next cycles until it is deactivated and if it is selectable with the set programme.

This option decrease the programme duration.

- If the laundry is normally or lightly soiled, it's advisable to shorten the washing programme. Touch this button once to decrease the duration.

i

The programme Fijne was - Délicats can be shorten only once

- In case of smaller load, touch this button twice to set an extra quick programme.

i

The temperature 95^ is not selectable on the programme Katoen - Coton.

The LED of the button is on and the display shows the set programme duration.

i

This option can also be used to shorten the steam programme duration.

7.10 Vlekken/Voorw. - Taches/Prélav.

Press this button repeatedly to activate one of the two options.

The relevant indicator goes on in the display.

• Vlekken - Taches

Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover.

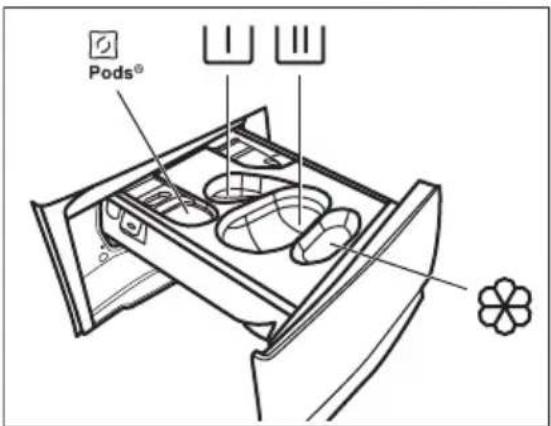

Pour the stain remover into compartment ☐. The stain remover will be added in the appropriate phase of the washing programme.

i

This option is not available with a temperature lower than 40 °C.

Use this option to add a pre-wash phase at 30 °C before the washing phase.

This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

i

The options can increase the programme duration.

i

These two options cannot be set together.

7.11 Centrifugeren - Essorage

When a programme is sets, the appliance automatically selects the default spin speed.

Touch this button repeatedly to:

- Change the spin speed.

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum and the final spin phase is not performed.

The display shows the indicator □ The drum turns regularly to reduce creasing.

The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch Start/Pauze - Départ/Pause button

▷II: the appliance performs the spinning phase and drains the water.

- Activate the Extra silent option.

All spinning phases (intermediate spin and final spin) are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

The display shows the indicator dB The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch the Start/Pauze - Départ/Pause button: the appliance performs only the draining phase.

The appliance empties the water out automatically after approximately 18 hours.

7.12 Temp.

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators - - and ✕, the appliance does not heat the water.

8. PROGRAMMES

8.1 Programme Chart

Washing programmes

Programme Programme description
MixLoad 69min Cotton and mixed synthetic fabrics. Ideal to wash your daily load in a short time, for a better clothes care and good cleaning already at 30^ .
Eco 40-60 Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
Katoen - Coton White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Synthetic items or mixed fabric items. Normal soil.Synthétiques
Fijne was - Délicats	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wol - Laine Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
20min. - 3kg	Cotton and synthetic items lightly soiled or worn only once.
Stoom - Vapeur	Cotton, synthetic and mixed items. Special steam cycle without washing that can be used to prepare your dried laundry for ironing or refreshing garments worn once. This programme reduces creases, odours and relaxes the fibres. Do not use any detergent.When the programme is completed, quickly remove the laundry from the drum2). If necessary, remove stains by washing or using localized stain removal. Steam programmes do not perform any hygienic cycle. Do not set a Steam programme with these types of items:Items that are not suitable for tumble drying.Items with label "Dry clean only".
Machine clean Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. Before running this cycle, remove all items from the drum. Pour a cup of chlorine bleach or a washing machine cleaner in the washing phase compartment of the detergent dispenser. DO NOT use both together3).
Hygiene White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses4) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This programme ensures also a proper reduction of pollens/allergenic items.
Spoelen - Rinçage	All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Extra spoelen - Rinçage Plus option to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
Centrifug./Pompen - Essorage/Vidange	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.
1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.2) If you set a Steam programme with dried laundry, at the end of the cycle the laundry can be humid. Line dry the items for about 10 minutes. This programme does not remove particularly intense odour.3) After the drum cleaning, run a further rinse cycle with empty drum and no detergent to remove any residue of bleach.Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Programme temperature, maximum spin speed and maximum load
1) According to Commission Regulation EU 2019/2023, this programme at 40^ is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle.

Programme Default temperature Temperature range		Reference spin speed Spin speed range	Maximum load
MixLoad 69min	30 °C	1400 rpm	5 kg
	60 °C - 30 °C	1400 rpm - 400 rpm
Eco 40-60 1)	-2)	1400 rpm1400 rpm - 400 rpm	9 kg
Katoen - Coton	40 °C95 °C - Cold	1400 rpm1400 rpm - 400 rpm	9 kg
Synthetica - Synthétiques	30 °C60 °C - Cold	1200 rpm1200 rpm - 400 rpm	3 kg
Fijne was - Délicats	30 °C40 °C - Cold	800 rpm1200 rpm - 400 rpm	2 kg
Wol - Laine	40 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	1,5 kg
20min. - 3kg	30 °C40 °C - 30 °C	1200 rpm1400 rpm - 400 rpm	3 kg
Stoom - Vapeur	-- 1 kg
Machine clean	60 °C	1200 rpm1200 rpm - 400 rpm	-
Hygiene	60 °C	1400 rpm1400 rpm - 400 rpm	9 kg
Spoelen - Rinçage	-	1400 rpm1400 rpm - 400 rpm	9 kg
Centrifug./Pompen - Essorage/Vidange	-	1400 rpm1400 rpm - 400 rpm	9 kg

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) The temperature of this programme is not visible on the display and it is automatically set.

Programme options compatibility

OPTIONS

PROGRAMME MixLoad 69min

Eco 40-60

Katoen - Coton

Synthetica - Synthétiques

Fijne was - Délicats

Wol - Laine

20min. - 3kg

Stoom - Vapeur

Machine clean

Hygiene

Spoelen - Rinçage

Centrifug./Pompen - Essorage/Vidange

Centrifugeren - Essorage

No Spin

■1)

Rinse Hold

Extra Silent dB

Vlekken - Taches 2) 📋

Voorwas - Prélavage 📌

Tijd besparen - Gain de Temps

Extra spoelen - Rinçage Plus

Plus Steam

PODS® ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○

OPTIONS

1) If you set the No Spin option, the appliance performs draining only.
2) This option is not available with temperature lower than 40 °C.

Suitable detergents for washing programmes

Programme	Universal pow-der1)	Liquid Uni-versal	Liquid for coloureds	Delicates woollens	Special
MixLoad 69min	-- ▲ ▲ -- --
Eco 40-60 ▲ ▲ ▲ -- --
Katoen - Coton	▲ ▲ ▲ -- --
Synthetica - Synthé-tiques	▲ ▲ ▲ -- --
Fijne was - Délicats	-- -- -- ▲ ▲
Wol - Laine	-- -- -- ▲ ▲
20min. - 3kg	-- ▲ ▲ -- --
Hygiene	▲ ▲ -- -- ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.

-- = Not recommended ▲ = Recommended

8.2 Stoom - Vapeur programmes

The Stoom - Vapeur programmes can be used for reducing wrinkles and odours on

garments (such as cottons, synthetics, mixed fabrics, including delicates) that just need to be refreshed, in a short time, avoiding washing.

The fabric fibres are relaxed and afterwards ironing becomes effortless. When the cycle is completed, quickly remove the laundry from the drum.

The cycle duration can be reduced till 15 minutes by means of the Tijd besparen - Gain de Temps option.

DO NOT set this mode with the following type of items:

• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".

Do not use any detergent!

The Stoom - Vapeur programmes do not remove particularly intense odour and do not perform any hygienic cycle.

After the steam treatment the laundry can be humid. Hang items out for a few minutes.

The fragrance (AEG Steam Fragrance)

The AEGSteam Fragrance allows you to refresh even your delicate clothes, removing

wrinkles and adding freshness with a gentle fragrance developed exclusively by AEG. By refreshing your garments with steam, rather than running full wash cycles, you will keep your clothes looking and feeling new longer. You can even safely use the fragrance with Cashmere and Steam programmes - if they are available - for delicate fabrics like cashmere and wool. When treating smaller load reduce the fragrance dosage and the cycle duration: in only fifteen minutes, your clothes will regain that "just washed" feeling.

Read carefully the instructions supplied with the fragrance.

DO NOT:

• Tumble dry the garments treated with fragrance. Its benefit would evaporate.
• Use the fragrance with different purposes than those here described.
• Use the fragrance on new garments. New garments may contain residual finishing compounds which are not compatible with it.

The fragrance is available on AEG web shop or by authorised dealer.

8.3 Woolmark Premium Wool Care - Blue

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M2103

9. SETTINGS

9.1 Introduction

i

When pressing a key combination, do not tilt your fingers downwards. The sensors of the underneath buttons are sensitive and may interfere with your choice.

9.2 Acoustic signals

This appliance is provided with different acoustic signals, that operate when:

• You activate/deactivate the appliance (special short tune).
• You touch the buttons (click sound).
• You make a wrong selection (3 short sounds).
• The programme is completed (sequence of sounds for about 2 minutes).
  • The appliance has a malfunction (sequence of short sounds for about 5 minutes).
• When a laundry overload is detected during ProSense phase (a double sound played one).

To activate/deactivate this option, hold down the Extra spoelen - Rinçage Plus button until a beep or a double beep sounds.

i

If you deactivate this function, they continue to operate when the appliance has a malfunction.

9.3 Child Lock

With this option you can prevent children from playing with the control panel.

To activate/deactivate this option, hold down the Vlekken/Voorw. - Taches/Prélav. button until comes on/goes off on the display.

The appliance will default to this option after you switch it off.

The Child Lock function may not be available for a few seconds after switching the appliance on.

9.4 Factory Reset

This function allows to restore the factory default options. To activate this option follow steps below:

1. Switch the appliance on by pressing Aan/Uit - Marche/Arrêt button.
2. Press and hold the Vlekken/Voorw. - Taches/Prélav. and Tijd besparen - Gain de Temps buttons for some seconds.
3. The display will show for about 5 seconds.

9.5 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing the Aan/Uit - Marche/Arrêt button.
2. Press and hold the Plus Steam and Extra spoelen - Rinçage Plus buttons for some seconds.
3. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units).
4. To exit this mode, press any button or switch the appliance off by means of theAan/Uit - Marche/Arrêt button.

i

If the procedure does not work (due to timeout or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

10. DAILY USE

WARNING!

Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance.

A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the default programme, Eco 40-60, cycle duration, the maximum load (for a few seconds), the default temperature, the default spin speed and the indicators of the phases making up the programme.

10.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

Medical warning diagram showing a warning symbol with an exclamation mark and a cross, next to a medical illustration.

CAUTION!

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

10.3 Filling the detergent and additives

Pods®

- Compartment for detergent pods (Max 2 pods).

When using detergent tablets, make sure that the Pods® option is activated.

- Compartment for prewash phase an soak mme (powder detergent only).

- Compartment for washing phase (powderent only).

Make sure that the Pods® option is deactivated when using this compartment.

If using liquid detergent, remember to insert the container for liquid detergent

- Compartment for fabric softener and other liq-eatments (fabric conditioner, starch).

MAX - Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level (i). This quantity will however guarantee the best washing results.

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

Proceed as follows

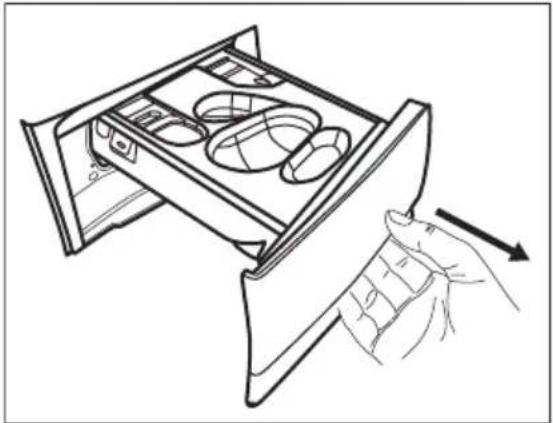

1. Open the detergent dispenser.

Line drawing of a hand holding a tray with multiple compartments and a handle, showing an arrow indicating direction (no text or symbols)

1. If a prewash phase is set, put the powder detergent in compartment
2. For main wash, choose the proper compartment depending on the type of detergent:
   a) Put the powder detergent in the compartment ⏚

Line drawing of a refrigerator drawer with a speaker icon pointing to the interior (no text or symbols)

b) Pour the liquid detergent in the same compartment after inserting the relevant container

Line drawing of a refrigerator interior with a hand pointing to the lid (no text or symbols)

Line drawing of a refrigerator drawer with a hand pointing to a drop (no text or symbols)

c) Put the tablets in the compartment ☐ Make sure that the Pods® option is activated.

Pods®

1. Pour fabric softener in the compartment
2. Close the detergent dispenser.

10.4 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running:

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running:

If you select the Plus Steam the steam phase indicators come on.

The steam phase is running:

The anti-crease phase is running:

10.5 Additional information about daily use

The ProSense load detection

The appliance detects the load in the first 30 seconds. At the end of the load detection, the indicator stop flashing. In case of drum

overload, the indicator MAX is flashing in the display: It is possible to pause the appliance and remove the exceeding garments. If the laundry amount will not be reduced, the washing programme starts anyway. About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics. The ProSteam Technology is not available in programmes with short cycles.

Starting a programme

Touch the Start/Pauze - Départ/Pause ▷ II button to start the programme. The related indicator stops flashing and stays on. The programme starts, the door is locked. The display shows the indicator :

Starting a programme with the Klaar over - Fin programmée

1. Touch this repeatedly until the display shows the desired time within the programme should end. The indicator comes on.

2. Touch the Start/Pauze - Départ/Pause ▷ II button. The appliance starts the countdown to the end of the programme and the programme will start at the right moment for ending at the time set through this option.

Interrupting a programme and changing the options.

1. When the programme is running, you can change only some options. Touch the Start/Pauze - Départ/Pause button.
2. Change the options. The given information in the display changes accordingly
3. Touch the Start/Pauze - Départ/Pause ▷II again. The washing programme continues.

Cancelling a running programme

1. Press the button Aan/Uit - Marche/Arrêt ^① button to cancel the programme and to deactivate the appliance
2. Now, you can set a new washing programme. Press again to activate the appliance.

Opening the door- adding garments

While a programme or the delay start operates, the appliance door is locked.

1. Touch the Start/Pauze - Départ/Pause button
2. Open the appliance door. If necessary, add or remove the items.
3. Close the door and touch the Start/Pauze - Départ/Pause again. The programme or the delay start continues.

End of the programme

1. The appliance stops automatically. The acoustic signals operate (if they are active).
2. The indicator of the Start/Pauze - Départ/Pause button goes off. The door unlocks and the indicator goes off.
3. Press the Aan/Uit - Marche/Arrêt button to deactivate the appliance. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse you must remember to drain the water to open the door.

1. Touch button Start/Pauze - Départ/Pause ▷||

2. If you have set, the appliance drains the water and spins.

3. If you have set, the appliance only drains the water.

4. Touch button Centrifugeren - Essorage to decrease the spin speed proposed by the appliance When the programme is completed and the door locked indicator → goes off, you can open the door.

5. Press the Aan/Uit - Marche/Arrêt to deactivate the appliance.

Stand-by function

The Stand-by function automatically deactivates the appliance to reduce the energy consumption.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispenser Every two months

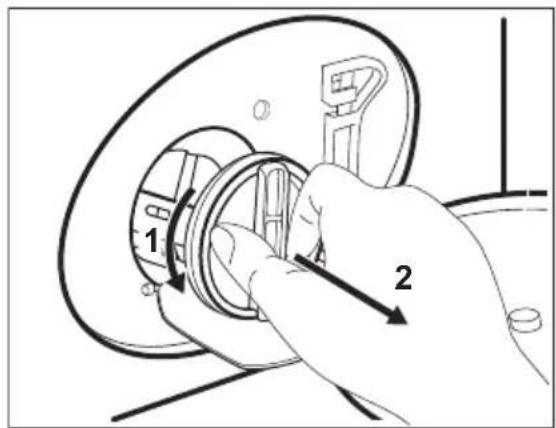

Clean drain pump filter Twice a year

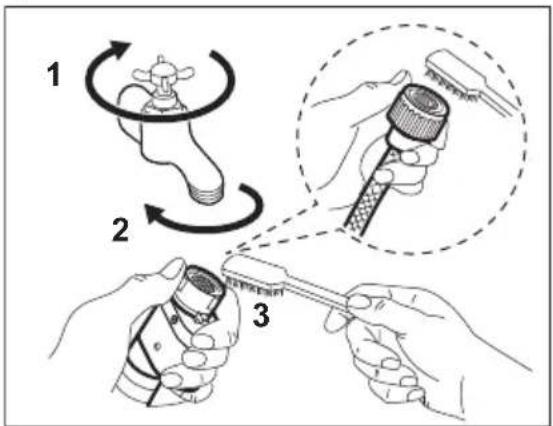

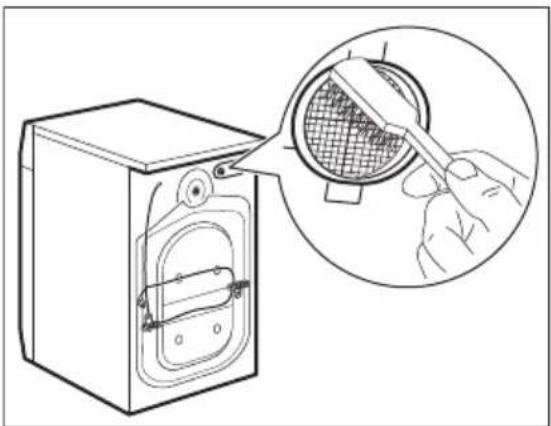

Clean the inlet hose and twice a yearthe valve filter

11.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary, please contact the Authorised Service Centre.

11.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

11.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

i

Always follow the instructions that you find on the packaging of the product.

11.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew. To eliminate these deposits and clean the inner part of the appliance, run a maintenance wash regularly (at least once a month).

i

Refer to "Cleaning the drum" paragraph.

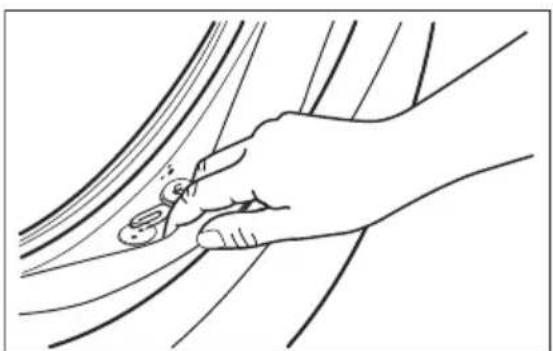

11.6 Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

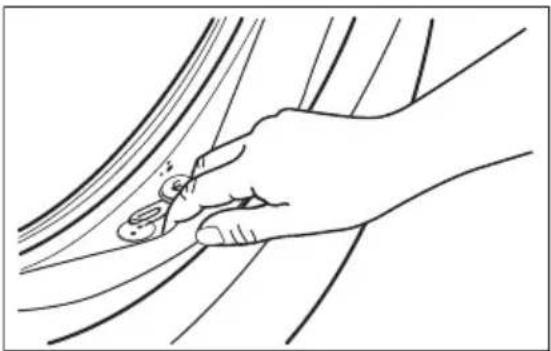

Line drawing of a hand holding a tool near a curved surface (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

i

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

11.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

i

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Remove all laundry from the drum.
2. Run the Machine clean programme. For more details, refer to washing programme table.
3. Add a small quantity of powder detergent into the empty drum, in order to rinse out any left residues.

i

Occasionally, at the end of a cycle the display may show the icon this is a recommendation to perform the "drum cleaning". Once the drum cleaning has been performed, the icon disappears.

11.8 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent, clotted fabric softener, formation of mould in the detergent dispenser, every two months carry out the following cleaning procedure how explained in the following diagrams:

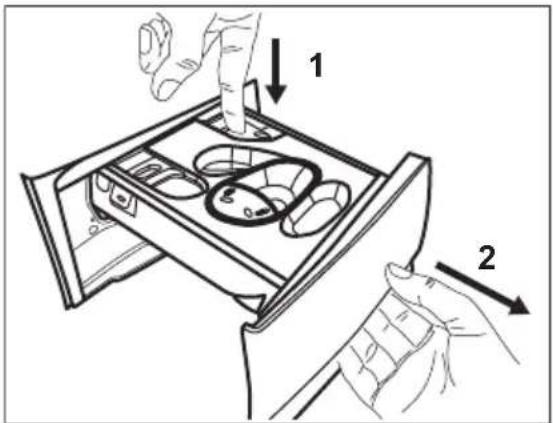

1. Open the detergent dispenser. Press the catch downwards as indicated in the picture and pull it out.

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement or positioning.

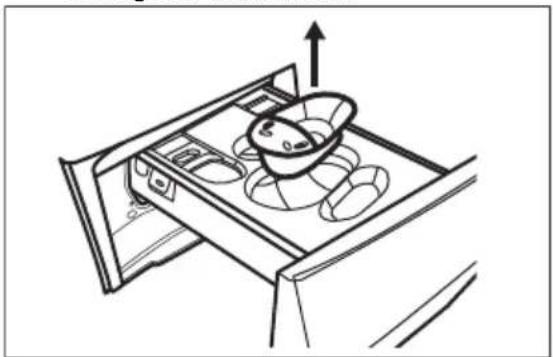

1. Remove the container for liquid detergent, if inserted.


Line drawing of a refrigerator drawer with an open tray and a bowl, no text or symbols present

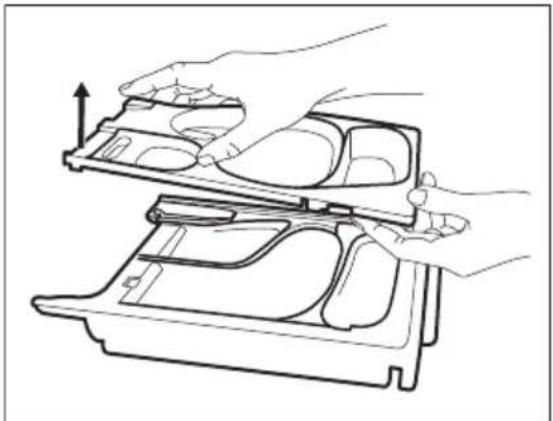

1. Lift up the top cover of the compartments to remove it.

Line drawing of hands assembling a tray with internal compartments (no text or symbols)

1. Wash the detergent dispenser and any insert under running water.


Line drawing of a faucet dispensing liquid into a tray (no text or symbols)

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

CAUTION!

Do not use sharp or metal brushes and sponges.

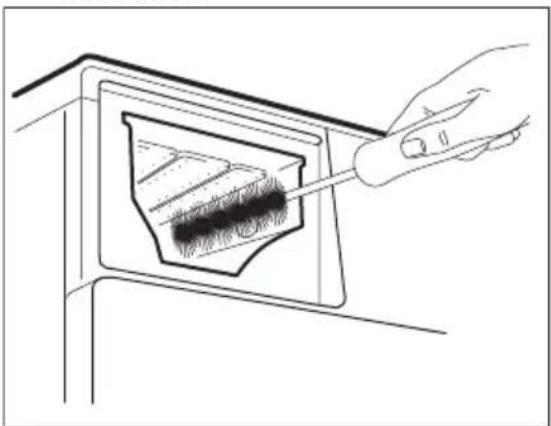

Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

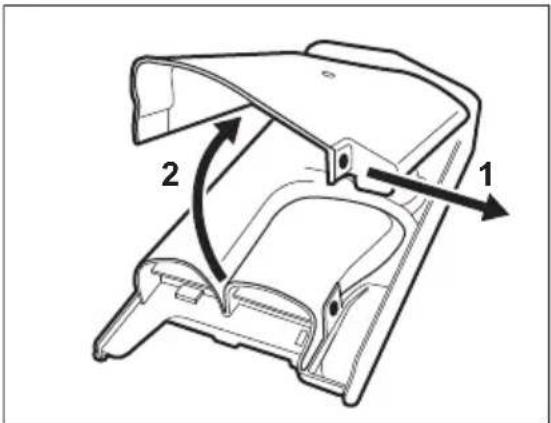

1. Turn the dispenser up side down and open the bottom cover as indicated in the picture.


Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

1. Make sure that all detergent residue is removed from the conveyor. Use only soft damp clothes.

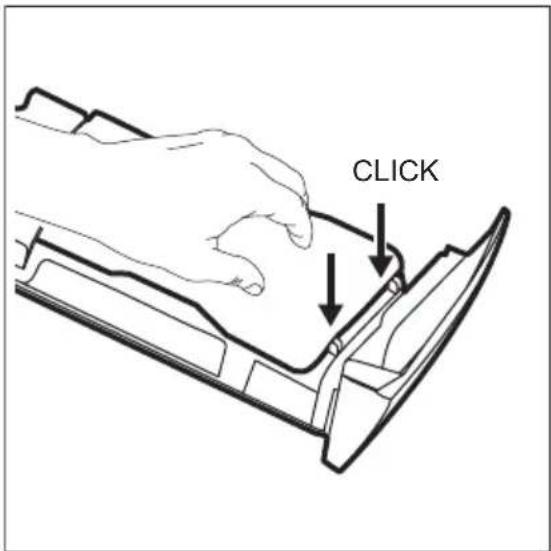

2. Put bottom cover back to its position by aligning its holes on drawer hooks as indicated in the picture. Close it till "click" sound.

Illustration of hands holding a device with an arrow indicating motion (no text or symbols)

CAUTION!

Press the bottom cover as indicated in the picture. Make sure that it is closed properly.

CLICK

1. Reassembly the drawer as follows:

a. Place the bottom cover and press till "click" sound.
b. Place the top cover and press till "click" sound.
c. Insert the container for liquid detergent, if needed.

1. Insert the detergent dispenser into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand inserting a tray into an appliance (no text or symbols)

11.9 Cleaning the drain pump filter

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.

• The display shows the alarm code

E20

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down.
• Repeat Step 3 several times by closing and opening the valve until the water stops flowing out.

Always keep a rag nearby to dry up any water spillages when removing the filter.

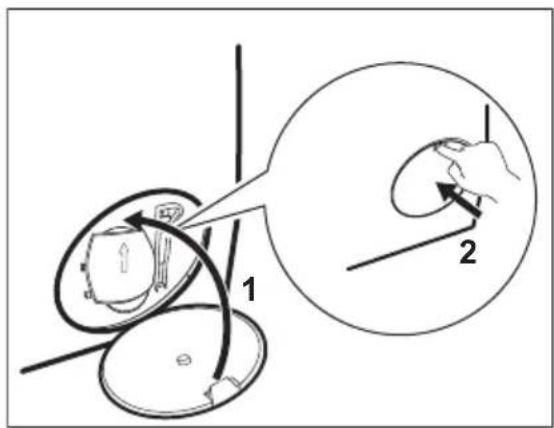

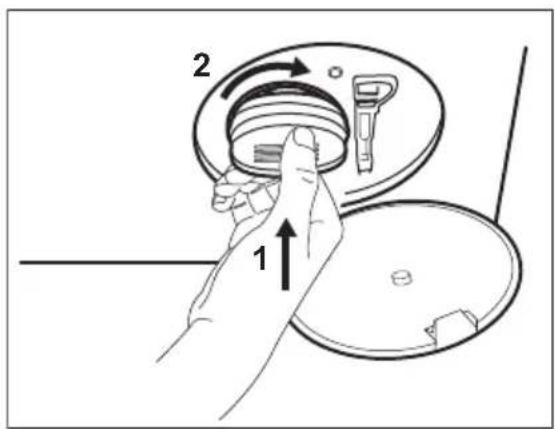

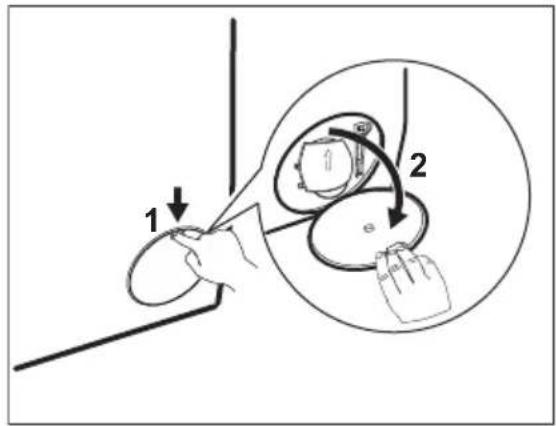

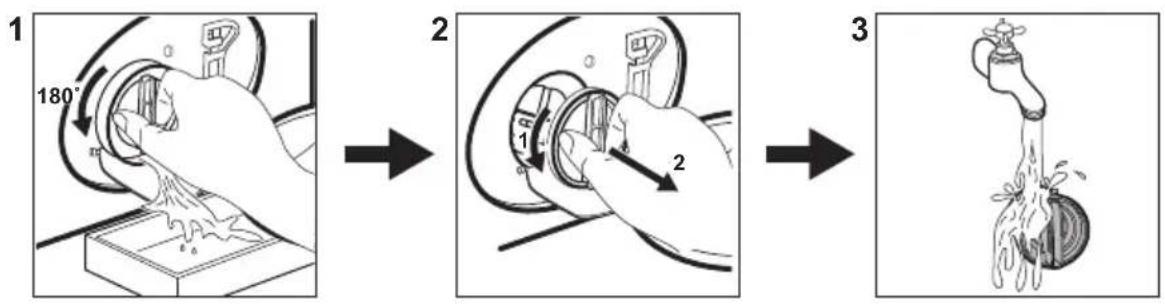

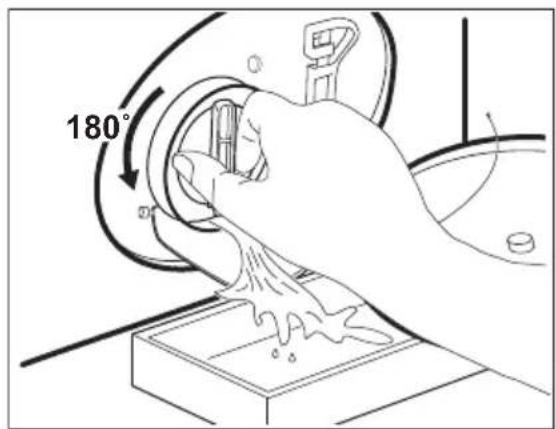

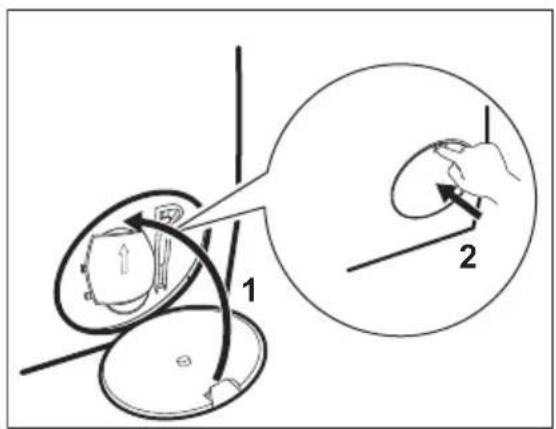

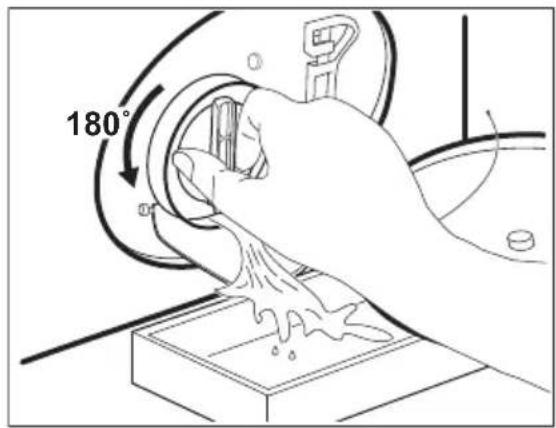

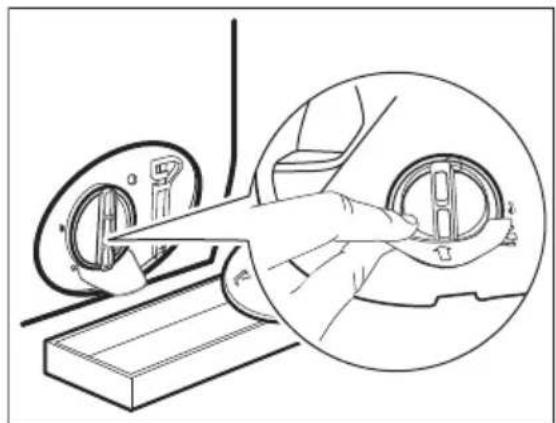

Proceed as following diagrams to clean the pump filter:

1 2

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

180°

Diagram showing a hand using a wrench to adjust the dial into a device, labeled with parts 1 and 2.

Illustration of a medical procedure involving surgical tools and a circular target with arrows (no text or symbols)

Line drawing of a faucet with water spilling out from a circular pipe (no text or symbols)

2 1

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including parts numbered 1 and 2.

WARNING!

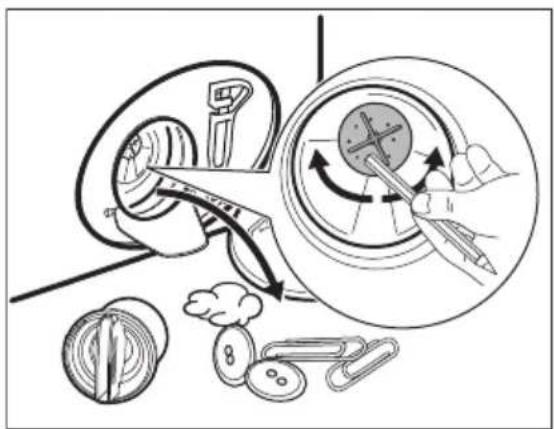

Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

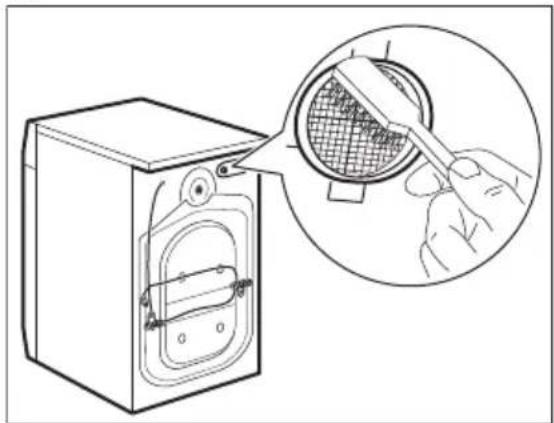

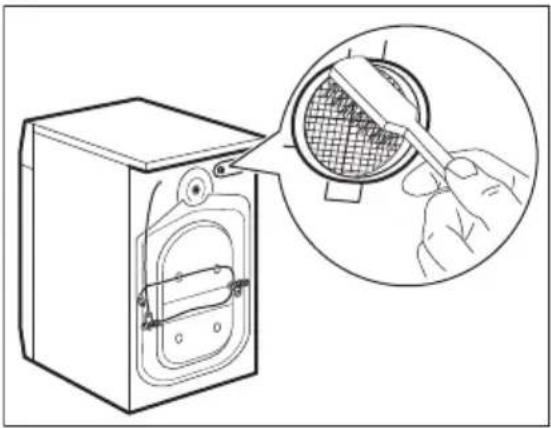

11.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed following diagrams to clean filters:

1.

Diagram illustrating three-step tool manipulation process: rotary valve rotation, presser handling, and manual grip application.

1.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

4.

20° 45°

11.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in "Cleaning the drain pump" paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

11.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.

3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the emergency drain procedure.

5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

12. CONSUMPTION VALUES

12.1 Comment

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm		%1)	°C	rpm2)
Full load 9 0.675 61.0 03:48 53.00 35.0 1351
Half load 4,5	0.380 46.0 02:53 53.00 28.0 1351
Quarter load	2,5	0.165 31.0 02:50 54.00 24.0 1351

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Maximum spin speed.

Common programmes

These values are indicative only.

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Katoen - Coton 3)95°C	9 2.700 100.0 03:30 52.00 85.0 1400
Katoen - Coton60°C	9 1.700 95.0 03:10 52.00 55.0 1400
Katoen - Coton 4)20°C	9 0.350 95.0 03:00 52.00 20.0 1400
Synthetica - Synthé-tiques40°C	3 0.550 55.0 02:10 35.00 40.0 1200
Fijne was - Délicats 5)30°C	2 0.350 55.0 01:10 35.00 30.0 1200
Wol - Laine30°C	1,5 0.250 50.0 01:10 30.00 30.0 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Reference indicator of the spin speed.
3) Suitable for washing heavily soiled textiles.
4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
5) It also performs as quick washing cycle for lightly soiled laundry.

Power consumption in different modes

Off (W) Stand-by (W) Delay start (W)

0.50 0.50 4.00

Time to Off/Standby mode is 15 minutes maximum.

13. QUICK GUIDE

13.1 Daily use

• Connect the mains plug to the mains socket.

• Open the water tap.

• Load the laundry. Close the door and make sure that no laundry stays between the seal and the door.

• Push the Aan/Uit - Marche/Arrêt button to turn the appliance on (1).

• Turn the programme dial to set the desired programme (2).

• Set the desired options by means of the corresponding touch buttons (3).
• Pour the detergent and other treatments in the proper compartment of the detergent dispenser. If you use tablets, press Pods® touch button to active tis option.
• To start the programme, touch the Start/Pauze - Départ/Pause button (4).
  • The appliance starts.
• At the and of the programme, remove the laundry.
• Push the Aan/Uit - Marche/Arrêt button to turn the appliance off.

13.2 Care and cleaning

Periodic cleaning schedule will helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two monthser

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a yearthe valve filter

The following paragraphs explain how you should clean some part.

Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

i

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code E20 appears on the display.

13.3 Programmes

Programmes Load Product description
MixLoad 69min 5 kg		Cotton and synthetic items. This programme ensures a good washing performance in a short time.The standard program duration has been developed on a laundry load of 5 kg. If you wash a smaller or a bigger load, the washing time automatically de-creases or increases ensuring perfect results.
Eco 40-60 1)	9 kg	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
Katoen - Coton	9 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Synthétiques	3 kg Synthetic items or mixed fabric items.
Fijne was - Déli-cats	2 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wol - Laine	1,5 kg Machine washable wool, hand washable wool and delicates.
20min. - 3kg	3 kg Cotton and synthetic lightly soiled items or once worn items.
Stoom - Vapeur	1 kg Cotton and synthetic items that need to de-wrinkle.
Machine clean	- Maintenance cycle for drum cleaning.
Hygiene	9 kg	White cotton items. This programme removes more than 99,99% of bacteria and viruses 2). It also ensure a proper reduction of allergens.
Spoelen - Rin-cage	9 kg	All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning.
Centrifug./Pompen - Es-sorage/Vidange	9 kg	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.

Programmes Load Product description

Loading the appliance to the maximum capacity indicated for each programmes helps to reduce energy and water consumption.

1) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Suitable detergents for washing programmes

Programme Universal pow-der1)		Liquid Uni-versal	Liquid for coloureds	Delicates woollens	Special
MixLoad 69min -- ▲ ▲ -- --
Eco 40-60 ▲ ▲ ▲ -- --
Katoen - Coton	▲ ▲ ▲ -- --
Synthetica - Syn-thétiques	▲ ▲ ▲ -- --
Fijne was - Délicats	-- -- -- ▲ ▲
Wol - Laine	-- -- -- ▲ ▲
20min. - 3kg	-- ▲ ▲ -- --
Hygiene	▲ ▲ -- -- ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.

-- = Not recommended ▲ = Recommended

13.4 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

- powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization, - liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C

max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

- Use less detergent if: - you are washing a small load, - the laundry is lightly soiled, - there is large amounts of foam during washing.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,

• reduced washing effect,

• inadequate rinsing,

• a greater impact for the environment.

14. ALARM CODES AND POSSIBLE FAILURES

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

Problem Possible solution
E10The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged.
E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary.Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.
EFOThe anti-flood device is on.	Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.
If the problem persists, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate
*Some alarm codes may not occur. Subject to change without notice.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating a washing machine operation with labeled components and a recycling bin, accompanied by explanatory text.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

AVERTISSEMENT!

Diagram showing a washing machine with two close-up insets illustrating the mechanism of fastening or locking.

Diagram illustrating washing machine operation with three circular insets showing tool positioning and cleaning steps

3/4" 3/4" A i A ✓ A ✓ ↓

⚠ AVERTISSEMENT!

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

-- = non recommandé ▲ = recommandé

8.2 Stoom - Vapeur programmes

WOOLMARK WOOL CARE

WOOL HAND WASH SAFE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an emergency or diagnostic hazard.

ATTENTION!

Line drawing of a hand holding a tray with multiple compartments and a directional arrow indicating motion (no text or symbols)

Line drawing of a refrigerator drawer with a magnified inset showing a glass container (no text or symbols)

Line drawing of a refrigerator interior with a hand pointing to the lid (no text or symbols)

Line drawing of a refrigerator drawer with a hand pointing to a hanging object (no text or symbols)

Line drawing of a hand holding a tool near a car window (no text or symbols)

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement or positioning.

Line drawing of a refrigerator interior with an upward arrow indicating motion (no text or symbols)

Line drawing of hands assembling a tray with a handle, showing internal compartments and a directional arrow (no text or symbols)

Line drawing of a faucet pouring liquid into a tray (no text or symbols)

Line drawing of a hand using a tool to insert or install a textured object into a rectangular frame (no text or symbols)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or assembly.

Illustration of hands holding a device with an arrow indicating direction (no text or symbols present)

ATTENTION!

Line drawing of a hand opening a drawer with multiple compartments and a handle (no text or symbols)

Illustration of a hand inserting a component into a circular housing, with no visible text or symbols.

2.

1.

180°

1 2

4.

Illustration of a medical procedure involving surgical tools and a circular dial, with no visible text or symbols.

5.

1.

Line drawing of a faucet with water flowing out, creating splashes from the drain (no text or symbols)

Diagram showing a hand pressing a button on a circular component with labeled parts and directional arrows

1.

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including parts numbered 1 and 2.

8.

AVERTISSEMENT!

Diagram illustrating three-step hairpin tool application: rotation, press, and cutting steps

2.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Illustration of a washing machine with a magnified inset showing a hand using a tool to filter or clean the mesh (no text or symbols present)

1.

20° 45°

11.11 Vidange d'urgence

Line drawing of a hand holding a tool near a car window (no text or symbols)

13.3 Programmes

-- = non recommandé ▲ = recommandé

Diagram of a washing machine with numbered parts and labeled components for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WARNUNG!

Diagram showing a washing machine with two close-up insets illustrating the internal components of the device.

Diagram illustrating a washing machine operation with three circular insets showing hand-cye tool positioning and cleaning steps.

3/4" 3/4" A i A ✓ A ✓ ↓

WARNUNG!

Diagram illustrating a kitchen sink with tubing and a shopping cart icon, showing a close-up of the product's handle.

(*)

min.600 mm max.1000 mm

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating a medical or diagnostic hazard.

VORSICHT!

Line drawing of a hand holding a tray with compartments and a directional arrow indicating movement (no text or symbols)

Line drawing of a refrigerator drawer with a magnifying glass highlighting the interior (no text or symbols)

Line drawing of a refrigerator interior with a bowl and tray, showing an arrow pointing to the lid (no text or symbols)

Line drawing of a refrigerator drawer with a hand pointing to a hanging object (no text or symbols)

Line drawing of a hand holding a tool near a car window (no text or symbols)

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement or positioning.

Line drawing of a refrigerator drawer with an open tray and a bowl containing food items (no text or symbols)

Line drawing of hands assembling a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a faucet dispensing water into a tray (no text or symbols)

Line drawing of a hand using a tool to insert or install a rectangular object with a textured surface (no text or symbols)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

Illustration of hands using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

VORSICHT!

Line drawing of a hand holding an open drawer with multiple compartments and a handle, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

180°

Diagram showing a hand using a wrench to adjust the dial into a device, labeled with parts 1 and 2.

Illustration of a medical procedure involving surgical tools and a circular target with arrows indicating rotation (no text or symbols)

Line drawing of a faucet with water spilling out, creating splashes from the drain (no text or symbols)

2 1

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including parts numbered 1 and 2.

WARNUNG!

Diagram illustrating three-step hairpin tool application: rotation, press, and cutting steps

1.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

1.

Illustration of a washing machine with a magnified inset showing a hand using a tool to filter or remove the mesh (no text or symbols present)

1.

20° 45°

11.11 Notentleerung

Line drawing of a hand holding a car tire, no text or symbols present

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels present)

Recycling symbol with three arrows forming a triangle (no text or labels)
