Installation and User's Manual for Residential Nugget Ice Machine

Model SRN110

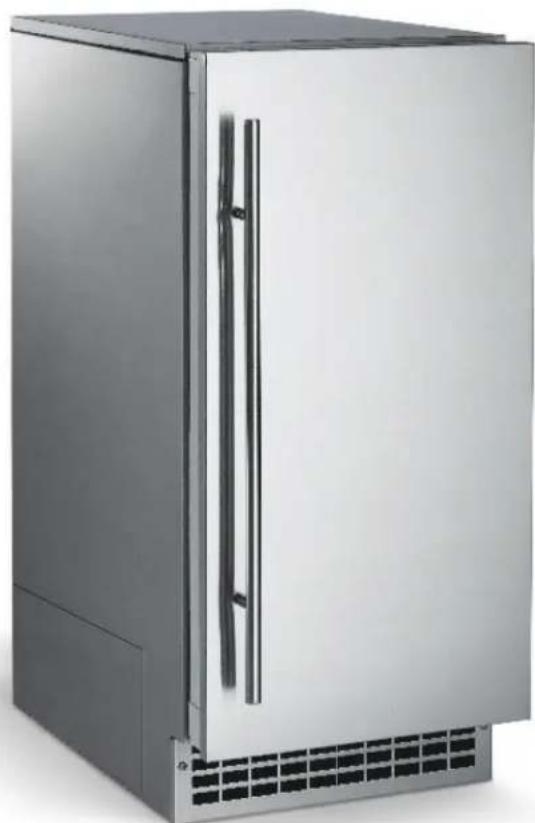

Exterior view of a stainless steel refrigerator with ventilation grilles and cooling fins (no text or symbols visible)

Brilliance™

Important Safety Information. Make sure to read through fully to avoid severe injury or death.

WARNING R290 Refrigerant is Flammable. Flame can cause burns or property damage Keep away from sources of fire

Warning sign depicting a flame symbol in yellow and black on a white background

This ice machine contains FLAMMABLE refrigerant and improper use can result in fire or explosion. Do not use cigarettes, vapes, or cellphones near pipes or cables, as it can be a source of ignition or spark.

This ice machine must not be installed next to equipment with an open ignition source (ie. open flames, an operating gas appliance, or electric heater). Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer.

WARNING: In order to reduce flammability hazards the installation of this appliance must only be carried out by a suitably qualified person.

This appliance must be installed according to the safety standard for refrigeration systems presented in ANSI/ASHRAE 15.

Do not install next to anything that continuously vibrates, avoiding excessive vibrations or pulsations.

Install in a well ventilated environment and ensure ventilation and outlets are not obstructed.

Properly secure electrical wiring and cabling for the machine to minimize wear and vibrations.

Keep fire extinguisher nearby in case of emergencies.

WARNING: Do not damage the refrigerating circuit

Use a Scotsman recommended technician certified to repair R290 equipment.

Install ONLY Scotsman factory service parts. Use of non-OEM parts can be dangerous due to the design changes needed to safely use R290 refrigerant.

WARNING: Cancer and Reproductive Harm. Visit www.P65Warnings.ca.gov for details.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This manual includes information for the installation, operation and maintenance of the SRN110 residential ice machine. Note any Caution or Warning indicators, as they provide notice of potential hazards. Keep this manual for future reference.

The SRN110 was developed to offer fans of Scotsman's Nugget Ice form the ability to have that ice in their homes. Previously Nugget Ice was only available in commercial establishments, where it developed a strong following because of the chewable nature of the ice. This machine makes authentic Nugget ice, using the same process as the larger commercial machines.

Contents

Product Description: Page 2

Cabinet Dimensions ...... Page 3

Location Recommendations: Page 4

Decorating Features: Page 5

Door Panel Attachment...... Page 6

Door Swing...... Page 7

Plumbing - Pump Model ...... Page 8

Plumbing: Gravity Drain Model.... Page 9

Electrical and Start Up...... Page 10

Use Page 11

Maintenance...... Page 12

How to remove scale from the ice making system. Page 13

What to do before calling for service.... Page 16

Decommissioning.... Page 17

Outdoor Use Notice:

Keep from Freezing: Severe damage will occur to the unit if left in or operated in temperatures beyond the limits listed in this manual. Such damage is NOT covered by warranty.

Keep Dry: Do not locate in low lying areas where puddles can accumulate.

Provide Shade: Heat gain from the sun will reduce the unit's ability to make and store ice. Ultraviolet radiation from the sun can potentially damage the unit's plastic components.

Water Supply: Avoid a long run of hose or tubing exposed to the sun. Plastic water supply tubing should be rated for potable water and include UV protection. Copper tubing is recommended.

Back Flow Prevention: The unit includes back flow prevention, no additional check valve is required.

Drainage: Do Not drain into swimming pool or onto grounds.

This ice machine is designed to be used indoors in a controlled environment, or outdoors within certain limits.

The SRN110 is made up of two major systems: the ice making system and the ice storage system. The ice making system is a continuous flow type ice machine, it makes ice when the ice level becomes low and stops when it is full.

The ice storage system is an insulated cabinet with a drain at the bottom for melting ice. It is not refrigerated, ensuring that the bin contains fresh ice.

Installation Information

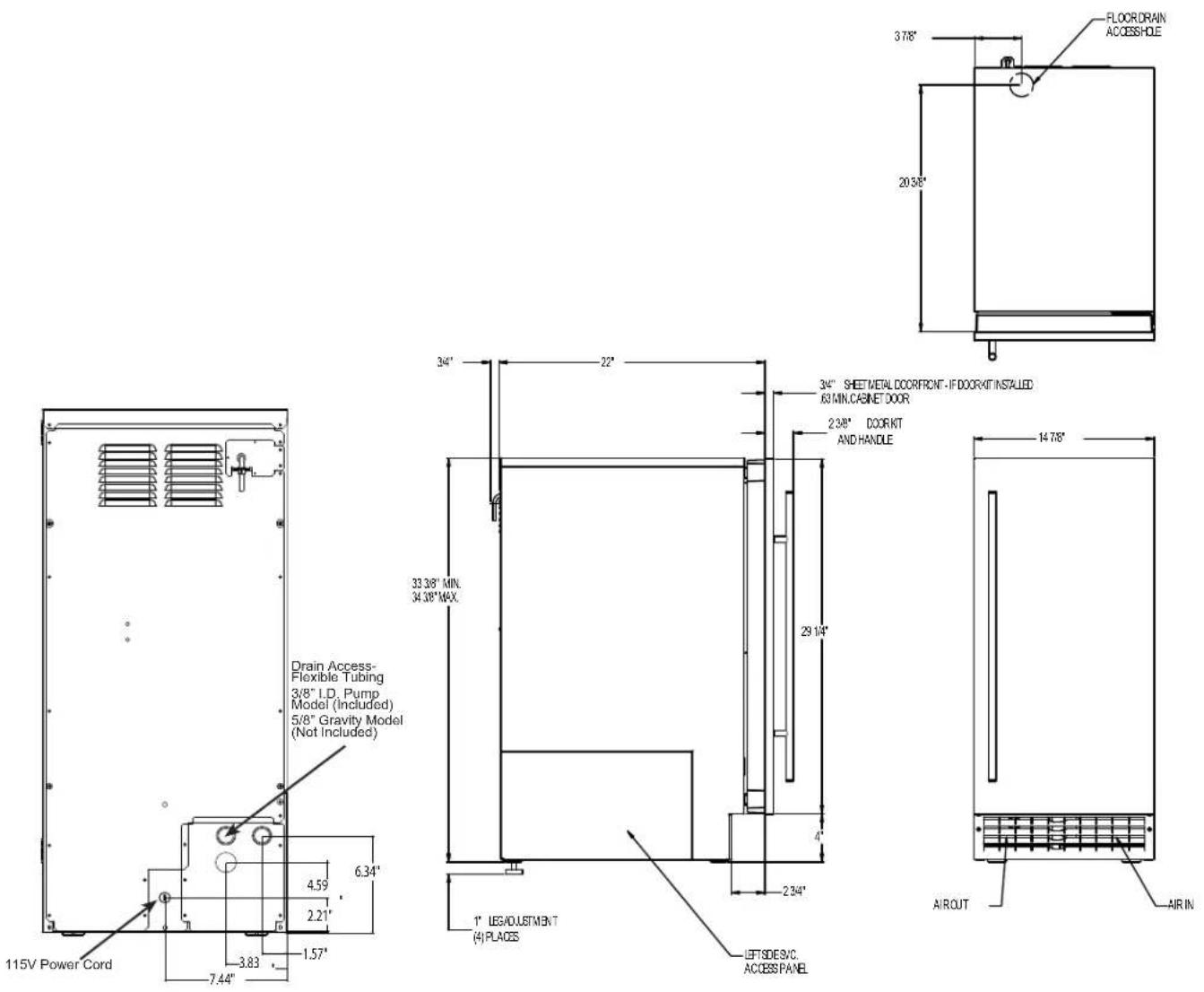

Dimensions: The cabinet is 14 7/8" wide by 33 3/8" - 34 3/8" high.

Utility and Operational Requirements

• The SRN110 must be connected to a potable water supply.
• The water supply must have a conductivity of at least 10 microsiemens/cm.
  • Minimum water pressure: 20 psi (1.4 bar)
  • Maximum water pressure: 80 psi (5.5 bar)
  • Minimum water temperature: 40^ F ( 4.5^ C)
  • Maximum water temperature: 90°F (38°C)

It is designed to operate in wide range of air temperatures:

• Minimum air temperature: 50°F (10°C)
• Maximum air temperature: 100°F (38°C)

Although the machine will function within the listed ranges, it works best at water temperatures between 50 - 60°F and air temperatures between 60 - 80°F.

Note: Ice making capacity goes down as the environmental temperatures go up, and will be severely reduced at temperatures over 90°F.

Operating a unit outside of the limits can cause problems that are not covered by the warranty and, if extreme, can cause damage to the unit.

Water Quality

The water to the machine must be potable, or fit for human consumption. Beyond that, water supplies vary in the degree of mineral content. As this ice machine makes ice, all the water that flows into the machine is changed into ice. That includes any minerals that might be in the water. However, during ice making some minerals will stick to the ice making components. The higher the mineral content, the more mineral build up will occur.

Water filters are a partial help, as they will remove the suspended solids, but water treatment is needed for the dissolved solids, which are part of the water and cannot be filtered out.

RO Water

This machine can be supplied with Reverse Osmosis water, but the water conductivity must be no less than 10 microsiemens/cm. A reverse osmosis system should include post treatment or blending to satisfy the RO water's potential aggressiveness.

Deionized water is not recommended and could damage the machine.

Because water softeners exchange one mineral for another, softened water may not improve water conditions when used with ice machines

Electrical power

The unit must be on its own 115 volt, 60 Hz, 15 amp circuit. The unit is equipped with an electrical power cord, but should only be plugged into a circuit dedicated to the ice machine. The unit must be the only device on the circuit and powered directly from the breaker panel.

Confirm the outlet is properly grounded and is in good condition. Worn outlets should be replaced as they can cause erratic operation of equipment. Do not use an extension cord.

Warranty Information

Warranty information is supplied separately from this manual. Refer to it for coverage. In general, the warranty covers defects in materials or workmanship and does not cover corrections of installation errors or maintenance. Fill out the Warranty Registration card and mail it in or scan the above QR, code to be taken to the Scotsman warranty website.

Scotsman Ice Systems are designed and manufactured with the highest regard for safety and performance. They meet or exceed the standards of UL60335-2-24.

Scotsman assumes no liability or responsibility of any kind for products manufactured by Scotsman that have been altered in any way, including the removal or use of any parts and/or other components not specifically approved by Scotsman.

Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and designs are subject to change without notice.

The machine can be built into a cabinet. It is an air cooled refrigeration system and so air circulates in and out of it through the grill toekick at the bottom front. This area must not be blocked by any covering door, panel or other obstruction.

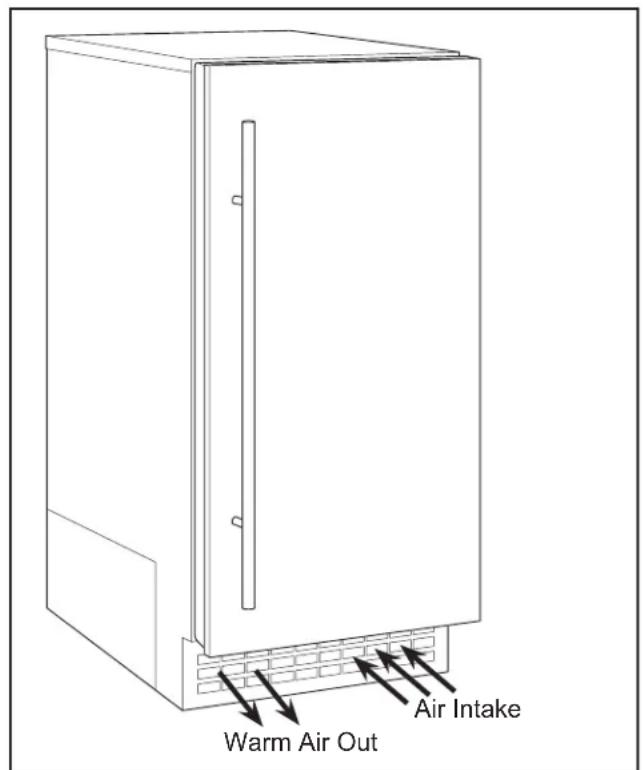

Warm Air Out Air Intake

There are two models. One is a gravity drain model and must have a building drain connection below the level of the drain tube at the back of the cabinet. The other is a pump drain model which can force drain water vertically a maximum of 10 feet, allowing it to be located where a gravity drain isn't available.

Models:

• SRNP110A-1SU – Pump, Unfinished Door
• SRNG110A-1SU – Gravity, Unfinished Door
• SRNP110A-1SS – Pump, Finished SS Door
• SRNG110A-1SS – Gravity, Finished SS Door

Kickplate Extension: In some situations, the leg levelers will be extended enough to become visible. The KKPF kit extends the kickplate over the legs.

Cabinet Stability: In some free standing installations, it may be prudent to add a bracket that secures the back of the cabinet to a wall. That kit number is KATB.

Drain Conversion: A gravity drain model can be converted to a drain pump model by installing a drain pump kit. The drain pump kit consists of a drain pump, wiring harness and associated tubing. The part number is KPMP.

Installation Notes

Built In Situations: If a finished floor is to be installed in the area after the ice machine has been built in, shims the expected thickness of the floor should be installed under the unit to keep the machine level with the planned floor level.

Note: The water connection is at the back and adds a few inches to the cabinet depth.

Installations on a slab: Use a pump model and pump the water to the point of drainage. Pump models will pump 1 story (10 feet) high.

Installations over a crawl space or basement: Either gravity drain or pump model units may be used, if there is not enough room behind the machine for a drain/waste receptacle, the drain will have to be below the floor.

Note: When installed in a corner, the door swing may be limited due to handle contact with the wall or cabinet face.

All models require a water supply. Water supplies vary in the degree of mineral content. High mineral content water will require more frequent maintenance. Water filtration may improve the taste of the ice as well as cut down on some of the mineral build up. Please consult with a local plumber or water specialist to determine your filtration needs for the water in your area.

SRN110

User's Manual

Door Options & Features:

Door Panel

The ice machine can be ordered without a conventional door covering so it can be decorated to the user's preference. Scotsman offers a stainless steel covering kit called the KDFS. Alternatively, a custom built panel can be placed onto the door.

Door Panel Attachment

To attach a Scotsman supplied panel:

Note: If door swing is to be changed, it must be done before panel is attached.

The panel will be held on by 6 sheet metal screws and 2 machine screws.

1. Remove the gasket and retain for later use.
2. If the door panel is stainless steel, remove any plastic covering the stainless steel panel.
3. Place the panel onto the outside of the door, and secure it to the door using two machine screws, located at the left center and right center.
4. Fasten the panel to the door using the 6 sheet metal screws. In the hinge area, use the outermost screw holes.

5. Place the covers over the hinge areas, and secure each cover to the door using a sheet metal screw.

6. Insert hole plug over screw installed in step 5.

7. Return the gasket to its original position.

Custom Panel

A custom panel of wood or other material not exceeding 15 lbs can be attached to the door. Attachment is from the ice side of the door. Holes are provided in the door for this purpose.

See instructions in the information packet to create and attach a custom panel

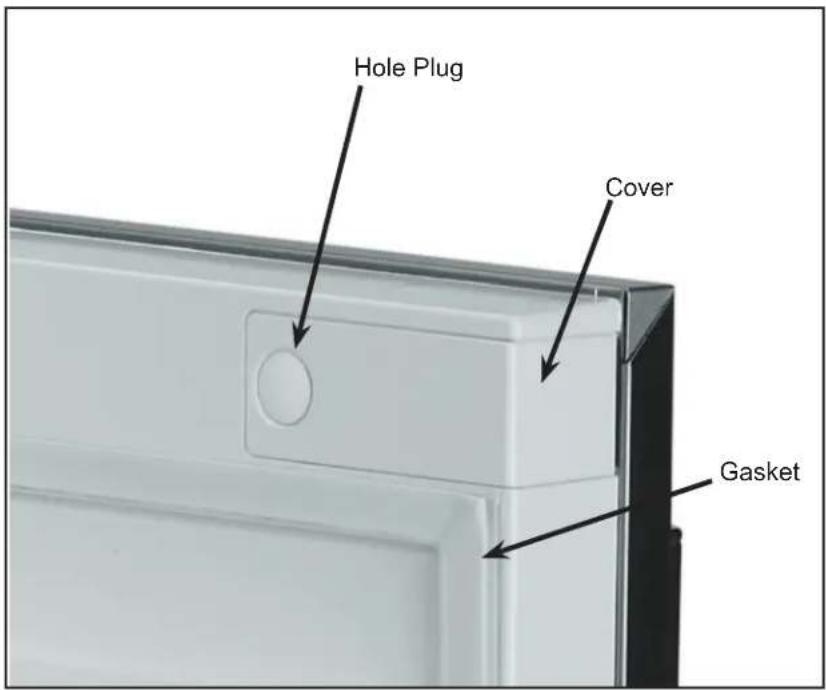

Hole Plug Cover Gasket

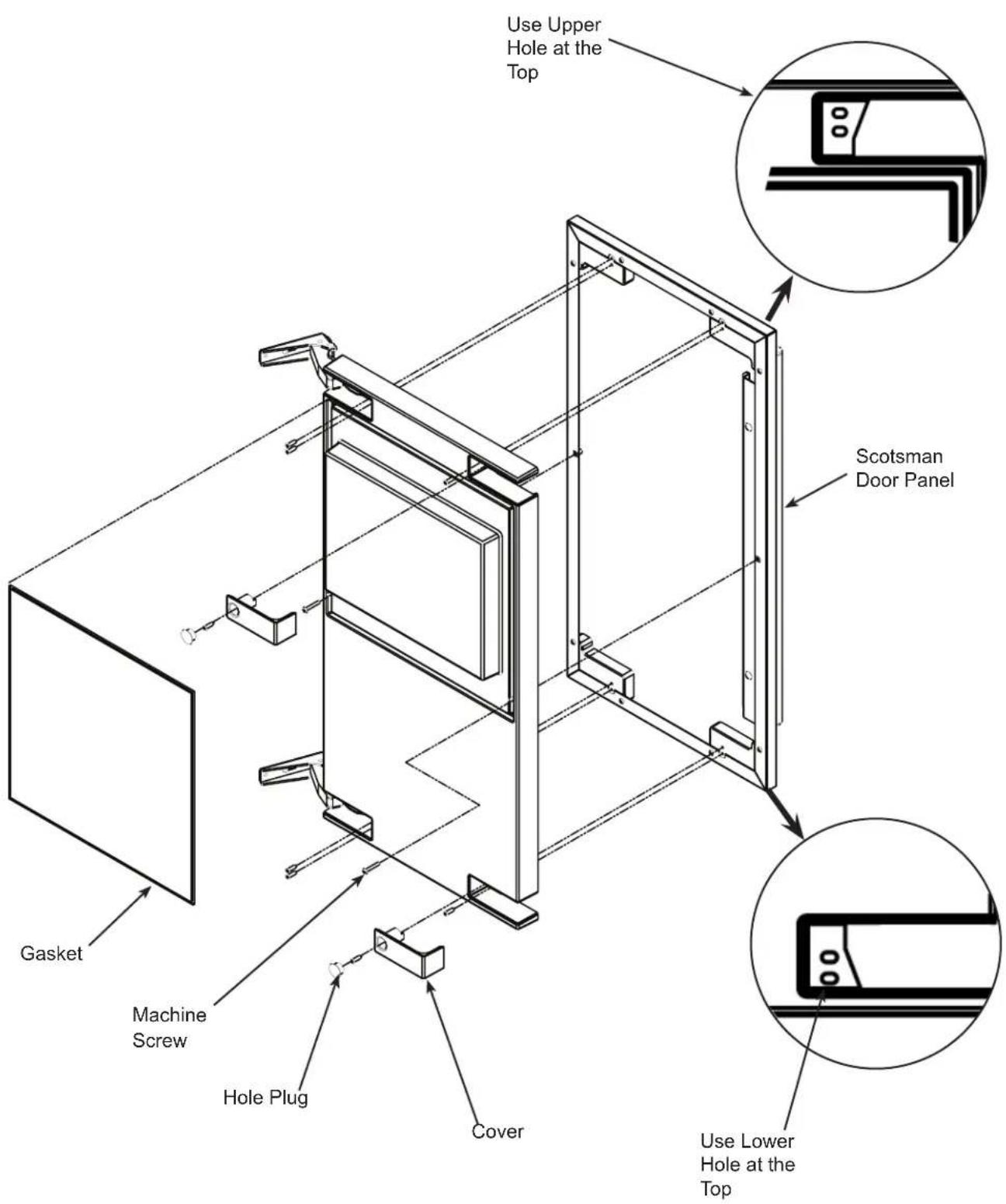

Use Upper Hole at the Top Scotsman Door Panel Gasket Machine Screw Hole Plug Cover Use Lower Hole at the Top

Note: Prior models had separate hinge brackets and different directions to change swing.

Moving the hinges allows the door to open from either the left or right side. Change swing before attaching door panel.

To change:

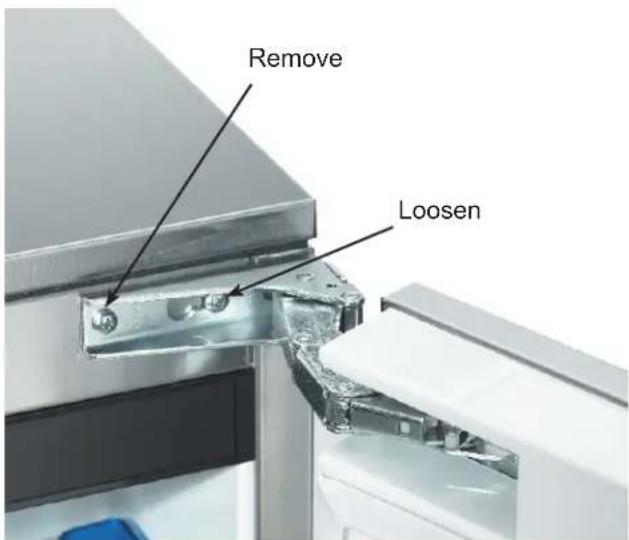

1. Remove innermost screw holding each hinge to cabinet, then loosen the outer screw.

Remove Loosen

1. Slide door to the side and remove from cabinet.

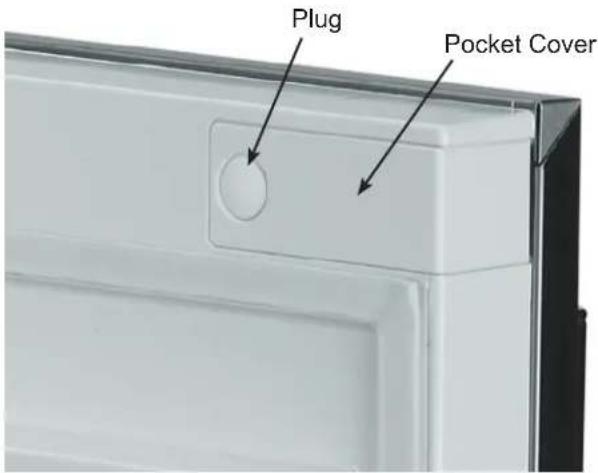

Plug Pocket Cover

1. Remove plug and hinge pocket covers from door.

Note: There are either plugs or screws in the holes where the hinges will mount. They must be moved.

1. Remove hole plugs or screws from unit's new hinge locations, set aside.
2. Move screws loosened in step 1 to opposite location.
3. Install screws or plugs removed in step 4 to the unit's original hinge location to fill the holes.
4. Remove the upper hinge from the door and move it to the door's opposite side, bottom location. Secure using the original screws.

Note: If door panel is attached, it must be removed to access hinge screws and to reverse handle position.
8. Remove the original lower hinge and move it to the door's opposite side, upper location. Secure using the original screws.
9. Install pocket covers and hole plugs onto door.
10. Attach the door to the cabinet using the original screws.

Water Supply

This model includes factory-installed water and drain lines. The installer must connect these lines to the building's water supply and drain system. All horizontal runs of drain lines must have a 14 " per foot fall. An air gap will likely be required between the ice machine drain tube and the drain/waste receptacle. Install an easily accessible shut-off valve between the supply and the unit. This shut-off valve should not be installed behind the unit.

Connect using a compression fitting, one is supplied tied to the water inlet tube at the back of the cabinet. When built in: Coil enough tubing behind the machine so it can be pushed into the cavity without kinking the tubing.

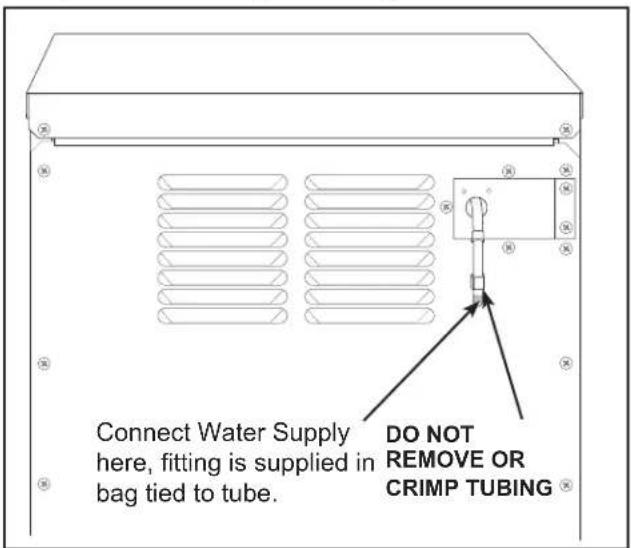

Connect Water Supply here, fitting is supplied in bag tied to tube. DO NOT REMOVE OR CRIMP TUBING

Note: It is recommended to purge the water supply lines prior to connecting to the ice machine. This will flush sediment from the line and prevent water flow restrictions.

Drains

There are two types of ice machine models. One drains by gravity, while the other has an internal drain pump.

Drain Pump Model Drain Installation

1. Locate the coil of factory installed 3/8" ID plastic drain tubing secured to the back of the unit.
2. Route the plastic drain tube from the back of the unit to the drain connection point.
3. Check all connections for leaks and water drips and ensure hoses are secure.

The drain connection point can be as high as 10 feet above the ice machine. The drain pump includes a check valve to prevent re-pumping water in the drain hose.

IMPORTANT NOTE: Often an air gap is required by local codes between the ice maker drain tube and the drain receptacle.

Caution Do not unplug or disconnect power to the ice machine with out shutting off the water supply. Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

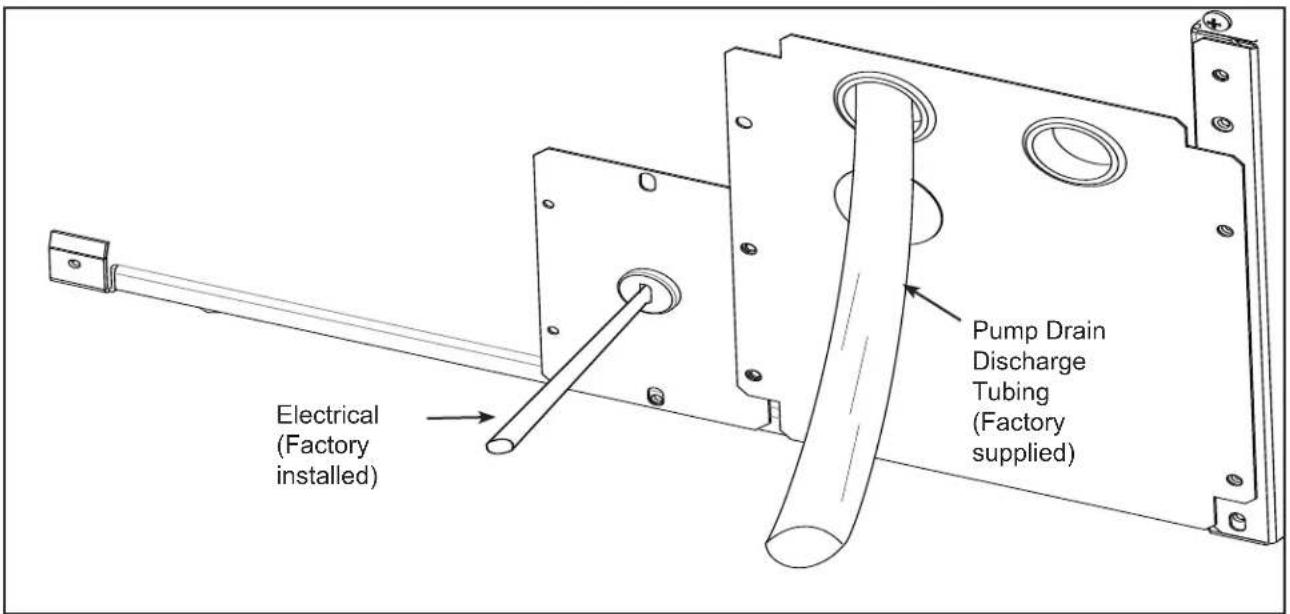

Electrical (Factory installed) Pump Drain Discharge Tubing (Factory supplied)

CAUTION: Restrictions in the drain system to the machine will cause water to back up into the ice storage bin and melt the ice. Gravity drain tubing must be vented, have no kinks and slope to the building drain. Air gaps are typically required by local code.

1. Place the ice machine in front of the installation opening. Adjust leveling legs to the approximate height.
2. Remove the front service access panel and the upper back panel..

Note: If you are connecting a gravity drain model and the drain opening has been located in the floor under the base pan according to the pre install specifications, follow steps 3 through 6a to drain the unit through the base. If not, proceed to step 6b.

1. Remove the clamp and barbed elbow from the installed drain line and take off the plastic cover in the base pan below the drain hose.
2. Connect a straight 5/8" barbed connector to the drain hose, securing with the supplied hose clamp removed in step 3.

3. Cut an 8" piece from the drain line tubing. Slide one end of the tube onto the outlet of the barbed connector and secure with a clamp. Leave the other end of the tube lying on the floor of the base pan until the unit is positioned over the floor drain.

4. Route the drain tube. Either:

a) Insert the drain tube through the base pan into the floor drain or
b) Route the drain tube through the hole in the lower back panel and connect to barbed elbow and secure with a clamp. Check all connections for leaks and water drips and ensure hoses are secure.
7. Reinstall any panels removed and level the unit.

Caution

Do not unplug or disconnect power to the ice machine with out shutting off the water supply.

Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

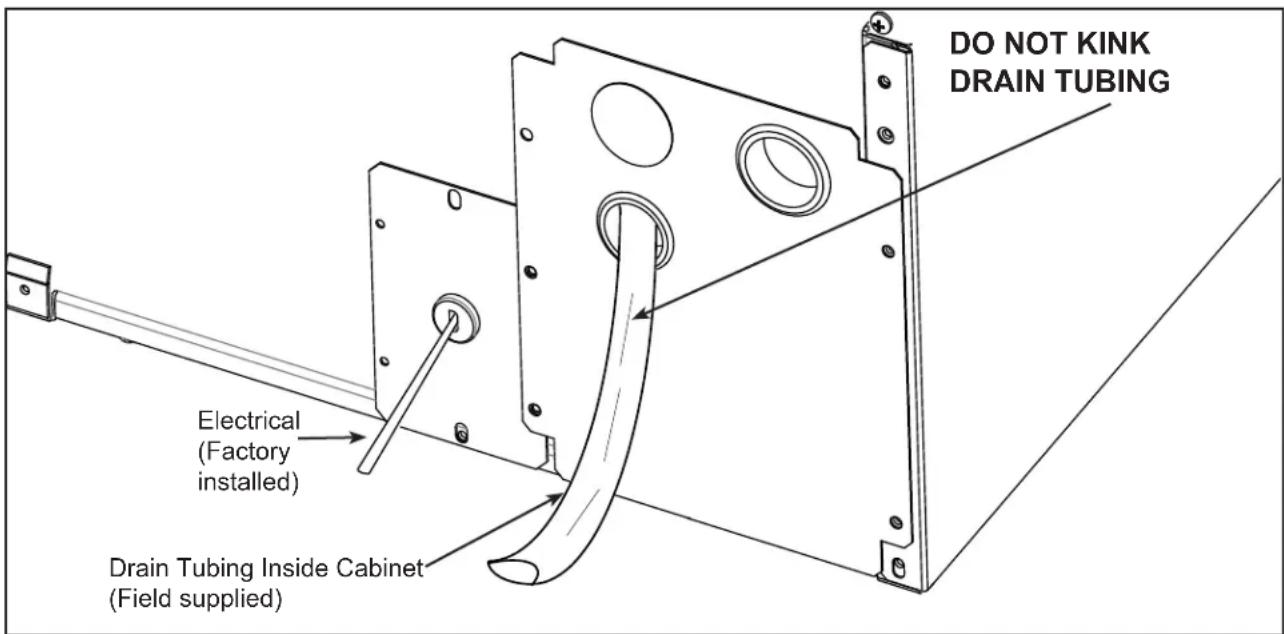

DO NOT KINK DRAIN TUBING Electrical (Factory installed) Drain Tubing Inside Cabinet (Field supplied)

The ice machine is supplied with a 6' power cord. Do not remove the grounding pin from the cord's plug.

Do not use extension cords. Follow all codes.

Connect the machine to a dedicated 115 volt, 15 amp circuit.

1. If the electrical outlet for the ice maker is behind the unit, plug in the unit.
2. Position the unit in the installation opening.
3. After water supply has been purged, turn on the water supply. Make sure that the ice maker is plugged in and the power is on. Verify water leaks are not present.
4. Slide unit into installation opening, paying careful attention to water supply and drain connections. Do not kink!
5. Pour a couple of quarts of water into the ice storage bin. On drain pump equipped machines, the drain pump should start and water should pump out. Check for leak drips and ensure hoses are secure.
6. Replace the service access panel.
7. Level the unit as needed.

Note: The unit is equipped with an electrical power cord, but should only be plugged into a circuit dedicated to the ice machine. The unit must be the only device on the circuit, and powered directly from the breaker panel.

Installation Checklist:

1. Has the unit been connected to the proper water supply?
2. Has the water supply been checked for leaks?

3. Has the unit been connected to a drain?

4. Has the drain been tested for flow and leaks?

5. Has the unit been connected to the proper electrical supply?
6. Has the unit been leveled?
7. Have all packing materials been removed from the machine?
8. Has the door covering been installed?

Initial Start Up

1. Turn on the water supply and check for leaks.
2. Switch on the electrical power.

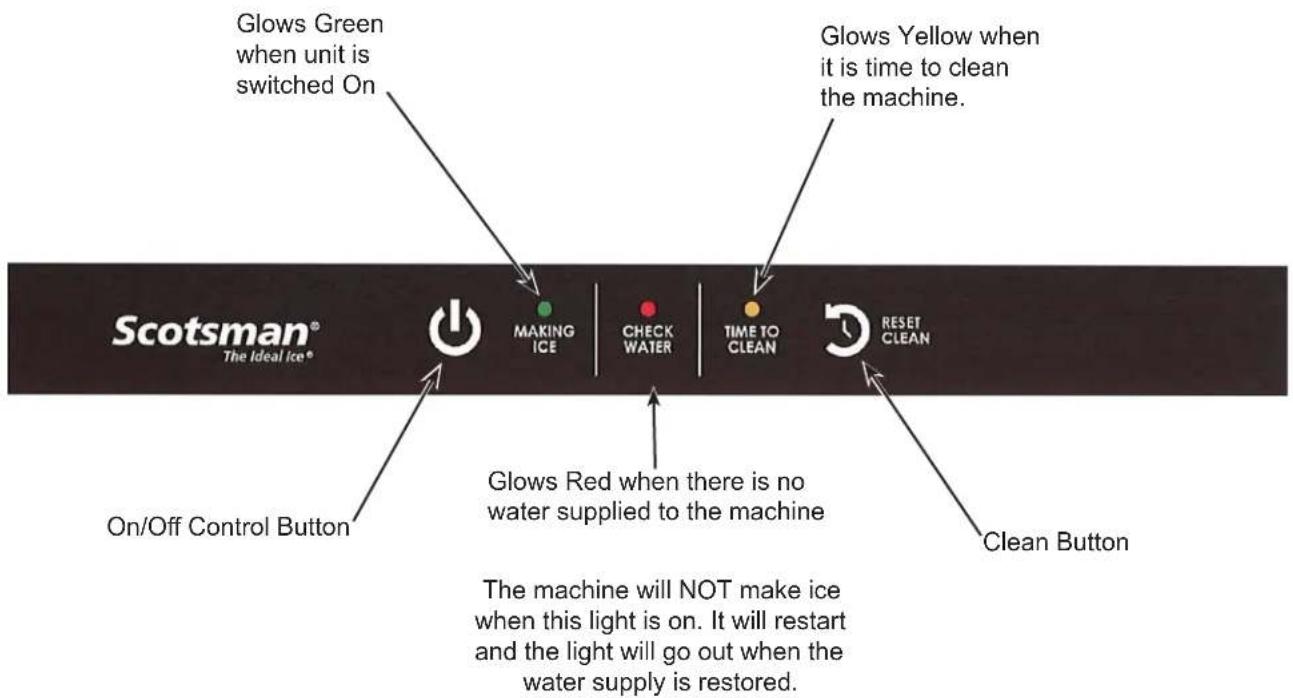

3. Push and release the Power button to start the machine. The Ice Making light next to the Power button will glow Green. Warm air will flow out of the left front grill.

It will take about 10 minutes for the ice machine to begin dropping nugget ice into the storage bin. It is normal for that ice to melt and ice will continue to melt, but at a slower rate. It will take about 6 - 7 hours to fill up the ice storage bin. The bin holds about 26 lbs. of ice when full.

Ice Level Control

The ice level control for the SRN110 is an ultrasonic sensor, located above the ice storage area. It is automatic and there is no adjustment to make. When ice melts or is used and the ice level drops below a preset distance, the control turns the ice making system back on. It makes ice until the preset level is reached. Placing your hand in the unit to remove ice does not affect the ice level.

Do not unplug or disconnect power to the ice machine with out shutting off the water supply.

Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

No special instructions are needed for use. Just take as much ice as you need and the machine will replace it. A scoop is provided and can be stored in the machine using the loop of tubing on the right side as a holder.

The machine can be shut off at anytime by pushing and releasing the Power button.

What shouldn't be done?

Never keep anything in the ice storage bin that is not ice. Objects like wine or beer bottles are not only unsanitary, but the labels can slip off and plug up the drain.

Never allow the machine to operate without regular cleaning. The machine will last longer if it is kept clean. Regular cleaning should happen at least once per year, and preferably twice. Some water conditions will dictate even more frequent cleaning of the ice making section, and some carpets or pets will dictate more frequent cleaning of the condenser.

Note: The Time to Clean light will turn on after 6 months power. It will remain on until the ice making system is cleaned using the process on page 13.

Noise

The ice machine is designed for quiet operation, but will make some noise during the ice making cycle.

Ice Making

During ice making, nugget ice will drop into the bin at an irregular rate. Sometimes there will be little ice falling, while at other times a group of nuggets will fall. Some water drops may also come out with the ice. Both conditions are normal.

Do not unplug or disconnect power to the ice machine with out shutting off the water supply.

Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

Glows Green when unit is switched On Glows Yellow when it is time to clean the machine. Scotsman® The Ideal Ice® ON/Off Control Button MAKING ICE CHECK WATER TIME TO CLEAN RESET CLEAN Clean Button Glows Red when there is no water supplied to the machine The machine will NOT make ice when this light is on. It will restart and the light will go out when the water supply is restored.

Scotsman strongly recommends regular maintenance of this ice machine. During normal operation, mineral scale that is in the water supply will gradually build up on the ice making surfaces. That build up can cause excessive loading of the ice making system, which can cause premature failure. Regular removal of the mineral scale will lengthen the product's life.

Suggested maintenance schedule: every 6 months. Type of maintenance: Scale removal, water seal check, water reservoir check, bin drain check, air cooled condenser cleaning and storage bin sanitation.

Condenser Cleaning

The condenser is like the radiator on a car, it has fins and tubes that can become clogged with dirt and lint. To clean:

1. Remove the kickplate and front service panel.

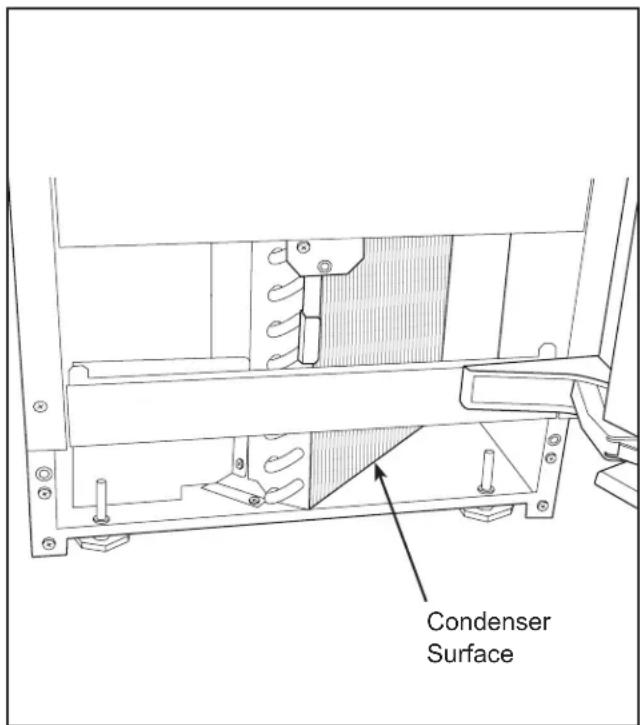

Condenser Surface

1. Locate the condenser surface.
2. Vacuum the surface, removing all dust and lint.

CAUTION: DO NOT DENT THE FINS

1. Return the kickplate and front service panel to their original positions. Fasten them to the cabinet using the original screws.

Winterizing

1. Clean the ice making system per the instructions in the Maintenance section.
2. Open the door and push and release the Power button to turn the machine off.
3. Turn off the water supply.
4. Remove the back wall of the ice storage bin.
5. Remove drain plug and drain the water reservoir, return plug to its original position.
6. Drain pump models should have about 1/2 gallon of RV antifreeze (propylene glycol) poured into the ice storage bin drain.

Note: Automotive antifreeze must NOT be used.

1. Power off and unplug the machine.

Bin and Drain System

Over time, biofilm can grow inside the drain system which can affect the ability for the drain system to evacuate drain water. On the pump models, this can also cause pump failure, or cause the pump to get stuck on and run dry. Biofilm and pump cycling issues will eventually lead to low production and standing water in the bin. To ensure that this does not become an issue, frequent bin sanitizing may be required.

The ice storage bin should be sanitized occasionally. It is usually convenient to sanitize the bin after the ice making system has been cleaned, and the storage bin is empty. A sanitizing solution can be made by mixing 1 gallon (4 liters) of clean, warm potable water (105-115°F) with 1.6 oz of locally approved sanitizer. Use a clean cloth and wipe the interior of the ice storage bin with the sanitizing solution, pour some of the solution down the drain. Allow to air dry.

Cleaning this machine involves adding a solution of scale remover and water to the ice machine and continuing to add it as it makes ice. The scale remover must be diluted to the correct ratio. A squirt bottle will make adding the scale remover much easier when the unit is built in. If not built in, remove the top panel for reservoir access.

Recommended tools: Rubber gloves, squirt bottle & scale remover. Pre-Mixed 16 oz. squirt bottle of scale remover is part number 19-0664-01. Concentrate 16 oz. scale remover is part number 19-0653-01.

Note: When using concentrate scale remover, use a ratio of 1.25 oz. of scale remover to 16 oz. of warm water. Squeeze bottle with a 90 degree elbow is needed.

WARNING: Do not use concentrate scale remover undiluted as it can lead to machine damage.

Predilute Concentrate

1. Scoop out and discard all of the ice.

2. Press and release the Power button.

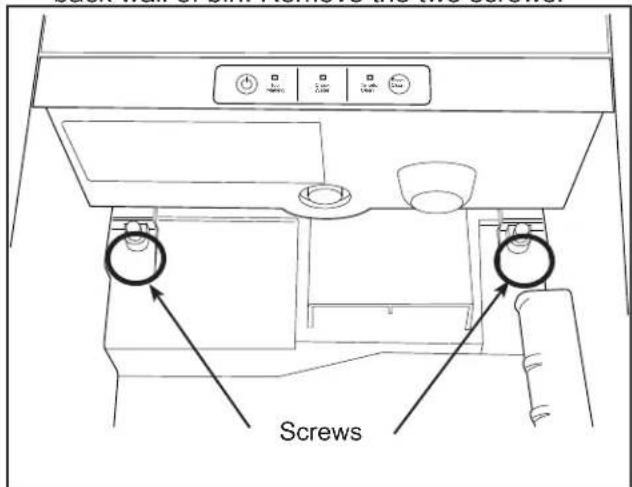

3. Open door and locate thumb screws at upper back wall of bin. Remove the two screws.

Screws

1. Remove the back panel of the bin by lowering it down past the scoop holder, feel free to rotate the scoop holder loop down to make more room.

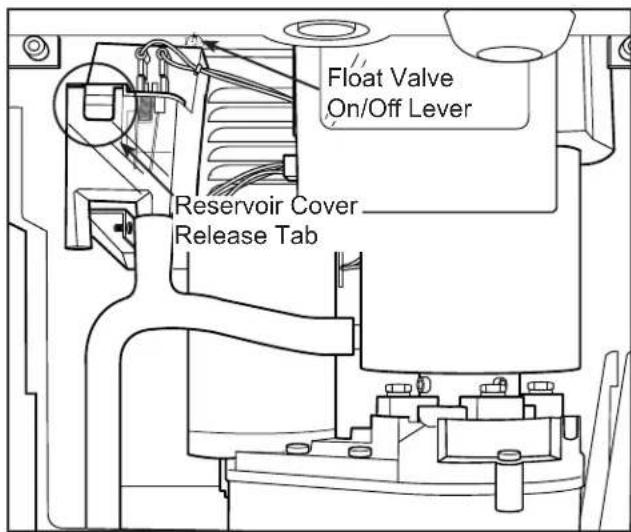

Float Valve On/Off Lever Reservoir Cover Release Tab

1. Locate water valve on/off knob. Turn the water off by turning the knob to the right "counter clockwise" 90 degrees. The valve must be turned off before the cover can be removed.

Line drawing of a hand operating a mechanical device with wires and components (no text or symbols)

Push Tab

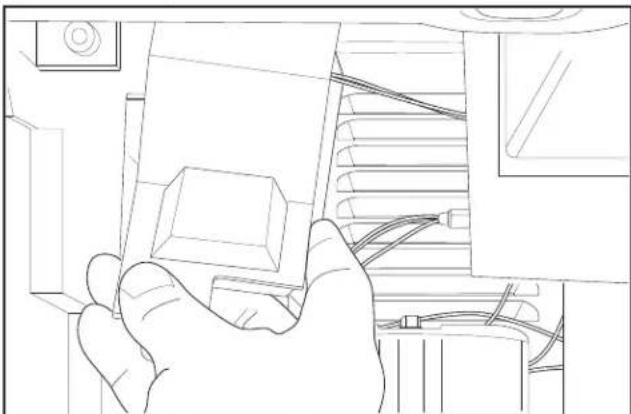

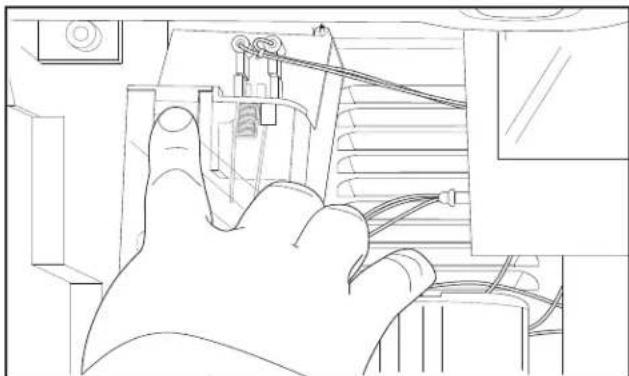

1. Push tab on front edge of reservoir cover and remove the cover. Note: Adjacent wires are low voltage and are not hazardous.

Line drawing of a hand holding a small electronic device with cables and components (no text or symbols)

Lift Reservoir Cover to Remove

SRN110

User's Manual

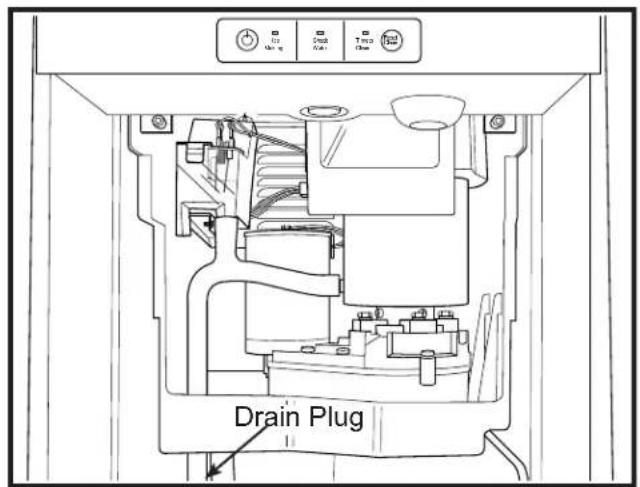

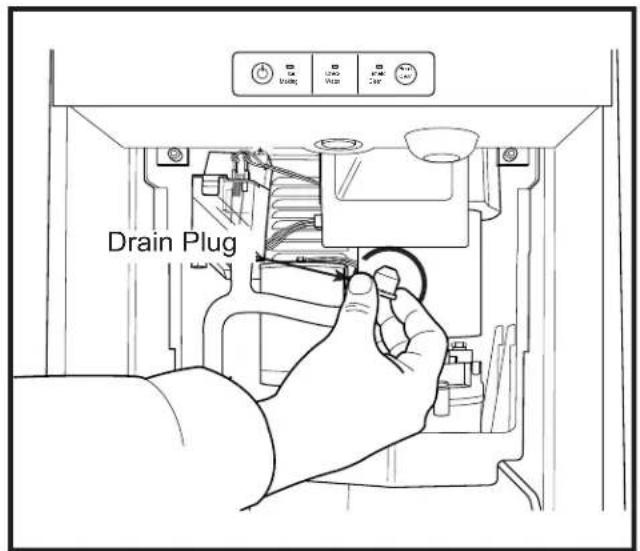

1. Locate drain plug and pull the drain plug out to drain the reservoir and evaporator. When draining is complete return the plug to its original position.

Check Screw Cable Tensile Pipe Drain Plug

Drain Plug

1. Obtain pre-mixed Scotsman Clear 1 Scale remover solution (with squirt bottle) or mix a solution of Clear 1 with water: 2.5 ounces of Clear 1 with 1 quart (32 oz) of warm water.

WARNING

Ice machine scale remover contains acids. Acids can cause burns. If concentrated cleaner comes in contact with skin, flush with water. If swallowed, do NOT induce vomiting. Give large amounts of water or milk. Call Physician immediately. Keep out of the reach of children.

Note: Take care not to spill any scale remover on any nearby surface. Immediately wipe any spill with baking soda and water.

1. If mixing, fill the 16 oz. squirt bottle with the diluted scale remover.
2. Fill the reservoir with the scale remover solution using squirt bottle or other container. That will be about 8 ounces or half a squirt bottle.

Line drawing of a hand operating a refrigerator with control panel and buttons (no text or symbols)

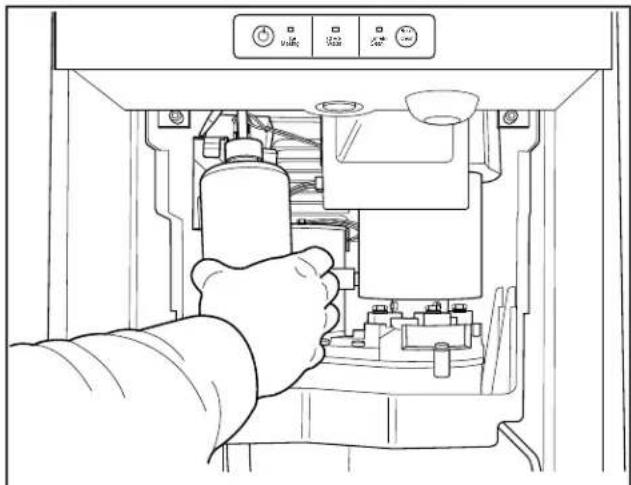

Fill Reservoir Using Squirt Bottle

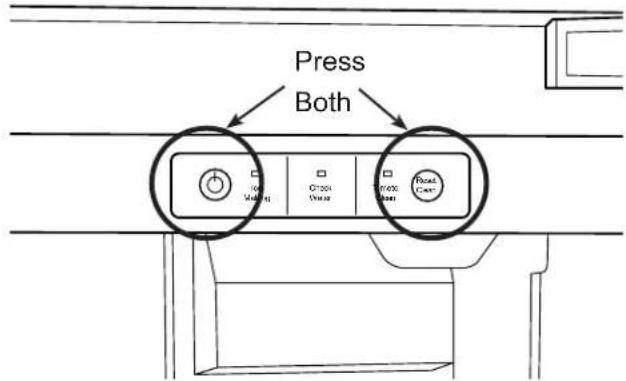

1. Press and HOLD the both the Reset-Clean and On/Off buttons for 5 seconds. The Time to Clean light will blink on and off.

Press Both

1. The auger motor alone will be operating for 10 minutes, after that the compressor will start and in about 5-8 minutes the machine will start to make ice. The Time to Clean light will now glow steady until the clean cycle is complete.

Caution: Keep fingers away from moving parts.

SRN110

User's Manual

After ice making starts, continuously add scale remover solution to the reservoir to keep it about half full.

When all 16 oz of the solution is used, turn the water back On by turning the water valve knob to the left "clockwise" 90 degrees.

After 40 minutes the ice machine and all the control panel lights will shut off.

1. Pull the drain plug again to drain the system, then re-place it.

2. Return the reservoir cover to its original position. The water valve must be turned Off before the cover can be returned.

3. Return the upper back wall of the bin to its original position and secure it with the original screws. Push in to snap it into place.

4. Pour a gallon of hot (95°F. – 115°F.) water into the bin to flush out the drain and melt cleaning proce

*For Pump Only models.

1. Clean the bin liner of mineral scale by using any left over descaling solution to scrub the scale off of the liner. If none is left over, mix a solution of 2.5 ounces of descaling solution and 1 quart of water.

*17a. After ice melts, pour 1 qt. of water down the bin drain until the pump turns on. Once pump turns on IMMEDIATELY stop.

*17b. Once pump shuts off, add a mixture of 10 oz of water and 4 oz of descaling solution to bindrain. If the pump cycles during this process, then repeat step 17a; making sure to stop pouring as soon as the pump turns on. Then repeat step 17b. Let machine sit in off state for 1/2 an hour.

1. Rinse the liner with hot water.

Sanitize the bin interior.

*For Pump Only models.

1. Create a solution of sanitizer by mixing 1 gallon (4 liters) of clean, warm potable water (105-115°F) with 1.6 oz of locally approved sanitizer and sanitize the bin interior and flush the drain.

*19a. Pour 1 qt. of water down the bin drain until the pump turns on. Once pump turns on IMMEDIATELY stop.

*19b. Once the pump shuts off, mix 13 oz of clean, warm potable water (105-115°F) with 1 oz of locally approved sanitizer to sanitize the bin interior. If the pump cycles during this process, then repeat step 19a; making sure to stop pouring as soon as the pump turns on. Then repeat step 19b. Let machine sit in off state for 10 minutes.

1. Rinse the liner with hot water.

2. Push and release the On/Off button to restart ice making.

The ice scoop should be washed regularly, wash it just like any other food container.

Other Maintenance

Note: It is normal for some lime scale to form on the gear reducer cover. Wipe up any loose scale.

Sealed Bearing Inspection

1. Remove ice machine from counter.

2. Take top panel off.

3. This is a greaseless bearing. Black oxidation may be present which is normal; check for any and wipe away. Inspect the bearing seal for wear and rust. Call for service if any is found.

What to do before calling for service

Low capacity

• Check for restricted drain or standing water in the bin
• Clean the air cooled condenser fins
• Clean the ice making system

No ice

• Check on-off switch
• Check electrical breaker
• If the Check Water light is flashing Red, check water supply. The control system checks for water every 20 minutes. When the water supply is restored, the machine will automatically restart ice making.
• If the all the lights are flashing, the auger motor has overloaded or is not operating. Call for service.*

Time to Clean light is on

- Clean the ice making system.

Erratic drain pump operation (pump models only)

- Descale and sanitize bin. See pages 13-15. »If the problem continues contact a local service provider.

* Technical note: One blink and repeat indicates an overload, two blinks and repeat indicates an open motor. Reset by pressing the on/off button.

One blink and repeat indicates an overload.

Two blinks and repeat indicates an open motor. Reset by pressing the on/off button.

Only qualified technicians familiar with R290 refrigerant should decommission a machine, as special tools and containers are required for the removal, transportation, and disposal of this highly flammable substance.

• Before attempting the procedure:

* Ensure that all protective gear is present and used throughout the procedure.
* Make sure recovery equipment and containers are available and ready for use. All containers used for recovery must be rated for R290 refrigerant and must be labeled as such.
* Weigh any refrigerant prior to reclaiming.

• Maintain safety through standard operating procedures as outlined on page 20 of this document. Be sure to follow local, state, and federal guidelines for proper disposal.
• Do not fill containers more than 80% and do not exceed the pressure limits of the container. Make sure the machine to be decommissioned is in satisfactory working order and that the electrical components of the machine are properly sealed to prevent ignition.
• Recovered refrigerant should not be charged into another refrigerating system or mixed in another container.
• Make sure to safely transport the refrigerant in line with standard operating procedures.
• All recovered refrigerant must be returned to refrigerant supplier for proper disposal.
• If compressor or compressor oils are removed ensure it has been removed to an acceptable level so the flammable refrigerant does not remain in the lubricant.

Scotsman®

The Ideal Ice®

Exterior view of a stainless steel indoor refrigerator with ventilation grilles (no visible text or symbols)

Brilliance™

AVERTISSEMENT

Warning sign depicting a flame symbol in yellow and black on a white background

Line drawing of a hand operating a device with cables and components (no text or symbols)

Line drawing of a hand holding a small electronic component, with wiring visible inside a device (no text or symbols)

Line drawing of a hand operating a 3D printer in an open chamber (no text or symbols visible)

Exterior view of a stainless steel indoor refrigerator with ventilation grilles (no text or symbols visible)

Brilliance™

Warning sign depicting a flame symbol in yellow and black on a white background

Line drawing of a hand operating a computer with visible wiring and components (no text or symbols)

Lengüeta de presión

Line drawing of a hand holding a device with cables, no text or symbols present

101 Corporate Woods Parkway

Vernon Hills, IL 60061

800-726-8762

www.scotsman-ice.com
