Before first use 5

Installation 5

Daily use 6

Adjust the temperature for fridge 12

Adjust the temperature for freezer 12

Super Cool Function 13

Super Freeze Funciton 13

AI Cooling Function 14

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literatu with this list:

Ice cube tray

Egg tray × 2

Energy lable User manual Warranty card

Stop blocking × 2

middle hinge

Upper hinge Upper hinge bent hook

lower hinge

Upper trim cover

Middle front beam screw cap

fixture

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warning symbol of a flame inside a triangle (no text or numbers)

WARNING: Risk of fire/flammable material

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

RNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!

WARNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

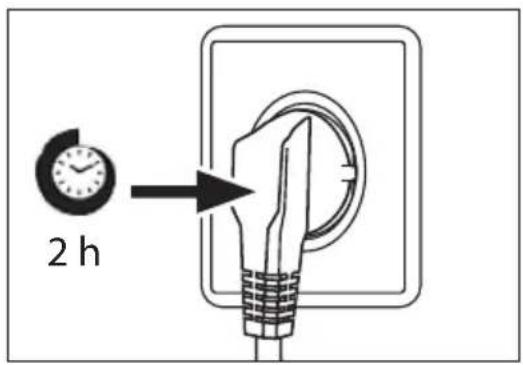

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

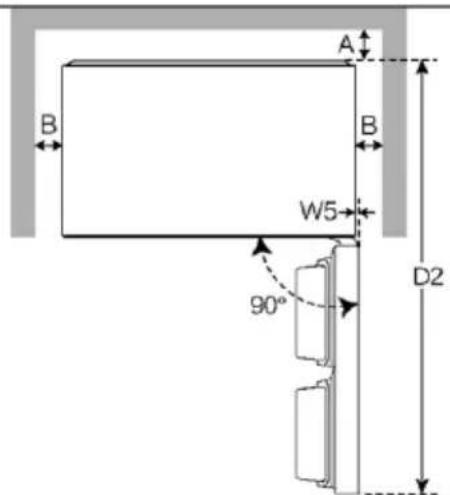

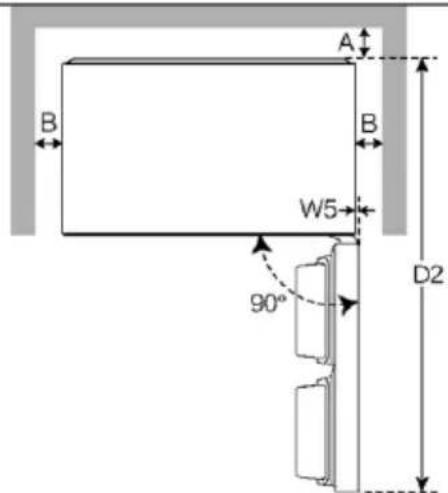

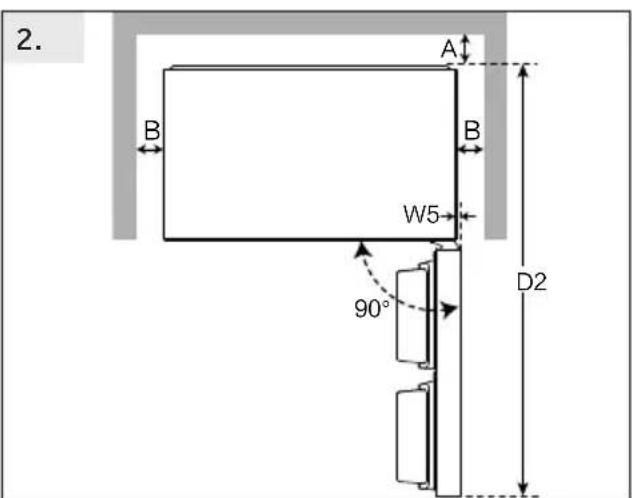

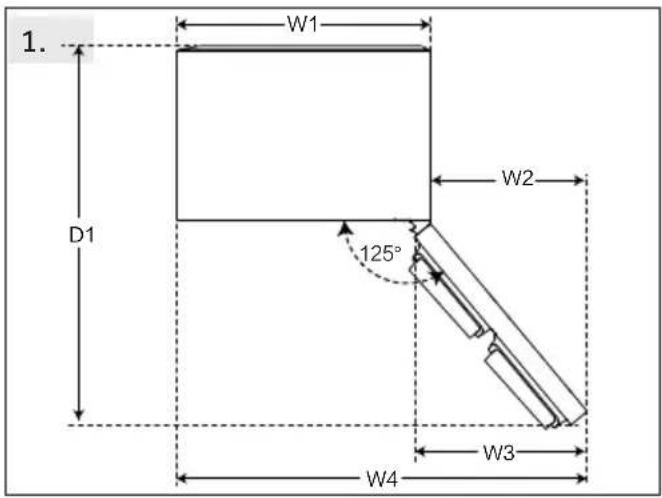

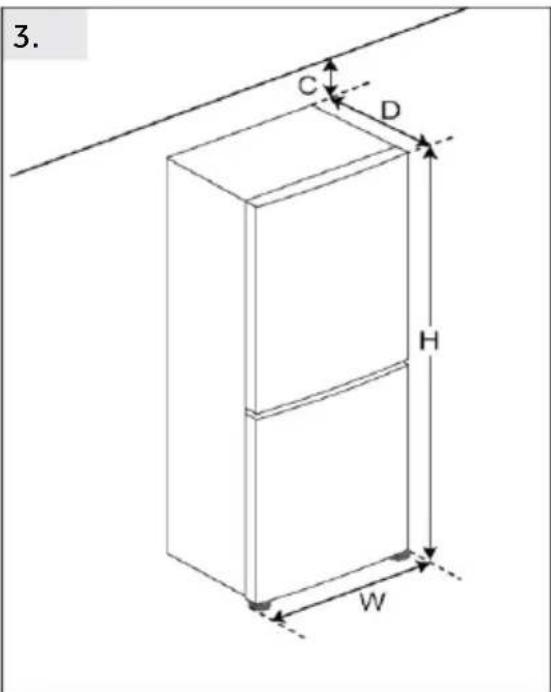

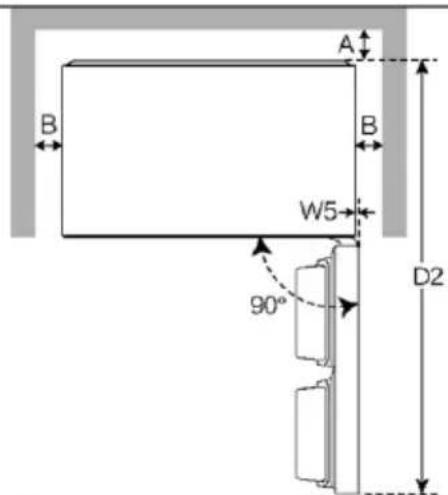

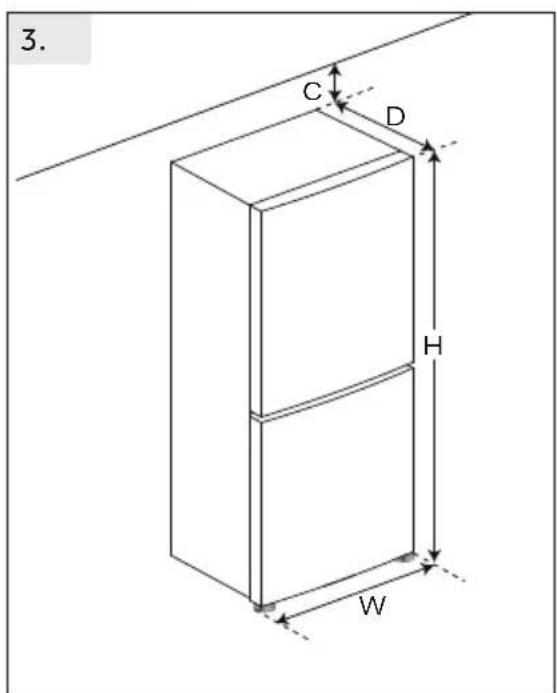

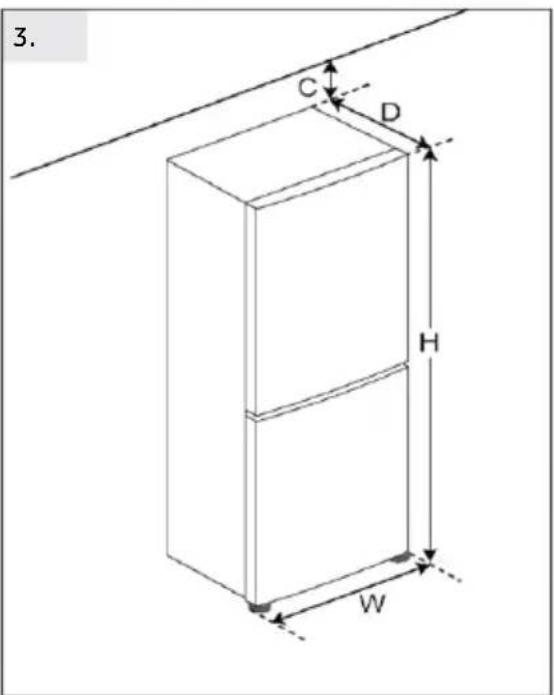

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
- Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

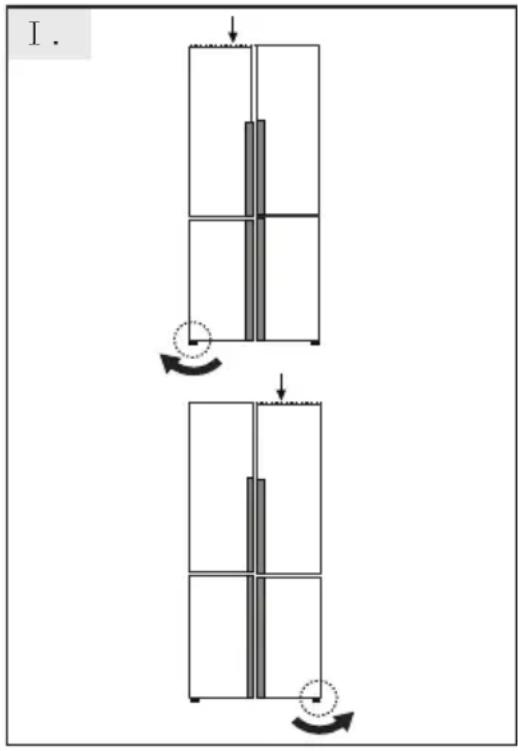

▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

▶Do not use multi-plug adapters and extension cables.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.
  ▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶Do not damage the refrigerant circuit.

WARNING!

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

- Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.

- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.

▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.

▶ Check the condition of food if a warming in the freezer has taken place.

▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst

▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!

▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.

WARNING!

Daily use

▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
- Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

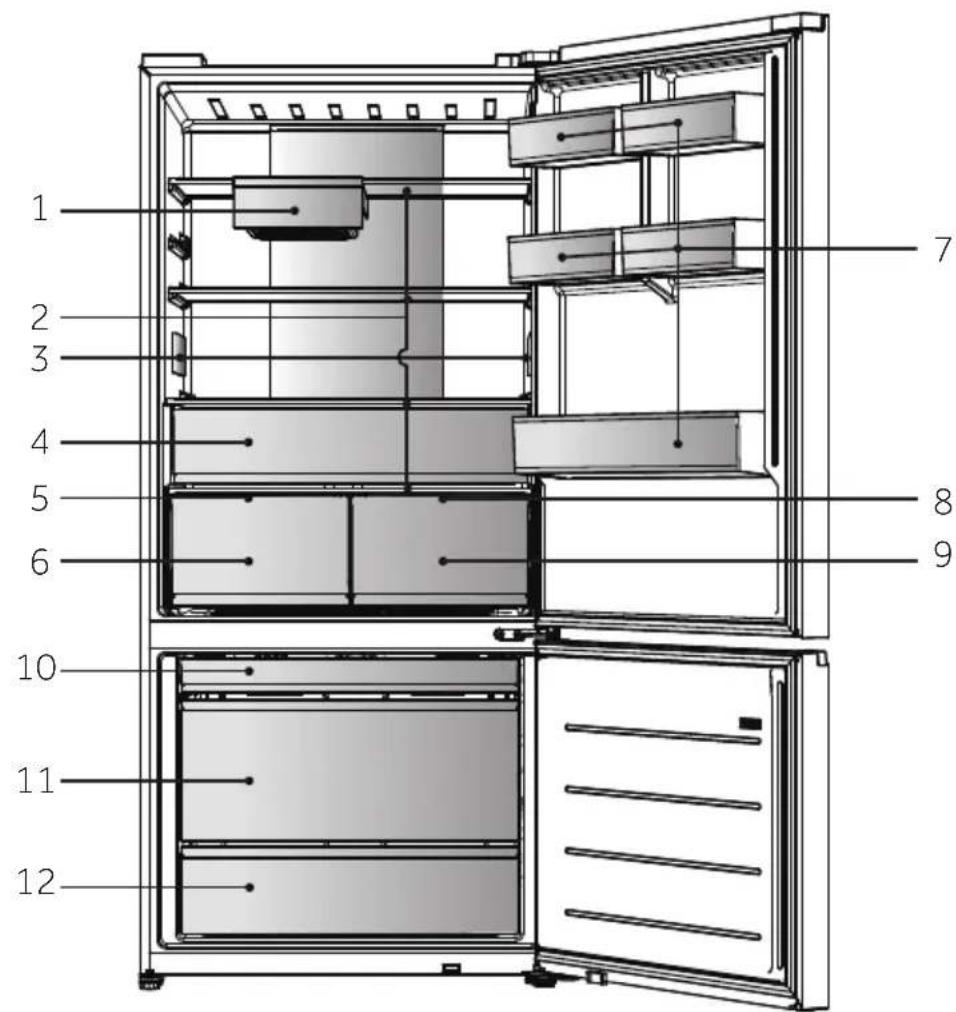

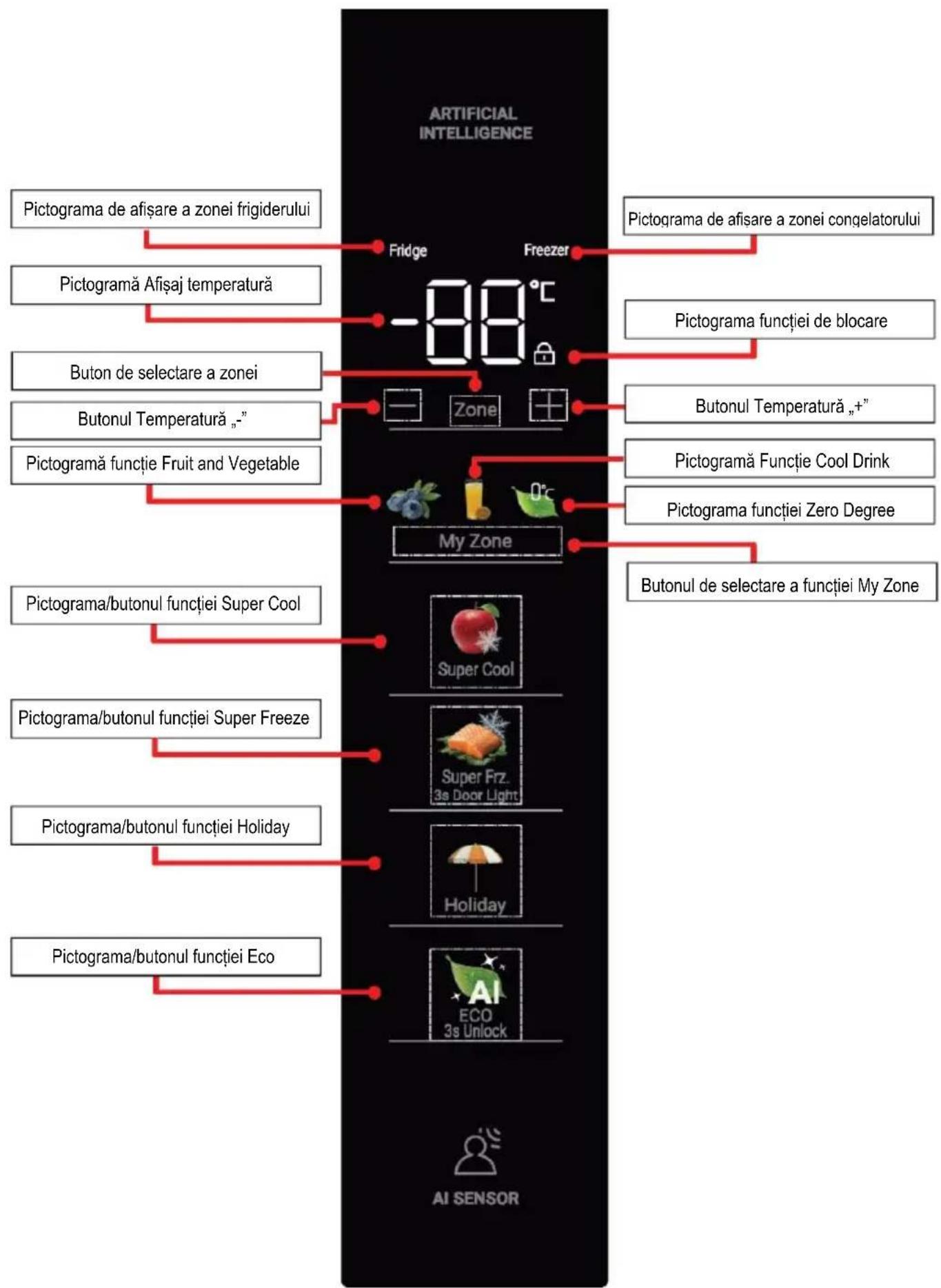

1 2 3 4 5 6 7 8 9 10 11 12

A: Refrigerator compartment

1 Lunch box

2 Glass shelves

3 AI Cooling

4 Fresh zone

5 Humidity zone cover

6 Humidity zone

7 Bottle holders

8 My zone cover

9 My zone

B: Freezer compartment

10 Sliding shelf

11 Freeze zone

12 Freeze zone

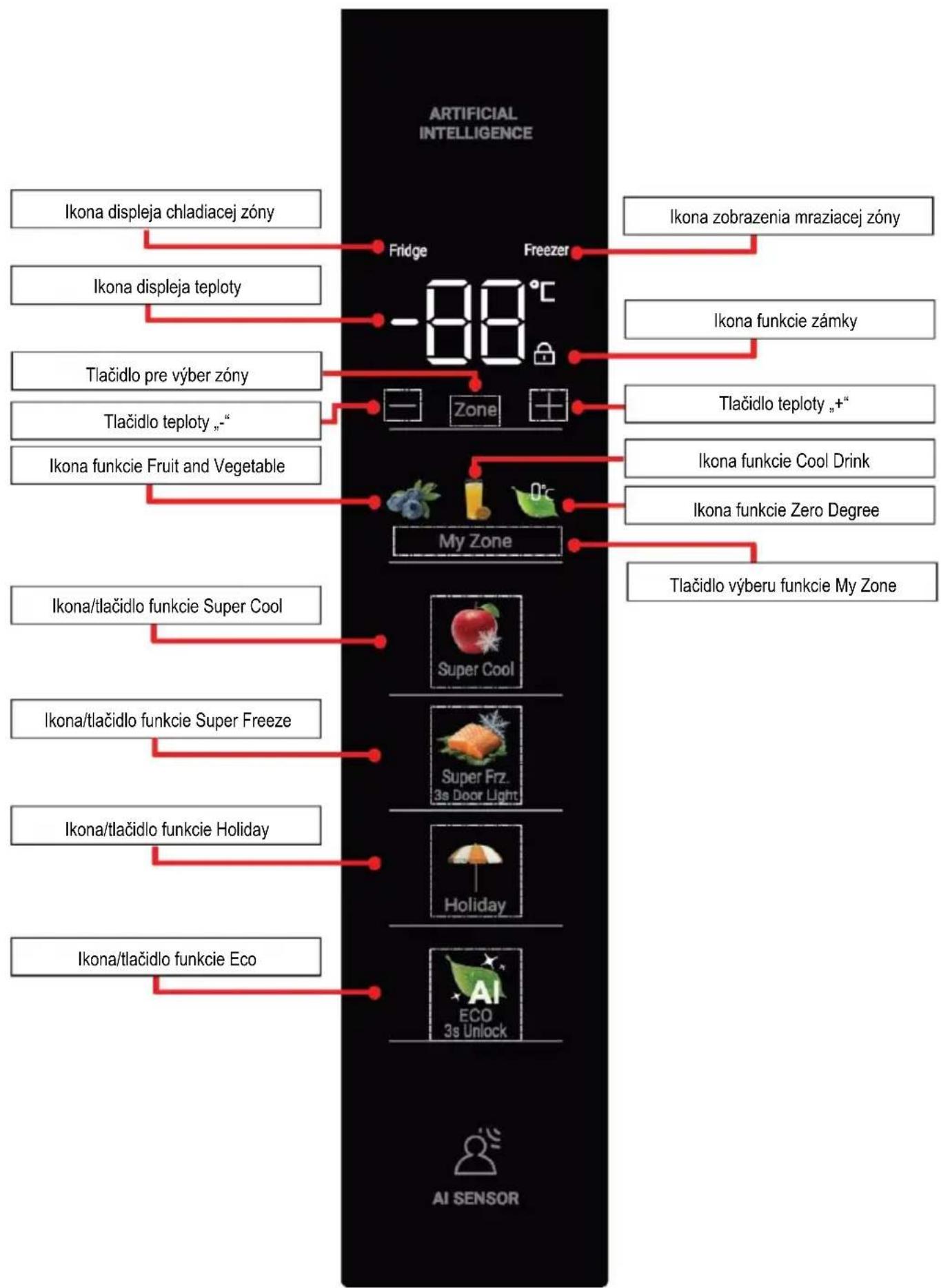

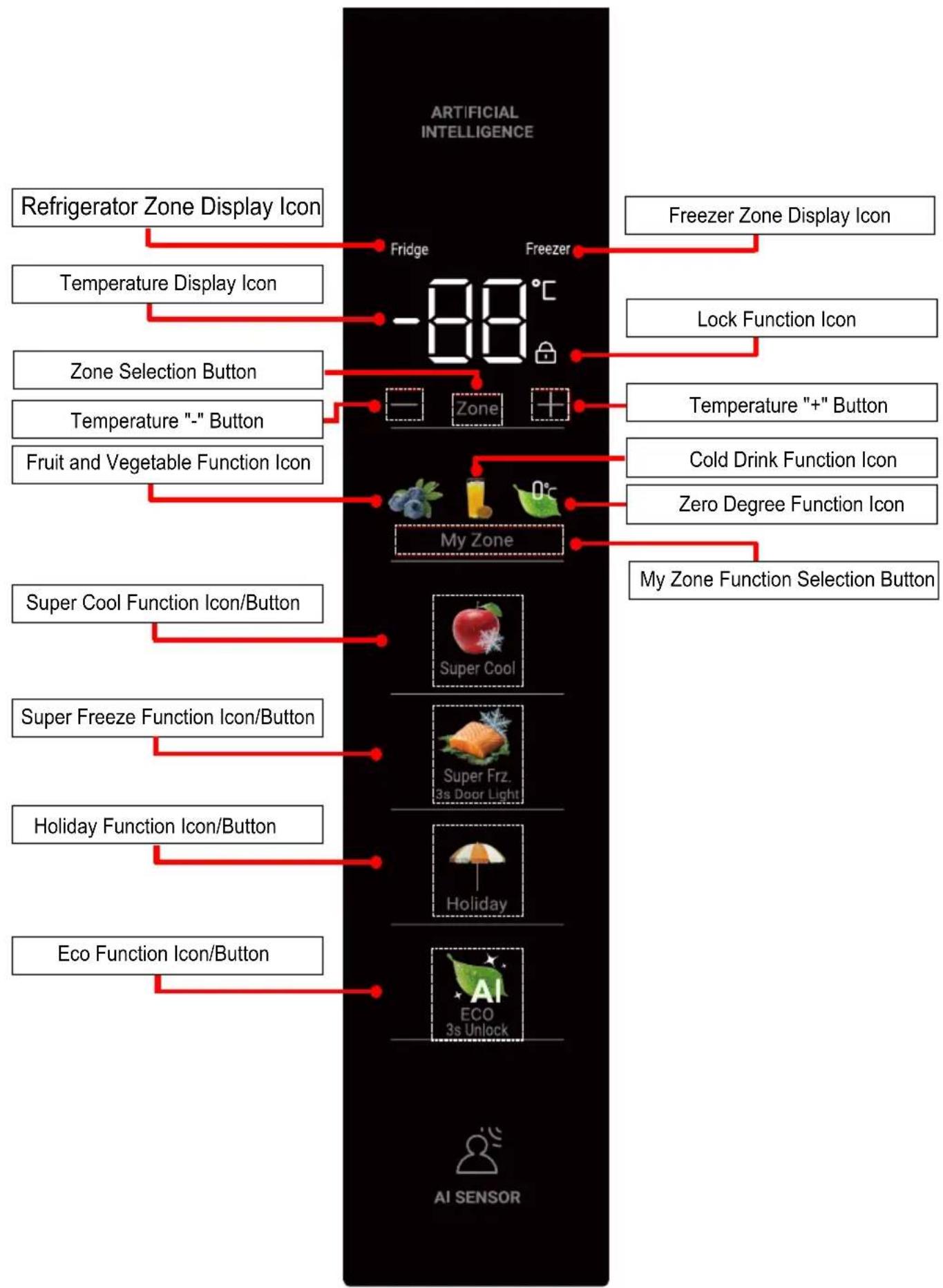


Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator Temperature display illuminates. The fridge temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively.

Maybe the panel lock is active.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Lock/unlock panel

Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.

Manual lock: When the display screen is unlocked, press the Eco function button and hold for 3 seconds, the buzzer rings once, the Lock function Icon illuminates, and the display is locked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature

Frequency of door opening

Amount of stored foods

Installation of the appliance

Adjust the temperature for fridge

When unlocked, press the Zone Selection button to select refrigerator zone (refrigerator icon lights up). Each press of "+"/-" adjusts the temperature level by 1°C.

Settings are confirmed after 5 seconds of inactivity (screen turns off), or immediately if other buttons are pressed. Adjustment sequence:

“+”: 1 ^ C 2 ^ C 3 ^ C 4 ^ C 5 ^ C 6 ^ C 7 ^ C 8 ^ C 9 ^ C

“-”: 9^ 8^ 7^ 6^ 5^ 4^ 3^ 2^ 1^

NOTICE

The refrigeration temperature cannot be adjusted in the Super Cool or Lock state.

Adjust the temperature for freezer

When the display is unlocked during operation, press the Zone Selection button to select freezer zone (freezer icon lights up). Each press of "+"/-" adjusts the temperature by 1°C (flashing at 1Hz).

Settings auto-save after 5 seconds of inactivity. Pressing other buttons immediately confirms the setting and switches functions.

Adjustment sequence:

“+”: -24℃→-23℃→-22℃→-21℃→-20℃→-19℃→-18℃→-17℃→-16℃

“-”: -16℃→-17℃→-18℃→-19℃→-20℃→-21℃→-22℃→-23℃→-24℃

NOTICE

The freeze temperature cannot be adjusted in the Super Freeze or Lock state.

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

Super-Cool function

Enter the super cool state:

In the unlocked state, click the [Super Cool] button, the [Super Cool] icon will light up, and the refrigerator will enter the super cool state.

Exit the super cool state:

1. In the unlocked and super cool state, click the [SuperCool] button, the [SuperCool] icon turns off, and is manually out of the super cool state.
2. When the refrigerator reaches the set time, it will automatically quit the super cool function. After 4 hours of entering Super Cool mode, it will automatically exit.

Super-Frz function

Enter super freeze state:

In the unlocked state, click the [Super Frz.] button, the [Super Frz.] icon will light up, and the refrigerator will enter the super freeze state.

Exit super freeze state:

1. In the unlocked and super freeze state, click the [SuperFrz.] button, the [SuperFrz.] icon turns off, and is manually out of the super freeze state.
2. When the refrigerator reaches the set time, it automatically exits the super freeze function. After 50 hours of entering Super Frz mode, it will automatically exit.

Super-Freeze function is designed to keep nutrition value of frozen food, it will be freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time, it is recommended to set the Super-Freeze function. Meanwhile, Super-Freeze function should be set 24h in advance, to make the freezer own relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage become quite convenient.

AI Cooling function

When you need to quickly cool stewed or cooked food, you can place the food on the glass shelf corresponding to this function for rapid cooling.

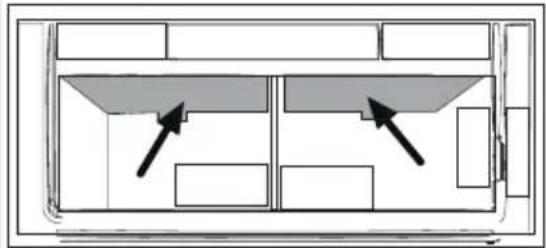

When the refrigerator senses a heat source in the glass shelf space corresponding to this function, the blue lights on both sides begin to flash. If the sensed heat source persists for more than 5 seconds, it enters this function and the blue lights on both sides illuminate. If the sensed heat source persists for less than 5 seconds, this function does not start, and the blue lights flash for about 5 seconds and then turn off.

After this function starts, the blue lights on both sides are on (when the door is open), and the fans on both sides begin to operate. After the door is closed, the blue lights on both sides turn off, and the fans on both sides continue to operate. After the heat source has cooled down, this function exits, the blue lights on both sides turn off, and the fans on both sides turn off.

NOTICE

1 When placing a soup pot or other foods that release steam, please use a sealed container with a lid or seal it with plastic wrap before placing it inside.
2 It is recommended that you place melons, fruits, and vegetables in the fruit and vegetable drawer to obtain better freshness and moisturizing effects. When placing food in this functional area, please do not block the circular air inlets on both sides or the long air outlet.
3 The startup test for this function was conducted using a stainless steel soup pot (a mainstream local Turkish stainless steel soup pot with a pot body diameter of 275mm, a pot body height of 150mm, and a total height with lid of 200mm) placed on the shelf at the illustrated position. The liquid level inside the pot was 2/3, the outer wall temperature of the pot was 35°C, the ambient temperature during testing was 25°C, and the refrigerator was operating stably at the factory default setting.
4 When the heat source is too small or the temperature is too low, this function may not start automatically.
5 When the user's access actions in this functional space take too long or the door is open for too long, it may also trigger this function.
6. If you activate Holiday Mode while the AI Cooling function is running, the AI Cooing function will turn off.

My Zone Function

My Zone is adjusted and set according to the functional settings. They are sequentially represented by three functional icons: "Fruits & Vegetables (5°C), Cool Drink (2°C), 0°C Fresh (0°C)". Upon initial power-on, the default state is the "Fruits & Vegetables (5°C)" setting. When unlocked, press the My Zone key on the home page to enter the My Zone setting adjustment page. Click the My Zone setting button to switch My Zone to the corresponding setting. The My Zone setting status is retained after power loss.

NOTICE

In Holiday Mode, the refrigerated variable temperature compartment is controlled at 17^ C, operating according to the on/off setpoints of on at 20^ C / off at 16^ C.

Human Detection Function

The human detection function is on by default. Press and hold the "Super Frz." button for 3 seconds to turn the human detection function off or on. After entering this function, when you approach the refrigerator, its display screen lights up, and the blue door light enters a breathing mode of brightening and dimming.

Holiday function

Press Holiday button in unlocked state:

First press: The holiday function activates (icon lights, beep sounds)

Second press: The holiday function deactivates (icon turns off, beep sounds)

Eco function

After the display panel lights up, if the refrigerator has not entered the Eco function and the display panel is unlocked, press the "Eco" button once, the smart function icon will appear, the buzzer will sound once, and the Eco function will be activated.

After the display panel lights up, if the refrigerator has entered the Eco function and the display panel is unlocked, press the "Eco" button once, the smart function icon will turn off, the buzzer will sound once, and the Eco function will be deactivated.

NOTICE

Under Eco Mode, the refrigerator will automatically set and display the temperature of the fresh food compartment at 5^ C and the freezer compartment at -18^ C.

In this mode, the temperatures of the fridge and freezer compartments cannot be manually adjusted.

The temperature of the My Zone compartment can be set individually and will operate according to the user's setting.

After exiting Eco mode, the fridge and freezer compartments will revert to the temperature settings you had selected before entering Eco Mode.

The My Zone compartment settings will remain unchanged, and other operational statuses will not be affected.

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Multi-air-flow

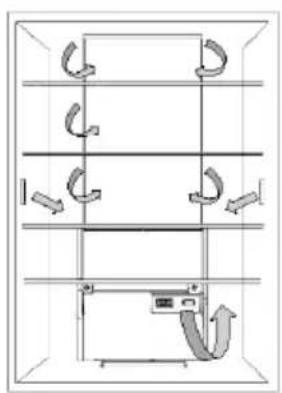

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

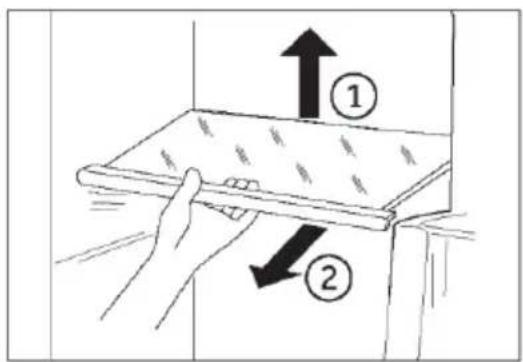

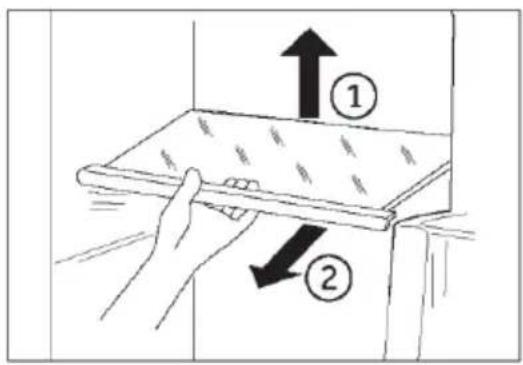

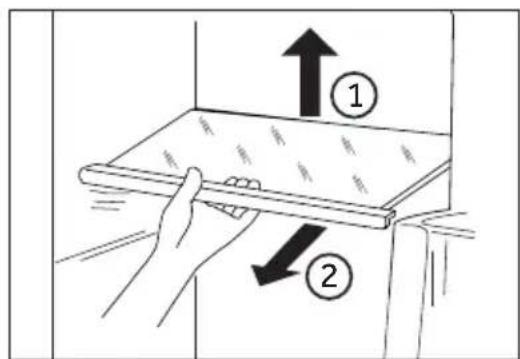

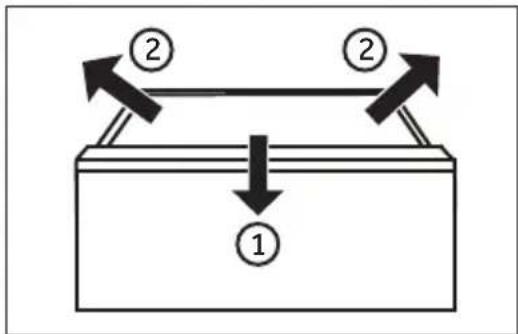

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.

3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

4. The shelf 'POT STATION' has a maximum load capacity of 200kg and the shelf remains undamaged, when the load exceeds 80kg, it may affect the normal operation of the drawer 'Fresh Zone' (data sourced from internal laboratory).

NOTICE

Ensure that all ends of a shelf are level.

My Zone drawer

1. In this compartment the humidity level is lower than fridge compartment This drawer is suitable to store dry fruit and other dry food with low water content like butter, fats and oil or chocolate.

Humidity box drawer

1. In this compartment the humidity level is higher than fridge compartment. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc.

NOTICE

1. Do not remove the plastic cover inside the two zones.
2. They maintain the humidity.
3. Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits are not recommended to be stored in these two drawers.

Architectural floor plan diagram showing room layout with two arrows pointing to specific areas (no text or labels)

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled components (① and ②) with upward arrows indicating motion or force, mounted on a rectangular object.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

Removable drawer

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.

① ② ②

Storing large items Large items of e.g. frozen food can be stored after:

removing the upper freezing tray, or

after removing both upper freezing trays as well as the middle freezer drawer and storing the food directly on the shelf.

① ② ②

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

The Drawer

Please push or pull smoothly along the middle position of the drawer handle to avoid problems such as poor operation or detachment of the drawer.

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).

Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

▶Functions like POWER-FREEZE consume more energy.

▶ Allow warm food to cool down before placing it in the appliance.

▶Open the appliance door as little and as briefly as possible.

▶ Do not overfill the appliance to avoid obstructing the air flow.

▶ Avoid air within the food packaging.

▶ Keep door seals clean so that the door always closes correctly.

▶ Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

1. Clean the appliance when only little or no food is stored.

2. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶In case of heating check the condition of frozen goods.

Line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

▶Always keep the door gasket clean.

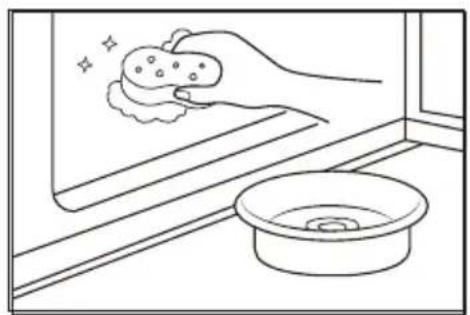

▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

1. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

2. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶Rinse and dry with soft cloth.

▶ Do not clean any of the parts of the appliance in a dishwasher.

▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 8 W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
Problem Possible Cause Possible Solution
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.The Super-Frz/Su-per-Coolfunction is activated or is running too long.	Reset the temperature.Switch off the Super-Frz/Su-per-Cool function
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu-midity decreases.Ensure that he door/drawer is tightly shut.
Problem Possible Cause Possible Solution
Strong ice and frost in the freezer compartment.	·The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.		·This is normal.
The appliance makes abnormal sounds.	·The appliance is not located on level ground.The appliance touches some object around it.	·Adjust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.		·This is normal.
You will hear an alarm beep.	·The fridge storage compartment door is open.	·Close the door.
You will hear a faint hum.	·The anti-condensation system is working	·This prevents condensation and is normal
The interior lighting or cooling system does not work.	·Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	·Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶Open the door/drawer as few times as possible.

▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶Take the appliance out of the packaging.
▶Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space recommendation

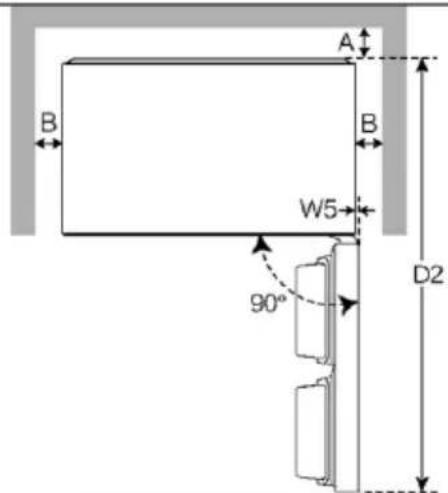

Recommended space when door is opened (Fig. 1.2.)

1. W1 D1 W2 125° W3 W4

2. A B B W5 90° D2

3. C D H W

(Unit : mm)	Model#1		Model#2
Width	W1	830
	W2	500
	W3	529
	W4	1330
	W5	21
	W	830
Depth	D1	1362
	D2	1502
	D	725
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	50
Overall Height	H	1850

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

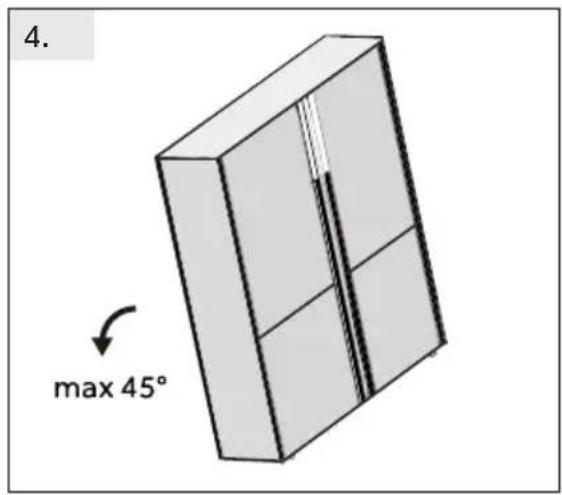

4. max 45°

Aigning the appliance (Fig.4.5.6.)

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.

Mechanical assembly diagram showing a tool interacting with a gear and rotating around it (no text or symbols)

1. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 50 mm for the door to open properly.

Pure geometric diagram showing a 3D shape with dashed internal lines and arrows indicating direction (no text or symbols)

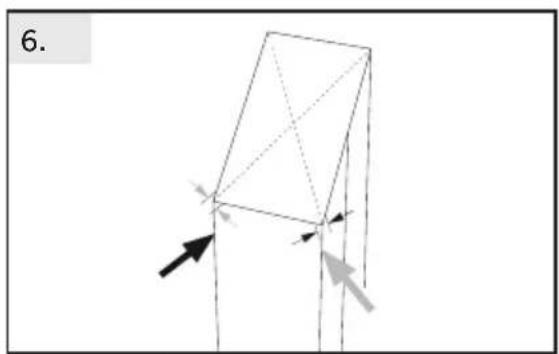

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

TICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Technical line drawing of a mechanical assembly with no visible text or symbols

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

I Using adjustable foot

Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

Ⅱ Using spacers

▶Open the upper door and lift it.

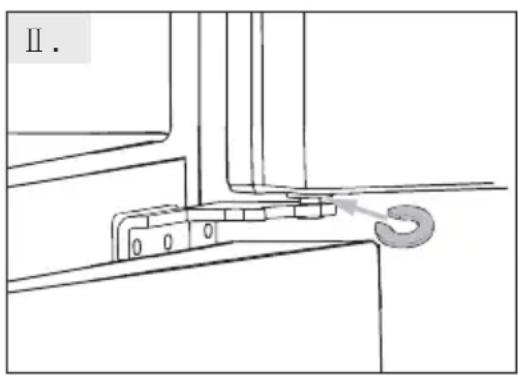

▶ Carefully clip the spacer (enclosed in the accessory bag) in the white plastic ring of the middle hinge by hand or using tools like pliers. Do not scratch or bruise the door.

NOTICE

In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

RNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand Haier
Model name / identifier	HDR5818DNSS HDR5818DNPW
Category of the model	Refrigerator-freezer
Energy efficiency class	D
Annual energy consumption(kWh/year)(1) 273
Total volume(L) 640
Volume refrigerator(L) 413
Volume freezer(L) 184
Volume chiller section(L)	43
Star rating	*/***
Temperature of other compartments>14°C	Non applicable
Frost-free system	Yes
Freezing capacity(kg/24h)	10
Climate rating(2)	SN-N-ST-T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	B(35)
Temperature rise time (h)	10
Type of appliance	freestanding

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	2
Main fuse (A)	8
Coolant R600a
Dimensions (H/W/D in mm)	1850 / 830/725

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39	99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205		• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

CERTIFICATE OF QUALITY

DESIGNATION: REFRIGERATOR

Q.C.PASSED

CHECKER No.

Haier

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram of a room layout with two walls and two windows, marked by arrows indicating direction (no text or symbols)

Diagram showing two labeled arrows pointing upward and downward to a rectangular object, with numbered circles ① and ② indicating positions or sections.

ЗАБЕЛЕЖКА

Line drawing of a hand cleaning a window with a cloth and a basin (no text or symbols)

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Mechanical assembly diagram showing a tool interacting with a hexagonal base and rotating arrows (no text or symbols)

Diagram of a geometric structure with arrows indicating direction, no text or symbols present

Technical diagram illustrating door frame adjustment and mounting mechanism, with labeled steps I and II.

Westgate House, Westgate, Ealing

London, W5 1YY

Chladnička-mraznička

HDR5818DNSS

HDR5818DNPW

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram of a room layout with two labeled compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing two labeled arrows (① and ②) pointing upward above a rectangular object with dashed lines, possibly indicating forces or motion in a mechanical or fluid system.

UPOZORNĚNÍ

Line drawing of a hand cleaning a small object near a sink, with no text or symbols present.

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Mechanical assembly diagram showing a rotating component with arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

Warning sign depicting a flame symbol in a triangular hazard triangle

Technical diagram of a multi-level mechanical or electrical component with curved arrows indicating flow or movement (no text or symbols present)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Mehrfach-Luftstrom

Diagram of a room layout with two doors and directional arrows indicating movement or flow (no text or symbols)

Diagram showing two labeled mechanical or fluid flow directions with arrows and numbered annotations

HINWEIS

Line drawing of a hand cleaning a window with a soap dispenser and a basin (no text or symbols)

3. C D H W

Mechanical assembly diagram showing a lever and rotating component (no text or symbols)

Geometric diagram of a 3D structure with dashed lines and arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

London, W5 1YY

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Πολλαπλή ροή αέρα

Architectural floor plan diagram showing two room layouts with arrows pointing to interior areas (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward on a layered structure with directional arrows, likely illustrating a mechanical or fluid system.

ΕΙΔΟΠΟΙΗΣΗ

Simple line drawing of a hand cleaning a surface with a bowl nearby (no text or symbols)

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Mechanical assembly diagram showing a lever and rotating component (no text or symbols)

Geometric diagram of a 3D structure with dashed lines and arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram of a room layout with two doors and an elevator, showing directional arrows (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object, with directional arrows indicating movement or force.

AVISO

Simple line drawing of a hand cleaning a window with a sink (no text or symbols)

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Mechanical assembly diagram showing a lever and rotating component (no text or symbols)

Geometric diagram of a 3D structure with dashed lines and arrows indicating direction (no text or symbols)

Technical diagram illustrating door frame adjustment and hinge mechanism, with labeled steps I and II.

Westgate House, Westgate, Ealing

Londres, W5 1YY

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Flux multi-air

Diagram of a room layout with two doors and two windows, showing directional arrows indicating placement or movement (no text or symbols present)

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object, with directional arrows indicating movement or force.

INFORMATION

Simple line drawing of a hand cleaning a window with a sink (no text or symbols)

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Diagram of a mechanical device with rotating arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D structure with dashed lines and arrows indicating direction (no text or symbols)

Technical diagram illustrating door frame adjustment and hinge mechanism, labeled with steps I and II.

Westgate House, Westgate, Ealing

Londres, W5 1YY

Warning sign depicting a flame symbol in a triangular hazard triangle

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Architectural floor plan diagram showing two rectangular compartments with horizontal dividers and directional arrows indicating movement (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object with dashed lines, possibly indicating forces or motion in a mechanical or fluid system.

MEGJEGYZÉS

Simple line drawing of a hand cleaning a surface with a bowl nearby (no text or symbols)

3. C D H W

Mechanical assembly diagram showing a lever and rotating component (no text or symbols)

Geometric diagram showing a 3D shape with internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

Warning symbol of a flame inside a triangle (no text or numbers)

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Interior layout diagram of a room with two doors and ceiling fixtures, no text or symbols present

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object, with directional arrows indicating movement or force.

AVVISO

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or force, possibly representing a mechanical or electrical system.

Illuminazione

Line drawing of a hand cleaning a window with a soap bottle and bowl (no text or symbols)

3. C D H W

Mechanical assembly diagram showing a rotating component with arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of a multi-level indoor space with horizontal and vertical lines, arrows indicating flow or movement, and a device inside (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

Diagram showing two labeled arrows pointing upward at points ① and ②, with a dashed line indicating a reference or threshold.

LET OP

Line drawing of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

Mechanical diagram showing a lever mechanism with rotating arrows indicating rotational motion (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

AANDUIDING: KOELKAST

GESLAAGDE QC QC01

Nr. CONTROLEUR

Haier

Instrukcja obsługi

Warning sign depicting a flame symbol in a triangular hazard triangle

UWAGA

Technical line drawing of a multi-level mechanical or electrical enclosure with curved pipe fittings and a central device (no text or symbols)

Diagram showing two hands holding a device with arrows labeled ① and ② indicating direction or movement.

Interior layout diagram of a room with two doors and two windows, showing directional arrows (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing upward on a layered structure with directional arrows, likely illustrating a mechanical or fluid system.

UWAGA

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

3. C D H W

Mechanical assembly diagram showing a rotating component with arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

Londyn, W5 1YY

Warning symbol of a flame inside a triangle (no text or numbers)

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram of a room layout with two labeled compartments and directional arrows indicating flow or movement (no text or symbols present)

Prateleiras das portas/suporte de garrafas amovíveis

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object, with directional arrows indicating movement or force.

AVISO

Simple line drawing of a hand cleaning a surface with a magnifying glass and a basin (no text or symbols)

Substituir as lâmpadas LED

AVISO!

3. C D H W

Mechanical assembly diagram showing a tool interacting with a base, with two curved arrows indicating rotational motion (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

Warning symbol of a flame inside a triangle (no text or numbers)

AVERTISMENT: Risc de incendiu/material inflamabil

A: Compartment frigider

B: Compartiment congelator

10 Raft glisant

11 Zona Freeze

12 Zona Freeze

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Flux de aer multiplu

Architectural floor plan diagram showing two floors with directional arrows indicating placement or movement (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object with a downward arrow, likely illustrating a mechanical or fluid system concept.

OBSERVATIE

Simple line drawing of a hand cleaning a window with a soap dispenser and a basin (no text or symbols)

Compartiment congelator: 12 V max 2 W

3. C D H W

Mechanical assembly diagram showing a rotating component with arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

Londra, W5 1YY

Chladnička s mrazničkou

HDR5818DNSS

HDR5818DNPW

Warning symbol of a flame inside a triangle (no text or numbers)

A: Chladiaci priestor

1 Lunch box

2 Sklenené police

3 Al Cooling

4 Fresh zone

5 Kryt Humidity zone

6 Humidity zone

7 Stojan na fl'aše

8 Kryt My zone

9 My zone

B: Mraziaci priestor

10 Posuvná polica

11 Freeze zone

12 Freeze zone

Pred prvým použitím

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram of a room layout with two doors and two windows, showing directional arrows (no text or labels)

Vyberatel'né stojany na dverách/držiak na fl'aše

Simple line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

W1 W2 D1 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

(Jednotka: mm)	Model č. 1		Model č. 2
Širka	W1	830
	W2	500
	W3	529
	W4	1330
	W5	21
	W	830
Híbka	D1	1362
	D2	1502
	D	725
Vzdialenost od zadnej steny	A	50
Vzdialenost od bočných stien	B	50
Vzdialenost od stropu	C	50
Celková výška	H	1850

Mechanical assembly diagram showing a cutting tool pressing a circular component with two curved arrows indicating rotation (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY

Warning sign depicting a flame symbol in a triangular shape

Pure technical diagram of a multi-level mechanical or electrical component with no text, numbers, or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Çoklu hava akışı

Interior layout diagram showing two rectangular compartments with arrows pointing to each, no text or symbols present.

Diagram showing two labeled arrows (① and ②) pointing upward on a rectangular object with dashed centerline, likely illustrating a mechanical or fluid system concept.

AÇIKLAMA

Simple line drawing of a hand cleaning a window with a soap dispenser and a basin (no text or symbols)

W1 D1 W2 125° W3 W4

1.

A B B W5 90° D2

3. C D H W

Mechanical diagram showing a lever mechanism with rotating arrows indicating rotational motion (no text or symbols)

Geometric diagram showing a 3D shape with dashed internal lines and directional arrows, no text or symbols present

Westgate House, Westgate, Ealing

London, W5 1YY
