MS-F-550-D - Portable ladder Vevor - Free user manual and instructions

Brand	Vevor
Model	MS-F-550-D
Product Type	Portable RV Step (Threshold Step)
Maximum Load Capacity	440 lb (approx. 200 kg)
Number of Steps	1
Main Material	Sturdy Steel
Foldable	Yes
Recommended Use	Access to recreational vehicles (RV, campers)
Installation	Attach to chassis with M10 bolts (not included)
Safety Instructions	Read manual before use, do not modify, wear gloves during installation
Maintenance	Check fixings every 3 months, store dry, avoid direct sunlight
Wear Check	Every 3 months, replace if surface damaged
Included Parts	1 main body (step)
Parts Not Included	M10 bolts and nuts
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online
Country of Manufacture	China
US Representative	Sanven Technology Ltd., Rancho Cucamonga, CA
UK Representative	Pooledas Group Ltd, Preston
Germany Representative	SHUNSHUN GmbH, Linkenheim-Hochstetten

Frequently Asked Questions - MS-F-550-D Vevor

How to install the Vevor MS-F-550-D threshold step?

Determine the installation position on the chassis, drill four holes of 10 mm diameter, then attach the step with M10 bolts and nuts (not included). Follow the detailed instructions in the manual.

What is the maximum load capacity of this step?

The maximum load capacity is 440 lb, approximately 200 kg.

What tools and fixings are required for installation?

You will need a drill, a 10 mm drill bit, and M10 bolts and nuts (not included in the package).
Protective gloves are recommended.

How to maintain the Vevor portable step?

Regularly check the fixings to ensure they are not loose. Every 3 months, inspect the surface for wear or damage. Store the step in a dry and ventilated place, away from direct sunlight.

Is it safe to let children play on this step?

No, it is forbidden to allow children to play on the steps. The step is designed for RV access only and may present falling hazards.

Can I use the step without attaching it to the chassis?

No, the step must be securely attached to the vehicle chassis using bolts. Never use it without fixing to avoid tipping.

Where can I get the required M10 bolts?

The M10 bolts and nuts are not supplied. You can purchase them at a hardware store or online. Choose a length suitable for your chassis thickness.

How to contact Vevor technical support?

Visit www.vevor.com/support for technical assistance and to obtain your electronic warranty certificate.

What to do if the non-slip surface of the step is worn?

If the surface is worn or damaged, you must replace or repair the step as soon as possible to ensure safety. Check every 3 months.

Can I use the step in rain or snow?

The step can be used outdoors, but it is recommended to store it sheltered when not in use. Avoid prolonged exposure to moisture to prevent corrosion. Regularly check the condition of the fixings.

USER MANUAL MS-F-550-D Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

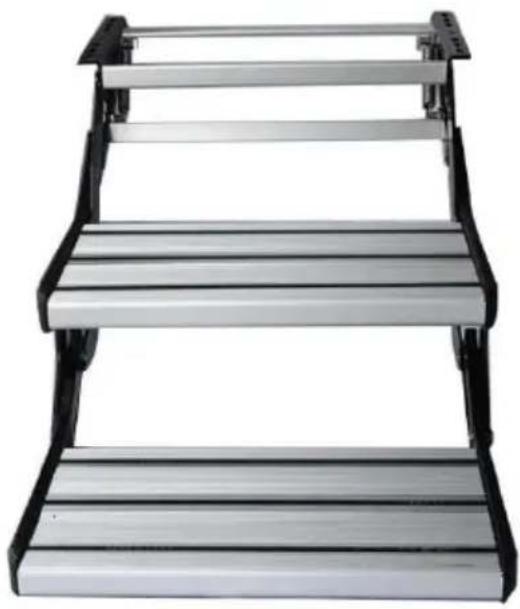

RV Steps

MODEL: MS-F-550-D

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: MS-F-550-D

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Carefully read and understand instructions and procedures before installing and using the threshold ramp.

Do not modify the threshold ramp design.

• Do not move a threshold ramp while standing on it.
• During installation, please wear gloves to prevent hand injuries.
• Do not stack items or allow children to play on the RV Steps.

Regularly check the structure and fasteners of the RV Steps to ensure stability and safety.

If the surface of the RV Steps is worn or damaged, replace it promptly.

Regularly check if the fasteners on the RV Steps are loose and tighten them as necessary.

If the RV Steps is not used for a long time, store it in a dry, ventilated place, avoiding direct exposure to sunlight.

Check the surface of the RV Steps for wear and tear every 3 months, and replace or repair as necessary if there is significant wear or damage.

SAVE THESE INSTRUCTIONS

Part List
NO.	Picture	Name	Quantity
1		Main Body	1

Step carrying capacity: 440 lbs

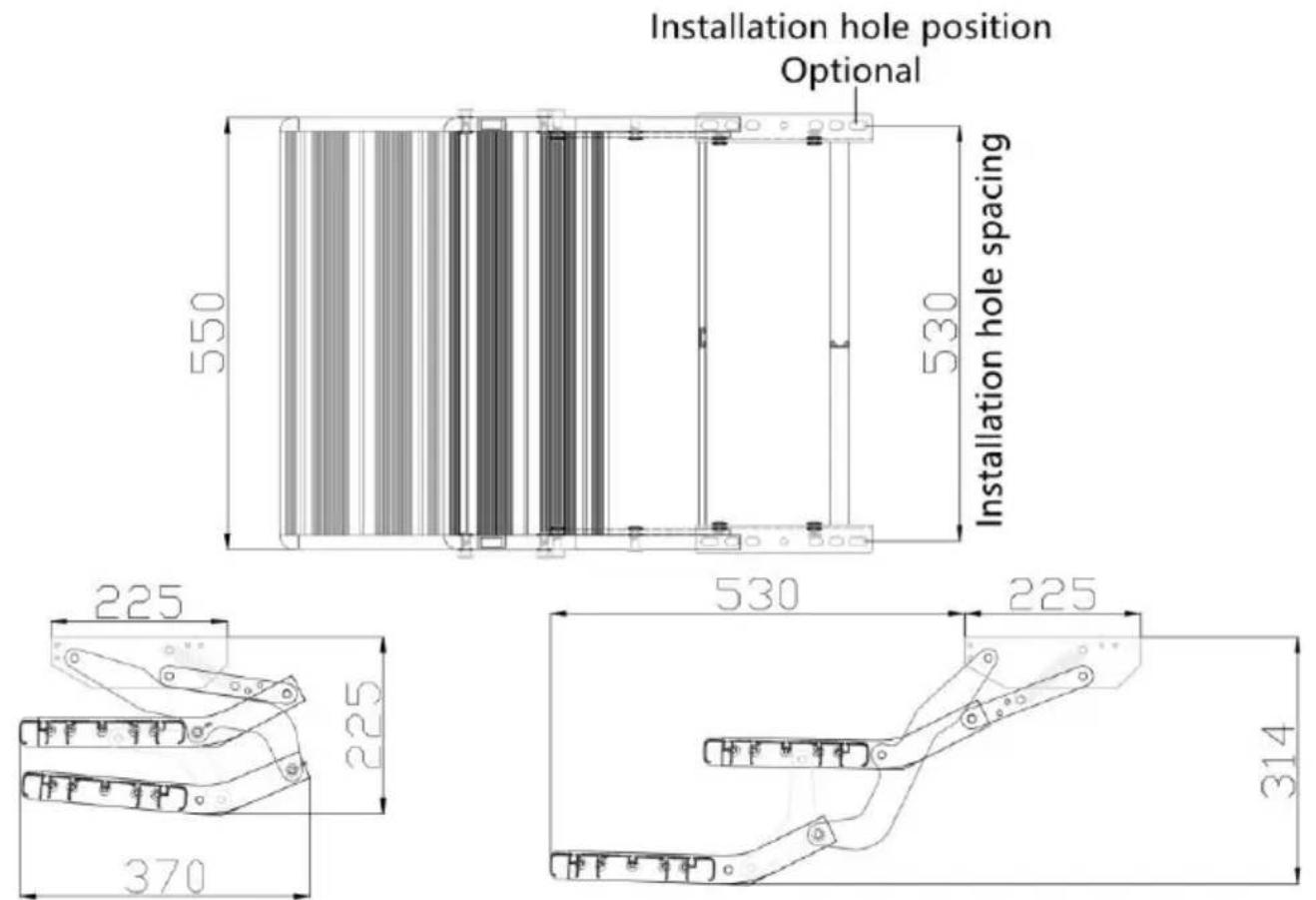

Product Size

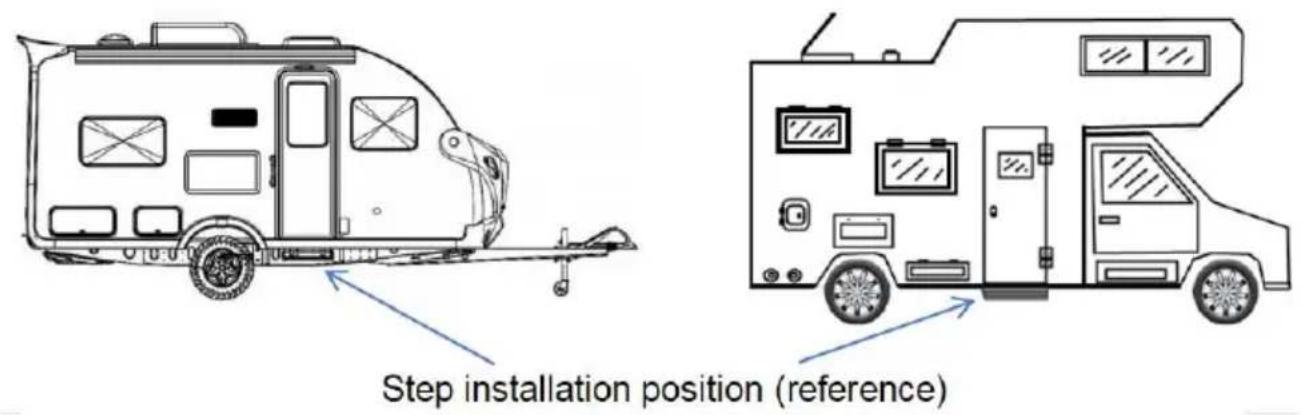

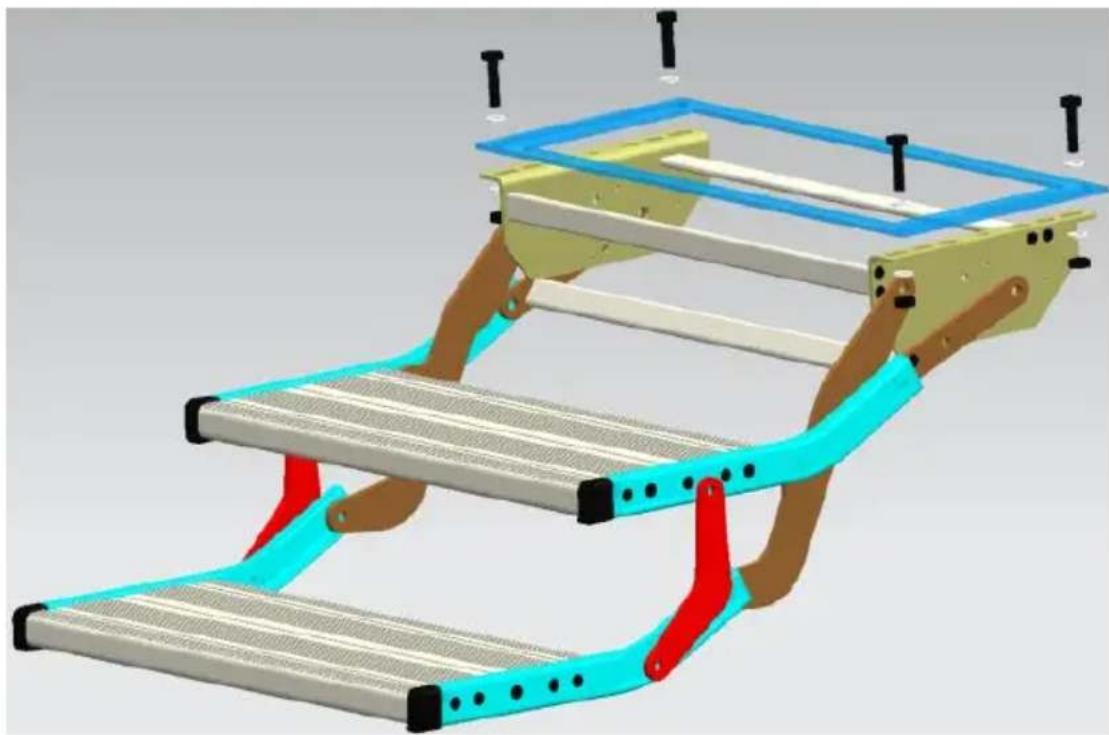

Installation

1) When installing the step, determine the installation position, select the appropriate four elliptical hole positions, and make a mark. 2) Drill four 10mm diameter installation holes in a suitable position on the chassis. 3) Use M10 bolts and nuts (not provided) of appropriate length to lock the ladder to the chassis.
