Vevor HT231201A - Portable ladder

HT231201A - Portable ladder Vevor - Free user manual and instructions

Find the device manual for free HT231201A Vevor in PDF.

📄 96 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice Vevor HT231201A - page 19
Pick your language and provide your email: we'll send you a specifically translated version.
BrandVevor
ModelHT231201A
Product typePortable stairs / Steps for RV (Recreational Vehicle)
Number of steps2
Maximum load capacity200 kg per step
Power supplyNone (manual use)
Intended useAccess to RVs, recreational vehicles, thresholds
Main materialSteel or aluminum (not specified)
Approximate weightApproximately 8 kg
Estimated dimensionsApproximately 60 x 40 x 20 cm
InstallationAssembly with screws and nuts provided (see 4-step procedure)
Included parts13 main parts + spare screws (A, B, C, D, E, F)
Maintenance and cleaningCheck fastenings regularly; clean with a damp cloth; store in a dry, ventilated place
SafetyDo not modify the design; do not stand on it while moving; wear gloves during installation; do not let children play; check surface wear every 3 months
Spare parts and repairabilityParts available via after-sales service (see list: 1 to 14 + screws)
WarrantyElectronic warranty certificate at www.vevor.com/support
Technical supportTechnical support via www.vevor.com/support
Country of originMade in China
ComplianceCE representative: SHUNSHUN GmbH (Germany)
Recommended useOutdoor and indoor, for RVs and campers

Frequently Asked Questions - HT231201A Vevor

How to install the HT231201A steps?
Follow the 4-step procedure described in the manual. Use the screws and nuts provided (A, B, C, D, E, F). Wear gloves to avoid injury. Tighten all fastenings according to the instructions.
What is the maximum load capacity?
Each step can support up to 200 kg. Do not exceed this limit to ensure safety.
Can I use the steps outdoors?
Yes, they are designed for outdoor use (camper, RV). However, store them in a dry and ventilated place when not in use to avoid rust.
How to maintain the RV steps?
Check the condition of the surface and fastenings every 3 months. Clean with a damp cloth. If the surface is worn or damaged, replace it promptly.
Are spare parts available?
Yes, spare parts (numbered 1 to 14 + screws) are available via after-sales service. Contact www.vevor.com/support.
What tools are needed for installation?
The manual does not specify tools, but a screwdriver and a wrench (probably an Allen key) are generally needed to tighten the provided screws.
Are the steps foldable?
The manual does not indicate a folding mechanism. They are designed as fixed steps to mount on the RV threshold. Check the manual for mounting details.
What to do in case of a missing or damaged part?
Contact Vevor technical support via www.vevor.com/support. Keep the parts list and model number (HT231201A).
Can I modify the design of the steps?
No, it is strictly forbidden to modify the design. This could compromise safety and void the warranty.
Where to find the complete manual?
The complete manual in PDF is available for free on notice-facile.com. You can also contact Vevor for a translated version.

User questions about HT231201A Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Portable ladder in PDF format for free! Find your manual HT231201A - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT231201A by Vevor.

USER MANUAL HT231201A Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

RV Steps

MODEL:HT231201A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:HT231201A

Vevor HT231201A - MODEL:HT231201A - 1

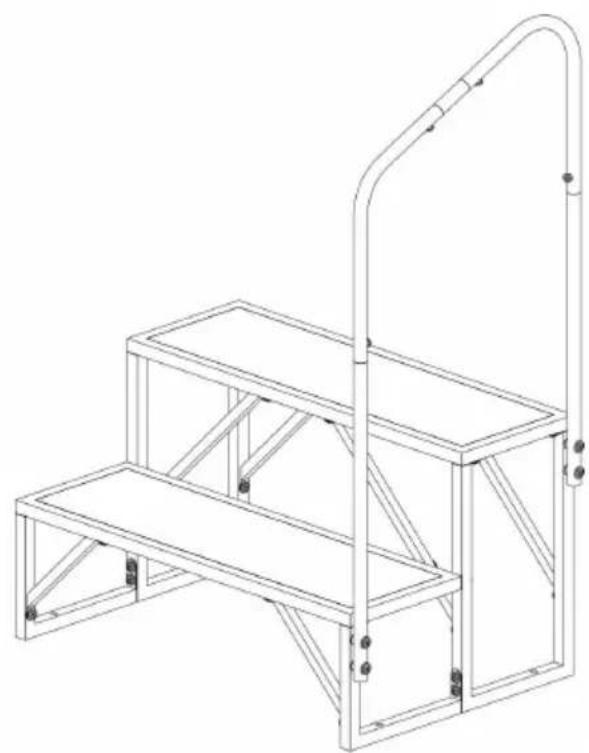

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Carefully read and understand instructions and procedures before installing and using the threshold-ramp.

Do not modify the threshold-ramp design.

  • Do not move a threshold-ramp while standing on it.
  • During installation, please wear gloves to prevent hand injuries.
  • Do not stack items or allow children to play on the RV Steps.

- Regularly check the structure and fasteners of the RV Steps to ensure its stability and safety.

- If the surface of the RV Steps is worn or damaged, please replace or replace time.

- Regularly check if the fasteners on the RV Steps are loose and tighten the necessary.

- If the RV Steps is not used for a long time, store it in a dry, ventilated avoid direct exposure to sunlight.

- Check the surface of the RV Steps for wear and tear every 3 months, are replace or repair as necessary if there is significant wear or damage.

SAVE THESE INSTRUCTIONS

ModelHT231201A
Step Numbe (pcs)2
Max. Load (kg)(single step)200

Part List

1Vevor HT231201A - Part List - 1x12Vevor HT231201A - Part List - 2x13Vevor HT231201A - Part List - 3x14Vevor HT231201A - Part List - 4x2
5Vevor HT231201A - Part List - 5x26Vevor HT231201A - Part List - 6x17Vevor HT231201A - Part List - 7x18Vevor HT231201A - Part List - 8x1
9Vevor HT231201A - Part List - 9x210Vevor HT231201A - Part List - 10x111Vevor HT231201A - Part List - 11x112Vevor HT231201A - Part List - 12x1
13Vevor HT231201A - Part List - 13x114Vevor HT231201A - Part List - 14x1
AVevor HT231201A - Part List - 15M8x15x22 + 2BVevor HT231201A - Part List - 16M8x35x8 + 1CVevor HT231201A - Part List - 17x30 + 3DVevor HT231201A - Part List - 185#x1
EVevor HT231201A - Part List - 195#x1FVevor HT231201A - Part List - 204#x1
Tip: "+" is extra spare parts.

Installation procedure

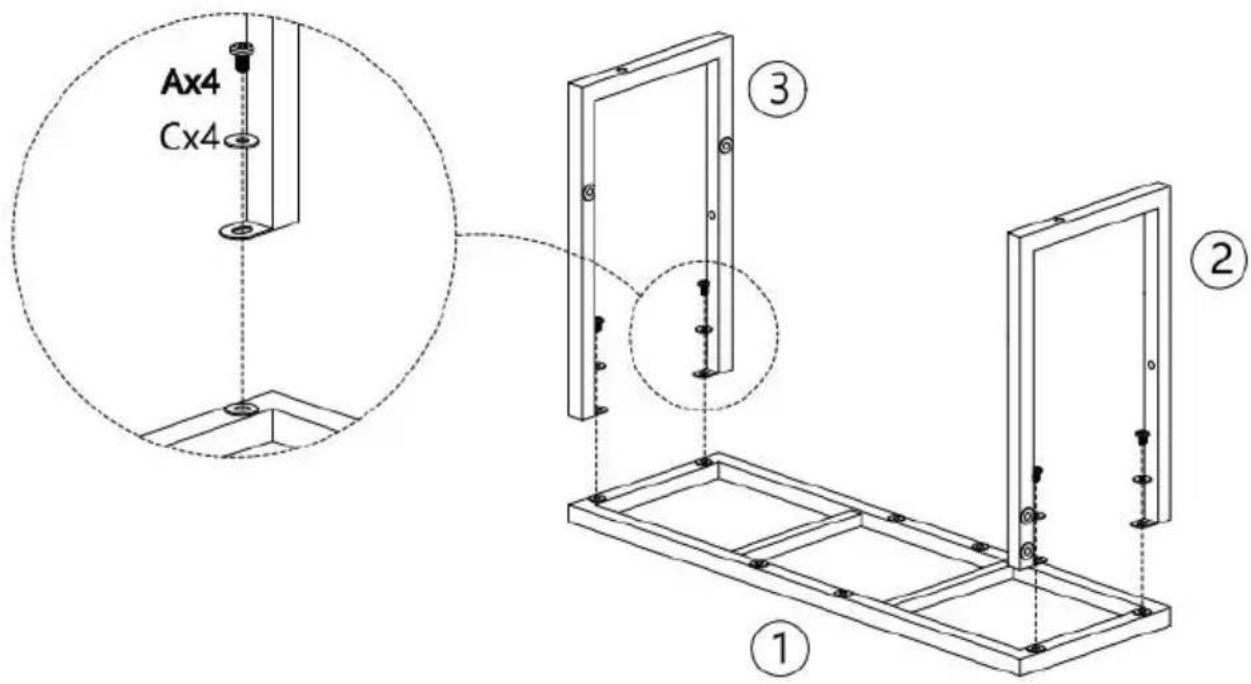

Step 01
Ax4 Cx4 ① ② ③

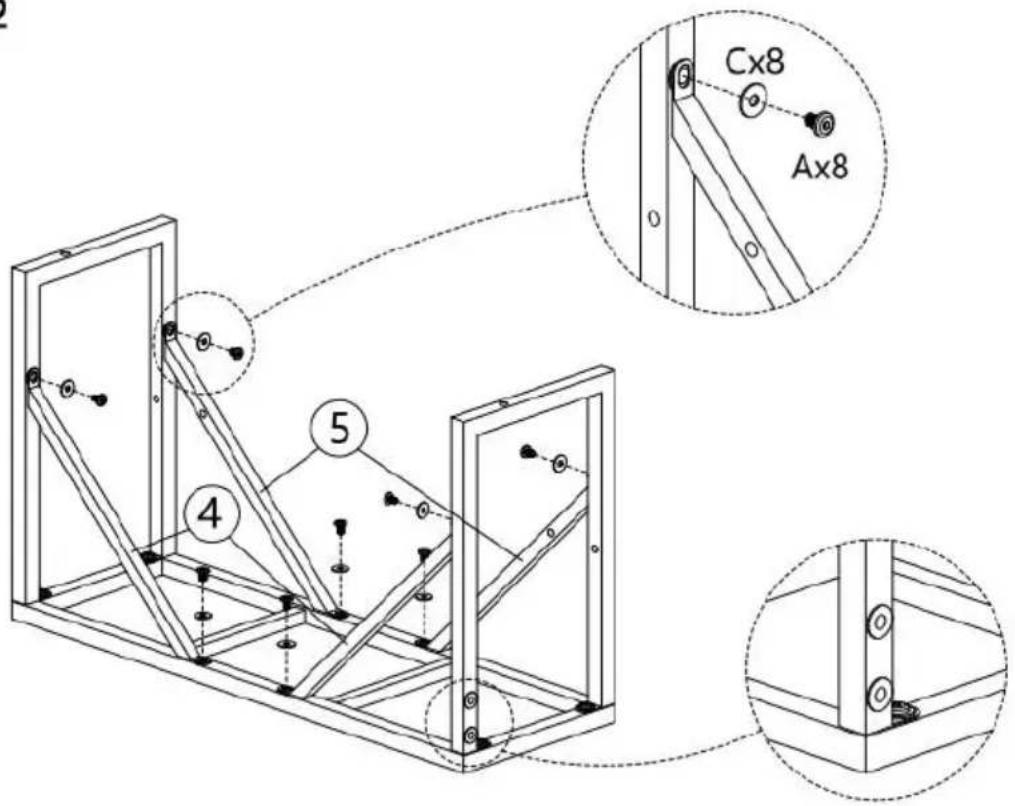

Step 02
Cx8 Ax8 4 5

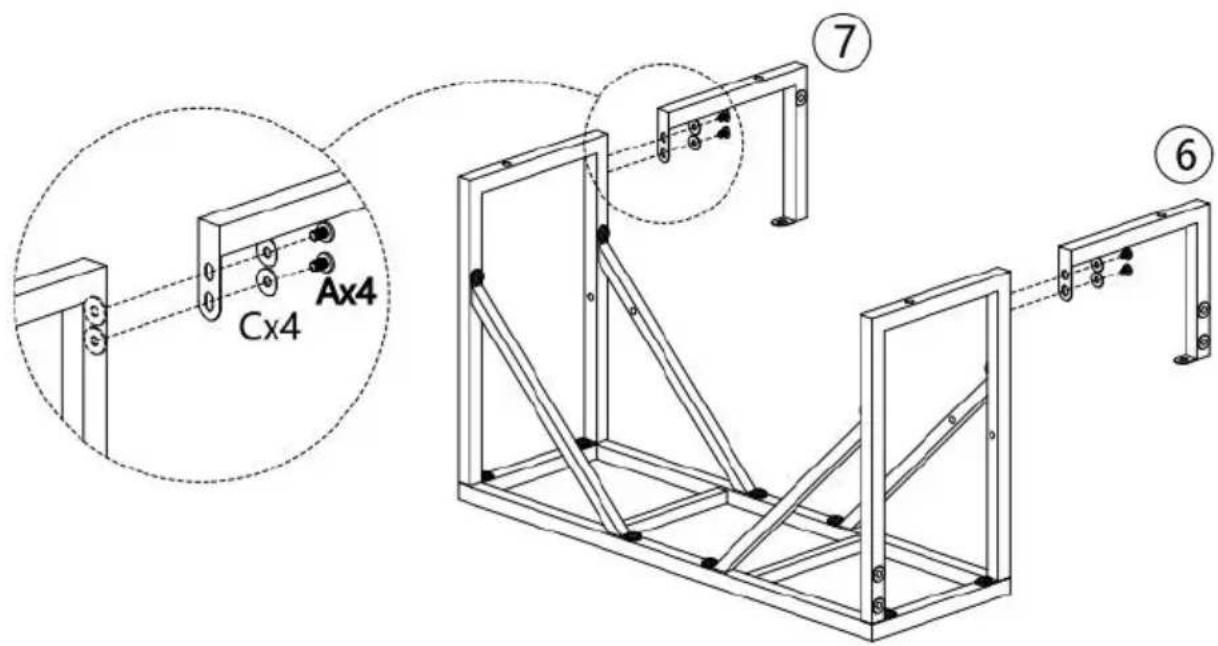

Step 03
Cx4 Ax4 ⑦ ⑥

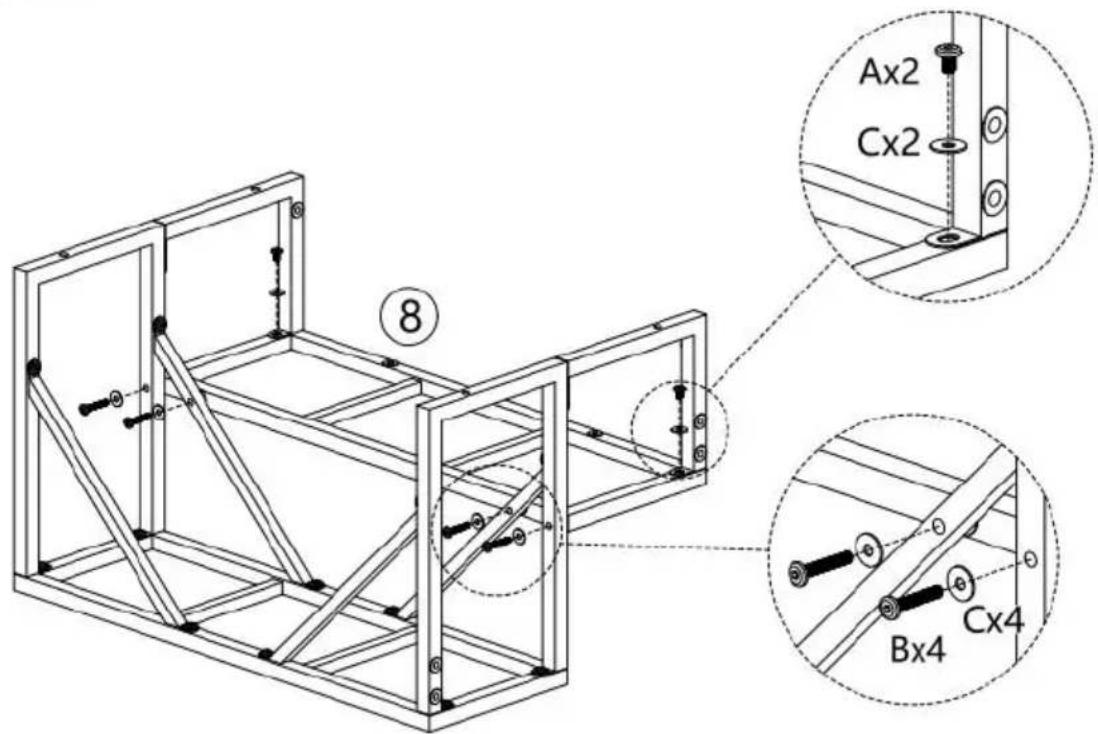

Step 04
8 Ax2 Cx2 Bx4 Cx4

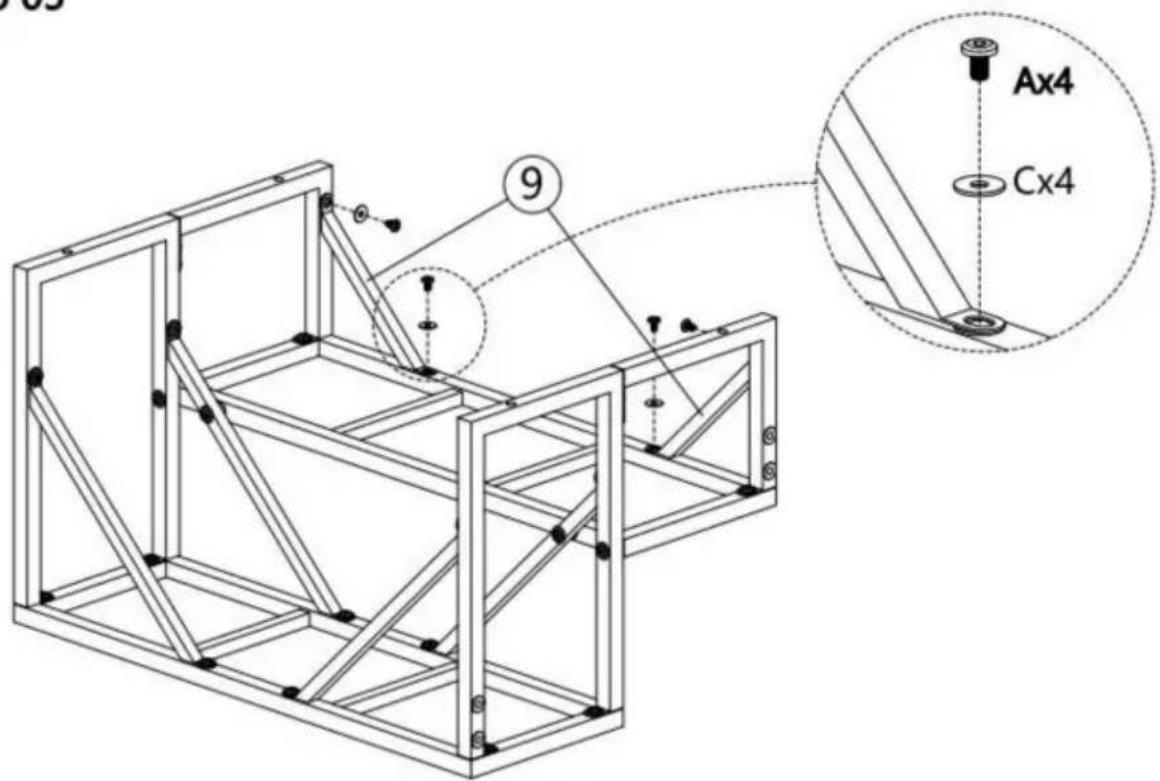

Step 05
Ax4 Cx4 9

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

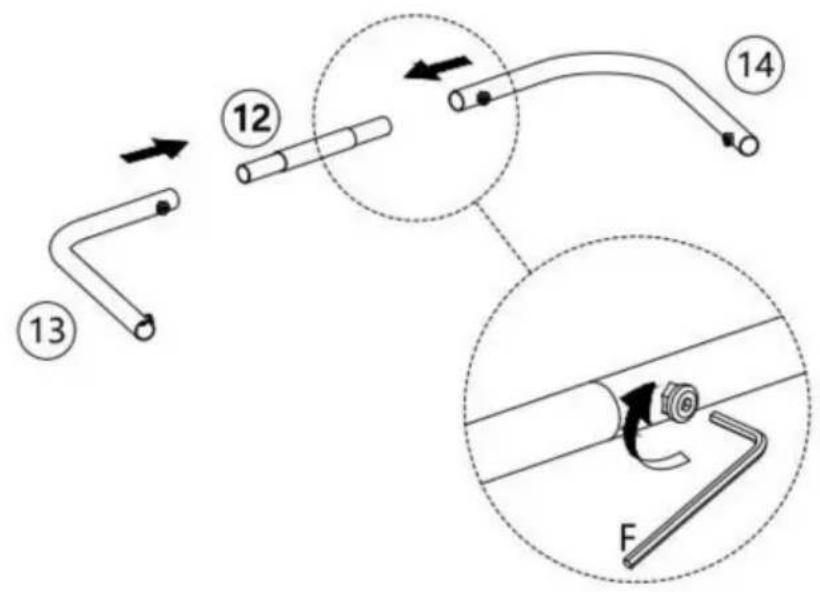

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and a magnified view showing a labeled component 'F'.

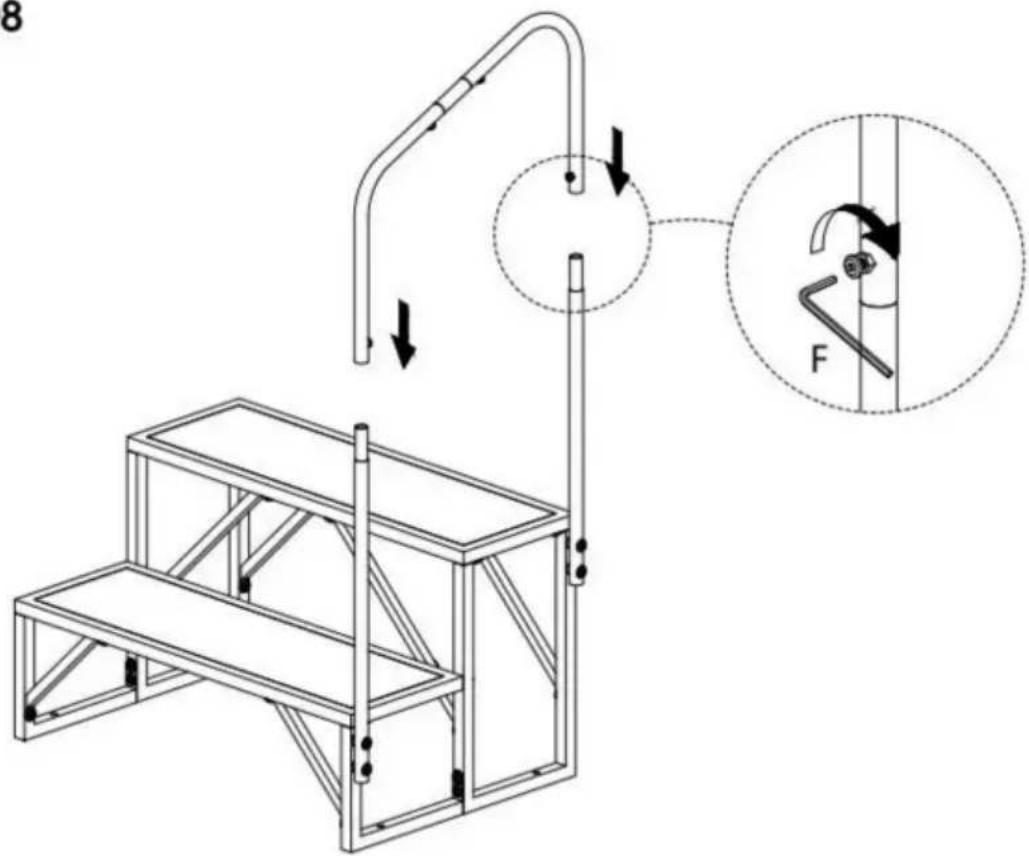

Step 08
8 F

Vevor HT231201A - Installation procedure - 9

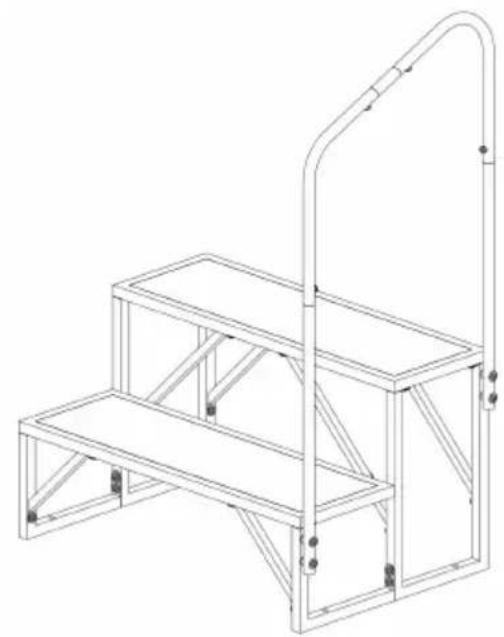

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

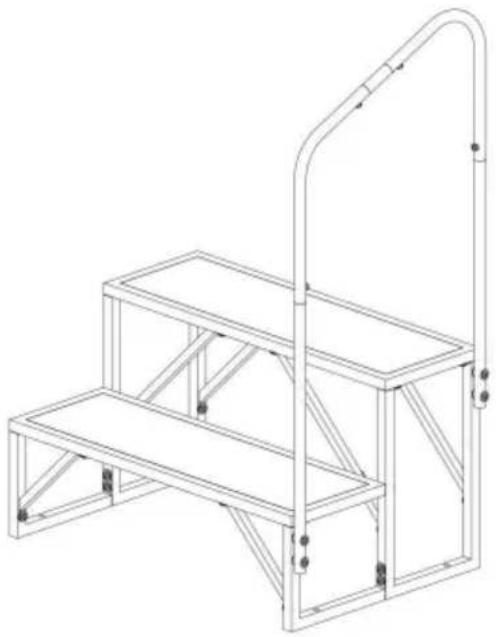

Done!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

UKREP

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

pooledas123@gmail.com

01772418127

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - BESOIN D'AIDE? CONTACTEZ-NOUS! - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Fait!

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importé en Australie :

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australie

www.vevor.com/support

Wohnmobil-Stufen

MODELL:HT231201A

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - BRAUCHEN SIE HILFE? KONTAKTIERE UNS! - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Erledigt!

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Pooledas Group Ltd Unit

5 Albert Edward House, The

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Passaggi per camper

MODELLO:HT231201A

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

HO BISOGNO DI AIUTO? CONTATTACI!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - HO BISOGNO DI AIUTO? CONTATTACI! - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Fatto!

Importato in AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli Stati Uniti: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

REP. DELREGNO UNITO

Pooledas Group Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - TOUGH TOOLS, HALF PRICE - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

¡Hecho!

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

REPRESENTANTE DEL REINO UNIDO

Pooledas Group Ltd

Unidad 5 Albert Edward House,

The Pavilions Preston, Reino Unido

pooledas123@gmail.com

01772418127

REPRESENTANTE DE LA CE

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Alemania

euagent@gmail.com +49

1727041930

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - VEVOR® - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Zrobione!

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj Import do

Australii: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

Unit 5 Albert Edward House,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

RV-stappen

MODEL:HT231201A

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - HULP NODIG? NEEM CONTACT MET ONS OP! - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Klaar!

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, The

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

RV Steg

MODELL: HT231201A

natural_image Technical line drawing of a multi-level industrial platform structure with no visible text or symbols

BEHÖVS HJÄLP? KONTAKTA OSS!

Step 05
Ax4 Cx4

Step 06
Technical diagram of a structural frame assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 07
Diagram illustrating a mechanical or electrical component assembly with numbered parts and directional arrows indicating motion.

Step 08
8 F

Vevor HT231201A - BEHÖVS HJÄLP? KONTAKTA OSS! - 5

natural_image Technical line drawing of a mechanical platform structure with no visible text or symbols

Gjort!

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importerad till AUS:

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UKREP

Pooledas Group Ltd

Enhet 5 Albert Edward House, The

Pavilions Preston, Storbritannien

pooledas123@gmail.com

01772418127

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Tyskland

euagent@gmail.com +49

1727041930

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
