RV Steps

MODEL:HT231201B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:HT231201B

Isometric line drawing of a three-tiered staircase structure with a curved pipe extending upward (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Carefully read and understand instructions and procedures before installing and using the threshold-ramp.

Do not modify the threshold-ramp design.

• Do not move a threshold-ramp while standing on it.
• During installation, please wear gloves to prevent hand injuries.
• Do not stack items or allow children to play on the RV Steps.

- Regularly check the structure and fasteners of the RV Steps to ensure its stability and safety.

- If the surface of the RV Steps is worn or damaged, please replace or replace time.

- Regularly check if the fasteners on the RV Steps are loose and tighten the necessary.

- If the RV Steps is not used for a long time, store it in a dry, ventilated avoid direct exposure to sunlight.

- Check the surface of the RV Steps for wear and tear every 3 months, are replace or repair as necessary if there is significant wear or damage.

SAVE THESE INSTRUCTIONS

Model	HT231201B
Step Numbe (pcs)	3
Max. Load (kg)(single step)	200

Part List

1x1		2x1		3x1		4x2
5x4		6x1		7x1		8x1
9x1		10x1		11x1		12x2
13x1		14x1		15x1		16x1
17x1
A[wcx5]M8x15x32 +2	BM8x35x12 +1		Cx44 +3	D5#x1	E5#x1		F4#x1
Tip: "+" is extra spare parts.

Installation procedure

Step 01

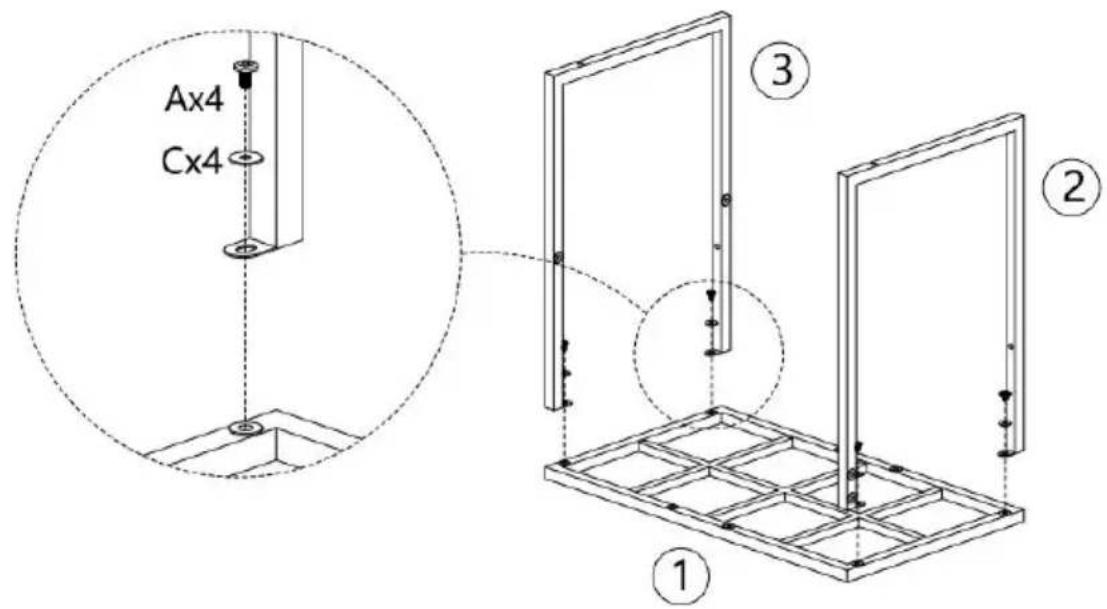

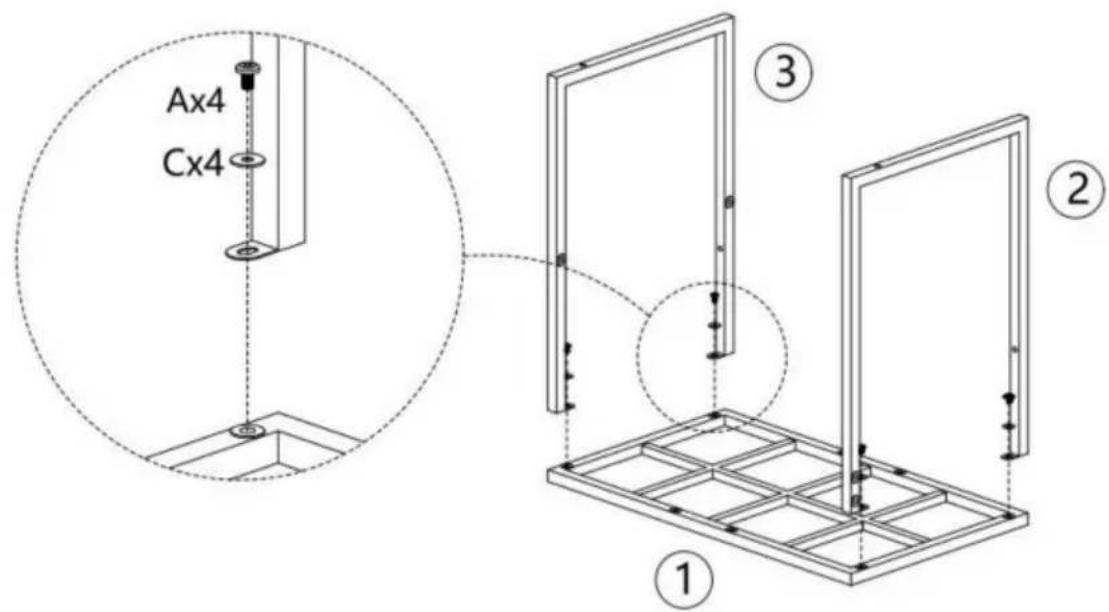

Ax4 Cx4 ① ② ③

Step 02

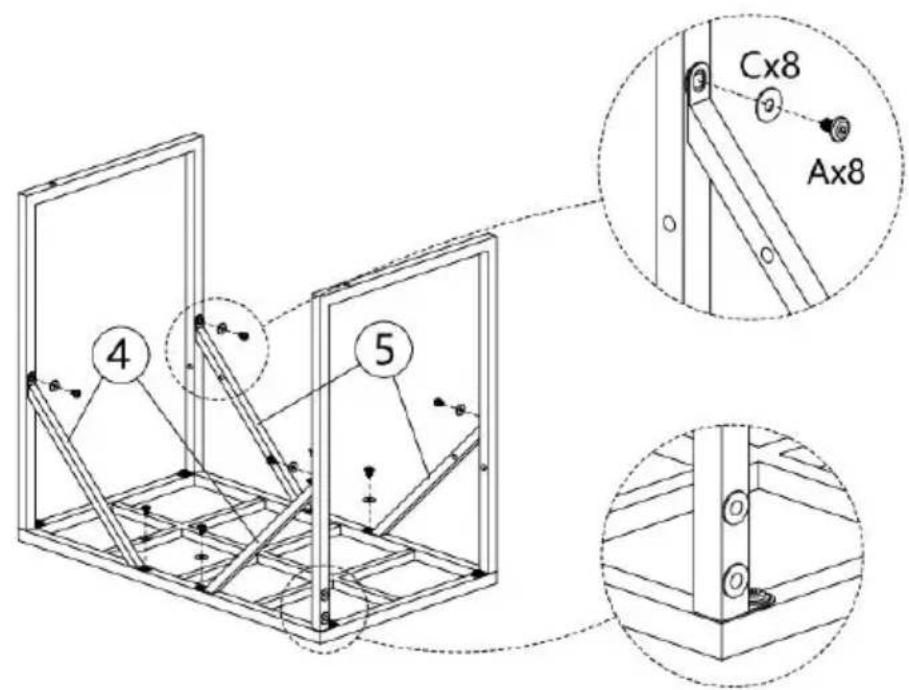

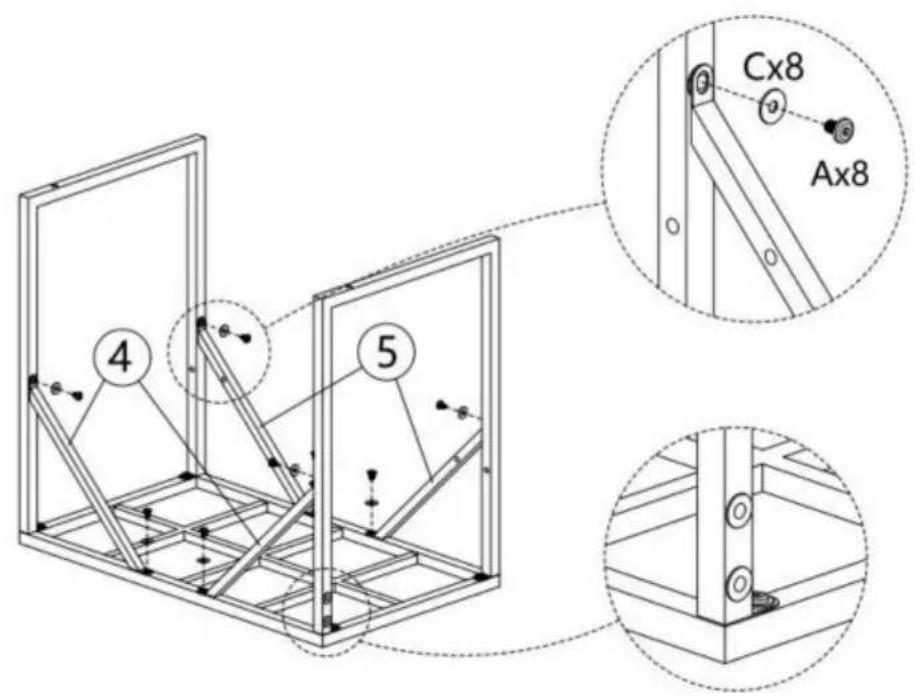

Cx8 Ax8 4 5

Step 03

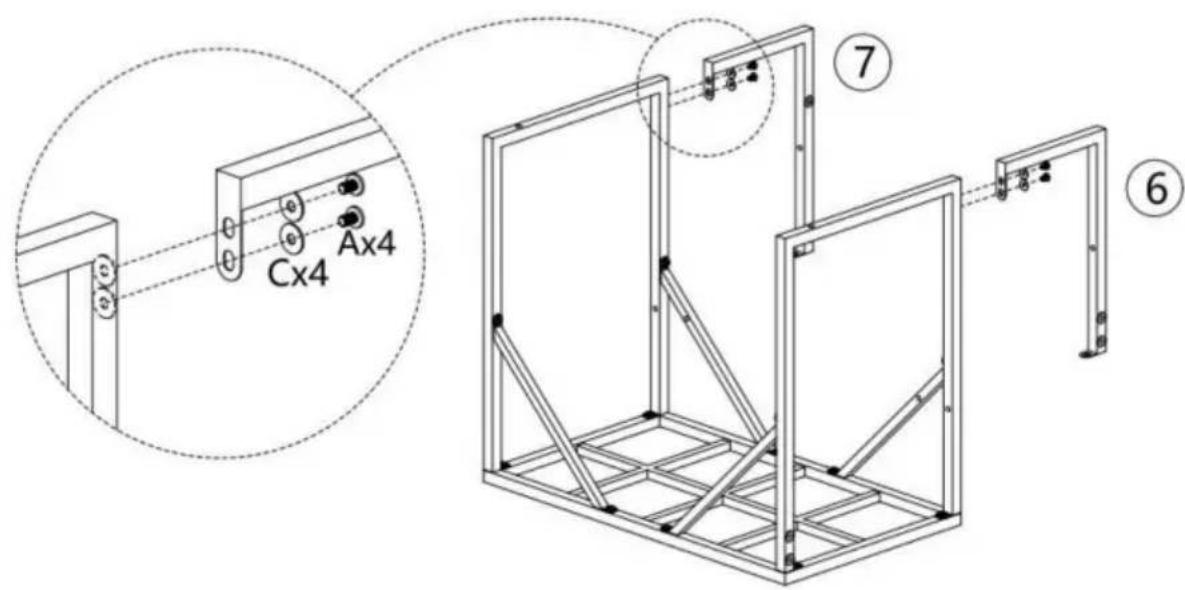

Cx4 Ax4 ⑦ ⑥

Step 04

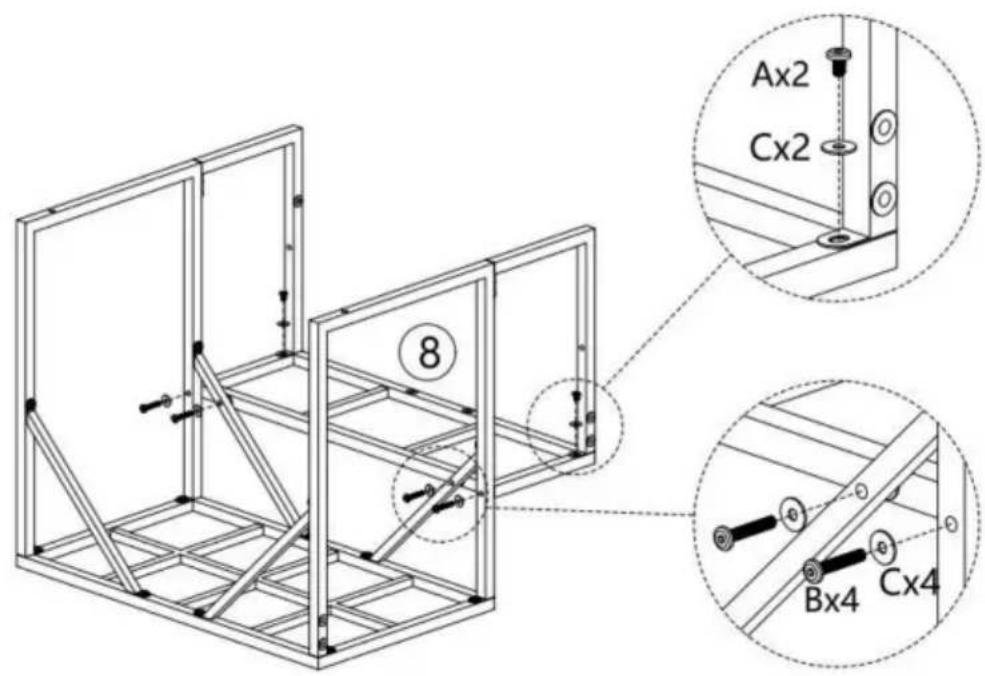

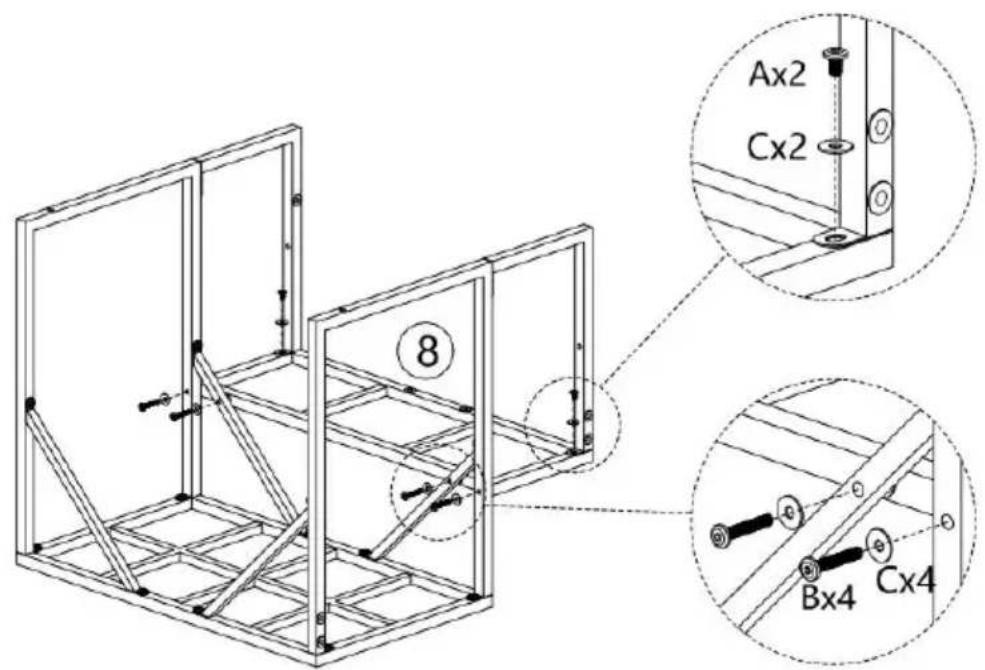

Ax2 Cx2 8 Bx4 Cx4

Step 05

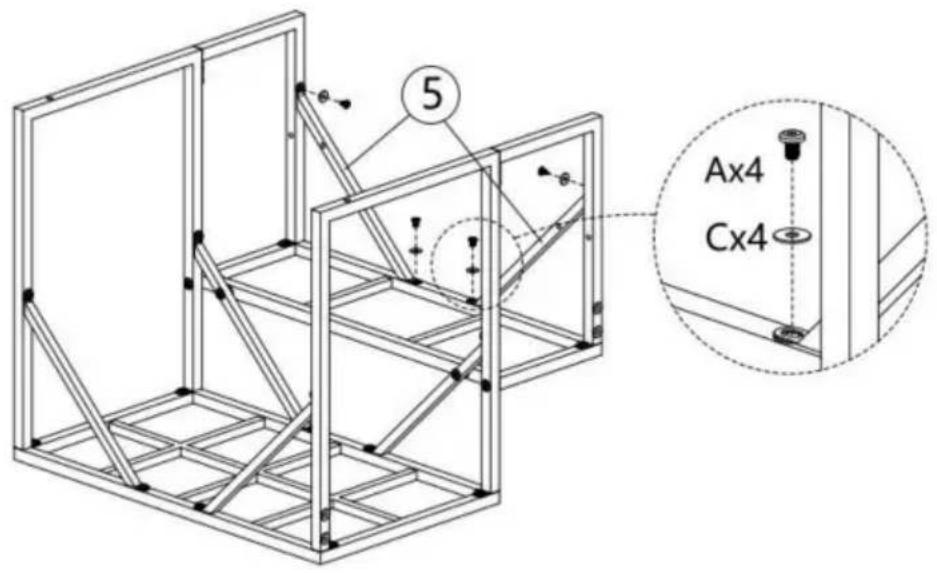

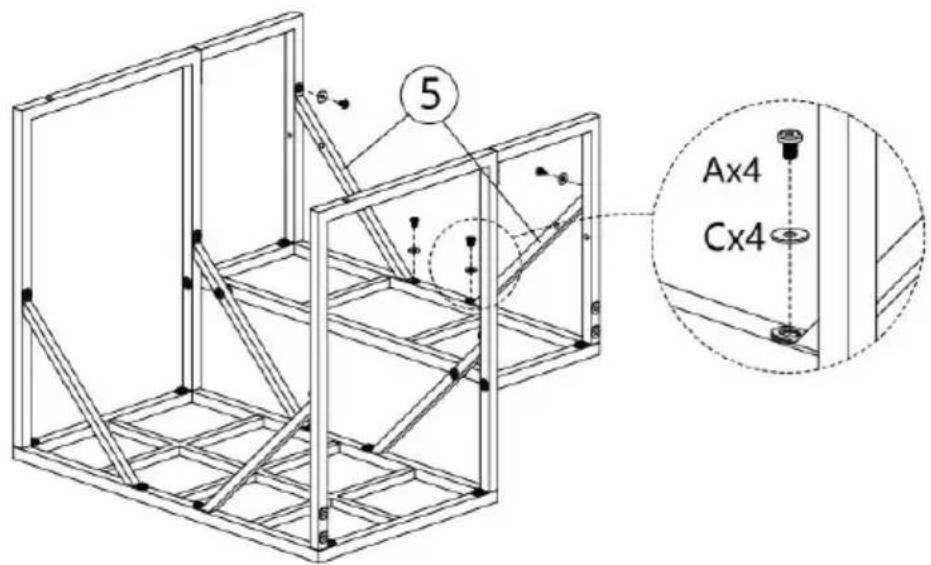

5 Ax4 Cx4

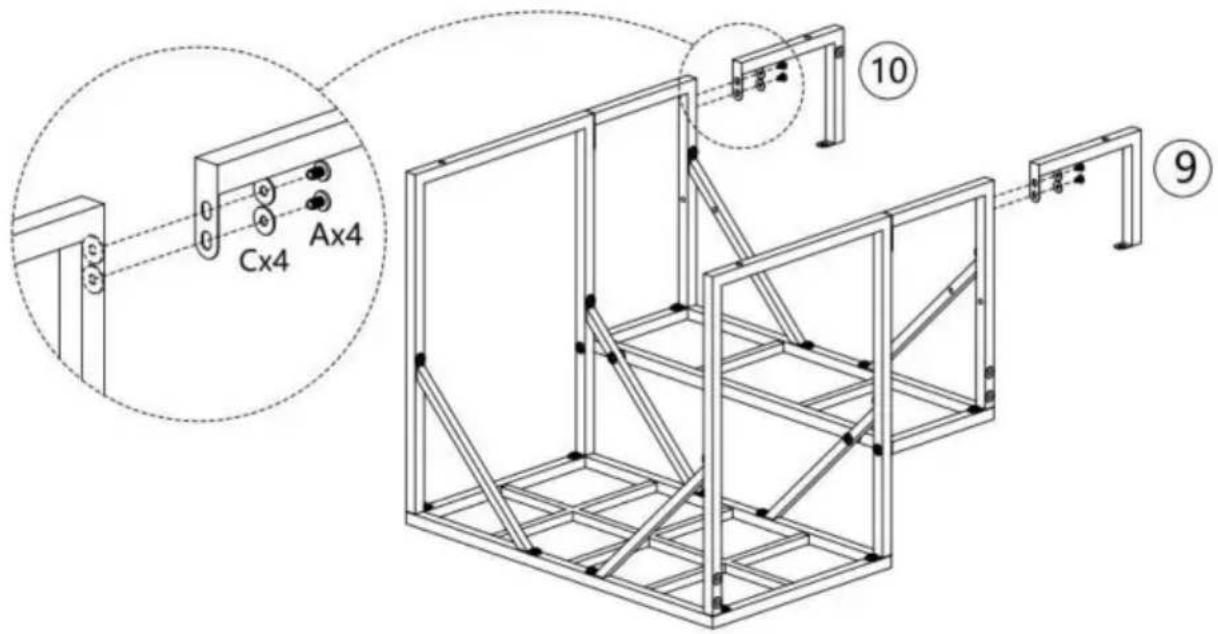

Step 06

Cx4 Ax4 ⑩ ⑨

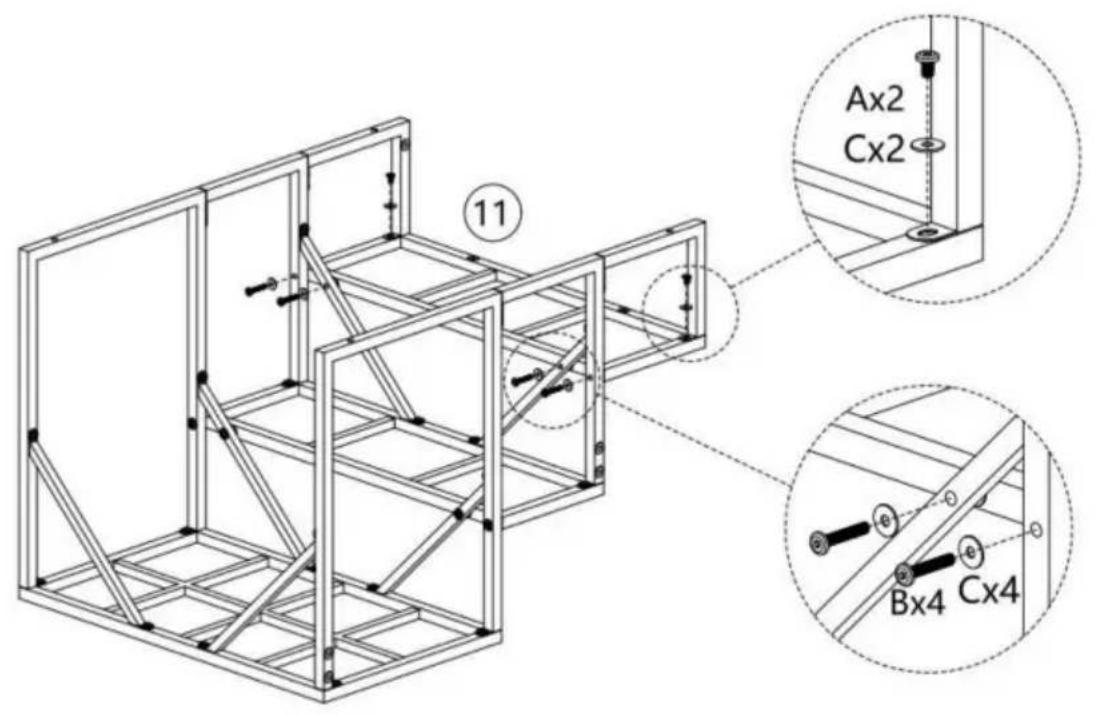

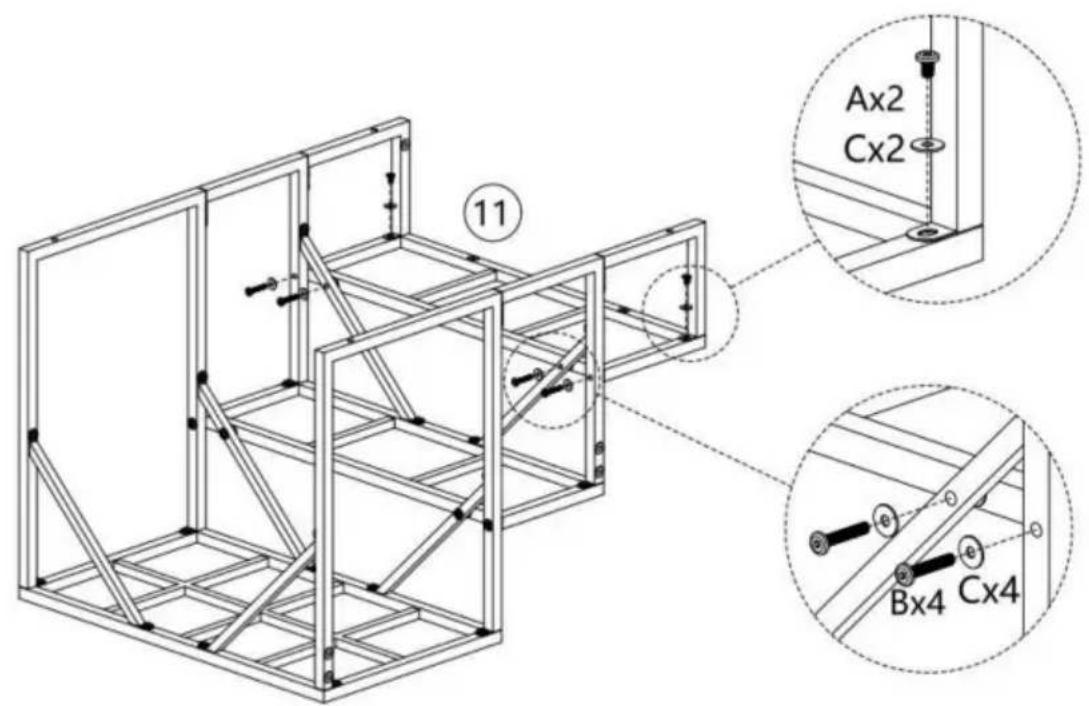

Step 07

Ax2 Cx2 Bx4 Cx4

Step 08

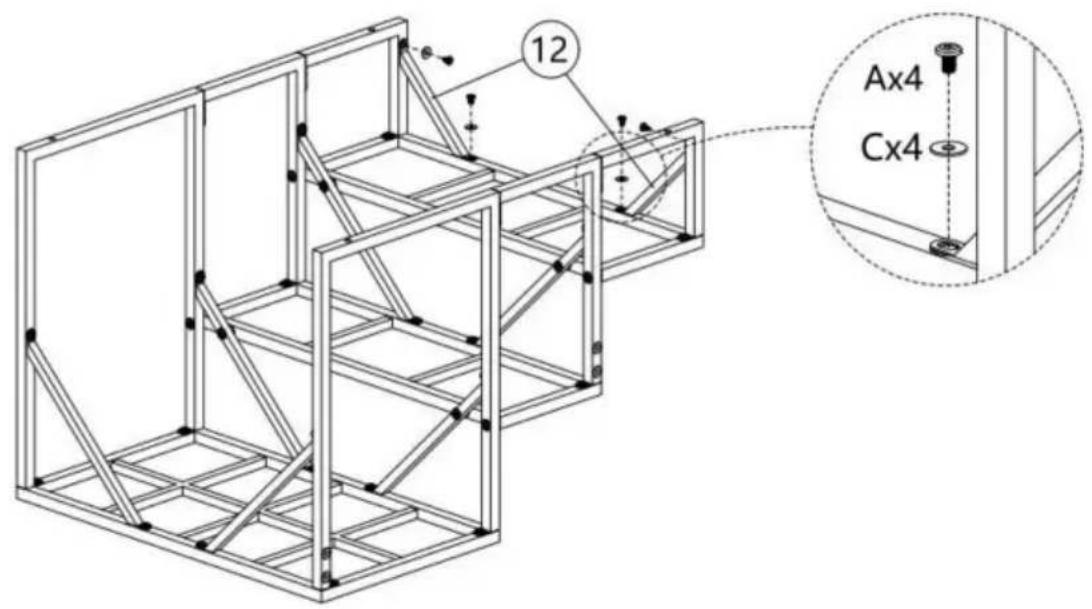

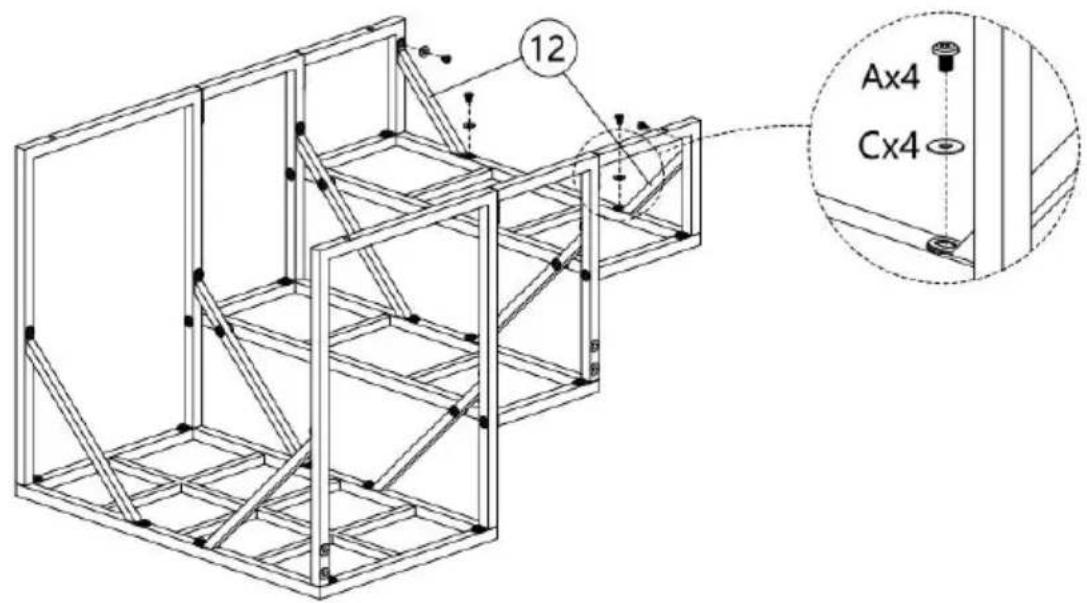

12 Ax4 Cx4

Step 09

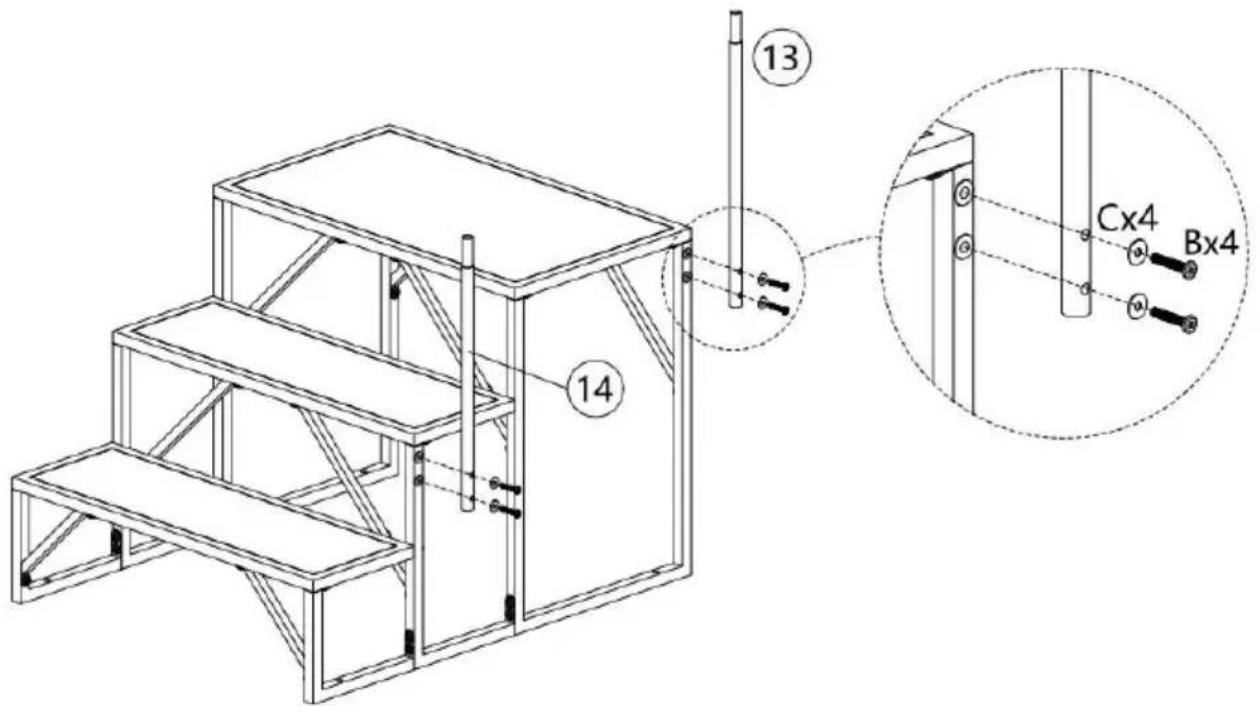

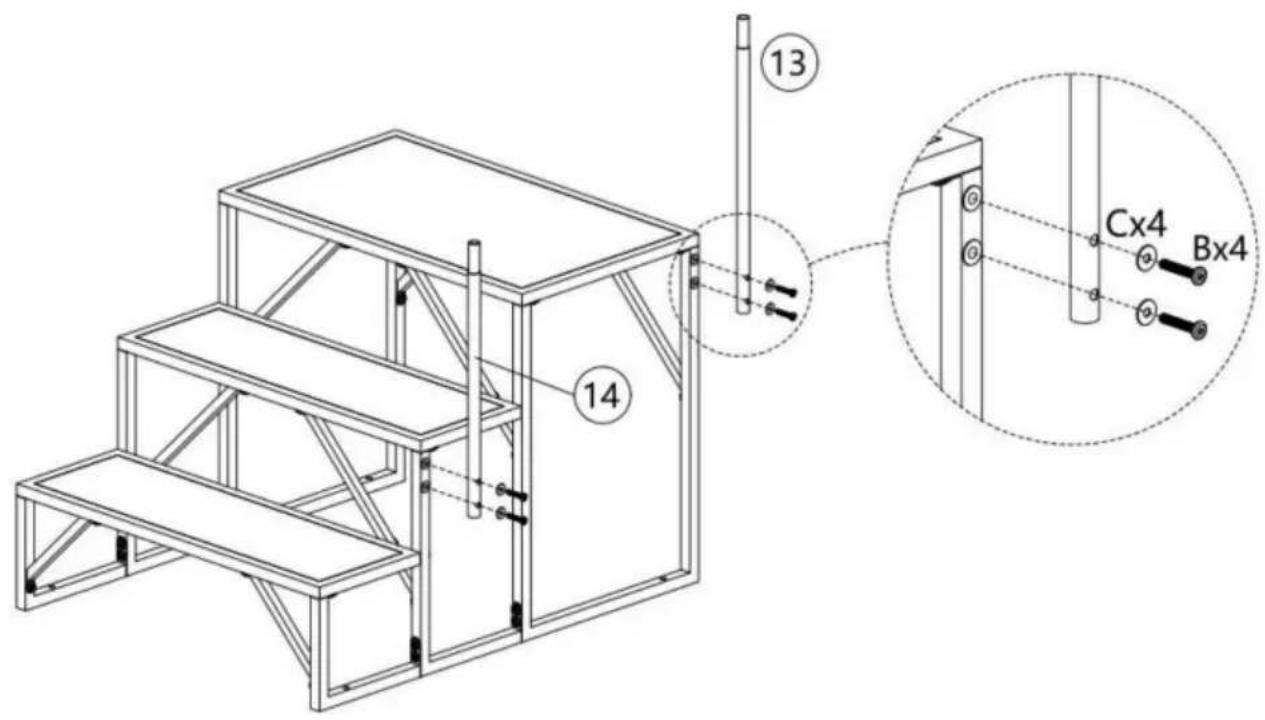

Technical diagram of a staircase assembly with numbered components and close-up details showing labeled parts Cx4 and Bx4.

Step 10

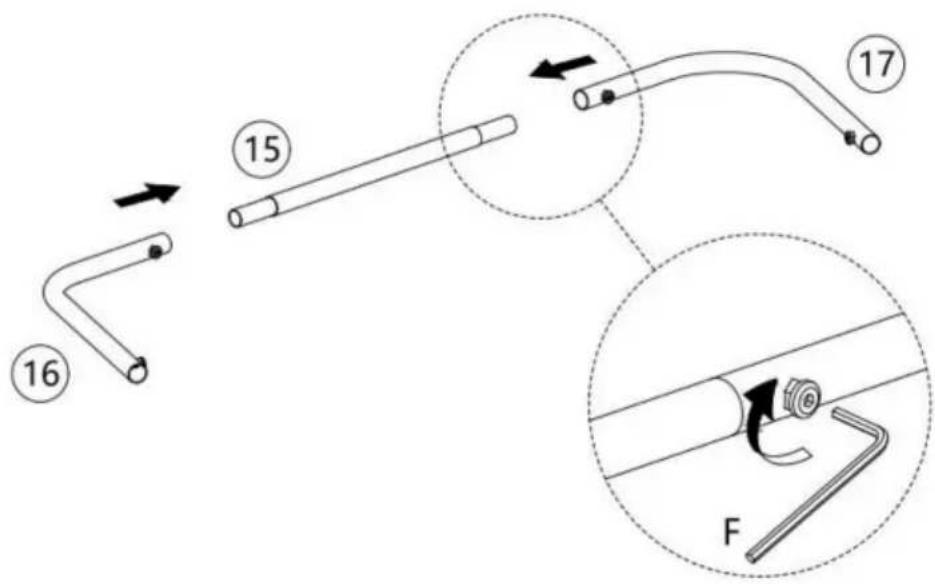

Diagram illustrating a mechanical assembly or tool path with numbered components and directional arrows, including a magnified inset showing the process.

Step 11

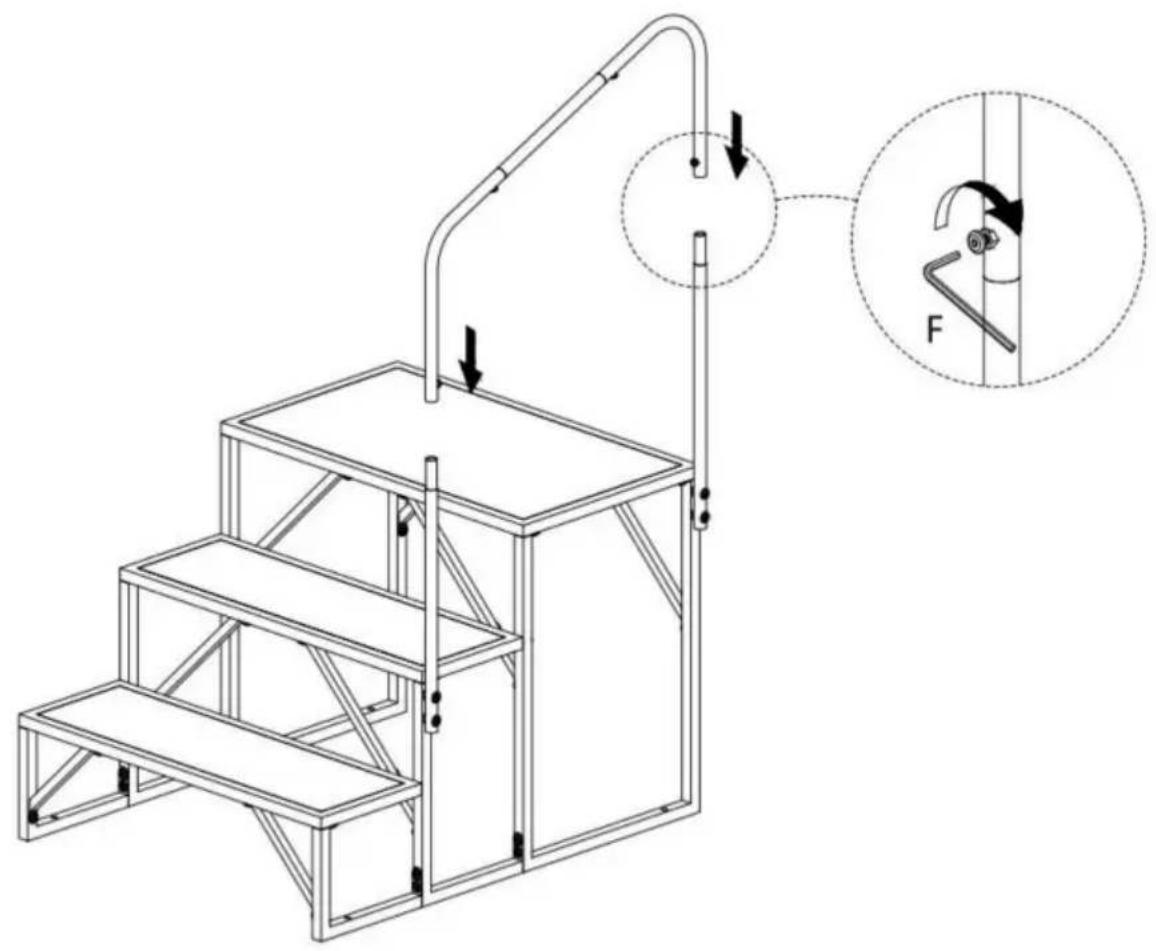

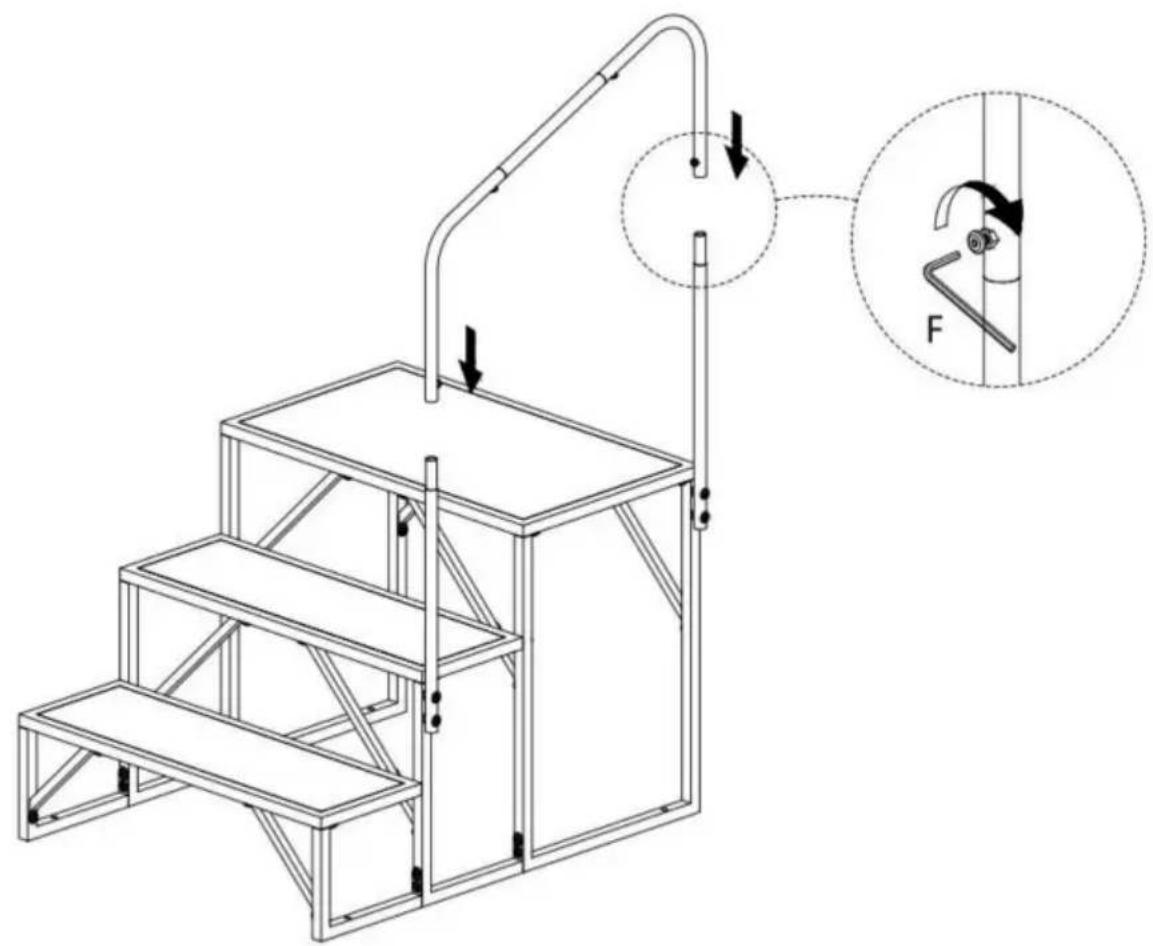

Technical diagram of a staircase with pipe routing and a magnified inset showing a mechanical component labeled 'F'

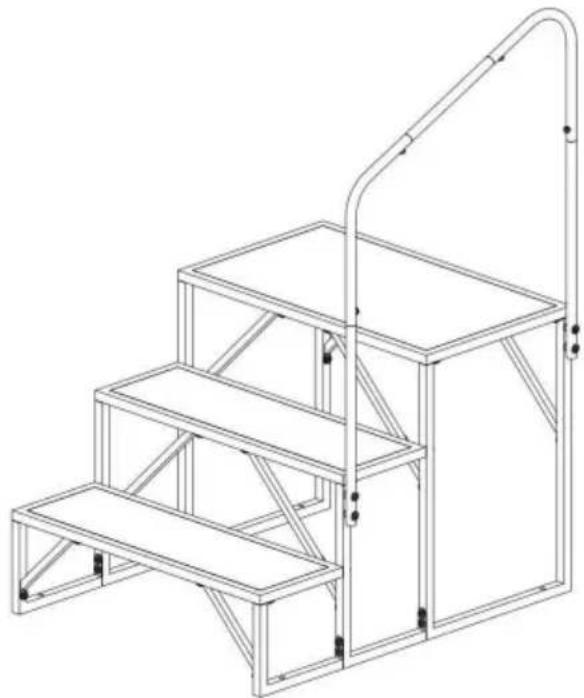

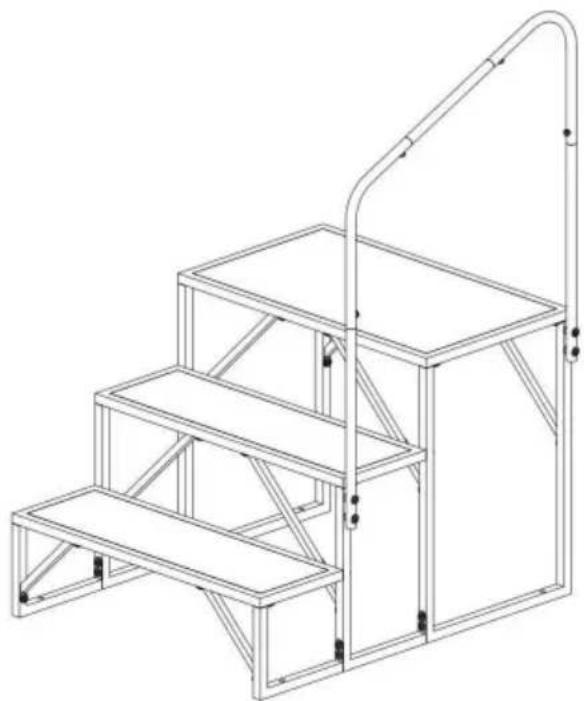

Line drawing of a staircase structure with metal framework and support beams (no text or symbols)

Done!
