Product Type	Laboratory Distillation Apparatus
Model	YHEO-4
Brand	Vevor
Product Dimensions	600 x 270 x 130 mm
Number of Kits	2
Main Material	Steel (iron support)
Support Height	60 cm
Included Clamps	2 flask clamps, 2 cross clamps, 2 claw clamps (4 claws)
Circular Rings	2 (1 large 7.3 cm, 1 small)
Intended Use	Laboratory Distillation
Assembly	On a flat, stable, clean, and well-lit surface
Safety	Read instructions, wear goggles and gloves, do not use if damaged
Maintenance and Cleaning	Clean with a damp cloth, avoid harsh solvents
Package Contents	Supports, clamps, cross clamps, rings, user manual
Warranty	Electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd., Baoshan, Shanghai, CN
Importer (Australia)	SIHAO PTY LTD, NSW 2122
Importer (USA)	Sanven Technology Ltd., Rancho Cucamonga, CA 91730
Customer Service	Technical support and warranty: www.vevor.com/support

Frequently Asked Questions - YHEO-4 Vevor

How to assemble the distillation support?

Follow the instructions in the manual: assemble the iron supports, install the circular rings at the appropriate heights, then secure the cross clamps and flask clamps. Wear safety goggles and gloves during assembly.

What are the important safety precautions?

Do not sit or stand on the apparatus. Use it only on a flat and stable surface. Do not exceed the recommended load capacity. Inspect before each use and do not use loose or damaged parts. Keep children away.

What types of clamps are included with the YHEO-4?

The kit includes 2 flask clamps, 2 cross clamps, and 2 claw clamps (4 claws each). Circular rings are also provided: one large 7.3 cm and one small.

How to adjust the height of the clamps?

Use the cross clamps to secure the clamps at the desired height along the iron support. Make sure the clamps are tight before placing glassware on them.

Is the product compatible with standard laboratory glassware?

Yes, this support is designed for standard laboratory glassware. The clamps and rings fit flasks, beakers, and other containers commonly used in distillation.

How to clean the support parts?

Clean metal parts with a damp cloth and mild detergent. Dry them thoroughly after cleaning. Avoid harsh solvents that could damage the surface.

Where to find replacement parts?

Replacement parts can be ordered from Vevor customer service. Visit www.vevor.com/support for parts list and ordering information.

What is the maximum load capacity?

The load capacity is not explicitly stated in the manual. Use the apparatus for standard laboratory use, without exceeding a reasonable load. Ensure clamps are tight.

Does the product require a power source?

No, this product is a mechanical support. It does not require any electrical power. It is used to hold glassware during distillation.

How to contact Vevor technical support?

You can contact technical support and obtain the electronic warranty certificate at www.vevor.com/support. The manufacturer is Shanghai Muxin Muye Co., Ltd.

USER MANUAL YHEO-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

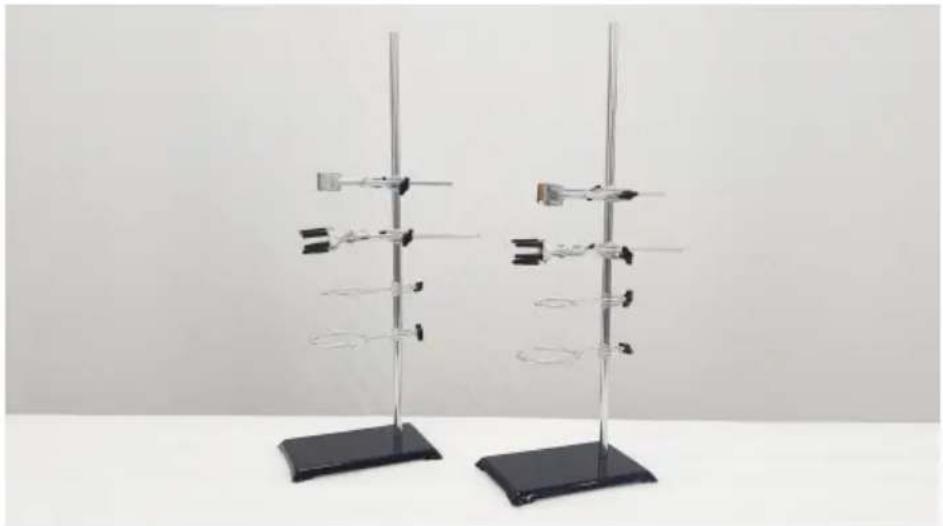

LAB DISTILLATION APPARATUS USER MANUAL

MODEL: YHEO-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: YHEO-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of supporting the Lab Distillation Apparatus.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed weight capacities.
4. Use only on a flat, level, hard, and smooth surface capable of supporting a fully loaded Lab Distillation Apparatus.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

INSTRUCTIONS

Thank you very much for choosing this model. Plastic fittings should always be handled with care. Please read all of the instructions before using it. The information will help you achieve the best possible results.

Parts name Number of parts Description
Iron support stand	1×2	With 60cm supporting pole
Flask clamp 1×2	/
Cross clamp 2×2	/
Claw clamp 1×2	4 claws
Circular ring 2×2	1 of 7.3cm,1 of 5.1cm

OPERATION

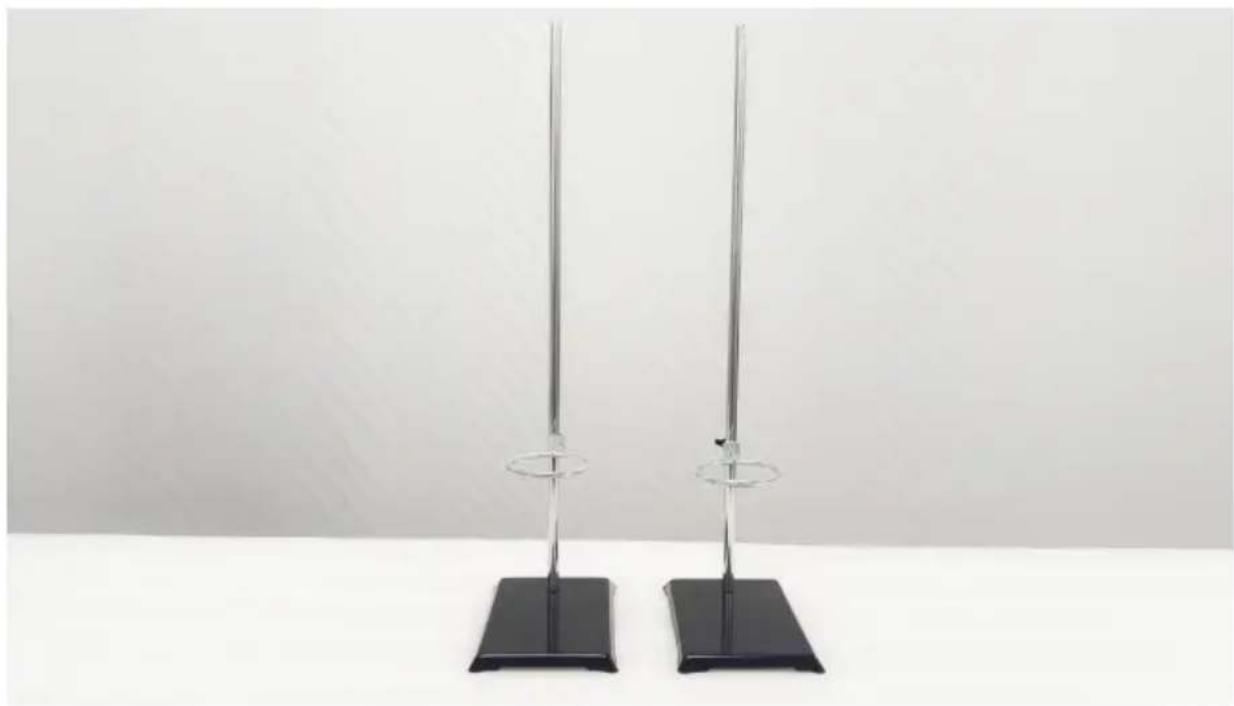

1. Assemble the iron support stand and install the bigger circular ring at the appropriate height;

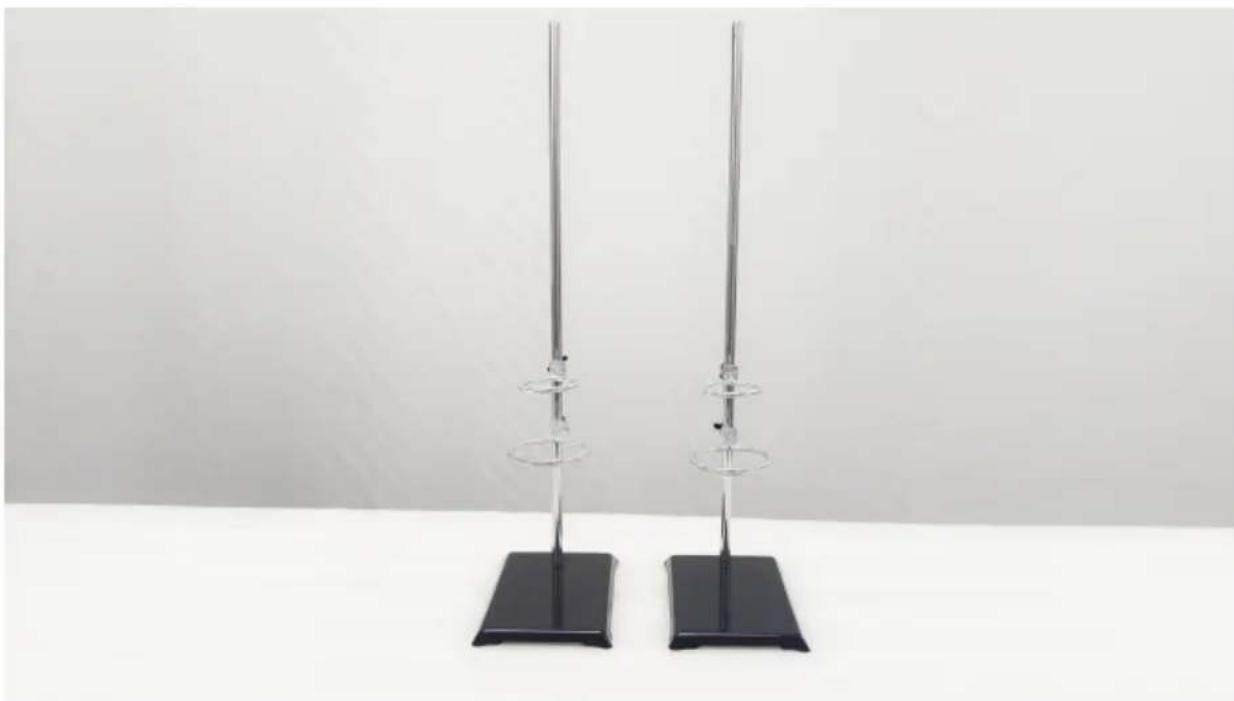

1. Install the smaller circular ring at the appropriate height;

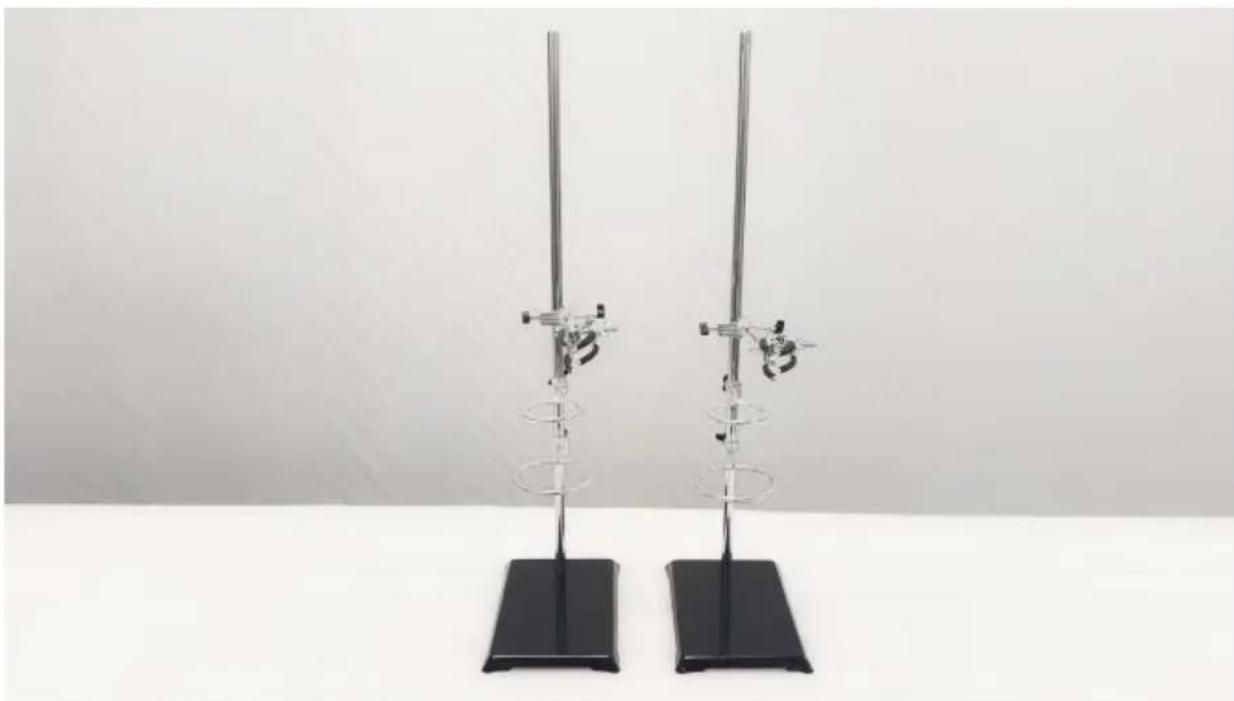

1. Install a cross clamp and the claw clamp at the appropriate height;

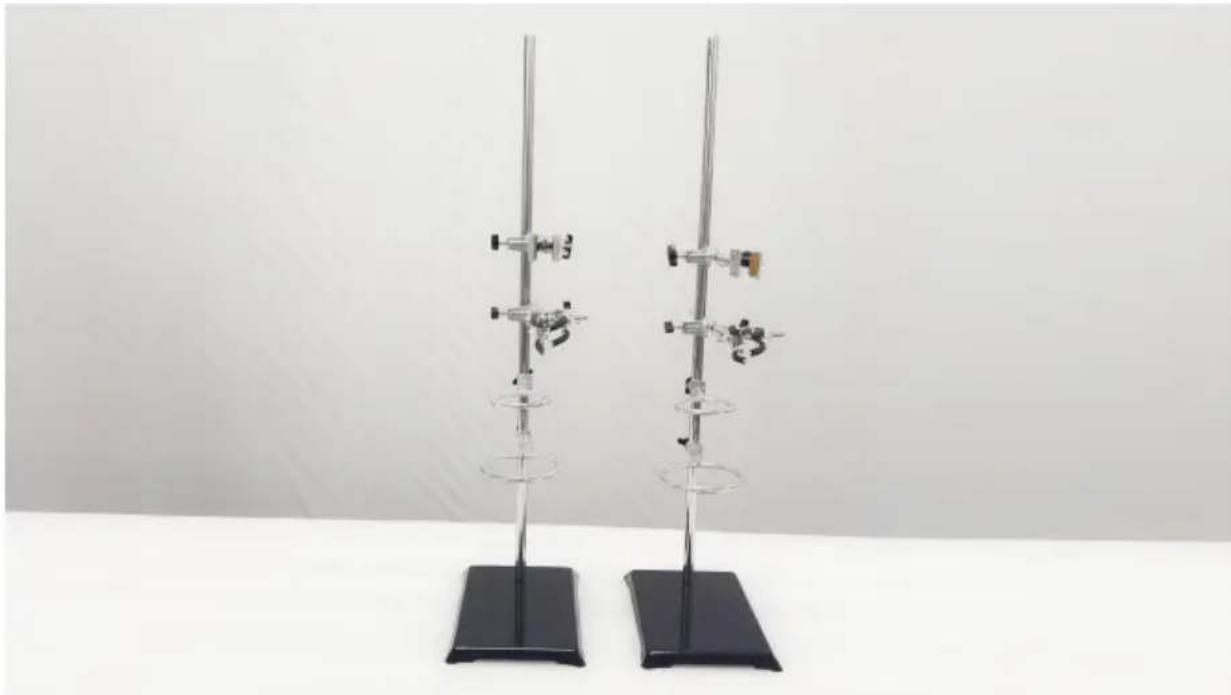

1. Install a cross clamp and the flask clamp at the appropriate height.

PRODUCT PARAMETER

Model YHEO-4
Number of Kits 2
Product Size 600	*270*130mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
