YHEO-5 - Distillation apparatus Vevor - Free user manual and instructions

Product Type	Laboratory Distillation Apparatus
Brand	Vevor
Model	YHEO-5
Dimensions	600 x 270 x 140 mm
Number of Kits	1
Support Material	Steel
Number of Circular Rings	3 (diameters: 4.7 cm, 6.7 cm, 8.3 cm)
Included Clamps	1 red claw clamp, 3 cross clamps
Clam Flasks	2
Intended Use	Laboratory Distillation
Assembly Required	Yes, follow the manual instructions
Safety Precautions	Wear safety glasses and gloves, work on a flat and stable surface
Electronic Warranty	Certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi
Importer (Australia)	SIHAO PTY LTD
Importer (United States)	Sanven Technology Ltd
Importer (Germany)	E-CrossStu GmbH
Cleaning	Clean glass parts carefully, avoid shocks
Repairability	Spare parts available via Vevor
Surface Compatibility	Use only on a hard, flat, and smooth surface

Frequently Asked Questions - YHEO-5 Vevor

How to assemble the YHEO-5 distillation apparatus?

Follow the steps in the manual: first assemble the iron support, then install the circular rings at the appropriate height, attach the cross clamps and the claw clamp. Make sure all parts are tight and the apparatus rests on a flat surface.

What safety precautions should be taken?

Wear safety glasses and work gloves during assembly and use. Work in a clean, well-lit area on a flat and stable surface. Do not exceed weight capacities and keep children away from the apparatus.

What accessories are included with the YHEO-5 model?

The kit includes an iron support, three circular rings (diameters 4.7 cm, 6.7 cm, 8.3 cm), two clam flasks, one red claw clamp, and three cross clamps.

How to clean the glass parts?

Clean the glass parts with a soft cloth and soapy water. Avoid abrasive products and shocks. Dry thoroughly before next use.

Where to find the complete manual?

The complete manual in PDF format is available for free on notice-facile.com for the Vevor YHEO-5 model. You can also download it from the Vevor website.

What to do if a part is missing or damaged?

Contact Vevor technical support via www.vevor.com/support to get a replacement part under warranty. Keep your proof of purchase.

Can I use this apparatus for other applications?

This apparatus is designed only for laboratory distillation. Do not use it for other purposes, as this could damage the equipment or cause injury.

What is the size of the circular rings?

The three circular rings have diameters of 4.7 cm, 6.7 cm and 8.3 cm. They support different types of flasks.

How to properly install the clamps?

Attach the cross clamps to the support at the desired height, then insert the claw clamp or flask clamp. Tighten firmly but not excessively to avoid breaking glass.

Is there a warranty on this product?

Yes, Vevor offers an electronic warranty certificate. Register your product at www.vevor.com/support to activate the warranty.

USER MANUAL YHEO-5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

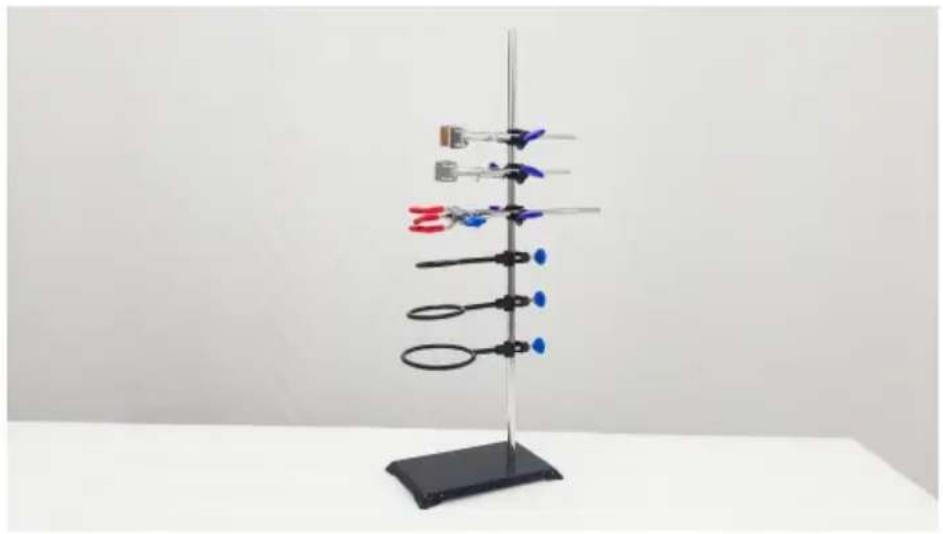

LAB DISTILLATION APPARATUS USER MANUAL

MODEL: YHEO-5

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: YHEO-5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of supporting the Lab Distillation Apparatus.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed weight capacities.
4. Use only on a flat, level, hard, and smooth surface capable of supporting a fully loaded Lab Distillation Apparatus.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

INSTRUCTIONS

Thank you very much for choosing this model. Plastic fittings should always be handled with care. Please read all of the instructions before using it. The information will help you achieve the best possible results.

Parts name Number of parts Description
Iron support stand	1	With 60cm supporting pole
Circular ring 3		1 of 4.7cm; 1 of 6.7cm1 of 8.3cm
Flask clamp 2 /
Claw clamp 1 red
Cross clamp 3 /

OPERATION

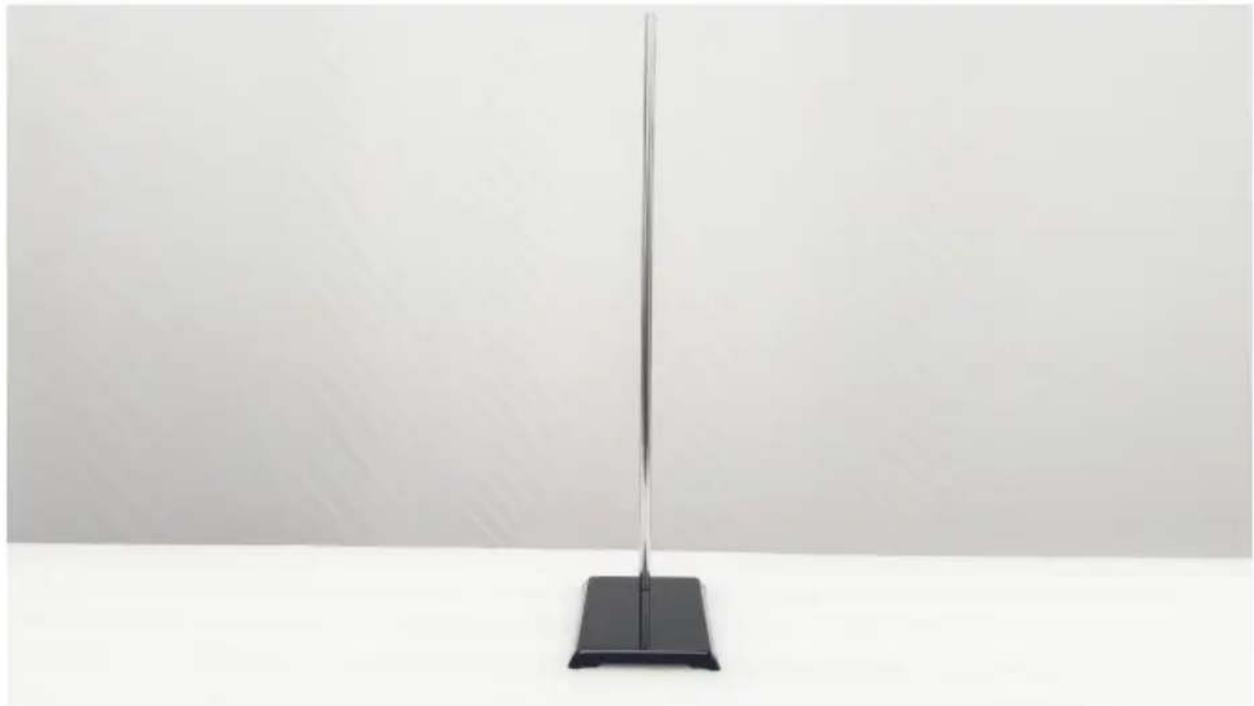

1. Assemble the iron support stand;

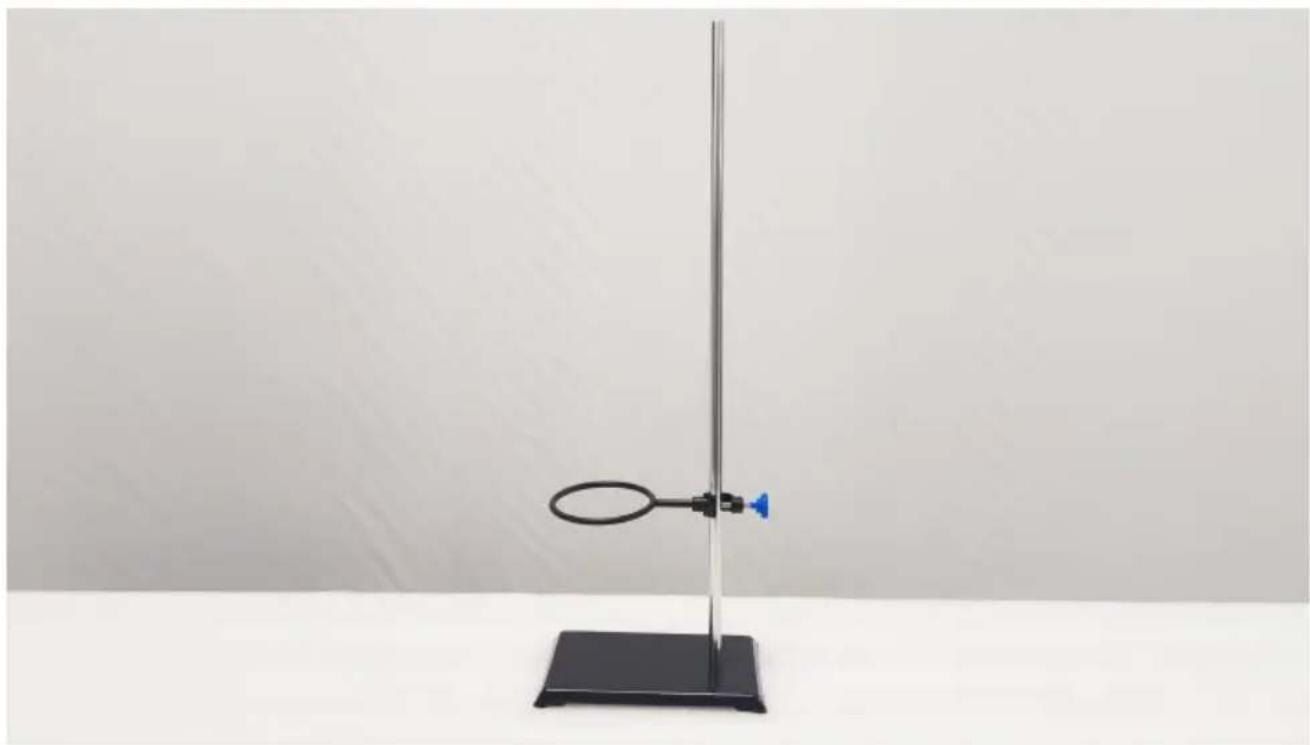

1. Install the circular ring at appropriate height;

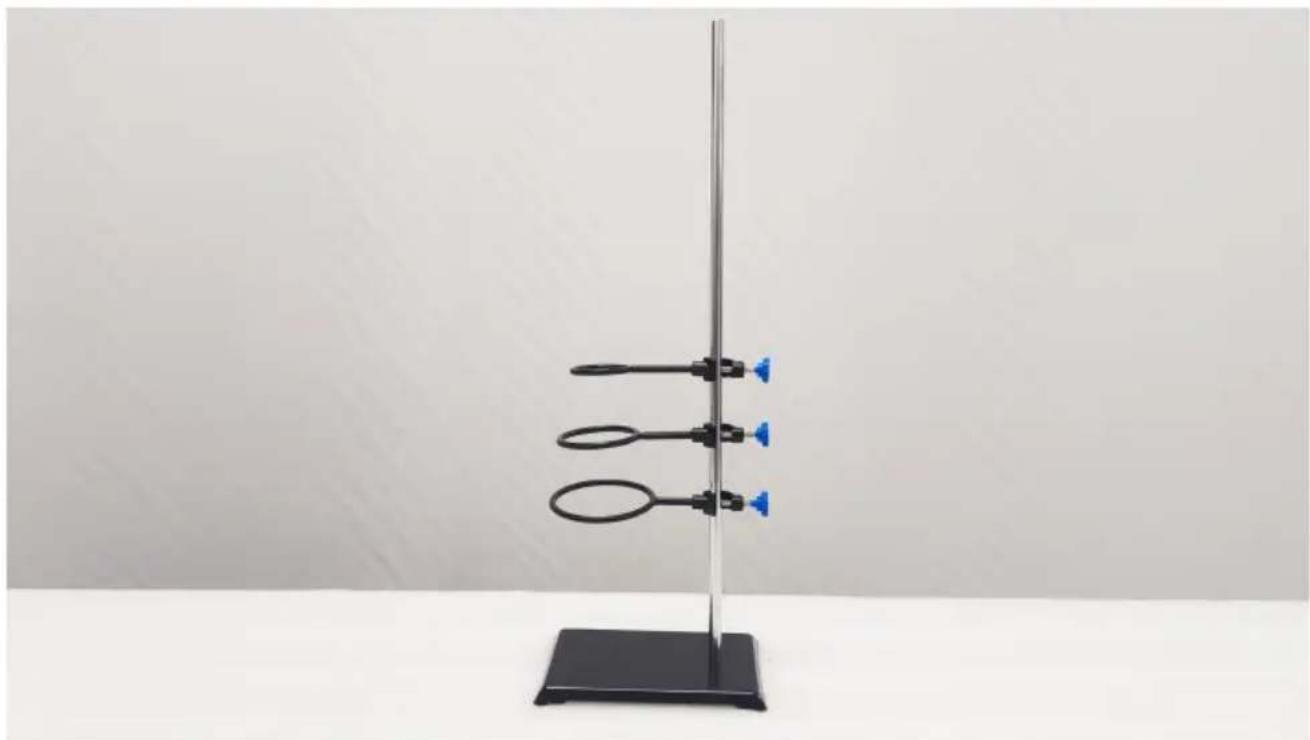

1. Install the remaining two circular rings at the appropriate height;

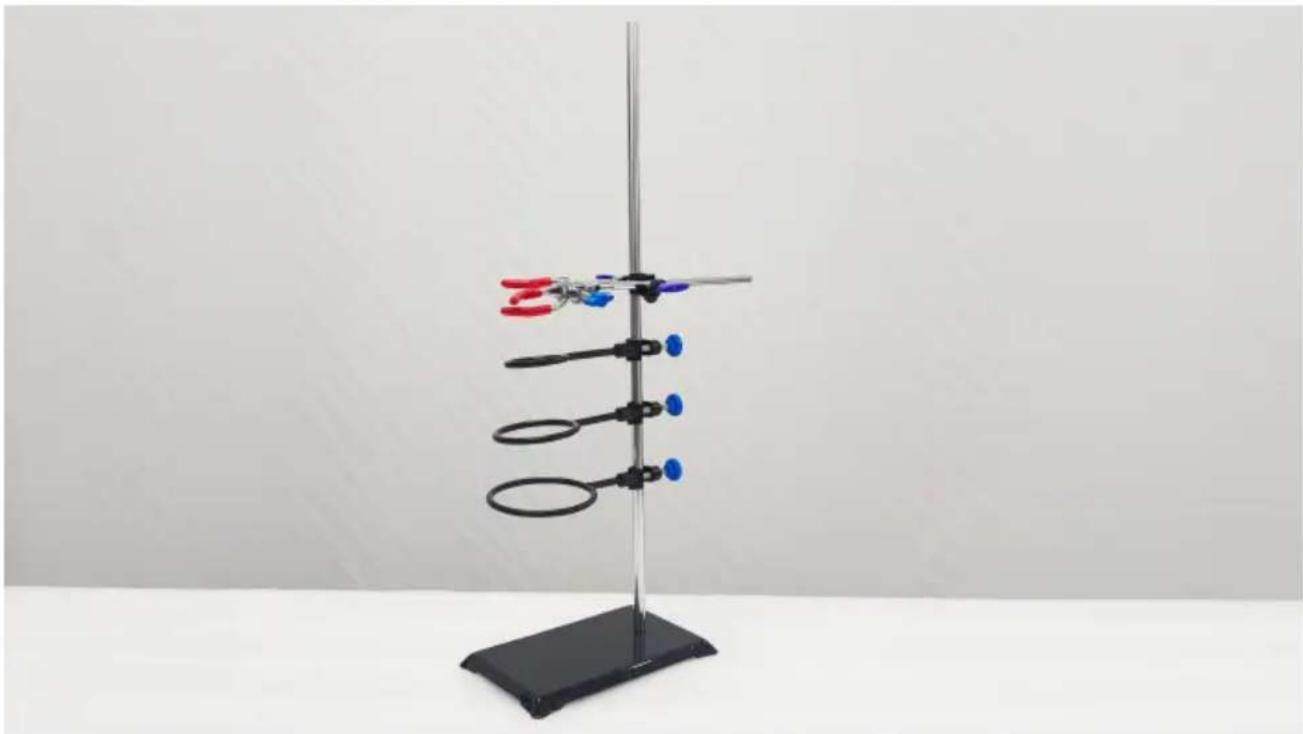

1. Install a cross clamp and the claw clamp at appropriate height;

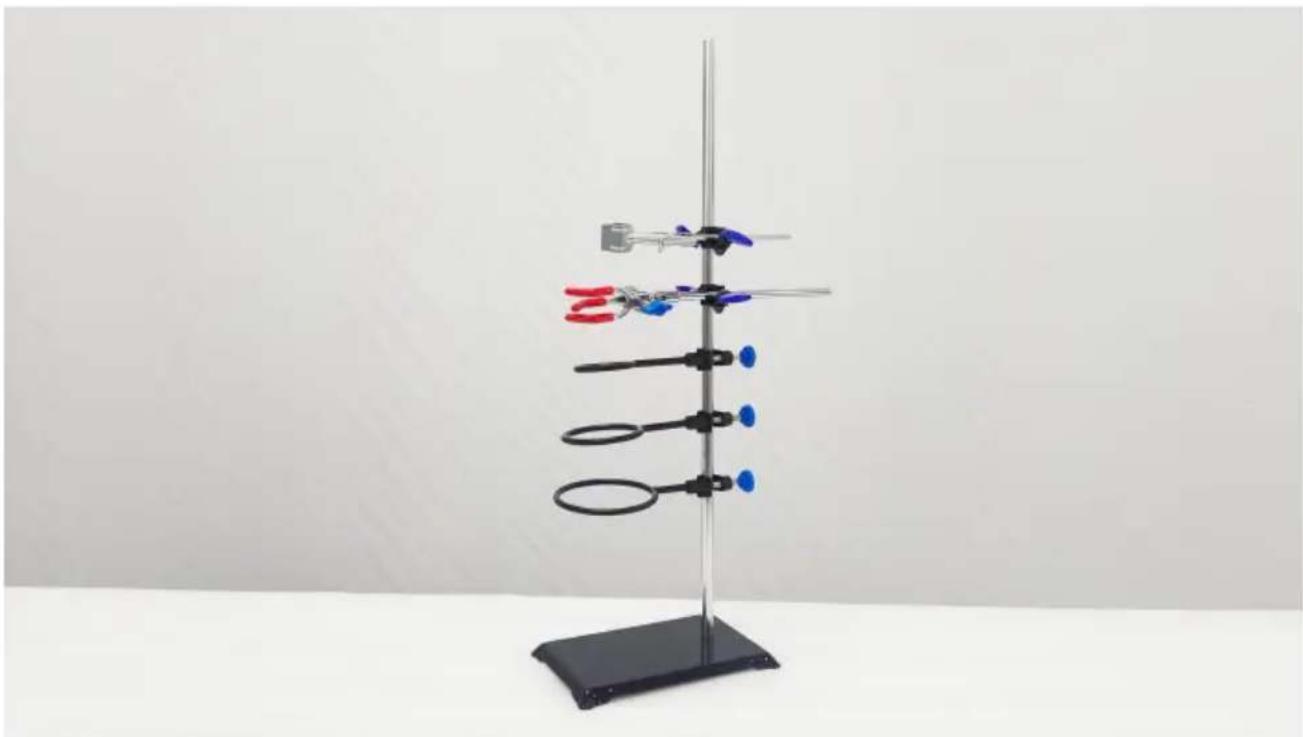

1. Install a cross clamp and the flask clamp at appropriate height;

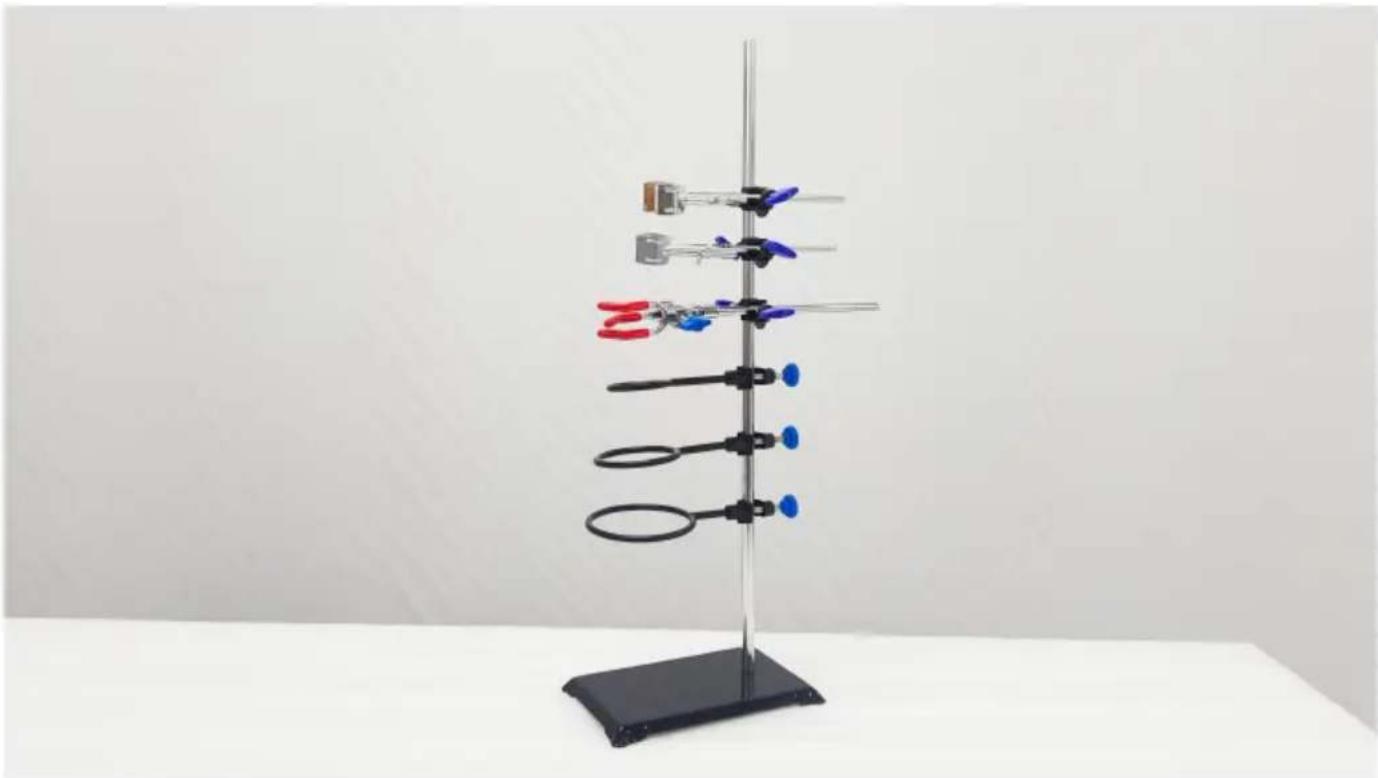

1. Repeat the previous step.

PRODUCT PARAMETER

Model YHEO-5
Number of Kits 1
Product Size 600	*270*140mm

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET-EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
