Product Type Distillation Apparatus
Brand Vevor
Model YHEO-7
Material Borosilicate Glass
Number of Pieces 32
Kit Contents 1000 ml flask, 250 ml two-neck flask, 1000 ml two-neck flask, 500 ml three-neck flask, straight condenser, coil condenser, bulb condenser, Vigreux column, vacuum adapter, distillation head, Y tube, thermometer adapter, 250 ml separatory funnel, glass stoppers (5), 200 °C thermometer, plastic clips (10), 2 m latex tubes, pH test paper (2)
Dimensions (approximate) Approximately 50 × 30 × 30 cm
Weight (approximate) Approximately 3.5 kg
Power Supply None (non-electric device)
Main Functions Simple and fractional distillation, liquid separation, essential oil extraction, use in chemistry and education
Recommended Uses Chemistry, medical treatment, education, DIY essential oil production
Care and Cleaning Clean with warm water and mild detergent; avoid thermal shocks; dry thoroughly before storage
Safety Precautions Wear safety goggles and gloves; assemble on a flat, stable surface; do not let children play with it; inspect before each use
Spare Parts and Repairability Glass parts available separately; assembly with 24/40 ground glass joints
Maximum Temperature 200 °C (thermometer included)
Packaging Complete kit in protective foam
Manufacturer Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Australia) SIHAO PTY LTD, Astwood, NSW
Importer (United States) Sanven Technology Ltd, Rancho Cucamonga, CA

Frequently Asked Questions - YHEO-7 Vevor

How to properly assemble the Vevor YHEO-7 distillation apparatus?
Follow the provided assembly instructions: assemble on a flat, stable surface. Make sure to grease the 24/40 ground glass joints with silicone grease. Use plastic clips to secure the connections. Wear gloves and protective goggles.
Can I use this apparatus to extract essential oils?
Yes, the kit is ideal for essential oil extraction by steam distillation. Use the 1000 ml flask for plant material and the appropriate condenser (coil or bulb).
What is the maximum capacity of the flask?
The supplied flask has a capacity of 1000 ml (1 liter). Do not fill it more than two-thirds to avoid overflow during boiling.
How to clean the glass parts?
Wash the parts with warm water and mild detergent. Use a suitable brush for internal surfaces. Rinse thoroughly and dry. Avoid thermal shocks (do not go from hot to cold suddenly).
Can I heat the flask directly on a hot plate?
Yes, borosilicate glass withstands heat. Use a hot plate or an appropriate heating mantle. Do not heat with a naked flame unless the flask is designed for it (not recommended).
What to do if a glass part breaks?
Glass parts are fragile. In case of breakage, replace the defective part. Contact Vevor to order spare parts. Dispose of glass shards safely.
Does the apparatus work under vacuum?
Yes, the kit includes a vacuum adapter. You can connect a vacuum pump for distillation under reduced pressure. Make sure all connections are tight.
How to use the included thermometer?
Attach the thermometer in the thermometer adapter on the distillation head. The measurement range is 0 to 200 °C. Monitor the vapor temperature to control the distillation process.
What types of condensers are supplied?
The kit contains three condensers: straight, coil, and bulb. The straight condenser is versatile, the coil is effective for vapors, the bulb offers a large cooling surface.
Is this kit suitable for school use?
Absolutely. The Vevor YHEO-7 is perfect for chemistry demonstrations and practical work. It allows illustrating the principles of simple and fractional distillation.

User questions about YHEO-7 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Distillation apparatus in PDF format for free! Find your manual YHEO-7 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YHEO-7 by Vevor.

USER MANUAL YHEO-7 Vevor

Affordable. Reliable. Home Improvement.

LAB DISTILLATION APPARATUS USER MANUAL

MODEL:YHEO-7

MODEL:YHEO-7

Vevor YHEO-7 - MODEL:YHEO-7 - 1

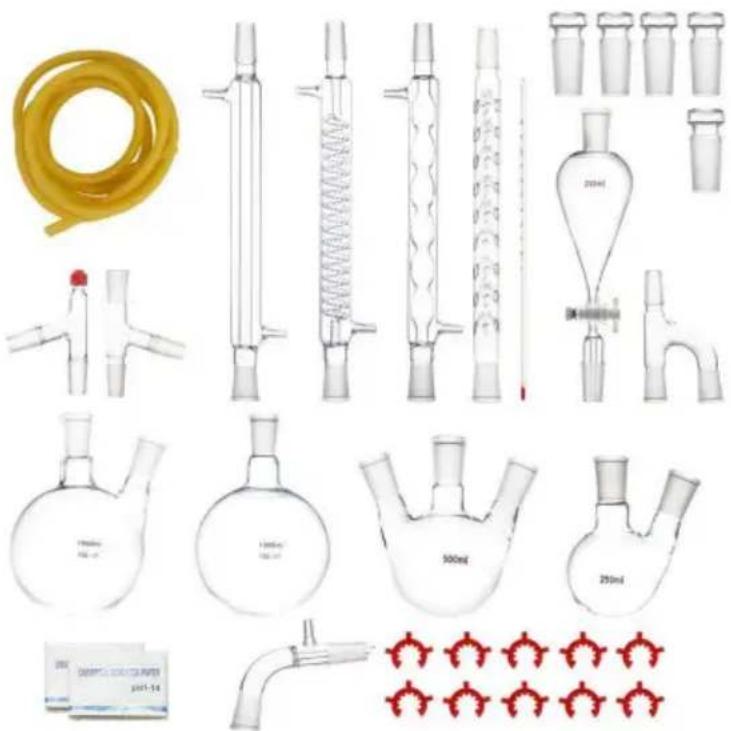

natural_image Collection of laboratory glassware and equipment including distillation tubes, condensate, and pipette (no visible text or labels)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly c create hazards.
  2. Wear safety goggles and duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Lab Distillation Apparatus.
  8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

  1. DO NOT SIT OR STAND ON THIS ITEM.
  2. This product is not a toy. Do not allow children to play with or item.
  3. Do not exceed weight capacities.

  4. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Lab Distillation Apparatus.

  5. Use as intended only.

  6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

INSTRUCTIONS

Thank you very much for choosing this model.Glass fittings should alv be handled with care. Please read all of the instructions before using information will help you achieve the best possible results.

Parts nameNumber of partsDescription
flask11000ml,24/40 ground glass joint
Two-necked flask1250ml,24/40 ground glass joint
Two-necked flask11000ml,24/40 ground glass joint
Three-necked flask1500ml,24/40 ground glass joint
Straight condenser1/
Coil condenser1/
Ball condenser1/
Vigreaux column1/
Vacuum adapter1/
Distilling head1/
Y-tube1/
Thermometer adapter1/
Separatory funnel1250ml
Glass stopper5/
Thermometer1200°C
Plastic clip10/
Latex tubing12m
PH test paper2/

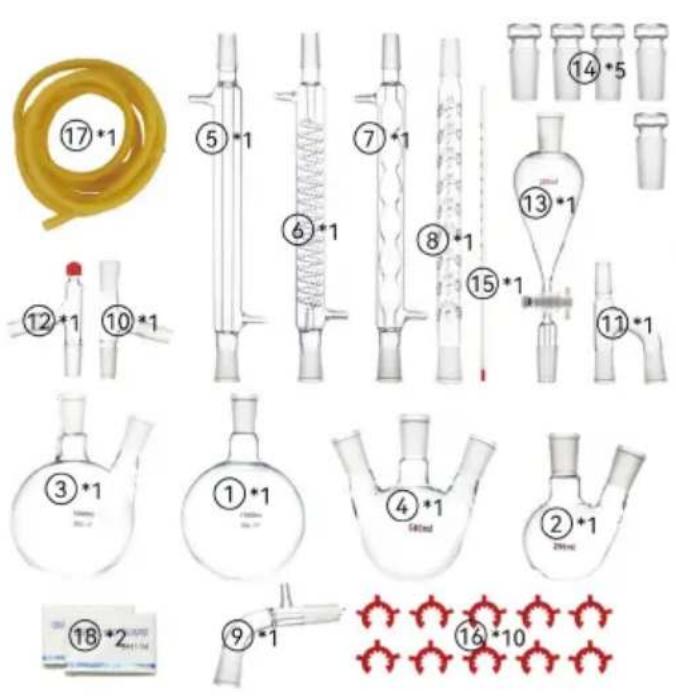

Labeled diagram of laboratory glassware and equipment, including distillation tubes, flasks, and a syringe with numbered components.

No.Parts Name
1Flask
2Two-necked flask
3Two-necked flask
4Three-necked flask
5Straight condenser
6Coil condenser
7Ball condenser
8Vigreaux column
9Vacuum adapter
10Distilling head
11Y-tube
12Thermometer adapter
13Separatory funnel
14Glass stopper
15Thermometer
16Plastic clip
17Latex tubing
18PH test paper

DIVERSE APPLICATION

Distillation apparatus kit is suitable for chemistry, medical treatment industries, also great for teaching activity, DIY essential oil.

Laboratory

Home

School

Scientific Research

PRODUCT PARAMETER

ModelYHEO-7
Number of Kits32
Glass MaterialBorosilicate Glass

Manufacturer: ShanghaimuxinmuyeyouxiangongsiAddress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP
