USER MANUAL YHEO-1 Vevor

LAB DISTILLATION APPARATUS USER MANUAL

MODEL: YHEO-1

VEVOR

LAB DISTILLATION APPARATUS

MODEL: YHEO-1

Laboratory distillation setup with round-bottom flask, vial, and gas collection apparatus (no visible text or labels)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear safety goggles and duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard, and smooth surface capable of supporting the Lab Distillation Apparatus.
  8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

  1. DO NOT SIT OR STAND ON THIS ITEM.
  2. This product is not a toy. Do not allow children to play with or near this item.
  3. Do not exceed weight capacities.
  4. Use only on a flat, level, hard, and smooth surface capable of supporting a fully loaded Lab Distillation Apparatus.
  5. Use as intended only.
  6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

Thank you very much for choosing this model. Glass fittings should always be handled with care. Please read all of the instructions before using. This information will help you achieve the best possible results.

Parts nameNumber of partsDescription
Two-necked flat bottor flask12000ml
Opposite mouth flask12000ml
Coil condenser124/40 ground glass join
Conical flask1150ml
Gas guide tube124/40 ground glass joint,40/38 ground glass joint
Glass stopper224/40
Separatory funnel124/40 ground glass joint,100ml
beaker1150ml
Glue head dropper2Red glue head
Thermometer1200°C
Thermometer adapter124/40 ground glass join
Latex tubing16*9*2000mm
Vacuum grease1Vaseline
Flask brush1Big size
Electronic hot plate11500W
Essential oil bottle230mlbrown bottle
Iron support stand1With 50cm supporting pole
Plastic clip32 of 24/40,1 of 40/38
Cross clamp2/
Flask clamp2/
Circular ring17.3cm

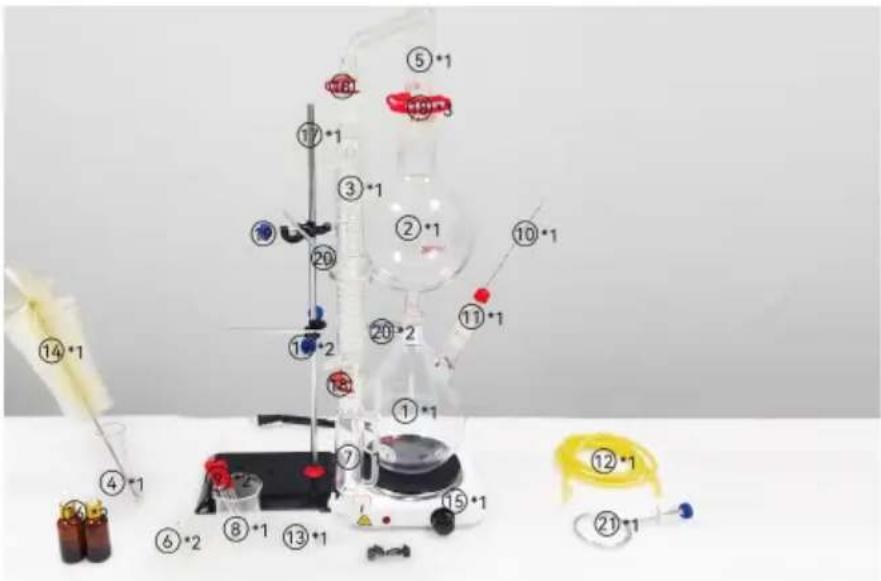

Labeled diagram of a laboratory distillation setup with numbered components and chemical reaction apparatus

No.Parts Name
1Two-necked flat bottomflask
2Opposite mouth flask
3Coil condenser
4Conical flask
5Gas guide tube
6Glass stopper
7Separatory funnel
8Beaker
9Glue head dropper
10Thermometer
11Thermometer adapter
12Latex tubing
13Vacuum grease
14Flask brush
15Electronic hot plate
16Essential oil bottle
17Iron support stand
18Plastic clip
19Cross clamp
20Flask clamp
21Circular ring

OPERATION

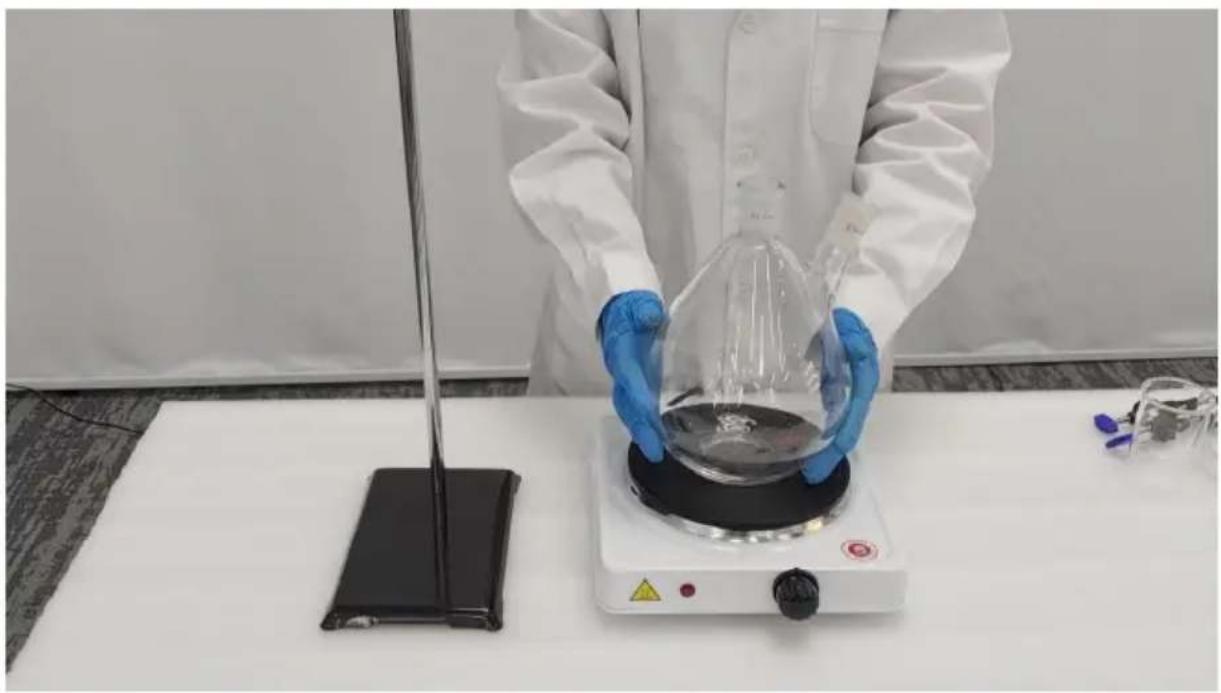

  1. Place the two-necked flat bottom flask on the electronic hot plate;

Scientist in lab coat and blue gloves handling a glass flask on a laboratory bench (no visible text or symbols)

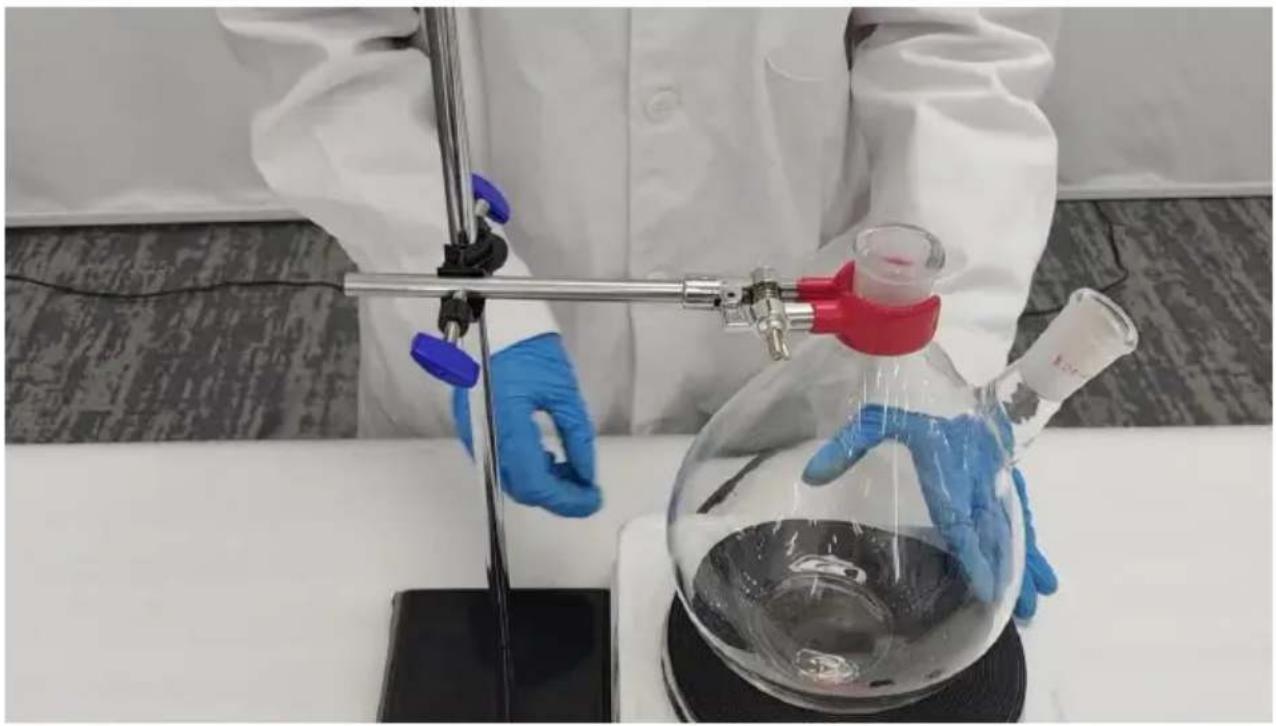

  1. Fix the flask with a flask clamp;

Laboratory technician in protective gear handling a glass flask with liquid, mounted on a stand (no visible text or symbols)

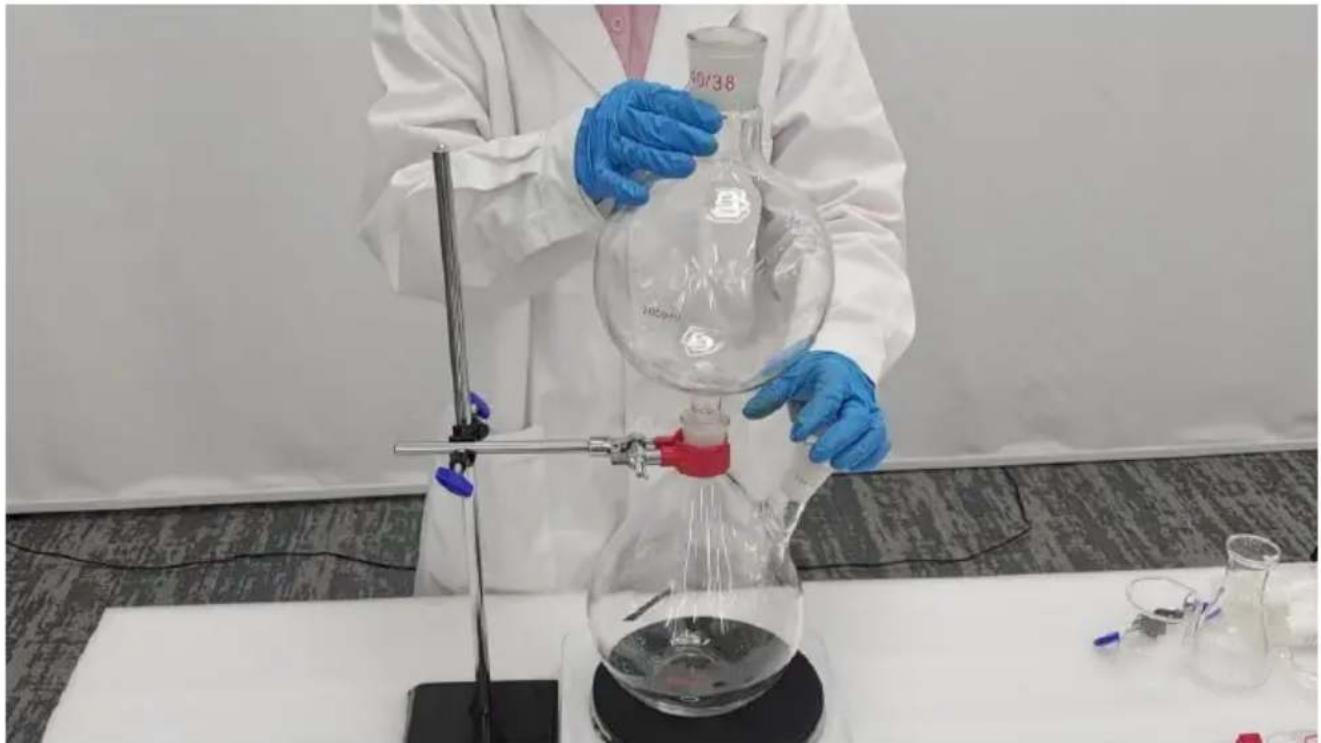

  1. Install the opposite mouth flask;

Scientist in lab coat and gloves conducting a distillation or reaction with a round-bottom flask (no visible text or symbols)

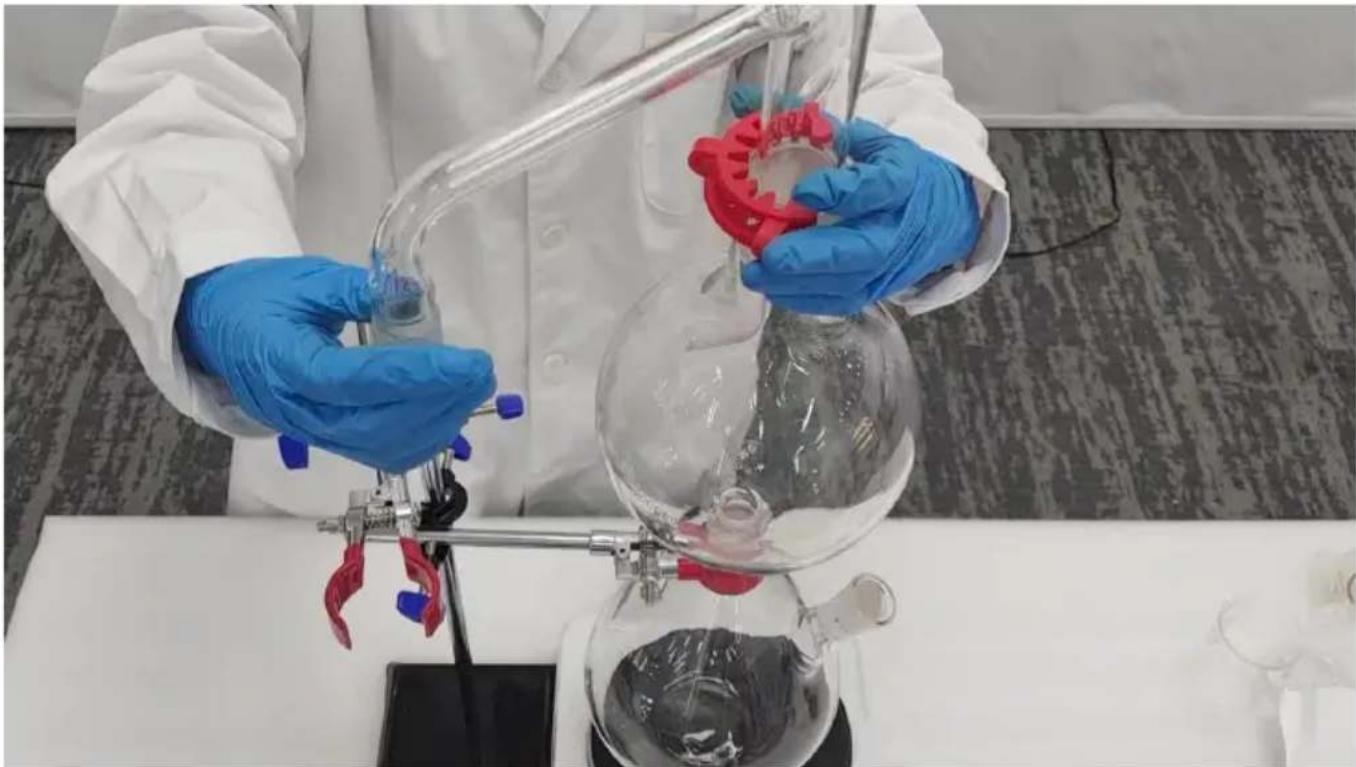

  1. Install the gas guide tube and fix it with a plastic clip;

Scientist in lab coat and blue gloves handling a glass flask with red components, no visible text or symbols

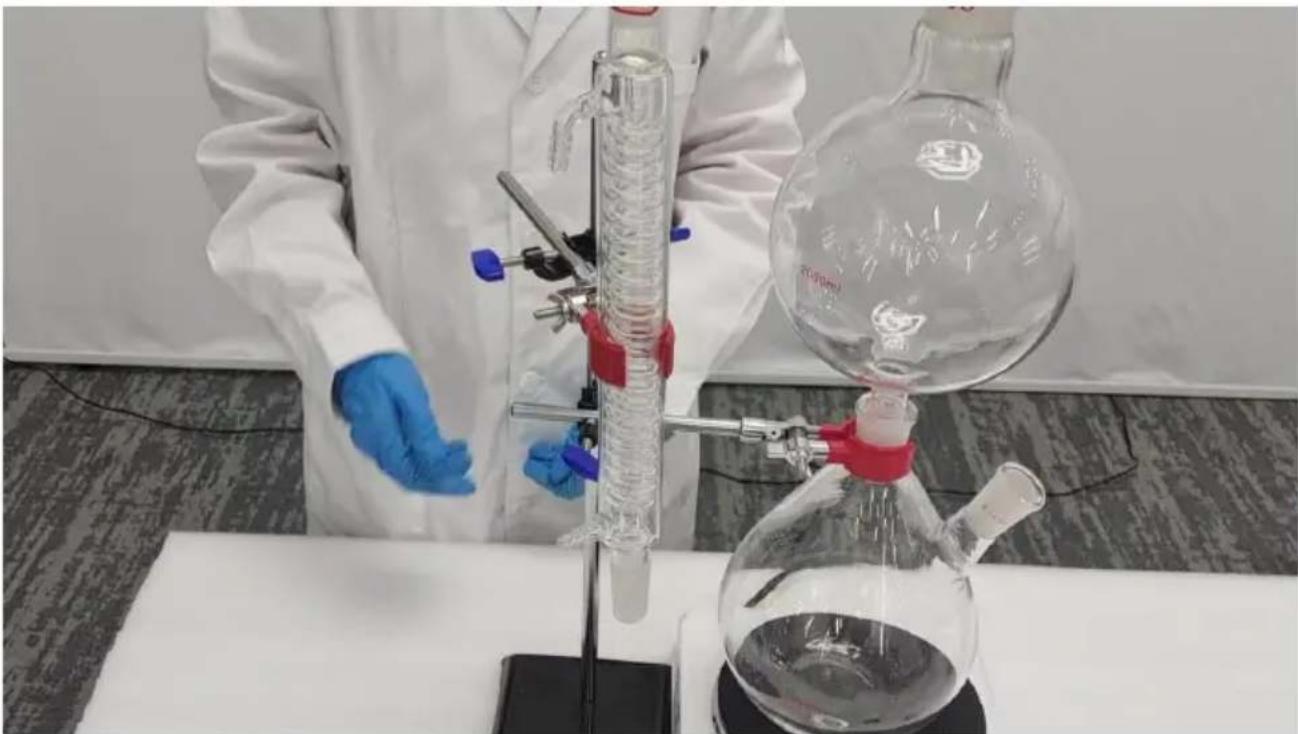

  1. Install the coil condenser and fix it with a plastic clip;

Laboratory technician in lab coat and blue gloves handling a distillation setup with glass flask and condenser (no visible text or labels)

  1. Install the separatory funnel and fix it with a flask clamp;

Laboratory technician in lab coat and blue gloves handling a distillation column with red seal, no visible text or symbols

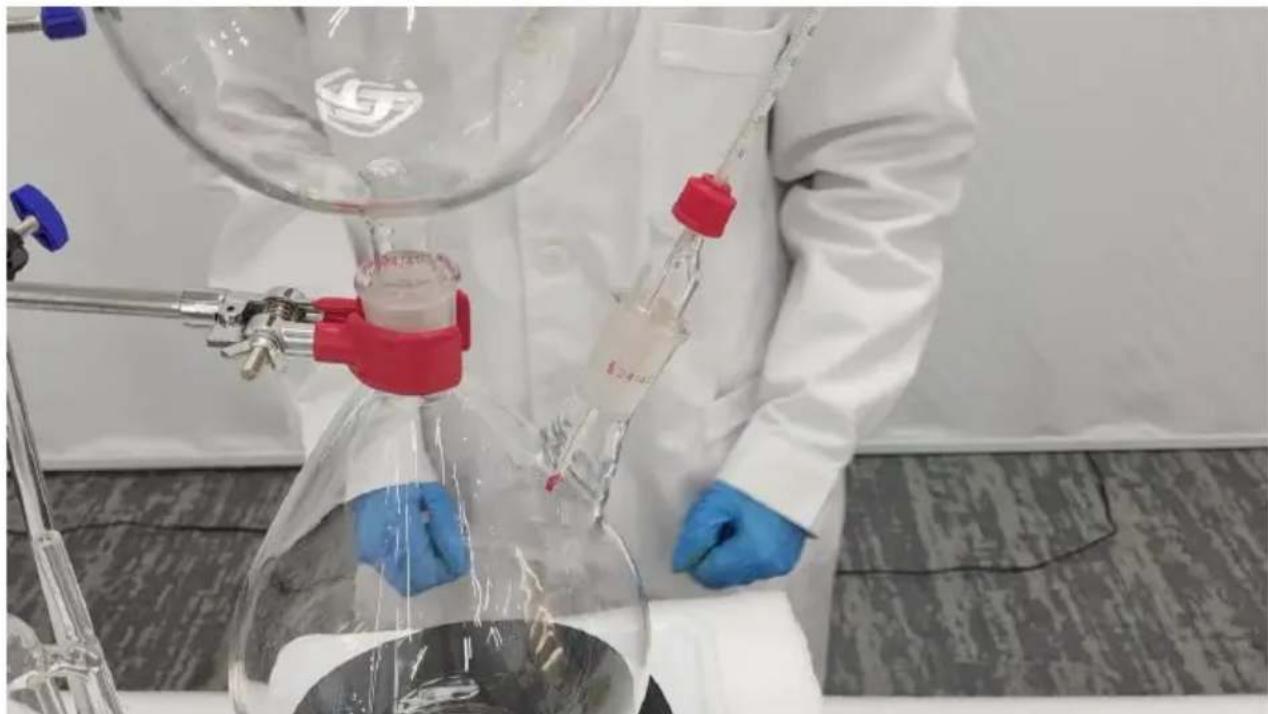

  1. Install the thermometer adapter and the thermometer at the branch of the two-necked flat bottom flask.

Scientist in lab coat and blue gloves handling a distillation flask with red tubing (no visible text or symbols)

PRODUCT PARAMETER

ModelYHEO-1
Power1500W
VoltageAC 120V ,60HZAC 220-240V ,50HZ
RegionAMERICAEUROPEAUSTRALIA

RECOVERY AND DISPOSAL

This product complies with the provisions of the European Directive 2012/19/EC. The symbol marked with a crossed out wheelie bin indicates that this product requires separate recycling in the EU. The same applies to products and all accessories marked with this symbol. Products marked such must not be disposed of with normal household waste, but must be taken to a collection point for the recycling of electrical and electronic equipment.

Vevor YHEO-1 - RECOVERY AND DISPOSAL - 1

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

ECREP
