USER MANUAL IBS 6303E2 CATA

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

(F4)

L W H D X B X A X

Abstract geometric diagram with two shaded regions inside a circle (no text or symbols)

Model L	(mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
ILM 3285IBS 63031	590 520 58 54				560 490		50 min

(F5)

A B E C

Three-step diagram showing a checkmark and cross symbol in a mechanical or electrical component, with arrows indicating direction.

Pure technical diagram showing a pipe joint and a rectangular structure with no text or symbols

(F7)

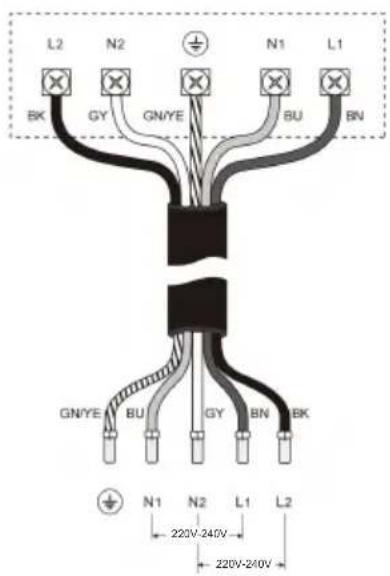

L2 N2 Bk GY GN/YE N1 L1 GN/YE BU BN GY BN Bk N1 N2 L1 L2 220V-240V 220V-240V

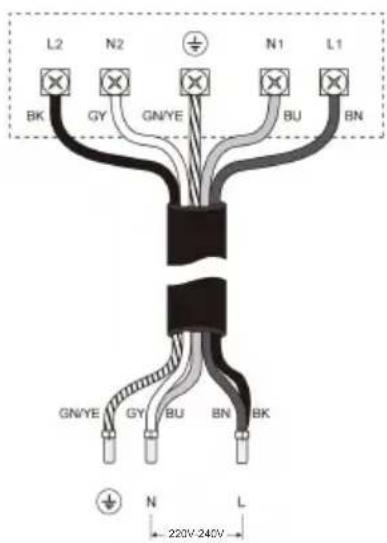

L2 N2 N1 L1 BK GY GN/YE BU BN GN/YE GY BU BN BK N L 220V-240V

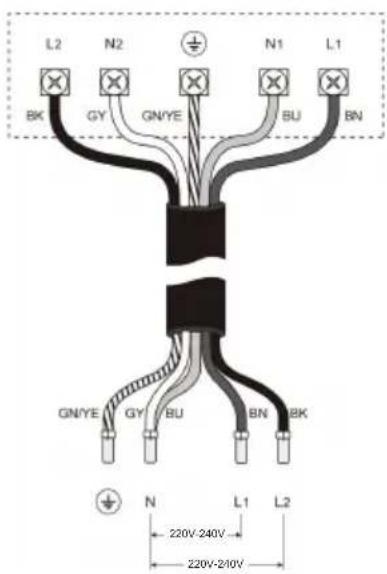

L2 N2 N1 L1 BK GY GNYE BU BN GN/YE GY BU BN BK N L1 L2 220V-240V 220V-2/10V

(F8)

ES

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE.

The manufacturer declares that this product meets all the essential requirements for low voltage electrical material set out in European directive 2014/35/EU and for electromagnetic compatibility as required by European directive 2014/30/EU.

PRECAUTIONS

- When the hob is in use keep all magnetizable objects away (credit cards, floppy disks, calculators and so on).

- Do not use any aluminium foil or place any foodstuffs wrapped in aluminium foil directly on the hob.

- Do not place any metal objects such as knives, forks, spoons and lids on the hob surface as they will heat up.

- When cooking in a non-stick pan without seasoning, do not exceed 1-2 minutes' pre-heating time.

- When cooking food that

may easily stick, start at a low power output level and then slowly increase while regularly stirring.

- After cooking is finished, switch off using the key provided (turn down to "0"), and do not rely on the pan sensor.

- If the surface of the hob is cracked, immediately disconnect the appliance from the mains to prevent the possibility of electric shock.

- Never use a steam cleaner to clean the hob.

- The appliance and accessible parts may be hot during operation.

- Take care to avoid touching the heating elements.

- Children less than 8 years of age should be kept at a safe distance unless continuously supervised.

- This appliance may be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised and have received suitable instructions on safe use of the appliance and understand the dangers involved. Children must not play with the appliance. User

maintenance and cleaning should not be carried out by children except under constant supervision.

• Cooking with grease or oil may be dangerous and cause a fire if left unattended. NEVER try to extinguish a fire with water. Rather, disconnect the appliance and then cover the flames with a cover or sheet, for example.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
• Fire hazard: do not store elements on cooking surfaces.
• Only counter top protectors designed for use with the cooking appliance and listed in the manufacturer's instructions should be used as suitable protection for the counter top incorporated in the appliance. Use of unsuitable protectors may cause accidents.
• Do not place or drop heavy objects on your hob.
• Do not use cookware with jagged edges. Do not drag cookware across the

induction glass surface as this can scratch the glass.

• Persons with cardiac pacemakers or other electrical implants (such insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• WARNING: Accessible parts will become hot when in use. To avoid burns and scalds children should be kept away.
• Insert in the fixed wiring a mean for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, in accordance with the wiring rules. The plug or omnipolar switch must be easily reached on the installed equipment.
• This appliance is not intended to be used via an external timer or a remote control system.
• The manufacturers decline any responsibility in the event of non-compliance with what is described above and the accident prevention norms not being respected and followed.

A Word on Induction Cooking (F1)

• a1 Cookware
  • a2 Induced current
• a3 Magnetic field
• a4 Inductor
  • a5 Electronic circuit
  • a6 Electric power supply

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the cookware, rather than indirectly through heating the glass surface. The glass becomes hot only because the cookware eventually warms it up.

Induction cooking has the following characteristics.

• Minimal dispersion (high performance)
• Removing (or lifting) the cookware from the hob automatically stops the cooking zone.
• The electronic system permits flexibility and precision control.

Product Overview

Using your Induction Hob (F2)

1. Timer

1. Cooking zone

1. Power level slider

2. Stop&GO

1. ON/OFF

1. Keylock

1. Cooking functions

1. Booster

To start cooking

1. Touch the ON/OFF "①" for 2 seconds. After power on, the buzzer beeps once, all displays show "0", indicating that the induction hob has entered the state of standby mode.
2. Place a suitable cookware on the cooking zone that you wish to use. Make sure the bottom of the cookware and the surface of the cooking zone are clean and dry.
3. Set a power level between 1 and 9 by sliding along the "slider" "——" key, or just touch any point of the "slider" "——".
4. If you don't choose a power setting within 30 seconds, the induction hob will automatically switch off. You will need to start again at step 1.
5. You can modify the power setting at any time during cooking.

If the display flashes alternately with the power setting, ≥ U ≤ -

This means that:

• The cookware is not placed on the correct cooking zone or,
• The cookware is not suitable for induction cooking or,
• The cookware is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable cookware on the cooking zone.

The display will automatically turn off after 1 minute if no suitable cookware is placed on it.

When you have finished cooking

1. Touch the power level slider "——" to decrease the power to "0" level.
2. Beware of hot surfaces.

Residual heat indicator

After switching off the cooking zone, the corresponding power display will indicate "H" until the temperature in the zone has dropped below the critical level.

Using the Booster (F2)

Booster function provides higher power for a maximum of 5 minutes. Thus you can get a more powerful and faster cooking. The function can work in any cooking zone.

Using the Booster to get higher power

Touch Booster key "B" of the desired cooking zone. The related power display will show "P." and the zone will reach the maximum power.

The Booster power will last for 5 minutes and then the zone will go back to the 9 power level.

Cancel the Boost function

Touch power level slider "——" to cancel the Booster function, then the cooking zone will revert to the power level that you wish.

Restrictions when using (F3)

The three zones were divided into two groups.

If you want to use Booster function, when you press the Booster key "B" the selected zone will be able to reach power level "P". In the case where the power level of the other zone within the same group is also "P", then the power of this zone will be automatically reduced to level 9.

Using Cooking Functions

You can choose 3 handy cooking functions by pressing "Cooking functions" "?" each time moves from one function to the other.

§

-Melt or defrost (about 50 °C)

[Non-Text]

-Heating or keeping warm (about 70 °C)

[Non-Text]

-Simmering, temperature close to boiling, useful for slow cooking (about 90 °C)

Using the Pause function – Stop&Go

The hob have a handy restart function to pause and restart the cooking process if you're interrupted.

1. When the hob is on and working, press the pause key "▶", all burner will stop working, and all LED indicator will show the symbol "| |".
2. Press the Pause key "💡" again for three seconds, the displays will blink with "| |", then touch the Child Lock to recommence cooking and the displays will revert to their previous settings.

Keylock (child safety feature)

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the key lock control for 3 seconds. The timer indicator will show "Lo"

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the key lock control for 3 seconds.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor is monitoring the temperature inside the induction hob. When an excessive temperature is detected, the induction hob will stop operation automatically.

Detection of Small Articles

When undersized or non-magnetic cookware (e.g. aluminium), or some other small items (e.g. knife, fork, key) has been left on the hob, the hob will automatically go to standby mode in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function. It shuts down the cooking zone automatically if you ever forget to turn it off. The default maximum working time for each power level is shown in the table below:

Power level	1~3 4~6	7~8 9
Default working timer (hour) 36	0 180 120 90

When the cookware is removed, the display shows the power level during 5s and then displays for 1 minute. After that it will display "H", which means the surface of cook zone is hot. Please do not touch it. When the surface has cooled down to a safe temperature, it will display "-" for 1 minute, then the zone will automatically switch off.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the cooktop is turned on and working. Touch the Timer key "☐".
2. The minder indicator will start flashing "00", and you can set the timer at this point.
3. Set the time by touching the "⊖" or "⊕" control of the timer Hint: Touch the "⊖" or "⊕" control of the timer once to decrease or increase by 1 minute.

Touch and hold the "⊖" or "⊕" control of the timer to decrease or increase by 10 minutes.

Touching the "⊖", the timer is can celled, and the timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time.
2. Buzzer will bips for 30 seconds and the timer indicator will turn off when the setting time finished.

Setting the timer to turn one or more cooking zones off If the timer is set on one zone:

1. Select the relevant cooking zone which is working by touching the zone select key " 🔍".

2. Pressing the Timer key "☐", the timing indicator flashes, and you can set the timer at this point.

3. Using the "⊕" and "⊖" buttons, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the "⊖" or "⊕" control of the timer once will decrease or increase by 1 minute.

Touch and hold the "⊖" or "⊕" control of the timer will decrease or increase by 10 minutes.

Touching the "⊖", the timer is cancelled, and the timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

6 _*

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

2. when using "the timer as an alarm" and "the timer to switch off the zones together, the display will show the remaining time of alarm as first priority. Press cooking zone to show the remaining time of switch off timer.

Hints and Tips

Problem Possible causes What to do
The induction hob cannot be turned on.	No power. Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area.If you've checked everything and the problem persists, call a qualified technician.
The touch keys are unresponsive.	The keys are locked. Unlock the keys. See section 'Using your induction hob for instructions.
The touch keys are difficult to operate.	There may be a slight film of water over the keys or you may be using the tip of your finger when touching the keys.	Make sure the touch key area is dry and use the ball of your finger when touching the keys.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.
Some cookware make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a failure.
The induction hob makes a low humming noise when used on a high power level.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the power level.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has switched on to prevent the electronics from overheating. It may continue to run even after you have turned the induction hob off.	This is normal and needs no action. Do not switch off the power supply of the induction hob while the fan is running.
Cookware do not become hot and the symbol appears in the display.	The induction hob cannot detect the cookware because it is not suitable for induction cooking.The induction hob cannot detect the cookware because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the cookware and make sure that its base matches the size of the cooking zone.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes. These are the most common failures:

Error Message	Possible causes What to do
U	No cookware or cookware not suitable.
ER03	Water or cookware on the glass over the control area.
F1E	Connection between the display board and the left mainboard fails (the cooking zone which indicator shows “E”).
F3E	Coil temperature sensor failure. (in the cooking zone which indicator shows “E”).
F4E	Mainboard temperature sensor failure. (in the cooking zone which indicator shows “E”).
E1E	Temperature measured by the sensor of the ceramic glass is too high.
E2 E	Temperature sensor of the IGBT is too high.
E3 E	Abnormal supply voltage (too high).
E4 E	Abnormal supply voltage (too low).
E5 E	Temperature sensor failure (in the cooking zone which indicator shows E”).

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Choosing the right cookware (F4)

- Preferably use cookware indicated as being suitable for induction cooking.

- A magnet-attracting cookware may be suitable for induction cooking.

- Stainless steel cookware with multi-layer or ferritic stainless-steel bases if the base indicates: for induction cooking.

- If cast iron cookware is used, it should preferably have an enamel bottom to avoid scratching the ceramic hob surface.

- The following types of cookware are not suitable: glass, ceramic, earthenware, aluminium, copper or non-magnetic (austenitic) stainless steel.

- Flat and thick-bottomed cookware.

- A cookware with the same diameter as the cooking zone ensures the maximum power is used.

- A smaller cookware reduces the power but will not lead to energy loss. In any case, we do not recommend the use of cookware with a diameter of less than 10 cm.

- The cookware bottom must have a minimum diameter according to the corresponding cooking zone:

- To obtain the best efficiency of your hob, please place the cookware in the centre of the cooking zone.

Maintenance

Pieces of aluminium foil or food, fat splashes, spilt sugar or highly sugared foodstuffs should be removed immediately from the cooking surface using a spatula to avoid scratching the hob surface.

Subsequently clean the surface with a suitable product and kitchen roll, rinse with water and dry with a clean cloth. Never use abrasive sponges or scourers and avoid the use of aggressive chemical detergents or stain removers.

Installation

Instructions for the fitter

All operations relating to installation must be carried out by qualified personnel in line with current regulations.

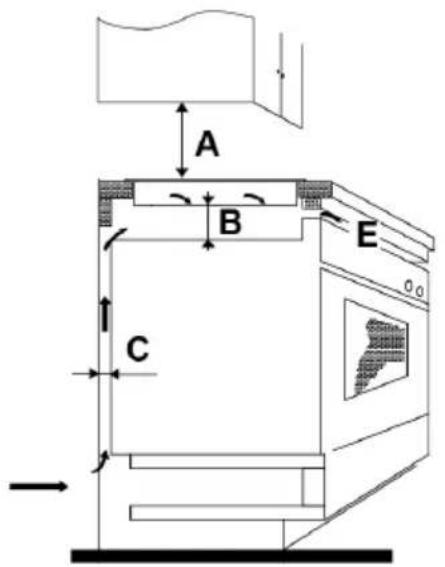

The appliance is designed for fitting into a worktop, as shown in the figure. Place the supplied sealant around the perimeter of the hob. The hob should not be installed over an oven, although if this is the case, check that:

- The oven is equipped with an appropriate cooling system

• There is no warm-air leakage from the oven towards the hob.
• Suitable air inlets are provided as shown in the figure.

Selection of installation equipment

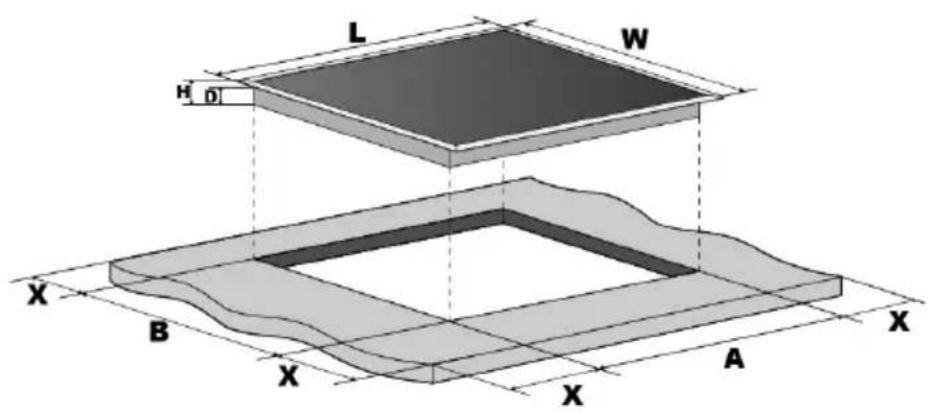

Cut out the work surface according to the sizes shown in the drawing. (F5)

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm.

Under any circumstances, make sure the induction hob is well ventilated and the air inlet and outlet are not blocked. (F6)

Stretch out the supplied installation joint along the underside edge of the hob, ensuring the ends overlap.

Do not use adhesive to fix the hob into the worktop.

Place the hob into the cutout in the worktop (F7). Apply gentle pressure

downwards onto the hob until it is fitted, ensuring a good seal around the outer edge.

Before you install the hob, make sure that

• The work surface is level and made of a heat-resistant material. Also the walls near the hob must be heat-resistant.
• The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
• The installation will comply with all clearance requirements and applicable standards and regulations.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

EN

Connecting the hob to the mains power supply (F8)

Wire colour code:

L2 Black

L1 Brown

N2 Grey

N1 Blue

Green/Yellow

Before connecting the hob to the mains power supply, check that:

1. The domestic wiring system is suitable for the power drawn by the hob.

2. The voltage corresponds to the value given in the rating plate.

3. The power supply cable sections can withstand the load specified on the rating plate.

4. The installation is fitted with an efficient earthing connection in line with current regulations and law. The earth connection is a legal requirement.

- To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

- Where the appliance is not supplied with a cable or plug, use suitable material for the current indicated on the rating plate and for the operating temperature. The cable must never reach a temperature of more than 50 °C above the ambient temperature.

- The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker.

- The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

- The cable must not be bent or compressed.

ESTE APARELHO DESTINA- SE UNICAMENTE A USO DOMÉSTICO. O FABRICANTE NÃO SERÁ EM CASO ALGUM RESPONSÁVEL PELOS FERIMENTOS OU DANOS RESULTANTES DE UMA INSTALAÇÃO INCORRETA OU DE UMA UTILIZAÇÃO INDEVIDA, INCORRETA OU INSENSATA.
