USER MANUAL Beretta Premium Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Vorbereitung

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Mindestabstände

Ringe/Heizplatten aus Keramik-Glas 65 cm
Gasherd 75 cm
Kohle-/ Öl-/ Holzofen 85 cm

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

BEDIENFELD UND TASTENFUNKTIONEN

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 20

Installation 22

Control Panel and Button Functions 29

Cleaning and Maintenance 29

Troubleshooting 30

Product Data Sheet 31

Notes on Environmental Protection 32

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Article number 10045488, 10045489, 10045490
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Read all instructions carefully before use and keep this user manual in a safe place for future reference.
• The installation work may only be carried out by an electrician or a qualified person. Before using the cooker hood, make sure that the voltage (V) and frequency (Hz) indicated on the cooker hood correspond to the voltage and frequency of the power supply in your household.
• We accept no liability for damage caused by improper use or installation.
  • Children under 8 years of age must not use the cooker hood.
• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• Clean the appliance and the filter regularly to keep the appliance working efficiently.
  • Always disconnect the power plug from the socket before cleaning.
• Clean the appliance exactly as indicated in the operating instructions.
• Do not use an open fire under the extractor hood.
• If the unit is not functioning normally, contact the manufacturer or a specialist company.
  • Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• If the cooker hood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.
• Do not flambé under the extractor hood.
• Caution: The surface of the unit may become hot during operation.

Important instructions for installation

• The air must not be discharged into a flue used for extracting flue gases from gas or other fuels (does not apply to appliances that only return the air to the room).
• Observe all regional regulations for the installation of ventilation systems.

Important notes on exhaust air operation

WARNING

Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent fi replace and sufficient air circulation is not guaranteed.

Room air-dependent fi replaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without sufficient supply air, negative pressure is created. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that sufficient fresh air supply is guaranteed and that the air can circulate.
• A supply air/exhaust air wall box is not sufficient to ensure compliance with the limit value.

Safe operation is only possible if the negative pressure at the location of the fi replace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can flow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a master chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation.

If the cooker hood is used exclusively in recirculation mode, operation is possible without restriction.

Important note on dismantling the unit

• Disassembly is the same as installation/assembly in reverse order.
• Have a second person help you during disassembly to avoid injury.

INSTALLATION

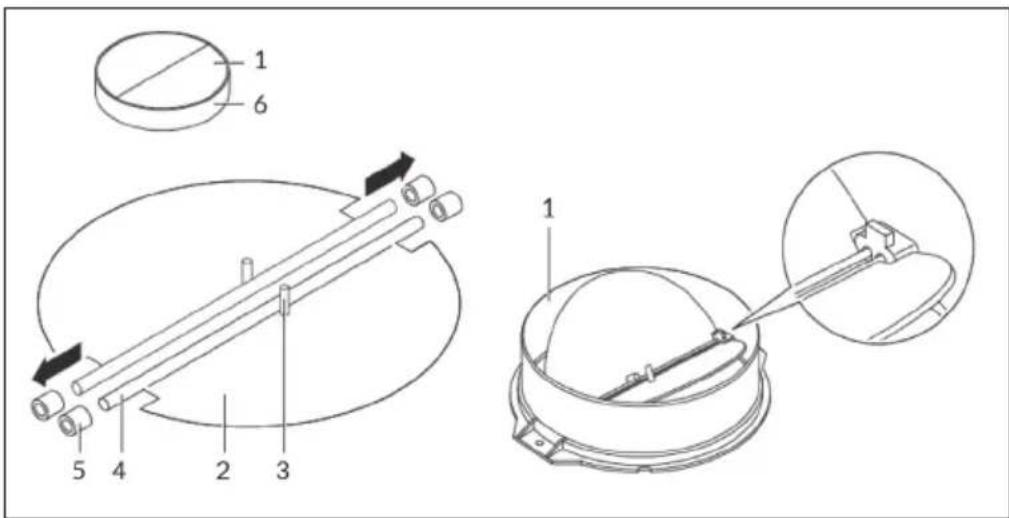

Mounting the backflow flap

If the cooker hood does not have a pre-assembled backflow flap, install the parts as follows:

1 Install the first half (2) into the housing (6).
2 The pin (3) should be facing upwards.
3 The axle (4) is inserted into the holes (5) on the housing.
4 Repeat all the steps for the second half of the flap.

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Preparation

If you have an extractor to the outside, you can install the extractor hood as shown in the picture on the right. The flue should have a diameter of at least 150 mm and be made of enamel, aluminium or a flexible, heat-resistant tube.

• Switch off the device before installation and pull the power plug out.
• The extractor hood should be positioned at a height of 65-85 cm above the hob.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Minimum distances

Ceramic glass rings/heating plates 65 cm
Gas cooker 75 cm
Coal/oil/wood stove 85 cm

Installation with exhaust air

Note: Observe the safety instructions for operating the unit when the air is discharged to the outside. If the cooker hood is in operation at the same time as an appliance that draws its energy from a source other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Installation with convection function

If you do not have an outdoor extractor, you do not need an exhaust air pipe. The installation corresponds to installation with external ventilation.

Important notes for the installation of exhaust air pipes

The following rules must be strictly observed to guarantee optimum air extraction: Failure to follow these instructions will reduce the performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust pipe and do not constrict it.
• When using flexible pipes, the pipe must always be installed tightly in order to minimise pressure loss.
• All installation work must only be carried out by a qualified electrician or a qualified person.
• Do not connect the hood's exhaust pipe to an existing ventilation system that is being used for another device, such as a fireplace.
• The angle of the bend of the exhaust air pipe should not be less than 120^ . Align the pipe horizontally. Alternatively, the pipe should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is horizontal in order to prevent grease from collecting on one side.
• Make sure that the exhaust duct selected for installation complies with the relevant standards and is fire resistant.

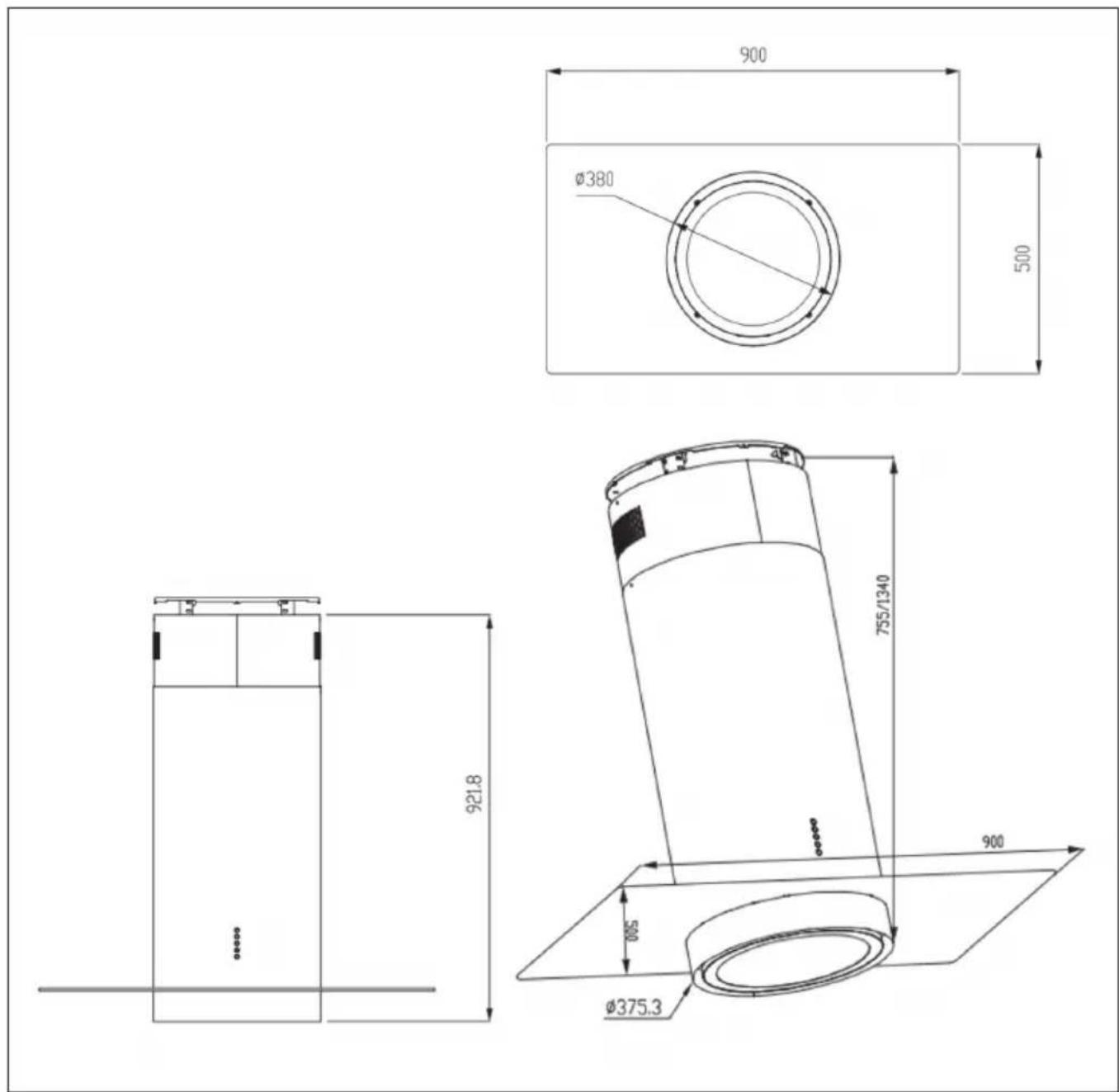

Dimensions

900 Ø380 500 755/1340 900 Ø375.3 921.8

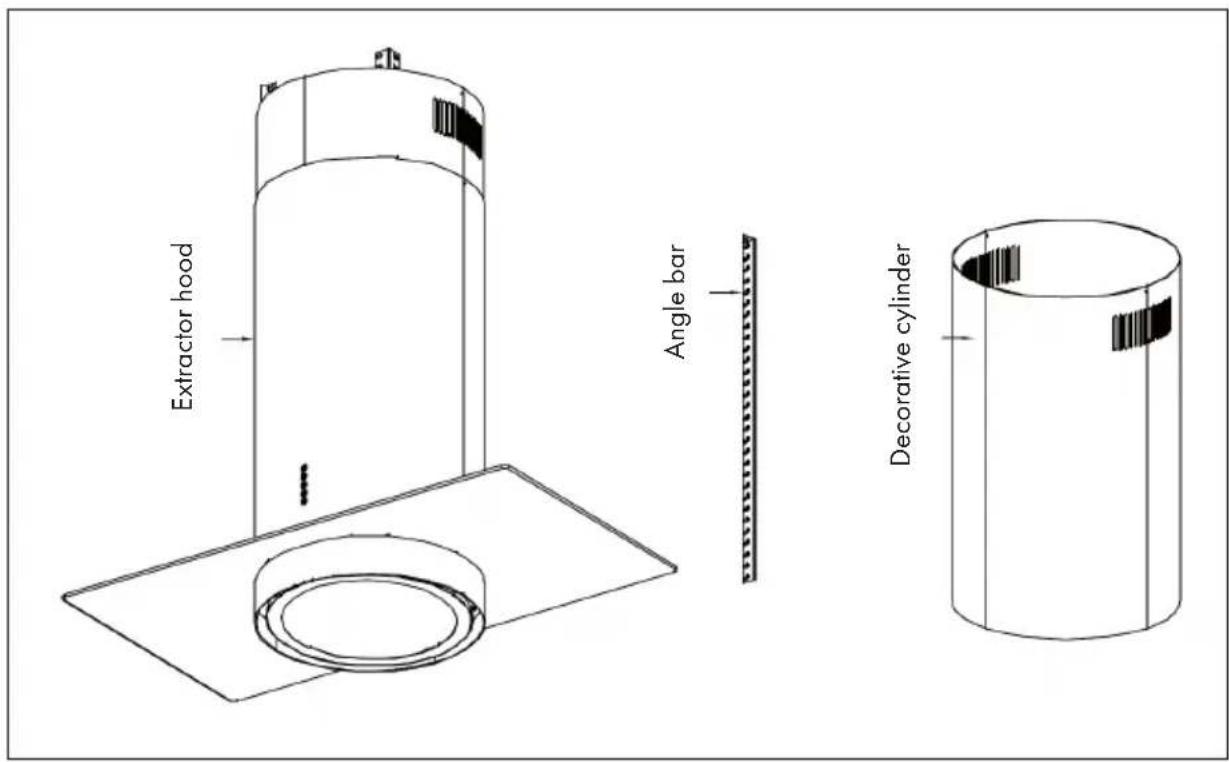

Individual parts and installation steps

Extractor hood Angle bar Decorative cylinder

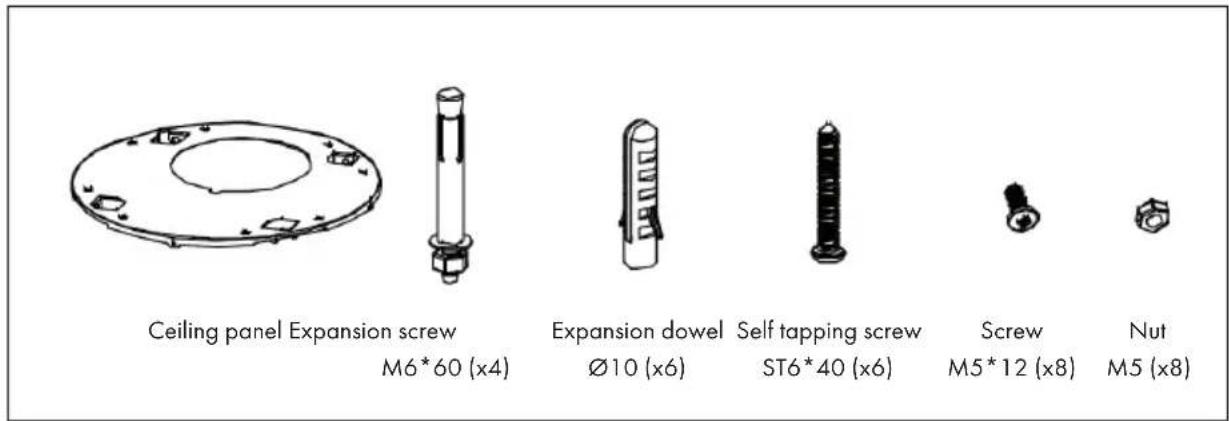

Ceiling panel Expansion screw M6*60 (x4) Expansion dowel Ø10 (x6) Self tapping screw ST6*40 (x6) Screw M5*12 (x8) Nut M5 (x8)

(9) (10)
9	After fixing the ceiling panel to the ceiling, fix the whole machine to the ceiling panel with eight M5*12 screws.
10 Pull up the upper decorative cylinder and fasten it with two ST4*8 screws.

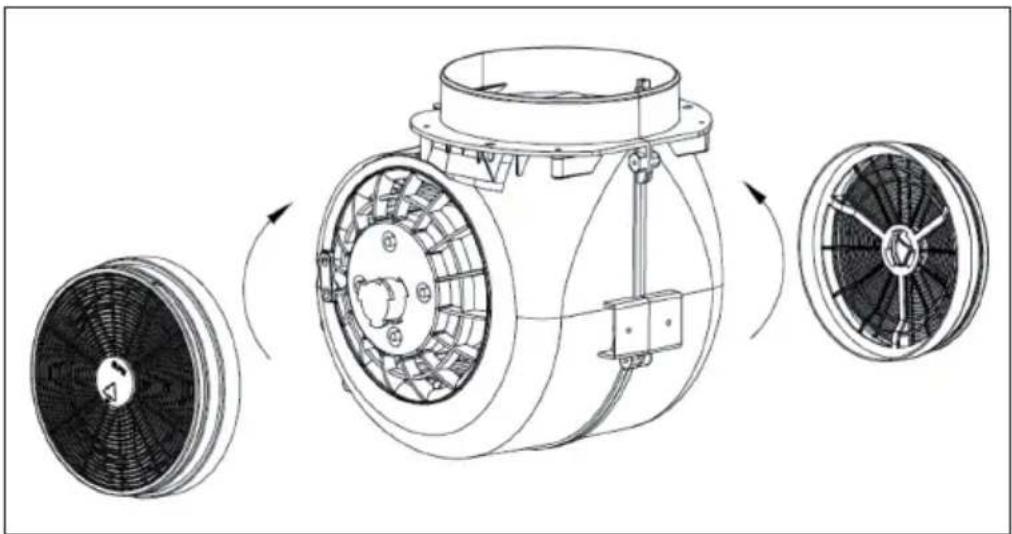

Installation of the activated carbon filter

Technical line drawing of a mechanical fan assembly with three views (front, side, top) showing internal components and rotation arrows (no text or labels)

CONTROL PANEL AND BUTTON FUNCTIONS

	Press this button to switch the motor on/off.
	Lowest speed setting.
	Medium speed setting.
	High speed setting.
	Light on/off.

Booster function

To activate the booster function, press and hold the button ✕. The symbol ✕ flashes. The speed automatically changes to setting 3 after 5 minutes.

Switch-off delay

Press and hold the two buttons & and #o set a 5 minute delay. Press and hold the buttons for longer to cancel the delay.

CLEANING AND MAINTENANCE

Switch off the extractor hood and pull the plug out of the socket before cleaning and maintenance. The outer surfaces are susceptible to scratches and stains. Therefore, do not use scouring agents for cleaning and wipe away residues of alkaline or acidic substances (lemon juice, vinegar) immediately after cleaning.

Stainless steel surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner for this purpose. Always wipe along the grain of the stainless steel to prevent criss-crossing scratch marks.

Control panel interface

The control panel can be cleaned with a damp cloth and mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung out. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly cleaning of the grease filters

Clean the filter every month to avoid a fire hazard. The filter collects grease, smoke and dust and thus influences the efficiency of the cooker hood. If the filter is not cleaned, grease residues will collect there. Clean the filter with water and a little washing-up liquid and let it air dry afterwards.

TROUBLESHOOTING

Problem Possible cause Solution
The light is on but the fan does not work	The fan blades are blocked.	Switch off the appliance and have it repaired by qualified personnel only.
	The motor is damaged.
Neither the light nor the fan work	The light bulb has burnt out.	Replace the bulb with a bulb of the same type.
	The mains cable is loose.	Correctly plug the mains cable into the socket.
The unit vibrates strongly	The fan blade is damaged.	Switch off the appliance and have it repaired by qualified personnel only.
	The fan motor is not firmly secured.
	The appliance is not correctly mounted on the holder.	Take the unit off the holder and attach it properly.
The suction performance is not good	The distance between the appliance and the cooking surface is too great.	Adjust the distance to 65 - 75 cm.

PRODUCT DATA SHEET

Information according to Regulation (EU) No 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Article number 10045488, 10045489, 10045490
Designation Symbol Value Unit
Annual energy consumption AEC	hood	22.2 kWh/year
Energy efficiency class A++
Fluid-dynamic efficiency FDE	hood	41.1
Fluid dynamic efficiency class A
Lighting efficiency LE	hood	37.0 Lux/W
Lighting efficiency class A
Grease separation efficiency GFE	hood	70.1 %
Class for grease separation efficiency		D
Air flow at minimum and at maximum speed in normal operation, excluding operation on the intensive or fast speed setting		367 m^3/h
Air flow when operating on the intensive or fast speed setting		581 m^3/h
A-weighted airborne noise emissions at minimum and maximum available speed during normal operation		48 dB
A-weighted airborne acoustical noise emissions during operation at the intensive or high-speed stage		65 dB
Power consumption in off-mode	P_o	0.49 W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

NOTES ON ENVIRONMENTAL PROTECTION

• Make sure there is sufficient air supply during cooking so that the cooker hood can work efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced while cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced when cooking, select a higher fan speed in time. If the cooking steam has already spread throughout the kitchen, the cooker hood must be operated for longer.
• Switch off the cooker hood when it is no longer needed.
• Switch off the lighting when it is no longer needed.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly.

Préparatifs

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distances minimales

Technical line drawing of a mechanical fan assembly with three views (front, side, top) showing internal components and rotation arrows (no text or labels)

PANNEAU DE COMMANDE ET FONCTIONS DES TOUCHES

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Berlin Brands GOIup UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Installazione 50

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Preparazione

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distanze minime

Technical line drawing of a mechanical fan assembly with three views (front, side, top) showing internal components and rotation arrows (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly.

Preparación

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distancias mínimas

Technical line drawing of a mechanical fan assembly with three views (front, side, top) showing internal components and rotation arrows (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

KLARSTEIN
