Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 21

Safety Instructions 22

Installation 24

Operation 28

Cleaning and Maintenance 29

Installing Filters 30

Bulb Replacement 31

Troubleshooting 32

Notes on Environmental Protection 33

Disposal Considerations 34

Manufacturer & Importer (UK) 34

TECHNICAL DATA

Item number 10046589
Power supply 220-240 V~ 50	0-60 Hz

SAFETY INSTRUCTIONS

• Read all instructions carefully before use and keep this user manual in a safe place for future reference.
• The installation work may only be carried out by an electrician or a qualified person. Before using the cooker hood, make sure that the voltage (V) and frequency (Hz) indicated on the cooker hood correspond to the voltage and frequency of the power supply in your household.
• We accept no liability for damage caused by improper use or installation.
  Children under 8 years of age must not use the cooker hood.
• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• Clean the appliance and the filter regularly to keep the appliance working efficiently.
• Always disconnect the power plug from the socket before cleaning.
• Clean the appliance exactly as indicated in the operating instructions.
• Do not use an open fire under the extractor hood.
• If the unit is not functioning normally, contact the manufacturer or a specialist company.
• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• If the cooker hood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.
• Do not flambé under the extractor hood.
• Caution: The surface of the unit may become hot during operation.

Important instructions for installation

• The air must not be discharged into a flue used for extracting flue gases from gas or other fuels (does not apply to appliances that only return the air to the room).
• Observe all regional regulations for the installation of ventilation systems.

Important notes on exhaust air operation

WARNING

Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent fireplace and sufficient air circulation is not guaranteed.

Room air-dependent fireplaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without sufficient supply air, negative pressure is created. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that sufficient fresh air supply is guaranteed and that the air can circulate.
• A supply air/exhaust air wall box is not sufficient to ensure compliance with the limit value.

Safe operation is only possible if the negative pressure at the location of the fireplace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can flow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a professional chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation.

If the cooker hood is used exclusively in recirculation mode, operation is possible without restriction.

Important note on dismantling the unit

• Disassembly is the same as installation/assembly in reverse order.
• Have a second person help you during disassembly to avoid injury.

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 120mm )

1. Before installation, turn the unit off and unplug it from the outlet.

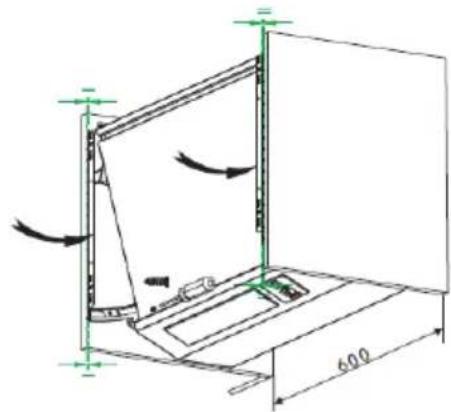

2. The cooker hood should be placed at a height of 65-75cm above the cooking surface for best efficiency.

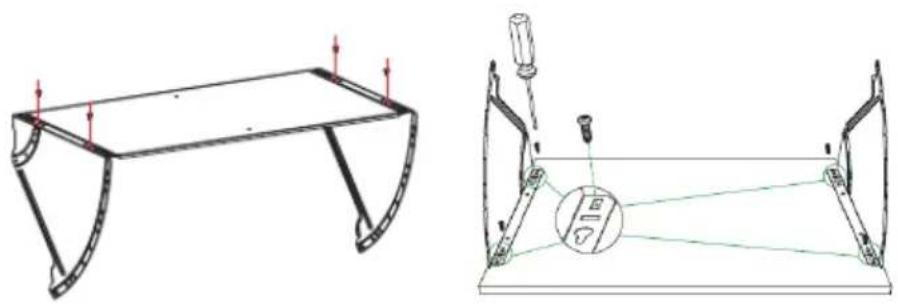

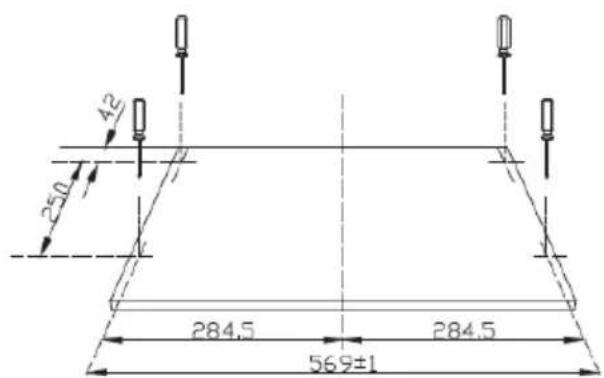

3. Install the cooker hood between two cupboards. Drill and screw on the side boards of the cupboards (the holes ≤ 2mm ). The distance between the head of the screw and the side board should be 5mm , and the distance between the screw and the cooking surface should no less than 1040mm . If there is not room enough, you can place it higher or lower.
4. Hang the cooker hood on the screws between the two cupboards.

1. Push the fan-shaped door frames to the end, in order to make the outer edges of the door frames at the same vertical level as the outer edge of the cupboards.
2. Mark the positions where you install the lower screws. Drill the upper hole and fix the screws. Make sure all four screws are well fixed.

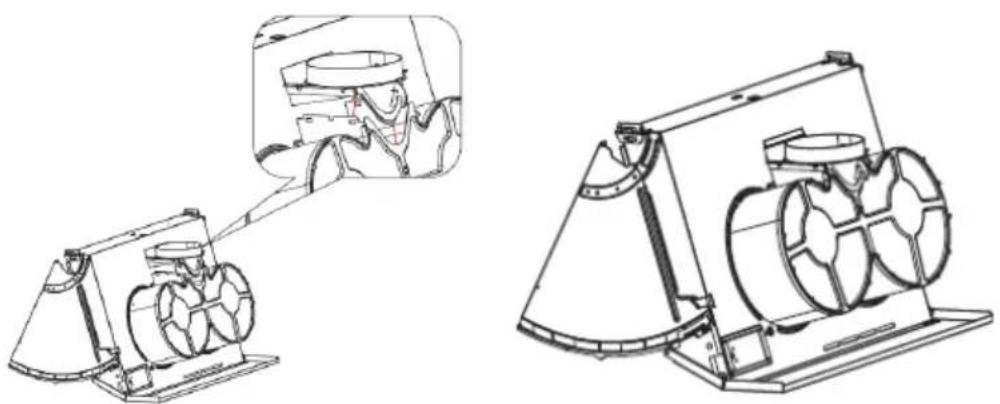

1. Install the outlet as followings: Align the 3 pcs side slots of the outlet with the 3 edges of the blower, insert the 3 edges into the outlet slot (see Pic 1), then finish as shown Pic 2.

Pic. 1 Pic. 1

1. Connect the air-outlet board and the air-outlet tube (Vent Hose) which will need to feed through to the outside of the building. Rigid kits, if preferred, can be obtained from either the retailer who supplied the hood, or DIY Stores and Builders Merchants.

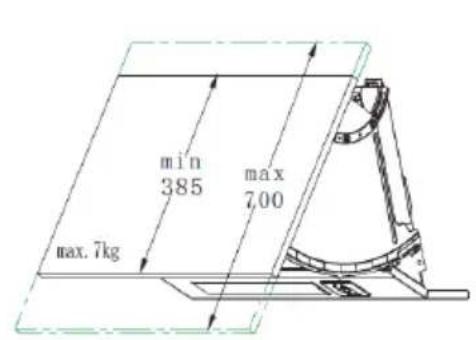

2. Door installation: The door should be no less than 16mm thick, 385-700mm high, and weigh no more than 7KG. Pull out the movable fan-shaped door frames by the plastic handle, and place the fan-shaped door frames one on left and one on right.

1. Mark the installation position of the door and the size of the fixed screws. If the upper edge of the door is not as high as the upper edge of the cupboards, please adjust the size accordingly. Mark the positions of the screws on the door, and make sure the size is as accurate as 569 ± 1 .

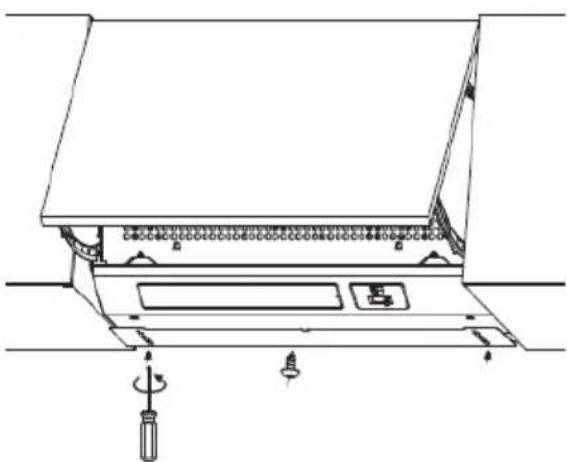

1. Pull out the movable fan-shaped door frames and fix with the connection board together with ST2.5*8 screw, then fix the fan-shaped door frames on the door with screws. Make sure the frames are symmetrical. Install the door into the cooker hood, the two sides of the door can be pulled to the end and the door can be safely locked. If the door cannot be safely locked, you can release the plastic handle.

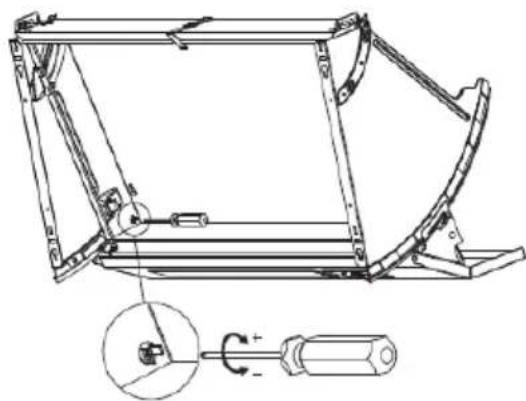

1. The two screws on both sides of the cooker hood can adjust the sliding of the door, according to the weight of the door.

1. Install the adjusting plate, in order to cover the gap between the wall and the bottom of the cooker hood.

WARNING: Risk of electric shock

Please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

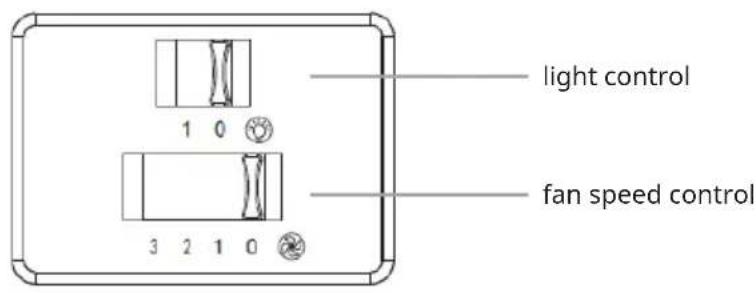

OPERATION

Motor Operation

0 off
1- Low	Power Setting
2- Mid	Power Setting
3- High	Power Setting

Light Operation

0 Off
1	On

CLEANING AND MAINTENANCE

Unplug the extractor hood before cleaning or servicing.

• Clean the surface of the hood regularly. Use mild soap or detergent to clean the hood.
• Do not use aggressive alkaline solutions or abrasive cleaners.
• Avoid using abrasive cleaners or dishwashing detergents.
• The grease filter can be washed out with mild soap or a mild detergent. (Heavy grease deposits may be difficult to remove and the filter may need to be replaced).
• The activated carbon filter cannot be cleaned and must be replaced regularly.

Note: The cleaning water must not penetrate into the electrical parts of the motor, control switch, etc.

Stainless steel

The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may be used.

Control panel surface

The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess moisture left after cleaning.

Grease mesh filters

• The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light)
• Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

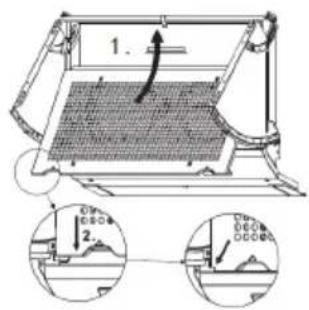

• Remove the filter as shown in the diagrams below.

INSTALLING FILTERS

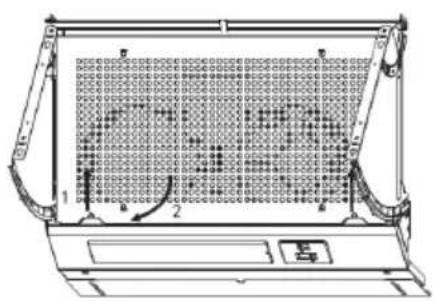

Installing grease mesh filters

To install filters for the following four steps:

• Angle the filter into the slots at the back of the hood.
• Push the button on the handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

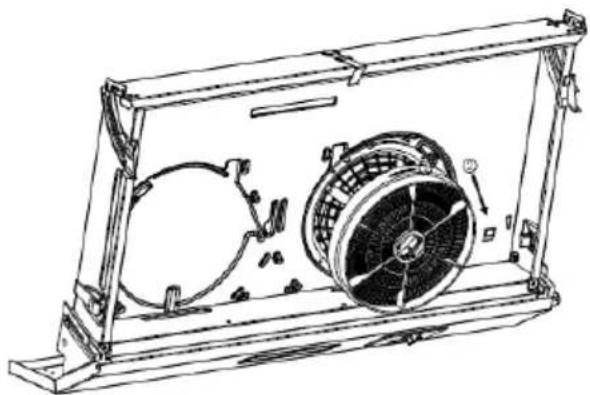

Installing carbon filter

1. Before installing or replacing the carbon filters, disconnect the mains power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
4. Place the mesh filter
5. Connect the power supply to the wall socket.

Notes

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Changing the light

• Switch off the appliance and make sure it's disconnected from the mains supply.

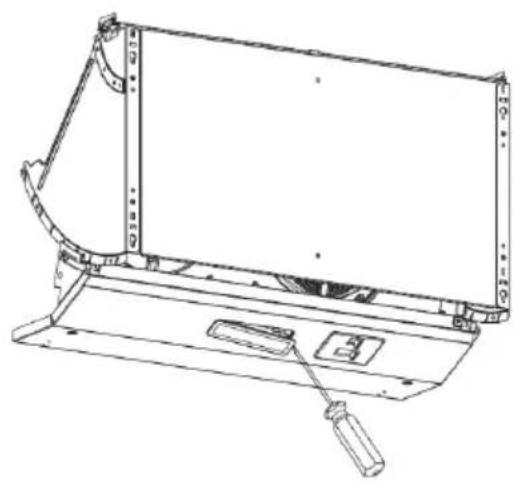

• You should use a suitable screwdriver to prize up one end of the light and take it out for replacement.
  The ILCOSD code for this lamp is: DBS-2/65-H-120/33
• LED modules -rectangle lamp
  Max wattage: 1 × 2W
  Voltage range: AC 110-240V

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work.	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work.	House fuses blown Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet.
Oil leakage. One way valve	and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
The suction power is insufficient.	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

Notes:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product fiche

Delegated Regulation (EU) 65/2014

Supplier name or trademark Klarstein
Model identifier 10046589
Annual Energy Consumption 61,3 kWh/annum
Energy Efficiency Class C
Fluid Dynamic Efficiency 9,8
Fluid Dynamic Efficiency class E
Lighting Efficiency 98,0 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency 43,7 %
Grease Filtering Efficiency class G
Air flow (min speed normal use) 257 m³/h
Air flow (max speed normal use) 427 m³/h
Airborne acoustical A-weighted sound power emissions (min speed normal use)	67 dB
Airborne acoustical A-weighted sound power emissions (max speed normal use)	74 dB

Model placed on the Union market from 01/09/2024.

EPREL registration number: 2111141

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179Berlin

Germany

https://eprel.ec.europa.eu/qr/2111141

Website:

Website: https://www.elektronik-star.de/
nfo/lpressum/

Phone: [phone]
