USER MANUAL Versagrow Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with three leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALT

Lieferumfang 4

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

LIEFERUMFANG

8pcs set.
name	ABCD
picture			###
quantity	8pcs8pcs2pcs4pcs
name	EFGTools
quantity	96pcs96pcs96pcs1pcs
name	H	J
quantity	4	4

12pcs set.
name	ABCD
picture			—
quantity	12pcs8pcs4pcs4pcs
name	EFGTools
quantity	144pcs144pcs144pcs1pcs
name	H	J
quantity	4	4

Technical line drawing of a mechanical bracket assembly with an inset close-up showing detail (no text or symbols)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Scope of Delivery 13 Combination Examples 15 Assembly 16

MANUFACTURER & IMPORTEUR (UK)

Importer for Great Britain

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

SCOPE OF DELIVERY

name	ABCD
quantity	8pcs8pcs2pcs4pcs
name	EFGTools
quantity	96pcs96pcs96pcs1pcs
name	H	J
quantity	4	4

name	ABCD
quantity	12pcs8pcs4pcs4pcs
name	EFGTools
picture			[c2WW]
quantity	144pcs144pcs	144pcs1pcs
name	H	J
quantity	4	4

COMBINATION EXAMPLES

4pcs combination. 6pcs combination. 8pcs combination.
8pcs combination. 12pcs combination. 12pcs combination.

ASSEMBLY

All parts "A" have a flat side and a bended side.	Flat side and bended side are used to connect the parts.	For this combination, this is the right way to connect the parts.
First step is to connect two parts "A" using the connection method showed before.	Completed connection. Fix the connection using bolt "E", nut "F" and a gasket "G".
Completed fix. Add the third part "A" and fix using the same method.		Add the fourth part "A" and fix using the same method.
Completed shape. Add reinforcement part "B" in the corners. Fix the reinforcement with bolts and nuts.
4pcs set is completed.
For 6pcs set configuration, you need to use parts “A” in different directions.	Please check the extremes of the parts “A” in the picture above.	Connect the last part “A”.
Place reinforcing parts “C” in the middle section and secure them with bolts.	Place reinforcements parts “D” in the middle of the item.	Completed shape.
Reinforcement part “D” Use bolts and nuts to fix the part to the main item.		Use reinforcement parts “B” at the corners.
Finished 6pcs set.
8pcs combination set example. Assembly two parts "A". Extend the sides adding two more parts "A".
Create the corners adding two more parts "A".	Close the shape adding the last two parts "A".	Reinforce the long middle sections with parts "C", fixing with bolts and nuts.
Add 4 parts "D" as shown above. At the 90° corners, add parts "B". 8pcs set is now complete.
12pcs set combination example. Create two of the 6pcs set as shown before.		Put them together.
Fix both sets together with bolts and nuts. Finished item.
12pcs set combination example. Assembly two parts “A” first. Add another part “A” making sure that the extremes look like the image above.
Add two more parts “A”. Install using this method. Repeat the steps and add two more parts “A” to close the shape.
At the 90° corners, add the reinforcements parts “B”.	Add the reinforcement at the corners marked above.	In the middle of the product, add four parts “D”.
Finished 12pcs set.

Technical line drawing of a mechanical bracket assembly with an inset close-up showing detail (no text or symbols)

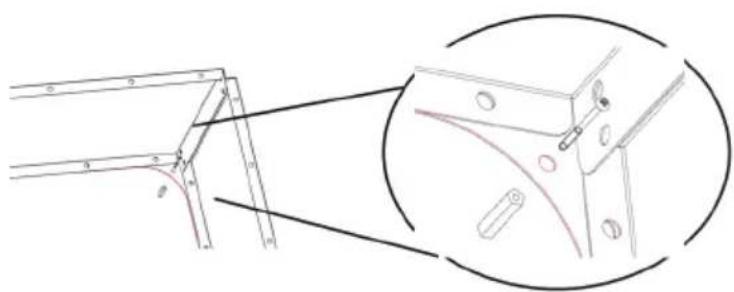

If desired, you can fix the item to the ground using the corner reinforcement parts. To do so, you need to drill 6mmx30mm holes in the ground and use parts "H" and "J" to fix.

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

name	ABCD
picture			###
quantity	8pcs8pcs2pcs4pcs
name	EFGTools
quantity	96pcs96pcs96pcs1pcs
name	H	J
quantity	4	4

name	ABCD
picture			###
quantity	12pcs8pcs4pcs4pcs
name	EFGTools
quantity	144pcs144pcs144pcs1pcs
name	H	J
quantity	4	4

EXEMPLES DE COMBINAISON

Simple line drawing of a rectangular frame with rounded corners and no text or symbols

Empty rectangular frame with corner markers, no text or symbols present

Empty rectangular frame with border and corner markers (no text or symbols)

(a) 0 E B (a) 0 7 0 E 0

Line drawing of a rectangular box with two side compartments (no text or symbols)

Line drawing of a rectangular frame structure with no text or symbols

Pure technical line drawing of a rectangular frame with no text, numbers, or symbols

Technical line drawing of a mechanical bracket assembly with an inset close-up showing detail (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

name	ABCD
picture			(A463)
quantity	8pcs8pcs2pcs4pcs
name	EFGTools
quantity	96pcs96pcs96pcs1pcs
name	H	J
quantity	4	4

name	ABCD
quantity	12pcs8pcs4pcs4pcs
name	EFGTools
quantity	144pcs144pcs144pcs1pcs
name	H	J
quantity	4	4

Technical line drawing of a mechanical bracket assembly with an inset close-up view (no text or symbols)

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

VOLUMEN DE SUMINISTRO

name	ABCD
picture			###
quantity	8pcs8pcs2pcs4pcs
name	EFGTools
quantity	96pcs96pcs96pcs1pcs
name	H	J
quantity	4	4

name	ABCD
picture			—
quantity	12pcs8pcs4pcs4pcs
name	EFGTools
quantity	144pcs144pcs144pcs1pcs
name	H	J
quantity	4	4

Technical line drawing of a mechanical bracket assembly with an inset close-up view (no text or symbols)
