CONTENTS

Technical Specifications 15 Safety Instructions 16 Scope of delivery 18 Installation 20 Fixing the heater to the ground 21 Operation 22 Maintenance and Cleaning 23 Disposal Considerations 24 Manufacturer & Importer (UK) 24

TECHNICAL SPECIFICATIONS

Article number 10046339
Power supply 220-240 V~ / 50 Hz
Power 3000 W
Mounting free-standing

SAFETY INSTRUCTIONS

• Read the user manual before using the heater. Keep the user manual and make sure it stays with the heater if you pass it on to a new owner.
• Before use, make sure that the heater and the supplied accessories are complete and undamaged.
• The heater must be installed according to the instructions in the installation manual. The power plug must be connected to an outlet that meets the following requirements: AC 230 V, frequency 50/60 Hz.
• The heater is only suitable for outdoor use. Do not use it indoors.
• Do not leave the heater unattended during operation. Keep the heater away from children: risk of burns.
• Do not use external control with the heater. The heater should not be set to turn on when left unattended.
• Do not use the heater near flammable or explosive materials: risk of fire or explosion.
• Strictly avoid inserting objects into the heater's protective grille: risk of electric shock.
• Do not touch the metal housing as it gets hot when the heater is in operation: risk of burns. Allow the heater to cool before turning off and storing.
• Pull the plug out of the socket if you do not intend to use the device for a long period of time.
• Before each use of the electric heater, make sure that it is in good condition and intact. Do not plug in the heater if the housing, cable or power plug is damaged.
• The heating element can be damaged if dropped or hit. Before each use, make sure the heating element is not damaged. Do not use the heater if the heating element is defective.
• Unplug the power cord from the outlet when moving or cleaning the heater. To do this, first turn off the switch, and then unplug the power cord. Do not pull on the cable.
• It is strictly forbidden to dismantle the electric heater without authorisation. If the heater is damaged, contact professional service personnel.
• The device is intended for household use only.
• Do not touch the surface of the device with bare skin during use: risk of burns.
• Do not share the heater socket with other devices: risk of fire due to overloading.

CAUTION

Fire hazard

Never cover the heater. If you cover the device, there is a risk of overheating and fire. The heater must not be placed directly under a power socket.

• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any hazards
• Avoid using an extension cord as it can overheat and pose a fire hazard.
• This heater is not intended for use in bathrooms, laundry rooms or similar areas where moisture may occur. Never place the heater where it can fall into a bathtub or other body of water.
• Do not use the heater in the immediate vicinity of a bathtub, shower or swimming pool.
• Children under the age of 3 should be kept away unless constantly supervised.
• Children aged 3 to 8 years should not turn the appliance on or off unless it is placed or installed in the normal position for use and they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved. Children from 3 years and under 8 years of age must not plug in the power plug, operate the device, clean it or carry out any maintenance work.
• This device may be used by children aged 8 years and over and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the hazards involved. Children must not play with the device. Cleaning and maintenance work must not be carried out by children without supervision.

CAUTION

Risk of burns

Some parts of this appliance can become very hot and cause burns. Special care should be taken when children and infirm persons are present.

SCOPE OF DELIVERY

Technical line drawing of a vertical cylindrical structure with internal grid pattern and a labeled base (no text or symbols)

Heater Body

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a circular object with internal cutouts and no text or symbols

Base Weight 4 screws à M6 x 24 mm

Simple line drawing of a screw with a triangular head and threaded base (no text or symbols)

Simple 3D rectangular block with two circular holes at the top (no text or symbols)

2 pcs ST 3 x 8 mm 2 pcs ST 4 x 35 mm 2 pcs plate

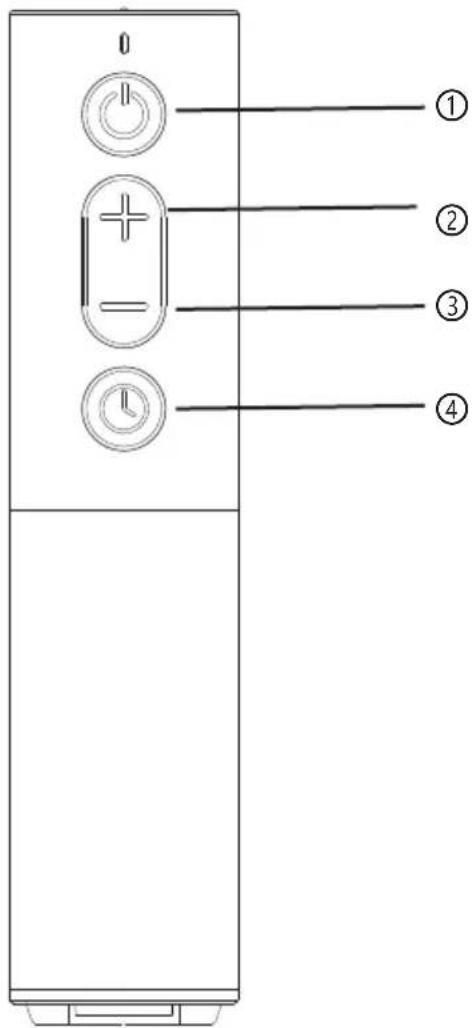

Remote Control

0 ① ② ③ ④

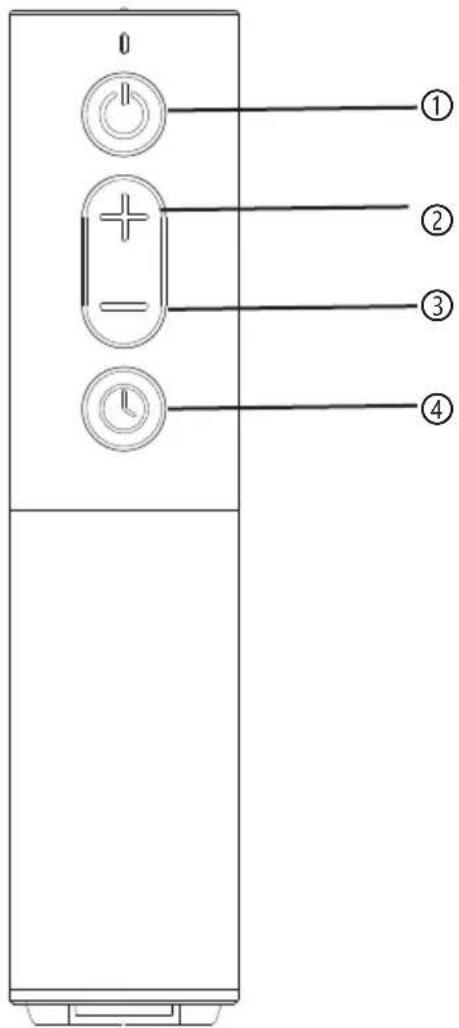

1 Standby/ Off Switches the heater to standby/off

2 Up button Increase power settings or timer

3 Down button Decrease power settings or timer

4 Timer After powering on, press this button to turn the timer on and use up and down button to choose different hours

INSTALLATION

1. Fix the base together.

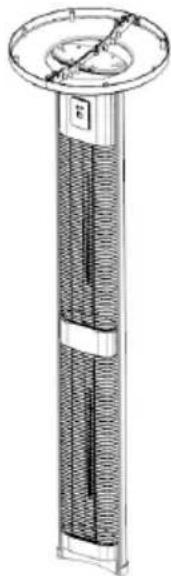

2. Install the base to the heater body

Technical line drawing of a mechanical component with red arrows indicating direction (no text or symbols)

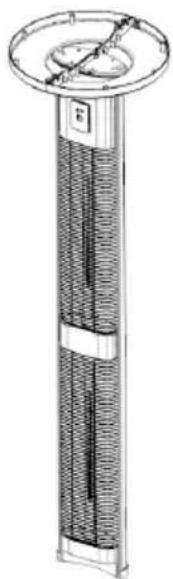

Technical line drawing of a vertical cylindrical device with internal mesh structure and circular top (no text or symbols)

1. Fix the base by 4pcs M6 x 24mm screws.

Diagram of a mechanical or electrical component with circular components and directional arrows, no readable text or symbols present.

FIXING THE HEATER TO THE GROUND

4. Fix the plate to the base by 2 pcs ST 3 x 8 mm
5. Fix the base to the ground by 2 pcs ST 4 x 35 mm

OPERATION

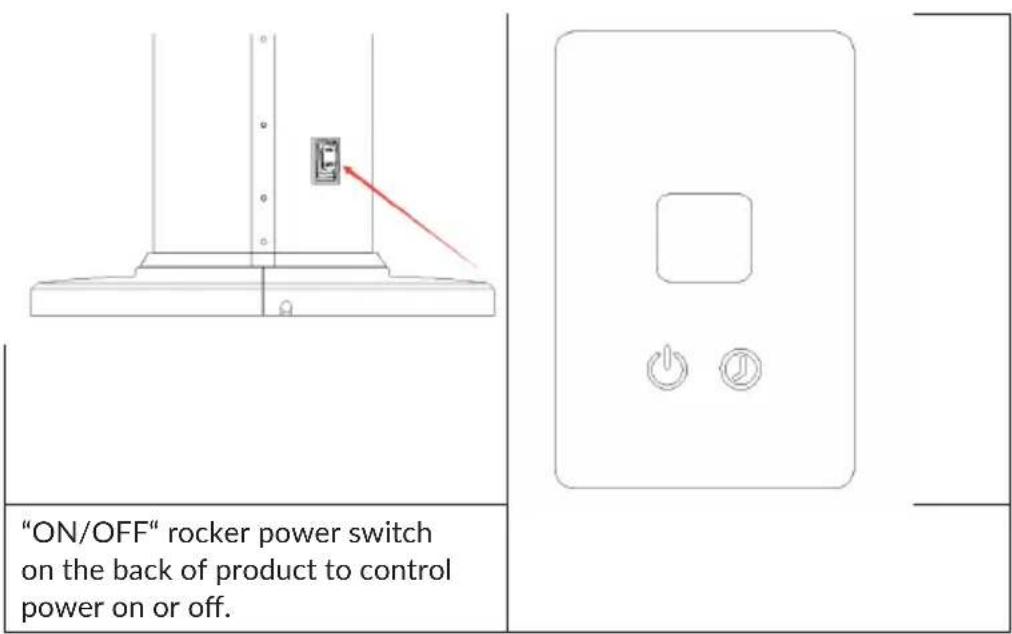

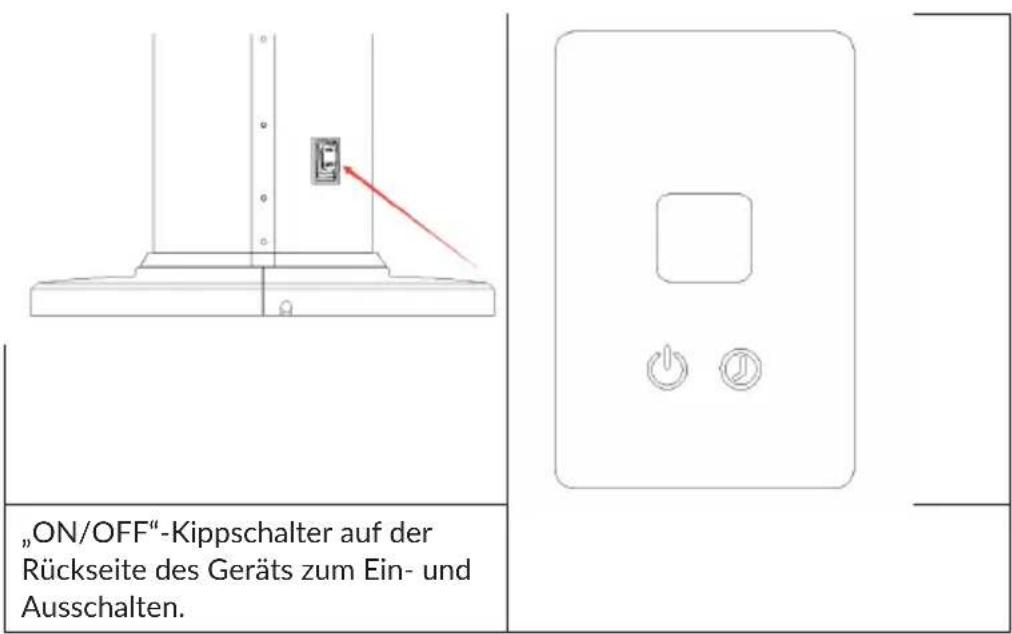

"ON/OFF" rocker power switch on the back of product to control power on or off.

After powering on, touch the power switch in the control panel to control different power.

• P0 means stand by
  • P1 means low heating
  • P2 means moderate heating
  • P3 means high heating
• After powering on, touch the timer button in the control panel to control power off from 1 to 24 hours

MAINTENANCE AND CLEANING

Maintenance

1. Caution! Careful and regular maintenance of the infrared heater is necessary to obtain a long and efficient operation of your appliance.
2. Check the cleanliness of the reflector and IR filament at least once a month. If necessary, follow the cleaning and maintenance instructions.
3. The number of checks may be increased depending on the amount of dust in the environment.
4. During cleaning, visually inspect the reflector, wire and frame for deformation. In case of deformation, consult a qualified technician.
5. Visually inspect the power cord and plug while cleaning the fixture. If there is any deformation, consult a qualified technician.
6. It is recommended that the reflector be replaced every 2 years for more efficient operation.

Cleaning

1. Caution! Regular and careful cleaning will help your heater to work efficiently for many years.
2. For your safety, unplug the power cord before cleaning the appliance.
3. Using a slotted screwdriver, remove the front grid wire through the inlets on the frame.
4. The reflector and filament should be cleaned with a soft cloth, soft brush or cool or dry air. The cloth may be damp, but never too wet, and the cleaning agent must not contain any chemicals.
5. Do not use cleaning products that could damage the reflector (detergents, etc.).
6. Replace the grille using a flat screwdriver.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
