USER MANUAL LSR 15HQ Holzmann
12.1 Intended use....13
12.1.1 Working conditions ....13
12.2 Prohibited use.... 13
12.3 Security Instructions.... 13
12.1 Residual risk factors.... 13
13 ASSEMBLY
13.1 Installation Supporting base 14
13.1.1 Walls, columns, floor and ceiling mounting....14
14 OPERATION
14.1 Rolling out/ pulling the hose.... 14
14.2 Rolling in / collect the hose 15
14.3 Settings.... 15
14.3.1 Adjust tube length....15
14.3.2 Change position of the guide arm....15
14.3.3 Adjusting the spring force 15
14.3.4 Spring force reduce:....15
14.3.5 Increase spring force....15
15 MAINTENANCE
16 DISPOSAL
17 TROUBLESHOOTING
18 PREFACIO (ES)
19 SEGURIDAD
19.1 Uso correcto.... 18
EC-CONFORM - This product complies with the EC-directives.
READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.
ES
PROTECTIVE CLOTHING! The operator is obligated to wear proper ear protection, safety goggles and safety shoes
ES
This manual contains Information and important instructions for the installation and correct use of the retractable air hose reel LSR 10HQ / 15HQ.
This manual is part of the machine and shall not be stored separately from the machine. Save it for later reference and if you let other persons use the machine, add this instruction manual to the machine.
Please read and obey the security instructions!
Before first use read this manual carefully. It eases the correct use of the machine and prevents misunderstanding and damages of machine and the user's health.
Due to constant advancements in product design construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.
Technical specifications are subject to changes!
Please check the product contents immediately after receipt for any eventual transport damage or missing parts.
Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation.
Please understand that later claims cannot be accepted anymore.
Copyright
© 2020
This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law – court of jurisdiction is A-4020 Linz, Austria!
CUSTOMER SERVICE CONTACT
The machine only in technically perfect condition in accordance with, safety and danger, use it! Interference, which could affect safety, must be rectified immediately!
It is generally prohibited to modify safety equipment of the machine or to make ineffective!
For a different or additional use and resulting damage or injury takes HOLZMANN MASCHINEN no responsibility or warranty.
12.1.1 Working conditions
The machine is designed for the work under the following conditions:
The machine is not intended for outdoor use.
The machine is not intended for use in potentially hazardous conditions.
12.2 Prohibited use
The operation of the machine under conditions outside of the limits, given in these instructions is not permitted.
The operation of the machine without the safety devices provided is inadmissible
The removal or turning off the protection devices is prohibited
It is not permitted processing of materials with dimensions outside the limits specified in this manual.
It is not permitted the use of tools that are not for use with LSR 10HQ / 15HQ are suitable.
The operation of the machine on a way or for any purpose that does not comply with the instructions of this manual to 100%, is prohibited.
Do not leave the machine unattended, especially when children are not around. DO NOT LEAVE the workplace!
12.3 Security Instructions
Missing or non-readable security stickers have to be replaced immediately!
To avoid malfunction, damage and physical injury MUST be observed:
Use personal safety equipment: ear-muffs, safety goggles, dust mask when working on dusty jobs.
The machine does not require extensive maintenance. Repairing shall be performed by trained professionals only. Accesories: Use only accessories recommended by HOLZMANN-Maschinen and its sales partners.
12.1 Residual risk factors
Even if the machine is used as required it is still impossible to eliminate certain residual risk factors totally. The following hazards may arise in connection with the machine's construction and design:
Hearing, unless arrangements have been made by the user for hearing protection.
These risks can be minimized if all safety rules are applied, the machine is properly maintained and serviced the machine as intended and is serviced by a trained service professional.
Despite all the safety devices and remains her good common sense and your appropriate technical qualification / training on the operation of a machine such as the LSR 10HQ / 15HQ of the most important safety factor!
13 ASSEMBLY
13.1 Installation Supporting base

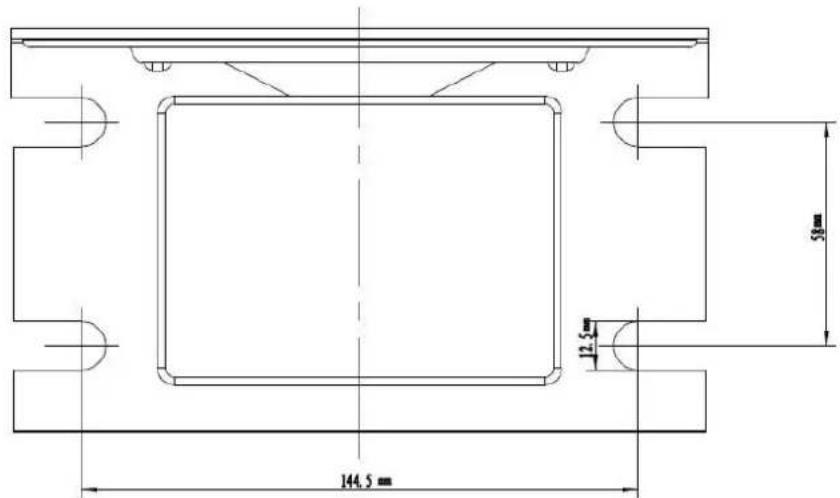

When drilling the holes to the proper spacing. The schematic diagram (on page 10) shows the distances.
13.1.1 Walls, columns, floor and ceiling mounting
The base mount with 4 screws must be securely 10x60mm (better longer) are attached to stable wall or ceiling.
The use of anchor bolts with appropriate washers or attachment to a component is strongly recommended.
Dimensions for drilling distances.
14 OPERATION
If the hose can be rolled out in full length, not huge move on, as this may tear the hose and the hose-end residual dangerous swirl around
14.1 Rolling out/ pulling the hose
- Remove hose to the desired length and can withdraw slowly clicks into place. If the hose reel does not lock the same again again go out and leave to withdraw slowly. Repeat the process locked in the desired position until the hose reel.
If the hose is released during the roll up the hose end to uncontrolled fast take-up reel. Themselves and other people can thereby be injured or property damaged. Why not let the hose when rolling. Always lead to the end of the hose controlled take-up reel.
14.2 Rolling in / collect the hose
■ Further off hose is released to lock. Then slowly move the hose to the take-up reel.
14.3 Settings
14.3.1 Adjust tube length
The solid fixed length of hose with hose coupling can be set indefinitely.
- Loosen the two cap screws on the hose-stop ring (1) carefully. Pull the tube out of the guide and slide the hose-stop ring to the desired length.
- Screw the two cylinder screws again
14.3.2 Change position of the guide arm
The position of the guide arm (9) is adjustable in 90^ steps. Allows you to set parallel or angled to the wall, floor or ceiling, the tube guide
- By removing the 6 sided nut on the mounting and align the guide arm in the desired position.
- the guide arm in position by tightening the 6 sided nut.
14.3.3 Adjusting the spring force
By adjusting the spring force of the return velocity of the tube can be adjusted individually. It increases or reduces the effort to curl the hose off or on.
The air supply necessarily interrupt when adjustment, maintenance, and repair work. Disconnect hose from the air supply!
ATTENTION: Always hold the hose reel in this setting and do not let go!
- Remove the hose-stop ring (1) as described in 15.3.1
- Pull the hose end out through the hose guide
14.3.4 Spring force reduce:
- By turning the hose reel counterclockwise (seen on hose supply side), the spring force is relieved.
14.3.5 Increase spring force
- By turning the hose reel to clockwise (seen on hose inlet side), the spring force is increased.
After adjust the spring tension pull the hose end through the hose roller guide and fix the stop ring. Only now you can let go of the hose reel again!
15 MAINTENANCE
The hose reel is low maintenance and contains little parts that need maintenance in-a subject the operator.
The air supply necessarily interrupt when adjustment, maintenance, and repair work. Disconnect hose from the air supply!
The elimination of defects does your dealer
Keep the tube clean and free of dirt to ensure a smooth operation of the plant.
Clean the surface of the guide rollers of accumulated debris.
Regularly check the air fittings for looseness, leaks, cracks or damage.
Occasionally check the mounting hardware for looseness or damage.
16 DISPOSAL
Observe the national waste disposal regulations. Never dispose of the machine, machine components or equipment in residual waste. If necessary, contact your local authorities for information on the disposal options available. If you buy a new machine or an equivalent device from your specialist retailer, he is obliged in certain countries to dispose of your old machine properly.
17 TROUBLESHOOTING
The air supply necessarily interrupt when adjustment, maintenance, and repair work. Disconnect hose from the air supply!
| Trouble | Possible cause | Solution |
| It winds not completely back | Coiled tubing unevenlyAt low spring tensionTo severe replacement hoseAdjustable hose stop ringHose rolled up too fast | Roll up hose evenlyreplace springUse appropriate replacement hoseAdjust hose stop ring in the correct positionRoll up hose evenly slowly |
| Locking will not work | Hose reel mounted incorrectlyHose released too quicklydamaged arresting | See Chapter 6 AssemblyLead to lock tube slowlyreplace locking unit |
| Leaking hose | damaged hoseLoose hose clampWorn rotating body seal | replace hoseFix or replace hose clampReplace rotating body seal |
18 PREFACIO (ES)
Estimado Cliente,
(EN) With original Holzmann spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.
IMP OR TAN T
The installation of other than original spare parts voids the warranty!
So you always have to use original spare parts
By the order of spare parts use the service formular that you can find at the end of this manual. Make always a note of the type, spare part number and a definition of the machine. That there are no mistakes, we recommend to make a copy of the spare part list where you can mark with a pen the spare parts which you order.
Or use the electronic ordering opportunity via the spare parts catalogue or spare parts request form on our homepage.
You find the order address in the preface of this operation manual.
(EN) For electronic spare-parts catalogue please refer to our homepage (spare-parts)
| 1 | Circlip | 1 | 21 | Docking rivets 4x8 | 2 |
| 2 | Elbow connection | 1 | 22 | M5x10 Cross recess pan head screw | 1 |
| 3 | Oil Bearing | 1 | 23 | Flat gasket | 1 |
| 4 | M5 Lock nut | 3 | 24 | M12 Lock nut | 1 |
| 5 | M5x10 Cross recess pan head screw | 1 | 25 | M5 Lock nut | 4 |
| 6 | Right reel | 1 | 26 | Guide Jacket 6 | 1 |
| 7 | Left Reel | 1 | 27 | M8 Lock nut | 3 |
| 8 | M8 Sunk screw | 3 | 28 | Guide Jacket 8 | 1 |
| 9 | Spring | 1 | 29 | M5x10 Cross recess pan head screw | 4 |
| 10 | Double thread screw | 3 | 30 | Guide roller shaft | 2 |
| 11 | Patchet plate | 1 | 31 | Guide roller | 2 |
| 12 | M5 Lock nut | 3 | 32 | Clamping ball cushion | 1 |
| 13 | M5x10 Cross recess pan head screw | 1 | 33 | Right half Calmping ball | 1 |
| 14 | Center shaft | 1 | 34 | Left half Clamping ball | 1 |
| 15 | Docking rivets 3x5 | 1 | 35 | M14 Self tapping screw slot | 2 |
| 16 | M5 Lock nut | 36 | Arm | 1 | |
| 17 | Ratchet | 37 | M12 Flat gasket | 1 | |
| 18 | Tension spring | 38 | M12 Lock nut | 1 | |
| 19 | Ratchet seat | 39 | M8x20 Cross recess pan head screw | 3 | |
| 20 | Mounting bracket |
33 KONFORMITÄTSERKLÄRUNG / CERTIFICATE OF CONFORMITY / CERTIFICADO DE CONFORMIDAD/CERTIFICAT DE CONFORMITÉ
Inverk ehrb ringer / Distri b utor
For mechanical and electrical components Company Holzmann Maschinen GmbH garants a warranty period of 2 years for DIY use and a warranty period of 1 year for professional/industrial use - starting with the purchase of the final consumer (invoice date).
In case of defects during this period which are not excluded by paragraph 3, Holzmann will repair or replace the machine at its own discretion.
2.) Report:
In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to Holzmann. If the warranty claim is legitimate, Holzmann will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with Holzmann will not be accepted. A RMA number is an absolute must-have for us - we won't accept returned goods without an RMA number!
3.) Regulations:
a) Warranty claims will only be accepted when a copy of the original invoice or cash voucher from the trading partner of Holzmann is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage through the final consumer or his dealer will not be accepted as warranty claims either.
c) Excluded are defects on wearing parts such as carbon brushes, fangers, knives, rollers, cutting plates, cutting devices, guides, couplings, seals, impellers, blades, hydraulic oils, oil filters, sliding jaws, switches, belts, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original Holzmann spare parts or accessories.
e) After inspection by our qualified staff, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of Holzmann.
g) Warranty claims can only be granted for customers of an authorized Holzmann dealer who directly purchased the machine from Holzmann. These claims are not transferable in case of multiple sales of the machine.
4.) Claims for compensation and other liabilities:
The liability of company Holzmann is limited to the value of goods in all cases.
Claims for compensation because of poor performance, lacks, damages or
loss of earnings due to defects during the warranty period will not be accepted.
Holzmann insists on its right to subsequent improvement of the machine.
SERVICE
After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part / repair service cost inquiry by filing the SERVICE form on the following page and send it:
via Mail to info@holzmann-maschinen.at
or use the online complaint.- or spare parts order formula provided on our homepage www.holzmann-maschinen.at under the category service/news.
We monitor our products even after delivery. In order to be able to guarantee a continuous improvement process, we are dependent on you and your impressions when handling our products. Let us know about:
- Problems that occur when using the product
- Malfunctions that occur in certain operating situations
- Experiences that may be important for other users
Please note down such observations and send them to us by e-mail, fax or letter post.
Erworben von / purchased from:
E-Mail/ e-mail:
service inquiry spare part inquiry guarantee claim
Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?
3. Bitte beachten
Additional information
INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- ERATES THE HANDLING OF YOUR INQUIRY.
