Product Type	Chain Sling
Brand	Vevor
Model	DL8mmx3m-4B
Length	300 cm (10 feet)
Chain Diameter	8 mm (5/16 inches)
Working Load Limit (WLL)	11,000 lb (G80)
Material	Alloy Steel
Package Contents	Chain Sling, User Manual
Structure	Lifting Ring, Butterfly Loop, Chain, Hook, Adjustment Hook
Recommended Use	Load lifting, no overhead lifting
Recommended Lifting Angle	Greater than 40°, otherwise capacity reduction
Inspection Before Use	Check hook opening, chain deformation, cracks
Maintenance	Clean and dry after each use, store in a dry and ventilated place
Warranty	Electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghai muxinmuyeyouxiangongsi
Importers	SIHAO PTY LTD (Australia), Sanven Technology Ltd. (USA)
Quality Standard	G80 (Grade 80)
Safety Precautions	Do not exceed WLL, do not stand under load, do not use if damaged

Frequently Asked Questions - DL8mmx3m-4B Vevor

How to use the chain sling?

Attach the lifting ring to the crane. Secure the hooks of the sling to the four corners of the load. Make sure the chain is not twisted or knotted and the load is evenly distributed. Lift slowly avoiding any swinging.

What is the maximum load capacity?

The working load limit (WLL) is 11,000 lb (G80). Never exceed this value.

What are the allowed lifting angles?

The angle between the chain and the load must be greater than 40° for full capacity use. Between 20° and 40°, the capacity is halved. Below 20°, lifting is prohibited.

How to inspect the sling before use?

Check the hook opening, chain deformation, and look for cracks on all parts. Make sure the mechanism works properly.

What if the chain is damaged?

Do not use the sling if it is damaged. Consult the troubleshooting guide or have it checked by a qualified technician before any use.

How to maintain and store the sling?

After use, clean and dry the sling thoroughly to prevent rust. Store it in a dry and ventilated place.

Can I use the sling for overhead lifting?

No, this product is not approved for overhead lifting of people. It is designed only for lifting goods.

How to adjust the chain length?

Each leg is equipped with an adjustment hook at the top to precisely adjust the chain length.

Where to find the complete user manual?

The manual is included in the package and can be downloaded for free in PDF format from the website notice-facile.com.

What is the warranty for this product?

Vevor offers an electronic warranty certificate. For technical support and warranty, visit www.vevor.com/support.

USER MANUAL DL8mmx3m-4B Vevor

CHAIN SLING USER MANUAL

Model: 10×1.5m-A4; DL10mmx1.8m-2B; DL8mmx1.5m-2A; DL8mmx1.8m-2A; DL6mmx1.5m-4A; 8×3m-B; DL8mmx3m-4B; 8×1.5m-A; 8×1.5m-C; DL10mmx3m-4A; 8×2m-A2; 8×1m-A3

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered will actually save half compared to the top major brands. Please verify carefully when placing an order with us.

VEVOR®

TOUGH TOOLS, HALF PRICE

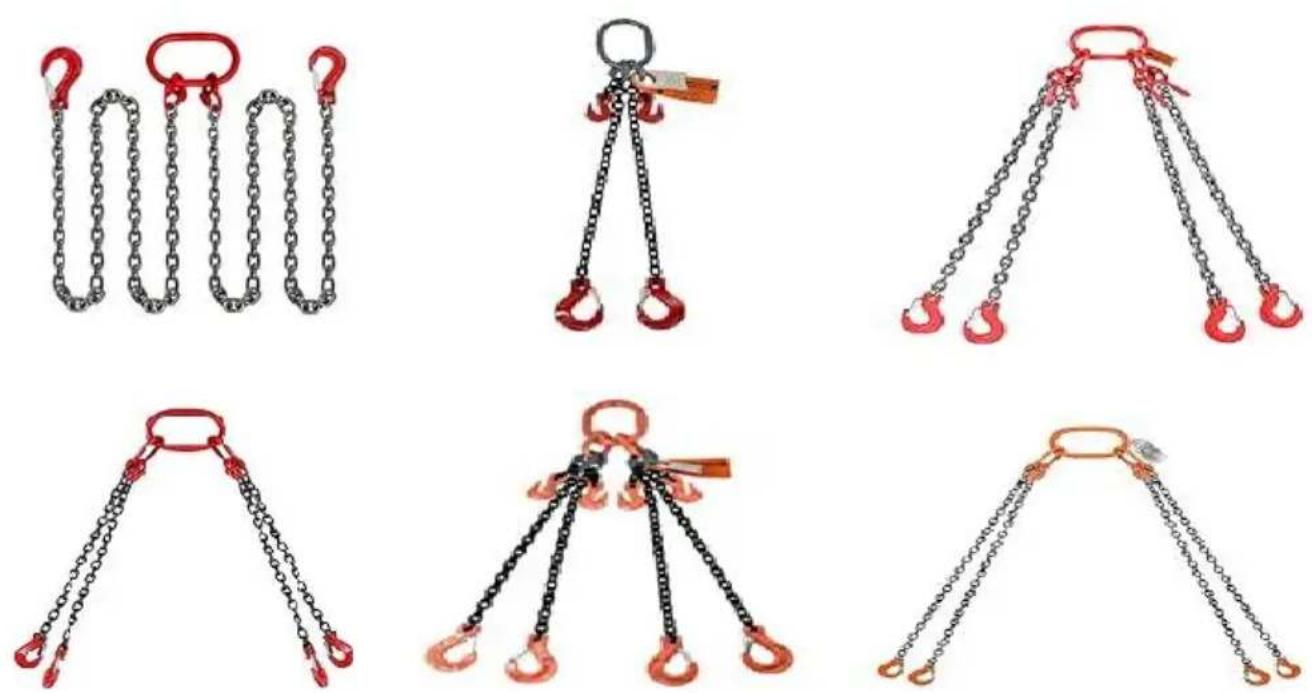

CHAIN SLING

NOTE: The image shown is for illustration purposes only. Please refer to the product you purchased.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry the product before storage to prevent rusting of bolts affected by use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use the tool when it is damaged:

1) Check the overall condition of the product before each use. Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in all parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain does not work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the bridle chain. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to use. We hope that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Careful INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc. 2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of the Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight without folding and twisting.
• Due to shipping (handling) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth them before use.
• No one is allowed to stand below when hoisting goods by bridle.
• When using the bridle chain, please confirm whether the goods can be lifted with the chain and whether the hardness of the chain will affect your goods.

Save This Manual

MODEL AND PARAMETERS NOTE: Please match your purchase.

Model	10×1.5m-A4	DL10mmx1.8m-2B
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*
Model	DL8mmx1.5m-2A	DL8mmx1.8m-2A
Working Load Limi(All parts are used as a whole	6600lbs (G80)	6600lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

Model	DL6mmx1.5m-4A	8×3m-B
Working Load Limi(All parts are used as a whole	6600lbs (G80)	11000lbs (G80)
Chain Size	6mm(1/4inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	DL8mmx3m-4B	8×1.5m-A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(1/4inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	5ft(150cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1
Model	8×1.5m-C	DL10mmx3m-4A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	18400lbs (G80)
Chain Size	8mm(1/4inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	8×2m-A2	8×1m-A3
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6.5ft(200cm)	3.2ft(100cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

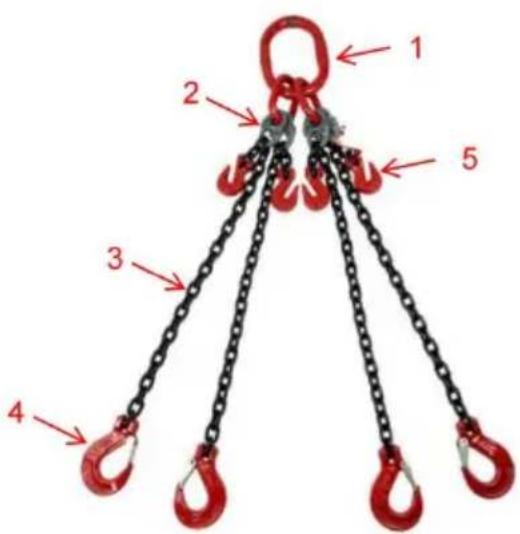

STRUCTURE DIAGRAM

1. Lifting Ring
2. Butterfly buckle
3. Chain
4. Hook
5. Adjusting Hook

NOTE: The shown is for illustration purposes only. Please refer to your purchase!

INSTRUCTIONS

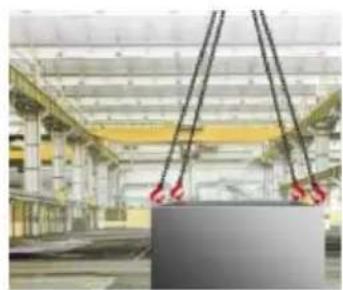

How to use the chain sling:

1. The crane hooks up the lifting ring.
2. The hook of the chain sling hooks the goods at four corners.
3. Make sure the chain is not twisted or knotted.
4. Make sure the weight is evenly distributed on each chain.
5. Lift slowly when lifting; do not let the goods tilt.
6. When lifting the goods, no one is allowed to stand below.
7. The angle between the chain and the goods must comply with the following rules:

1) θ > 40° , it is recommended to hoist in this way, which shall not exceed the Working Load Limit.

2) 20° < θ < 40° , it can bear only half of the Working Load Limit.

3) θ < 20° , it is not allowed to hoist in this way, which is very unsafe

1. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

1) θ > 40° , it is recommended to hoist in this way, which shall not exceed the Working Load Limit. 2) 20° < θ < 40° , it can bear only half of the Working Load Limit. 3) θ < 20° , it is not allowed to hoist in this way, which is very unsafe. 8. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

adjustment.

MAINTENANCE

• Do not exceed WLL (working load limit). After use, please clean and dry the product and store it in a dry, ventilated place.
