Brand	Vevor
Model	DL6mmx1.5m-4A
Product Type	Chain Sling
Maximum Working Load Limit (WLL)	6600 lb (approx. 3000 kg) - Grade G80
Chain Size	6 mm (1/4 inch)
Sling Length	1.5 m (5 feet)
Material	Alloy Steel
Number of Legs	1 (single leg sling)
Included Components	Chain sling, 1 shackle (approx.)
Quality Standard	Grade G80
Main Functions	Lifting and handling of loads
Usage	Ground lifting (not for overhead lifting)
Pre-use Inspection	Check for cracks, deformation, or wear
Maintenance and Cleaning	Clean and dry after use; store in a dry place
Safety	Do not exceed WLL; do not twist the chain; lifting angle >40° for full load; no one should stand under the load
Recommended Storage	Dry and ventilated place
Estimated Weight	Approx. 2.5 kg
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate provided

Frequently Asked Questions - DL6mmx1.5m-4A Vevor

What is the maximum load of this sling?

The maximum working load limit (WLL) is 6600 lb (approx. 3000 kg) for Grade G80 use. Never exceed this limit.

How to use the chain sling correctly?

Attach the lifting eye to the crane and secure the hook to the lifting points. Ensure the chain is not twisted or knotted, and that the load is evenly distributed. The angle between the chain and the load must be greater than 40° to use full capacity.

Can people be lifted with this sling?

No, this sling is designed for lifting goods only. It is strictly prohibited to use it for lifting people or animals.

How to maintain the sling?

After each use, clean and dry it thoroughly to prevent rust. Store it in a dry and ventilated place. Inspect it regularly for any signs of damage.

What to do if the chain is twisted or has knots?

Before use, carefully straighten the chain to remove any twists or knots. A twisted chain can reduce load capacity and pose a safety risk.

Can I use this sling for overhead lifting?

No, this sling is not approved for overhead lifting. It is designed for ground lifting only.

How to check the condition of the sling before use?

Before each use, visually inspect the entire assembly: check the hook opening, absence of cracks, deformation, or wear on the chain and accessories. Do not use the sling if it is damaged.

What is the length of this sling?

The chain length is 1.5 meters (5 feet). Other models with different lengths are available.

What material is the sling made of?

The sling is made of Grade G80 alloy steel, ensuring high strength and durability.

Where can I find the complete user manual?

The user manual is available for free download on the website notice-facile.com or on the manufacturer's website www.vevor.com/support.

USER MANUAL DL6mmx1.5m-4A Vevor

CHAIN SLING USER MANUAL

Model: 10×1.5m-A4; DL10mmx1.8m-2B; DL8mmx1.5m-2A; DL8mmx1.8m-2A; DL6mmx1.5m-4A; 8×3m-B; DL8mmx3m-4B; 8×1.5m-A; 8×1.5m-C; DL10mmx3m-4A; 8×2m-A2; 8×1m-A3

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered will actually save half compared to the top major brands. Please verify carefully when placing an order with us.

VEVOR®

TOUGH TOOLS, HALF PRICE

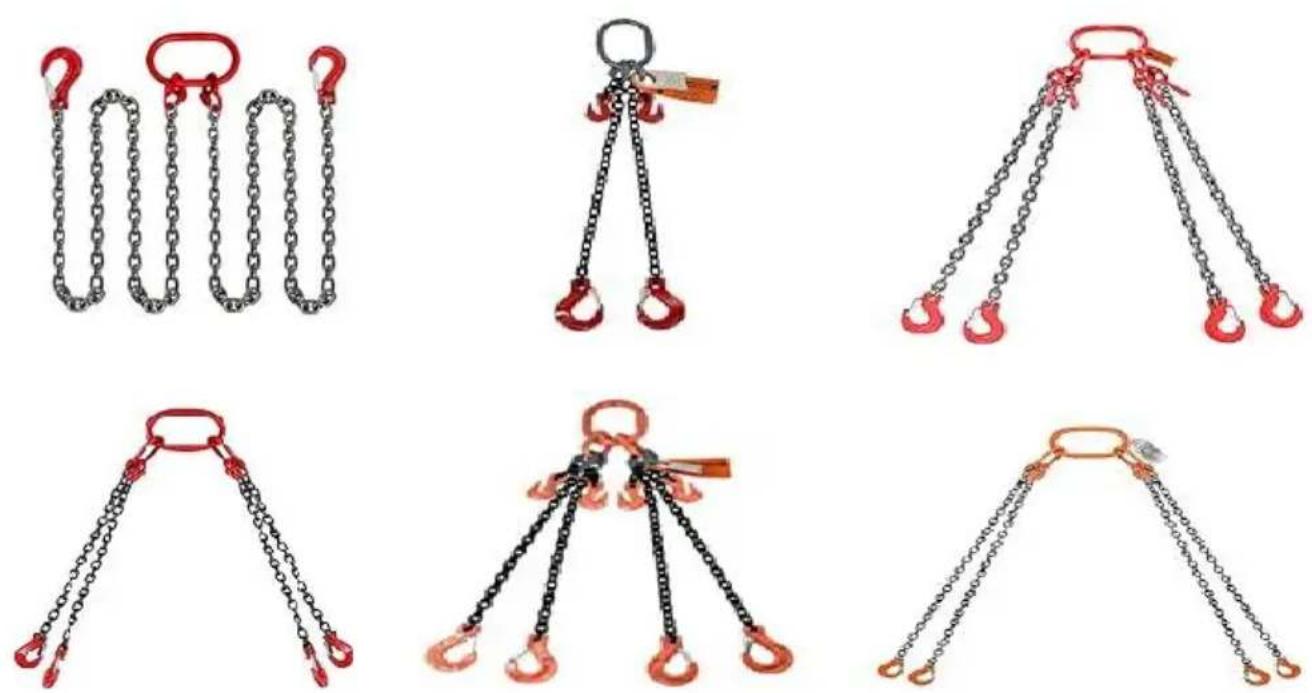

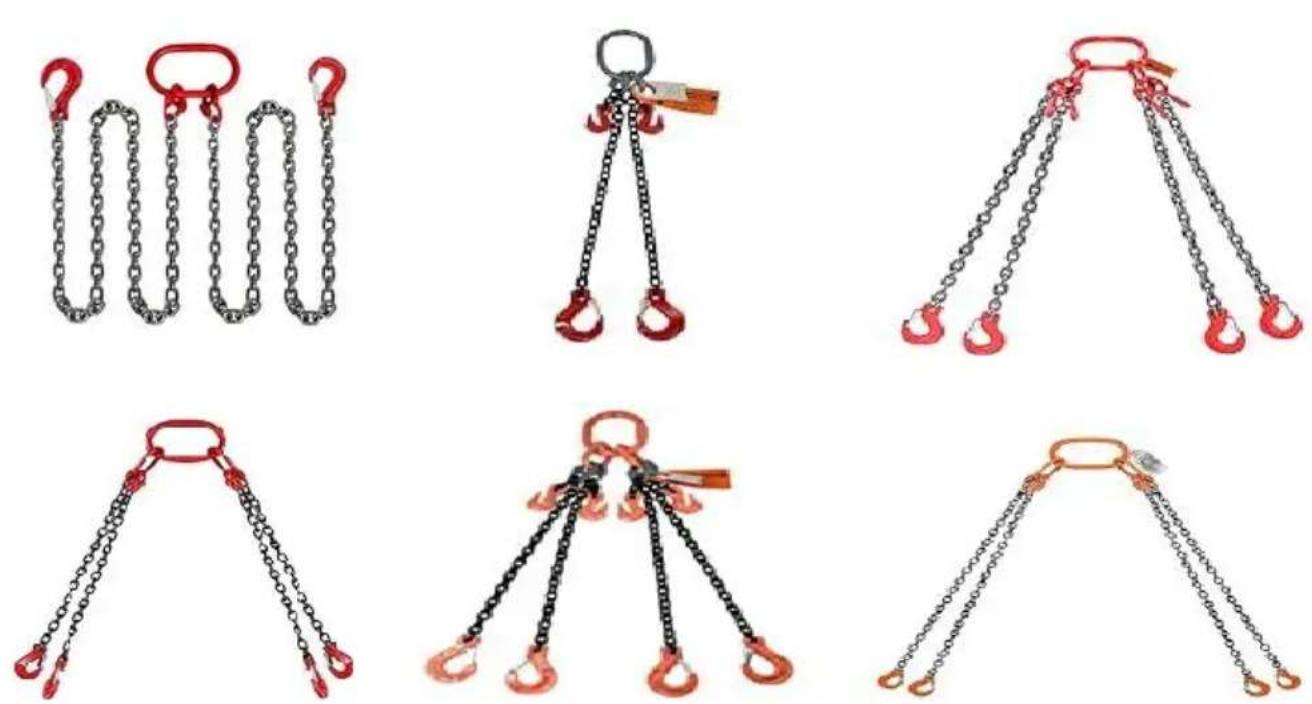

CHAIN SLING

NOTE: The shown is for illustration purposes only. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry the product before storage to prevent rusting of bolts affected by use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use the product when it is damaged:

1) Check the overall condition of the product before each use. Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in any parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain does not work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the bridle chain. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to use. We hope that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc. 2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of the Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight without folding and twisting.
• Due to shipping (handling) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth them before use. ● No one is allowed to stand below when hoisting goods by bridle chain.

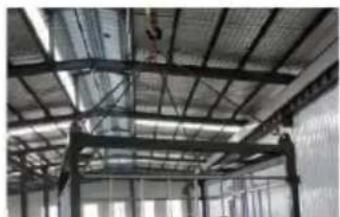

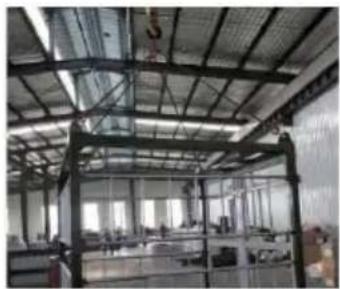

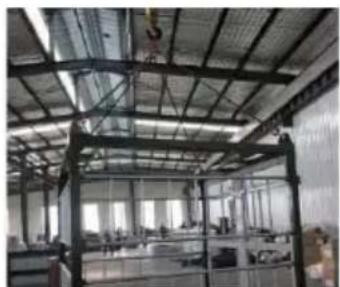

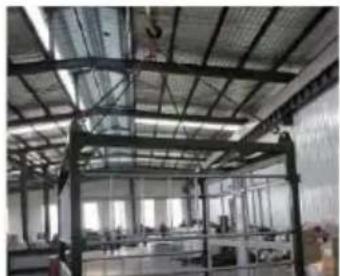

• When using the bridle chain, please confirm whether the goods can be lifted with the chain and whether the hardness of the chain will damage your goods.

Save This Manual

MODEL AND PARAMETERS NOTE: Please match your purchase.

Model	10×1.5m-A4	DL10mmx1.8m-2B
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*
Model	DL8mmx1.5m-2A	DL8mmx1.8m-2A
Working Load Limi(All parts are used as a whole	6600lbs (G80)	6600lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

Model	DL6mmx1.5m-4A	8×3m-B
Working Load Limi(All parts are used as a whole	6600lbs (G80)	11000lbs (G80)
Chain Size	6mm(1/4inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	DL8mmx3m-4B	8×1.5m-A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(1/4inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	5ft(150cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1
Model	8×1.5m-C	DL10mmx3m-4A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	18400lbs (G80)
Chain Size	8mm(1/4inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	8×2m-A2	8×1m-A3
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6.5ft(200cm)	3.2ft(100cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

STRUCTURE DIAGRAM

1. Lifting Ring
2. Butterfly buckle
3. Chain
4. Hook
5. Adjusting Hook

NOTE: The shown is for illustration purposes only. Please refer to your purchase!

©
