Product type	Chain sling
Brand	Vevor
Model	DL10mmx1.8m-2B
Chain diameter	10 mm (3/8 inches)
Chain length	180 cm (6 feet)
Working load limit (WLL)	11000 lbs (approx 5000 kg)
Chain grade	G80
Material	Alloy steel
Number of legs	2
Package contents	Chain sling × 1, master link × 1
Recommended use	Lifting goods with crane
Optimal lifting angle	Greater than 40° for maximum load
Safety precautions	Do not exceed WLL, do not stand under load, do not use below 20°
Inspection before each use	Check hook opening, chain deformation, cracks
Inspection after use	Check for abnormal tension, contact manufacturer if necessary
Cleaning	Clean and dry after use
Storage	In a dry and ventilated place
Repair	Seek a qualified technician
Warranty	Electronic warranty certificate at www.vevor.com/support
Country of origin	China

Frequently Asked Questions - DL10mmx1.8m-2B Vevor

How to use the Vevor DL10mmx1.8m-2B chain sling?

Attach the lifting ring to the crane and the hook to the goods. Ensure the chain is not twisted and the weight is evenly distributed. Lift slowly.

What is the working load limit (WLL) of this sling?

The working load limit is 11000 lbs (approx 5000 kg) for grade G80.

How to inspect the sling before use?

Check the hook opening, chain deformation, and cracks on all parts.

What to do if the chain is damaged?

Do not use the sling if damaged. Have it inspected by a qualified technician.

What is the recommended lifting angle?

The angle between the chain and the goods must be greater than 40° to use full load. Between 20° and 40°, capacity is halved. Below 20°, lifting is prohibited.

Can I use this sling for overhead lifting?

No, this sling is not approved for overhead lifting. It is designed for lifting goods on the ground.

How to clean and store the sling?

After use, clean and dry the product. Store it in a dry and ventilated place to prevent rust.

What to do if the chain is twisted or knotted after transport?

Before use, smooth out the knots at the connections between the ring and hook.

Can I tie the chain during use?

No, it is strictly forbidden to tie the chain. Use it straight without bends or twists.

How to adjust the chain length?

Each leg has adjusting hooks at the top, allowing precise length adjustment.

USER MANUAL DL10mmx1.8m-2B Vevor

CHAIN SLING USER MANUAL

Model: 10×1.5m-A4; DL10mmx1.8m-2B; DL8mmx1.5m-2A; DL8mmx1.8m-2A; DL6mmx1.5m-4A; 8×3m-B; DL8mmx3m-4B; 8×1.5m-A; 8×1.5m-C; DL10mmx3m-4A; 8×2m-A2; 8×1m-A3

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered will actually save you half compared to the top major brands. Please verify carefully when placing an order with us.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NOTE: The image shown is for illustration purposes only. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry before storage to prevent rusting of bolts affected by use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use when it is damaged:

1) Check the overall condition of the product before each use. Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in all parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain does not work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the bridle chain. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to use. We hope that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Careful INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc. 2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of the Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight without folding and twisting.
• Due to shipping (handling) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth them before use. ● No one is allowed to stand below when hoisting goods by bridle chain.
• When using the bridle chain, please confirm whether the goods can be lifted with the chain and whether the hardness of the chain will damage your goods.

Save This Manual

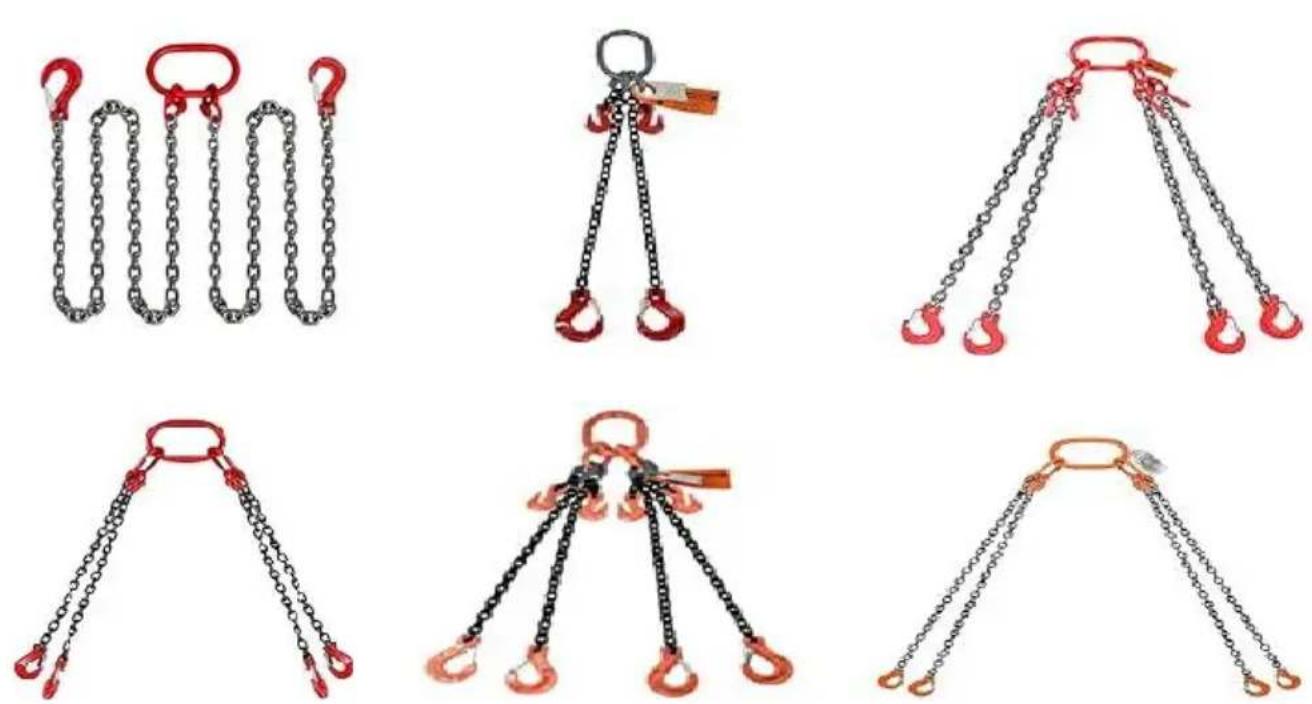

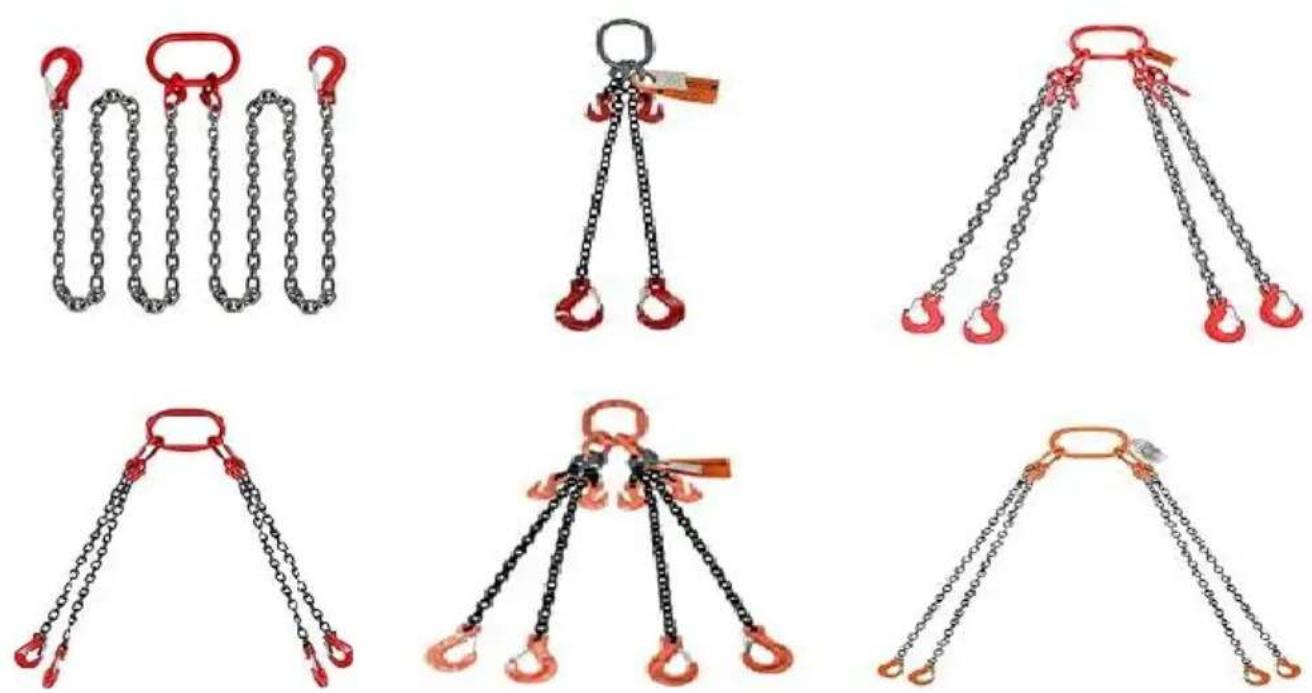

MODEL AND PARAMETERS NOTE: Please match your purchase.

Model	10×1.5m-A4	DL10mmx1.8m-2B
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*
Model	DL8mmx1.5m-2A	DL8mmx1.8m-2A
Working Load Limi(All parts are used as a whole	6600lbs (G80)	6600lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

Model	DL6mmx1.5m-4A	8×3m-B
Working Load Limi(All parts are used as a whole	6600lbs (G80)	11000lbs (G80)
Chain Size	6mm(1/4inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	DL8mmx3m-4B	8×1.5m-A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(1/4inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	5ft(150cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1
Model	8×1.5m-C	DL10mmx3m-4A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	18400lbs (G80)
Chain Size	8mm(1/4inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	8×2m-A2	8×1m-A3
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6.5ft(200cm)	3.2ft(100cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

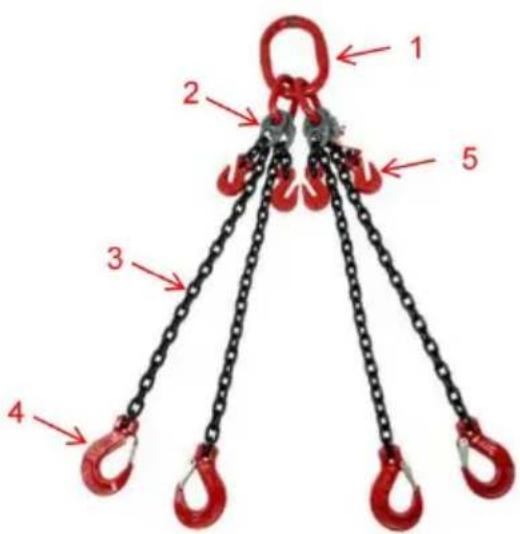

STRUCTURE DIAGRAM

1. Lifting Ring
2. Butterfly buckle
3. Chain
4. Hook
5. Adjusting Hook

NOTE: The shown is for illustration purposes only. Please refer to your purchase!

INSTRUCTIONS

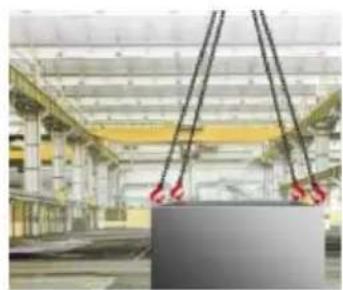

How to use the chain sling:

1. The crane hooks up the lifting ring.
2. The hook of the chain sling hooks the goods at four corners.
3. Make sure the chain is not twisted or knotted.
4. Make sure the weight is evenly distributed on each chain.
5. Lift slowly when lifting; do not let the goods tilt.
6. When lifting the goods, no one is allowed to stand below.
7. The angle between the chain and the goods must comply with the following rules:

1) θ > 40° , it is recommended to hoist in this way, which shall not exceed the Working Load Limit.

2) 20° < θ < 40° , it can bear only half of the Working Load Limit.

3) θ < 20° , it is not allowed to hoist in this way, which is very unsafe

1. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

1) θ > 40° , it is recommended to hoist in this way, which shall not exceed the Working Load Limit. 2) 20° < θ < 40° , it can bear only half of the Working Load Limit. 3) θ < 20° , it is not allowed to hoist in this way, which is very unsafe. 8. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

adjustment.

MAINTENANCE

• Do not exceed WLL (working load limit) . ● After use, please clean and dry the product and store it in a dry, ventilated place.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

MAINTENANCE

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

MAINTENANCE

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

MAINTENANCE

Importer for AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Importer for USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and e-warranty certificate www.vevor.com/support

CHAIN SLING

USER MANUAL

Model: 10 x 1.5 m-A4 ; DL10mmx1.8m-2B ; DL8mmx1.5m-2A ; DL8mmx1.8m-2A ; DL6mmx1.5m-4A ; 8×3m-B ; DL8mmx3m-4B ; 8×1.5mA ; 8×1.5mC ; DL10mmx3m-4A ; 8×2m-A2 ; 8×1m-A3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

MAINTENANCE

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us, actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

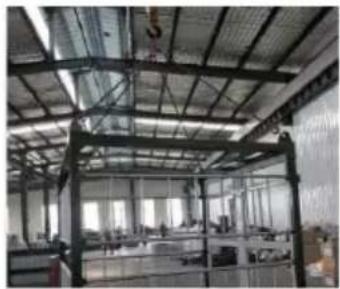

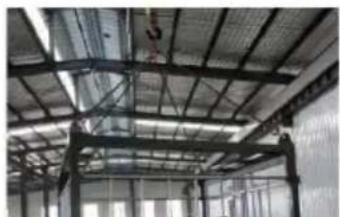

WARNING:

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
