Vevor 250-1008 - DIY tool
📄 78 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor 250-1008 - page 5
5 / 78
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeQuick Change Tool Post Set for Lathe
BrandVevor
Model250-1008
CategoryDIY Tool
CompatibilityFor 8-inch swing lathes (estimated)

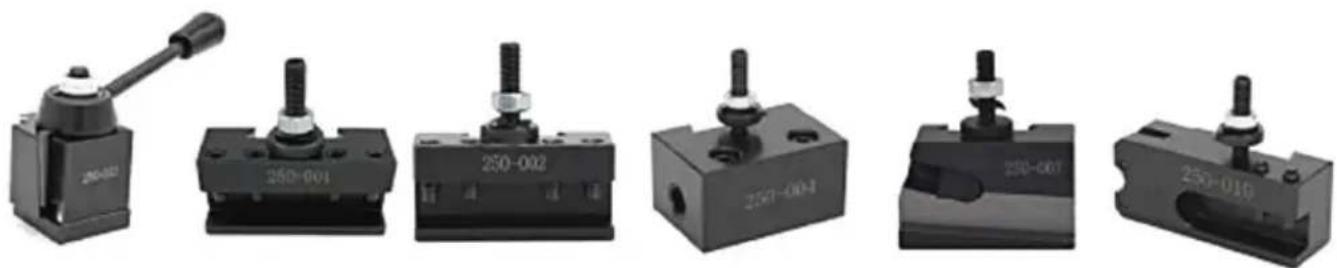

Number of Pieces8 pieces (1 piston tool post + 7 holders)
MaterialHardened and Ground Steel
FinishAnti-rust oil applied
Fixation TypePiston type (quick change)
Main FunctionsTurning, facing, boring, knurling, parting
Tool ChangeIn seconds, without shims
RigidityMaximum to avoid vibrations (chatter-free performance)
MaintenanceFully sealed, maintenance-free operation
CleaningClean with a dry cloth; avoid harsh solvents
SafetyUse protective equipment; check locking before each use
Package ContentsMain tool post, various holders (turning, boring, parting, etc.)
WeightApproximately 2.5 kg (estimated)
ManufacturerShanghaimuxinmuyeyouxiangongsi, Shanghai, China
WarrantySee electronic support and warranty certificate

Frequently Asked Questions - 250-1008 Vevor

How to install the tool post on the lathe?
Secure the main tool post onto the lathe's turret using the provided fixing screws. Make sure it is well aligned and tightened. Consult the manual for precise adjustments.
Which lathes are compatible with this model 250-1008?
This model is designed for lathes with an approximate 8-inch swing. Check your tool height relative to the lathe's centerline.
How to quickly change a tool?
Unlock the piston by turning the handle, remove the current tool, insert the new tool, and lock the piston. The operation takes a few seconds.
What maintenance is required?
The mechanism is sealed and requires no regular maintenance. Simply clean the surfaces with a dry cloth to remove chips.
What exactly does the set include?
The set includes a piston tool post and 7 holders: turning/facing tool holder, boring tool holder, parting blade holder, etc. See the detailed list in the manual.
What materials are used?
All parts are made of hardened and ground steel, ensuring maximum rigidity and long service life.
What are the safety precautions?
Wear safety goggles, do not wear loose clothing, make sure the tool is properly locked before starting the lathe.
Does the mechanism need lubrication?
No, the mechanism is sealed and lubricated at the factory. An anti-rust oil is applied on surfaces, but does not require relubrication.
What to do if the tool does not hold well?
Check that the piston is fully locked and the tool is properly inserted. If the problem persists, inspect the contact surfaces for damage.
Are spare parts available?
Spare parts are not listed in the manual. Contact Vevor customer service via www.vevor.com/support for assistance.

User questions about 250-1008 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your DIY tool in PDF format for free! Find your manual 250-1008 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 250-1008 by Vevor.

USER MANUAL 250-1008 Vevor

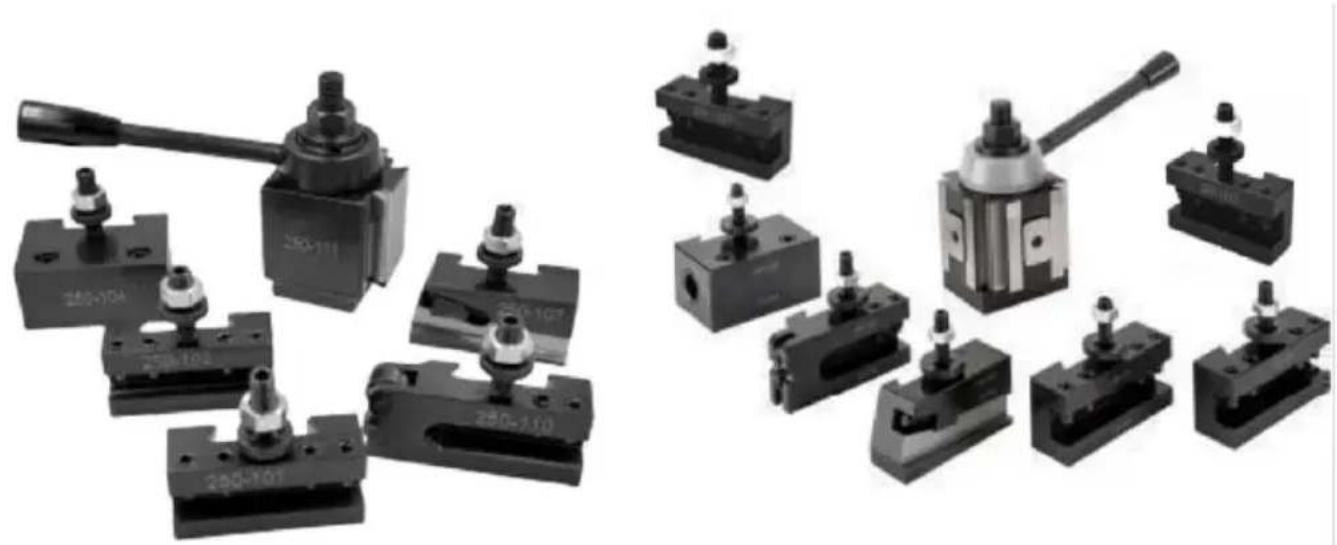

Quick Change Tool Post Set User Manual

MODEL: 250-100(6), 250-200(6), 250-100(8), 250-200(8)

250-000(6), 250-111(6), 250-222(6),

250-111(8), 250-222(8)

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: 250-100(6), 250-200(6), 250-100(8), 250-200(8), 250-000(6), 250-111(6), 250-222(6), 250-111(8), 250-222(8)

Collection of industrial cutting tool holders and clamps, no visible text or symbols.

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

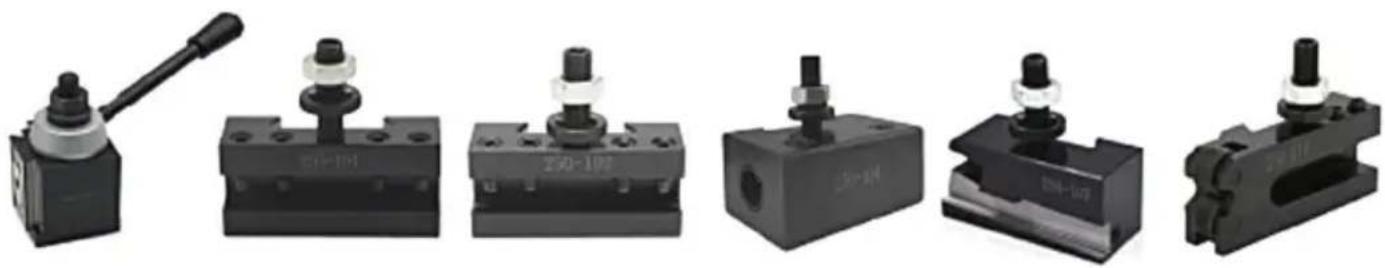

QUICK CHANGE TOOL POST

Features:

● All working parts hardened & ground. ● Maximum rigidity for chatter-free performance. No time wasted with shims. - Increases productivity of all lathe operations. - Completely sealed for maintenance free operation. - Change tools in seconds.

Six black industrial cutting tool holders with different mounting brackets and mounting features, shown from different angles. No visible text or symbols.

PISTON TYPE TOOL POST SETS

WEDGE TYPE TOOL POST SETS

Each set consists of one piston type tool post and one of each of

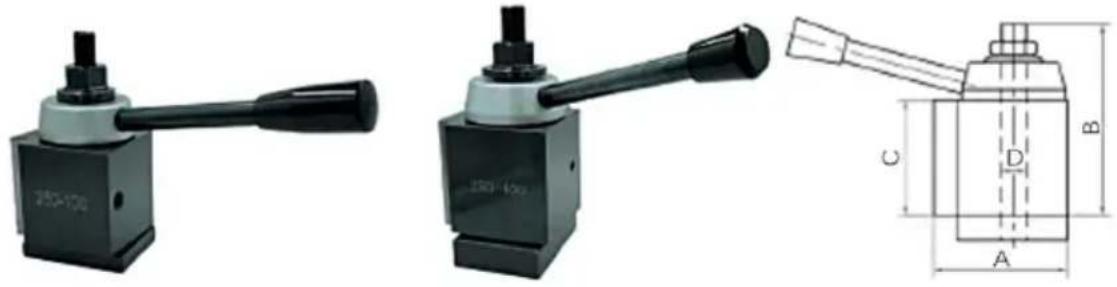

Quick Change Tool Post Piston Style - accessoriesTechnical drawings of three mechanical components with dimension labels (A, B, C) and part numbers (150-100). No readable text or symbols beyond labels.

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8

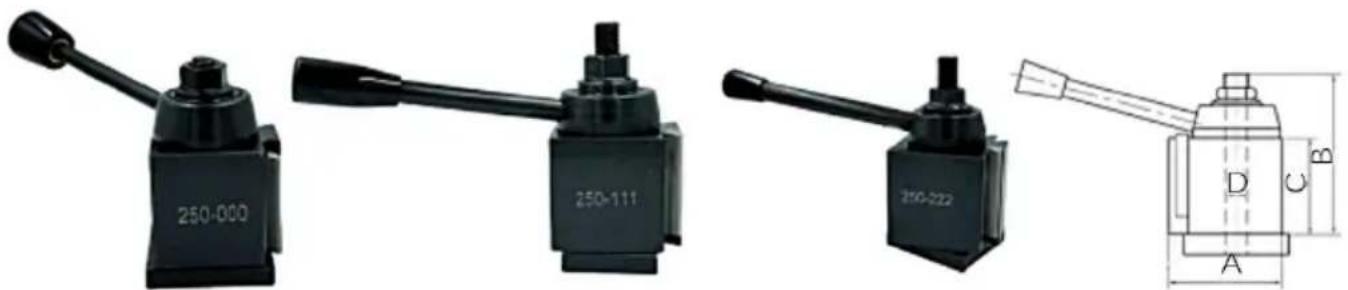

Quick Change Tool Post Wedge StyleFour black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D. No text or symbols on components.

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8

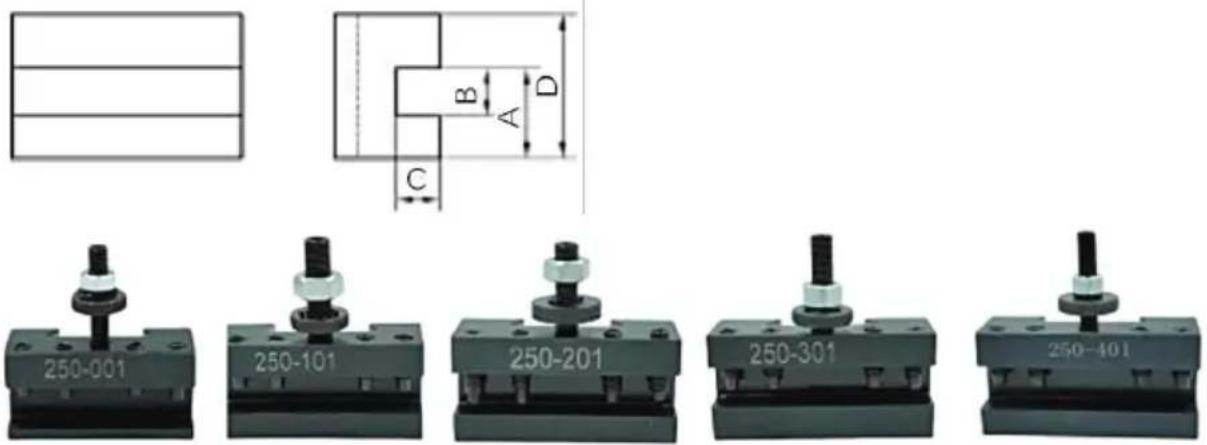

Turning and facing holder250-001, 250-101, 250-201, 250-301, 250-401

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0010.680.50.3271.13/16—1/2
250-10111/229/641—1/23/16—1/2
250-2011—1/85/81/21—3/41/4—5/8
250-3011—7/163/45/82—1/81/2—3/4
250-4011—12/3213/42—1/21/2—1

Suitable for any size smaller than max. height h.

Turning and facing holder

d, B, A, D, C

Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T'. No other text or symbols visible.

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"

Turning and facing holder

B, A, D, C

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes. No visible text or symbols.

ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

Boring, turning and facing holder

Scanned document with three horizontal lines of Chinese text, likely a form or template.

C, B, A, D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002'. No other text or symbols visible.

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102'. No other text or symbols visible.

Mechanical component with bolt and mounting bracket. No visible text or symbols.

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols).

Mechanical component with a cylindrical shaft and mounting base (no visible text or symbols).

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

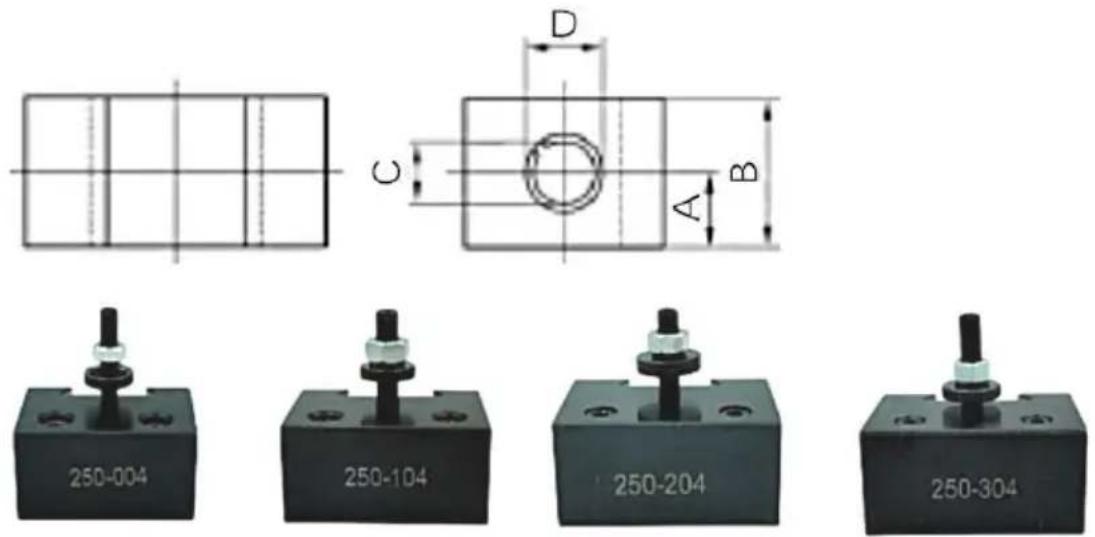

V groove holds round shank boring bars and tools as well as square tool bits to machine end face, external, cutting, boring etc.

Heavy Duty Boring Bar HolderVevor 250-1008 - Boring, turning and facing holder - 8

Split bushing suitable for small boring bars & drill

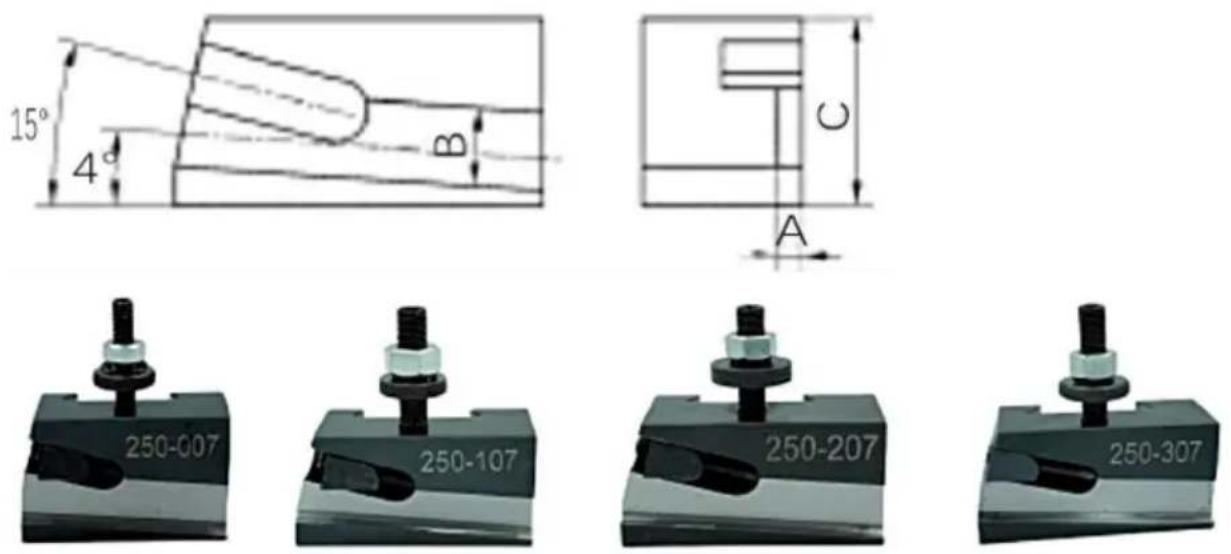

Universal parting blade tool holderVevor 250-1008 - Boring, turning and facing holder - 9

ORDER NO.ABCCLAMPING RANGETOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0100.531.771.183/16—1/21/2*3/16*3/16
250-1107/81—1/21—9/163/16—1/23/4*3/8*1/4
250-21012—5/81—3/41/4—5/8
250-3101—3/163—1/821/2—3/4
250-4101—7/163—3/42—1/21/2—1

It may be used for knurling, if square tool is used, it may process end face, external cutting, boring etc.

Lips: In order to provide better protection for your product, anti-rust oil will be applied, which may cause oil leakage.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor 250-1008 - Boring, turning and facing holder - 10

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor 250-1008 - Boring, turning and facing holder - 11

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

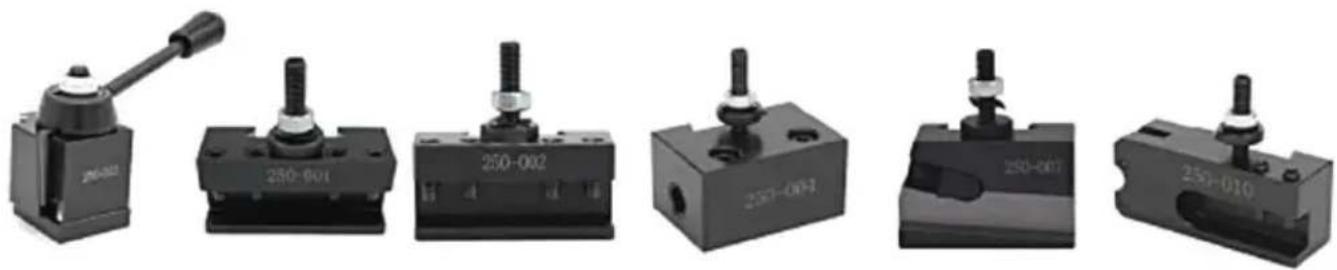

◆ PISTON-TYPE TOOL POST SETS

COMMANDENON.TOURÀBALANCEMENT6 PIÈCES CHAQUE ENSEMBLE COMPREND (6 PCS/ENSEMBLE)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CIIACUN 1F
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 1F
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 CHAQUE 1F
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 CIIAQUE 1F
COMMANDENON.TOURÀBALANCEMENT8 PIÈCES CHAQUE ENSEMBLE COMPREND (8 PCS/ENSEMBLE)
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CHACUN 1F250-101T*2 PCS
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 11250-201T*2 PCS

Five black industrial control switches with no visible text or symbols on their surfaces.

WEDGE-TYPE TOOL POST SETS

Mechanical tool with black housing and lever, labeled '150 400' (no other text or symbols visible).

C D A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes (no visible text or symbols).

Close-up of a mechanical component with a bolt and mounting base (no visible text or symbols).

Mechanical component with a black base and metallic fitting, labeled '250-201' (no other text or symbols visible).

Close-up of a black mechanical component with a cylindrical protrusion and mounting holes, labeled '250-301' (no other text or symbols visible).

Mechanical component with a black base and cylindrical protrusion, labeled '250-401'.

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0010.680.50.3271.13/16—1/2
250-10111/229/641—1/23/16—1/2
250-2011—1/85/81/21—3/41/4—5/8
250-3011—7/163/45/82—1/81/2—3/4
250-4011—12/3213/42—1/21/2—1
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a mechanical component with a bolt and mounting bracket.

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102'.

Mechanical component with bolt and mounting bracket.

Close-up of a mechanical component with a cylindrical protrusion and mounting base.

Mechanical component with a cylindrical shaft and mounting base.

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

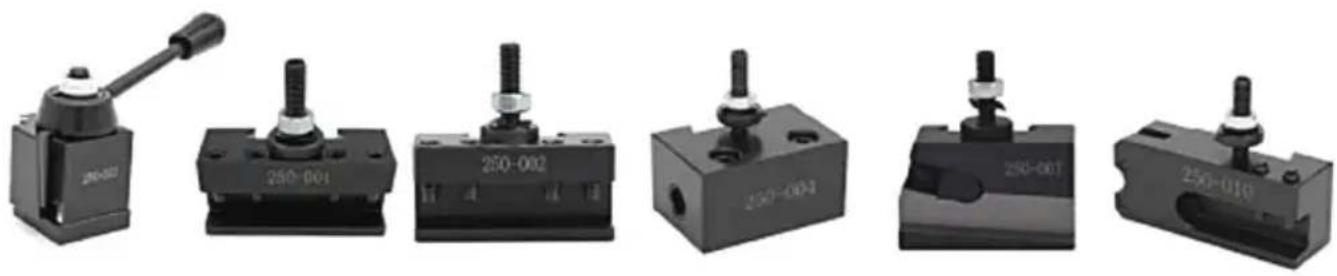

◆ PISTON-TYPE TOOL HOLDER SETS

BEFEHL NEIN.DREHBANK-SCHWENKENJEDES SET ENTHÄLT 6 STÜCKE (6 STÜCKE/SET)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310, je 1 Stück
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410, je 1 Stück
BEFEHL NEIN.DREHBANK-SCHWENKEN8 STÜCKE, JEDES SET ENTHÄLT (8 STÜCKE/SET)
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück250-101T*2 Stück
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück250-201T*2 Stück

Five black industrial control switches.

WEDGE-TYPE TOOL HOLDER SETS

Mechanical tool with black housing and lever, labeled '150 400'.

C D A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a cylindrical shaft and mounting base (no visible text or symbols)

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

◆ PISTON TYPE TOOL HOLDER SET

ORDINE NO.TORNIO ORIENTABILE6 PEZZI OGNI SET INCLUDE (6 PEZZI/SET)
250-100 (6)12"250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ
250-200 (6)10"-15"250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ
250-300 (6)13"-18"250-300、250-301、250-302、250-304、250-307、250-310 CTASCUNO 1PZ
250-400 (6)14"-20"250-400、250-401、250-402、250-404、250-407、250-410 CTASCUNO 1PZ
ORDINE NO.TORNIO ORIENTABILE8 PEZZI OGNI SET INCLUDE (8 PEZZI/SET)
250-100 (8)12"250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ250-101T*2 PZ
250-200 (8)10"-15"250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ250-201T*2 PZ

Five black industrial cutting tool holders with labeled mounting points, shown from different angles (no text or symbols on components)

WEDGE TYPE TOOL HOLDER SET

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C, B, A, D

Close-up of a mechanical component with a bolt and mounting bracket. No visible text or symbols.

Close-up of a mechanical clamp or bracket component with a bolt and nut, labeled '250-102'. No readable text beyond label.

Mechanical component with bolt and mounting bracket. No visible text or symbols.

Close-up of a mechanical component with a cylindrical protrusion and mounting base. No visible text or symbols.

Mechanical component with a cylindrical shaft and mounting base. No visible text or symbols.

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a cylindrical shaft and mounting base (no visible text or symbols)

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/641—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

◆ PISTON TYPE TOOL SETS

ZAMÓWIENIE NIE.HUŠTAWKA TOKARKI6 SZTUK W KAŻDYM ZESTAWIE ZAWIERA (6 SZT./ZESTAW)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAŻDY 1 SZT.
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAŻDY 1 SZT.
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 KAŻDY 1 SZT.
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 KAŻDY 1 SZT.
ZAMÓWIENIETOKARKAHUŠTAWKOWAKAŻDY ZESTAW ZAWIERA 8 ELEMENTÓW (8 SZT./ZESTAW)
NIE.
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAZDY 1 SZT.250-101T*2 SZT.
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAZDY 1 SZT.250-201T*2 SZT.

Five black industrial control switches with no visible text or symbols on their surfaces

WEDGE TYPE TOOL SETS

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols).

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible).

Mechanical component with a black base and cylindrical protrusion, labeled '250-202' (no other text or symbols visible).

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols).

Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible).

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

QUICK CHANGE TOOL POST

Functions:

PISTON TYPE TOOL POST SETS

WEDGE TYPE TOOL POST SETS

Mechanical tool with black housing and lever, labeled '150 400' (no other text or symbols visible).

C D A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical clamp or bracket component with a bolt and nut, labeled '250-102' (no readable text beyond label)

Mechanical component with bolt and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Mechanical component with a cylindrical shaft and mounting base (no visible text or symbols)

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

QUICK CHANGE TOOL POST

Drag:

◆ QUICK CHANGE TOOL POST SET

BESTÄLLAINGA.VARVGUNG6 DELAR VARJE SET INGÅR (6 STK/SET)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 VARJE 1 ST
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 VARJE 1 ST
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 VARJE 1 ST
BESTÄLLAINGA.VARVGUNG8 DELAR VARJE SET INGÅR (8 st/SET)
250-100 (8)12"250-100、250-101、250-102、250-104、250-107、250-110 VARJE 1 S'250-101T*2 STK
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST250-201T*2 STK

Six black industrial cutting tool holders with different mounting brackets, shown from different angles (no text or symbols visible)

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols).

Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible).

Mechanical component with bolt and mounting bracket (no visible text or symbols).

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols).

Mechanical component with a cylindrical shaft and mounting base (no visible text or symbols).

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : 250-1008

Category : DIY tool
